2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#128784) — 24 parça

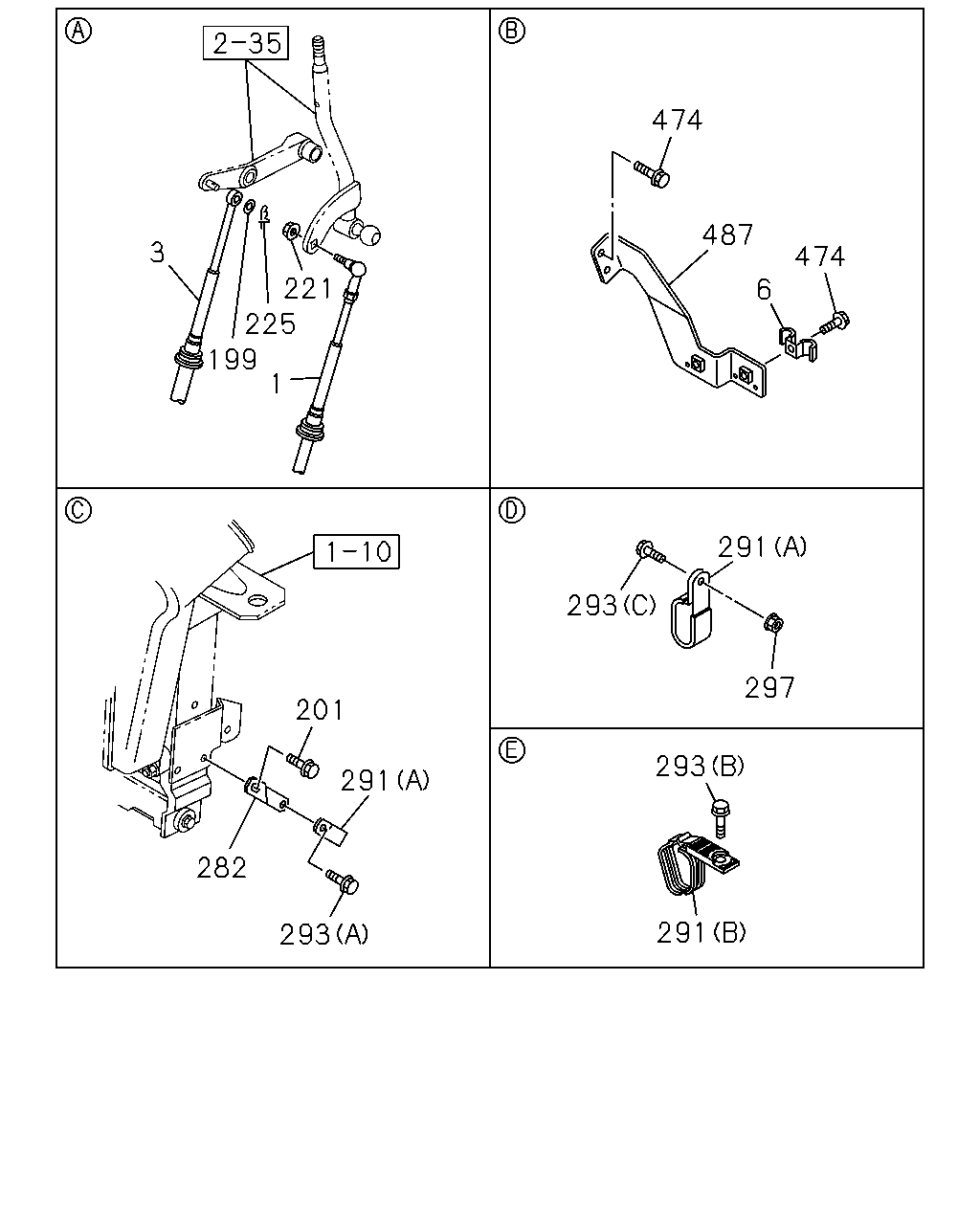

çizim 380590
291 293 297 293 291 6 474 487 474 3 199 225 221 1 201 291 293 282
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3500 		8-98071-386-3 01 1 1310-
3 CABLE; SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3725 		8-98071-388-2 01 1 1310-
6 CLIP; CABLE
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 1310-
199 WASHER; PL,SELECT
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=8.4 OD=16 		0-91614-508-0 01 1 1310-
201 BOLT; BRKT
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE 		0-28050-816-0 01 1 1310-
221 NUT; SHIFT WIRE TO LEVER
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		1-09440-062-1 01 1 1310-
225 PIN; SELECT CABLE
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=27.7 		8-94111-137-0 01 1 1310-
282 BRACKET; TRANS SIDE
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98010-418-0 01 1 1310-
291 CLIP; SHIFT TO SELECT,FRAME
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=11X2 L=16 		0-95325-026-0 02 1 1310-
291 CLIP; SHIFT TO SELECT,FRAME
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1310-
293 BOLT; CLIP,SHIFT TO SELECT
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1310-
293 BOLT; CLIP,SHIFT TO SELECT
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X20 FLANGE 		0-28050-820-0 01 1 1310-
293 BOLT; CLIP,SHIFT TO SELECT
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M8X20 FLANGE 		0-28650-820-0 01 1 1310-
297 NUT; CLIP
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		0-91180-108-0 01 1 1310-
474 BOLT; BRKT
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WASHER 		0-51640-825-0 01 1 1310-
474 BOLT; BRKT
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WASHER 		0-51640-825-0 02 1 1310-
474 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ASSISTOR SHIFT CONTROL<WX8> M8X25 W/WASHER 		0-51640-825-0 02 1 1310-
487 BRACKET; CONT CABLE
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98183-009-0 01 1 1310-
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ASSISTOR SHIFT CONTROL<WX8> 		8-98183-009-0 01 1 1310-

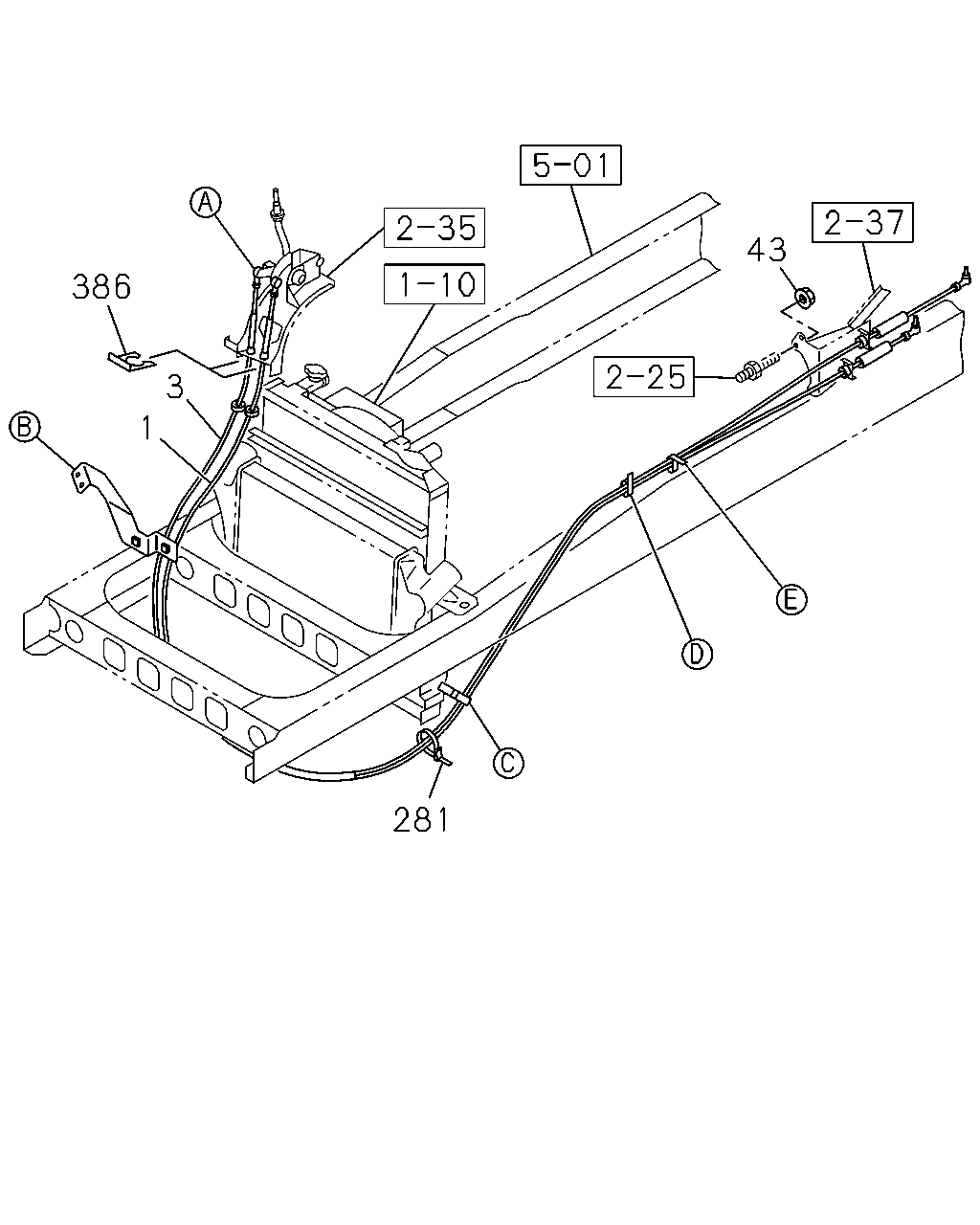

çizim 380742
43 386 3 1 281
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3500 		8-98071-386-3 01 1 1310-
3 CABLE; SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3725 		8-98071-388-2 01 1 1310-
43 NUT; BRKT
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE 		0-91180-210-0 02 1 1310-
281 CLIP; BAND
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=300 		1-09707-001-1 01 1 1310-
386 CLIP; CONT CABLE & TUBE
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-09700-966-1 02 1 1310-
