1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#12878) — 42 parça

42 74 74 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	VALVE; EXH BRAKE	8-98054-173-6	01	1	0807-1302	●	●
6	VALVE; EXH BRAKE	8-98233-801-0	01	1	1303-	●	●
42	HOSE; FLEX,EXH BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=480 THA	1-09363-659-0	01	1	1108-	●	●
42	HOSE; FLEX,EXH BRK ZF9S1110 M/T<Y5E> L=310	1-09363-713-0	01	1	1103-1107	●	●
42	HOSE; FLEX,EXH BRK ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=310	1-09363-713-0	01	1	1108-	●	●
42	HOSE; FLEX,EXH BRK L=400	1-09363-743-0	01	1	0807-0808	●	●
42	HOSE; FLEX,EXH BRK L=380	1-09363-919-0	01	1	0809-1102	●	●
42	HOSE; FLEX,EXH BRK MZW6P M/T<RSZ> L=360	1-09363-637-0	01	1	1103-1107	●	●
42	HOSE; FLEX,EXH BRK MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=360	1-09363-637-0	01	1	1108-	●	●
74	CONNECTOR; EXH BRK VLV ZF9S1110 M/T<Y5E> (B) M12 & PT1/4 STRAIGHT THA	1-09650-074-1	01	1	1103-	●	●
74	CONNECTOR; EXH BRK VLV (A) M12 & PT1/4 ELBOW THA	1-09650-430-0	01	1	0807-1102	●	●
74	CONNECTOR; EXH BRK VLV MZW6P M/T<RSZ> (A) M12 & PT1/4 ELBOW THA	1-09650-430-0	01	1	1103-	●	●

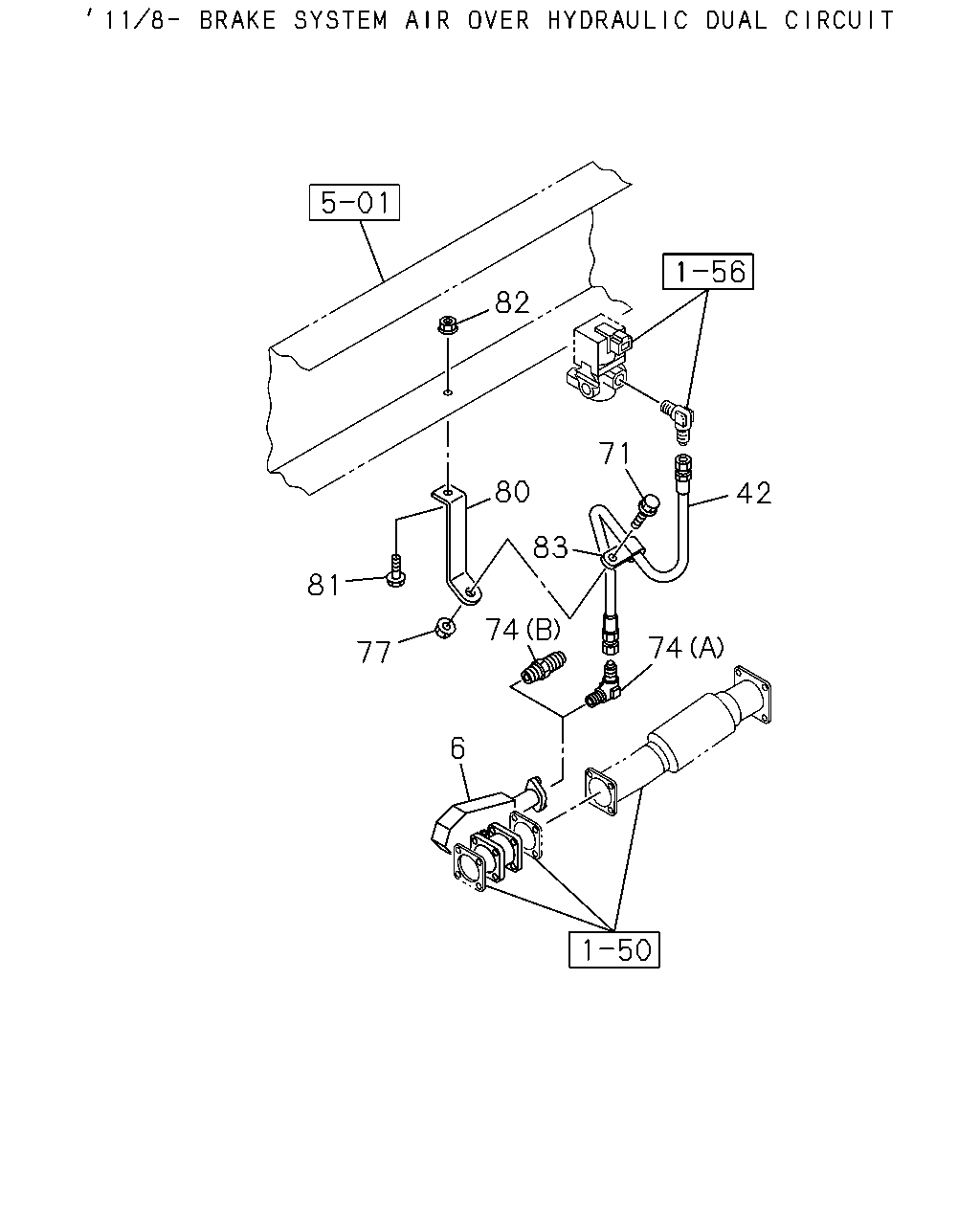

82 71 80 42 83 81 74 74 77 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	VALVE; EXH BRAKE	8-98054-173-6	01	1	0807-1302	●	●
6	VALVE; EXH BRAKE	8-98233-801-0	01	1	1303-	●	●
42	HOSE; FLEX,EXH BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=480 THA	1-09363-659-0	01	1	1108-	●	●
42	HOSE; FLEX,EXH BRK ZF9S1110 M/T<Y5E> L=310	1-09363-713-0	01	1	1103-1107	●	●
42	HOSE; FLEX,EXH BRK ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=310	1-09363-713-0	01	1	1108-	●	●
42	HOSE; FLEX,EXH BRK L=400	1-09363-743-0	01	1	0807-0808	●	●
42	HOSE; FLEX,EXH BRK L=380	1-09363-919-0	01	1	0809-1102	●	●
42	HOSE; FLEX,EXH BRK MZW6P M/T<RSZ> L=360	1-09363-637-0	01	1	1103-1107	●	●
42	HOSE; FLEX,EXH BRK MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=360	1-09363-637-0	01	1	1108-	●	●
71	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X25 FLANGE THA	0-28650-825-0	01	1	1108-	●	●
74	CONNECTOR; EXH BRK VLV ZF9S1110 M/T<Y5E> (B) M12 & PT1/4 STRAIGHT THA	1-09650-074-1	01	1	1103-	●	●
74	CONNECTOR; EXH BRK VLV (A) M12 & PT1/4 ELBOW THA	1-09650-430-0	01	1	0807-1102	●	●
74	CONNECTOR; EXH BRK VLV MZW6P M/T<RSZ> (A) M12 & PT1/4 ELBOW THA	1-09650-430-0	01	1	1103-	●	●
77	NUT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8 FLANGE THA	0-91180-108-0	01	1	1108-	●	●
80	BRACKET; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>	8-98169-407-0	01	1	1108-	●	●
81	BOLT; HOSE BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X30 FLANGE THA	0-28650-830-0	01	1	1108-	●	●
82	NUT; HOSE BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8 FLANGE THA	0-91180-108-0	01	1	1108-	●	●
83	CLIP; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> ID=11 L=50	0-95235-085-0	01	1	1108-	●	●

42 74 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	VALVE; EXH BRAKE	8-98054-173-6	01	1	0807-1302	●	●
6	VALVE; EXH BRAKE	8-98233-801-0	01	1	1303-	●	●
42	HOSE; FLEX,EXH BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=480 THA	1-09363-659-0	01	1	1108-	●	●
42	HOSE; FLEX,EXH BRK ZF9S1110 M/T<Y5E> L=310	1-09363-713-0	01	1	1103-1107	●	●
42	HOSE; FLEX,EXH BRK ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=310	1-09363-713-0	01	1	1108-	●	●
42	HOSE; FLEX,EXH BRK L=400	1-09363-743-0	01	1	0807-0808	●	●
42	HOSE; FLEX,EXH BRK L=380	1-09363-919-0	01	1	0809-1102	●	●
42	HOSE; FLEX,EXH BRK MZW6P M/T<RSZ> L=360	1-09363-637-0	01	1	1103-1107	●	●
42	HOSE; FLEX,EXH BRK MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=360	1-09363-637-0	01	1	1108-	●	●
74	CONNECTOR; EXH BRK VLV ZF9S1110 M/T<Y5E> (B) M12 & PT1/4 STRAIGHT THA	1-09650-074-1	01	1	1103-	●	●
74	CONNECTOR; EXH BRK VLV (A) M12 & PT1/4 ELBOW THA	1-09650-430-0	01	1	0807-1102	●	●
74	CONNECTOR; EXH BRK VLV MZW6P M/T<RSZ> (A) M12 & PT1/4 ELBOW THA	1-09650-430-0	01	1	1103-	●	●
