◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11129 - FVM(THAI)EURO3 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#12877) — 196 parça
çizim 98268
11 415 97 22 105 128 12 506 126 17
BalonParca AdiParca NoAdetTipApplied Date
11 PIPE; EXH,RR
THA 		8-97924-542-0 01 1 0807-1107
11 PIPE; EXH,RR
WHEEL BASE 5500MM<55W>,WHEEL BASE 5800MM<58W>, WHEELBASE 6300MM<63W> THA 		8-97924-542-0 01 1 1108-1302
11 PIPE; EXH,RR
WHEEL BASE 5500MM<55W>,WHEEL BASE 5800MM<58W>, WHEELBASE 6300MM<63W> THA 		8-97926-595-0 01 1 1303-
12 SILENCER ASM; EXH
WHEEL BASE 7100MM<71W> 		8-98200-675-0 01 1 1110-1110
12 SILENCER ASM; EXH 8-98090-389-1 01 1 0807-1109
12 SILENCER ASM; EXH
WHEEL BASE 5500MM<55W>,WHEEL BASE 5800MM<58W>, WHEELBASE 6300MM<63W> 		8-98090-389-1 01 1 1110-1110
12 SILENCER ASM; EXH 8-98090-389-2 01 1 1110-
17 BOLT; EXH PIPE
(A) M12X35 		0-20851-235-0 03 1 0807-1102
17 BOLT; EXH PIPE
(A) M12X35 FLANGE THA 		0-28051-235-0 03 1 1103-1203
17 BOLT; EXH PIPE
(A) M12X35 FLANGE THA 		0-28051-235-0 07 1 1204-
17 BOLT; EXH PIPE
(B) M10X35 FLANGE THA 		0-28651-035-0 02 1 0807-
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 1306-
22 CLAMP; EXH PIPE
(C) 		8-97615-334-0 01 1 1305-
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 0807-1102
22 CLAMP; EXH PIPE
WHEEL BASE 5500MM<55W>,WHEEL BASE 5800MM<58W>, WHEELBASE 6300MM<63W> (A) ID=80-84 		1-22133-233-0 02 1 1103-1109
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 1110-1305
22 CLAMP; EXH PIPE
(B) THA 		8-97917-678-1 01 1 0807-1107
22 CLAMP; EXH PIPE
WHEEL BASE 5500MM<55W>,WHEEL BASE 5800MM<58W>, WHEELBASE 6300MM<63W> (B) THA 		8-97917-678-1 01 1 1108-
97 WASHER; PL,CLAMP
ID=10.5 OD=26 		9-09160-710-0 01 1 0807-1109
97 WASHER; PL,CLAMP
WHEEL BASE 5500MM<55W>,WHEEL BASE 5800MM<58W>, WHEELBASE 6300MM<63W> ID=10.5 OD=26 		9-09160-710-0 01 1 1110-
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1310-
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 01 1 0807-1107
105 NUT; CLAMP
WHEEL BASE 5500MM<55W>,WHEEL BASE 5800MM<58W>, WHEELBASE 6300MM<63W> M10 FLANGE THA 		0-91180-210-0 01 1 1108-
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 0807-1102
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1103-1305
126 PIPE; EXH,RR
WHEEL BASE 7100MM<71W> 		1-22126-108-1 01 1 1110-
128 PIPE; EXH,RR
WHEEL BASE 5500MM<55W> THA 		8-98060-295-0 01 1 0807-
128 PIPE; EXH,RR
WHEEL BASE 5800MM<58W> THA 		8-98060-296-0 01 1 0807-
128 PIPE; EXH,RR
WHEEL BASE 6300MM<63W> THA 		8-98060-297-0 01 1 0807-
415 BOLT; CLAMP
M10X35 FLANGE THA 		0-28651-035-0 01 1 0807-1107
415 BOLT; CLAMP
WHEEL BASE 5500MM<55W>,WHEEL BASE 5800MM<58W>, WHEELBASE 6300MM<63W> M10X35 FLANGE THA 		0-28651-035-0 01 1 1108-
506 BRACKET; STUD
(B) 		8-97615-333-1 01 1 1305-
506 BRACKET; STUD
(A) M12X35 		1-22131-963-0 02 1 0807-1203

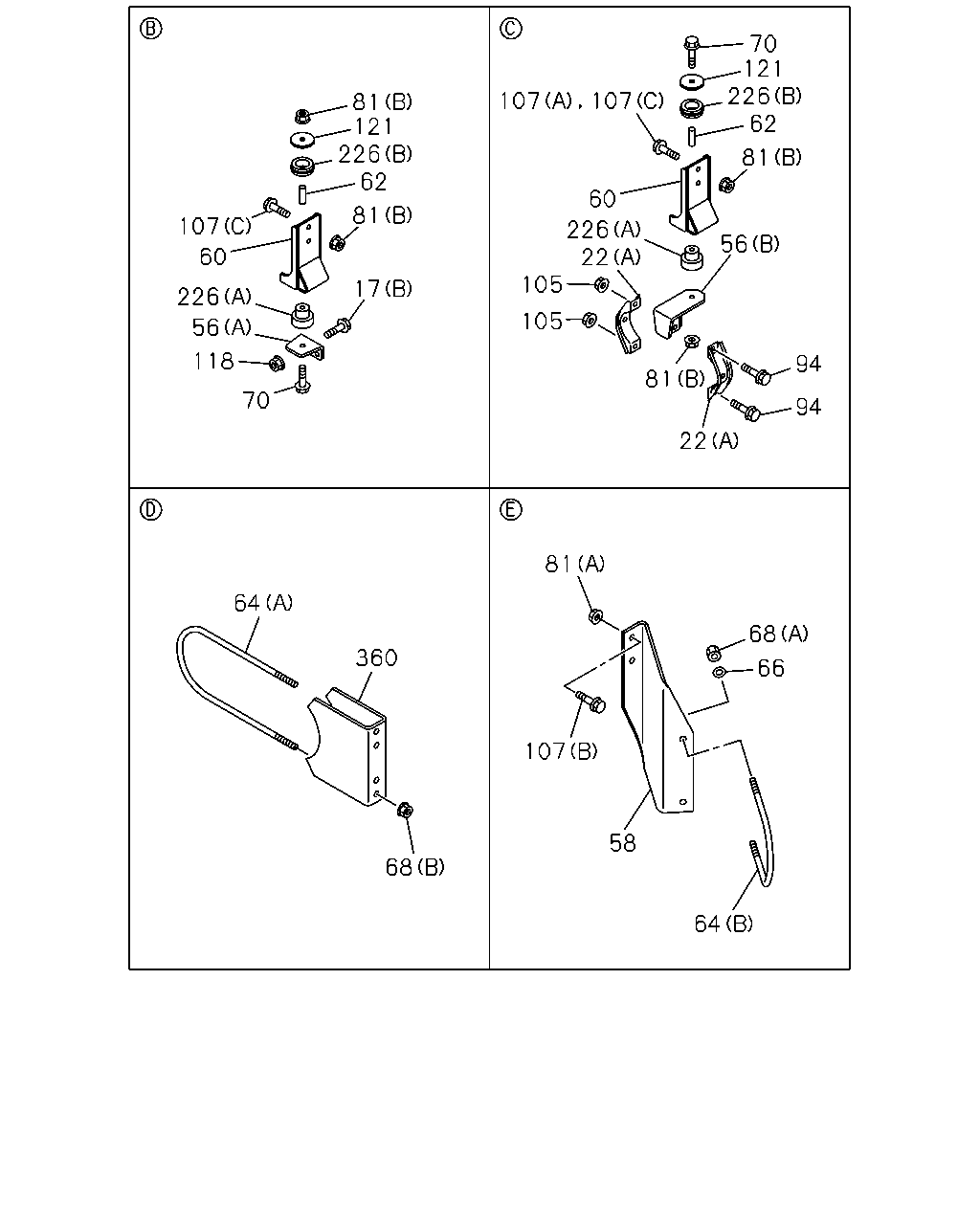

çizim 107095
70 121 226 62 107 107 81 121 226 62 81 60 81 107 22 2 56 60 105 17 226 105 56 118 94 81 70 94 22 81 64 68 360 66 107 58 68 64
BalonParca AdiParca NoAdetTipApplied Date
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). ID=81 		8-98043-481-0 01 1 0807-
17 BOLT; EXH PIPE
(A) M12X35 		0-20851-235-0 03 1 0807-1102
17 BOLT; EXH PIPE
(A) M12X35 FLANGE THA 		0-28051-235-0 03 1 1103-1203
17 BOLT; EXH PIPE
(A) M12X35 FLANGE THA 		0-28051-235-0 07 1 1204-
17 BOLT; EXH PIPE
(B) M10X35 FLANGE THA 		0-28651-035-0 02 1 0807-
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 1306-
22 CLAMP; EXH PIPE
(C) 		8-97615-334-0 01 1 1305-
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 0807-1102
22 CLAMP; EXH PIPE
WHEEL BASE 5500MM<55W>,WHEEL BASE 5800MM<58W>, WHEELBASE 6300MM<63W> (A) ID=80-84 		1-22133-233-0 02 1 1103-1109
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 1110-1305
22 CLAMP; EXH PIPE
(B) THA 		8-97917-678-1 01 1 0807-1107
22 CLAMP; EXH PIPE
WHEEL BASE 5500MM<55W>,WHEEL BASE 5800MM<58W>, WHEELBASE 6300MM<63W> (B) THA 		8-97917-678-1 01 1 1108-
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22152-324-0 01 1 1306-
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98245-536-0 01 1 1306-
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22152-324-0 01 1 0807-1305
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98070-639-0 01 1 0807-1102
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98070-639-0 01 1 1103-1305
58 BRACKET; EXH PIPE,RR
THA 		8-97917-748-0 01 1 0807-1107
58 BRACKET; EXH PIPE,RR
WHEEL BASE 5500MM<55W>,WHEEL BASE 5800MM<58W>, WHEELBASE 6300MM<63W> THA 		8-97917-748-0 01 1 1108-
60 BRACKET; FRAME TO BRKT 8-98245-532-0 01 1 1306-
60 BRACKET; FRAME TO BRKT 8-98245-532-0 01 1 1306-
60 BRACKET; FRAME TO BRKT 8-98070-628-0 01 1 0807-1102
60 BRACKET; FRAME TO BRKT 8-98070-628-0 01 1 0807-1102
60 BRACKET; FRAME TO BRKT 8-98070-628-0 01 1 1103-1305
60 BRACKET; FRAME TO BRKT 8-98070-628-0 01 1 1103-1305
62 TUBE; DIST,BRKT
L=39 		8-98060-852-0 01 1 1310-
62 TUBE; DIST,BRKT
L=39 		8-98060-852-0 01 1 1310-
62 TUBE; DIST,BRKT
L=39 		8-98060-852-0 01 1 0807-1102
62 TUBE; DIST,BRKT
L=39 		8-98060-852-0 01 1 0807-1102
62 TUBE; DIST,BRKT
L=39 		8-98060-852-0 01 1 1103-1305
62 TUBE; DIST,BRKT
L=39 		8-98060-852-0 01 1 1103-1305
64 U-BOLT; EXH PIPE,RR
(A) THA 		1-22113-063-1 02 1 0807-0903
64 U-BOLT; EXH PIPE,RR
(A) THA 		8-97917-676-0 02 1 0904-1107
64 U-BOLT; EXH PIPE,RR
WHEEL BASE 5500MM<55W>,WHEEL BASE 5800MM<58W>, WHEELBASE 6300MM<63W> (A) THA 		8-97917-676-0 02 1 1108-1304
64 U-BOLT; EXH PIPE,RR
WHEEL BASE 5500MM<55W>,WHEEL BASE 5800MM<58W>, WHEELBASE 6300MM<63W> (A) THA 		8-97926-650-0 02 1 1305-
64 U-BOLT; EXH PIPE,RR
(B) THA 		8-97917-749-0 01 1 0807-1107
64 U-BOLT; EXH PIPE,RR
WHEEL BASE 5500MM<55W>,WHEEL BASE 5800MM<58W>, WHEELBASE 6300MM<63W> (B) THA 		8-97917-749-0 01 1 1108-1304
64 U-BOLT; EXH PIPE,RR
WHEEL BASE 5500MM<55W>,WHEEL BASE 5800MM<58W>, WHEELBASE 6300MM<63W> (B) THA 		8-97926-652-0 01 1 1305-
66 WASHER; LK,U BOLT
ID=8.2 THA 		0-91510-508-0 02 1 0807-1107
66 WASHER; LK,U BOLT
WHEEL BASE 5500MM<55W>,WHEEL BASE 5800MM<58W>, WHEELBASE 6300MM<63W> ID=8.2 THA 		0-91510-508-0 02 1 1108-
68 NUT; U BOLT
(A) M8 THA 		0-91110-508-0 02 1 0807-1107
68 NUT; U BOLT
WHEEL BASE 5500MM<55W>,WHEEL BASE 5800MM<58W>, WHEELBASE 6300MM<63W> (A) M8 THA 		0-91110-508-0 02 1 1108-
68 NUT; U BOLT
(B) M8 FLANGE THA 		0-91180-108-0 04 1 0807-1107
68 NUT; U BOLT
WHEEL BASE 5500MM<55W>,WHEEL BASE 5800MM<58W>, WHEELBASE 6300MM<63W> (B) M8 FLANGE THA 		0-91180-108-0 04 1 1108-
70 BOLT; BRKT
M10X70 FLANGE THA 		0-28051-070-0 01 1 1310-
70 BOLT; BRKT
M10X70 FLANGE THA 		0-28051-070-0 01 1 1310-
70 BOLT; BRKT
M10X70 FLANGE THA 		0-28051-070-0 01 1 0807-1102
70 BOLT; BRKT
M10X70 FLANGE THA 		0-28051-070-0 01 1 0807-1102
70 BOLT; BRKT
M10X70 FLANGE THA 		0-28051-070-0 01 1 1103-1305
70 BOLT; BRKT
M10X70 FLANGE THA 		0-28051-070-0 01 1 1103-1305
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 01 1 1310-
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 01 1 1310-
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 04 1 1303-
81 NUT; BRKT
(C) M10 FLANGE THA 		0-91180-110-0 02 1 1305-
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 02 1 1305-
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 02 1 1305-
81 NUT; BRKT
(A) M8 FLANGE THA 		0-91180-108-0 02 1 0807-1107
81 NUT; BRKT
WHEEL BASE 5500MM<55W>,WHEEL BASE 5800MM<58W>, WHEELBASE 6300MM<63W> (A) M8 FLANGE THA 		0-91180-108-0 02 1 1108-
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 01 1 0807-1102
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 01 1 0807-1102
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 01 1 1103-1305
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 01 1 1103-1305
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 02 1 0807-1302
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 02 1 0807-1302
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 02 1 1303-
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 02 1 1310-
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 02 1 0807-1102
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 02 1 1103-1305
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1310-
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 01 1 0807-1107
105 NUT; CLAMP
WHEEL BASE 5500MM<55W>,WHEEL BASE 5800MM<58W>, WHEELBASE 6300MM<63W> M10 FLANGE THA 		0-91180-210-0 01 1 1108-
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 0807-1102
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1103-1305
107 BOLT; BRKT
(A) M10X35 FLANGE THA 		0-28051-035-0 02 1 0807-0809
107 BOLT; BRKT
(B) M8X30 FLANGE THA 		0-28650-830-0 02 1 0807-1107
107 BOLT; BRKT
WHEEL BASE 5500MM<55W>,WHEEL BASE 5800MM<58W>, WHEELBASE 6300MM<63W> (B) M8X30 FLANGE THA 		0-28650-830-0 02 1 1108-
107 BOLT; BRKT
(C) M10X35 FLANGE THA 		0-28651-035-0 02 1 0807-0809
107 BOLT; BRKT
(C) M10X35 FLANGE THA 		0-28651-035-0 04 1 0810-
118 NUT; SILENCER MTG BRKT
M10 FLANGE THA 		0-91180-210-0 02 1 0807-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1310-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1310-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 0807-1102
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 0807-1102
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1103-1305
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1103-1305
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0807-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0807-
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0807-
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0807-
360 PIECE; DIST,EXH PIPE
THA 		8-97917-674-1 02 1 0807-1107
360 PIECE; DIST,EXH PIPE
WHEEL BASE 5500MM<55W>,WHEEL BASE 5800MM<58W>, WHEELBASE 6300MM<63W> THA 		8-97917-674-1 02 1 1108-

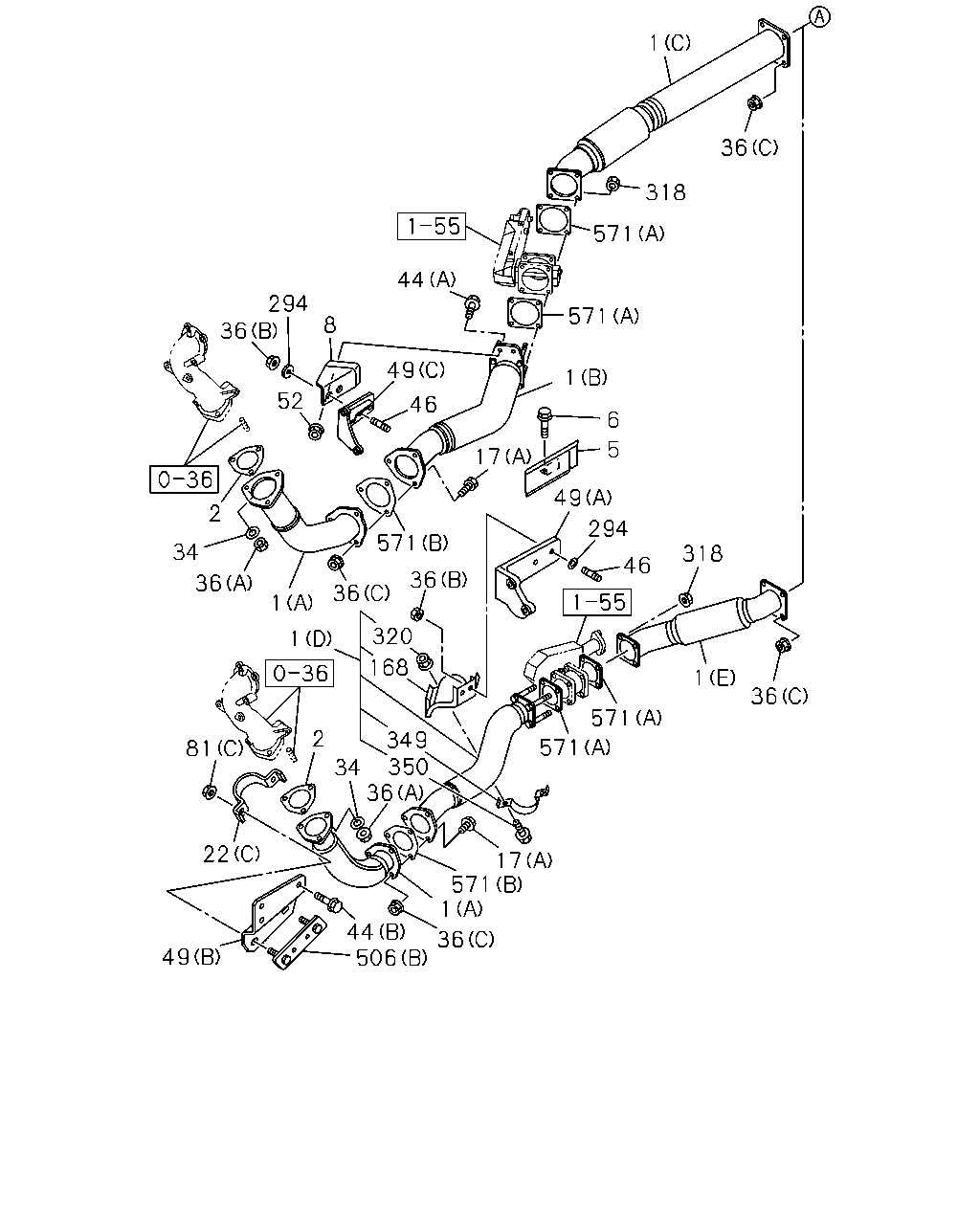

çizim 107139
49 506 44 36 1 571 17 22 81 2 34 36 350 349 168 320 1 1 36 571 36 571 571 1 36 318 46 294 49 5 6 17 1 571 571 318 36 1 46 44 8 294 36 52 2 34 36 49
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
MZW6P M/T<RSZ> (D) 		8-98119-515-0 01 1 1103-1209
1 PIPE; EXH
MZW6P M/T<RSZ> (D) 		8-98230-001-0 01 1 1210-1309
1 PIPE; EXH
6HK1-TCN ENG<82L> (D) 		8-98245-502-0 01 1 1310-1406
1 PIPE; EXH
6HK1-TCN ENG<82L> (D) 		8-98234-516-1 01 1 1407-
1 PIPE; EXH
(A) 		8-98073-006-3 01 1 1103-
1 PIPE; EXH
ZF9S1110 M/T<Y5E> (A) 		8-98245-500-0 01 1 1310-
1 PIPE; EXH
(B) THA 		8-97924-536-1 01 1 0807-1102
1 PIPE; EXH
ZF9S1110 M/T<Y5E> (B) THA 		8-97924-536-1 01 1 1103-
1 PIPE; EXH
(A) THA 		8-98090-385-0 01 1 0807-1102
1 PIPE; EXH
MZW6P M/T<RSZ> (E) THA 		8-98096-668-2 01 1 1103-
1 PIPE; EXH
(C) THA 		8-98090-386-0 01 1 0807-1102
1 PIPE; EXH
ZF9S1110 M/T<Y5E> (C) THA 		8-98090-386-0 01 1 1103-
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). ID=81 		8-98043-481-0 01 1 0807-
5 PROTECTOR; HEAT
ANTI LOCK BRAKE<JE5> 		8-98073-436-0 01 1 0809-1406
5 PROTECTOR; HEAT
ANTI LOCK BRAKE<JE5> 		8-98255-001-0 01 1 1407-
6 BOLT; HEAT PROTECTOR
ANTI LOCK BRAKE<JE5> M8X25 FLANGE THA 		0-28650-825-0 02 1 0808-
8 BRACKET; EXH PIPE
ZF6S1000 M/T<Y5D> 		8-98090-388-0 01 1 0807-1102
8 BRACKET; EXH PIPE
ZF9S1110 M/T<Y5E> 		8-98070-600-0 01 1 0807-0808
8 BRACKET; EXH PIPE
ZF9S1110 M/T<Y5E> 		8-98120-522-0 01 1 0809-
17 BOLT; EXH PIPE
(A) M12X35 		0-20851-235-0 03 1 0807-1102
17 BOLT; EXH PIPE
(A) M12X35 FLANGE THA 		0-28051-235-0 03 1 1103-1203
17 BOLT; EXH PIPE
(A) M12X35 FLANGE THA 		0-28051-235-0 07 1 1204-
17 BOLT; EXH PIPE
(B) M10X35 FLANGE THA 		0-28651-035-0 02 1 0807-
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 1306-
22 CLAMP; EXH PIPE
(C) 		8-97615-334-0 01 1 1305-
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 0807-1102
22 CLAMP; EXH PIPE
WHEEL BASE 5500MM<55W>,WHEEL BASE 5800MM<58W>, WHEELBASE 6300MM<63W> (A) ID=80-84 		1-22133-233-0 02 1 1103-1109
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 1110-1305
22 CLAMP; EXH PIPE
(B) THA 		8-97917-678-1 01 1 0807-1107
22 CLAMP; EXH PIPE
WHEEL BASE 5500MM<55W>,WHEEL BASE 5800MM<58W>, WHEELBASE 6300MM<63W> (B) THA 		8-97917-678-1 01 1 1108-
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 0807-
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 0807-
36 NUT; EXH PIPE
(B) M10 FLANGE THA 		0-91180-210-0 02 1 0807-
36 NUT; EXH PIPE
(C) M12 FLANGE THA 		0-91180-212-0 07 1 0807-
44 BOLT; BRKT
(B) M10X20 FLANGE THA 		0-28751-020-0 03 1 1305-
44 BOLT; BRKT
(A) M10X35 FLANGE THA 		0-28651-035-0 02 1 0807-1102
44 BOLT; BRKT
ZF9S1110 M/T<Y5E> (A) M10X30 FLANGE THA 		0-28651-030-0 02 1 1103-
46 BOLT; BRKT,EXH PIPE
STUD M10X25 L=40 THA 		0-44011-025-0 02 1 0809-
49 BRACKET; EXH PIPE TO TRANS
(B) 		8-97629-970-0 01 1 1305-
49 BRACKET; EXH PIPE TO TRANS
ZF6S1000 M/T<Y5D> (A) 		8-98090-387-0 01 1 0807-0808
49 BRACKET; EXH PIPE TO TRANS
ZF6S1000 M/T<Y5D> (A) 		8-98123-994-0 01 1 0809-1102
49 BRACKET; EXH PIPE TO TRANS
MZW6P M/T<RSZ> (C) 		8-98120-493-0 01 1 1103-
49 BRACKET; EXH PIPE TO TRANS
ZF9S1110 M/T<Y5E> (A) 		8-98069-944-1 01 1 0807-0808
49 BRACKET; EXH PIPE TO TRANS
ZF9S1110 M/T<Y5E> (A) 		8-98120-497-0 01 1 0809-
52 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 02 1 0807-1102
52 NUT; BRKT
ZF9S1110 M/T<Y5E> M10 FLANGE THA 		0-91180-210-0 02 1 1103-
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 01 1 1310-
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 01 1 1310-
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 04 1 1303-
81 NUT; BRKT
(C) M10 FLANGE THA 		0-91180-110-0 02 1 1305-
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 02 1 1305-
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 02 1 1305-
81 NUT; BRKT
(A) M8 FLANGE THA 		0-91180-108-0 02 1 0807-1107
81 NUT; BRKT
WHEEL BASE 5500MM<55W>,WHEEL BASE 5800MM<58W>, WHEELBASE 6300MM<63W> (A) M8 FLANGE THA 		0-91180-108-0 02 1 1108-
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 01 1 0807-1102
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 01 1 0807-1102
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 01 1 1103-1305
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 01 1 1103-1305
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 02 1 0807-1302
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 02 1 0807-1302
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 02 1 1303-
168 BRACKET; EXH PIPE,FRT
MZW6P M/T<RSZ> 		8-98071-144-0 01 1 1103-1209
168 BRACKET; EXH PIPE,FRT
MZW6P M/T<RSZ> 		8-98221-369-1 01 1 1210-
294 WASHER; PL,CLAMP TO BRKT,EXH PIPE
ID=10.5 		8-98073-091-0 02 1 0807-
318 NUT; EXH PIPE,FRT
M10 FLANGE THA 		0-91180-210-0 04 1 0807-
320 NUT; CLAMP,EXH PIPE
MZW6P M/T<RSZ> M10 FLANGE THA 		0-91180-210-0 02 1 1103-
349 CLAMP; EXH PIPE
MZW6P M/T<RSZ> 		8-98115-162-0 01 1 1103-
350 BOLT; CLAMP,EXH PIPE
MZW6P M/T<RSZ> M10X30 FLANGE THA 		0-28651-030-0 02 1 1103-
506 BRACKET; STUD
(B) 		8-97615-333-1 01 1 1305-
506 BRACKET; STUD
(A) M12X35 		1-22131-963-0 02 1 0807-1203
571 GASKET
(A) ID=85.8 		1-22116-043-0 02 1 0807-
571 GASKET
(B) ID=81 		8-98043-481-0 01 1 0807-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
