Isuzu WW
▶
TRUCKS
▶
FSR
▶
11554 - FSR-R EU5 EXC.SPACE
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-31 - AIR DUCT
▶
1-31 — AIR DUCT
(#128765) — 48 parça
◀

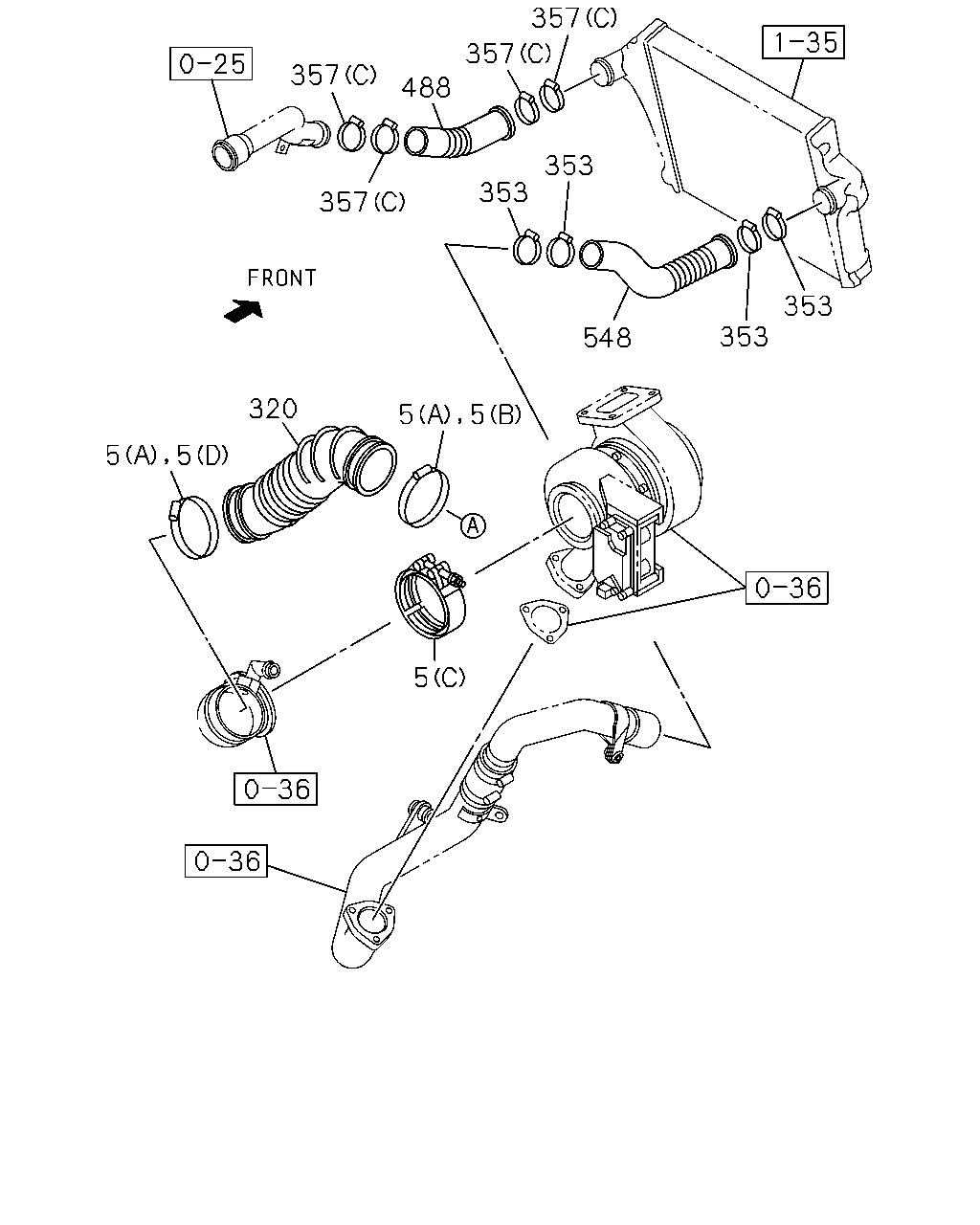

[131A] PIPING (14 parça)
[131A] DUCT FIXING (34 parça)
▶
5
320
357
357
488
357
357
353
353
548
353
5
5
5
353
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
CLIP; AIR DUCT
(C) ID=114
8-15178-030-0
01
1
1310-
5
CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (B) ID=110-130
8-98133-359-0
01
1
1310-
5
CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (D) ID=100-120
8-98133-366-0
01
1
1310-
5
CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142
1-09707-139-0
01
1
1310-
5
CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142
1-09707-139-0
01
1
1310-
320
HOSE; CONN,ACL
8-98077-619-1
01
1
1310-
353
CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> ID=55-75
8-98133-349-0
04
1
1310-
353
CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> ID=58-79
1-09707-136-0
04
1
1310-
357
CLIP; RUBBER HOSE
(A) ID=26
1-09707-091-0
01
1
1310-
357
CLIP; RUBBER HOSE
(B) ID=29.5
8-97354-979-0
01
1
1310-
357
CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (C) ID=55-75
8-98133-349-0
04
1
1310-
357
CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (C) ID=58-79
1-09707-136-0
04
1
1310-
488
HOSE; RUBBER,PIPE
8-98017-224-1
01
1
1310-
548
HOSE; RUBBER,TURBO TO INL PIPE
8-98017-223-2
01
1
1310-
48
58
245
49
56
56
49
58
242
58
56
56
49
242
61
26
560
450
316
58
49
242
252
71
174
543
543
209
296
210
357
379
357
159
424
225
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
26
DUCT; AIR INT
8-98010-361-2
01
1
1310-
48
BOLT; AIR DUCT
M10X60
1-09030-044-1
02
1
1310-
49
NUT; AIR DUCT
(B) M8 FLANGE
1-09984-122-0
01
1
1310-
49
NUT; AIR DUCT
(A) M8 FLANGE
1-09984-126-0
01
1
1310-
49
NUT; AIR DUCT
(C) M8 FLANGE
8-94279-517-0
02
1
1310-
56
WASHER; LK,AIR INT DUCT
(A) ID=8.2
1-09985-177-0
02
1
1310-
56
WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22
1-09985-188-0
02
1
1310-
58
SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5
1-14119-267-0
04
1
1310-
58
SUPPORT; AIR INL DUCT
(B)
8-98125-944-1
01
1
1310-
61
BOLT; BRKT,AIR DUCT
M8X25 FLANGE
8-98074-570-0
02
1
1310-
71
CLIP; AIR DUCT
ID=120-140
8-98133-367-0
01
1
1310-
159
BOLT; AIR PIPE
M6X16 FLANGE
0-28050-616-0
02
1
1310-
174
SENSOR; AIR FLOW CONT
KD PREPARATORY PACK<6HF> EXC. SPEED LIMITER 70KM(ECY)
8-97601-967-0
01
1
1310-
174
SENSOR; AIR FLOW CONT
EXC. KD PREPARATORY PACK<6HF>
8-97601-967-0
01
1
1310-
209
BRACKET; ACL
8-98099-677-0
01
1
1310-
210
BOLT; ACL BRKT
M10X25 FLANGE
0-28651-025-0
03
1
1310-
225
GASKET; AIR PIPE
ID=24.4
1-09623-057-0
01
1
1310-
242
BRACKET; AIR DUCT
(B)
8-98019-301-3
01
1
1310-
242
BRACKET; AIR DUCT
(C)
8-98019-302-1
01
1
1310-
242
BRACKET; AIR DUCT
(A)
8-98019-303-1
01
1
1310-
245
PIECE; DIST,AIR DUCT
1-79998-228-0
02
1
1310-
252
DUCT; AIR INT
8-98019-843-0
01
1
1310-
296
NUT; ACL
M8 FLANGE
0-91180-108-0
04
1
1310-
316
RUBBER; CUSHION,DUCT
8-98152-269-0
01
1
1310-
357
CLIP; RUBBER HOSE
(A) ID=26
1-09707-091-0
01
1
1310-
357
CLIP; RUBBER HOSE
(B) ID=29.5
8-97354-979-0
01
1
1310-
357
CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (C) ID=55-75
8-98133-349-0
04
1
1310-
357
CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (C) ID=58-79
1-09707-136-0
04
1
1310-
379
HOSE; RUBBER
8-98063-172-0
01
1
1310-
424
PIPE; AIR,INL
8-98081-834-0
01
1
1310-
450
CLAMP; HOSE
9-09915-504-1
01
1
1310-
543
SCREW; SENSOR
KD PREPARATORY PACK<6HF> EXC. SPEED LIMITER 70KM(ECY) M4X10 W/LK&PL WASHER
0-36230-410-0
02
1
1310-
543
SCREW; SENSOR
EXC. KD PREPARATORY PACK<6HF> M4X10 W/LK&PL WASHER
0-36230-410-0
02
1
1310-
560
FILTER; VERTICAL DUCT
8-98061-675-0
01
1
1310-
