Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#12875) — 176 parça

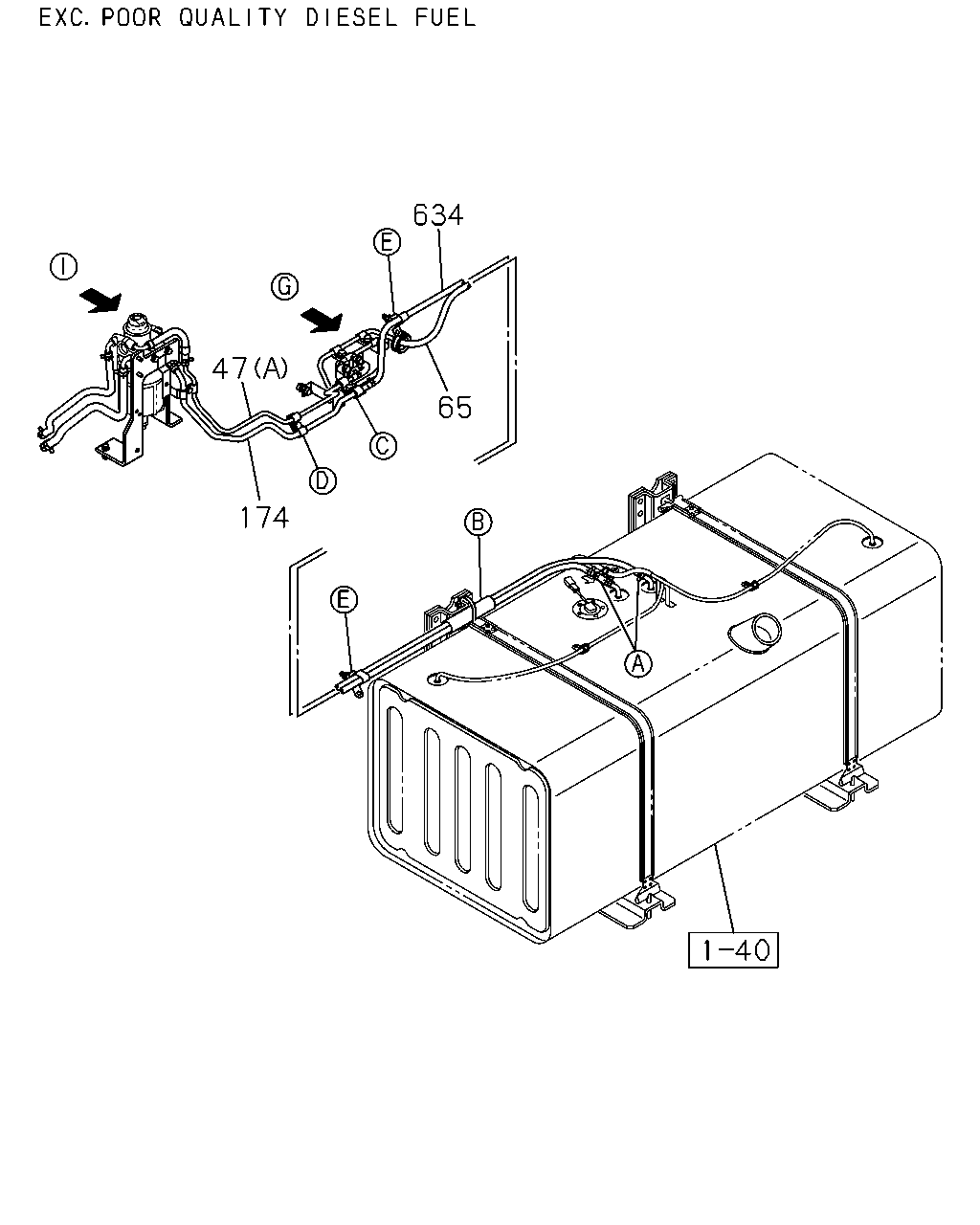

634 47 65 65 174

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	PIPE; FUEL,RETURN 6HK1-TCS ENG<80L> (B)	8-98079-273-0	01	1	0807-
47	PIPE; FUEL,RETURN (A) L=766 THA	8-98105-178-0	01	1	0807-
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> L=1050 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0807-
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> L=2100 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0807-
65	HOSE; FUEL,DELIVERY PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> L=1400 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0807-
174	PIPE; FUEL,FEED,FRT THA	8-98105-179-0	01	1	0807-
634	HOSE; RUBBER RETURN 6HK1-TCS ENG<80L> L=1450 SERVICED BY L=3000 THA	0-01558-300-0	01	1	0807-0808
634	HOSE; RUBBER RETURN 6HK1-TCS ENG<80L> L=1050 SERVICED BY L=3000 THA	0-01558-300-0	01	1	0809-
634	HOSE; RUBBER RETURN 6HK1-TCN ENG<82L> L=1200 SERVICED BY L=3000 THA	0-01558-300-0	01	1	0807-

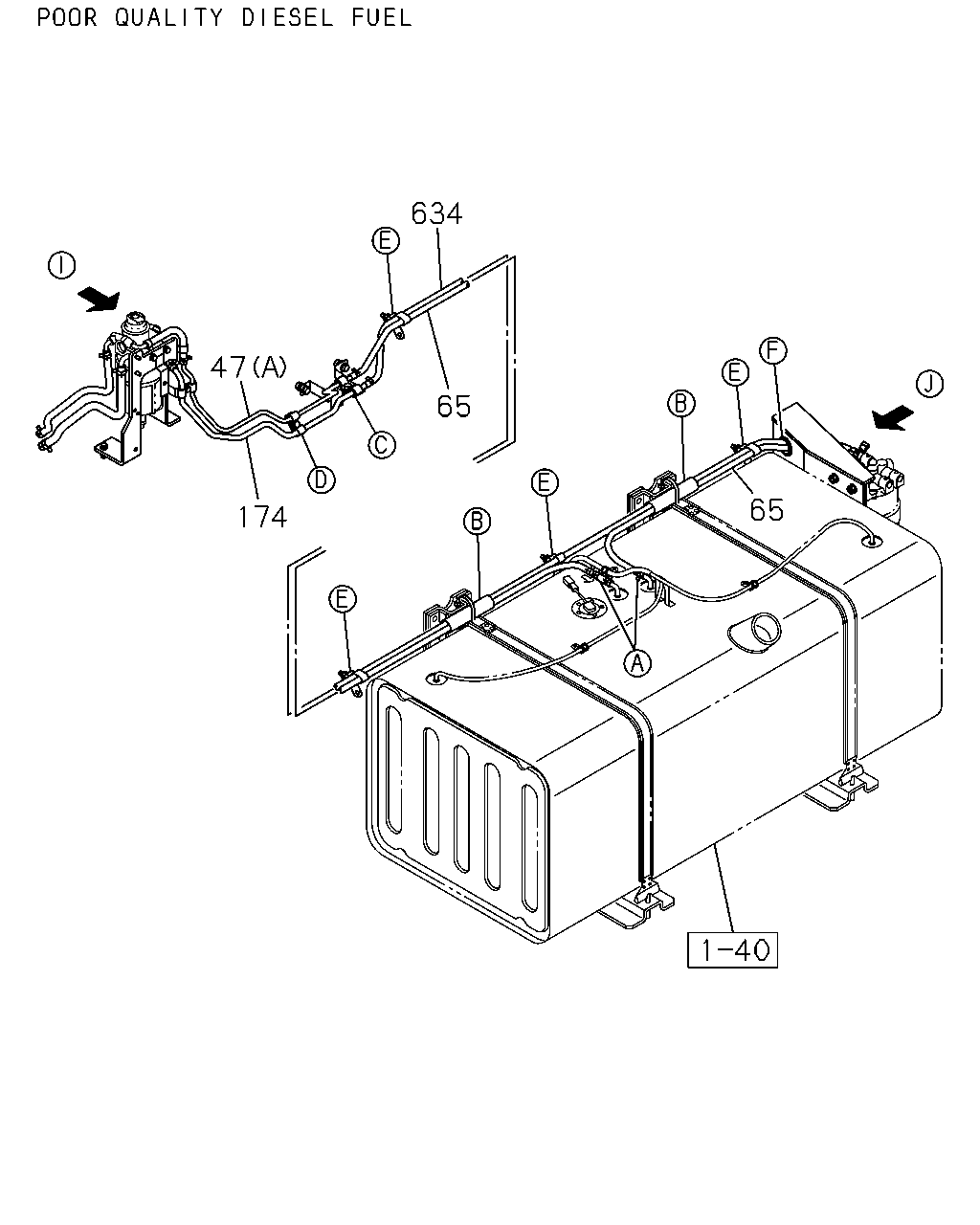

634 47 65 174

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	PIPE; FUEL,RETURN 6HK1-TCS ENG<80L> (B)	8-98079-273-0	01	1	0807-
47	PIPE; FUEL,RETURN (A) L=766 THA	8-98105-178-0	01	1	0807-
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> L=1050 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0807-
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> L=2100 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0807-
65	HOSE; FUEL,DELIVERY PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> L=1400 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0807-
174	PIPE; FUEL,FEED,FRT THA	8-98105-179-0	01	1	0807-
634	HOSE; RUBBER RETURN 6HK1-TCS ENG<80L> L=1450 SERVICED BY L=3000 THA	0-01558-300-0	01	1	0807-0808
634	HOSE; RUBBER RETURN 6HK1-TCS ENG<80L> L=1050 SERVICED BY L=3000 THA	0-01558-300-0	01	1	0809-
634	HOSE; RUBBER RETURN 6HK1-TCN ENG<82L> L=1200 SERVICED BY L=3000 THA	0-01558-300-0	01	1	0807-

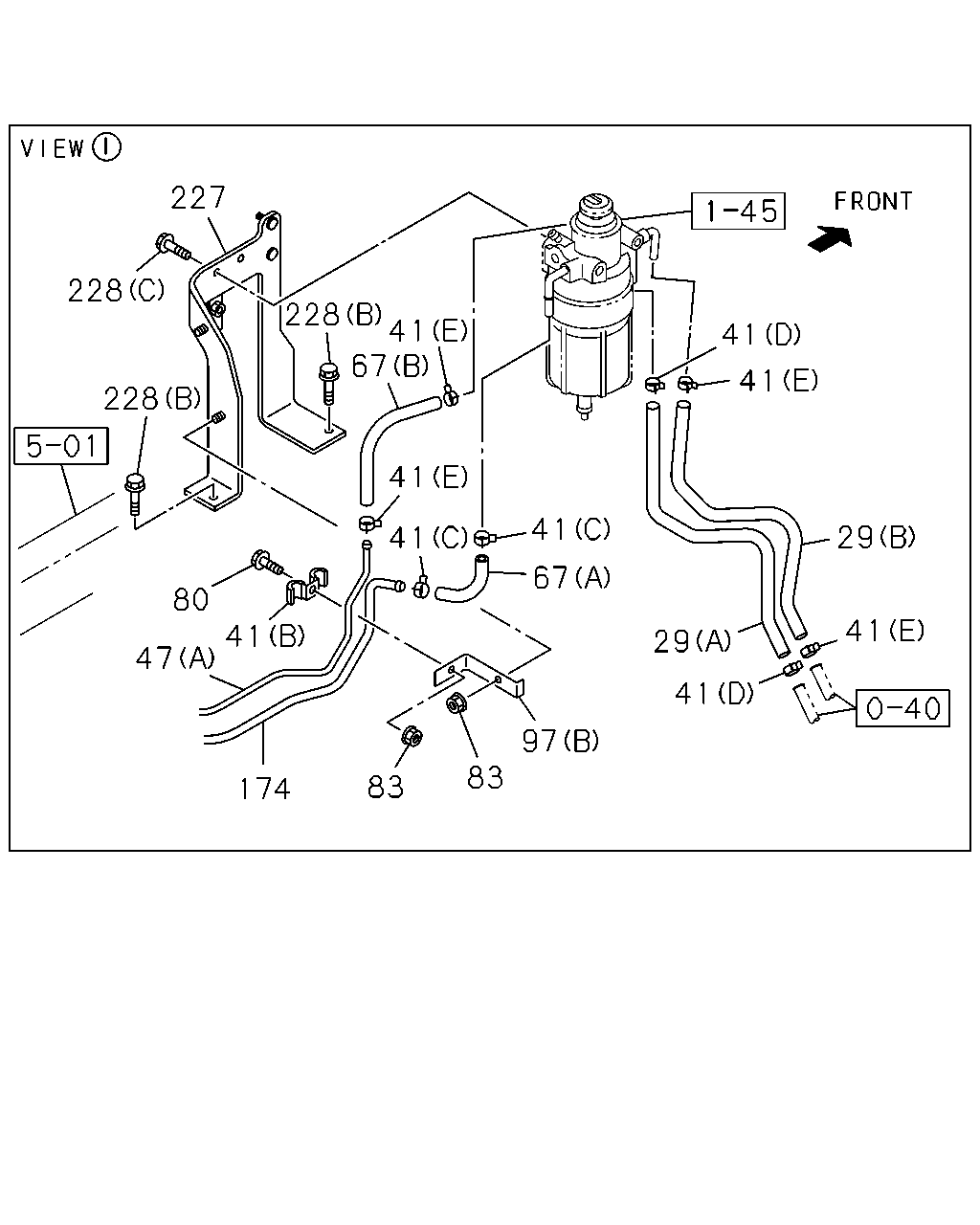

41 41 29 41 29 41 97 83 83 174 47 80 41 227 228 228 228 67 41 41 41 41 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	HOSE; FUEL (C) L=60	8-98009-718-0	01	1	0807-
29	HOSE; FUEL (A)	8-98078-196-2	01	1	0807-
29	HOSE; FUEL (B)	8-98078-197-1	01	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> (C) ID=14	1-09704-102-0	08	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> (F) L=250 THA	5-09707-030-1	02	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG<80L> (A) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG<80L> (E) ID=13 THA	8-94238-571-0	08	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG<80L> POOR QUALITY DIESEL FUEL<KF0> (G) ID=15 H=24 L=20	1-09700-606-0	02	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG<80L> POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25	1-09701-101-0	02	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> EXC. POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25	1-09701-101-0	02	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG<80L> EXC. POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25	1-09701-101-0	01	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> (G) ID=15 H=24 L=20	1-09700-606-0	01	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG<80L> EXC. POOR QUALITY DIESEL FUEL<KF0> (G) ID=15 H=24 L=20	1-09700-606-0	01	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> (E) ID=13 THA	8-94238-571-0	06	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25	1-09701-101-0	03	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16 THA	8-94238-568-0	02	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> (C) ID=14	1-09704-102-0	06	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> (F) L=250 THA	5-09707-030-1	01	1	0807-
47	PIPE; FUEL,RETURN 6HK1-TCS ENG<80L> (B)	8-98079-273-0	01	1	0807-
47	PIPE; FUEL,RETURN (A) L=766 THA	8-98105-178-0	01	1	0807-
67	HOSE; FUEL,DELIVERY (A) L=110 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0807-
67	HOSE; FUEL,DELIVERY (B) L=210 SERVICED BY L=3000 THA	0-01558-300-0	01	1	0807-
80	BOLT; CLIP,FUEL TANK M8X30 FLANGE THA	0-28650-830-0	04	1	1210-1211
80	BOLT; CLIP,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> M8X30 FLANGE THA	0-28650-830-0	04	1	1212-
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG<80L> M8X16 FLANGE THA	0-28050-816-0	02	1	0807-
80	BOLT; CLIP,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> M8X30 FLANGE THA	0-28650-830-0	04	1	0807-
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE THA	0-28650-820-0	02	1	0807-
80	BOLT; CLIP,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> M8X30 FLANGE THA	0-28650-830-0	02	1	0807-
83	NUT; CLIP,FUEL TANK 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE THA	0-91180-108-0	04	1	0807-
83	NUT; CLIP,FUEL TANK 6HK1-TCS ENG<80L> EXC. POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE THA	0-91180-108-0	04	1	0807-
83	NUT; CLIP,FUEL TANK 6HK1-TCS ENG<80L> POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE THA	0-91180-108-0	06	1	0807-
83	NUT; CLIP,FUEL TANK 6HK1-TCN ENG<82L> EXC. POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE THA	0-91180-108-0	02	1	0807-
83	NUT; CLIP,FUEL TANK M8 FLANGE THA	0-91180-108-0	03	1	0807-
97	BRACKET; CLIP (A) L=50 THA	1-47475-299-2	01	1	0807-
97	BRACKET; CLIP (B)	8-98053-654-0	01	1	0807-
97	BRACKET; CLIP (C)	8-98076-024-0	01	1	0807-
174	PIPE; FUEL,FEED,FRT THA	8-98105-179-0	01	1	0807-
227	BRACKET; FUEL SEDIMENTER	8-98044-366-3	01	1	0807-
228	BOLT; BRKT,SEDIMENTER POOR QUALITY DIESEL FUEL<KF0> (A) M10X50 FLANGE THA	0-28051-050-0	02	1	0807-
228	BOLT; BRKT,SEDIMENTER (B) M8X30 FLANGE THA	0-28050-830-0	02	1	0807-
228	BOLT; BRKT,SEDIMENTER (C) M8X20 FLANGE THA	0-28650-820-0	02	1	0807-

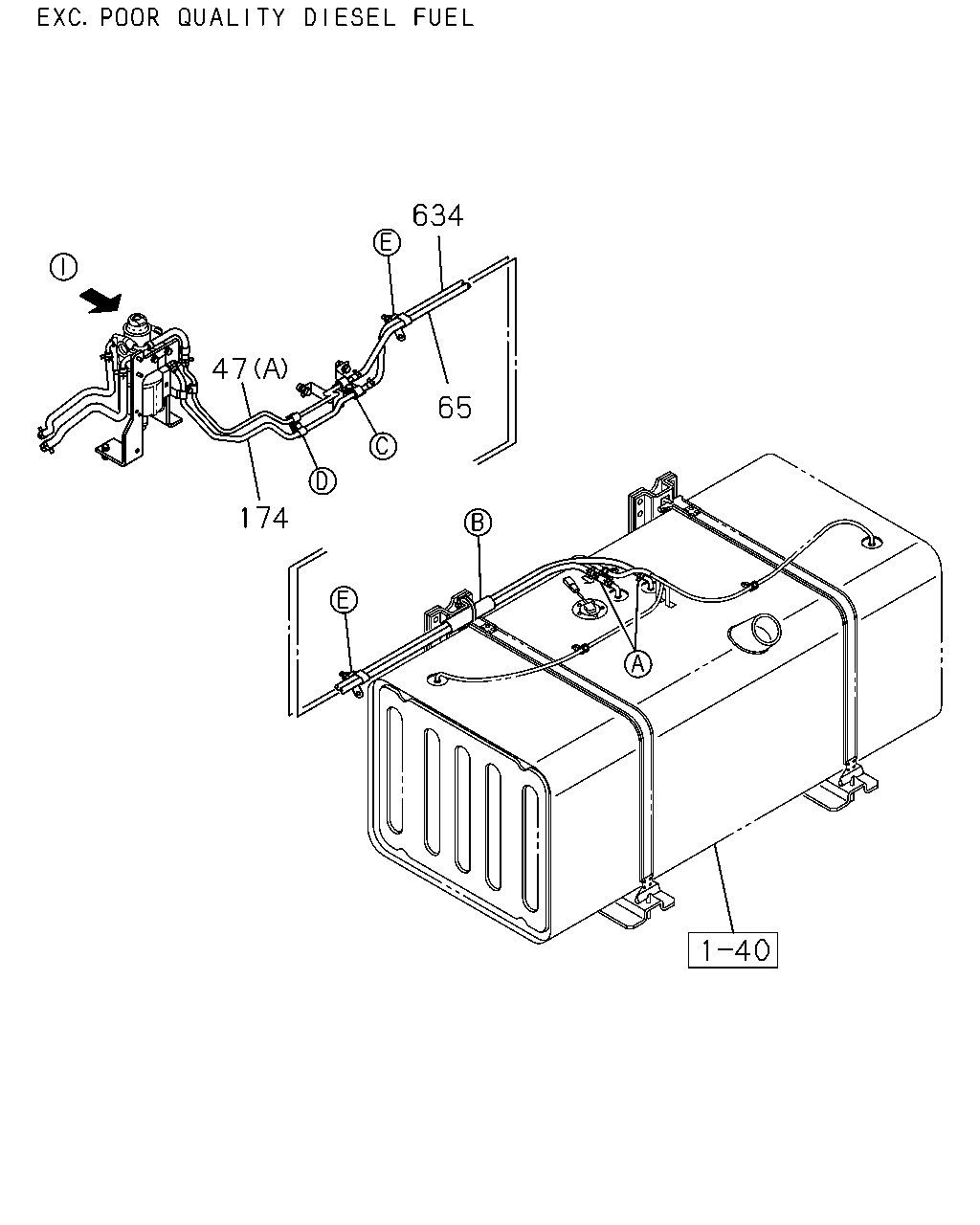

634 47 65 174

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	PIPE; FUEL,RETURN 6HK1-TCS ENG<80L> (B)	8-98079-273-0	01	1	0807-
47	PIPE; FUEL,RETURN (A) L=766 THA	8-98105-178-0	01	1	0807-
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> L=1050 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0807-
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> L=2100 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0807-
65	HOSE; FUEL,DELIVERY PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> L=1400 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0807-
174	PIPE; FUEL,FEED,FRT THA	8-98105-179-0	01	1	0807-
634	HOSE; RUBBER RETURN 6HK1-TCS ENG<80L> L=1450 SERVICED BY L=3000 THA	0-01558-300-0	01	1	0807-0808
634	HOSE; RUBBER RETURN 6HK1-TCS ENG<80L> L=1050 SERVICED BY L=3000 THA	0-01558-300-0	01	1	0809-
634	HOSE; RUBBER RETURN 6HK1-TCN ENG<82L> L=1200 SERVICED BY L=3000 THA	0-01558-300-0	01	1	0807-

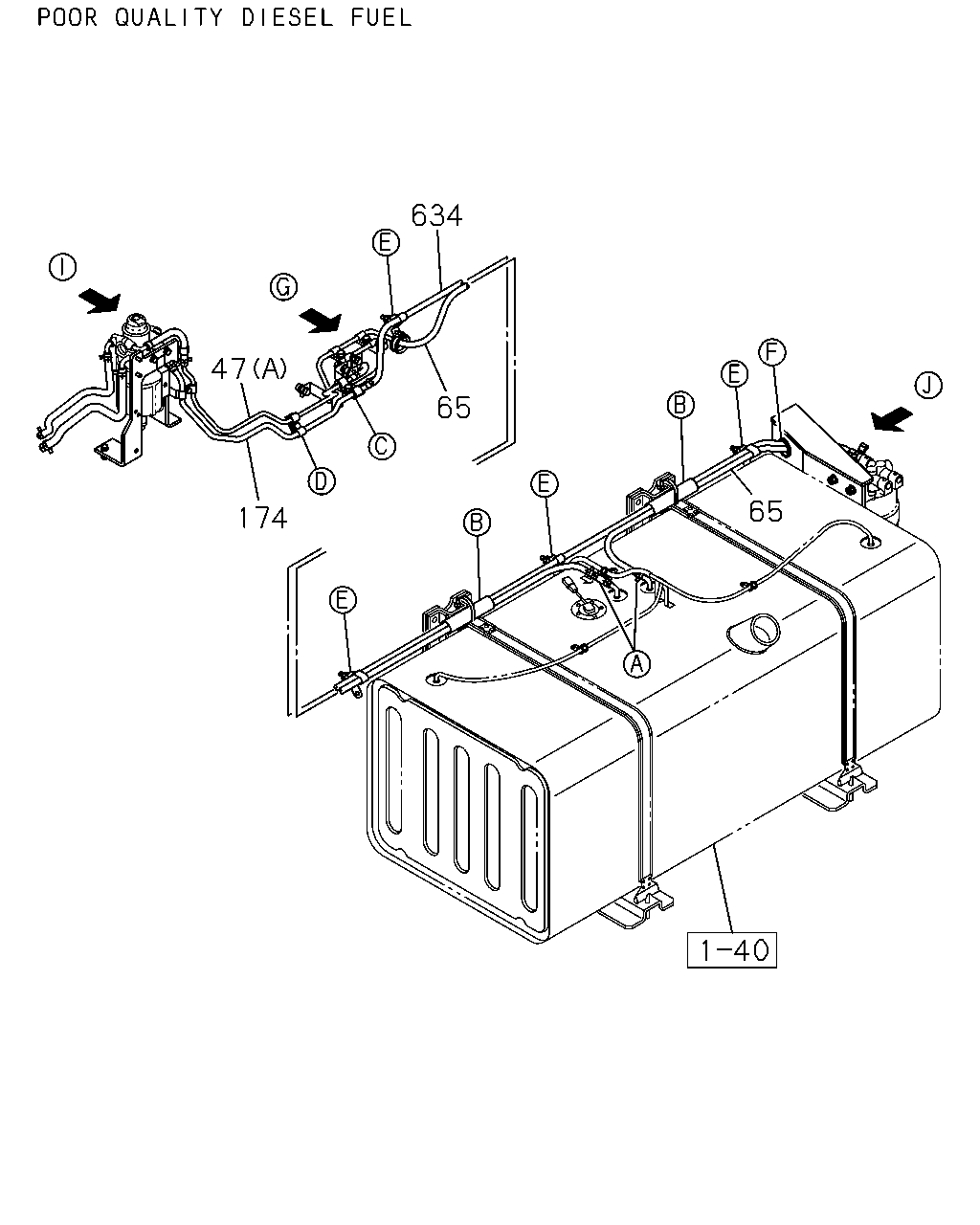

634 47 65 65 174

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	PIPE; FUEL,RETURN 6HK1-TCS ENG<80L> (B)	8-98079-273-0	01	1	0807-
47	PIPE; FUEL,RETURN (A) L=766 THA	8-98105-178-0	01	1	0807-
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> L=1050 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0807-
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> L=2100 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0807-
65	HOSE; FUEL,DELIVERY PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> L=1400 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0807-
174	PIPE; FUEL,FEED,FRT THA	8-98105-179-0	01	1	0807-
634	HOSE; RUBBER RETURN 6HK1-TCS ENG<80L> L=1450 SERVICED BY L=3000 THA	0-01558-300-0	01	1	0807-0808
634	HOSE; RUBBER RETURN 6HK1-TCS ENG<80L> L=1050 SERVICED BY L=3000 THA	0-01558-300-0	01	1	0809-
634	HOSE; RUBBER RETURN 6HK1-TCN ENG<82L> L=1200 SERVICED BY L=3000 THA	0-01558-300-0	01	1	0807-

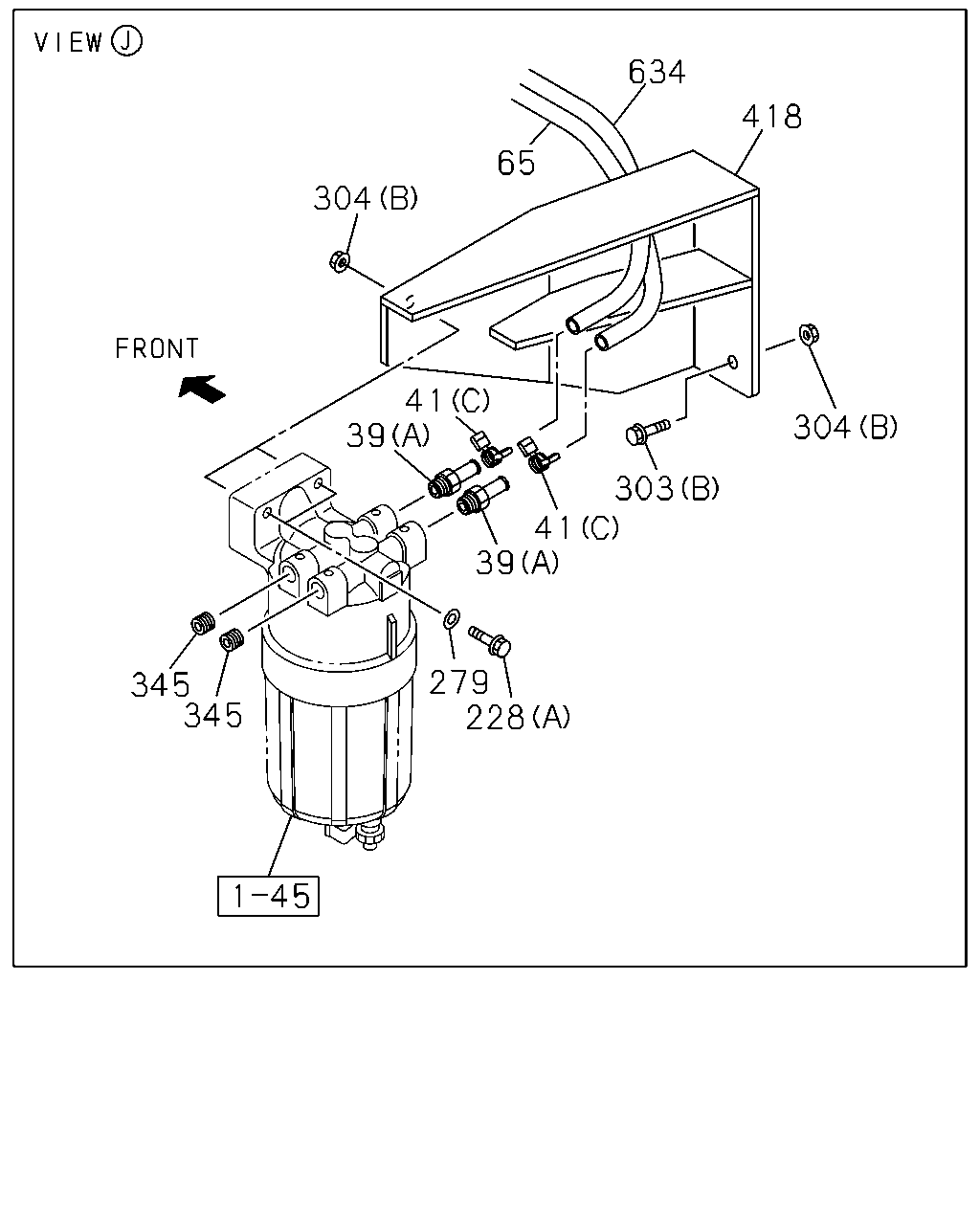

634 418 65 304 41 39 304 303 41 39 279 228 345 345

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	PIPE; FUEL POOR QUALITY DIESEL FUEL<KF0> (A) THA	8-97924-295-1	02	1	0807-0902
39	PIPE; FUEL POOR QUALITY DIESEL FUEL<KF0> (A) NPTF3/8-18 OD=10	8-98122-953-0	02	1	0903-
39	PIPE; FUEL (B) OD=10 & OD=8 L=60 THA	8-97924-060-0	01	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> (C) ID=14	1-09704-102-0	08	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> (F) L=250 THA	5-09707-030-1	02	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG<80L> (A) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG<80L> (E) ID=13 THA	8-94238-571-0	08	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG<80L> POOR QUALITY DIESEL FUEL<KF0> (G) ID=15 H=24 L=20	1-09700-606-0	02	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG<80L> POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25	1-09701-101-0	02	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> EXC. POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25	1-09701-101-0	02	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG<80L> EXC. POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25	1-09701-101-0	01	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> (G) ID=15 H=24 L=20	1-09700-606-0	01	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG<80L> EXC. POOR QUALITY DIESEL FUEL<KF0> (G) ID=15 H=24 L=20	1-09700-606-0	01	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> (E) ID=13 THA	8-94238-571-0	06	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25	1-09701-101-0	03	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16 THA	8-94238-568-0	02	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> (C) ID=14	1-09704-102-0	06	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> (F) L=250 THA	5-09707-030-1	01	1	0807-
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> L=1050 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0807-
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> L=2100 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0807-
65	HOSE; FUEL,DELIVERY PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> L=1400 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0807-
228	BOLT; BRKT,SEDIMENTER POOR QUALITY DIESEL FUEL<KF0> (A) M10X50 FLANGE THA	0-28051-050-0	02	1	0807-
228	BOLT; BRKT,SEDIMENTER (B) M8X30 FLANGE THA	0-28050-830-0	02	1	0807-
228	BOLT; BRKT,SEDIMENTER (C) M8X20 FLANGE THA	0-28650-820-0	02	1	0807-
279	WASHER POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	02	1	0807-
303	BOLT; BRKT POOR QUALITY DIESEL FUEL<KF0> (B) M10X40 FLANGE THA	0-28651-040-0	02	1	0807-
303	BOLT; BRKT (A) M8X35 FLANGE THA	0-28650-835-0	02	1	0807-
304	NUT; BRKT POOR QUALITY DIESEL FUEL<KF0> (B) M10 FLANGE THA	0-91180-210-0	04	1	0807-1203
304	NUT; BRKT POOR QUALITY DIESEL FUEL<KF0> (B) M10 FLANGE THA	0-91180-210-0	02	1	1204-
304	NUT; BRKT POOR QUALITY DIESEL FUEL<KF0> (B) M10 FLANGE THA	0-91180-210-0	02	1	1204-
304	NUT; BRKT (A) M8 FLANGE THA	0-91180-108-0	03	1	0807-
345	PLUG POOR QUALITY DIESEL FUEL<KF0> NPTF3/8-18	8-97329-623-0	02	1	0807-
418	BRACKET; PRE FUEL FILTER POOR QUALITY DIESEL FUEL<KF0>	8-98091-935-1	01	1	0807-
634	HOSE; RUBBER RETURN 6HK1-TCS ENG<80L> L=1450 SERVICED BY L=3000 THA	0-01558-300-0	01	1	0807-0808
634	HOSE; RUBBER RETURN 6HK1-TCS ENG<80L> L=1050 SERVICED BY L=3000 THA	0-01558-300-0	01	1	0809-
634	HOSE; RUBBER RETURN 6HK1-TCN ENG<82L> L=1200 SERVICED BY L=3000 THA	0-01558-300-0	01	1	0807-

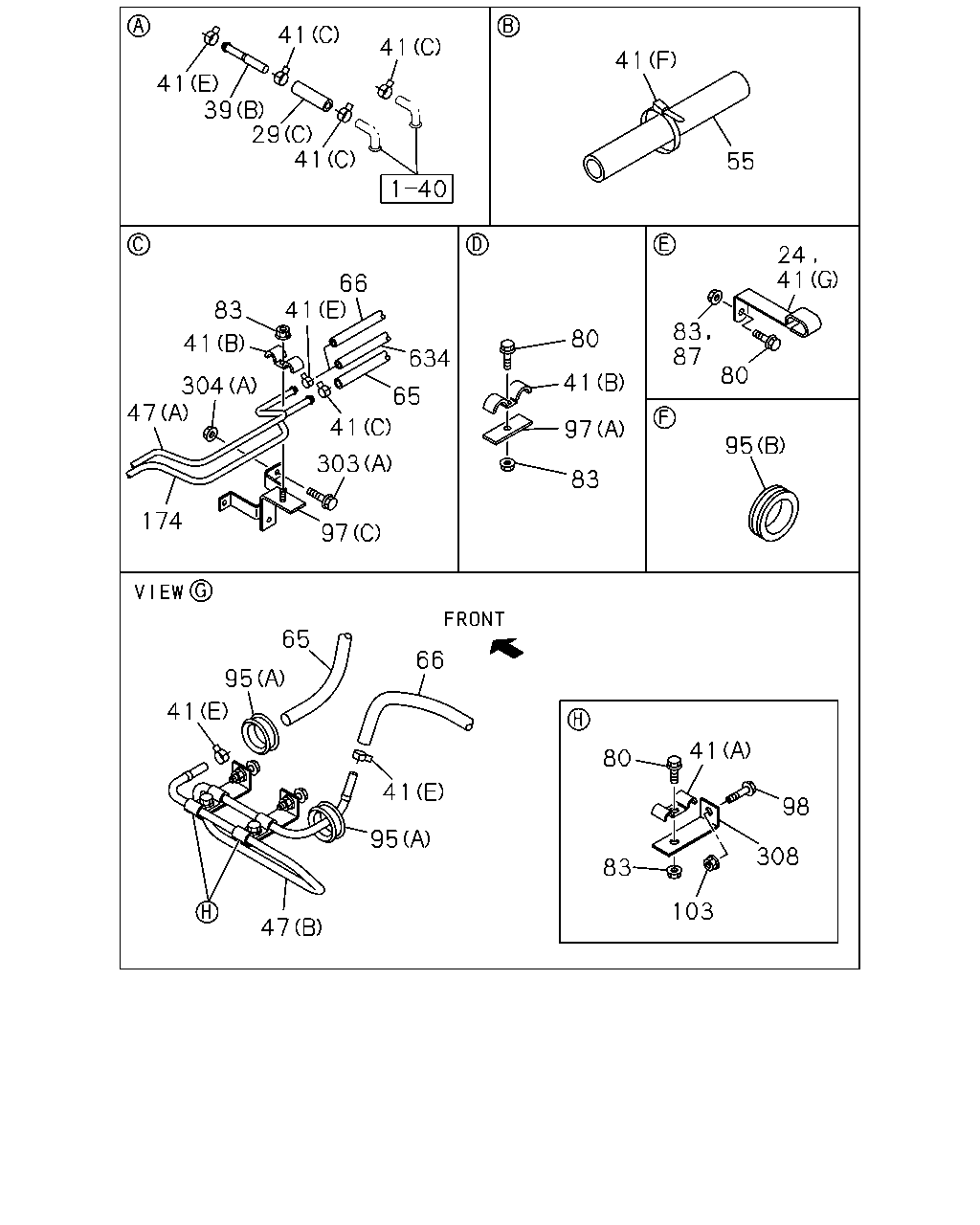

41 41 41 41 39 29 41 55 24 41 66 41 83 83 87 80 41 634 80 41 304 65 47 41 97 95 303 83 174 97 65 66 95 41 41 80 41 98 95 308 83 103 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE ID=15 H=24 L=20	1-09700-606-0	01	1	0807-
29	HOSE; FUEL (C) L=60	8-98009-718-0	01	1	0807-
29	HOSE; FUEL (A)	8-98078-196-2	01	1	0807-
29	HOSE; FUEL (B)	8-98078-197-1	01	1	0807-
39	PIPE; FUEL POOR QUALITY DIESEL FUEL<KF0> (A) THA	8-97924-295-1	02	1	0807-0902
39	PIPE; FUEL POOR QUALITY DIESEL FUEL<KF0> (A) NPTF3/8-18 OD=10	8-98122-953-0	02	1	0903-
39	PIPE; FUEL (B) OD=10 & OD=8 L=60 THA	8-97924-060-0	01	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> (C) ID=14	1-09704-102-0	08	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> (F) L=250 THA	5-09707-030-1	02	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG<80L> (A) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG<80L> (E) ID=13 THA	8-94238-571-0	08	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG<80L> POOR QUALITY DIESEL FUEL<KF0> (G) ID=15 H=24 L=20	1-09700-606-0	02	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG<80L> POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25	1-09701-101-0	02	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> EXC. POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25	1-09701-101-0	02	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG<80L> EXC. POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25	1-09701-101-0	01	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> (G) ID=15 H=24 L=20	1-09700-606-0	01	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG<80L> EXC. POOR QUALITY DIESEL FUEL<KF0> (G) ID=15 H=24 L=20	1-09700-606-0	01	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> (E) ID=13 THA	8-94238-571-0	06	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25	1-09701-101-0	03	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16 THA	8-94238-568-0	02	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> (C) ID=14	1-09704-102-0	06	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> (F) L=250 THA	5-09707-030-1	01	1	0807-
47	PIPE; FUEL,RETURN 6HK1-TCS ENG<80L> (B)	8-98079-273-0	01	1	0807-
47	PIPE; FUEL,RETURN (A) L=766 THA	8-98105-178-0	01	1	0807-
55	COVER; PIPE,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0807-
55	COVER; PIPE,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0807-
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> L=1050 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0807-
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> L=2100 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0807-
65	HOSE; FUEL,DELIVERY PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> L=1400 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0807-
66	HOSE; FUEL,RETURN PIPE 6HK1-TCS ENG<80L> L=160 SERVICED BY L=3000 THA	0-01558-300-0	01	1	0807-
80	BOLT; CLIP,FUEL TANK M8X30 FLANGE THA	0-28650-830-0	04	1	1210-1211
80	BOLT; CLIP,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> M8X30 FLANGE THA	0-28650-830-0	04	1	1212-
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG<80L> M8X16 FLANGE THA	0-28050-816-0	02	1	0807-
80	BOLT; CLIP,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> M8X30 FLANGE THA	0-28650-830-0	04	1	0807-
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE THA	0-28650-820-0	02	1	0807-
80	BOLT; CLIP,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> M8X30 FLANGE THA	0-28650-830-0	02	1	0807-
83	NUT; CLIP,FUEL TANK 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE THA	0-91180-108-0	04	1	0807-
83	NUT; CLIP,FUEL TANK 6HK1-TCS ENG<80L> EXC. POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE THA	0-91180-108-0	04	1	0807-
83	NUT; CLIP,FUEL TANK 6HK1-TCS ENG<80L> POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE THA	0-91180-108-0	06	1	0807-
83	NUT; CLIP,FUEL TANK 6HK1-TCN ENG<82L> EXC. POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE THA	0-91180-108-0	02	1	0807-
83	NUT; CLIP,FUEL TANK M8 FLANGE THA	0-91180-108-0	03	1	0807-
87	NUT; CLIP,FUEL HOSE M8 FLANGE THA	0-91180-108-0	01	1	0807-
95	BUSHING; PIPE,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> (B) ID=28 OD=35 T=12	9-09956-725-0	01	1	0807-
95	BUSHING; PIPE,FUEL TANK 6HK1-TCS ENG<80L> (A) ID=28 OD=35 T=25	1-09332-011-1	02	1	0807-
97	BRACKET; CLIP (A) L=50 THA	1-47475-299-2	01	1	0807-
97	BRACKET; CLIP (B)	8-98053-654-0	01	1	0807-
97	BRACKET; CLIP (C)	8-98076-024-0	01	1	0807-
98	BOLT; BRKT,FUEL PIPE 6HK1-TCS ENG<80L> M8X30 FLANGE THA	0-28650-830-0	02	1	0807-
103	NUT; BRKT 6HK1-TCS ENG<80L> M8 FLANGE THA	0-91180-108-0	02	1	0807-
174	PIPE; FUEL,FEED,FRT THA	8-98105-179-0	01	1	0807-
303	BOLT; BRKT POOR QUALITY DIESEL FUEL<KF0> (B) M10X40 FLANGE THA	0-28651-040-0	02	1	0807-
303	BOLT; BRKT (A) M8X35 FLANGE THA	0-28650-835-0	02	1	0807-
304	NUT; BRKT POOR QUALITY DIESEL FUEL<KF0> (B) M10 FLANGE THA	0-91180-210-0	04	1	0807-1203
304	NUT; BRKT POOR QUALITY DIESEL FUEL<KF0> (B) M10 FLANGE THA	0-91180-210-0	02	1	1204-
304	NUT; BRKT POOR QUALITY DIESEL FUEL<KF0> (B) M10 FLANGE THA	0-91180-210-0	02	1	1204-
304	NUT; BRKT (A) M8 FLANGE THA	0-91180-108-0	03	1	0807-
308	BRACKET; FUEL PIPE 6HK1-TCS ENG<80L> L=75	1-47478-323-0	02	1	0807-
634	HOSE; RUBBER RETURN 6HK1-TCS ENG<80L> L=1450 SERVICED BY L=3000 THA	0-01558-300-0	01	1	0807-0808
634	HOSE; RUBBER RETURN 6HK1-TCS ENG<80L> L=1050 SERVICED BY L=3000 THA	0-01558-300-0	01	1	0809-
634	HOSE; RUBBER RETURN 6HK1-TCN ENG<82L> L=1200 SERVICED BY L=3000 THA	0-01558-300-0	01	1	0807-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
