◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11554 - FSR-R EU5 EXC.SPACE ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-13 - OIL PAN AND LEVEL GAUGE ▶
0-13 — OIL PAN AND LEVEL GAUGE (#128735) — 25 parça

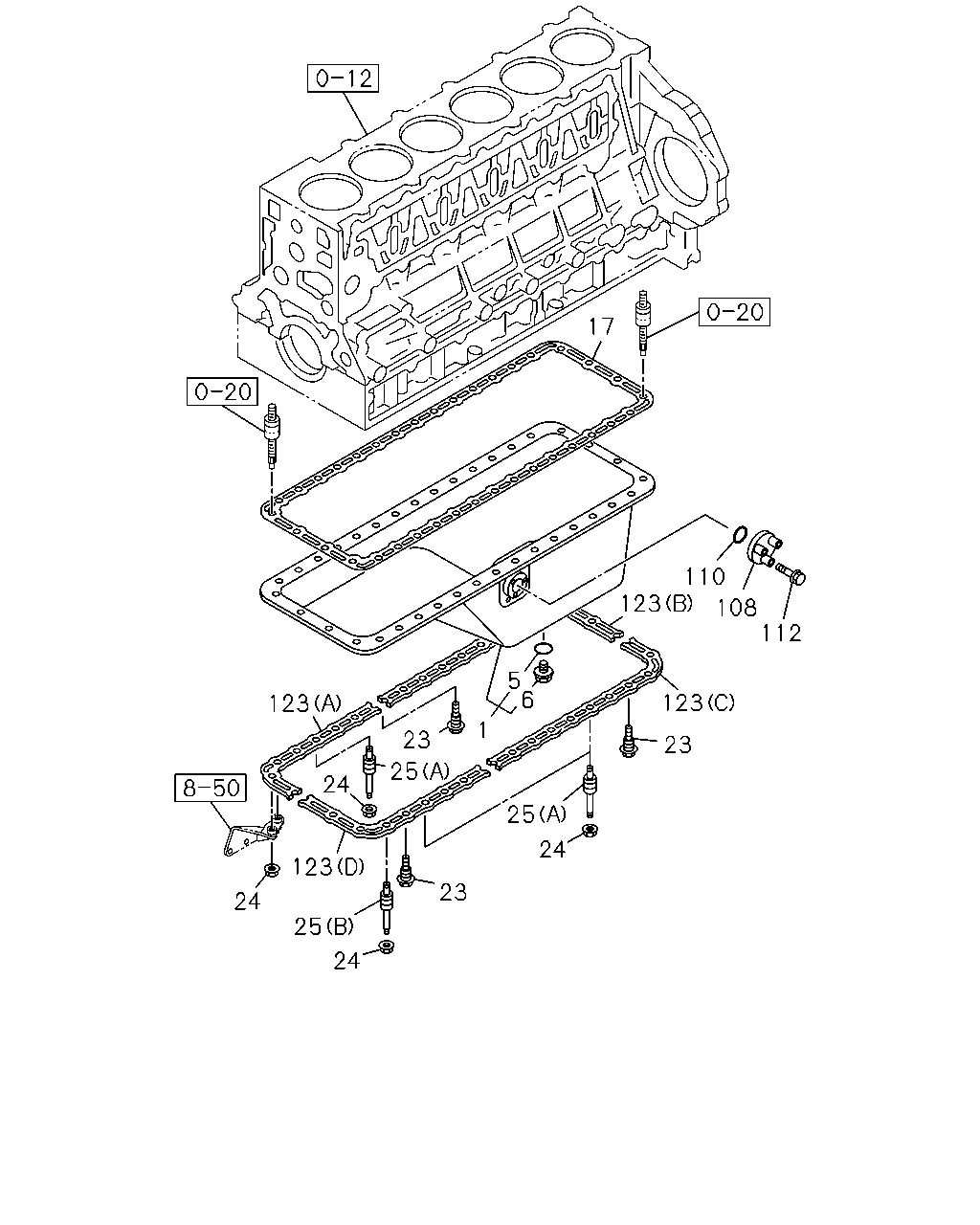

çizim 379052
17 110 108 112 123 123 23 5 6 1 25 24 23 25 24 123 123 24 25 24 23
BalonParca AdiParca NoAdetTipApplied Date
1 PAN ASM; OIL 8-98061-543-0 01 1 1310-
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 		8-94399-398-0 01 1 1310-
6 PLUG; OIL DRAIN
M20X16.5 		9-09662-012-0 01 1 1310-
17 GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94390-617-1 01 1 1310-
23 BOLT; OIL PAN
M8X12.8 W/PL WASHER,RUBBER TUBE 		8-97087-634-0 23 1 1310-
24 NUT; OIL PAN
M8 FLANGE 		0-91180-108-0 11 1 1310-
25 STUD; OIL PAN
(A) M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER 		8-97087-632-2 03 1 1310-
25 STUD; OIL PAN
(B) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER 		8-97601-889-0 01 1 1310-
108 COVER; OIL PAN 8-97609-994-0 01 1 1310-
110 GASKET; SW,OIL LEVEL
ID=27 		8-98056-488-0 01 1 1310-
112 BOLT; SW,OIL LEVEL
M6X25 FLANGE 		0-28050-625-0 03 1 1310-
123 RUBBER; SEAL OIL
(A) 		8-94391-755-0 01 1 1310-
123 RUBBER; SEAL OIL
(B) 		8-94391-757-0 01 1 1310-
123 RUBBER; SEAL OIL
(C) 		8-94391-758-0 01 1 1310-
123 RUBBER; SEAL OIL
(D) 		8-94392-548-0 01 1 1310-
çizim 379059
8 10 9 9 193 192 2 8 10 49 193
BalonParca AdiParca NoAdetTipApplied Date
2 GAUGE; OIL LEVEL 8-98092-125-1 01 1 1310-
8 TUBE; GUIDE,OIL LEVEL GAUGE
(B) 		8-98063-554-0 01 1 1310-
8 TUBE; GUIDE,OIL LEVEL GAUGE
TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97618-220-1 01 1 1310-
8 TUBE; GUIDE,OIL LEVEL GAUGE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98098-761-0 01 1 1310-
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		1-09623-469-0 02 1 1310-
10 BOLT; GUIDE TUBE
(A) M10X35 FLANGE 		0-28151-035-0 01 1 1310-
10 BOLT; GUIDE TUBE
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1310-
49 NUT; GUIDE TUBE
M8 FLANGE 		0-91180-108-0 01 1 1310-
192 HOSE; GUIDE TUBE
L=310 		8-98092-068-0 01 1 1310-
193 CLIP; HOSE,GUIDE TUBE
ID=17 		1-09707-158-0 02 1 1310-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
