0-12 — CYLINDER BLOCK (#128734) — 47 parça

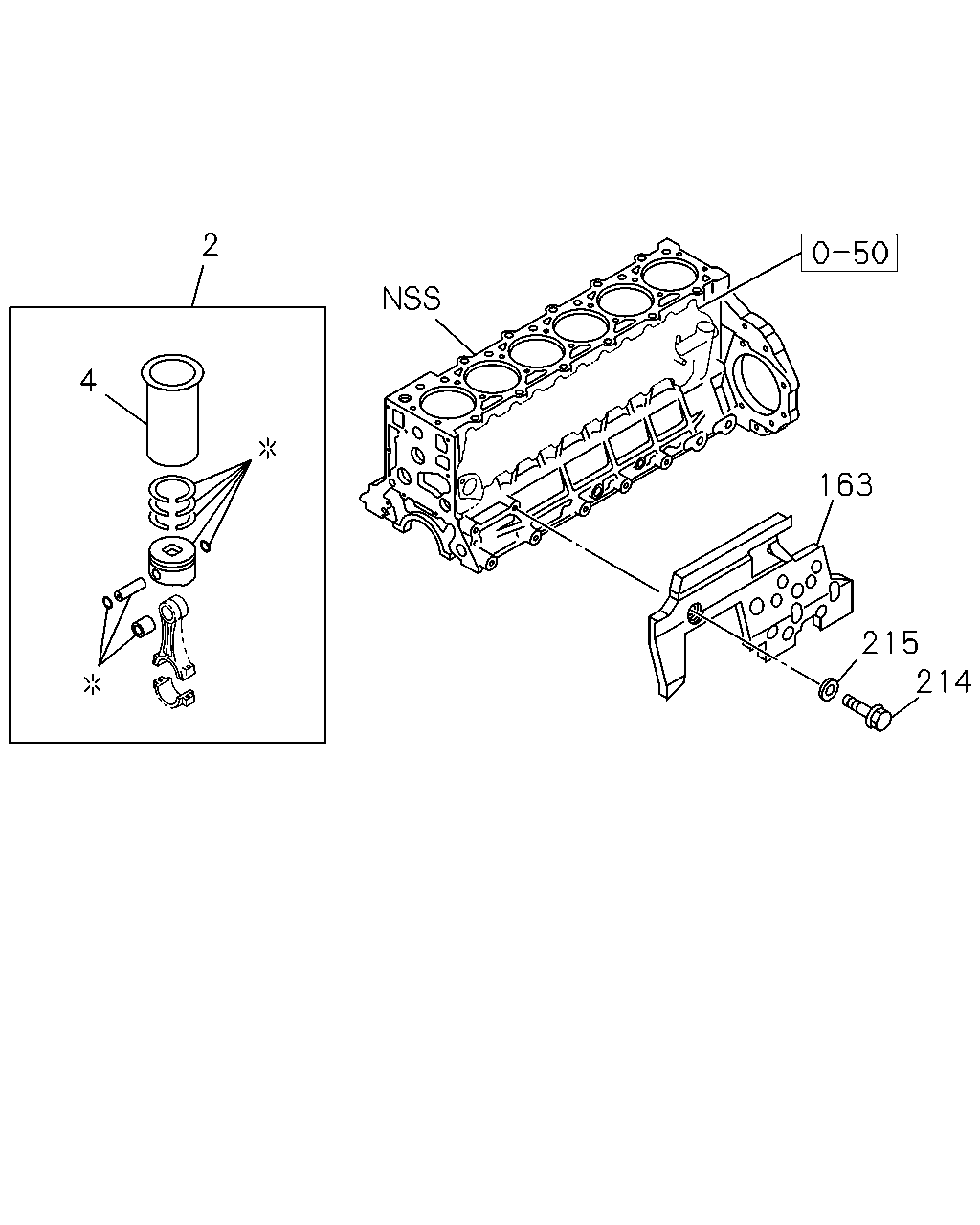

çizim 379039
2 4 163 215 214
BalonParca AdiParca NoAdetTipApplied Date
2 LINER SET; ENG CYL
GRADE=1X 		1-87813-119-6 06 1 1310-
2 LINER SET; ENG CYL
GRADE=3X 		1-87813-120-6 06 1 1310-
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-98014-046-1 06 1 1310-
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-98014-047-1 06 1 1310-
163 COVER ASM; C/BL SKIRT 8-97601-248-0 01 1 1310-
214 BOLT; NOISE COVER
M10X16 FLANGE 		0-28151-016-0 03 1 1310-
215 WASHER; PL,NOISE COVER
ID=10.5 OD=32 		0-91614-810-0 02 1 1310-

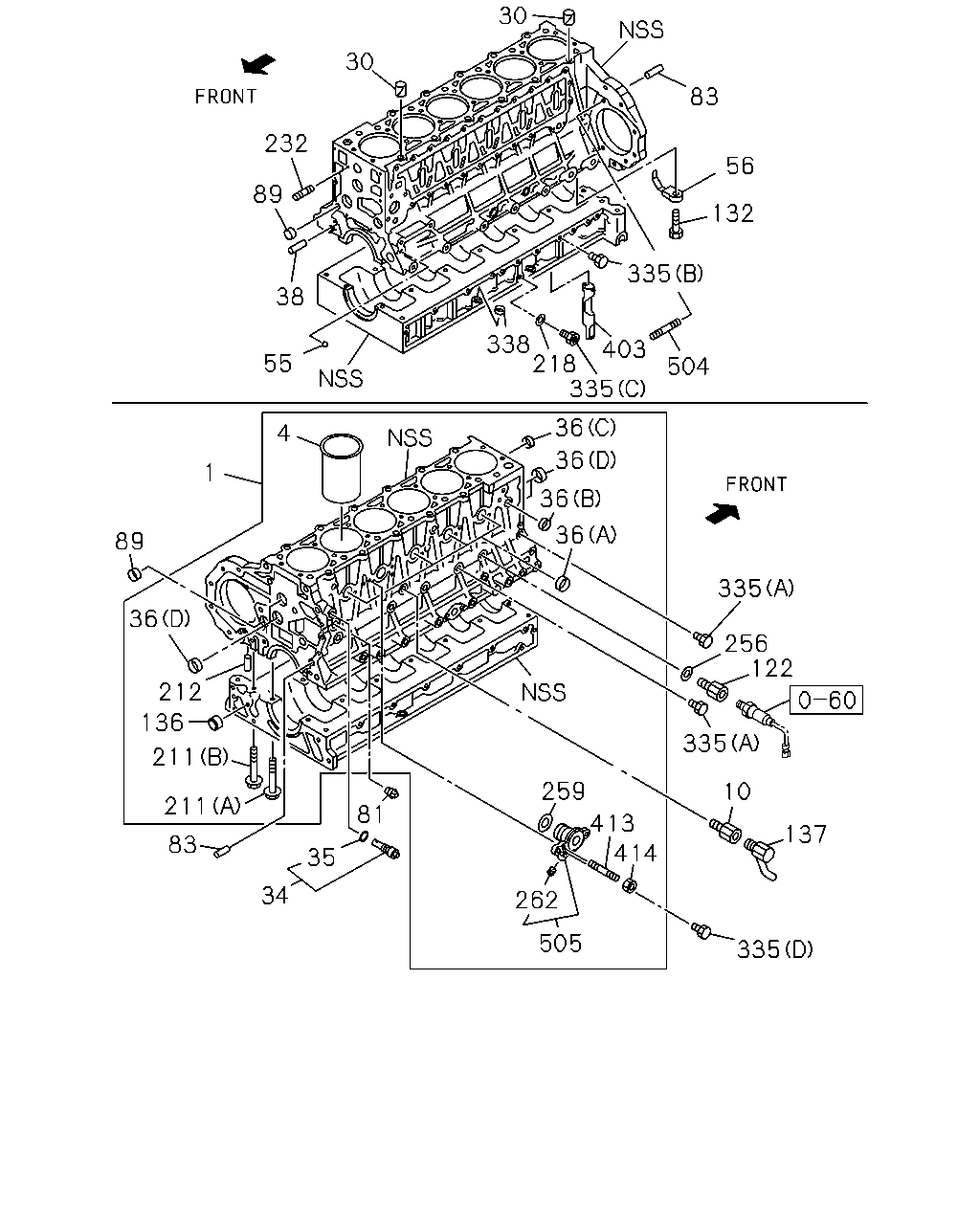

çizim 381127
30 30 83 132 56 335 504 403 338 55 218 89 232 335 335 122 256 335 10 137 81 35 34 262 505 259 413 414 211 211 36 89 212 136 36 36 4 1 36 38 335 83 36
BalonParca AdiParca NoAdetTipApplied Date
1 BLOCK ASM; CYL 8-98206-967-0 01 1 1310-
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-98014-046-1 06 1 1310-
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-98014-047-1 06 1 1310-
10 CONNECTOR; WATER DRAIN 8-94396-378-0 01 1 1310-
30 PIN; CYL HD GASKET SETTING
OD=18.15 		8-94399-688-1 02 1 1310-
34 VALVE; OIL RELIEF 8-94393-077-1 01 1 1310-
35 GASKET; RELIEF VLV
ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7 		5-09623-035-0 01 1 1310-
36 CUP; SEALING,WATER JACKET
(A) OD=45 		1-09600-005-2 04 1 1310-
36 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 01 1 1310-
36 CUP; SEALING,WATER JACKET
(C) OD=25 		8-94399-005-0 01 1 1310-
36 CUP; SEALING,WATER JACKET
(D) OD=40 		8-97096-824-0 04 1 1310-
38 PIN; TIMING GEAR CASE
L=22 		8-94483-674-0 02 1 1310-
55 PLUG; OIL GALLERY
3/8" BALL 		9-00097-011-0 01 1 1310-
56 JET; OIL,PISTON COOLING 8-98173-342-0 06 1 1310-
81 PLUG; WATER JACKET
PT3/8 		8-94397-338-0 01 1 1310-
83 PIN; FLYWHEEL HSG
L=22 		8-94483-674-0 02 1 1310-
89 CUP; SEALING,OIL GALLERY
OD=20 		9-11129-128-0 03 1 1310-
122 ADAPTER; OIL PRESSURE SWITCH 8-97603-667-0 01 1 1310-
132 VALVE; CHECK,OIL
M12X18.5 		8-94394-419-1 06 1 1310-
136 BUSHING; DRIVE SHAFT,OIL PUMP 8-98091-566-0 02 1 1310-
137 COCK; DRAIN,WATER 8-94393-716-1 01 1 1310-
211 BOLT; CRANKCASE
(B) M10X82 		8-94399-553-2 25 1 1310-
211 BOLT; CRANKCASE
(A) M14X115 W/FLANGE 		8-97077-638-0 14 1 1310-
212 PIN; CRANKCASE
OD=10 L=20 		8-97135-423-0 02 1 1310-
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		1-09630-084-0 01 1 1310-1312
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		8-98251-344-0 01 1 1401-
232 STUD; WATER PUMP
M8X55 L=67 		0-41010-855-0 03 1 1310-
256 GASKET; ADAPTER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25 		1-09630-141-0 01 1 1310-
259 GASKET; ADAPTER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7 		1-09623-184-0 01 1 1310-
262 PLUG; ADAPTER 1-13163-002-0 01 1 1310-
335 PLUG; C/BL,SIDE
(C) M12X10 		5-13265-001-0 01 1 1310-
335 PLUG; C/BL,SIDE
(D) M14 		8-94399-225-0 01 1 1310-
335 PLUG; C/BL,SIDE
(A) M14X16.5 		8-97329-617-0 02 1 1310-
335 PLUG; C/BL,SIDE
(B) M8X10 		8-98003-416-0 01 1 1310-
338 CUP; SEALING,GUIDE TUBE HOLE
OD=15.6 		5-11129-003-0 02 1 1310-
403 GUIDE; GALLERY 8-94395-351-1 01 1 1310-
413 STUD; ADAPTER
M8X30 L=41 		0-41010-830-0 02 1 1310-
414 NUT; ADAPTER
M8 FLANGE 		0-91180-208-0 02 1 1310-
504 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97363-237-0 02 1 1310-
505 ADAPTER; WATER FEED 8-98145-412-1 01 1 1310-
