8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#128715) — 63 parça

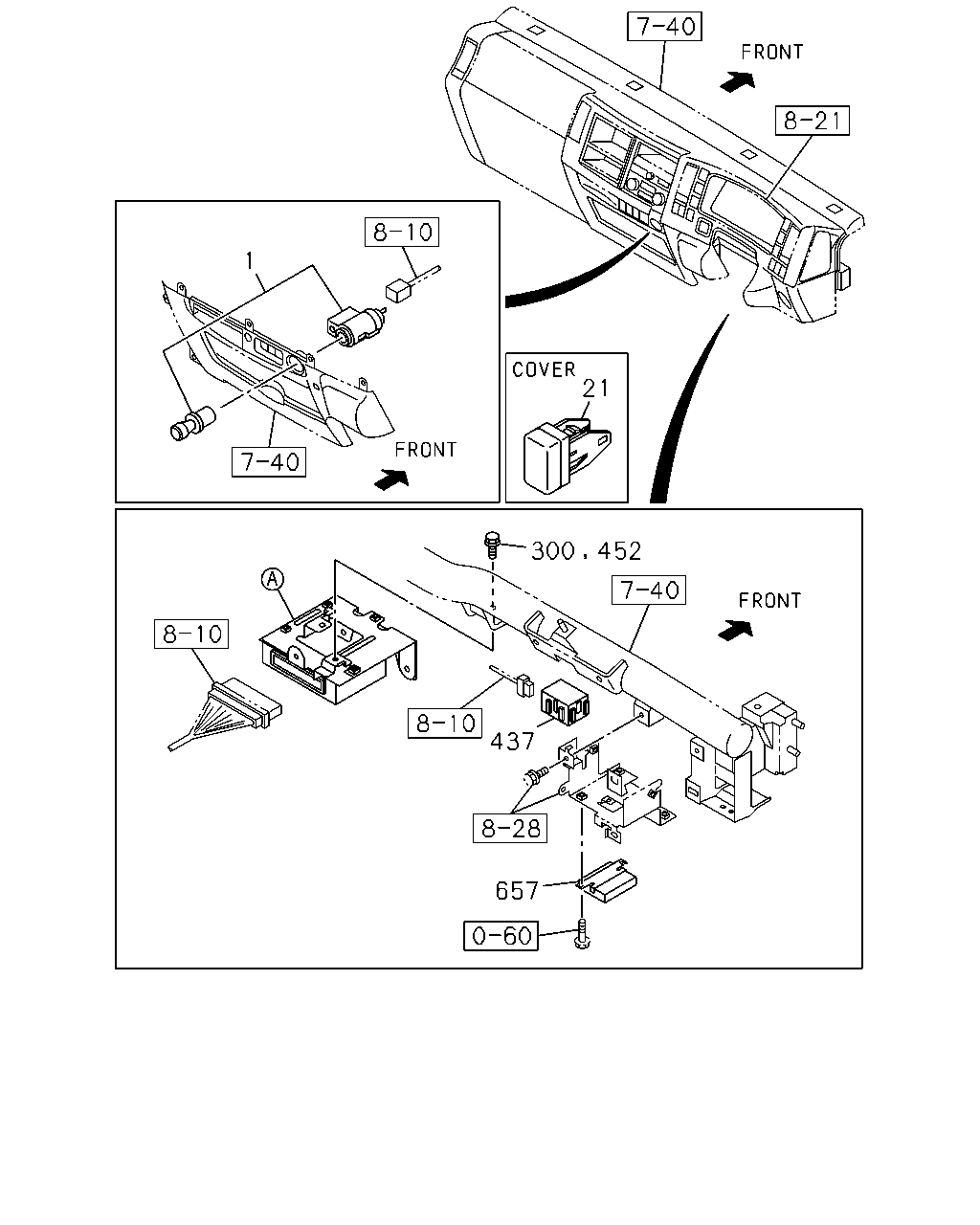

çizim 380879
21 300 452 437 657 1
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR
ASH TRAY PASSENGER DOOR<8LX> 		8-98142-962-0 01 1 1403-
21 COVER; HOLE
MIR O/S RR VIEW LONG ARM<DH2>,MIRROR O/S RR VIEW<D37>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98025-954-1 01 1 1403-
300 BOLT; CONT UNIT BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 02 1 1403-
437 CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO 		8-97359-129-0 01 1 1403-
452 BOLT; BRKT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6X16 FLANGE 		0-28650-616-0 02 1 1403-
657 CONTROL UNIT; MIMAMORI
EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98260-912-1 01 1 1403-

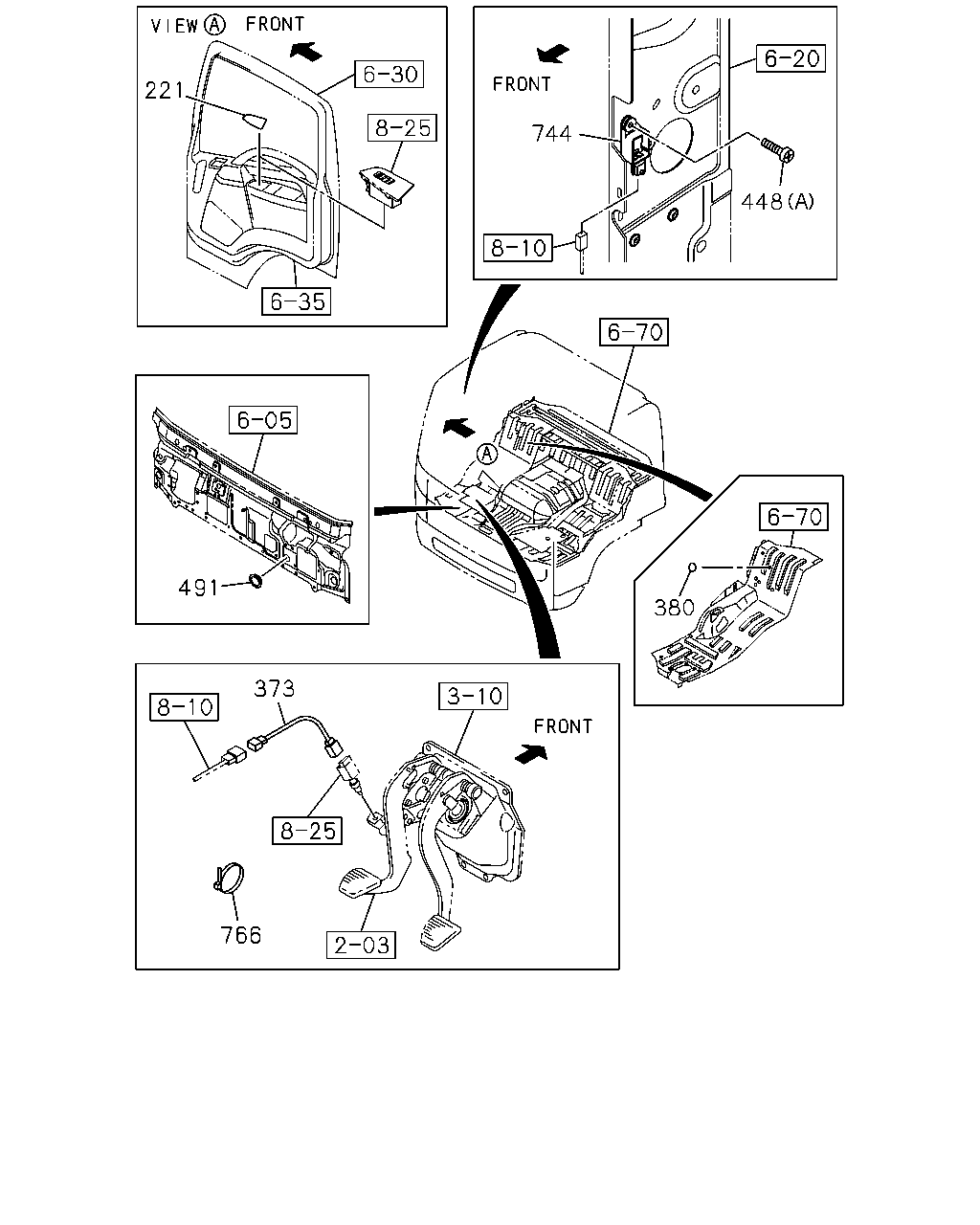

çizim 381540
221 744 448 491 373 766 380
BalonParca AdiParca NoAdetTipApplied Date
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-916-2 01 1 1403-
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-915-2 01 1 1403-
373 HARNESS; CLU SWITCH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98059-419-2 01 1 1403-
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 1403-
448 BOLT; SENSOR
(B) M6X16 FLANGE 		0-28050-616-0 01 1 1403-
448 BOLT; SENSOR
AIR BAG DRIVER(AJ3) (A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 1403-
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 1403-
744 SENSOR; AIR BAG
AIR BAG DRIVER(AJ3) 		8-97386-841-2 01 1 1403-
766 BAND; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> L=140 		5-09707-031-1 01 1 1403-
çizim 381929
300 763 737 108 108 446 264 452 631
BalonParca AdiParca NoAdetTipApplied Date
108 BOLT; TRANS CONT MODULE
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 03 1 1403-
264 BRACKET; CONT UNIT
(B) 		8-97609-985-9 01 1 1403-
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98064-901-0 01 1 1403-
300 BOLT; CONT UNIT BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 02 1 1403-
446 CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98136-318-1 01 1 1403-
452 BOLT; BRKT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6X16 FLANGE 		0-28650-616-0 02 1 1403-
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6X16 FLANGE 		0-28650-616-0 02 1 1403-
737 CONTROL UNIT; TRANSMISSION
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98252-967-0 01 1 1403-1403
737 CONTROL UNIT; TRANSMISSION
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98273-239-0 01 1 1404-1411
737 CONTROL UNIT; TRANSMISSION
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98282-917-0 01 1 1412-
763 BRACKET; TRANS CONT MODULE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98064-901-0 01 1 1403-

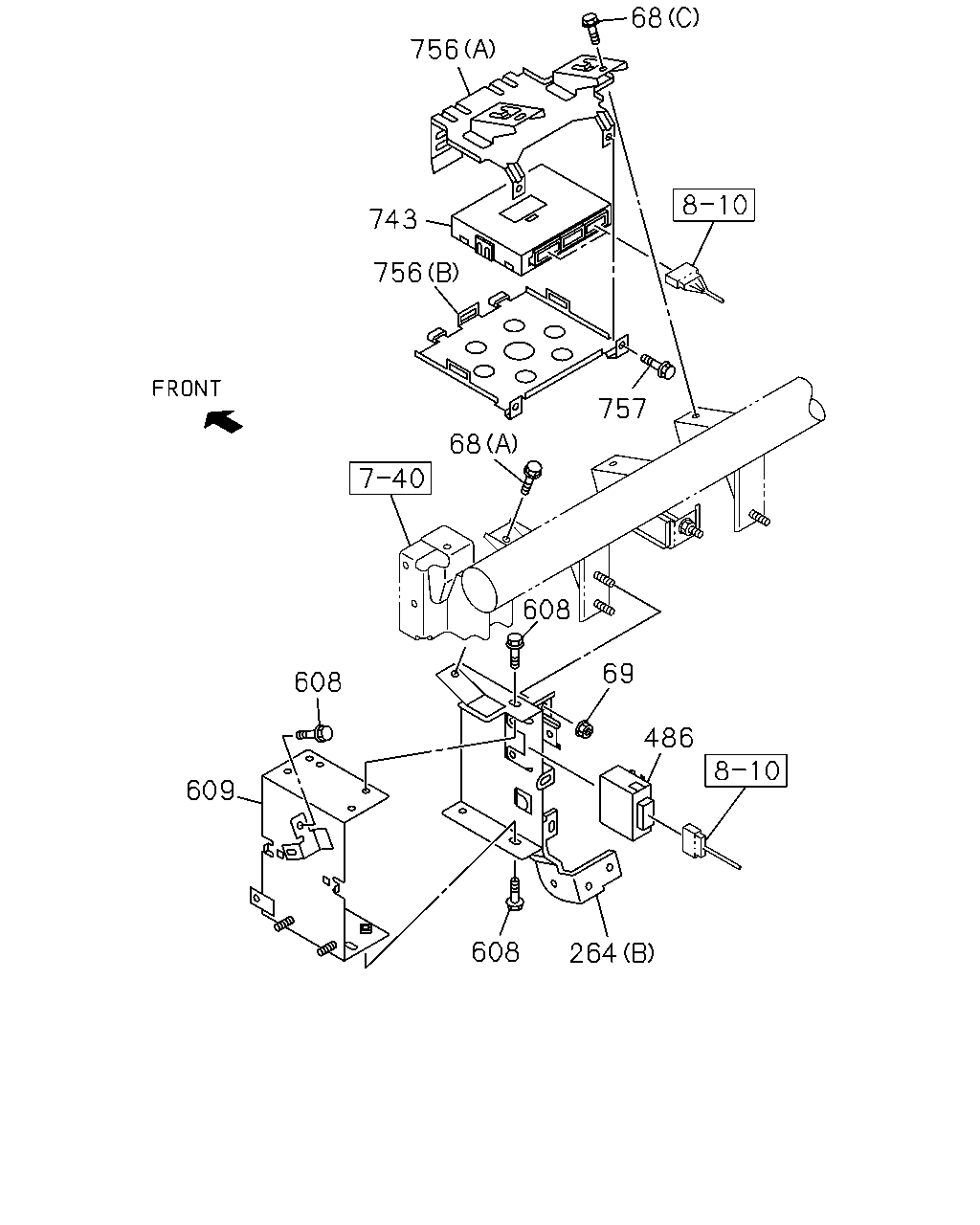

çizim 381933
68 756 743 756 757 68 608 69 486 608 609 608 264
BalonParca AdiParca NoAdetTipApplied Date
68 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 1403-
68 BOLT; BRKT
ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (B) M8X25 FLANGE 		0-28650-825-0 03 1 1403-
68 BOLT; BRKT
ANTI LOCK BRAKE(JE5) EXC. THROTTLE CONTROL SYSTEM(6XH) (B) M8X25 FLANGE 		0-28650-825-0 03 1 1403-
68 BOLT; BRKT
MULTI INFORMATION DISPLAY<7NY> (C) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1403-
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1403-
264 BRACKET; CONT UNIT
(B) 		8-97609-985-9 01 1 1403-
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98064-901-0 01 1 1403-
486 CONTROL UNIT; MIRROR
O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH> 		8-97610-202-1 01 1 1403-
608 BOLT; CONT UNIT,AIR SUS
POWER WINDOW FRT DOOR<A32> EXC. REMOTE CONT DOOR LOCK<6NF> M6X16 FLANGE 		0-28650-616-0 05 1 1403-
609 BRACKET ASM; ELEC UNIT,AIR SUS
POWER WINDOW FRT DOOR<A32> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98169-737-1 01 1 1403-
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98182-026-3 01 1 1403-
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> (A) 		8-98056-411-3 01 1 1403-
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> (B) 		8-98111-836-1 01 1 1403-
757 BOLT; BRKT,BCM
MULTI INFORMATION DISPLAY<7NY> M6X16 FLANGE 		0-28650-616-0 02 1 1403-
çizim 382016
747 275 507
BalonParca AdiParca NoAdetTipApplied Date
275 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1403-
507 CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		1-82690-666-0 01 1 1403-
747 CONTROL UNIT; TURBOCHARGER 8-98162-807-0 01 1 1403-

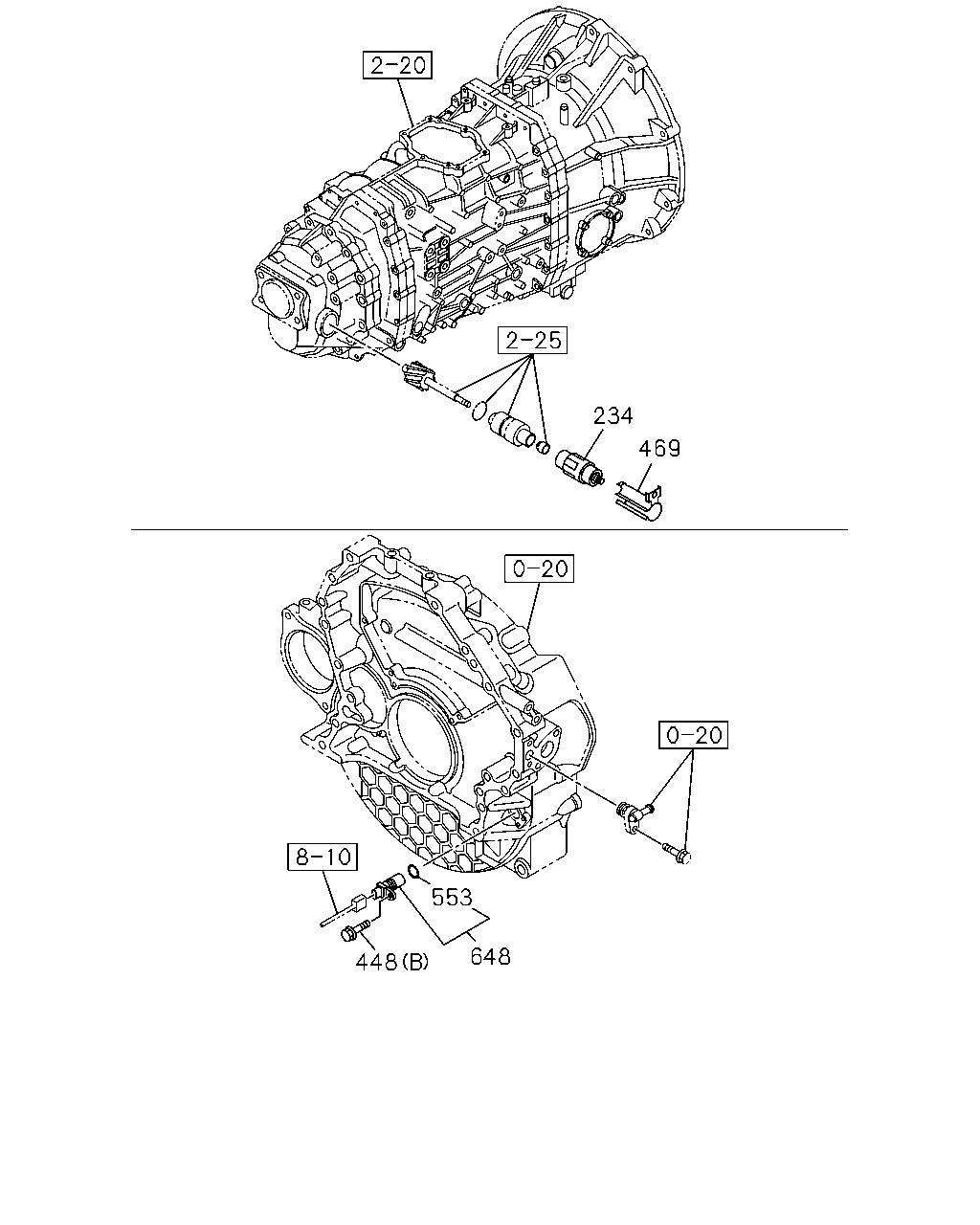

çizim 382089
234 469 553 448 648
BalonParca AdiParca NoAdetTipApplied Date
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 1403-
448 BOLT; SENSOR
(B) M6X16 FLANGE 		0-28050-616-0 01 1 1403-
448 BOLT; SENSOR
AIR BAG DRIVER(AJ3) (A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 1403-
469 PROTECTOR; SPEED SENSOR 8-98119-901-0 01 1 1403-
553 GASKET
ID=14.2 OD=18.8 		8-97369-404-0 01 1 1403-
648 SENSOR; CRANK ANGLE 8-97606-943-0 01 1 1403-

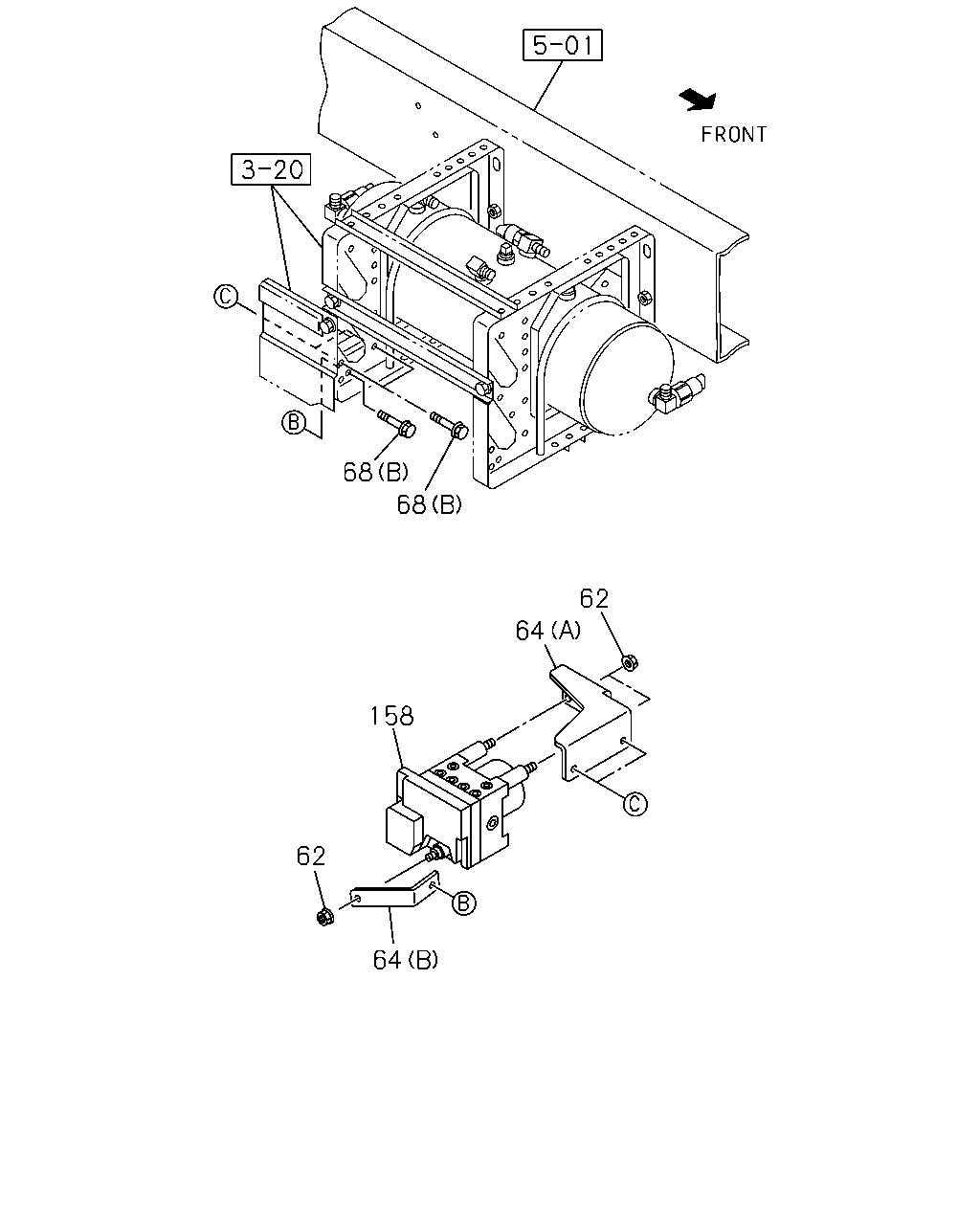

çizim 382121
68 68 64 62 158 62 64
BalonParca AdiParca NoAdetTipApplied Date
62 NUT; BRKT
ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) M8 FLANGE 		0-91180-108-0 03 1 1403-
62 NUT; BRKT
ANTI LOCK BRAKE(JE5) EXC. THROTTLE CONTROL SYSTEM(6XH) M8 FLANGE 		0-91180-108-0 03 1 1403-
64 BRACKET; CONTROLLER
ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) 		8-98044-238-2 01 1 1403-
64 BRACKET; CONTROLLER
ANTI LOCK BRAKE(JE5) EXC. THROTTLE CONTROL SYSTEM(6XH) (A) 		8-98044-238-2 01 1 1403-
64 BRACKET; CONTROLLER
ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (B) 		8-98044-239-1 01 1 1403-
64 BRACKET; CONTROLLER
ANTI LOCK BRAKE(JE5) EXC. THROTTLE CONTROL SYSTEM(6XH) (B) 		8-98044-239-1 01 1 1403-
68 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 1403-
68 BOLT; BRKT
ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (B) M8X25 FLANGE 		0-28650-825-0 03 1 1403-
68 BOLT; BRKT
ANTI LOCK BRAKE(JE5) EXC. THROTTLE CONTROL SYSTEM(6XH) (B) M8X25 FLANGE 		0-28650-825-0 03 1 1403-
68 BOLT; BRKT
MULTI INFORMATION DISPLAY<7NY> (C) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1403-
158 CONTROLLER; ABS
TIRE 225/90R17.5-128/126L(61P) THROTTLE CONTROL SYSTEM(6XH) 		8-98157-999-1 01 1 1403-
158 CONTROLLER; ABS
TIRE 225/90R17.5-128/126L(61P) EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98157-993-1 01 1 1403-
158 CONTROLLER; ABS
TIRE 235/75R17.5-132/130M EXP RIB BS BRAND(5P0) THROTTLE CONTROL SYSTEM(6XH) 		8-98157-998-1 01 1 1403-
158 CONTROLLER; ABS
TIRE 235/75R17.5-132/130M EXP RIB BS BRAND(5P0) EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98157-992-1 01 1 1403-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
