Isuzu WW
▶
TRUCKS
▶
FRR
▶
11553 - FRR RHD EURO5 SPACECAB
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-21 - METER ASM
▶

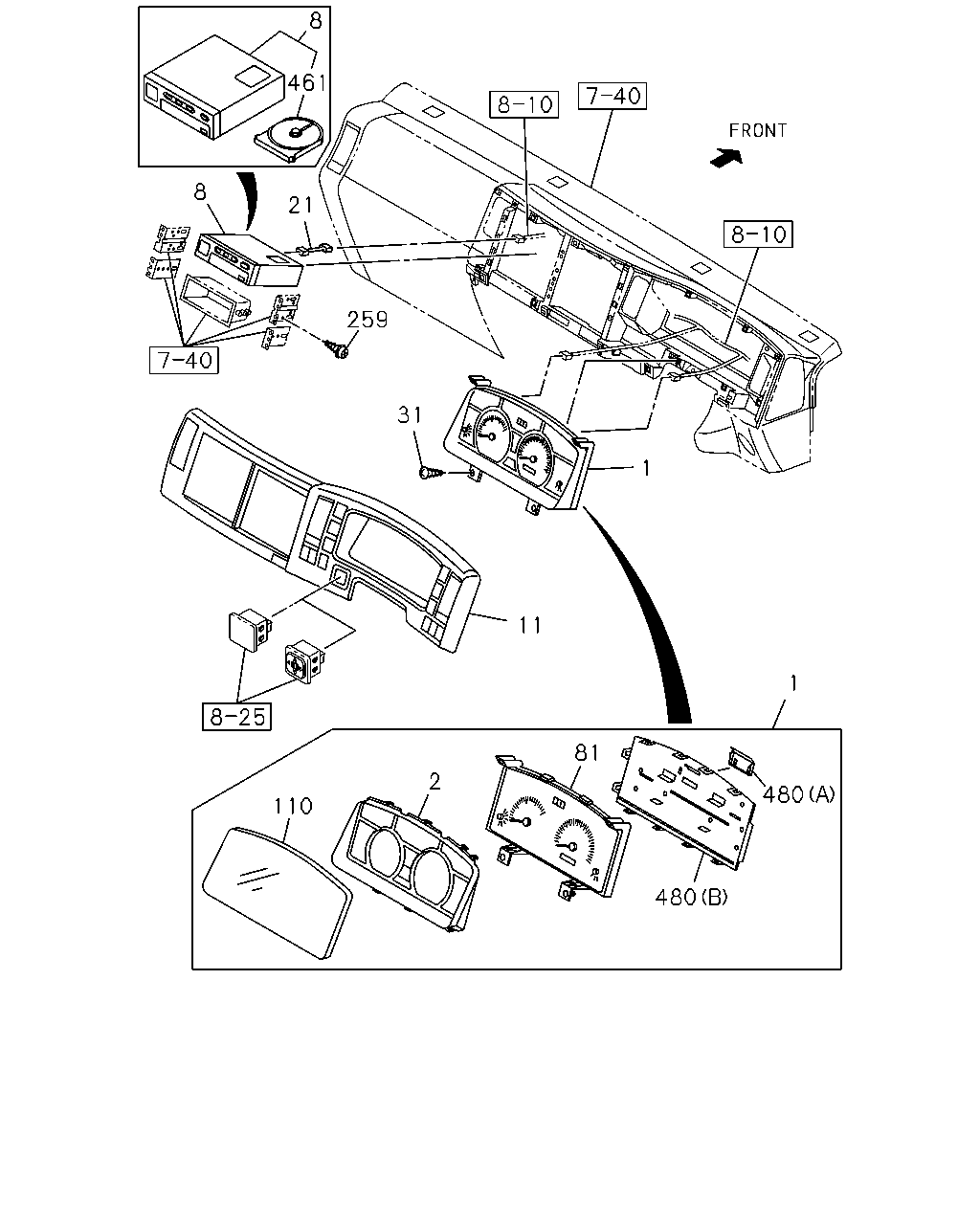

8-21 — METER ASM
(#128713) — 15 parça
1
81
480
480
2
11
110
1
31
259
21
8
461
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98064-903-6
01
1
1403-
1
METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98195-691-0
01
1
1403-
2
PANEL; CLUSTER
8-98054-432-0
01
1
1403-
8
TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<WC7>
8-97387-082-2
01
1
1403-
11
CLUSTER ASM; METER
DARK GRAY
8-97405-350-6
01
1
1403-
21
HARNESS; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7>
8-98074-077-0
01
1
1403-
31
SCREW; METER,INST PANEL
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
1403-
81
METER SUB ASM
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98079-673-0
01
1
1403-
81
METER SUB ASM
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98195-694-0
01
1
1403-
110
GLASS; CLUSTER METER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98054-431-0
01
1
1403-
110
GLASS; CLUSTER METER
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98054-642-0
01
1
1403-
259
SCREW; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> M5X7 HEXALOBULAR SOCKET
8-98063-767-0
04
1
1403-
461
CARTRIDGE ASM; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7>
1-83129-433-0
01
1
1403-
480
COVER; METER
(B) BLACK
8-98054-433-0
01
1
1403-
480
COVER; METER
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) BLACK DOT MATRIX FOR FPC PROTECTION
8-98054-881-0
01
1
1403-
