Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#128710) — 328 parça

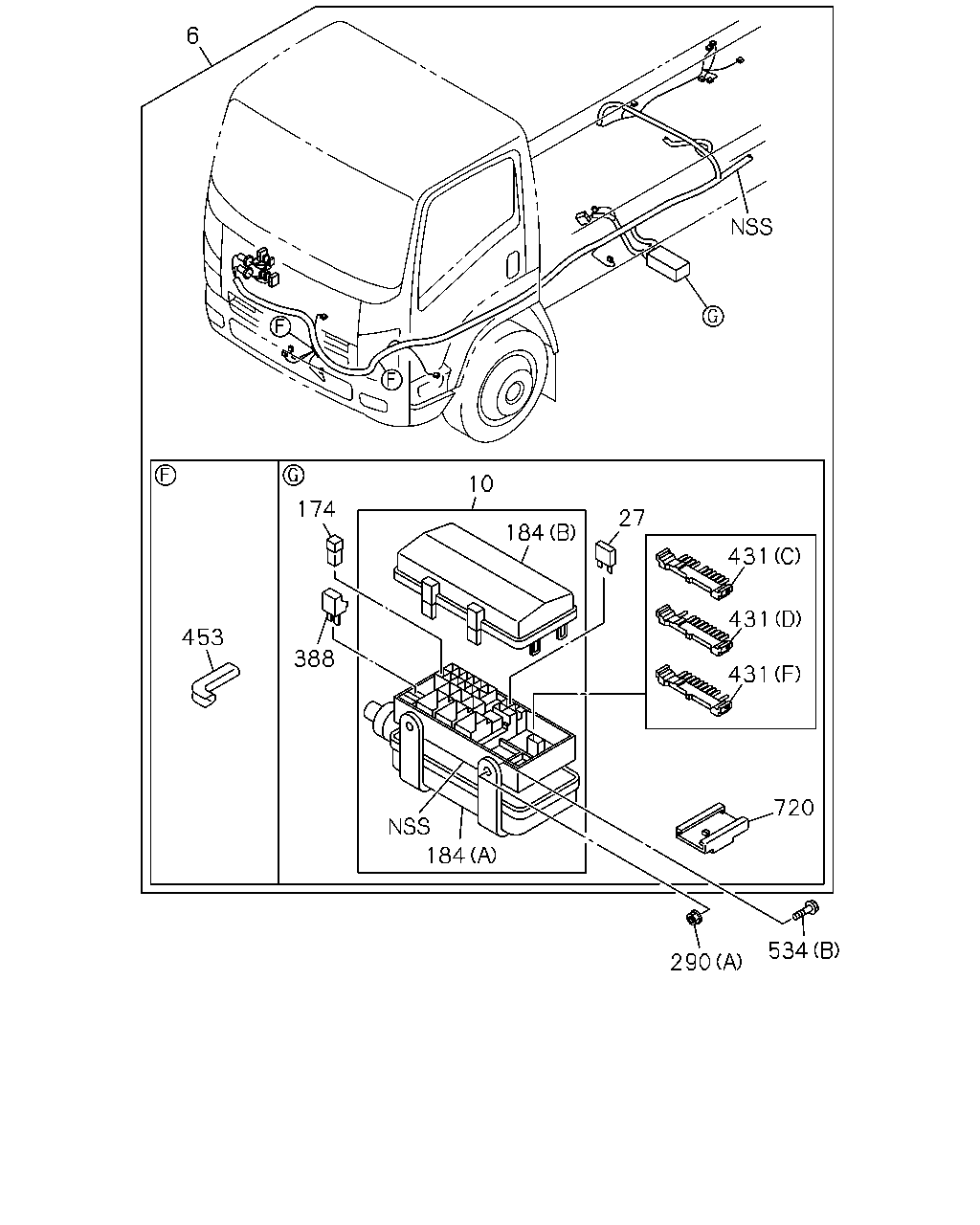

1 2 2 431 431 431

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB AIR BAG DRIVER(AJ3) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REMOTE CONT DOOR LOCK<6NF>	8-98233-531-0	01	1	1403-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REMOTE CONT DOOR LOCK<6NF>	8-98233-533-0	01	1	1403-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98233-527-0	01	1	1403-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98233-527-0	01	1	1403-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98233-529-0	01	1	1403-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98233-529-0	01	1	1403-
1	HARNESS; CAB O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),MIRROR - O/SIDE RR VIEW, PILLAR MOUNTED<DNB>	8-98233-526-0	01	1	1403-
1	HARNESS; CAB REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98233-526-0	01	1	1403-
1	HARNESS; CAB O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),MIRROR - O/SIDE RR VIEW, PILLAR MOUNTED<DNB>	8-98233-528-0	01	1	1403-
1	HARNESS; CAB REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98233-528-0	01	1	1403-
2	DIODE; CABLE HARNESS (A) BLACK 10P	1-82699-703-0	AR	1	1403-
2	DIODE; CABLE HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	AR	1	1403-
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1403-
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1403-
431	CONNECTOR; JOINT EXC. ANTI LOCK BRAKE(JE5) (F) 10P GREEN	1-82698-579-0	02	1	1403-
431	CONNECTOR; JOINT EXC. ANTI LOCK BRAKE(JE5) (C) 10P BLUE	1-82699-598-0	04	1	1403-
431	CONNECTOR; JOINT EXC. ANTI LOCK BRAKE(JE5) (E) 10P GREEN	1-82699-599-0	04	1	1403-
431	CONNECTOR; JOINT EXC. ANTI LOCK BRAKE(JE5) (D) 10P BROWN	1-82699-601-0	01	1	1403-

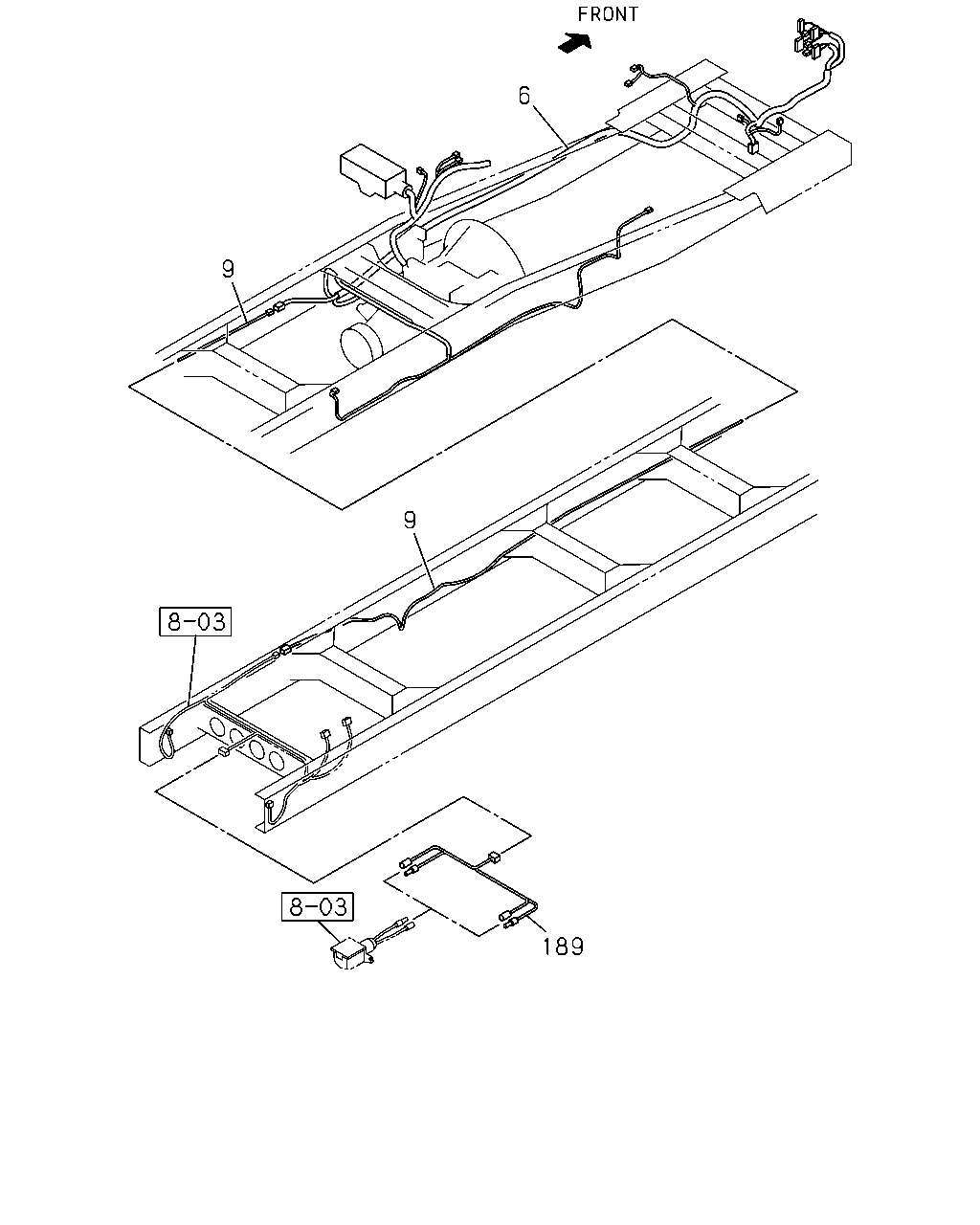

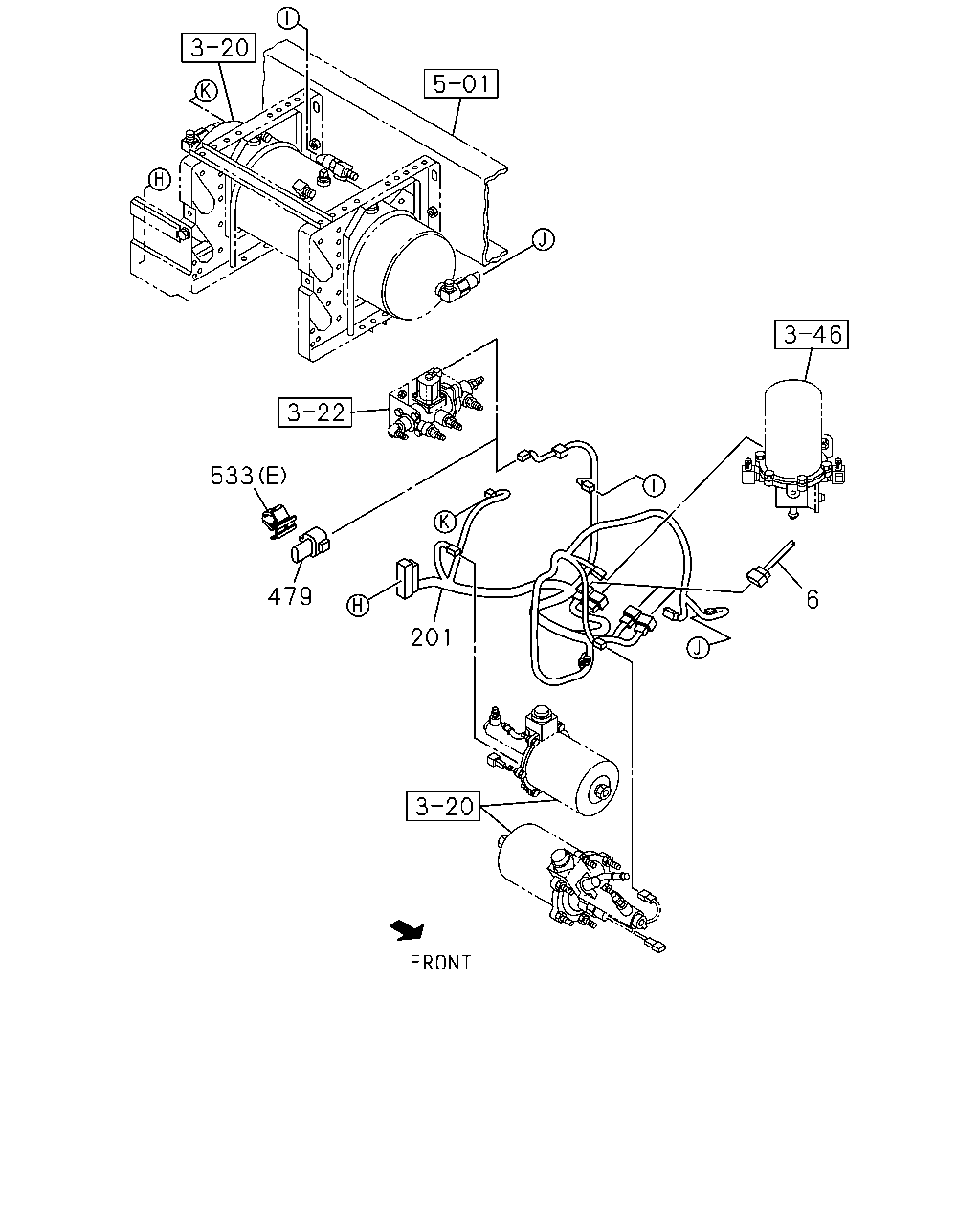

6 201 479 533

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME ANTI LOCK BRAKE(JE5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-556-1	01	1	1403-
6	HARNESS; FRAME ANTI LOCK BRAKE(JE5) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98233-554-1	01	1	1403-
6	HARNESS; FRAME TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ANTI LOCK BRAKE(JE5)	8-98233-637-1	01	1	1403-
6	HARNESS; FRAME TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. ANTI LOCK BRAKE(JE5)	8-98233-555-1	01	1	1403-
201	HARNESS; AIR TANK ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH)	8-98156-704-2	01	1	1403-
201	HARNESS; AIR TANK ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH)	8-98156-705-2	01	1	1403-
201	HARNESS; AIR TANK ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH)	8-98156-709-2	01	1	1403-
201	HARNESS; AIR TANK ANTI LOCK BRAKE(JE5) THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98156-707-2	01	1	1403-
201	HARNESS; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH)	8-98156-706-1	01	1	1403-
201	HARNESS; AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH)	8-98212-309-0	01	1	1403-
479	CAP; CONNECTOR EXC. H.S.A SYSTEM<6EP>	1-82691-191-0	01	1	1403-
533	CLIP (B) L=600	1-09707-107-1	01	1	1403-
533	CLIP (C) L=250	1-09707-126-0	02	1	1403-
533	CLIP (D) L=350	1-09707-183-0	01	1	1403-
533	CLIP (F) ID=10 & 10	1-09709-277-1	04	1	1403-
533	CLIP (G) ID=10 & 12	1-09709-278-1	01	1	1403-
533	CLIP (H) ID=5-12 L=18	1-09709-287-0	01	1	1403-
533	CLIP (J) ID=5-12 L=14.5	1-09987-221-0	03	1	1403-
533	CLIP (K) L=250	5-09707-030-1	02	1	1403-
533	CLIP (K) L=250	5-09707-030-1	07	1	1403-
533	CLIP (L) OD=9 H=9.5	1-09709-179-0	01	1	1403-
533	CLIP (M) ID=14 L=44	9-09917-427-0	04	1	1403-
533	CLIP ANTI LOCK BRAKE(JE5) (A) ID=11 L=41	1-09700-403-0	01	1	1403-
533	CLIP ANTI LOCK BRAKE(JE5) (E) OD=9 H=6	1-09709-178-0	02	1	1403-
533	CLIP (E) OD=9 H=6	1-09709-178-0	01	1	1403-
533	CLIP EXC. H.S.A SYSTEM<6EP> (E) OD=9 H=6	1-09709-178-0	01	1	1403-
533	CLIP HONG KONG EQUIPMENT(B14) (N) L=180	1-09707-162-1	01	1	1403-
533	CLIP EXC. INTERMITTENT WIPER<C13> (I) L=100	5-09707-036-1	01	1	1403-
533	CLIP SINGAPORE EQUIPMENT(2G0) (M) ID=14 L=44	9-09917-427-0	01	1	1403-
533	CLIP EXC. SINGAPORE EQUIPMENT(2G0) (M) ID=14 L=44	9-09917-427-0	02	1	1403-
533	CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (O) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1403-
533	CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (P) ID=32 L=50	1-09701-055-1	01	1	1403-
533	CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (Q) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1403-
533	CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (R) ID=35 L=50	1-09701-214-0	01	1	1403-
533	CLIP WHEEL BASE 4000MM(40W) (M) ID=14 L=44	9-09917-427-0	07	1	1403-
533	CLIP WHEEL BASE 4600MM(46W) (M) ID=14 L=44	9-09917-427-0	10	1	1403-
533	CLIP WHEEL BASE 5300MM(53W) (S) ID=13-18 L=22	1-09709-292-0	01	1	1403-
533	CLIP WHEEL BASE 5300MM(53W) (M) ID=14 L=44	9-09917-427-0	13	1	1403-

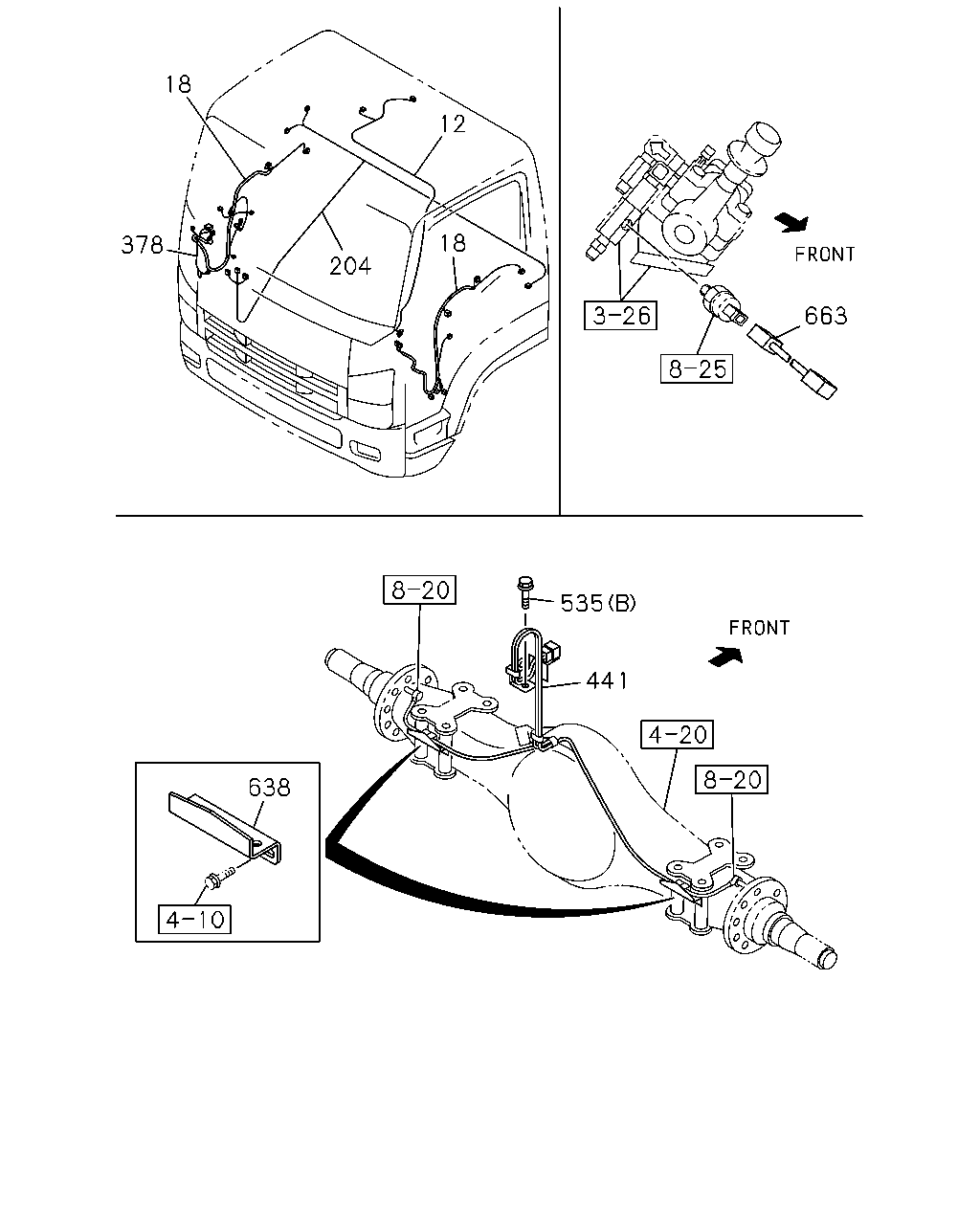

253 1 486 1 339

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB AIR BAG DRIVER(AJ3) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REMOTE CONT DOOR LOCK<6NF>	8-98233-531-0	01	1	1403-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REMOTE CONT DOOR LOCK<6NF>	8-98233-533-0	01	1	1403-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98233-527-0	01	1	1403-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98233-527-0	01	1	1403-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98233-529-0	01	1	1403-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98233-529-0	01	1	1403-
1	HARNESS; CAB O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),MIRROR - O/SIDE RR VIEW, PILLAR MOUNTED<DNB>	8-98233-526-0	01	1	1403-
1	HARNESS; CAB REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98233-526-0	01	1	1403-
1	HARNESS; CAB O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),MIRROR - O/SIDE RR VIEW, PILLAR MOUNTED<DNB>	8-98233-528-0	01	1	1403-
1	HARNESS; CAB REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98233-528-0	01	1	1403-
253	HARNESS; EXT,HORN DUAL HEAVY DUTY HORN<6KK>	8-98074-080-3	01	1	1403-
253	HARNESS; EXT,HORN ELECTRICAL HORN<WB7>	8-98074-081-2	01	1	1403-
339	HARNESS; EXT,FUEL WHEEL BASE 4000MM(40W) SINGAPORE EQUIPMENT(2G0)	8-98119-943-0	01	1	1403-
339	HARNESS; EXT,FUEL WHEEL BASE 4000MM(40W) EXC. SINGAPORE EQUIPMENT(2G0)	8-98247-533-0	01	1	1403-
339	HARNESS; EXT,FUEL WHEEL BASE 4600MM(46W) SINGAPORE EQUIPMENT(2G0)	8-98214-591-0	01	1	1403-
339	HARNESS; EXT,FUEL WHEEL BASE 4600MM(46W) EXC. SINGAPORE EQUIPMENT(2G0)	8-98247-534-0	01	1	1403-
339	HARNESS; EXT,FUEL WHEEL BASE 5300MM(53W) SINGAPORE EQUIPMENT(2G0)	8-98212-411-0	01	1	1403-
486	HARNESS; ALL SPEED ACCEL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUMP CONTROL LEVER<RC4>	1-82675-898-0	01	1	1403-

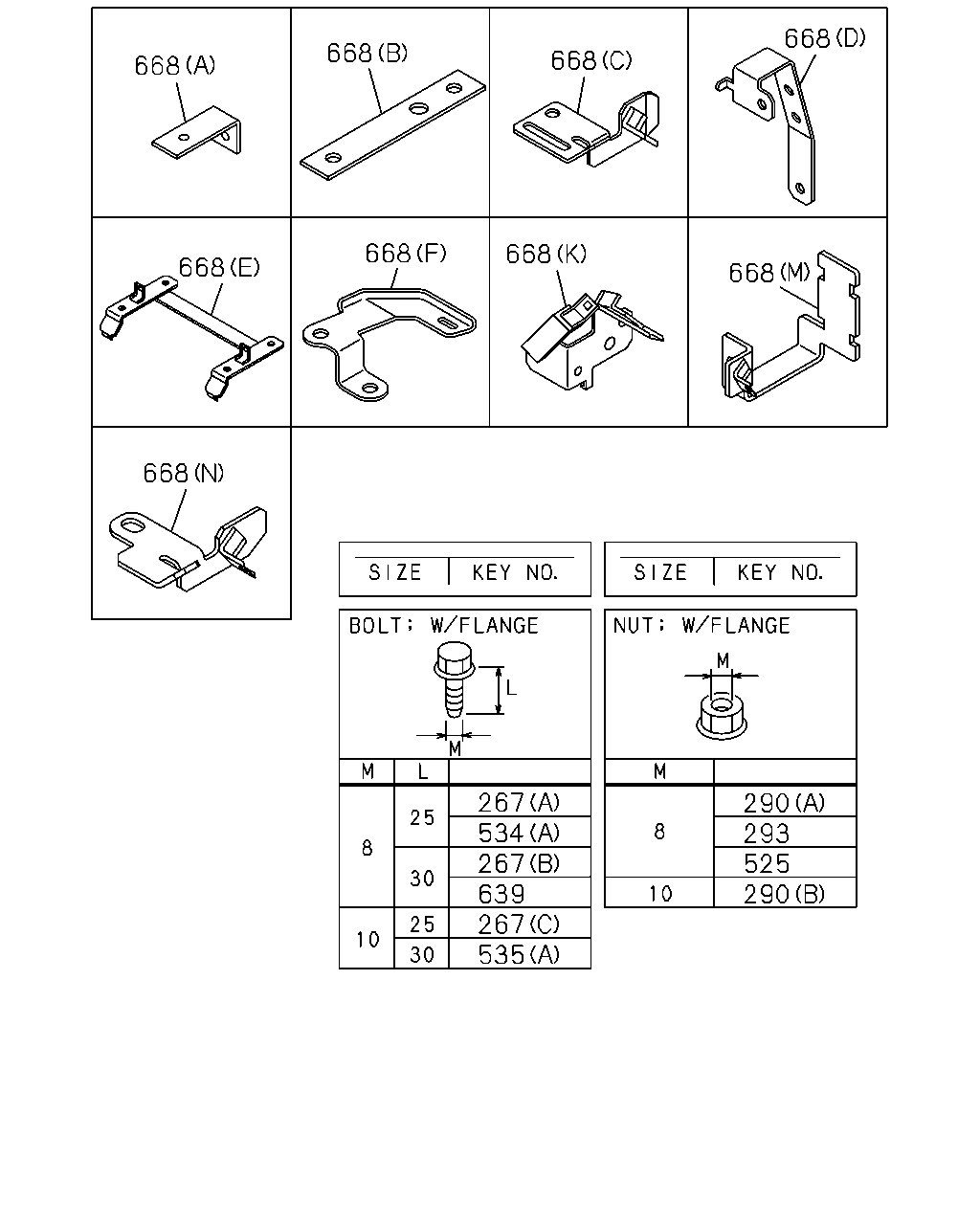

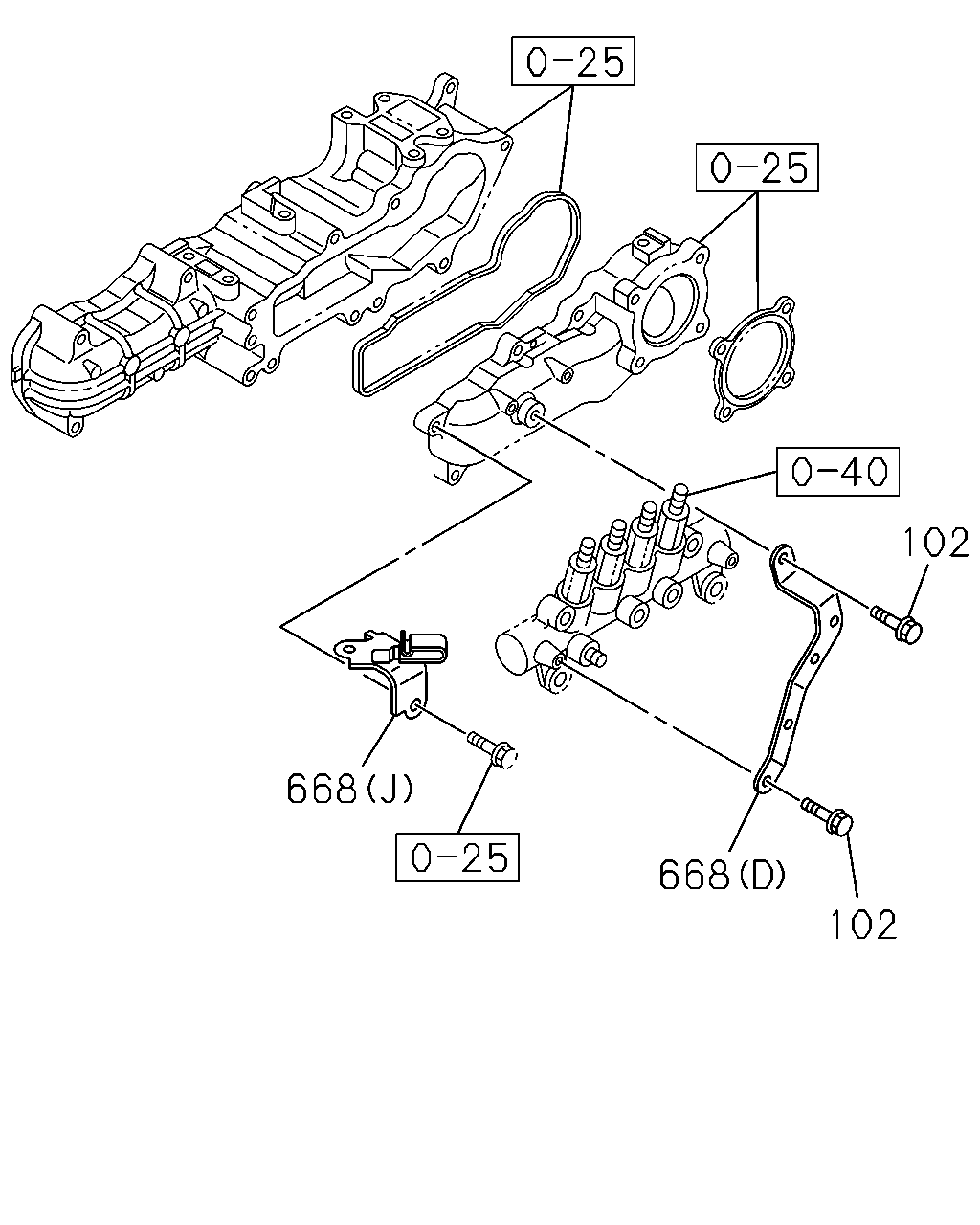

102 102 668 668

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
102	BOLT; BRKT,HARNESS CONNECTOR M8X16 FLANGE	0-28050-816-0	03	1	1403-
102	BOLT; BRKT,HARNESS CONNECTOR M10X16 FLANGE	0-28151-016-0	03	1	1403-
102	BOLT; BRKT,HARNESS CONNECTOR M8X20 FLANGE	0-28650-820-0	01	1	1403-
668	BRACKET; HARNESS (A) L=55	1-47475-304-0	01	1	1403-
668	BRACKET; HARNESS (B) L=170	1-47479-380-0	01	1	1403-
668	BRACKET; HARNESS (C)	8-97616-305-0	01	1	1403-1502
668	BRACKET; HARNESS (N)	8-98254-592-0	01	1	1503-
668	BRACKET; HARNESS (D)	8-97619-097-1	01	1	1403-
668	BRACKET; HARNESS (E)	8-97619-533-0	01	1	1403-
668	BRACKET; HARNESS (K)	8-97622-828-0	01	1	1403-
668	BRACKET; HARNESS (G)	8-98009-245-0	01	1	1403-1408
668	BRACKET; HARNESS (G)	8-98273-295-0	01	1	1409-
668	BRACKET; HARNESS (I)	8-98024-765-0	01	1	1403-
668	BRACKET; HARNESS (J)	8-98061-780-0	01	1	1403-
668	BRACKET; HARNESS (M)	8-98116-461-0	01	1	1403-
668	BRACKET; HARNESS (F)	8-98240-491-0	01	1	1403-
668	BRACKET; HARNESS (H)	8-98255-779-0	01	1	1403-
668	BRACKET; HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (L)	8-98095-653-2	01	1	1403-

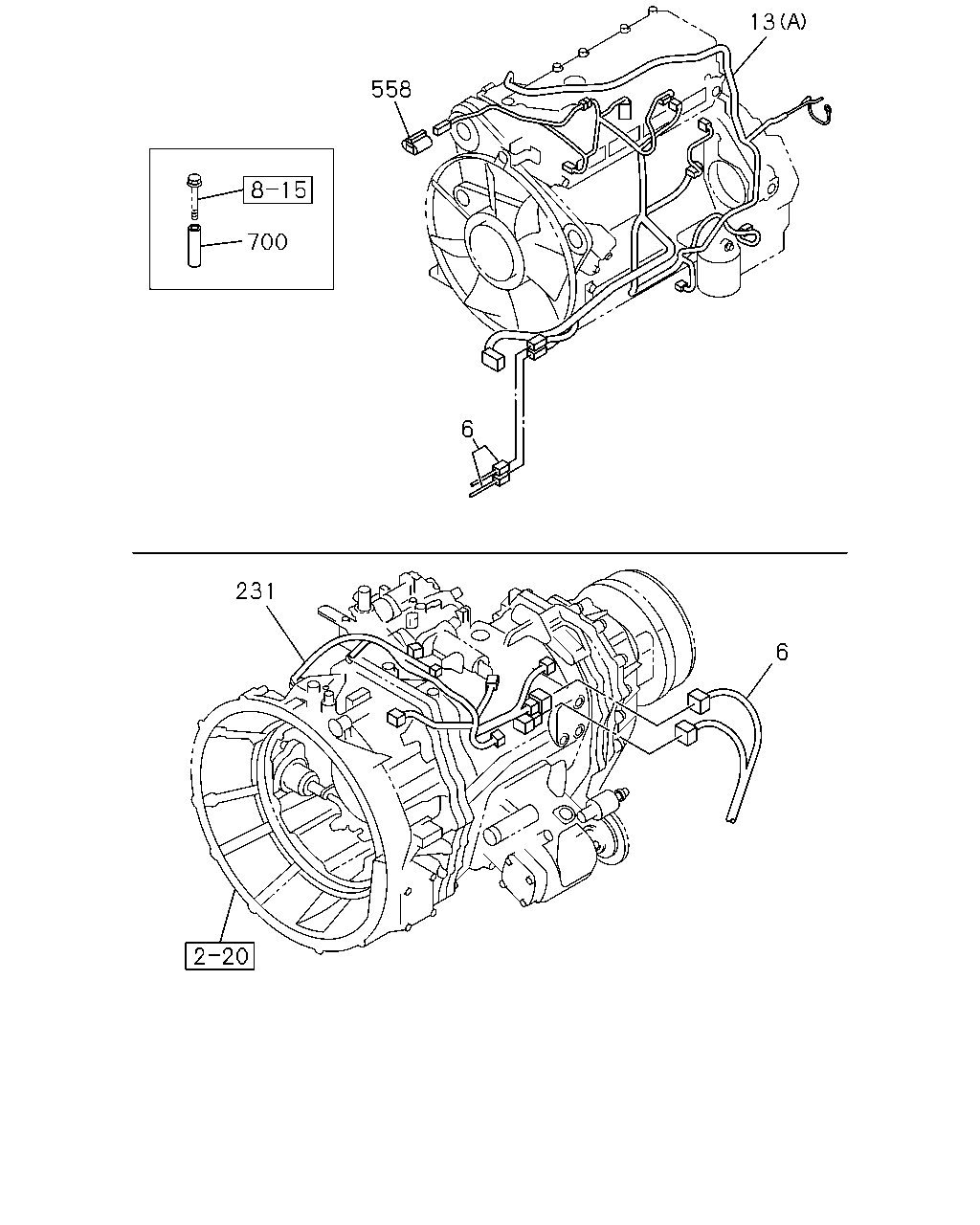

700 558 13 6 6 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME ANTI LOCK BRAKE(JE5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-556-1	01	1	1403-
6	HARNESS; FRAME ANTI LOCK BRAKE(JE5) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98233-554-1	01	1	1403-
6	HARNESS; FRAME TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ANTI LOCK BRAKE(JE5)	8-98233-637-1	01	1	1403-
6	HARNESS; FRAME TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. ANTI LOCK BRAKE(JE5)	8-98233-555-1	01	1	1403-
13	HARNESS; ENG (B)	8-98171-638-0	01	1	1403-
13	HARNESS; ENG GENERATOR 24V50A(K89) (A)	8-98242-603-1	01	1	1403-1406
13	HARNESS; ENG GENERATOR 24V50A(K89) (A)	8-98274-088-0	01	1	1407-
13	HARNESS; ENG GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A)	8-98242-604-1	01	1	1403-1406
13	HARNESS; ENG GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A)	8-98274-089-0	01	1	1407-
231	HARNESS; TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98234-228-0	01	1	1403-
231	HARNESS; TRANS TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98234-833-0	01	1	1403-
558	CONNECTOR; HARNESS EXC. AIR CONDITIONER MANUAL CONTROL(C60)	1-82690-668-0	01	1	1403-
700	TUBE; DISTANCE EXC. AIR CONDITIONER MANUAL CONTROL(C60) L=51	1-11369-157-0	01	1	1403-

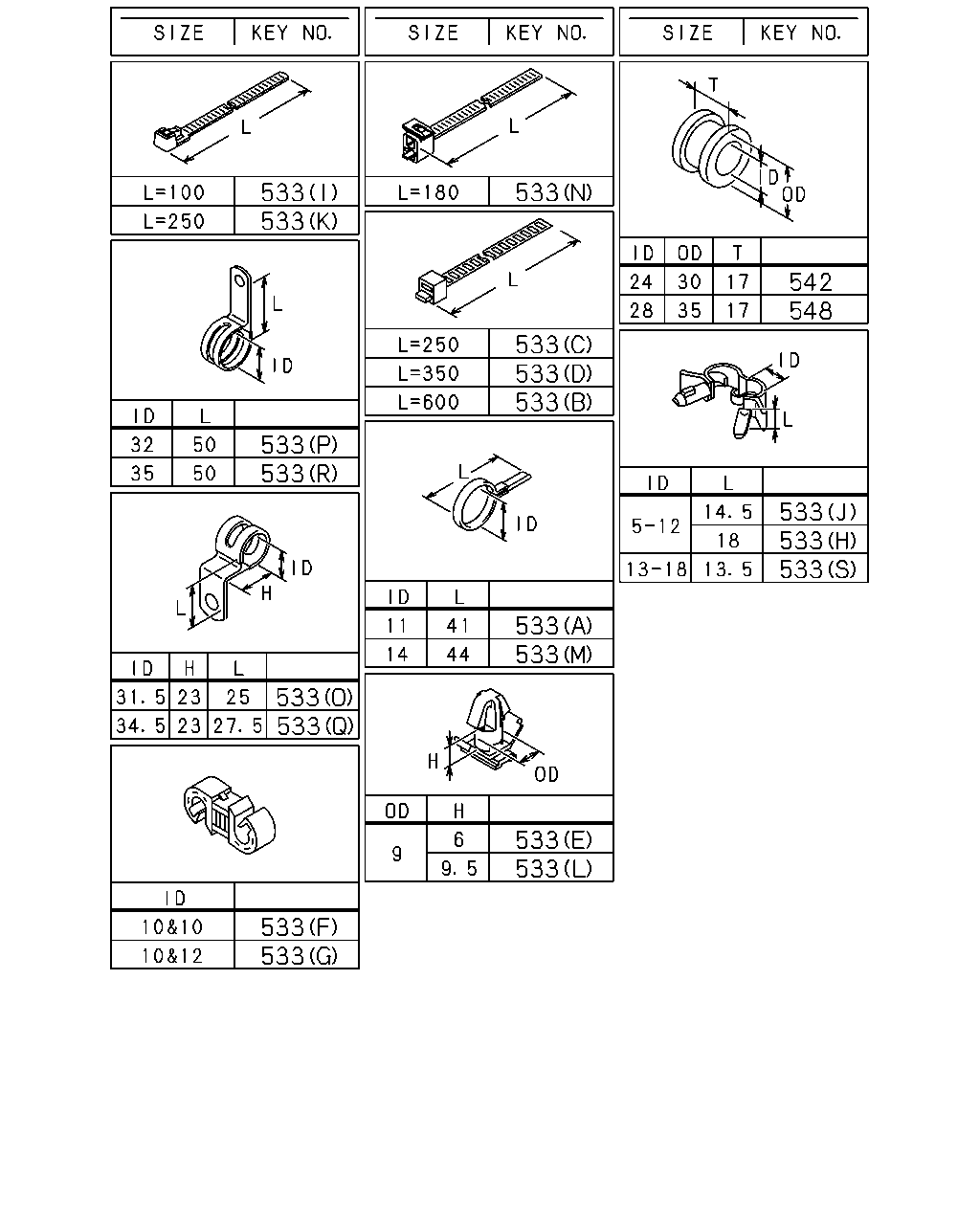

533 533 533 533 533 533 533 533 533 533 533 533 533 533 533 533 542 548 533 533 533

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
533	CLIP (B) L=600	1-09707-107-1	01	1	1403-
533	CLIP (C) L=250	1-09707-126-0	02	1	1403-
533	CLIP (D) L=350	1-09707-183-0	01	1	1403-
533	CLIP (F) ID=10 & 10	1-09709-277-1	04	1	1403-
533	CLIP (G) ID=10 & 12	1-09709-278-1	01	1	1403-
533	CLIP (H) ID=5-12 L=18	1-09709-287-0	01	1	1403-
533	CLIP (J) ID=5-12 L=14.5	1-09987-221-0	03	1	1403-
533	CLIP (K) L=250	5-09707-030-1	02	1	1403-
533	CLIP (K) L=250	5-09707-030-1	07	1	1403-
533	CLIP (L) OD=9 H=9.5	1-09709-179-0	01	1	1403-
533	CLIP (M) ID=14 L=44	9-09917-427-0	04	1	1403-
533	CLIP ANTI LOCK BRAKE(JE5) (A) ID=11 L=41	1-09700-403-0	01	1	1403-
533	CLIP ANTI LOCK BRAKE(JE5) (E) OD=9 H=6	1-09709-178-0	02	1	1403-
533	CLIP (E) OD=9 H=6	1-09709-178-0	01	1	1403-
533	CLIP EXC. H.S.A SYSTEM<6EP> (E) OD=9 H=6	1-09709-178-0	01	1	1403-
533	CLIP HONG KONG EQUIPMENT(B14) (N) L=180	1-09707-162-1	01	1	1403-
533	CLIP EXC. INTERMITTENT WIPER<C13> (I) L=100	5-09707-036-1	01	1	1403-
533	CLIP SINGAPORE EQUIPMENT(2G0) (M) ID=14 L=44	9-09917-427-0	01	1	1403-
533	CLIP EXC. SINGAPORE EQUIPMENT(2G0) (M) ID=14 L=44	9-09917-427-0	02	1	1403-
533	CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (O) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1403-
533	CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (P) ID=32 L=50	1-09701-055-1	01	1	1403-
533	CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (Q) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1403-
533	CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (R) ID=35 L=50	1-09701-214-0	01	1	1403-
533	CLIP WHEEL BASE 4000MM(40W) (M) ID=14 L=44	9-09917-427-0	07	1	1403-
533	CLIP WHEEL BASE 4600MM(46W) (M) ID=14 L=44	9-09917-427-0	10	1	1403-
533	CLIP WHEEL BASE 5300MM(53W) (S) ID=13-18 L=22	1-09709-292-0	01	1	1403-
533	CLIP WHEEL BASE 5300MM(53W) (M) ID=14 L=44	9-09917-427-0	13	1	1403-
542	GROMMET; HARNESS ID=24 OD=30 T=17	9-09956-092-1	01	1	1403-
542	GROMMET; HARNESS ANTI LOCK BRAKE(JE5) ID=24 OD=30 T=17	9-09956-092-1	02	1	1403-
548	GROMMET ID=28 OD=35 T=17	9-09956-256-2	01	1	1403-

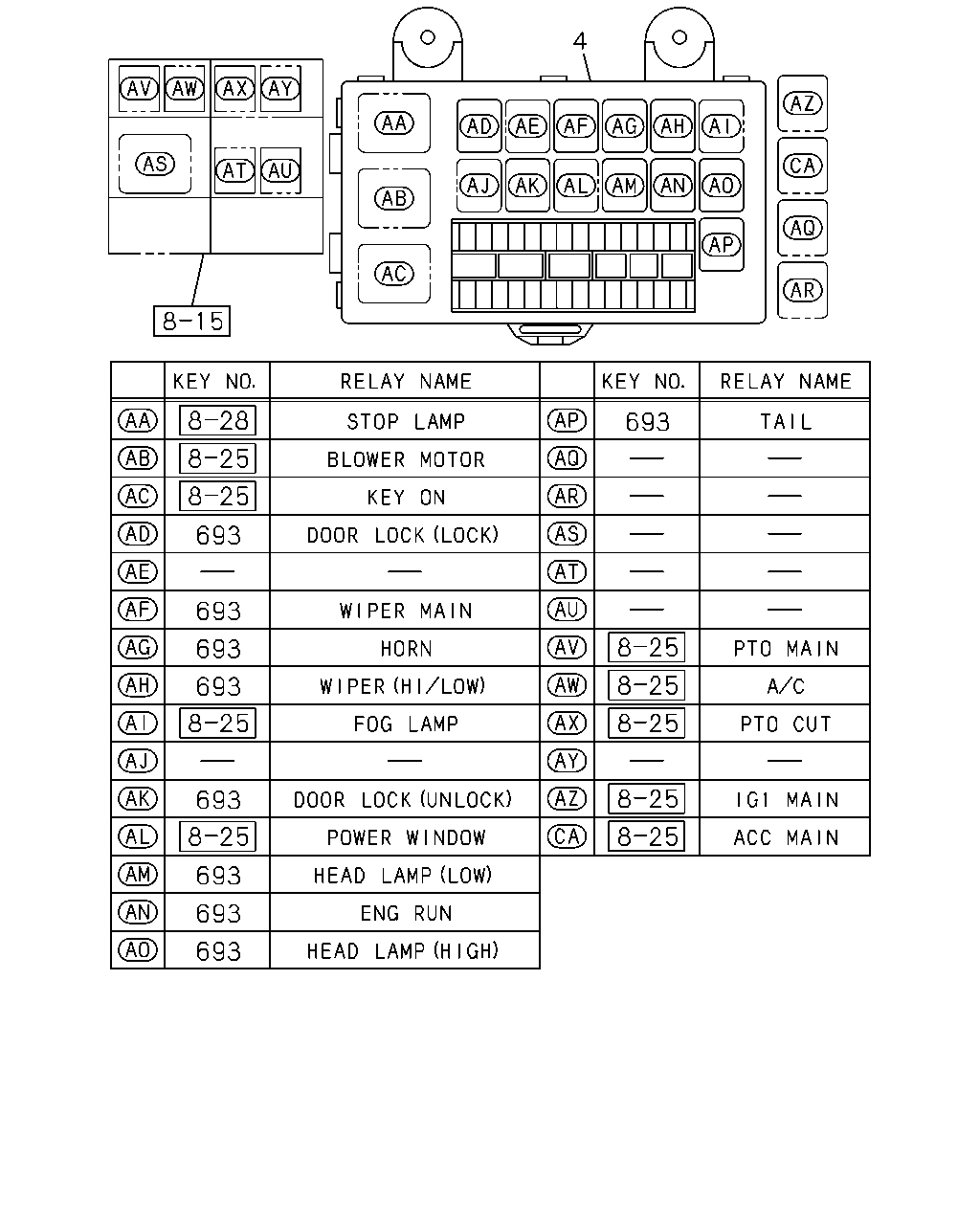

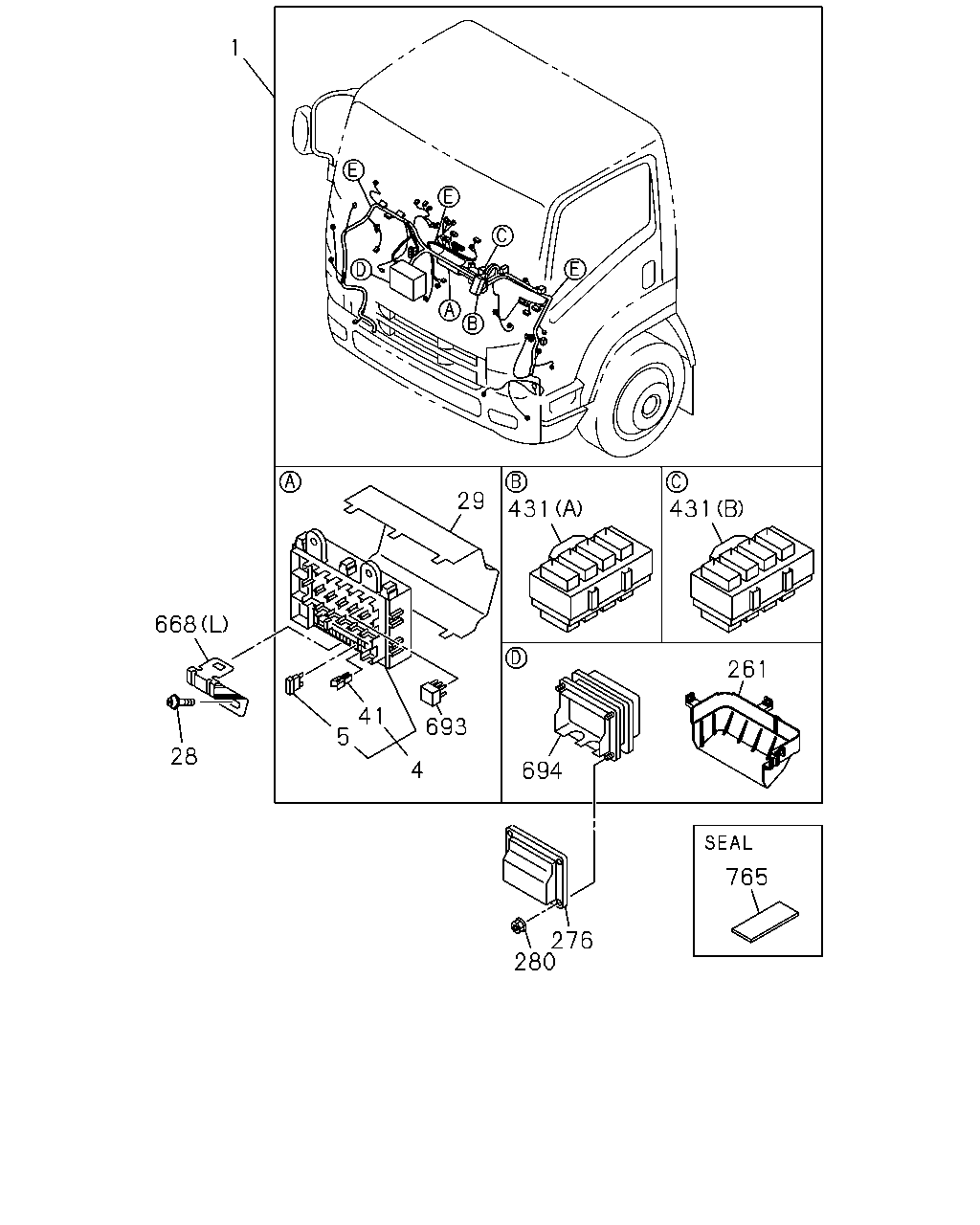

1 668 28 5 693 4 41 29 694 431 280 431 261 765 276

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB AIR BAG DRIVER(AJ3) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REMOTE CONT DOOR LOCK<6NF>	8-98233-531-0	01	1	1403-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REMOTE CONT DOOR LOCK<6NF>	8-98233-533-0	01	1	1403-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98233-527-0	01	1	1403-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98233-527-0	01	1	1403-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98233-529-0	01	1	1403-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98233-529-0	01	1	1403-
1	HARNESS; CAB O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),MIRROR - O/SIDE RR VIEW, PILLAR MOUNTED<DNB>	8-98233-526-0	01	1	1403-
1	HARNESS; CAB REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98233-526-0	01	1	1403-
1	HARNESS; CAB O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),MIRROR - O/SIDE RR VIEW, PILLAR MOUNTED<DNB>	8-98233-528-0	01	1	1403-
1	HARNESS; CAB REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98233-528-0	01	1	1403-
4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	1403-
5	FUSE; FACIA HARNESS 10A RED	8-98054-257-0	AR	1	1403-
5	FUSE; FACIA HARNESS 15A BLUE	8-98054-258-0	AR	1	1403-
5	FUSE; FACIA HARNESS 20A YELLOW	8-98054-259-0	AR	1	1403-
5	FUSE; FACIA HARNESS 25A WHITE	8-98062-982-0	AR	1	1403-
28	SCREW; FUSE BOX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) T25 M5X12 TAPPING HEXALOBULAR	8-98081-722-0	01	1	1403-
29	COVER; FUSE BOX	8-98056-968-0	01	1	1403-
41	PULLER; FUSE	8-98054-260-0	01	1	1403-
261	COVER; CONNECTOR BOX	8-98065-986-1	01	1	1403-
276	COVER; BOX,FRAME HARNESS	8-98034-039-1	01	1	1403-
280	NUT; BOX ASM FIX M6 FLANGE	0-91180-106-0	04	1	1403-
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1403-
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1403-
431	CONNECTOR; JOINT EXC. ANTI LOCK BRAKE(JE5) (F) 10P GREEN	1-82698-579-0	02	1	1403-
431	CONNECTOR; JOINT EXC. ANTI LOCK BRAKE(JE5) (C) 10P BLUE	1-82699-598-0	04	1	1403-
431	CONNECTOR; JOINT EXC. ANTI LOCK BRAKE(JE5) (E) 10P GREEN	1-82699-599-0	04	1	1403-
431	CONNECTOR; JOINT EXC. ANTI LOCK BRAKE(JE5) (D) 10P BROWN	1-82699-601-0	01	1	1403-
668	BRACKET; HARNESS (A) L=55	1-47475-304-0	01	1	1403-
668	BRACKET; HARNESS (B) L=170	1-47479-380-0	01	1	1403-
668	BRACKET; HARNESS (C)	8-97616-305-0	01	1	1403-1502
668	BRACKET; HARNESS (N)	8-98254-592-0	01	1	1503-
668	BRACKET; HARNESS (D)	8-97619-097-1	01	1	1403-
668	BRACKET; HARNESS (E)	8-97619-533-0	01	1	1403-
668	BRACKET; HARNESS (K)	8-97622-828-0	01	1	1403-
668	BRACKET; HARNESS (G)	8-98009-245-0	01	1	1403-1408
668	BRACKET; HARNESS (G)	8-98273-295-0	01	1	1409-
668	BRACKET; HARNESS (I)	8-98024-765-0	01	1	1403-
668	BRACKET; HARNESS (J)	8-98061-780-0	01	1	1403-
668	BRACKET; HARNESS (M)	8-98116-461-0	01	1	1403-
668	BRACKET; HARNESS (F)	8-98240-491-0	01	1	1403-
668	BRACKET; HARNESS (H)	8-98255-779-0	01	1	1403-
668	BRACKET; HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (L)	8-98095-653-2	01	1	1403-
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1403-
694	BOX ASM; CONNECTOR	8-98057-771-0	01	1	1403-
765	TAPE 100X40	1-72498-022-1	01	1	1409-

535 267 639 534 267 267 290 525 293 290 668 668 668 668 668 668 668 668 668

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
267	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1403-
267	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	03	1	1403-
267	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	1403-
290	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1403-
290	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	07	1	1403-
290	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1403-
290	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1403-
293	NUT M8 FLANGE	0-91180-108-0	01	1	1403-
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1403-
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1403-
534	BOLT (A) M8X25 FLANGE	0-28650-825-0	01	1	1403-
534	BOLT (B) M8X35 W/LK&PL WASHER	1-09030-073-0	03	1	1403-
534	BOLT (C) M10X55 FLANGE	8-97365-449-0	03	1	1403-
535	BOLT; BRKT FIX (A) M10X30 FLANGE	0-28651-030-0	01	1	1403-
535	BOLT; BRKT FIX (A) M10X30 FLANGE	0-28651-030-0	01	1	1403-
535	BOLT; BRKT FIX ANTI LOCK BRAKE(JE5) (B) M8X10 W/LK WASHER	8-98029-928-0	02	1	1403-
639	BOLT; CLIP M8X30 FLANGE	0-28650-830-0	01	1	1403-
668	BRACKET; HARNESS (A) L=55	1-47475-304-0	01	1	1403-
668	BRACKET; HARNESS (B) L=170	1-47479-380-0	01	1	1403-
668	BRACKET; HARNESS (C)	8-97616-305-0	01	1	1403-1502
668	BRACKET; HARNESS (N)	8-98254-592-0	01	1	1503-
668	BRACKET; HARNESS (D)	8-97619-097-1	01	1	1403-
668	BRACKET; HARNESS (E)	8-97619-533-0	01	1	1403-
668	BRACKET; HARNESS (K)	8-97622-828-0	01	1	1403-
668	BRACKET; HARNESS (G)	8-98009-245-0	01	1	1403-1408
668	BRACKET; HARNESS (G)	8-98273-295-0	01	1	1409-
668	BRACKET; HARNESS (I)	8-98024-765-0	01	1	1403-
668	BRACKET; HARNESS (J)	8-98061-780-0	01	1	1403-
668	BRACKET; HARNESS (M)	8-98116-461-0	01	1	1403-
668	BRACKET; HARNESS (F)	8-98240-491-0	01	1	1403-
668	BRACKET; HARNESS (H)	8-98255-779-0	01	1	1403-
668	BRACKET; HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (L)	8-98095-653-2	01	1	1403-

18 378 12 18 204 663 441 535 638

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	HARNESS; ROOF FLUORESCENT LAMP<6UC>	8-98048-930-2	01	1	1403-
12	HARNESS; ROOF EXC. FLUORESCENT LAMP<6UC>	8-98041-948-2	01	1	1403-
18	HARNESS; DOOR POWER WINDOW FRT DOOR<A32>	8-98108-440-1	01	1	1403-
18	HARNESS; DOOR POWER WINDOW FRT DOOR<A32>	8-98108-439-1	01	1	1403-
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98084-194-0	01	1	1403-
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98084-208-1	01	1	1403-
204	HARNESS; CABLE,FLOOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3)	8-98084-188-0	01	1	1403-
204	HARNESS; CABLE,FLOOR TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3)	8-98084-204-0	01	1	1403-
378	HARNESS; EXT,MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98022-717-1	01	1	1403-
441	HARNESS; CABLE,SPEED SENSOR ANTI LOCK BRAKE(JE5)	8-98061-652-0	01	1	1403-
535	BOLT; BRKT FIX (A) M10X30 FLANGE	0-28651-030-0	01	1	1403-
535	BOLT; BRKT FIX (A) M10X30 FLANGE	0-28651-030-0	01	1	1403-
535	BOLT; BRKT FIX ANTI LOCK BRAKE(JE5) (B) M8X10 W/LK WASHER	8-98029-928-0	02	1	1403-
638	BRACKET; SPD SENSOR ANTI LOCK BRAKE(JE5)	8-98012-580-1	02	1	1403-
663	HARNESS; EXTENSION,RR WHEEL PARKING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98126-779-2	01	1	1403-

693 693 693 693 693 693 693 693 693 4

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	1403-
	693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1403-

691 1 6 595

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB AIR BAG DRIVER(AJ3) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REMOTE CONT DOOR LOCK<6NF>	8-98233-531-0	01	1	1403-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REMOTE CONT DOOR LOCK<6NF>	8-98233-533-0	01	1	1403-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98233-527-0	01	1	1403-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98233-527-0	01	1	1403-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98233-529-0	01	1	1403-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98233-529-0	01	1	1403-
1	HARNESS; CAB O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),MIRROR - O/SIDE RR VIEW, PILLAR MOUNTED<DNB>	8-98233-526-0	01	1	1403-
1	HARNESS; CAB REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98233-526-0	01	1	1403-
1	HARNESS; CAB O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),MIRROR - O/SIDE RR VIEW, PILLAR MOUNTED<DNB>	8-98233-528-0	01	1	1403-
1	HARNESS; CAB REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98233-528-0	01	1	1403-
6	HARNESS; FRAME ANTI LOCK BRAKE(JE5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-556-1	01	1	1403-
6	HARNESS; FRAME ANTI LOCK BRAKE(JE5) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98233-554-1	01	1	1403-
6	HARNESS; FRAME TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ANTI LOCK BRAKE(JE5)	8-98233-637-1	01	1	1403-
6	HARNESS; FRAME TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. ANTI LOCK BRAKE(JE5)	8-98233-555-1	01	1	1403-
595	HARNESS; WARNING,BRK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97621-003-3	01	1	1403-
595	HARNESS; WARNING,BRK TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97621-005-3	01	1	1403-
691	HARNESS; IDLE CONT	8-98049-014-2	01	1	1403-

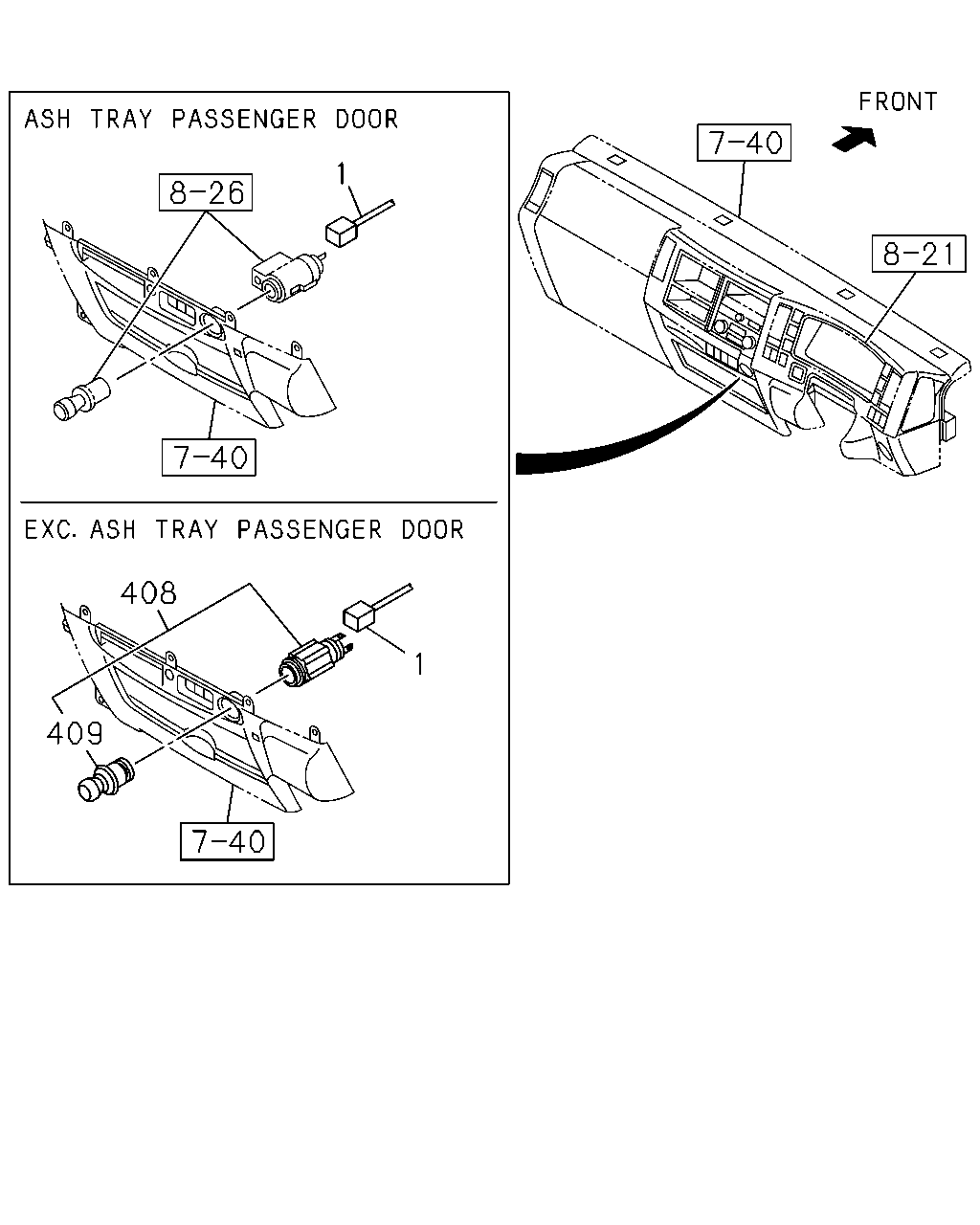

1 1 408 409

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB AIR BAG DRIVER(AJ3) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REMOTE CONT DOOR LOCK<6NF>	8-98233-531-0	01	1	1403-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REMOTE CONT DOOR LOCK<6NF>	8-98233-533-0	01	1	1403-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98233-527-0	01	1	1403-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98233-527-0	01	1	1403-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98233-529-0	01	1	1403-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98233-529-0	01	1	1403-
1	HARNESS; CAB O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),MIRROR - O/SIDE RR VIEW, PILLAR MOUNTED<DNB>	8-98233-526-0	01	1	1403-
1	HARNESS; CAB REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98233-526-0	01	1	1403-
1	HARNESS; CAB O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),MIRROR - O/SIDE RR VIEW, PILLAR MOUNTED<DNB>	8-98233-528-0	01	1	1403-
1	HARNESS; CAB REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98233-528-0	01	1	1403-
408	SOCKET ASM; ACCESSORY EXC. ASH TRAY PASSENGER DOOR<8LX>	8-98169-757-0	01	1	1403-
409	CAP; ACCESSORY SOCKET EXC. ASH TRAY PASSENGER DOOR<8LX>	8-98183-771-0	01	1	1403-

6 10 184 174 453 388 184 27 431 431 431 720 290 534

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME ANTI LOCK BRAKE(JE5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-556-1	01	1	1403-
6	HARNESS; FRAME ANTI LOCK BRAKE(JE5) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98233-554-1	01	1	1403-
6	HARNESS; FRAME TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ANTI LOCK BRAKE(JE5)	8-98233-637-1	01	1	1403-
6	HARNESS; FRAME TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. ANTI LOCK BRAKE(JE5)	8-98233-555-1	01	1	1403-
10	BOX; FUSE,HARNESS	8-98030-762-0	01	1	1403-
27	FUSE UNIT 10A RED	8-98054-257-0	01	1	1403-
27	FUSE UNIT ANTI LOCK BRAKE(JE5) 15A BLUE	8-98054-258-0	01	1	1403-
27	FUSE UNIT EXC. ANTI LOCK BRAKE(JE5) 15A BLUE	8-98054-258-0	02	1	1403-
174	FUSE; SLOW BLOW EXC. ANTI LOCK BRAKE(JE5) 30A PINK	8-98079-191-0	01	1	1406-
174	FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	01	1	1403-
174	FUSE; SLOW BLOW 30A PINK	8-98079-191-0	02	1	1403-1405
174	FUSE; SLOW BLOW ANTI LOCK BRAKE(JE5) 30A PINK	8-98079-191-0	02	1	1406-
174	FUSE; SLOW BLOW 50A RED	8-98079-193-0	03	1	1403-
174	FUSE; SLOW BLOW ANTI LOCK BRAKE(JE5) 60A YELLOW	8-97219-407-0	02	1	1403-
174	FUSE; SLOW BLOW ANTI LOCK BRAKE(JE5) 40A GREEN	8-98079-192-0	02	1	1403-
174	FUSE; SLOW BLOW EXC. ANTI LOCK BRAKE(JE5) 60A YELLOW	8-97219-407-0	01	1	1403-
174	FUSE; SLOW BLOW EXC. ANTI LOCK BRAKE(JE5) 40A GREEN	8-98079-192-0	01	1	1403-
184	COVER; RELAY & FUSE BOX (A)	8-98030-766-0	01	1	1403-
184	COVER; RELAY & FUSE BOX (B)	8-98030-767-1	01	1	1403-
290	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1403-
290	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	07	1	1403-
290	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1403-
290	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1403-
388	DIODE; RELAY BOX BLACK 2P-1.5A	8-94422-639-1	01	1	1403-
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1403-
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1403-
431	CONNECTOR; JOINT EXC. ANTI LOCK BRAKE(JE5) (F) 10P GREEN	1-82698-579-0	02	1	1403-
431	CONNECTOR; JOINT EXC. ANTI LOCK BRAKE(JE5) (C) 10P BLUE	1-82699-598-0	04	1	1403-
431	CONNECTOR; JOINT EXC. ANTI LOCK BRAKE(JE5) (E) 10P GREEN	1-82699-599-0	04	1	1403-
431	CONNECTOR; JOINT EXC. ANTI LOCK BRAKE(JE5) (D) 10P BROWN	1-82699-601-0	01	1	1403-
453	PROTECTOR; HARNESS	1-82699-709-0	02	1	1403-
534	BOLT (A) M8X25 FLANGE	0-28650-825-0	01	1	1403-
534	BOLT (B) M8X35 W/LK&PL WASHER	1-09030-073-0	03	1	1403-
534	BOLT (C) M10X55 FLANGE	8-97365-449-0	03	1	1403-
720	ATTACHMENT; CONNECTOR	1-82699-688-0	03	1	1403-

668 13 534 13 102 102 668 540 668 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	HARNESS; ENG (B)	8-98171-638-0	01	1	1403-
13	HARNESS; ENG GENERATOR 24V50A(K89) (A)	8-98242-603-1	01	1	1403-1406
13	HARNESS; ENG GENERATOR 24V50A(K89) (A)	8-98274-088-0	01	1	1407-
13	HARNESS; ENG GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A)	8-98242-604-1	01	1	1403-1406
13	HARNESS; ENG GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A)	8-98274-089-0	01	1	1407-
102	BOLT; BRKT,HARNESS CONNECTOR M8X16 FLANGE	0-28050-816-0	03	1	1403-
102	BOLT; BRKT,HARNESS CONNECTOR M10X16 FLANGE	0-28151-016-0	03	1	1403-
102	BOLT; BRKT,HARNESS CONNECTOR M8X20 FLANGE	0-28650-820-0	01	1	1403-
534	BOLT (A) M8X25 FLANGE	0-28650-825-0	01	1	1403-
534	BOLT (B) M8X35 W/LK&PL WASHER	1-09030-073-0	03	1	1403-
534	BOLT (C) M10X55 FLANGE	8-97365-449-0	03	1	1403-
540	NUT; BRKT FIX M6 FLANGE	0-91180-106-0	01	1	1403-
668	BRACKET; HARNESS (A) L=55	1-47475-304-0	01	1	1403-
668	BRACKET; HARNESS (B) L=170	1-47479-380-0	01	1	1403-
668	BRACKET; HARNESS (C)	8-97616-305-0	01	1	1403-1502
668	BRACKET; HARNESS (N)	8-98254-592-0	01	1	1503-
668	BRACKET; HARNESS (D)	8-97619-097-1	01	1	1403-
668	BRACKET; HARNESS (E)	8-97619-533-0	01	1	1403-
668	BRACKET; HARNESS (K)	8-97622-828-0	01	1	1403-
668	BRACKET; HARNESS (G)	8-98009-245-0	01	1	1403-1408
668	BRACKET; HARNESS (G)	8-98273-295-0	01	1	1409-
668	BRACKET; HARNESS (I)	8-98024-765-0	01	1	1403-
668	BRACKET; HARNESS (J)	8-98061-780-0	01	1	1403-
668	BRACKET; HARNESS (M)	8-98116-461-0	01	1	1403-
668	BRACKET; HARNESS (F)	8-98240-491-0	01	1	1403-
668	BRACKET; HARNESS (H)	8-98255-779-0	01	1	1403-
668	BRACKET; HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (L)	8-98095-653-2	01	1	1403-

6 9 9 189

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME ANTI LOCK BRAKE(JE5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-556-1	01	1	1403-
6	HARNESS; FRAME ANTI LOCK BRAKE(JE5) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98233-554-1	01	1	1403-
6	HARNESS; FRAME TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ANTI LOCK BRAKE(JE5)	8-98233-637-1	01	1	1403-
6	HARNESS; FRAME TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. ANTI LOCK BRAKE(JE5)	8-98233-555-1	01	1	1403-
9	HARNESS; FRAME,RR WHEEL BASE 4000MM(40W) ANTI LOCK BRAKE(JE5)	8-98171-633-1	01	1	1403-
9	HARNESS; FRAME,RR WHEEL BASE 4600MM(46W) ANTI LOCK BRAKE(JE5)	8-98171-635-1	01	1	1403-
9	HARNESS; FRAME,RR WHEEL BASE 5300MM(53W) EXC. ANTI LOCK BRAKE(JE5)	8-98168-578-0	01	1	1403-
189	HARNESS; EXT HONG KONG EQUIPMENT(B14)	8-98131-066-0	01	1	1403-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
