◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11129 - FVM(THAI)EURO3 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶
1-30 — AIR CLEANER (#12871) — 15 parça

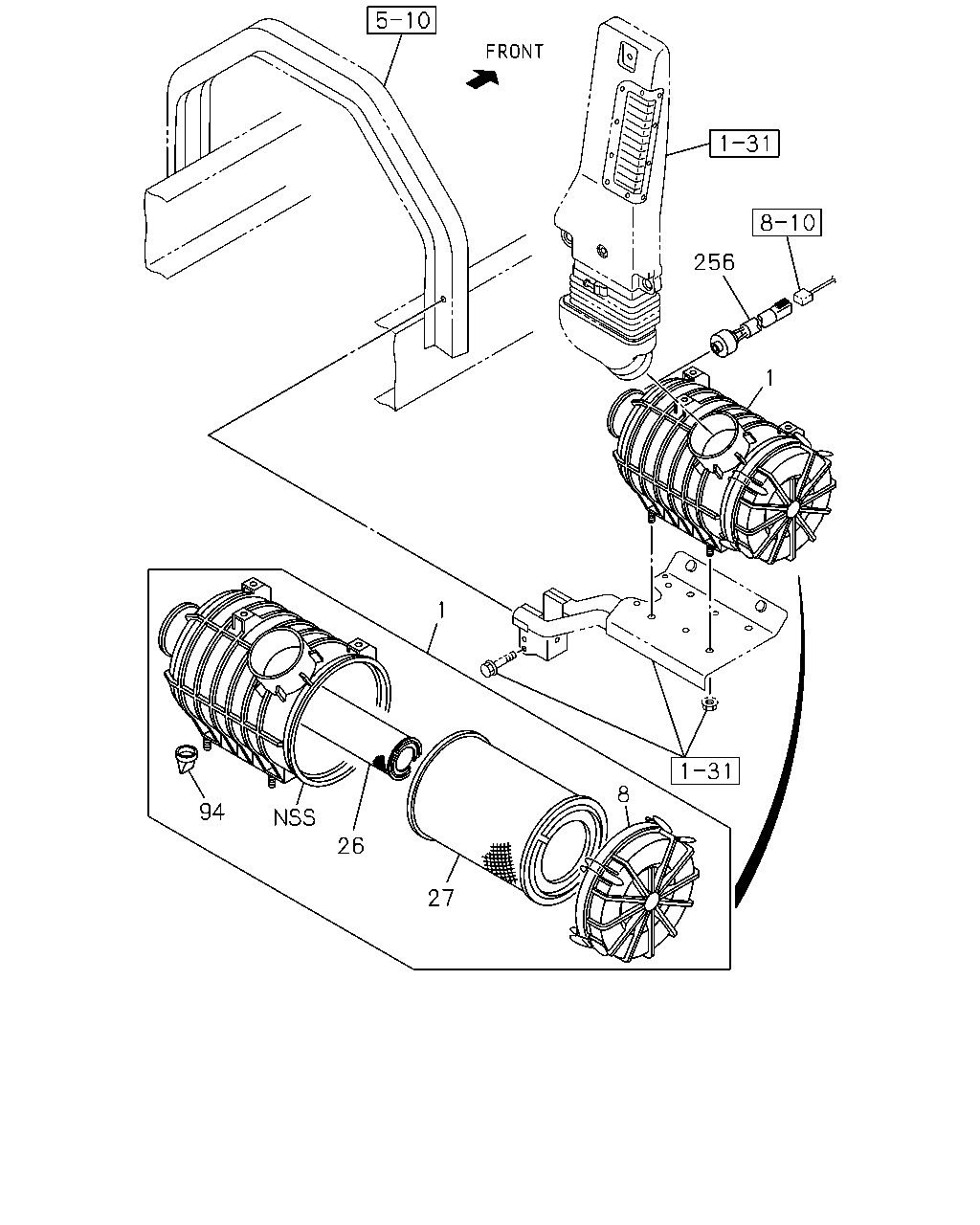

çizim 98289
8 27 26 94 1 1 256
BalonParca AdiParca NoAdetTipApplied Date A B
1 CLEANER ASM; AIR 8-98057-666-3 01 1 0807- ●
1 CLEANER ASM; AIR 8-98082-165-1 01 1 0807- ●
8 COVER ASM; ACL
THA 		8-98066-739-0 01 1 0807- ●
8 COVER ASM; ACL
THA 		8-98066-740-0 01 1 0807- ●
26 FILTER; ACL,INNER 8-98071-422-0 01 1 0807- ●
26 FILTER; ACL,INNER 8-98071-424-0 01 1 0807- ●
26 FILTER; ACL,INNER
BEST VALUE PARTS 		1-87610-114-1 01 1 0807- ●
26 FILTER; ACL,INNER
BEST VALUE PARTS 		1-87610-116-1 01 1 0807- ●
27 FILTER; ACL,OUTER
DRY TYPE 		8-98071-423-0 01 1 0807- ●
27 FILTER; ACL,OUTER
DRY TYPE 		8-98071-421-0 01 1 0807- ●
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-113-1 01 1 0807- ●
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-115-1 01 1 0807- ●
94 VALVE; VACUATOR
THA 		1-14219-279-0 01 1 0807- ● ●
256 SENSOR; AIRFLOW 8-98071-103-1 01 1 0807-1002 ● ●
256 SENSOR; AIRFLOW 8-98152-742-1 01 1 1003- ● ●
