◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11553 - FRR RHD EURO5 SPACECAB ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#128704) — 579 parça

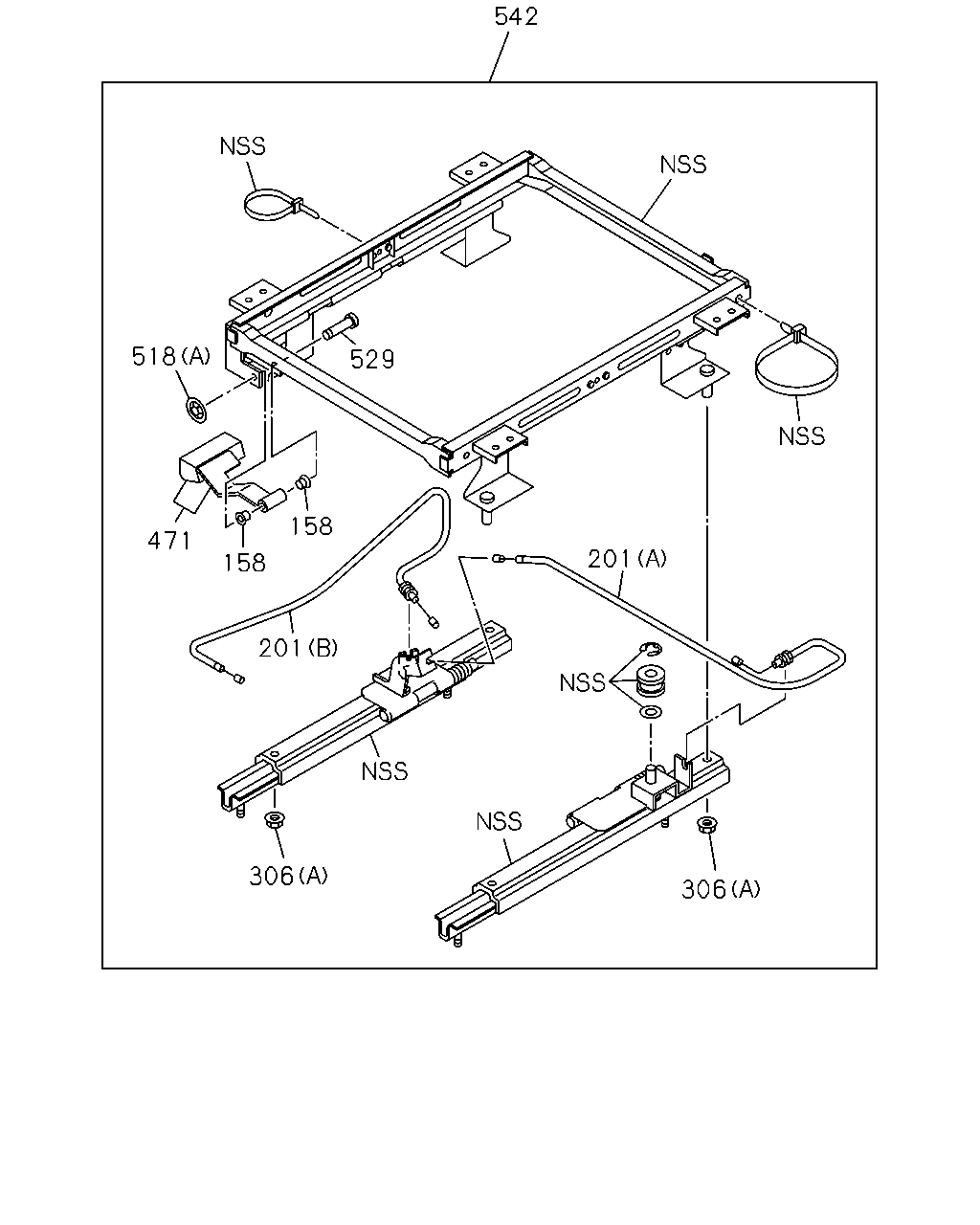

çizim 381174
542 529 518 158 158 201 201 471 306 306
BalonParca AdiParca NoAdetTipApplied Date
158 BUSHING; LINK ARM 1-75518-209-0 02 1 1403-1502
158 BUSHING; LINK ARM
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75518-209-0 02 1 1503-1506
158 BUSHING; LINK ARM
SEAT CLOTH<7FL> 		1-75518-209-0 02 1 1503-1506
158 BUSHING; LINK ARM
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75518-209-0 02 1 1507-1508
158 BUSHING; LINK ARM
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75518-209-0 02 1 1507-1508
158 BUSHING; LINK ARM
EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75518-209-0 02 1 1509-1509
158 BUSHING; LINK ARM 1-75518-209-0 02 1 1510-
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 1403-1502
201 CABLE; ADJ
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (A) L=667 		1-75518-288-0 01 1 1503-1506
201 CABLE; ADJ
SEAT CLOTH<7FL> (A) L=667 		1-75518-288-0 01 1 1503-1506
201 CABLE; ADJ
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (A) L=667 		1-75518-288-0 01 1 1507-1508
201 CABLE; ADJ
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (A) L=667 		1-75518-288-0 01 1 1507-1508
201 CABLE; ADJ
EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (A) L=667 		1-75518-288-0 01 1 1509-1509
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 1510-
201 CABLE; ADJ
(B) L=605 		1-75518-289-1 01 1 1403-1502
201 CABLE; ADJ
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B) L=605 		1-75518-289-1 01 1 1503-1506
201 CABLE; ADJ
SEAT CLOTH<7FL> (B) L=605 		1-75518-289-1 01 1 1503-1506
201 CABLE; ADJ
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B) L=605 		1-75518-289-1 01 1 1507-1508
201 CABLE; ADJ
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B) L=605 		1-75518-289-1 01 1 1507-1508
201 CABLE; ADJ
EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B) L=605 		1-75518-289-1 01 1 1509-1509
201 CABLE; ADJ
(B) L=605 		1-75518-289-1 01 1 1510-
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 1510-
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 1403-
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE 		1-75538-207-0 06 1 1403-1506
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (A) M8 FLANGE 		1-75538-207-0 06 1 1507-1508
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 1403-1502
306 NUT; SEAT ADJ
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (A) M8 FLANGE 		1-75538-207-0 08 1 1503-1506
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 08 1 1503-1506
306 NUT; SEAT ADJ
EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (A) M8 FLANGE 		1-75538-207-0 08 1 1507-1509
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE 		1-75538-207-0 06 1 1510-
471 LEVER; SEAT ADJ 8-98107-869-0 01 1 1403-1502
471 LEVER; SEAT ADJ
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		8-98107-869-0 01 1 1503-1506
471 LEVER; SEAT ADJ
SEAT CLOTH<7FL> 		8-98107-869-0 01 1 1503-1506
471 LEVER; SEAT ADJ
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		8-98107-869-0 01 1 1507-1508
471 LEVER; SEAT ADJ
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		8-98107-869-0 01 1 1507-1508
471 LEVER; SEAT ADJ
EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		8-98107-869-0 01 1 1509-1509
471 LEVER; SEAT ADJ 8-98107-869-0 01 1 1510-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (C) M8 		1-75518-264-0 04 1 1510-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE 		1-75538-207-0 04 1 1510-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT 		5-09984-020-0 02 1 1510-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE 		8-94152-886-0 04 1 1510-
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 1403-1502
518 NUT; TILT ADJ
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (A) 		1-75518-263-0 01 1 1503-1506
518 NUT; TILT ADJ
SEAT CLOTH<7FL> (A) 		1-75518-263-0 01 1 1503-1506
518 NUT; TILT ADJ
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (A) 		1-75518-263-0 01 1 1507-1508
518 NUT; TILT ADJ
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (A) 		1-75518-263-0 01 1 1507-1508
518 NUT; TILT ADJ
EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (A) 		1-75518-263-0 01 1 1509-1509
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 1510-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (C) M8 		1-75518-264-0 04 1 1403-1506
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (C) M8 		1-75518-264-0 04 1 1507-1508
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE 		1-75538-207-0 04 1 1403-1506
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (E) M8 FLANGE 		1-75538-207-0 04 1 1507-1508
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT 		5-09984-020-0 02 1 1403-1506
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (D) M6 LOCK NUT 		5-09984-020-0 02 1 1507-1508
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE 		8-94152-886-0 04 1 1403-1506
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B) M8 FLANGE 		8-94152-886-0 04 1 1507-1508
529 PIN; LINK 1-75518-262-0 01 1 1403-1502
529 PIN; LINK
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75518-262-0 01 1 1503-1506
529 PIN; LINK
SEAT CLOTH<7FL> 		1-75518-262-0 01 1 1503-1506
529 PIN; LINK
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75518-262-0 01 1 1507-1508
529 PIN; LINK
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75518-262-0 01 1 1507-1508
529 PIN; LINK
EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75518-262-0 01 1 1509-1509
529 PIN; LINK 1-75518-262-0 01 1 1510-
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> 		8-98093-310-0 01 1 1403-1502
542 ADJUSTER ASM; SEAT SLIDE
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		8-98291-653-0 01 1 1503-1506
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> 		8-98291-653-0 01 1 1503-1506
542 ADJUSTER ASM; SEAT SLIDE
EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		8-98291-653-0 01 1 1507-1509
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> 		8-98291-653-0 01 1 1510-

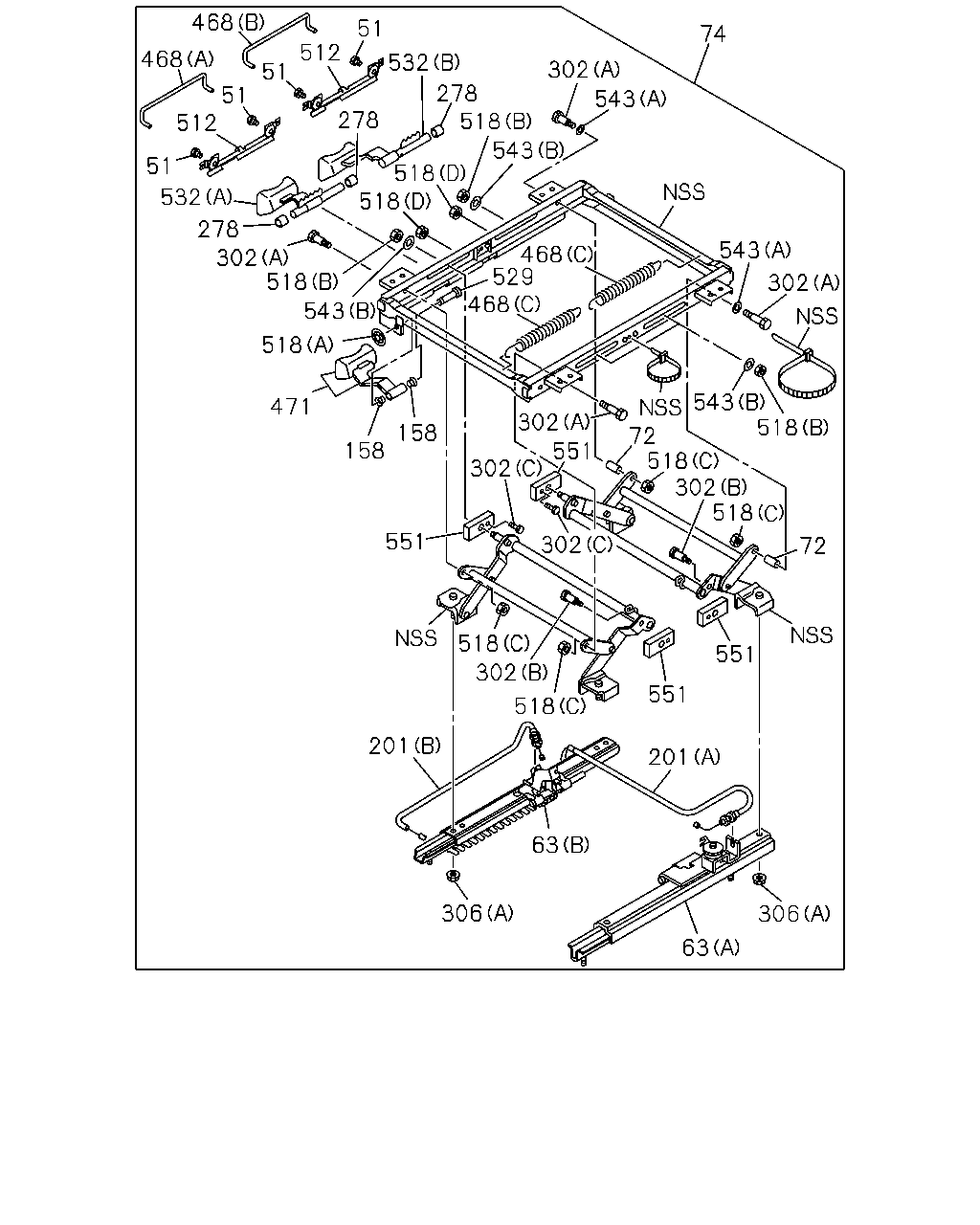

çizim 381298
468 468 512 51 51 51 512 51 532 278 532 278 278 302 74 543 518 518 518 302 518 518 543 471 158 551 201 306 63 63 306 201 551 551 518 302 302 551 302 468 529 468 543 543 302 543 72 518 302 518 72 518 518 158 302
BalonParca AdiParca NoAdetTipApplied Date
51 SCREW; COVER
AIR SUSP DRIVER SEAT<A56> 		1-75518-325-1 04 1 1510-
51 SCREW; COVER
AIR SUSP DRIVER SEAT<A56> 		1-75518-325-1 04 1 1403-1506
51 SCREW; COVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75518-325-1 04 1 1507-1508
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-199-1 01 1 1510-
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-323-0 01 1 1510-
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-199-1 01 1 1403-1506
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (A) 		1-75518-199-1 01 1 1507-1508
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-323-0 01 1 1403-1506
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B) 		1-75518-323-0 01 1 1507-1508
72 SPACER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> 		8-98291-668-0 02 1 1510-
72 SPACER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> 		1-75518-334-1 02 1 1403-1502
72 SPACER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> 		8-98291-668-0 02 1 1503-1506
72 SPACER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		8-98291-668-0 02 1 1507-1508
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> 		8-98291-640-0 01 1 1510-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> 		8-98003-678-0 01 1 1403-1502
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> 		8-98291-640-0 01 1 1503-1506
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		8-98291-640-0 01 1 1507-1508
158 BUSHING; LINK ARM 1-75518-209-0 02 1 1403-1502
158 BUSHING; LINK ARM
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75518-209-0 02 1 1503-1506
158 BUSHING; LINK ARM
SEAT CLOTH<7FL> 		1-75518-209-0 02 1 1503-1506
158 BUSHING; LINK ARM
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75518-209-0 02 1 1507-1508
158 BUSHING; LINK ARM
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75518-209-0 02 1 1507-1508
158 BUSHING; LINK ARM
EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75518-209-0 02 1 1509-1509
158 BUSHING; LINK ARM 1-75518-209-0 02 1 1510-
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 1403-1502
201 CABLE; ADJ
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (A) L=667 		1-75518-288-0 01 1 1503-1506
201 CABLE; ADJ
SEAT CLOTH<7FL> (A) L=667 		1-75518-288-0 01 1 1503-1506
201 CABLE; ADJ
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (A) L=667 		1-75518-288-0 01 1 1507-1508
201 CABLE; ADJ
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (A) L=667 		1-75518-288-0 01 1 1507-1508
201 CABLE; ADJ
EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (A) L=667 		1-75518-288-0 01 1 1509-1509
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 1510-
201 CABLE; ADJ
(B) L=605 		1-75518-289-1 01 1 1403-1502
201 CABLE; ADJ
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B) L=605 		1-75518-289-1 01 1 1503-1506
201 CABLE; ADJ
SEAT CLOTH<7FL> (B) L=605 		1-75518-289-1 01 1 1503-1506
201 CABLE; ADJ
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B) L=605 		1-75518-289-1 01 1 1507-1508
201 CABLE; ADJ
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B) L=605 		1-75518-289-1 01 1 1507-1508
201 CABLE; ADJ
EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B) L=605 		1-75518-289-1 01 1 1509-1509
201 CABLE; ADJ
(B) L=605 		1-75518-289-1 01 1 1510-
278 COLLAR; FRT SEAT
AIR SUSP DRIVER SEAT<A56> 		1-75518-244-0 03 1 1510-
278 COLLAR; FRT SEAT
AIR SUSP DRIVER SEAT<A56> 		1-75518-244-0 03 1 1403-1506
278 COLLAR; FRT SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75518-244-0 03 1 1507-1508
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-266-2 02 1 1510-
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> (C) 		1-75518-336-1 02 1 1510-
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> (A) 		8-98291-667-0 04 1 1510-
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-266-2 02 1 1403-1506
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B) 		1-75518-266-2 02 1 1507-1508
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-270-1 04 1 1403-1502
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> (A) 		8-98291-667-0 04 1 1503-1506
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (A) 		8-98291-667-0 04 1 1507-1508
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> (C) 		1-75518-336-1 02 1 1403-1506
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (C) 		1-75518-336-1 02 1 1507-1508
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 1510-
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 1403-
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE 		1-75538-207-0 06 1 1403-1506
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (A) M8 FLANGE 		1-75538-207-0 06 1 1507-1508
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 1403-1502
306 NUT; SEAT ADJ
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (A) M8 FLANGE 		1-75538-207-0 08 1 1503-1506
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 08 1 1503-1506
306 NUT; SEAT ADJ
EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (A) M8 FLANGE 		1-75538-207-0 08 1 1507-1509
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE 		1-75538-207-0 06 1 1510-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-206-0 01 1 1510-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-207-0 01 1 1510-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (C) 		1-75518-208-0 02 1 1510-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (D) 		1-75538-132-0 01 1 1510-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-206-0 01 1 1403-1506
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (A) 		1-75518-206-0 01 1 1507-1508
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-207-0 01 1 1403-1506
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B) 		1-75518-207-0 01 1 1507-1508
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (C) 		1-75518-208-0 02 1 1403-1506
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (C) 		1-75518-208-0 02 1 1507-1508
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (D) 		1-75538-132-0 01 1 1403-1506
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (D) 		1-75538-132-0 01 1 1507-1508
471 LEVER; SEAT ADJ 8-98107-869-0 01 1 1403-1502
471 LEVER; SEAT ADJ
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		8-98107-869-0 01 1 1503-1506
471 LEVER; SEAT ADJ
SEAT CLOTH<7FL> 		8-98107-869-0 01 1 1503-1506
471 LEVER; SEAT ADJ
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		8-98107-869-0 01 1 1507-1508
471 LEVER; SEAT ADJ
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		8-98107-869-0 01 1 1507-1508
471 LEVER; SEAT ADJ
EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		8-98107-869-0 01 1 1509-1509
471 LEVER; SEAT ADJ 8-98107-869-0 01 1 1510-
512 COVER; LEVER
AIR SUSP DRIVER SEAT<A56> 		1-75518-243-1 02 1 1510-
512 COVER; LEVER
AIR SUSP DRIVER SEAT<A56> 		1-75518-243-1 02 1 1403-1506
512 COVER; LEVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75518-243-1 02 1 1507-1508
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (C) M8 		1-75518-264-0 04 1 1510-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE 		1-75538-207-0 04 1 1510-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT 		5-09984-020-0 02 1 1510-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE 		8-94152-886-0 04 1 1510-
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 1403-1502
518 NUT; TILT ADJ
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (A) 		1-75518-263-0 01 1 1503-1506
518 NUT; TILT ADJ
SEAT CLOTH<7FL> (A) 		1-75518-263-0 01 1 1503-1506
518 NUT; TILT ADJ
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (A) 		1-75518-263-0 01 1 1507-1508
518 NUT; TILT ADJ
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (A) 		1-75518-263-0 01 1 1507-1508
518 NUT; TILT ADJ
EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (A) 		1-75518-263-0 01 1 1509-1509
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 1510-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (C) M8 		1-75518-264-0 04 1 1403-1506
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (C) M8 		1-75518-264-0 04 1 1507-1508
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE 		1-75538-207-0 04 1 1403-1506
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (E) M8 FLANGE 		1-75538-207-0 04 1 1507-1508
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT 		5-09984-020-0 02 1 1403-1506
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (D) M6 LOCK NUT 		5-09984-020-0 02 1 1507-1508
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE 		8-94152-886-0 04 1 1403-1506
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B) M8 FLANGE 		8-94152-886-0 04 1 1507-1508
529 PIN; LINK 1-75518-262-0 01 1 1403-1502
529 PIN; LINK
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75518-262-0 01 1 1503-1506
529 PIN; LINK
SEAT CLOTH<7FL> 		1-75518-262-0 01 1 1503-1506
529 PIN; LINK
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75518-262-0 01 1 1507-1508
529 PIN; LINK
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75518-262-0 01 1 1507-1508
529 PIN; LINK
EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75518-262-0 01 1 1509-1509
529 PIN; LINK 1-75518-262-0 01 1 1510-
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-203-0 01 1 1510-
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-204-1 01 1 1510-
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-203-0 01 1 1403-1506
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (A) 		1-75518-203-0 01 1 1507-1508
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-204-1 01 1 1403-1506
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B) 		1-75518-204-1 01 1 1507-1508
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> (A) ID=13 OD=19 		8-98291-669-0 02 1 1510-
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> (B) ID=8.4 		9-09160-508-0 04 1 1510-
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-335-0 02 1 1403-1502
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> (A) ID=13 OD=19 		8-98291-669-0 02 1 1503-1506
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (A) ID=13 OD=19 		8-98291-669-0 02 1 1507-1508
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> (B) ID=8.4 		9-09160-508-0 04 1 1403-1506
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B) ID=8.4 		9-09160-508-0 04 1 1507-1508
551 SLIDER; HEIGHT ADJ
AIR SUSP DRIVER SEAT<A56> 		1-75518-265-0 04 1 1510-
551 SLIDER; HEIGHT ADJ
AIR SUSP DRIVER SEAT<A56> 		1-75518-265-0 04 1 1403-1506
551 SLIDER; HEIGHT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75518-265-0 04 1 1507-1508

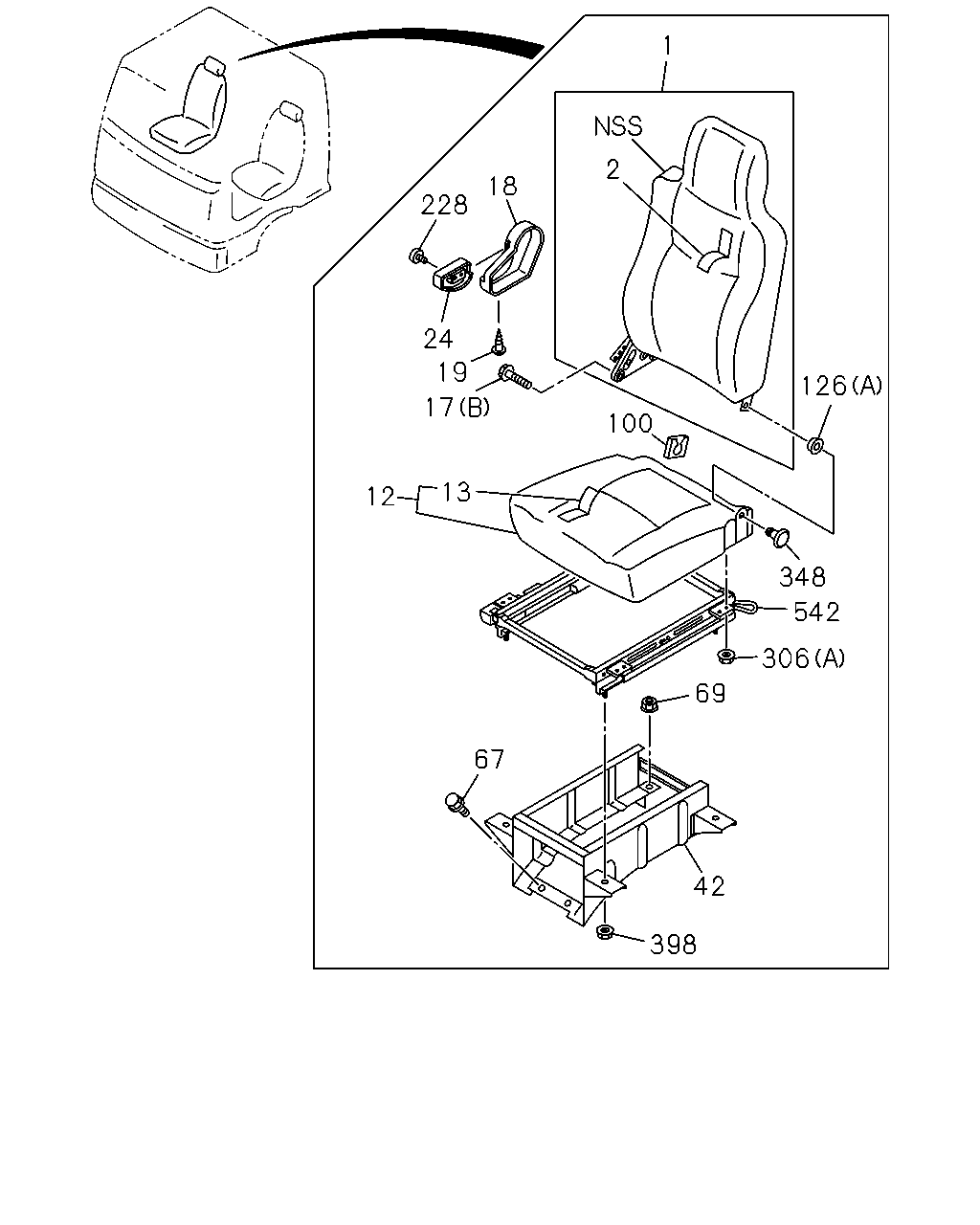

çizim 381714
228 18 1 2 126 100 348 542 306 69 67 42 24 12 13 19 398 17
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> DARK GRAY 		8-97421-407-1 01 1 1403-1512
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> DARK GRAY 		8-97466-622-0 01 1 1601-
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-406-1 01 1 1403-1506
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) DARK GRAY 		8-97421-406-1 01 1 1507-1509
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-406-1 01 1 1510-1512
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97466-620-0 01 1 1601-
1 BACK ASM; SEAT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97409-955-5 01 1 1403-1502
1 BACK ASM; SEAT
VINYL SEAT<A83> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) DARK GRAY 		8-97409-955-5 01 1 1503-1509
1 BACK ASM; SEAT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97409-955-5 01 1 1510-1512
1 BACK ASM; SEAT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97466-618-0 01 1 1601-
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> DARK GRAY 		8-97421-412-0 01 1 1403-
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-411-0 01 1 1403-1506
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) DARK GRAY 		8-97421-411-0 01 1 1507-1509
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-411-0 01 1 1510-
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97411-910-2 01 1 1403-1502
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT<A83> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) DARK GRAY 		8-97411-910-2 01 1 1503-1509
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97411-910-2 01 1 1510-
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE(PR2) DARK GRAY 		8-97414-123-2 01 1 1510-1512
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE(PR2) DARK GRAY 		8-97466-608-0 01 1 1601-
12 CUSHION; SEAT,FRT
DRIVING POSITION WIDE LEG SPACE(PR2) SEAT CLOTH<7FL> DARK GRAY 		8-97421-398-1 01 1 1403-1506
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) SEAT CLOTH<7FL> DARK GRAY 		8-97421-398-2 01 1 1507-1509
12 CUSHION; SEAT,FRT
DRIVING POSITION WIDE LEG SPACE(PR2) SEAT CLOTH<7FL> DARK GRAY 		8-97421-398-2 01 1 1510-1512
12 CUSHION; SEAT,FRT
DRIVING POSITION WIDE LEG SPACE(PR2) SEAT CLOTH<7FL> DARK GRAY 		8-97466-611-0 01 1 1601-
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) DARK GRAY 		8-97421-397-2 01 1 1403-1512
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) DARK GRAY 		8-97466-610-0 01 1 1601-
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE(PR2) DARK GRAY 		8-97414-123-2 01 1 1403-1502
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) DARK GRAY 		8-97409-954-2 01 1 1403-1512
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) DARK GRAY 		8-97466-606-0 01 1 1601-
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVING POSITION WIDE LEG SPACE(PR2) SEAT CLOTH<7FL> DARK GRAY 		8-97421-402-1 01 1 1403-1506
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) SEAT CLOTH<7FL> DARK GRAY 		8-97421-402-2 01 1 1507-1509
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVING POSITION WIDE LEG SPACE(PR2) SEAT CLOTH<7FL> DARK GRAY 		8-97421-402-2 01 1 1510-
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) DARK GRAY 		8-97421-401-2 01 1 1403-
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97411-909-1 01 1 1403-1502
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT<A83> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) DARK GRAY 		8-97411-909-1 01 1 1503-1509
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97411-909-1 01 1 1510-
17 BOLT; RECLINING
(B) M10X20 		8-98062-661-0 02 1 1403-1502
17 BOLT; RECLINING
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B) M10X20 		8-98062-661-0 02 1 1503-1506
17 BOLT; RECLINING
SEAT CLOTH<7FL> (B) M10X20 		8-98062-661-0 02 1 1503-1506
17 BOLT; RECLINING
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B) M10X20 		8-98062-661-0 02 1 1507-1508
17 BOLT; RECLINING
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B) M10X20 		8-98062-661-0 02 1 1507-1508
17 BOLT; RECLINING
EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B) M10X20 		8-98062-661-0 02 1 1509-1509
17 BOLT; RECLINING
(B) M10X20 		8-98062-661-0 02 1 1510-
17 BOLT; RECLINING
(A) M8X20 		8-98092-334-0 02 1 1403-
18 COVER; RECLINING
GRAY 		8-97409-332-0 01 1 1403-1502
18 COVER; RECLINING
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) GRAY 		8-97409-332-0 01 1 1503-1506
18 COVER; RECLINING
SEAT CLOTH<7FL> GRAY 		8-97409-332-0 01 1 1503-1506
18 COVER; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) GRAY 		8-97409-332-0 01 1 1507-1509
18 COVER; RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY 		8-97409-332-0 01 1 1507-1509
18 COVER; RECLINING
GRAY 		8-97409-332-0 01 1 1510-
19 SCREW; COVER
M5 		8-98062-663-0 01 1 1403-1502
19 SCREW; COVER
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) M5 		8-98062-663-0 01 1 1503-1506
19 SCREW; COVER
SEAT CLOTH<7FL> M5 		8-98062-663-0 01 1 1503-1506
19 SCREW; COVER
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) M5 		8-98062-663-0 01 1 1507-1508
19 SCREW; COVER
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) M5 		8-98062-663-0 01 1 1507-1508
19 SCREW; COVER
EXC. DRIVING POSITION WIDE LEG SPACE(PR2) M5 		8-98062-663-0 01 1 1509-1509
19 SCREW; COVER
M5 		8-98062-663-0 01 1 1510-
24 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97409-333-0 01 1 1403-1502
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) GRAY 		8-97409-333-0 01 1 1503-1506
24 KNOB; RECLINING,FRT,SEAT
SEAT CLOTH<7FL> GRAY 		8-97409-333-0 01 1 1503-1506
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) GRAY 		8-97409-333-0 01 1 1507-1509
24 KNOB; RECLINING,FRT,SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY 		8-97409-333-0 01 1 1507-1509
24 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97409-333-0 01 1 1510-
42 STAND; DRIVER SEAT
RIGID SEAT WO/ARM REST<TAZ> 		1-75558-604-2 01 1 1403-1502
42 STAND; DRIVER SEAT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75558-604-2 01 1 1503-1506
42 STAND; DRIVER SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> 		1-75558-604-2 01 1 1503-1506
42 STAND; DRIVER SEAT
EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75558-604-2 01 1 1507-1509
42 STAND; DRIVER SEAT
RIGID SEAT WO/ARM REST<TAZ> 		1-75558-604-2 01 1 1510-
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 1403-
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 1403-
100 COVER; HINGE 8-98203-070-0 01 1 1403-1502
100 COVER; HINGE
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		8-98203-070-0 01 1 1503-1506
100 COVER; HINGE
SEAT CLOTH<7FL> 		8-98203-070-0 01 1 1503-1506
100 COVER; HINGE
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		8-98203-070-0 01 1 1507-1508
100 COVER; HINGE
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		8-98203-070-0 01 1 1507-1508
100 COVER; HINGE
EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		8-98203-070-0 01 1 1509-1509
100 COVER; HINGE 8-98203-070-0 01 1 1510-1512
100 COVER; HINGE 8-98286-009-0 01 1 1601-
126 BUSHING; HINGE,RECLINING
(A) 		8-98063-218-0 01 1 1403-1502
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (A) 		8-98063-218-0 01 1 1503-1506
126 BUSHING; HINGE,RECLINING
SEAT CLOTH<7FL> (A) 		8-98063-218-0 01 1 1503-1506
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (A) 		8-98063-218-0 01 1 1507-1508
126 BUSHING; HINGE,RECLINING
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (A) 		8-98063-218-0 01 1 1507-1508
126 BUSHING; HINGE,RECLINING
EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (A) 		8-98063-218-0 01 1 1509-1509
126 BUSHING; HINGE,RECLINING
(A) 		8-98063-218-0 01 1 1510-1512
126 BUSHING; HINGE,RECLINING
(A) 		8-98286-007-0 01 1 1601-
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 1403-
228 SCREW; KNOB
M4 		8-98062-662-0 01 1 1403-1502
228 SCREW; KNOB
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) M4 		8-98062-662-0 01 1 1503-1506
228 SCREW; KNOB
SEAT CLOTH<7FL> M4 		8-98062-662-0 01 1 1503-1506
228 SCREW; KNOB
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) M4 		8-98062-662-0 01 1 1507-1508
228 SCREW; KNOB
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) M4 		8-98062-662-0 01 1 1507-1508
228 SCREW; KNOB
EXC. DRIVING POSITION WIDE LEG SPACE(PR2) M4 		8-98062-662-0 01 1 1509-1509
228 SCREW; KNOB
M4 		8-98062-662-0 01 1 1510-
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 1510-
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 1403-
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE 		1-75538-207-0 06 1 1403-1506
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (A) M8 FLANGE 		1-75538-207-0 06 1 1507-1508
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 1403-1502
306 NUT; SEAT ADJ
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (A) M8 FLANGE 		1-75538-207-0 08 1 1503-1506
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 08 1 1503-1506
306 NUT; SEAT ADJ
EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (A) M8 FLANGE 		1-75538-207-0 08 1 1507-1509
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE 		1-75538-207-0 06 1 1510-
348 BOLT; HINGE,SEAT 8-98286-008-0 01 1 1601-
398 NUT; STAND
RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		1-75538-207-0 04 1 1403-1502
398 NUT; STAND
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) M8 FLANGE 		1-75538-207-0 04 1 1503-1506
398 NUT; STAND
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> M8 FLANGE 		1-75538-207-0 04 1 1503-1506
398 NUT; STAND
EXC. DRIVING POSITION WIDE LEG SPACE(PR2) M8 FLANGE 		1-75538-207-0 04 1 1507-1509
398 NUT; STAND
RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		1-75538-207-0 04 1 1510-
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> 		8-98093-310-0 01 1 1403-1502
542 ADJUSTER ASM; SEAT SLIDE
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		8-98291-653-0 01 1 1503-1506
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> 		8-98291-653-0 01 1 1503-1506
542 ADJUSTER ASM; SEAT SLIDE
EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		8-98291-653-0 01 1 1507-1509
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> 		8-98291-653-0 01 1 1510-

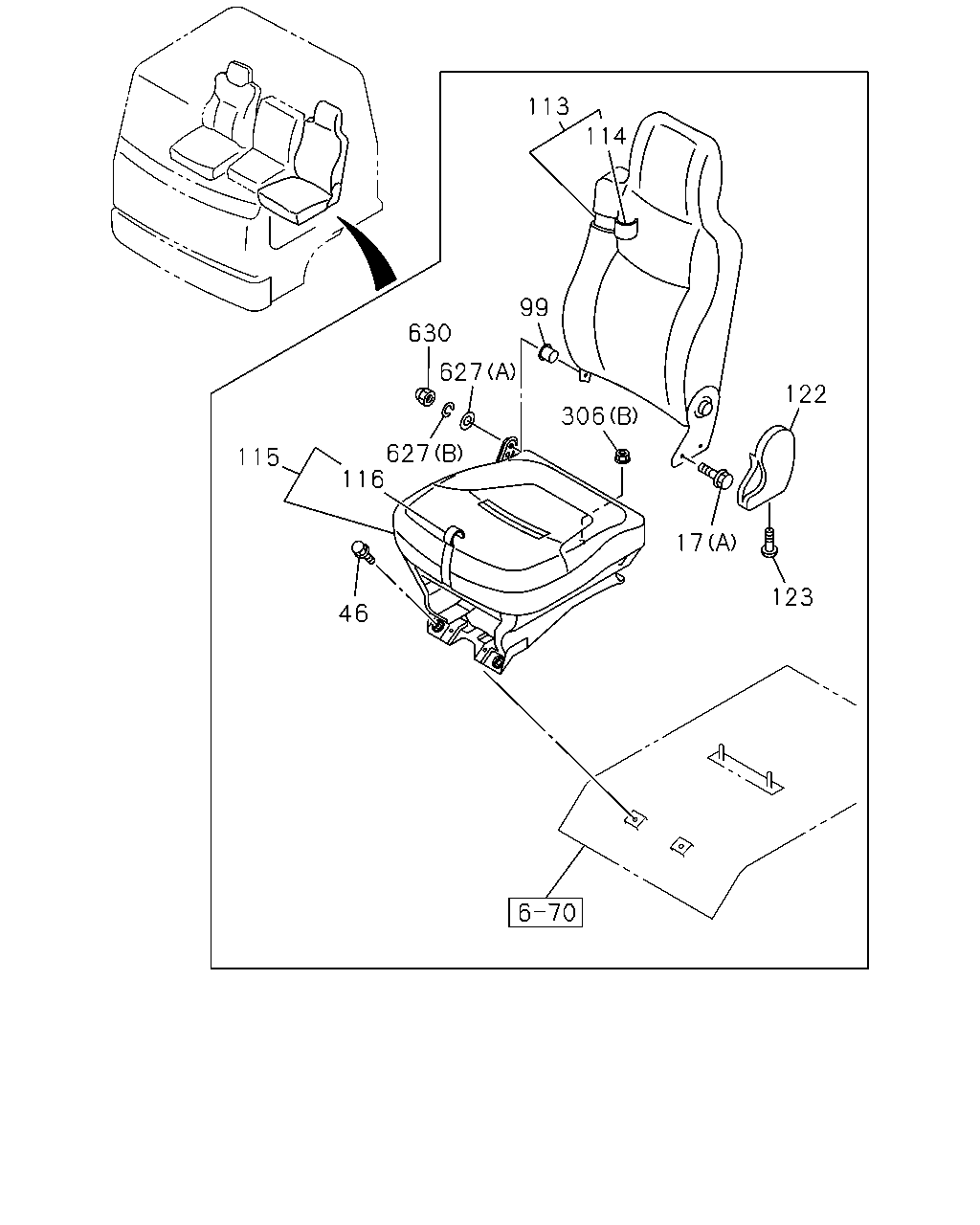

çizim 381985
114 113 122 123 17 306 99 630 627 627 116 115 46
BalonParca AdiParca NoAdetTipApplied Date
17 BOLT; RECLINING
(B) M10X20 		8-98062-661-0 02 1 1403-1502
17 BOLT; RECLINING
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B) M10X20 		8-98062-661-0 02 1 1503-1506
17 BOLT; RECLINING
SEAT CLOTH<7FL> (B) M10X20 		8-98062-661-0 02 1 1503-1506
17 BOLT; RECLINING
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B) M10X20 		8-98062-661-0 02 1 1507-1508
17 BOLT; RECLINING
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B) M10X20 		8-98062-661-0 02 1 1507-1508
17 BOLT; RECLINING
EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B) M10X20 		8-98062-661-0 02 1 1509-1509
17 BOLT; RECLINING
(B) M10X20 		8-98062-661-0 02 1 1510-
17 BOLT; RECLINING
(A) M8X20 		8-98092-334-0 02 1 1403-
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 1403-
99 BUSHING; SEAT BACK 8-98112-751-0 01 1 1403-
113 BACK ASM; SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97421-422-0 01 1 1403-
113 BACK ASM; SEAT
VINYL SEAT<A83> DARK GRAY 		8-97409-966-1 01 1 1403-
114 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97421-424-0 01 1 1403-
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT<A83> DARK GRAY 		8-97411-916-0 01 1 1403-
115 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97421-418-2 01 1 1403-
115 CUSHION ASM; PASSENGER SEAT
VINYL SEAT<A83> DARK GRAY 		8-97409-965-1 01 1 1403-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
SEAT CLOTH<7FL> DARK GRAY 		8-97421-420-1 01 1 1403-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
VINYL SEAT<A83> DARK GRAY 		8-97411-915-0 01 1 1403-
122 COVER; ADJ,RECLINING
GRAY 		8-97409-967-0 01 1 1403-
123 SCREW; COVER,RECLINING
M5 		8-98070-026-0 01 1 1403-
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 1510-
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 1403-
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE 		1-75538-207-0 06 1 1403-1506
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (A) M8 FLANGE 		1-75538-207-0 06 1 1507-1508
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 1403-1502
306 NUT; SEAT ADJ
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (A) M8 FLANGE 		1-75538-207-0 08 1 1503-1506
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 08 1 1503-1506
306 NUT; SEAT ADJ
EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (A) M8 FLANGE 		1-75538-207-0 08 1 1507-1509
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE 		1-75538-207-0 06 1 1510-
627 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 1403-
627 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 1403-
630 NUT; CAP
M8 		8-98063-225-0 01 1 1403-

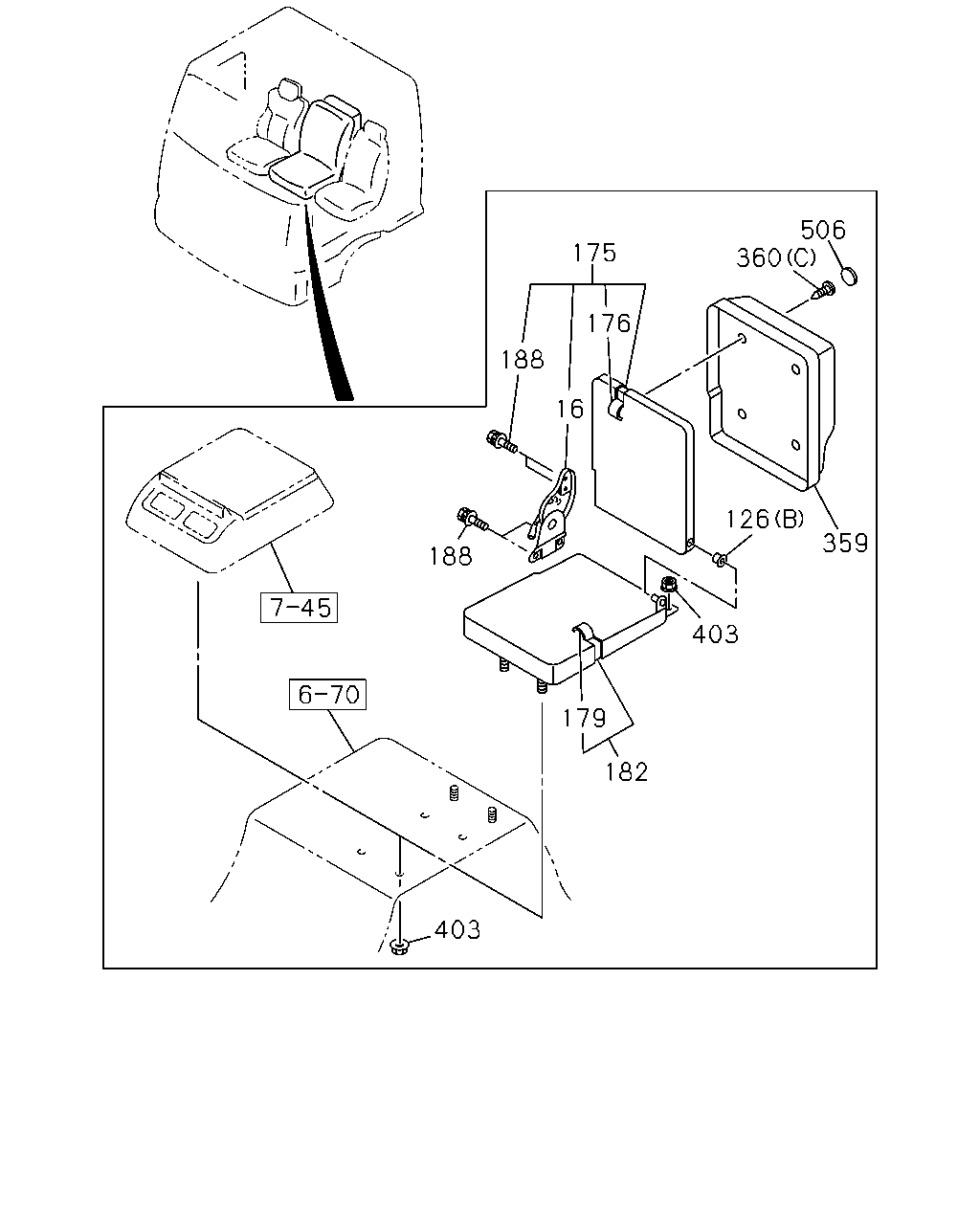

çizim 382099
175 188 176 16 126 359 506 360 403 179 182 403 188
BalonParca AdiParca NoAdetTipApplied Date
16 ADJUSTER ASM; RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> 		1-75418-062-1 01 1 1403-
126 BUSHING; HINGE,RECLINING
(A) 		8-98063-218-0 01 1 1403-1502
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (A) 		8-98063-218-0 01 1 1503-1506
126 BUSHING; HINGE,RECLINING
SEAT CLOTH<7FL> (A) 		8-98063-218-0 01 1 1503-1506
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (A) 		8-98063-218-0 01 1 1507-1508
126 BUSHING; HINGE,RECLINING
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (A) 		8-98063-218-0 01 1 1507-1508
126 BUSHING; HINGE,RECLINING
EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (A) 		8-98063-218-0 01 1 1509-1509
126 BUSHING; HINGE,RECLINING
(A) 		8-98063-218-0 01 1 1510-1512
126 BUSHING; HINGE,RECLINING
(A) 		8-98286-007-0 01 1 1601-
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 1403-
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97421-434-1 01 1 1403-
175 BACK ASM; PASSENGER CENTER SEAT
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97409-975-1 01 1 1403-
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97421-435-1 01 1 1403-
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97409-976-1 01 1 1403-
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97421-432-1 01 1 1403-
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97409-974-1 01 1 1403-
182 CUSHION ASM; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97421-430-3 01 1 1403-
182 CUSHION ASM; CENTER SEAT
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97409-973-3 01 1 1403-
188 BOLT; BACK TO CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE 		1-75198-053-0 04 1 1403-
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1403-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1403-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1403-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 		8-98062-663-0 04 1 1403-
403 NUT; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> M8 FLANGE 		0-91180-108-0 04 1 1403-
506 CAP; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-980-1 02 1 1403-

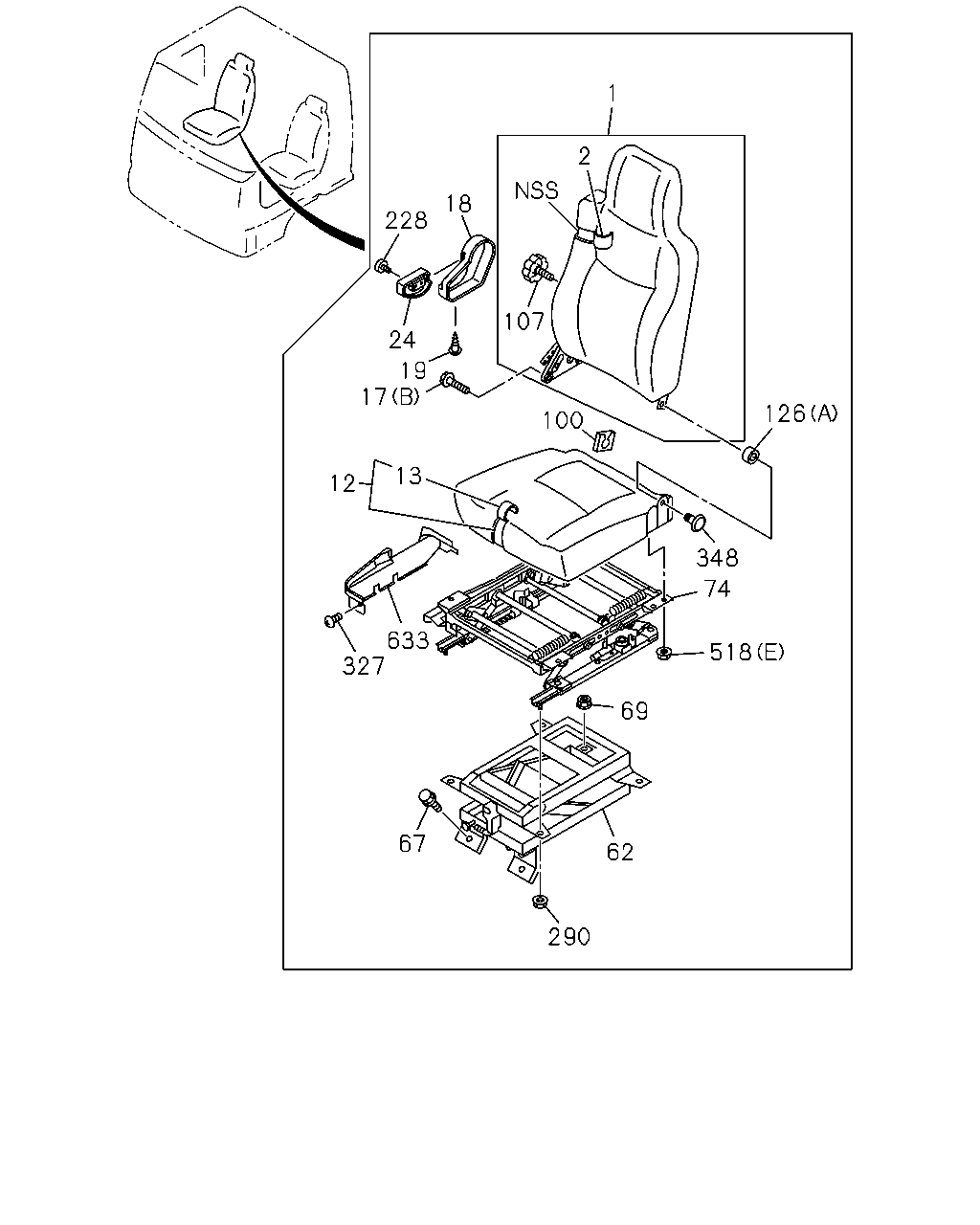

çizim 382131
1 18 228 24 17 12 13 633 327 67 290 62 69 518 74 348 100 126 107 2 19
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> DARK GRAY 		8-97421-407-1 01 1 1403-1512
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> DARK GRAY 		8-97466-622-0 01 1 1601-
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-406-1 01 1 1403-1506
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) DARK GRAY 		8-97421-406-1 01 1 1507-1509
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-406-1 01 1 1510-1512
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97466-620-0 01 1 1601-
1 BACK ASM; SEAT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97409-955-5 01 1 1403-1502
1 BACK ASM; SEAT
VINYL SEAT<A83> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) DARK GRAY 		8-97409-955-5 01 1 1503-1509
1 BACK ASM; SEAT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97409-955-5 01 1 1510-1512
1 BACK ASM; SEAT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97466-618-0 01 1 1601-
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> DARK GRAY 		8-97421-412-0 01 1 1403-
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-411-0 01 1 1403-1506
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) DARK GRAY 		8-97421-411-0 01 1 1507-1509
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-411-0 01 1 1510-
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97411-910-2 01 1 1403-1502
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT<A83> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) DARK GRAY 		8-97411-910-2 01 1 1503-1509
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97411-910-2 01 1 1510-
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE(PR2) DARK GRAY 		8-97414-123-2 01 1 1510-1512
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE(PR2) DARK GRAY 		8-97466-608-0 01 1 1601-
12 CUSHION; SEAT,FRT
DRIVING POSITION WIDE LEG SPACE(PR2) SEAT CLOTH<7FL> DARK GRAY 		8-97421-398-1 01 1 1403-1506
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) SEAT CLOTH<7FL> DARK GRAY 		8-97421-398-2 01 1 1507-1509
12 CUSHION; SEAT,FRT
DRIVING POSITION WIDE LEG SPACE(PR2) SEAT CLOTH<7FL> DARK GRAY 		8-97421-398-2 01 1 1510-1512
12 CUSHION; SEAT,FRT
DRIVING POSITION WIDE LEG SPACE(PR2) SEAT CLOTH<7FL> DARK GRAY 		8-97466-611-0 01 1 1601-
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) DARK GRAY 		8-97421-397-2 01 1 1403-1512
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) DARK GRAY 		8-97466-610-0 01 1 1601-
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE(PR2) DARK GRAY 		8-97414-123-2 01 1 1403-1502
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) DARK GRAY 		8-97409-954-2 01 1 1403-1512
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) DARK GRAY 		8-97466-606-0 01 1 1601-
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVING POSITION WIDE LEG SPACE(PR2) SEAT CLOTH<7FL> DARK GRAY 		8-97421-402-1 01 1 1403-1506
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) SEAT CLOTH<7FL> DARK GRAY 		8-97421-402-2 01 1 1507-1509
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVING POSITION WIDE LEG SPACE(PR2) SEAT CLOTH<7FL> DARK GRAY 		8-97421-402-2 01 1 1510-
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) DARK GRAY 		8-97421-401-2 01 1 1403-
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97411-909-1 01 1 1403-1502
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT<A83> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) DARK GRAY 		8-97411-909-1 01 1 1503-1509
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97411-909-1 01 1 1510-
17 BOLT; RECLINING
(B) M10X20 		8-98062-661-0 02 1 1403-1502
17 BOLT; RECLINING
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B) M10X20 		8-98062-661-0 02 1 1503-1506
17 BOLT; RECLINING
SEAT CLOTH<7FL> (B) M10X20 		8-98062-661-0 02 1 1503-1506
17 BOLT; RECLINING
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B) M10X20 		8-98062-661-0 02 1 1507-1508
17 BOLT; RECLINING
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B) M10X20 		8-98062-661-0 02 1 1507-1508
17 BOLT; RECLINING
EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B) M10X20 		8-98062-661-0 02 1 1509-1509
17 BOLT; RECLINING
(B) M10X20 		8-98062-661-0 02 1 1510-
17 BOLT; RECLINING
(A) M8X20 		8-98092-334-0 02 1 1403-
18 COVER; RECLINING
GRAY 		8-97409-332-0 01 1 1403-1502
18 COVER; RECLINING
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) GRAY 		8-97409-332-0 01 1 1503-1506
18 COVER; RECLINING
SEAT CLOTH<7FL> GRAY 		8-97409-332-0 01 1 1503-1506
18 COVER; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) GRAY 		8-97409-332-0 01 1 1507-1509
18 COVER; RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY 		8-97409-332-0 01 1 1507-1509
18 COVER; RECLINING
GRAY 		8-97409-332-0 01 1 1510-
19 SCREW; COVER
M5 		8-98062-663-0 01 1 1403-1502
19 SCREW; COVER
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) M5 		8-98062-663-0 01 1 1503-1506
19 SCREW; COVER
SEAT CLOTH<7FL> M5 		8-98062-663-0 01 1 1503-1506
19 SCREW; COVER
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) M5 		8-98062-663-0 01 1 1507-1508
19 SCREW; COVER
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) M5 		8-98062-663-0 01 1 1507-1508
19 SCREW; COVER
EXC. DRIVING POSITION WIDE LEG SPACE(PR2) M5 		8-98062-663-0 01 1 1509-1509
19 SCREW; COVER
M5 		8-98062-663-0 01 1 1510-
24 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97409-333-0 01 1 1403-1502
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) GRAY 		8-97409-333-0 01 1 1503-1506
24 KNOB; RECLINING,FRT,SEAT
SEAT CLOTH<7FL> GRAY 		8-97409-333-0 01 1 1503-1506
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) GRAY 		8-97409-333-0 01 1 1507-1509
24 KNOB; RECLINING,FRT,SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY 		8-97409-333-0 01 1 1507-1509
24 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97409-333-0 01 1 1510-
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> 		8-98261-448-0 01 1 1510-
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-183-8 01 1 1403-1403
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> 		8-98261-448-0 01 1 1404-1506
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		8-98261-448-0 01 1 1507-1508
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 1403-
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 1403-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> 		8-98291-640-0 01 1 1510-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> 		8-98003-678-0 01 1 1403-1502
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> 		8-98291-640-0 01 1 1503-1506
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		8-98291-640-0 01 1 1507-1508
100 COVER; HINGE 8-98203-070-0 01 1 1403-1502
100 COVER; HINGE
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		8-98203-070-0 01 1 1503-1506
100 COVER; HINGE
SEAT CLOTH<7FL> 		8-98203-070-0 01 1 1503-1506
100 COVER; HINGE
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		8-98203-070-0 01 1 1507-1508
100 COVER; HINGE
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		8-98203-070-0 01 1 1507-1508
100 COVER; HINGE
EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		8-98203-070-0 01 1 1509-1509
100 COVER; HINGE 8-98203-070-0 01 1 1510-1512
100 COVER; HINGE 8-98286-009-0 01 1 1601-
107 DIAL; SEAT RECLINING
AIR SUSP DRIVER SEAT<A56> 		8-98063-174-0 01 1 1510-
107 DIAL; SEAT RECLINING
AIR SUSP DRIVER SEAT<A56> 		8-98063-174-0 01 1 1403-1506
107 DIAL; SEAT RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		8-98063-174-0 01 1 1507-1508
126 BUSHING; HINGE,RECLINING
(A) 		8-98063-218-0 01 1 1403-1502
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (A) 		8-98063-218-0 01 1 1503-1506
126 BUSHING; HINGE,RECLINING
SEAT CLOTH<7FL> (A) 		8-98063-218-0 01 1 1503-1506
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (A) 		8-98063-218-0 01 1 1507-1508
126 BUSHING; HINGE,RECLINING
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (A) 		8-98063-218-0 01 1 1507-1508
126 BUSHING; HINGE,RECLINING
EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (A) 		8-98063-218-0 01 1 1509-1509
126 BUSHING; HINGE,RECLINING
(A) 		8-98063-218-0 01 1 1510-1512
126 BUSHING; HINGE,RECLINING
(A) 		8-98286-007-0 01 1 1601-
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 1403-
228 SCREW; KNOB
M4 		8-98062-662-0 01 1 1403-1502
228 SCREW; KNOB
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) M4 		8-98062-662-0 01 1 1503-1506
228 SCREW; KNOB
SEAT CLOTH<7FL> M4 		8-98062-662-0 01 1 1503-1506
228 SCREW; KNOB
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) M4 		8-98062-662-0 01 1 1507-1508
228 SCREW; KNOB
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) M4 		8-98062-662-0 01 1 1507-1508
228 SCREW; KNOB
EXC. DRIVING POSITION WIDE LEG SPACE(PR2) M4 		8-98062-662-0 01 1 1509-1509
228 SCREW; KNOB
M4 		8-98062-662-0 01 1 1510-
290 NUT; ADJ TO SUSP
AIR SUSP DRIVER SEAT<A56> M8 FLANGE 		1-75538-207-0 04 1 1510-
290 NUT; ADJ TO SUSP
AIR SUSP DRIVER SEAT<A56> M8 FLANGE 		1-75538-207-0 04 1 1403-1506
290 NUT; ADJ TO SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) M8 FLANGE 		1-75538-207-0 04 1 1507-1508
327 CLIP; COVER
AIR SUSP DRIVER SEAT<A56> 		1-09987-273-0 01 1 1403-
348 BOLT; HINGE,SEAT 8-98286-008-0 01 1 1601-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (C) M8 		1-75518-264-0 04 1 1510-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE 		1-75538-207-0 04 1 1510-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT 		5-09984-020-0 02 1 1510-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE 		8-94152-886-0 04 1 1510-
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 1403-1502
518 NUT; TILT ADJ
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (A) 		1-75518-263-0 01 1 1503-1506
518 NUT; TILT ADJ
SEAT CLOTH<7FL> (A) 		1-75518-263-0 01 1 1503-1506
518 NUT; TILT ADJ
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (A) 		1-75518-263-0 01 1 1507-1508
518 NUT; TILT ADJ
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (A) 		1-75518-263-0 01 1 1507-1508
518 NUT; TILT ADJ
EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (A) 		1-75518-263-0 01 1 1509-1509
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 1510-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (C) M8 		1-75518-264-0 04 1 1403-1506
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (C) M8 		1-75518-264-0 04 1 1507-1508
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE 		1-75538-207-0 04 1 1403-1506
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (E) M8 FLANGE 		1-75538-207-0 04 1 1507-1508
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT 		5-09984-020-0 02 1 1403-1506
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (D) M6 LOCK NUT 		5-09984-020-0 02 1 1507-1508
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE 		8-94152-886-0 04 1 1403-1506
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B) M8 FLANGE 		8-94152-886-0 04 1 1507-1508
633 COVER; ADJ,TILT
AIR SUSP DRIVER SEAT<A56> GRAY 		8-97409-956-0 01 1 1403-

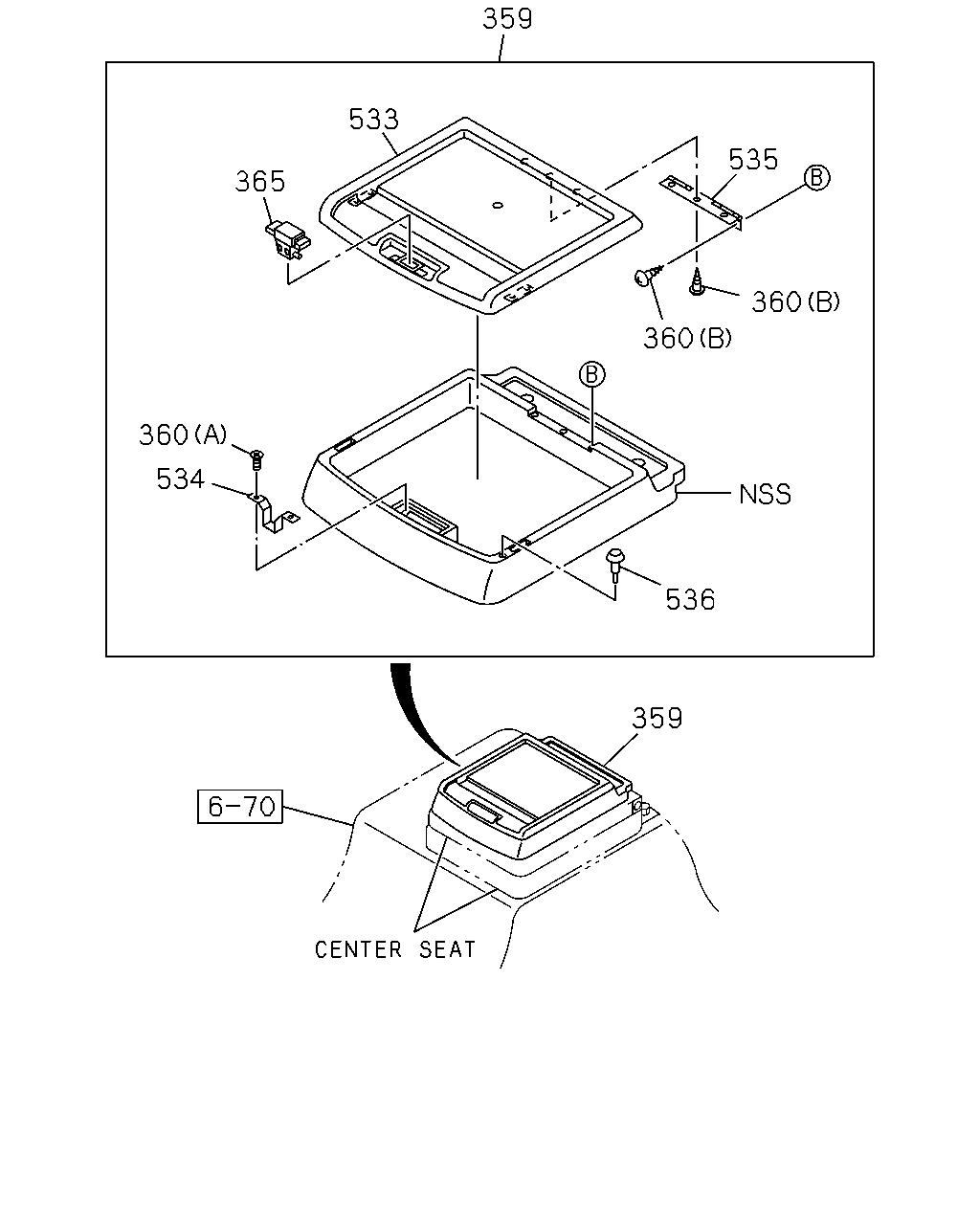

çizim 382168
359 535 360 360 536 533 365 360 534 359
BalonParca AdiParca NoAdetTipApplied Date
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1403-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1403-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1403-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 		8-98062-663-0 04 1 1403-
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-312-0 01 1 1403-
533 LID; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-263-0 01 1 1403-
534 STRIKER; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-190-0 01 1 1403-
535 HINGE; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72447-391-1 01 1 1403-
536 RUBBER; CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-187-0 02 1 1403-
çizim 382232
595 339 632
BalonParca AdiParca NoAdetTipApplied Date
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> (A) 		1-75538-131-3 01 1 1510-
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> (A) 		1-75538-131-3 01 1 1403-1506
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (A) 		1-75538-131-3 01 1 1507-1508
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> (B) 		8-98014-971-0 01 1 1403-
595 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> 		8-98067-762-0 01 1 1403-
632 GROMMET
RIGID SEAT WO/ARM REST<TAZ> OD=24 		8-94119-796-0 01 1 1403-

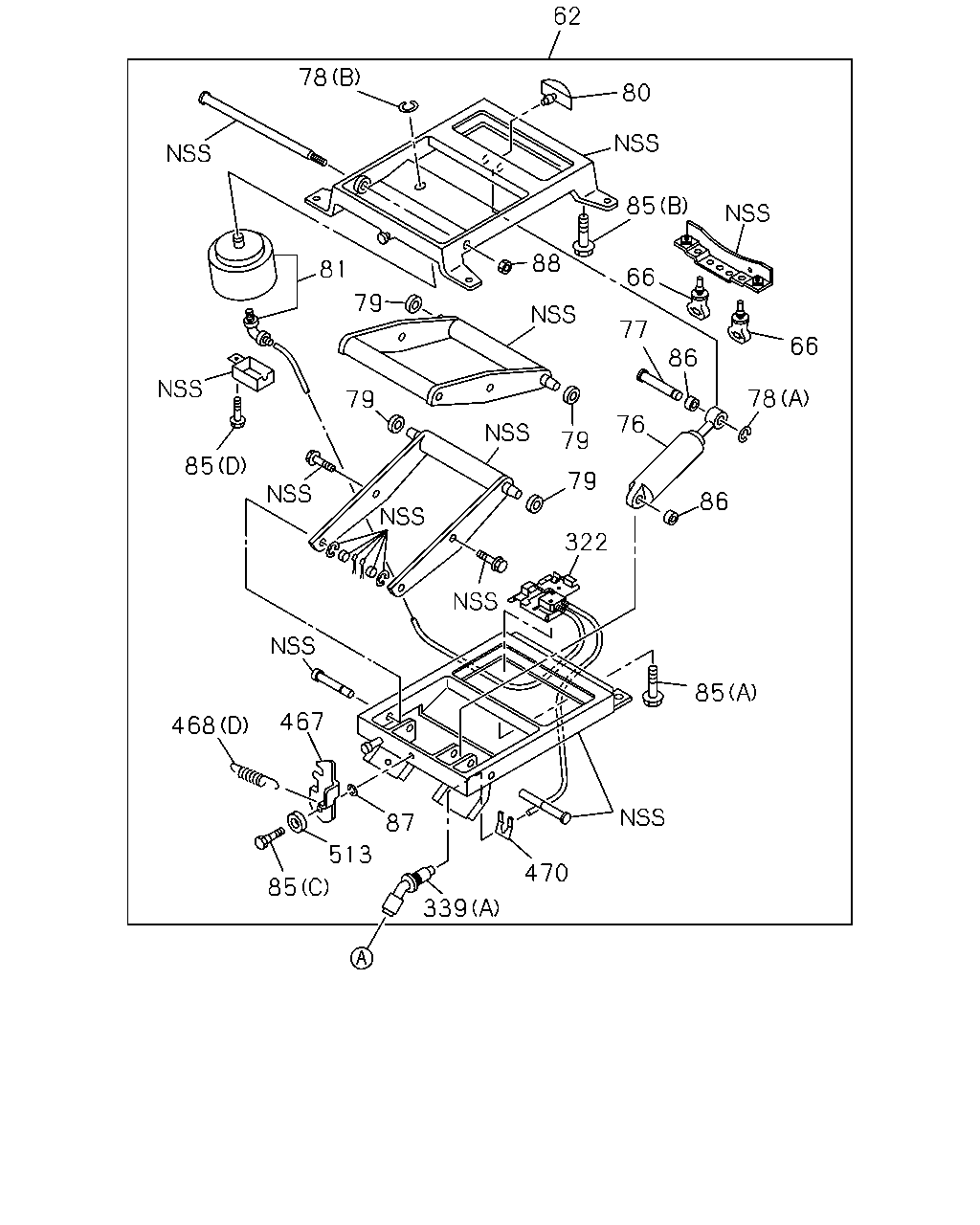

çizim 382303
62 80 85 66 78 86 77 66 88 79 81 79 85 322 79 79 76 86 85 470 339 85 87 467 468 78 513
BalonParca AdiParca NoAdetTipApplied Date
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> 		8-98261-448-0 01 1 1510-
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-183-8 01 1 1403-1403
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> 		8-98261-448-0 01 1 1404-1506
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		8-98261-448-0 01 1 1507-1508
66 RUBBER; LWR STOPPER
AIR SUSP DRIVER SEAT<A56> 		1-75538-145-0 02 1 1510-
66 RUBBER; LWR STOPPER
AIR SUSP DRIVER SEAT<A56> 		1-75538-145-0 02 1 1403-1506
66 RUBBER; LWR STOPPER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75538-145-0 02 1 1507-1508
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> 		1-75538-139-0 01 1 1510-
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> 		1-75538-139-0 01 1 1403-1506
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75538-139-0 01 1 1507-1508
77 PIN; DAMPER
AIR SUSP DRIVER SEAT<A56> 		1-75538-138-2 01 1 1510-
77 PIN; DAMPER
AIR SUSP DRIVER SEAT<A56> 		1-75538-138-2 01 1 1403-1506
77 PIN; DAMPER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75538-138-2 01 1 1507-1508
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (A) ID=8 		9-09185-408-0 01 1 1510-
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (B) ID=15 		9-09185-415-0 01 1 1510-
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (A) ID=8 		9-09185-408-0 01 1 1403-1506
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (A) ID=8 		9-09185-408-0 01 1 1507-1508
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (B) ID=15 		9-09185-415-0 01 1 1403-1506
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B) ID=15 		9-09185-415-0 01 1 1507-1508
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> 		8-98261-489-0 04 1 1510-
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> 		1-75538-159-0 04 1 1403-1403
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> 		8-98261-489-0 04 1 1404-1506
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		8-98261-489-0 04 1 1507-1508
80 RUBBER; STOPPER
AIR SUSP DRIVER SEAT<A56> 		1-09987-123-0 01 1 1510-
80 RUBBER; STOPPER
AIR SUSP DRIVER SEAT<A56> 		1-09987-123-0 01 1 1403-1506
80 RUBBER; STOPPER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-09987-123-0 01 1 1507-1508
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> 		8-98242-816-0 01 1 1510-
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> 		8-98242-816-0 01 1 1403-1506
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		8-98242-816-0 01 1 1507-1508
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (C) 		1-09980-577-1 01 1 1510-
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (A) M6X12 		1-75538-208-1 02 1 1510-
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 02 1 1510-
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (D) M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1510-
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (C) 		1-09980-577-1 01 1 1403-1506
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (C) 		1-09980-577-1 01 1 1507-1508
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (A) M6X12 		1-75538-208-1 02 1 1403-1506
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (A) M6X12 		1-75538-208-1 02 1 1507-1508
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 02 1 1403-1506
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 02 1 1507-1508
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (D) M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1403-1506
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (D) M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1507-1508
86 BUSHING; GUIDE
AIR SUSP DRIVER SEAT<A56> OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 1510-
86 BUSHING; GUIDE
AIR SUSP DRIVER SEAT<A56> OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 1403-1506
86 BUSHING; GUIDE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 1507-1508
87 WASHER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> ID=8.2 		0-91510-508-0 01 1 1510-
87 WASHER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> ID=8.2 		0-91510-508-0 01 1 1403-1506
87 WASHER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) ID=8.2 		0-91510-508-0 01 1 1507-1508
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> M10 		1-75537-273-1 01 1 1510-
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> M10 		1-75537-273-1 01 1 1403-1506
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) M10 		1-75537-273-1 01 1 1507-1508
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT<A56> 		1-75538-186-3 01 1 1510-
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-186-3 01 1 1403-1506
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75538-186-3 01 1 1507-1508
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> (A) 		1-75538-131-3 01 1 1510-
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> (A) 		1-75538-131-3 01 1 1403-1506
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (A) 		1-75538-131-3 01 1 1507-1508
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> (B) 		8-98014-971-0 01 1 1403-
467 LEVER; LOCK
AIR SUSP DRIVER SEAT<A56> 		1-75538-134-0 01 1 1510-
467 LEVER; LOCK
AIR SUSP DRIVER SEAT<A56> 		1-75538-134-0 01 1 1403-1506
467 LEVER; LOCK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75538-134-0 01 1 1507-1508
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-206-0 01 1 1510-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-207-0 01 1 1510-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (C) 		1-75518-208-0 02 1 1510-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (D) 		1-75538-132-0 01 1 1510-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-206-0 01 1 1403-1506
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (A) 		1-75518-206-0 01 1 1507-1508
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-207-0 01 1 1403-1506
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B) 		1-75518-207-0 01 1 1507-1508
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (C) 		1-75518-208-0 02 1 1403-1506
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (C) 		1-75518-208-0 02 1 1507-1508
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (D) 		1-75538-132-0 01 1 1403-1506
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (D) 		1-75538-132-0 01 1 1507-1508
470 CLIP; HOSE
AIR SUSP DRIVER SEAT<A56> 		1-75538-137-0 01 1 1510-
470 CLIP; HOSE
AIR SUSP DRIVER SEAT<A56> 		1-75538-137-0 01 1 1403-1506
470 CLIP; HOSE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75538-137-0 01 1 1507-1508
513 SPACER; LEVER
AIR SUSP DRIVER SEAT<A56> 		1-75538-133-0 01 1 1510-
513 SPACER; LEVER
AIR SUSP DRIVER SEAT<A56> 		1-75538-133-0 01 1 1403-1506
513 SPACER; LEVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75538-133-0 01 1 1507-1508
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
