6-03 — RADIATOR GRILLE (#1287) — 23 parça

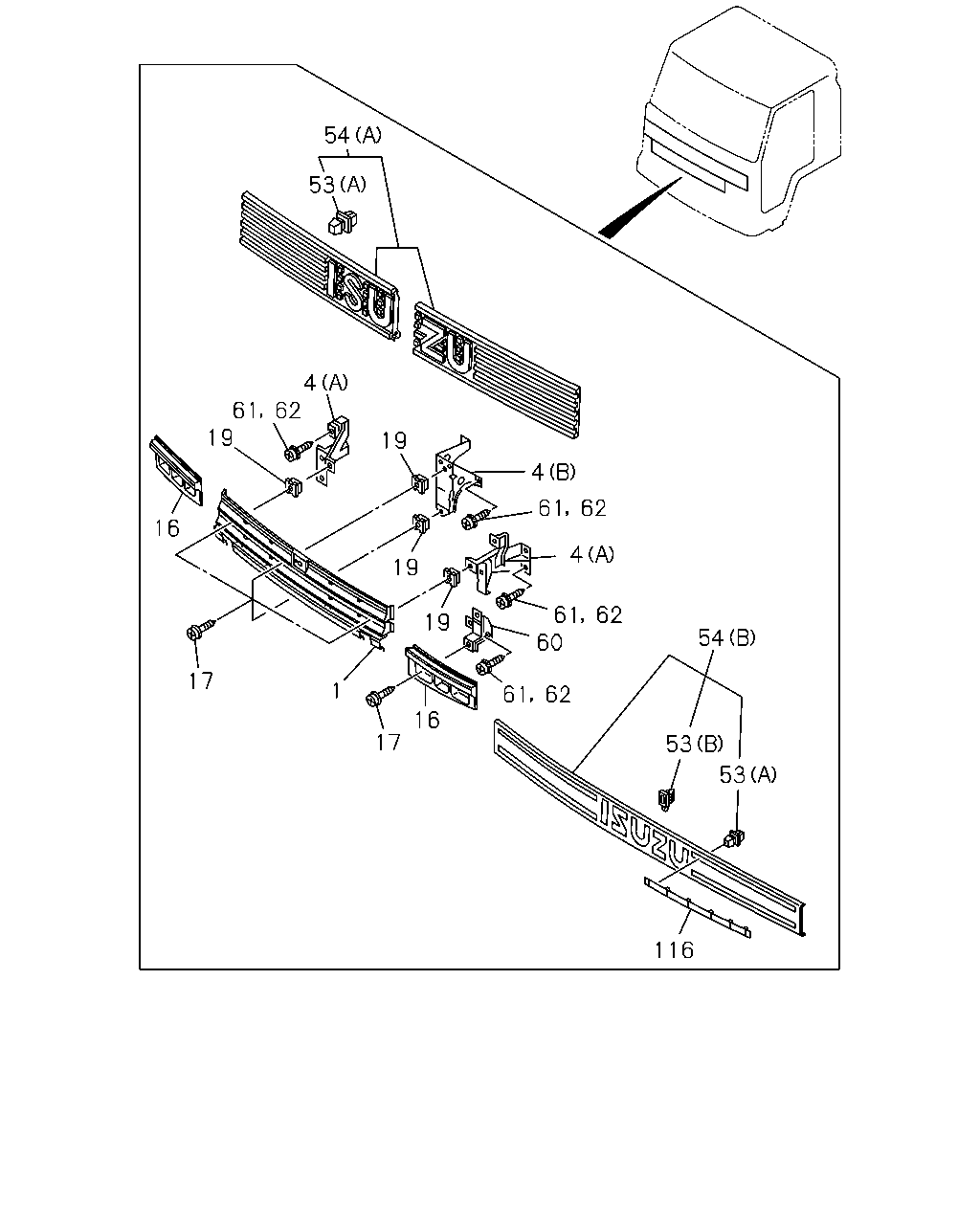

çizim 92180
54 53 4 62 61 19 16 19 4 61 62 4 19 19 61 60 62 61 62 16 17 1 17 54 53 53 116
BalonParca AdiParca NoAdetTipApplied Date A B
1 GRILLE; RAD
WHITE 		1-71118-437-1 01 1 9202- ● ●
4 BRACKET; RAD GRILLE
(B) 		1-71118-421-2 01 1 9202- ● ●
4 BRACKET; RAD GRILLE
(A) 		1-71118-584-0 01 1 9202- ● ●
4 BRACKET; RAD GRILLE
(A) 		1-71118-585-0 01 1 9202- ● ●
16 GRILLE; RAD,SIDE 1-71118-200-3 01 1 9202- ● ●
16 GRILLE; RAD,SIDE 1-71118-199-3 01 1 9202- ● ●
17 SCREW; RAD GRILLE
M5X20 TAPPING W/PL WASHER 		0-74315-520-0 04 1 9202- ● ●
17 SCREW; RAD GRILLE
M6X20 W/PL WASHER 		1-09981-376-0 04 1 9202- ● ●
19 GROMMET; SCREW,RAD GRILLE
D=10X10 L=10 M5 BLACK 		1-09983-102-0 04 1 9202- ● ●
53 CLIP; ORNAMENT GRILLE
(A) 		1-09987-056-1 14 1 9202-9307 ● ●
53 CLIP; ORNAMENT GRILLE
EXTERIOR ORNAMENTATION FRONT END PLATE<BX9> (A) 		1-09987-056-1 12 1 9308- ● ●
53 CLIP; ORNAMENT GRILLE
EXTERIOR ORNAMENTATION FRONT END PLATE<BX9> (B) 		8-94385-563-3 01 1 9308- ● ●
53 CLIP; ORNAMENT GRILLE
EXC. EXTERIOR ORNAMENTATION FRONT END PLATE<BX9> (A) 		1-09987-056-1 14 1 9308- ● ●
54 GRILLE; ORNAMENT
(A) 		1-76218-017-2 01 1 9202-9307 ● ●
54 GRILLE; ORNAMENT
EXC. EXTERIOR ORNAMENTATION FRONT END PLATE<BX9> (A) 		1-76218-017-2 01 1 9308- ● ●
54 GRILLE; ORNAMENT
(A) 		1-76218-016-2 01 1 9202-9307 ● ●
54 GRILLE; ORNAMENT
EXC. EXTERIOR ORNAMENTATION FRONT END PLATE<BX9> (A) 		1-76218-016-2 01 1 9308- ● ●
54 GRILLE; ORNAMENT
EXTERIOR ORNAMENTATION FRONT END PLATE<BX9> (B) 		1-76218-068-1 01 1 9308- ● ●
60 BRACKET; RAD GRILLE SIDE 1-71118-577-2 01 1 9202- ● ●
60 BRACKET; RAD GRILLE SIDE 1-71118-576-2 01 1 9202- ● ●
61 BOLT; BRKT
M6X20 W/LK&PL WASHER 		1-09980-493-0 08 1 9303- ● ●
62 SCREW; BRKT,RAD GRILLE
M6X20 W/LK&PL WASHER 		8-94279-347-0 08 1 9202-9302 ● ●
116 MOLDING; ORNAMENT GRILLE
EXTERIOR ORNAMENTATION FRONT END PLATE<BX9> 		1-76218-049-3 04 1 9308- ● ●
