Sayfa 7-20 - Isuzu EPC

7-20 — MIRROR AND MIRROR STAY (#128698) — 443 parça

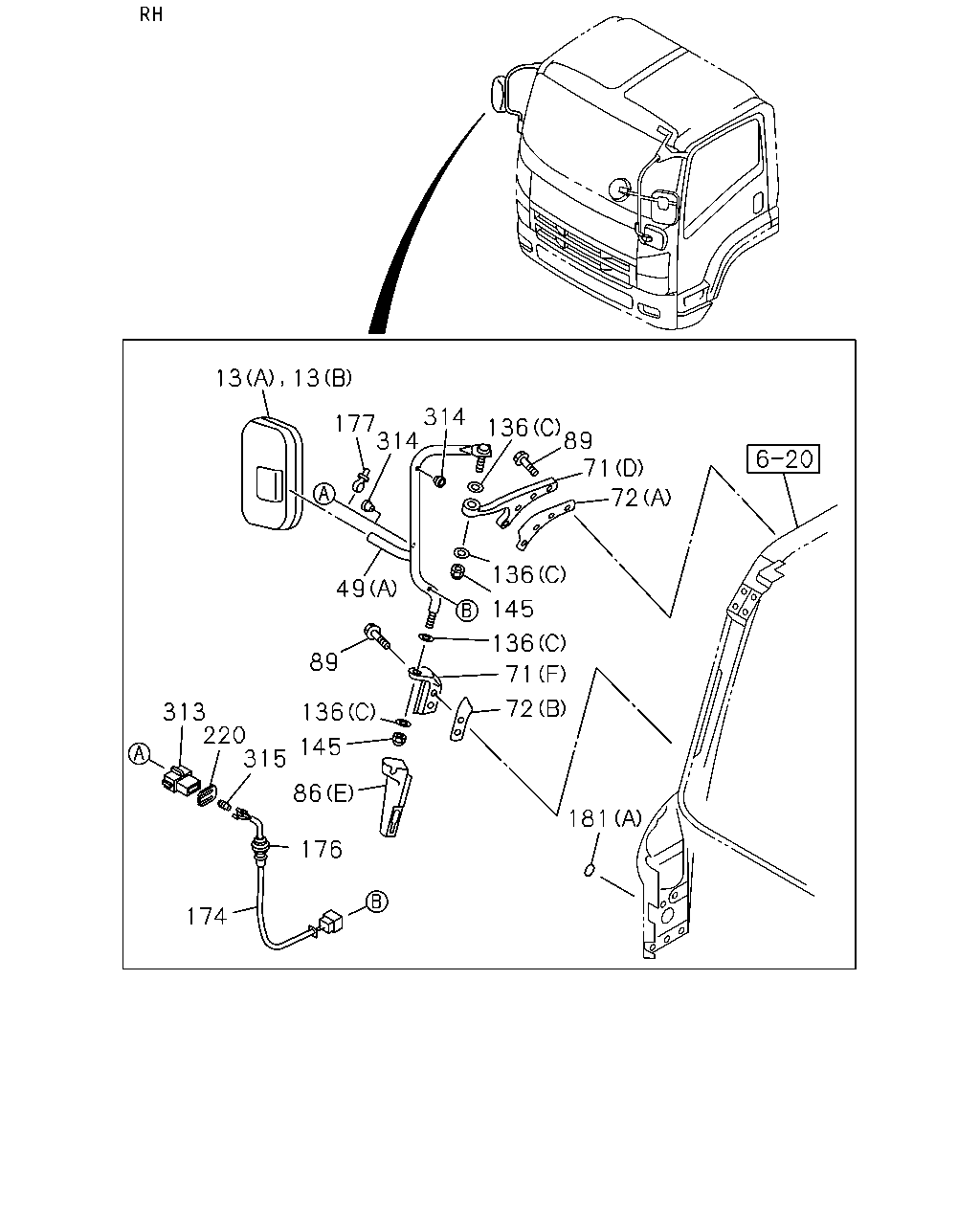

181 72 136 136 72 71 89 136 314 314 177 13 13 49 89 145 86 176 174 220 313 315 136 145 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98028-332-0	01	1	1403-1510
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98324-748-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98104-068-0	01	1	1403-1510
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98324-749-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71707-101-2	01	1	1403-
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71707-100-2	01	1	1403-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98055-992-1	01	1	1403-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98055-991-1	01	1	1403-
49	STAY; MIRROR SIDE MIR O/S RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-181-0	01	1	1403-
49	STAY; MIRROR SIDE MIR O/S RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-180-0	01	1	1403-
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98091-477-0	01	1	1403-1502
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98305-582-0	01	1	1503-
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	8-98257-748-0	01	1	1403-
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-195-0	01	1	1403-
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-194-0	01	1	1403-
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	8-98257-753-0	01	1	1403-
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98091-456-0	01	1	1403-1502
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98305-584-0	01	1	1503-
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-207-0	01	1	1403-
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-206-0	01	1	1403-
49	STAY; MIRROR SIDE SINGAPORE EQUIPMENT(2G0) MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98238-635-0	01	1	1403-
49	STAY; MIRROR SIDE SINGAPORE EQUIPMENT(2G0) MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98238-634-0	01	1	1403-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98040-022-1	01	1	1403-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-021-0	01	1	1403-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98040-543-1	01	1	1403-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIRROR O/S RR VIEW<D37> (G)	8-98201-957-0	01	1	1403-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	1-71707-224-0	04	1	1403-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (K)	8-98031-794-2	01	1	1403-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (K)	8-98031-793-2	01	1	1403-
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98060-240-0	01	1	1403-
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I)	8-98092-492-3	01	1	1403-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71797-877-0	02	1	1403-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	1-71797-878-0	02	1	1403-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (J)	8-98039-277-2	02	1	1403-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-535-0	01	1	1403-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-537-1	01	1	1403-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98040-351-0	01	1	1403-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98040-353-1	01	1	1403-
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98031-797-0	01	1	1403-
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98031-796-0	01	1	1403-
72	SHEET MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98060-245-1	01	1	1403-
72	SHEET MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G)	8-98064-776-0	01	1	1403-
72	SHEET MIR O/S RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98116-605-0	01	1	1403-
72	SHEET MIR O/S RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98116-604-0	01	1	1403-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) BLACK	1-71737-649-1	01	1	1403-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-545-1	01	1	1403-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-546-1	01	1	1403-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) BLACK	1-71737-652-1	01	1	1403-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (E)	8-98040-541-1	01	1	1403-
86	COVER; STAY,OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98040-542-2	01	1	1403-
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-803-2	01	1	1403-
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-802-2	01	1	1403-
89	SCREW; BRKT,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X26 W/PL WASHER	8-98067-249-2	10	1	1403-
89	SCREW; BRKT,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X23	8-97310-216-1	08	1	1403-
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) ID=10	1-09985-180-0	01	1	1403-
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	1403-
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1403-
136	WASHER; LK,BRKT,MIRROR STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	1403-
145	NUT; CAP,SUB STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT	1-09984-134-0	03	1	1403-
145	NUT; CAP,SUB STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8 CAP NUT	8-98059-914-0	10	1	1403-
174	HARNESS; MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF>	8-98258-260-0	01	1	1403-
174	HARNESS; MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98047-368-2	01	1	1403-
176	GROMMET; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	1-82699-906-0	01	1	1403-
176	GROMMET; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-82699-906-0	01	1	1403-
177	CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> L=140	5-09707-031-1	01	1	1403-
177	CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> L=140	5-09707-031-1	02	1	1403-
181	SEAL; BRKT (B) 25X25	8-94272-533-0	01	1	1403-
181	SEAL; BRKT O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) OD=25 BLACK	1-76798-019-0	01	1	1403-
181	SEAL; BRKT EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) OD=25 BLACK	1-76798-019-0	01	1	1403-
220	HOLDER; CONNECTOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-94447-536-0	01	1	1403-
220	HOLDER; CONNECTOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF>	8-94447-536-0	01	1	1403-
313	CONNECTOR; MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-94447-532-0	01	1	1403-
313	CONNECTOR; MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF>	8-94447-532-0	01	1	1403-
314	BUFFER; STOPPER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-94314-317-0	02	1	1403-
314	BUFFER; STOPPER O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-94314-317-0	01	1	1403-
315	RUBBER ASM; CONNECTOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	1-82691-026-0	01	1	1403-
315	RUBBER ASM; CONNECTOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-82691-026-0	01	1	1403-

23 23 26 205 133 204 71 25 71 25 26 13 14 25 26 71 53 53 13 206

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98028-332-0	01	1	1403-1510
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98324-748-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98104-068-0	01	1	1403-1510
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98324-749-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71707-101-2	01	1	1403-
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71707-100-2	01	1	1403-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98055-992-1	01	1	1403-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98055-991-1	01	1	1403-
14	MIRROR ASM; OUTSIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98045-690-0	01	1	1403-1510
14	MIRROR ASM; OUTSIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98324-761-0	01	1	1511-
14	MIRROR ASM; OUTSIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98108-511-0	01	1	1403-1510
14	MIRROR ASM; OUTSIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98324-760-0	01	1	1511-
23	WASHER; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	1-71797-883-0	04	1	1403-
25	SCREW; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C) M6X40	1-71707-223-0	04	1	1403-
25	SCREW; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) M5X14	1-71797-881-0	08	1	1403-
25	SCREW; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) M6X10	1-71797-882-0	08	1	1403-
26	COVER; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	1-71707-222-0	01	1	1403-
26	COVER; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	1-71707-221-0	01	1	1403-
26	COVER; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98031-806-0	01	1	1403-
26	COVER; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98031-805-0	01	1	1403-
26	COVER; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71797-879-0	02	1	1403-
26	COVER; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	1-71797-880-0	02	1	1403-
53	PIVOT; SIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ID=22.2	1-71736-489-2	04	1	1403-
53	PIVOT; SIDE MIRROR MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=19.1	1-71737-633-2	02	1	1403-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98040-022-1	01	1	1403-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-021-0	01	1	1403-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98040-543-1	01	1	1403-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIRROR O/S RR VIEW<D37> (G)	8-98201-957-0	01	1	1403-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	1-71707-224-0	04	1	1403-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (K)	8-98031-794-2	01	1	1403-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (K)	8-98031-793-2	01	1	1403-
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98060-240-0	01	1	1403-
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I)	8-98092-492-3	01	1	1403-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71797-877-0	02	1	1403-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	1-71797-878-0	02	1	1403-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (J)	8-98039-277-2	02	1	1403-
133	LENS; MIRROR,OUTSIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	1-71797-953-0	01	1	1403-
133	LENS; MIRROR,OUTSIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	1-71797-952-1	01	1	1403-
204	MOTOR KIT; MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	1-71707-144-0	02	1	1403-
205	CONNECTOR KIT; MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	1-71797-955-0	02	1	1403-
206	SCREW; MOTOR,MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98134-316-0	04	1	1403-

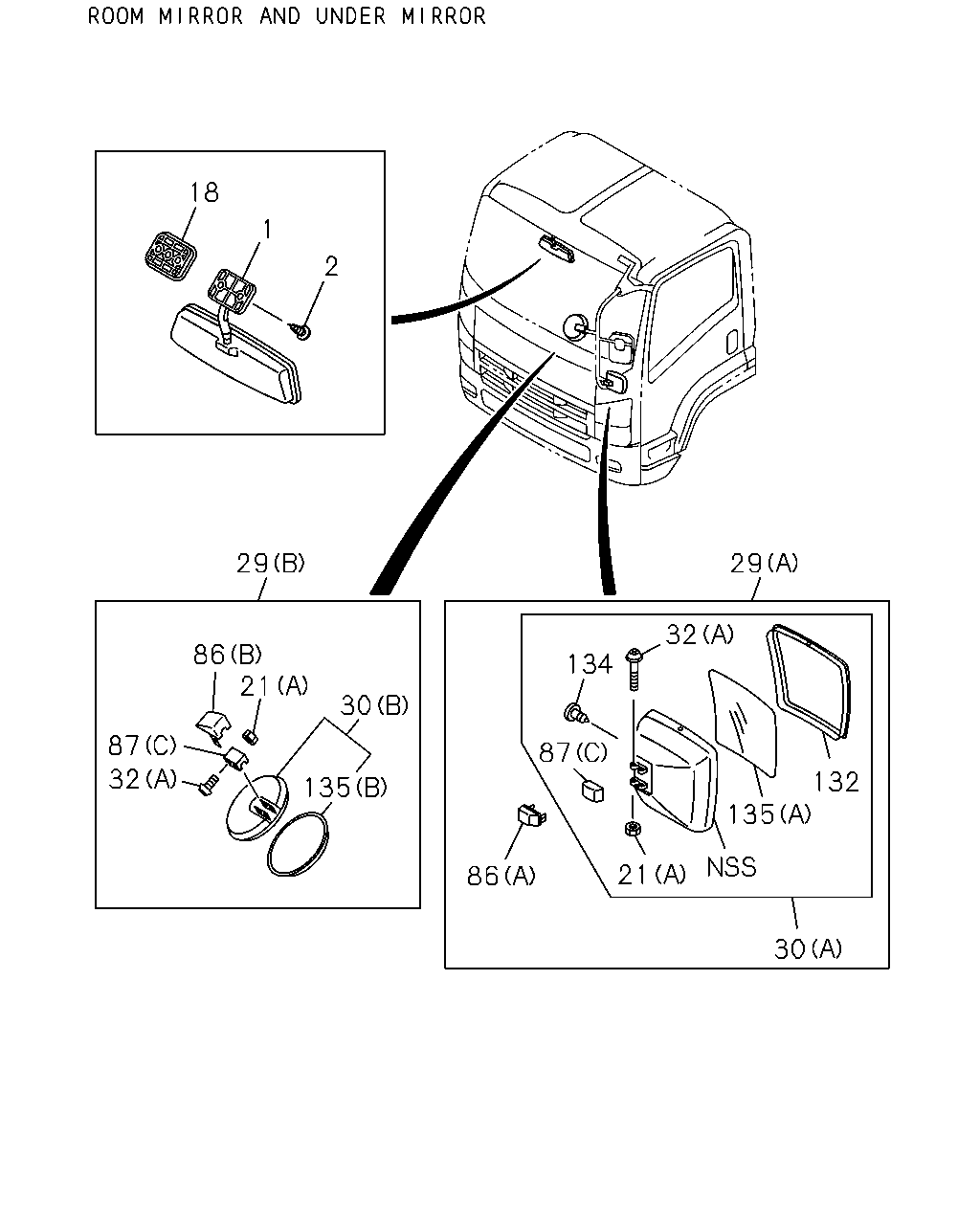

18 2 1 29 32 132 30 21 86 87 134 135 30 135 86 87 32 29 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	MIRROR; ROOM RR VIEW MIRROR<D31> DARK GRAY	8-98097-534-1	01	1	1403-
2	SCREW; MIRROR TO BODY RR VIEW MIRROR<D31> M6X26	8-98033-674-0	02	1	1403-
18	CLIP; MIRROR RR VIEW MIRROR<D31> DARK GRAY	8-97408-241-0	01	1	1403-
21	NUT; MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) M5	1-09984-124-0	02	1	1403-
21	NUT; MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) M5	1-09984-124-0	02	1	1403-
21	NUT; MIRROR MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) M10 CAP NUT	1-09984-134-0	02	1	1403-
29	MIRROR ASM; UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71798-422-0	01	1	1403-
29	MIRROR ASM; UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71798-421-1	01	1	1403-
30	MIRROR; UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71798-591-1	01	1	1403-
30	MIRROR; UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71798-592-1	01	1	1403-
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98055-994-0	01	1	1403-1504
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98309-725-0	01	1	1505-
32	SCREW; UNDER MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) M5X40 W/PL WASHER	1-71737-797-0	02	1	1403-
32	SCREW; UNDER MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) M5X40 W/PL WASHER	1-71737-797-0	02	1	1403-
32	SCREW; UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) M8X26 W/PL WASHER	8-98067-249-2	04	1	1403-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) BLACK	1-71737-649-1	01	1	1403-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-545-1	01	1	1403-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-546-1	01	1	1403-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) BLACK	1-71737-652-1	01	1	1403-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (E)	8-98040-541-1	01	1	1403-
86	COVER; STAY,OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98040-542-2	01	1	1403-
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-803-2	01	1	1403-
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-802-2	01	1	1403-
87	SPACER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71737-646-2	01	1	1403-
87	SPACER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	1-71737-646-2	01	1	1403-
87	SPACER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98063-786-0	02	1	1403-
87	SPACER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98063-789-0	02	1	1403-
132	RING; MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-935-0	01	1	1403-
134	CLIP; MIRROR LENS MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-936-0	01	1	1403-
135	LENS; MIRROR,SIDE UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71798-838-0	01	1	1403-
135	LENS; MIRROR,SIDE UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-929-0	01	1	1403-

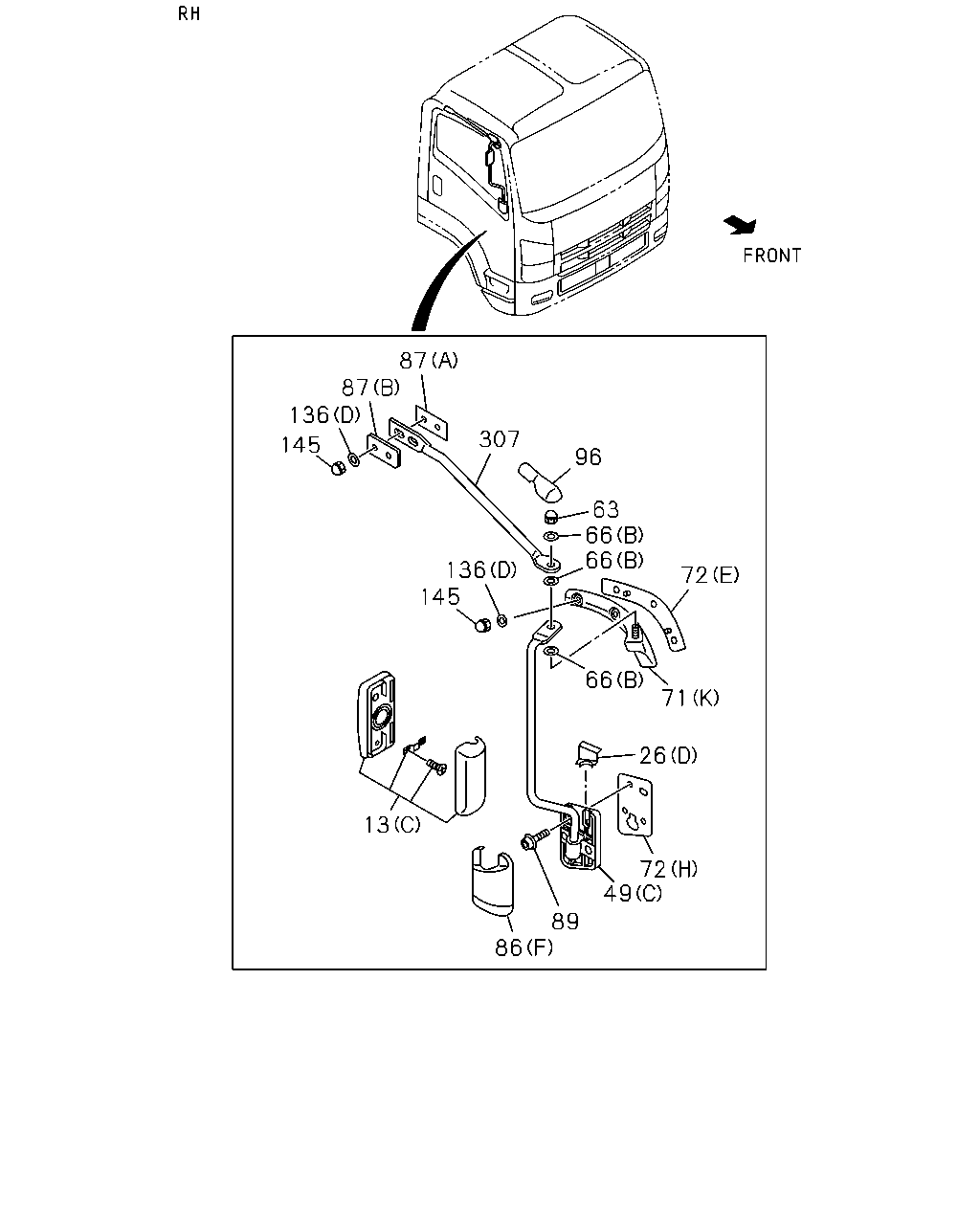

86 49 26 71 66 72 66 63 96 307 87 87 136 145 136 145 13 89 72 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98028-332-0	01	1	1403-1510
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98324-748-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98104-068-0	01	1	1403-1510
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98324-749-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71707-101-2	01	1	1403-
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71707-100-2	01	1	1403-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98055-992-1	01	1	1403-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98055-991-1	01	1	1403-
26	COVER; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	1-71707-222-0	01	1	1403-
26	COVER; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	1-71707-221-0	01	1	1403-
26	COVER; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98031-806-0	01	1	1403-
26	COVER; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98031-805-0	01	1	1403-
26	COVER; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71797-879-0	02	1	1403-
26	COVER; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	1-71797-880-0	02	1	1403-
49	STAY; MIRROR SIDE MIR O/S RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-181-0	01	1	1403-
49	STAY; MIRROR SIDE MIR O/S RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-180-0	01	1	1403-
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98091-477-0	01	1	1403-1502
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98305-582-0	01	1	1503-
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	8-98257-748-0	01	1	1403-
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-195-0	01	1	1403-
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-194-0	01	1	1403-
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	8-98257-753-0	01	1	1403-
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98091-456-0	01	1	1403-1502
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98305-584-0	01	1	1503-
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-207-0	01	1	1403-
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-206-0	01	1	1403-
49	STAY; MIRROR SIDE SINGAPORE EQUIPMENT(2G0) MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98238-635-0	01	1	1403-
49	STAY; MIRROR SIDE SINGAPORE EQUIPMENT(2G0) MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98238-634-0	01	1	1403-
63	NUT; STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIRROR O/S RR VIEW<D37> M14 TOUGH LOCK NUT W/FLANGE	8-98174-339-0	01	1	1403-
63	NUT; STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH> M14 CAP NUT	8-98041-311-1	01	1	1403-
63	NUT; STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT	1-09984-134-0	02	1	1403-
66	WASHER; PL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIRROR O/S RR VIEW<D37> (A) LOWER ID=15 OD=30 T=2.6	0-91610-614-0	01	1	1403-
66	WASHER; PL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIRROR O/S RR VIEW<D37> (A) UPPER ID=14.5 OD=27 T=1.5	8-98201-756-0	01	1	1403-
66	WASHER; PL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH> (A) ID=14.5 OD=30	9-09851-946-0	02	1	1403-
66	WASHER; PL EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) ID=10.5 OD=26 T=2.6	1-09985-204-0	06	1	1403-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98040-022-1	01	1	1403-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-021-0	01	1	1403-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98040-543-1	01	1	1403-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIRROR O/S RR VIEW<D37> (G)	8-98201-957-0	01	1	1403-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	1-71707-224-0	04	1	1403-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (K)	8-98031-794-2	01	1	1403-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (K)	8-98031-793-2	01	1	1403-
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98060-240-0	01	1	1403-
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I)	8-98092-492-3	01	1	1403-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71797-877-0	02	1	1403-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	1-71797-878-0	02	1	1403-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (J)	8-98039-277-2	02	1	1403-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-535-0	01	1	1403-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-537-1	01	1	1403-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98040-351-0	01	1	1403-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98040-353-1	01	1	1403-
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98031-797-0	01	1	1403-
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98031-796-0	01	1	1403-
72	SHEET MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98060-245-1	01	1	1403-
72	SHEET MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G)	8-98064-776-0	01	1	1403-
72	SHEET MIR O/S RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98116-605-0	01	1	1403-
72	SHEET MIR O/S RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98116-604-0	01	1	1403-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) BLACK	1-71737-649-1	01	1	1403-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-545-1	01	1	1403-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-546-1	01	1	1403-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) BLACK	1-71737-652-1	01	1	1403-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (E)	8-98040-541-1	01	1	1403-
86	COVER; STAY,OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98040-542-2	01	1	1403-
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-803-2	01	1	1403-
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-802-2	01	1	1403-
87	SPACER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71737-646-2	01	1	1403-
87	SPACER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	1-71737-646-2	01	1	1403-
87	SPACER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98063-786-0	02	1	1403-
87	SPACER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98063-789-0	02	1	1403-
89	SCREW; BRKT,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X26 W/PL WASHER	8-98067-249-2	10	1	1403-
89	SCREW; BRKT,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X23	8-97310-216-1	08	1	1403-
96	CAP; MIRROR STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98080-173-0	02	1	1403-
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) ID=10	1-09985-180-0	01	1	1403-
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	1403-
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1403-
136	WASHER; LK,BRKT,MIRROR STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	1403-
145	NUT; CAP,SUB STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT	1-09984-134-0	03	1	1403-
145	NUT; CAP,SUB STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8 CAP NUT	8-98059-914-0	10	1	1403-
307	STAY; MIRROR SUPPORT EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98063-785-2	01	1	1403-
307	STAY; MIRROR SUPPORT EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98063-784-2	01	1	1403-

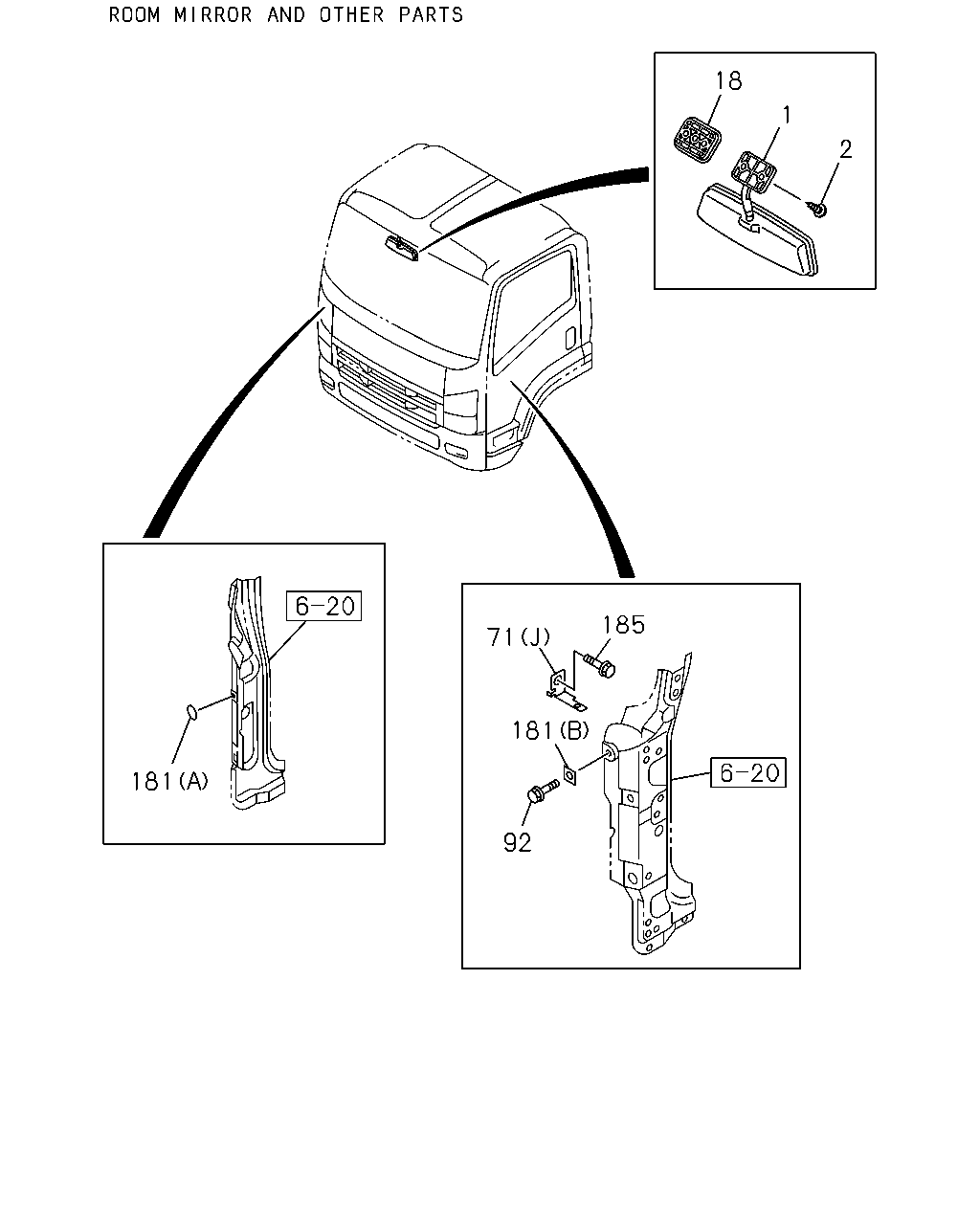

2 1 18 185 71 181 92 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	MIRROR; ROOM RR VIEW MIRROR<D31> DARK GRAY	8-98097-534-1	01	1	1403-
2	SCREW; MIRROR TO BODY RR VIEW MIRROR<D31> M6X26	8-98033-674-0	02	1	1403-
18	CLIP; MIRROR RR VIEW MIRROR<D31> DARK GRAY	8-97408-241-0	01	1	1403-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98040-022-1	01	1	1403-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-021-0	01	1	1403-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98040-543-1	01	1	1403-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIRROR O/S RR VIEW<D37> (G)	8-98201-957-0	01	1	1403-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	1-71707-224-0	04	1	1403-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (K)	8-98031-794-2	01	1	1403-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (K)	8-98031-793-2	01	1	1403-
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98060-240-0	01	1	1403-
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I)	8-98092-492-3	01	1	1403-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71797-877-0	02	1	1403-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	1-71797-878-0	02	1	1403-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (J)	8-98039-277-2	02	1	1403-
92	BOLT; STAY BRKT,MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X16 FLANGE	8-98076-109-0	04	1	1403-
92	BOLT; STAY BRKT,MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X16 FLANGE	8-98076-109-0	01	1	1403-
181	SEAL; BRKT (B) 25X25	8-94272-533-0	01	1	1403-
181	SEAL; BRKT O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) OD=25 BLACK	1-76798-019-0	01	1	1403-
181	SEAL; BRKT EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) OD=25 BLACK	1-76798-019-0	01	1	1403-
185	BOLT; BRKT O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X16 FLANGE	0-28050-816-0	02	1	1403-

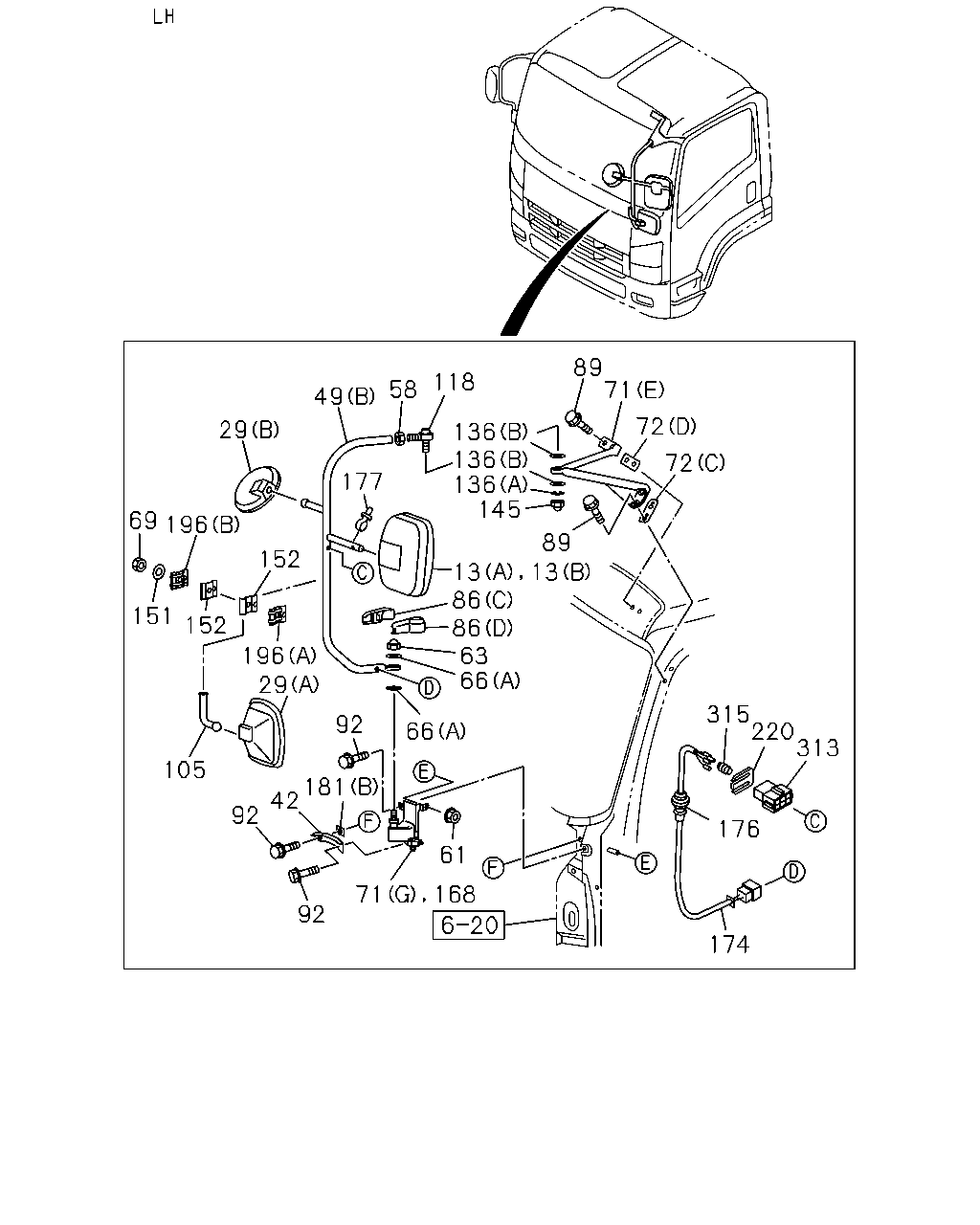

89 71 72 72 136 136 58 49 118 29 196 152 69 151 152 196 29 92 181 42 92 105 92 168 66 61 66 63 86 86 13 136 145 89 13 176 313 174 220 315 71 177

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98028-332-0	01	1	1403-1510
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98324-748-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98104-068-0	01	1	1403-1510
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98324-749-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71707-101-2	01	1	1403-
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71707-100-2	01	1	1403-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98055-992-1	01	1	1403-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98055-991-1	01	1	1403-
29	MIRROR ASM; UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71798-422-0	01	1	1403-
29	MIRROR ASM; UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71798-421-1	01	1	1403-
42	ATTACHMENT; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98070-643-0	01	1	1403-
49	STAY; MIRROR SIDE MIR O/S RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-181-0	01	1	1403-
49	STAY; MIRROR SIDE MIR O/S RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-180-0	01	1	1403-
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98091-477-0	01	1	1403-1502
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98305-582-0	01	1	1503-
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	8-98257-748-0	01	1	1403-
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-195-0	01	1	1403-
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-194-0	01	1	1403-
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	8-98257-753-0	01	1	1403-
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98091-456-0	01	1	1403-1502
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98305-584-0	01	1	1503-
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-207-0	01	1	1403-
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-206-0	01	1	1403-
49	STAY; MIRROR SIDE SINGAPORE EQUIPMENT(2G0) MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98238-635-0	01	1	1403-
49	STAY; MIRROR SIDE SINGAPORE EQUIPMENT(2G0) MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98238-634-0	01	1	1403-
58	NUT; MIRROR STAY O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> M12	8-98061-883-0	01	1	1403-
58	NUT; MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> M12	8-98061-883-0	01	1	1403-
61	NUT; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8 FLANGE	0-91180-108-0	01	1	1403-
63	NUT; STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIRROR O/S RR VIEW<D37> M14 TOUGH LOCK NUT W/FLANGE	8-98174-339-0	01	1	1403-
63	NUT; STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH> M14 CAP NUT	8-98041-311-1	01	1	1403-
63	NUT; STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT	1-09984-134-0	02	1	1403-
66	WASHER; PL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIRROR O/S RR VIEW<D37> (A) LOWER ID=15 OD=30 T=2.6	0-91610-614-0	01	1	1403-
66	WASHER; PL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIRROR O/S RR VIEW<D37> (A) UPPER ID=14.5 OD=27 T=1.5	8-98201-756-0	01	1	1403-
66	WASHER; PL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH> (A) ID=14.5 OD=30	9-09851-946-0	02	1	1403-
66	WASHER; PL EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) ID=10.5 OD=26 T=2.6	1-09985-204-0	06	1	1403-
69	NUT; CAP MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> M10 CAP NUT	1-09984-134-0	01	1	1403-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98040-022-1	01	1	1403-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-021-0	01	1	1403-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98040-543-1	01	1	1403-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIRROR O/S RR VIEW<D37> (G)	8-98201-957-0	01	1	1403-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	1-71707-224-0	04	1	1403-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (K)	8-98031-794-2	01	1	1403-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (K)	8-98031-793-2	01	1	1403-
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98060-240-0	01	1	1403-
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I)	8-98092-492-3	01	1	1403-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71797-877-0	02	1	1403-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	1-71797-878-0	02	1	1403-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (J)	8-98039-277-2	02	1	1403-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-535-0	01	1	1403-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-537-1	01	1	1403-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98040-351-0	01	1	1403-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98040-353-1	01	1	1403-
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98031-797-0	01	1	1403-
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98031-796-0	01	1	1403-
72	SHEET MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98060-245-1	01	1	1403-
72	SHEET MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G)	8-98064-776-0	01	1	1403-
72	SHEET MIR O/S RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98116-605-0	01	1	1403-
72	SHEET MIR O/S RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98116-604-0	01	1	1403-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) BLACK	1-71737-649-1	01	1	1403-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-545-1	01	1	1403-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-546-1	01	1	1403-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) BLACK	1-71737-652-1	01	1	1403-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (E)	8-98040-541-1	01	1	1403-
86	COVER; STAY,OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98040-542-2	01	1	1403-
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-803-2	01	1	1403-
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-802-2	01	1	1403-
89	SCREW; BRKT,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X26 W/PL WASHER	8-98067-249-2	10	1	1403-
89	SCREW; BRKT,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X23	8-97310-216-1	08	1	1403-
92	BOLT; STAY BRKT,MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X16 FLANGE	8-98076-109-0	04	1	1403-
92	BOLT; STAY BRKT,MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X16 FLANGE	8-98076-109-0	01	1	1403-
105	STAY; SUB UNDER MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF>	8-98257-761-0	01	1	1403-
118	JOINT ASM; BALL O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71798-356-2	01	1	1403-
118	JOINT ASM; BALL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71798-356-2	01	1	1403-
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) ID=10	1-09985-180-0	01	1	1403-
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	1403-
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1403-
136	WASHER; LK,BRKT,MIRROR STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	1403-
145	NUT; CAP,SUB STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT	1-09984-134-0	03	1	1403-
145	NUT; CAP,SUB STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8 CAP NUT	8-98059-914-0	10	1	1403-
151	WASHER; PL,MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> ID=10.5 T=2.0	1-09985-183-0	01	1	1403-
152	SHEET; MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71798-445-1	02	1	1403-
168	POWER UNIT; MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH>	8-97612-287-2	01	1	1403-
174	HARNESS; MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF>	8-98258-260-0	01	1	1403-
174	HARNESS; MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98047-368-2	01	1	1403-
176	GROMMET; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	1-82699-906-0	01	1	1403-
176	GROMMET; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-82699-906-0	01	1	1403-
177	CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> L=140	5-09707-031-1	01	1	1403-
177	CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> L=140	5-09707-031-1	02	1	1403-
181	SEAL; BRKT (B) 25X25	8-94272-533-0	01	1	1403-
181	SEAL; BRKT O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) OD=25 BLACK	1-76798-019-0	01	1	1403-
181	SEAL; BRKT EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) OD=25 BLACK	1-76798-019-0	01	1	1403-
196	HOLDER; STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71798-442-2	01	1	1403-
196	HOLDER; STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-444-2	01	1	1403-
220	HOLDER; CONNECTOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-94447-536-0	01	1	1403-
220	HOLDER; CONNECTOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF>	8-94447-536-0	01	1	1403-
313	CONNECTOR; MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-94447-532-0	01	1	1403-
313	CONNECTOR; MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF>	8-94447-532-0	01	1	1403-
315	RUBBER ASM; CONNECTOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	1-82691-026-0	01	1	1403-
315	RUBBER ASM; CONNECTOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-82691-026-0	01	1	1403-

87 136 87 32 21 68 72 32 71 13 86 89 49 72 26 71 72 63 66 136 66 68 21 68 22 72 71 53 53 145 30 66 68 307 96 145

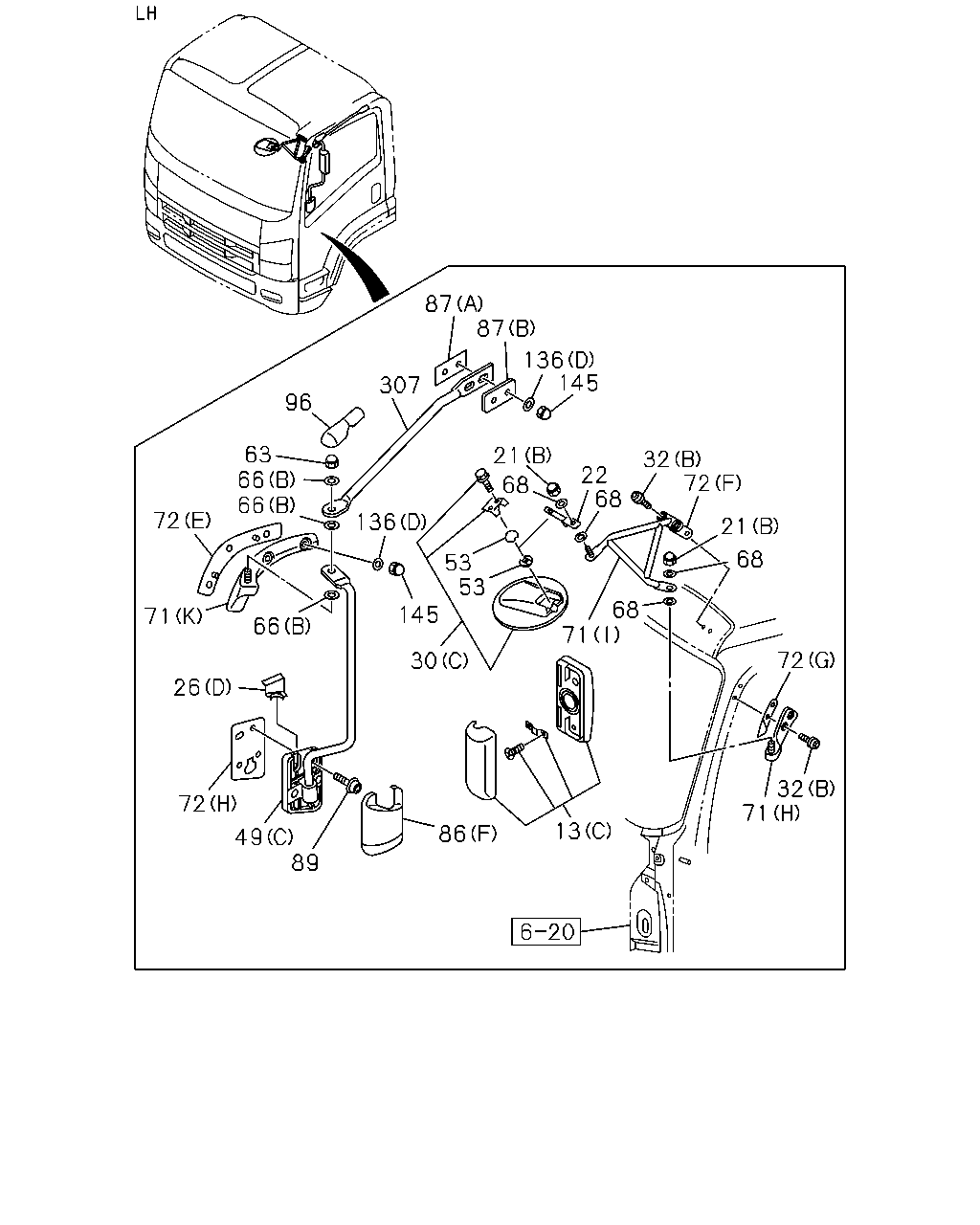

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98028-332-0	01	1	1403-1510
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98324-748-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98104-068-0	01	1	1403-1510
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98324-749-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71707-101-2	01	1	1403-
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71707-100-2	01	1	1403-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98055-992-1	01	1	1403-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98055-991-1	01	1	1403-
21	NUT; MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) M5	1-09984-124-0	02	1	1403-
21	NUT; MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) M5	1-09984-124-0	02	1	1403-
21	NUT; MIRROR MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) M10 CAP NUT	1-09984-134-0	02	1	1403-
22	STAY; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98092-493-0	01	1	1403-
26	COVER; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	1-71707-222-0	01	1	1403-
26	COVER; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	1-71707-221-0	01	1	1403-
26	COVER; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98031-806-0	01	1	1403-
26	COVER; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98031-805-0	01	1	1403-
26	COVER; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71797-879-0	02	1	1403-
26	COVER; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	1-71797-880-0	02	1	1403-
30	MIRROR; UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71798-591-1	01	1	1403-
30	MIRROR; UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71798-592-1	01	1	1403-
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98055-994-0	01	1	1403-1504
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98309-725-0	01	1	1505-
32	SCREW; UNDER MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) M5X40 W/PL WASHER	1-71737-797-0	02	1	1403-
32	SCREW; UNDER MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) M5X40 W/PL WASHER	1-71737-797-0	02	1	1403-
32	SCREW; UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) M8X26 W/PL WASHER	8-98067-249-2	04	1	1403-
49	STAY; MIRROR SIDE MIR O/S RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-181-0	01	1	1403-
49	STAY; MIRROR SIDE MIR O/S RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-180-0	01	1	1403-
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98091-477-0	01	1	1403-1502
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98305-582-0	01	1	1503-
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	8-98257-748-0	01	1	1403-
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-195-0	01	1	1403-
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-194-0	01	1	1403-
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	8-98257-753-0	01	1	1403-
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98091-456-0	01	1	1403-1502
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98305-584-0	01	1	1503-
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-207-0	01	1	1403-
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-206-0	01	1	1403-
49	STAY; MIRROR SIDE SINGAPORE EQUIPMENT(2G0) MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98238-635-0	01	1	1403-
49	STAY; MIRROR SIDE SINGAPORE EQUIPMENT(2G0) MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98238-634-0	01	1	1403-
53	PIVOT; SIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ID=22.2	1-71736-489-2	04	1	1403-
53	PIVOT; SIDE MIRROR MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=19.1	1-71737-633-2	02	1	1403-
63	NUT; STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIRROR O/S RR VIEW<D37> M14 TOUGH LOCK NUT W/FLANGE	8-98174-339-0	01	1	1403-
63	NUT; STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH> M14 CAP NUT	8-98041-311-1	01	1	1403-
63	NUT; STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT	1-09984-134-0	02	1	1403-
66	WASHER; PL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIRROR O/S RR VIEW<D37> (A) LOWER ID=15 OD=30 T=2.6	0-91610-614-0	01	1	1403-
66	WASHER; PL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIRROR O/S RR VIEW<D37> (A) UPPER ID=14.5 OD=27 T=1.5	8-98201-756-0	01	1	1403-
66	WASHER; PL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH> (A) ID=14.5 OD=30	9-09851-946-0	02	1	1403-
66	WASHER; PL EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) ID=10.5 OD=26 T=2.6	1-09985-204-0	06	1	1403-
68	WASHER; STAY MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1403-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98040-022-1	01	1	1403-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-021-0	01	1	1403-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98040-543-1	01	1	1403-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIRROR O/S RR VIEW<D37> (G)	8-98201-957-0	01	1	1403-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	1-71707-224-0	04	1	1403-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (K)	8-98031-794-2	01	1	1403-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (K)	8-98031-793-2	01	1	1403-
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98060-240-0	01	1	1403-
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I)	8-98092-492-3	01	1	1403-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71797-877-0	02	1	1403-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	1-71797-878-0	02	1	1403-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (J)	8-98039-277-2	02	1	1403-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-535-0	01	1	1403-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-537-1	01	1	1403-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98040-351-0	01	1	1403-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98040-353-1	01	1	1403-
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98031-797-0	01	1	1403-
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98031-796-0	01	1	1403-
72	SHEET MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98060-245-1	01	1	1403-
72	SHEET MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G)	8-98064-776-0	01	1	1403-
72	SHEET MIR O/S RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98116-605-0	01	1	1403-
72	SHEET MIR O/S RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98116-604-0	01	1	1403-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) BLACK	1-71737-649-1	01	1	1403-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-545-1	01	1	1403-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-546-1	01	1	1403-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) BLACK	1-71737-652-1	01	1	1403-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (E)	8-98040-541-1	01	1	1403-
86	COVER; STAY,OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98040-542-2	01	1	1403-
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-803-2	01	1	1403-
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-802-2	01	1	1403-
87	SPACER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71737-646-2	01	1	1403-
87	SPACER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	1-71737-646-2	01	1	1403-
87	SPACER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98063-786-0	02	1	1403-
87	SPACER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98063-789-0	02	1	1403-
89	SCREW; BRKT,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X26 W/PL WASHER	8-98067-249-2	10	1	1403-
89	SCREW; BRKT,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X23	8-97310-216-1	08	1	1403-
96	CAP; MIRROR STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98080-173-0	02	1	1403-
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) ID=10	1-09985-180-0	01	1	1403-
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	1403-
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1403-
136	WASHER; LK,BRKT,MIRROR STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	1403-
145	NUT; CAP,SUB STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT	1-09984-134-0	03	1	1403-
145	NUT; CAP,SUB STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8 CAP NUT	8-98059-914-0	10	1	1403-
307	STAY; MIRROR SUPPORT EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98063-785-2	01	1	1403-
307	STAY; MIRROR SUPPORT EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98063-784-2	01	1	1403-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
