6-70 — FLOOR PANEL (#128688) — 58 parça

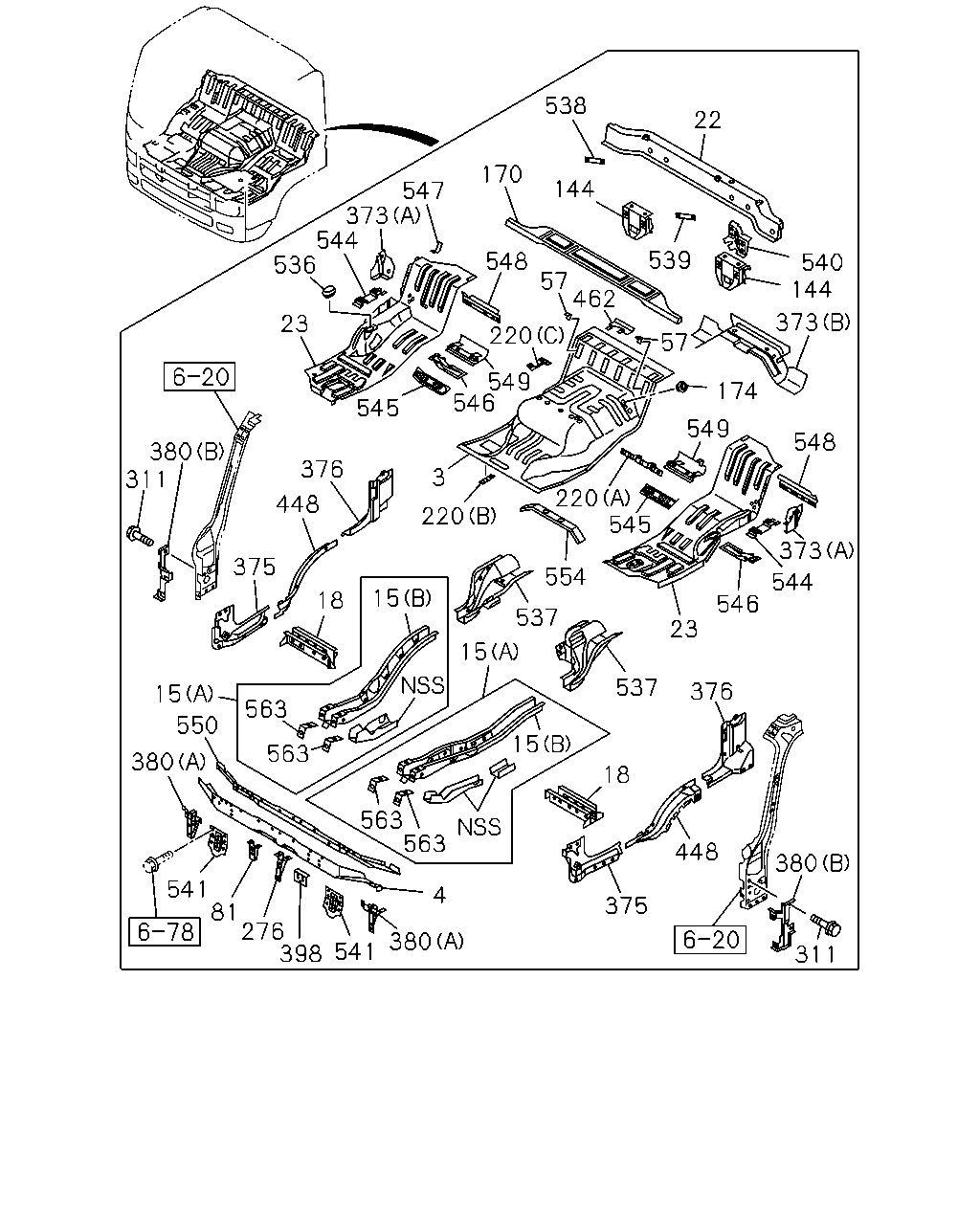

çizim 382415
15 554 545 220 220 15 18 448 376 380 311 375 15 380 563 563 563 563 380 541 398 276 81 541 4 15 18 537 376 380 311 448 375 22 539 174 373 540 144 538 170 547 373 544 536 23 545 546 549 220 548 57 549 548 144 373 544 546 3 462 550 57 537 23
BalonParca AdiParca NoAdetTipApplied Date
3 HOOD ASM; ENG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98167-035-0 01 1 1403-
3 HOOD ASM; ENG
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98167-037-0 01 1 1403-
4 FRAME; FLOOR,FRT 8-98073-692-1 01 1 1403-
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1403-
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 1403-
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1403-
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1403-
18 FRAME; FLOOR,CENTER SIDE 8-97584-420-4 01 1 1403-
18 FRAME; FLOOR,CENTER SIDE 8-97584-397-5 01 1 1403-
22 FRAME; FLOOR REAR 8-97584-430-5 01 1 1403-
23 PANEL; FLOOR,SIDE 8-97584-371-7 01 1 1403-
23 PANEL; FLOOR,SIDE 8-98073-690-1 01 1 1403-
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 1403-
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1403-
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1403-
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1403-
170 EXTENSION; RR FLOOR 8-97589-204-3 01 1 1403-
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 1403-
220 PATCH
(A) 		8-97588-840-4 01 1 1403-
220 PATCH
(B) 		8-97589-603-3 01 1 1403-
220 PATCH
(C) 		8-97589-627-2 01 1 1403-
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 1403-
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1403-
373 REINFORCEMENT; SEAT BELT
(B) 		8-97584-345-9 01 1 1403-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1403-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1403-
375 CLOSING; PILLAR 8-98044-898-3 01 1 1403-
375 CLOSING; PILLAR 8-98044-897-3 01 1 1403-
376 CLOSING; PILLAR,LWR 8-97589-555-1 01 1 1403-
376 CLOSING; PILLAR,LWR 8-97589-553-1 01 1 1403-
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 1403-
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1403-
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 1403-
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1403-
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1403-
448 CLOSING; ROCKER 8-97589-552-2 01 1 1403-
448 CLOSING; ROCKER 8-97589-551-2 01 1 1403-
462 BRACKET; EXTINGUISHER 8-97585-688-1 01 1 1403-
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1403-
537 SUPPORT ASM; MTG RR 8-97584-416-4 01 1 1403-
537 SUPPORT ASM; MTG RR 8-97584-390-4 01 1 1403-
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 1403-
539 PATCH ASM; SAFTY HOOK 8-97584-440-2 01 1 1403-
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1403-
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1403-
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1403-
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1403-
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1403-
545 BRACKET; SEAT FRT 8-97584-361-1 01 1 1403-
546 REINFORCEMENT; FLOOR SIDE 8-97584-426-0 02 1 1403-
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1403-
548 BRACKET; MUD GUARD 8-97588-965-1 01 1 1403-
548 BRACKET; MUD GUARD 8-97588-964-1 01 1 1403-
549 BRACKET; SEAT RR 8-97588-958-4 01 1 1403-
549 BRACKET; SEAT RR 8-97589-557-4 01 1 1403-
550 CLOSING ASM; MTG,FRT 8-97584-458-4 01 1 1403-
554 REINFORCEMENT; FLOOR CENTER 8-97584-351-2 01 1 1403-
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1403-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
