Isuzu WW
▶
TRUCKS
▶
FRR
▶
11553 - FRR RHD EURO5 SPACECAB
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

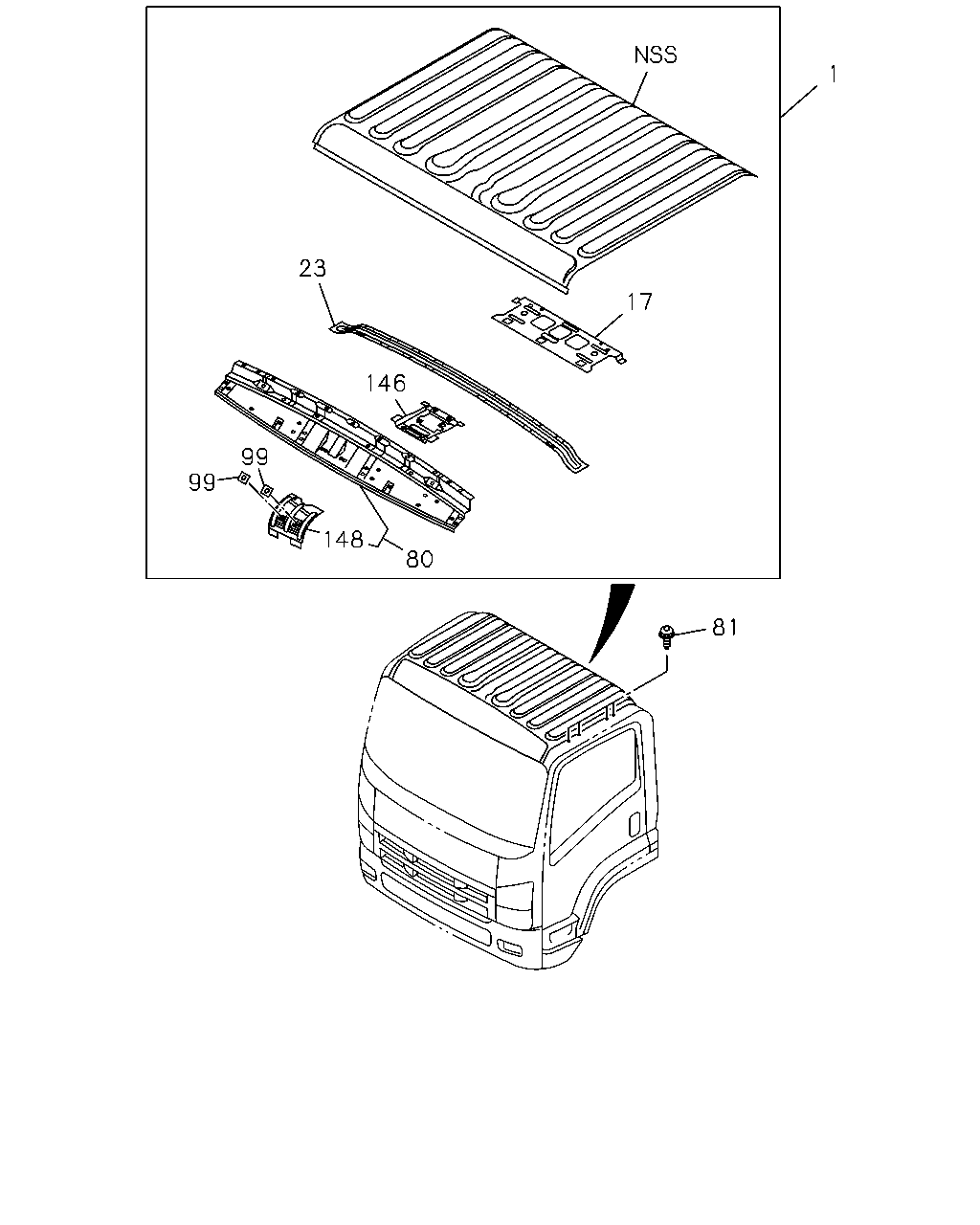

6-60 - ROOF PANEL
▶
6-60 — ROOF PANEL
(#128686) — 15 parça
81
17
1
23
146
80
148
99
99
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PANEL; ROOF
FLUORESCENT LAMP<6UC> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>, MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDERVIEW<TAF>
8-98031-835-5
01
1
1403-
1
PANEL; ROOF
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> FLUORESCENT LAMP<6UC> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>
8-97584-167-6
01
1
1403-
1
PANEL; ROOF
MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> FLUORESCENT LAMP<6UC>
8-97584-167-6
01
1
1403-
1
PANEL; ROOF
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>,FLUORESCENT LAMP<6UC>
8-98158-310-1
01
1
1403-
1
PANEL; ROOF
MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FLUORESCENT LAMP<6UC>
8-98158-310-1
01
1
1403-
17
REINFORCEMENT; ROOF PNL CENTER
FLUORESCENT LAMP<6UC>
8-97584-203-5
01
1
1403-
23
REINFORCEMENT; ROOF PANEL,FRT
8-98019-310-0
01
1
1403-
80
PANEL; HEADER,ROOF
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>
8-97584-191-4
01
1
1403-
80
PANEL; HEADER,ROOF
MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>
8-97584-191-4
01
1
1403-
81
BOLT; ROOF
M8X15.5 HEXALOBULAR
8-98141-874-0
08
1
1403-
99
SEAL; BODY,METAL
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> 30X30 ID=20 T=0.7
1-61281-380-2
02
1
1403-
99
SEAL; BODY,METAL
MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> 30X30 ID=20 T=0.7
1-61281-380-2
02
1
1403-
146
REINFORCEMENT; ROOM LAMP
8-98075-827-0
01
1
1403-
148
REINFORCEMENT; MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>
8-97411-015-1
01
1
1403-
148
REINFORCEMENT; MIRROR
MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>
8-97411-015-1
01
1
1403-
