◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11553 - FRR RHD EURO5 SPACECAB ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-32 - FRONT DOOR LOCK AND HANDLE ▶
6-32 — FRONT DOOR LOCK AND HANDLE (#128682) — 55 parça

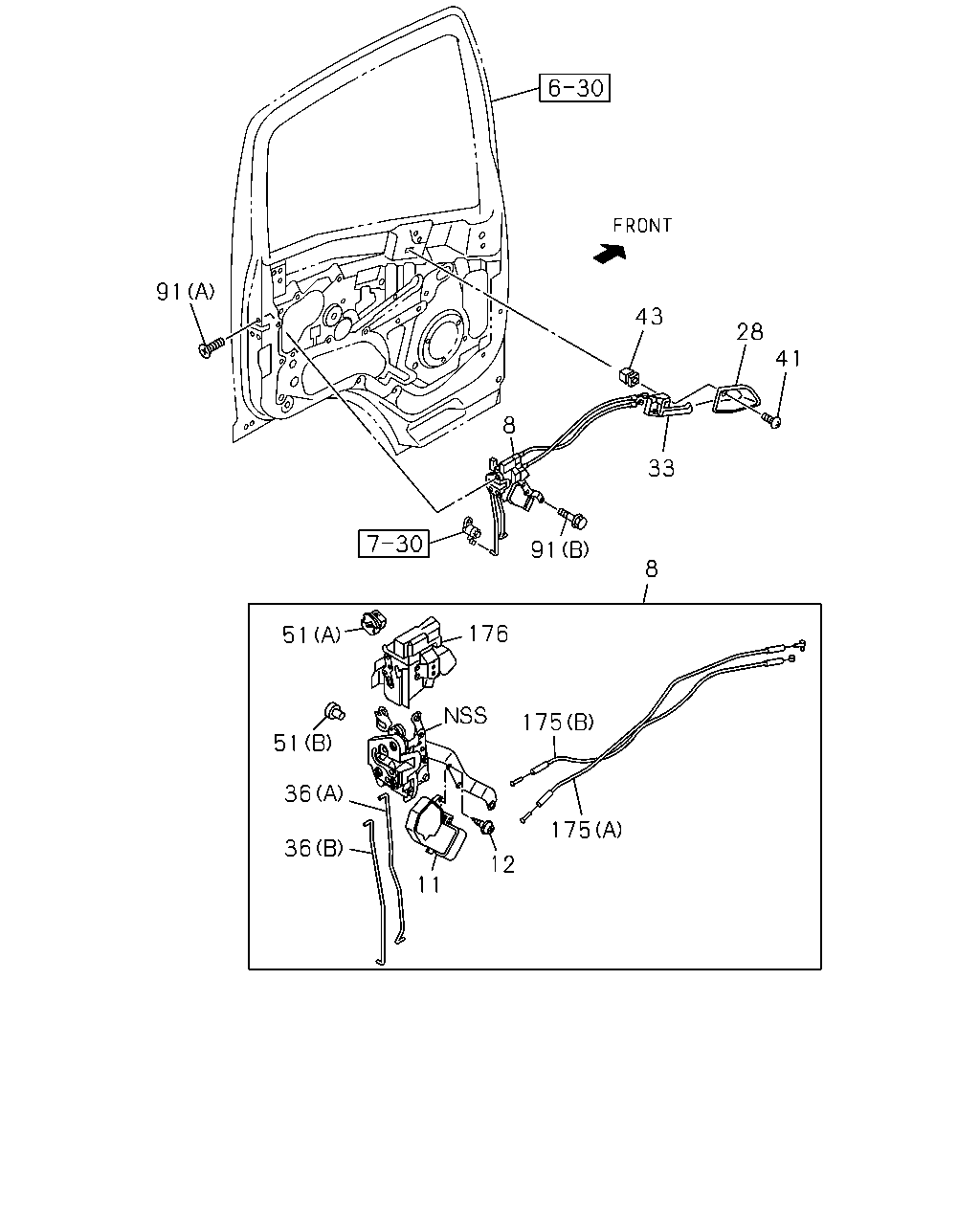

çizim 379702
91 43 41 28 33 8 91 8 176 51 51 36 36 175 175 12 11
BalonParca AdiParca NoAdetTipApplied Date
8 LOCK; DOOR,FRT DOOR
POWER WINDOW FRT DOOR<A32> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98029-055-2 01 1 1403-
8 LOCK; DOOR,FRT DOOR
REMOTE CONT DOOR LOCK<6NF> 		8-98029-055-2 01 1 1403-
8 LOCK; DOOR,FRT DOOR
POWER WINDOW FRT DOOR<A32> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98029-054-3 01 1 1403-
8 LOCK; DOOR,FRT DOOR
REMOTE CONT DOOR LOCK<6NF> 		8-98029-056-2 01 1 1403-
11 ACTUATOR; DOOR LK,FRT
POWER WINDOW FRT DOOR<A32> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98058-231-0 01 1 1403-
11 ACTUATOR; DOOR LK,FRT
REMOTE CONT DOOR LOCK<6NF> 		8-98058-231-0 01 1 1403-
11 ACTUATOR; DOOR LK,FRT
POWER WINDOW FRT DOOR<A32> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98058-234-0 01 1 1403-
11 ACTUATOR; DOOR LK,FRT
REMOTE CONT DOOR LOCK<6NF> 		8-98058-233-0 01 1 1403-
12 SCREW; DOOR LK 8-97310-549-0 02 1 1403-
12 SCREW; DOOR LK 8-97310-549-0 02 1 1403-
28 BEZEL; INSIDE LEVER,FRT DOOR
DARK GRAY 		8-97405-312-0 01 1 1403-
28 BEZEL; INSIDE LEVER,FRT DOOR
DARK GRAY 		8-97405-311-0 01 1 1403-
33 LEVER ASM; INSIDE,FRT DOOR
DARK GRAY 		8-97405-310-1 01 1 1403-
33 LEVER ASM; INSIDE,FRT DOOR
DARK GRAY 		8-97405-309-1 01 1 1403-
36 LINK; DOOR LOCK,OUTSIDE
POWER WINDOW FRT DOOR<A32> EXC. REMOTE CONT DOOR LOCK<6NF> (A) 		8-98058-532-0 01 1 1403-
36 LINK; DOOR LOCK,OUTSIDE
REMOTE CONT DOOR LOCK<6NF> (A) 		8-98058-532-0 01 1 1403-
36 LINK; DOOR LOCK,OUTSIDE
POWER WINDOW FRT DOOR<A32> EXC. REMOTE CONT DOOR LOCK<6NF> (B) 		8-98058-536-0 01 1 1403-
36 LINK; DOOR LOCK,OUTSIDE
REMOTE CONT DOOR LOCK<6NF> (B) 		8-98058-536-0 01 1 1403-
36 LINK; DOOR LOCK,OUTSIDE
REMOTE CONT DOOR LOCK<6NF> (A) 		8-98058-531-0 01 1 1403-
36 LINK; DOOR LOCK,OUTSIDE
POWER WINDOW FRT DOOR<A32> EXC. REMOTE CONT DOOR LOCK<6NF> (A) 		8-98058-531-0 01 1 1403-
36 LINK; DOOR LOCK,OUTSIDE
REMOTE CONT DOOR LOCK<6NF> (B) 		8-98058-535-0 01 1 1403-
36 LINK; DOOR LOCK,OUTSIDE
POWER WINDOW FRT DOOR<A32> EXC. REMOTE CONT DOOR LOCK<6NF> (B) 		8-98058-535-0 01 1 1403-
41 SCREW; INSIDE HANDLE
M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 02 1 1403-
43 GROMMET; SCREW,INSIDE LEVER,DOOR
D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 1403-
51 SNAP; FRT DOOR LOCK CONT ROD
POWER WINDOW FRT DOOR<A32> EXC. REMOTE CONT DOOR LOCK<6NF> (A) BLUE 		8-98058-227-0 01 1 1403-
51 SNAP; FRT DOOR LOCK CONT ROD
REMOTE CONT DOOR LOCK<6NF> (A) BLUE 		8-98058-227-0 01 1 1403-
51 SNAP; FRT DOOR LOCK CONT ROD
POWER WINDOW FRT DOOR<A32> EXC. REMOTE CONT DOOR LOCK<6NF> (B) RED 		8-98058-229-0 01 1 1403-
51 SNAP; FRT DOOR LOCK CONT ROD
REMOTE CONT DOOR LOCK<6NF> (B) RED 		8-98058-229-0 01 1 1403-
51 SNAP; FRT DOOR LOCK CONT ROD
REMOTE CONT DOOR LOCK<6NF> (A) NATURAL 		8-98058-226-0 01 1 1403-
51 SNAP; FRT DOOR LOCK CONT ROD
POWER WINDOW FRT DOOR<A32> EXC. REMOTE CONT DOOR LOCK<6NF> (A) NATURAL 		8-98058-226-0 01 1 1403-
51 SNAP; FRT DOOR LOCK CONT ROD
REMOTE CONT DOOR LOCK<6NF> (B) BLACK 		8-98058-228-0 01 1 1403-
51 SNAP; FRT DOOR LOCK CONT ROD
POWER WINDOW FRT DOOR<A32> EXC. REMOTE CONT DOOR LOCK<6NF> (B) BLACK 		8-98058-228-0 01 1 1403-
91 BOLT; DOOR LOCK
POWER WINDOW FRT DOOR<A32> EXC. REMOTE CONT DOOR LOCK<6NF> (B) M6X10 FLANGE 		0-28050-610-0 02 1 1403-
91 BOLT; DOOR LOCK
REMOTE CONT DOOR LOCK<6NF> (B) M6X10 FLANGE 		0-28050-610-0 02 1 1403-
91 BOLT; DOOR LOCK
POWER WINDOW FRT DOOR<A32> EXC. REMOTE CONT DOOR LOCK<6NF> (A) M6X14.5 		8-98004-342-0 06 1 1403-
91 BOLT; DOOR LOCK
REMOTE CONT DOOR LOCK<6NF> (A) M6X14.5 		8-98004-342-0 06 1 1403-
175 CABLE ASM; LOCK CONTROL
(B) 		8-98058-539-0 01 1 1403-
175 CABLE ASM; LOCK CONTROL
(B) 		8-98058-539-0 01 1 1403-
175 CABLE ASM; LOCK CONTROL
POWER WINDOW FRT DOOR<A32> EXC. REMOTE CONT DOOR LOCK<6NF> (A) 		8-98058-538-0 01 1 1403-
175 CABLE ASM; LOCK CONTROL
REMOTE CONT DOOR LOCK<6NF> (A) 		8-98058-538-0 01 1 1403-
175 CABLE ASM; LOCK CONTROL
REMOTE CONT DOOR LOCK<6NF> (A) 		8-98058-537-0 01 1 1403-
175 CABLE ASM; LOCK CONTROL
POWER WINDOW FRT DOOR<A32> EXC. REMOTE CONT DOOR LOCK<6NF> (A) 		8-98058-537-0 01 1 1403-
176 COVER; DOOR LOCK
POWER WINDOW FRT DOOR<A32> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98058-239-0 01 1 1403-
176 COVER; DOOR LOCK
REMOTE CONT DOOR LOCK<6NF> 		8-98058-239-0 01 1 1403-
176 COVER; DOOR LOCK
REMOTE CONT DOOR LOCK<6NF> 		8-98058-238-0 01 1 1403-
176 COVER; DOOR LOCK
POWER WINDOW FRT DOOR<A32> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98058-238-0 01 1 1403-

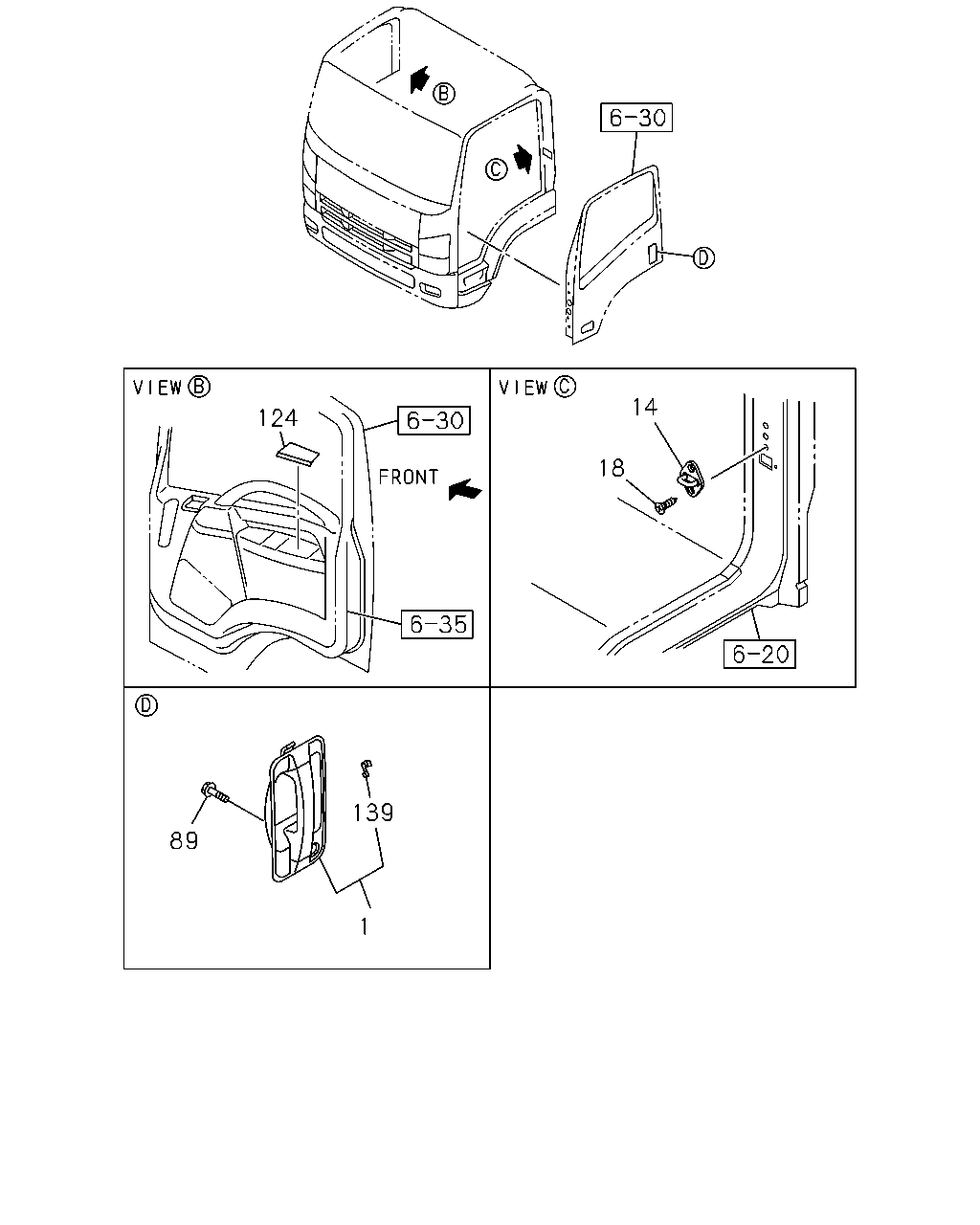

çizim 380454
14 18 124 89 139 1
BalonParca AdiParca NoAdetTipApplied Date
1 HANDLE; OUTSIDE,FRT DOOR 8-98037-100-2 01 1 1403-
1 HANDLE; OUTSIDE,FRT DOOR 8-98037-101-2 01 1 1403-
14 STRIKER; FRT DOOR 8-98029-173-2 02 1 1403-
18 SCREW; DOOR STRIKER
M8X20 CK-HEAD 		8-98004-343-2 04 1 1403-
89 BOLT; DOOR OUTSIDE HANDLE
M6X10 FLANGE 		0-28050-610-0 04 1 1403-
124 COVER; DOOR PULL
GRAY 		8-97422-056-1 01 1 1403-
124 COVER; DOOR PULL
GRAY 		8-97422-055-1 01 1 1403-
139 HOLDER; ROD,DOOR HANDLE
WHITE 		8-97333-303-0 01 1 1403-
139 HOLDER; ROD,DOOR HANDLE
BLACK 		8-98095-813-0 01 1 1403-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
