6-30 — FRONT DOOR AND HINGE (#128680) — 23 parça

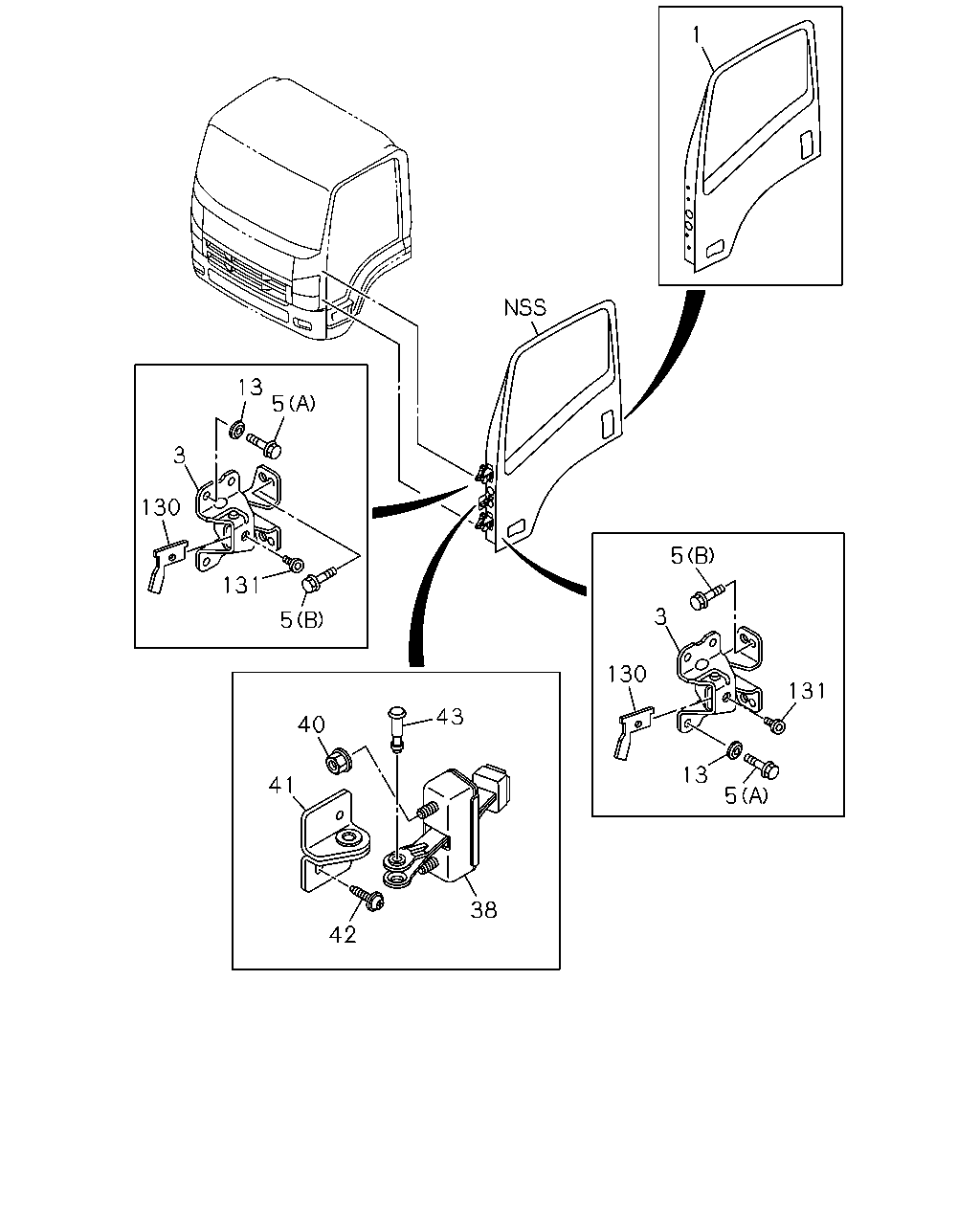

çizim 380036
1 5 131 3 130 13 5 5 13 3 130 131 5 43 38 42 41 40
BalonParca AdiParca NoAdetTipApplied Date
1 DOOR ASM; FRT,WO/TRIM
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98171-232-0 01 1 1403-1411
1 DOOR ASM; FRT,WO/TRIM
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98260-600-0 01 1 1412-
1 DOOR ASM; FRT,WO/TRIM
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98171-224-0 01 1 1403-1411
1 DOOR ASM; FRT,WO/TRIM
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98260-599-0 01 1 1412-
1 DOOR ASM; FRT,WO/TRIM
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98171-231-0 01 1 1403-1411
1 DOOR ASM; FRT,WO/TRIM
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98260-598-0 01 1 1412-
1 DOOR ASM; FRT,WO/TRIM
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98171-223-0 01 1 1403-1411
1 DOOR ASM; FRT,WO/TRIM
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98260-597-0 01 1 1412-
3 HINGE; DOOR FRT 8-98191-302-0 04 1 1403-
5 BOLT; HINGE
(B) M8X23 FLANGE 		8-98029-440-0 08 1 1403-
5 BOLT; HINGE
(A) M8X20 FLANGE 		8-98049-756-0 24 1 1403-
13 WASHER; HINGE
ID=8.1 W/SEAL 		8-97890-584-1 04 1 1403-
38 CHECKER ASM; DOOR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98208-189-1 02 1 1403-1508
38 CHECKER ASM; DOOR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98296-601-0 02 1 1509-
38 CHECKER ASM; DOOR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98031-730-6 02 1 1403-1508
38 CHECKER ASM; DOOR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98296-602-0 02 1 1509-
40 NUT; CHECKER
M8 W/DISHED WASHER 		8-97329-625-0 04 1 1403-1508
40 NUT; CHECKER
M8 W/DISHED WASHER 		8-98302-918-0 04 1 1509-
41 BRACKET; CHECKER 8-98029-290-3 02 1 1403-
42 BOLT; BRKT
M6X20 W/PL WASHER 		8-98032-159-2 04 1 1403-
43 PIN 8-98037-152-2 02 1 1403-
130 STOPPER; HINGE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98038-299-1 04 1 1403-
131 BOLT; DOOR STOPPER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10X11 		8-98039-593-1 04 1 1403-
