◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11553 - FRR RHD EURO5 SPACECAB ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#128677) — 439 parça

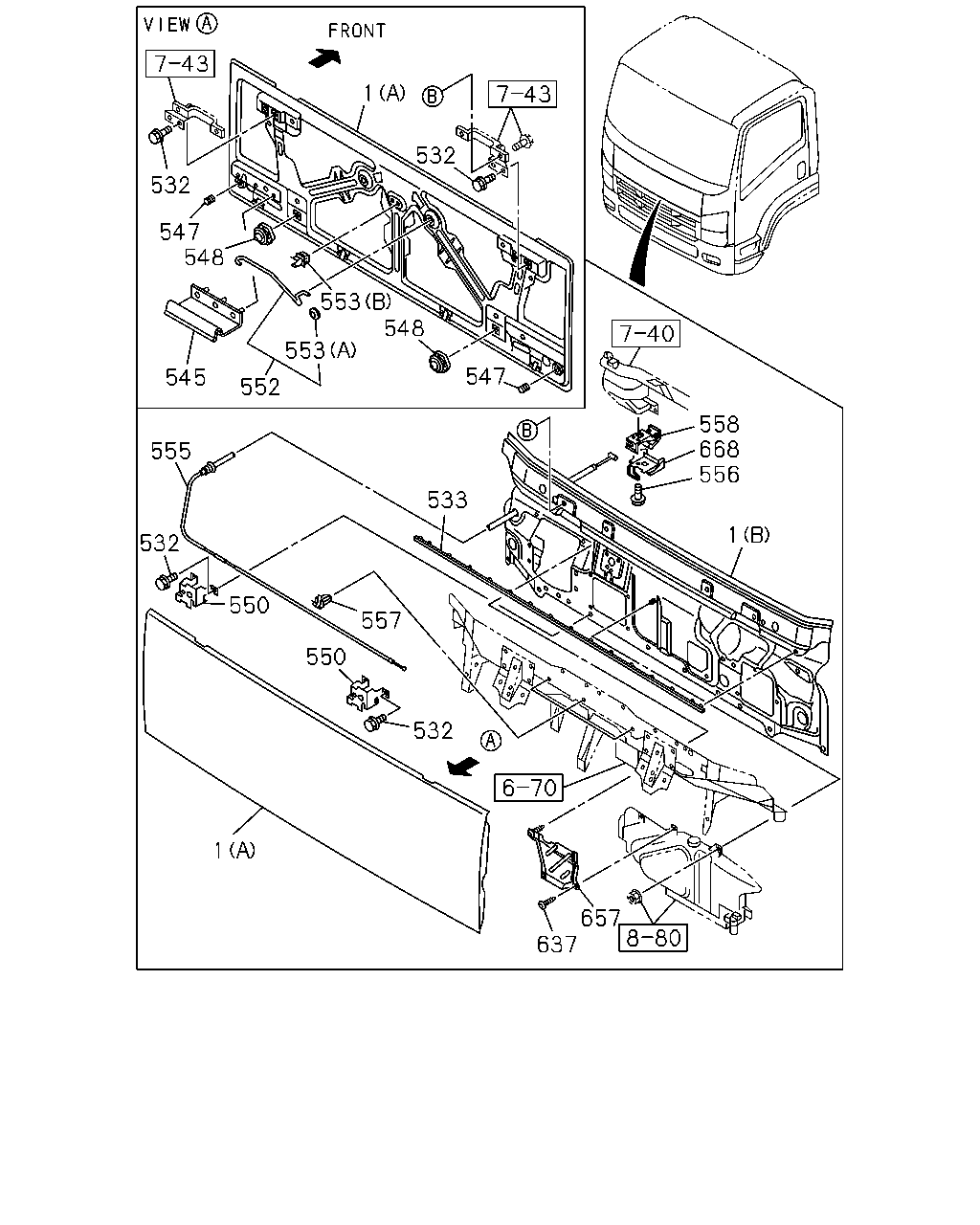

çizim 379857
1 532 532 547 548 553 553 548 547 552 545 555 532 550 550 1 532 557 533 657 637 1 556 668 558
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-958-9 01 1 1403-
1 PANEL ASM; FRT
(A) 		8-98030-230-3 01 1 1403-
532 BOLT; FRT PANEL
M8X20 FLANGE 		0-28650-820-0 08 1 1403-
533 SEAL; FRT PANEL 8-98096-288-0 01 1 1403-
545 SEAL; FRT LID 8-98123-264-0 01 1 1403-
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 02 1 1403-
548 STRIKER; FRT LID PANEL 8-98068-145-1 02 1 1403-
550 LOCK ASM; FRT LID 8-98036-569-2 02 1 1403-
552 STAY; FRT LID 8-98089-836-0 01 1 1403-
553 CLIP; STAY
(B) 		8-97031-428-0 01 1 1403-
553 CLIP; STAY
(A) 		8-98059-320-0 01 1 1403-
555 CABLE; FRT LID 8-98036-573-1 01 1 1403-
556 BOLT; CABLE
M6X16 FLANGE 		0-28650-616-0 01 1 1403-
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 03 1 1403-
558 LEVER; FRT LID 1-79338-007-1 01 1 1403-
637 CLIP; COVER
OD=16 L=11 		1-76378-155-0 02 1 1403-
657 COVER; WIPER IDLER 8-98060-908-0 01 1 1403-
668 COVER; LEVER,FRT LID 8-98076-339-1 01 1 1403-

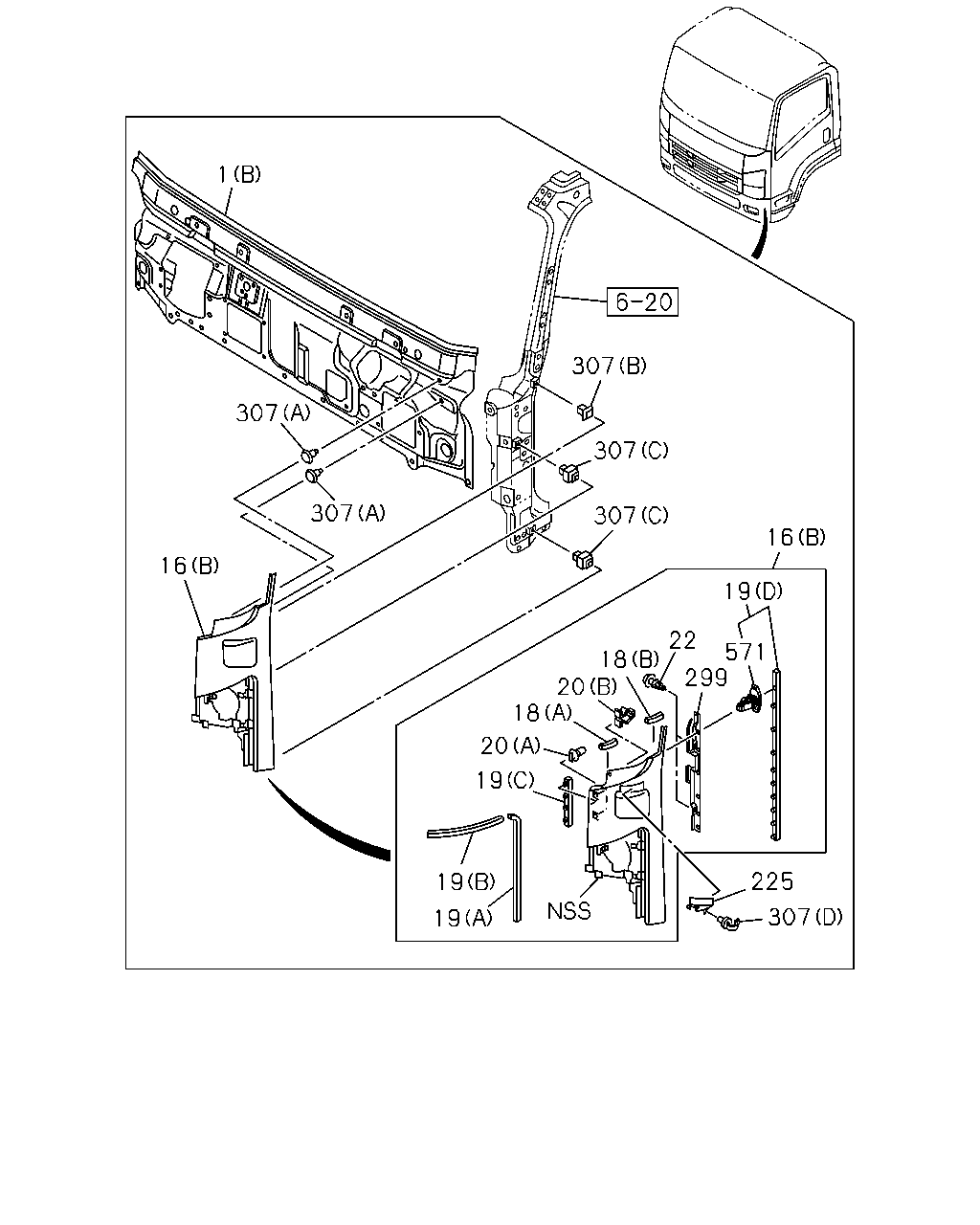

çizim 379893
1 307 307 307 16 19 571 299 22 18 20 18 20 19 19 19 225 307 16 307 307
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-958-9 01 1 1403-
1 PANEL ASM; FRT
(A) 		8-98030-230-3 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) GRAY 		8-97413-586-5 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) GRAY 		8-97417-654-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) GRAY 		8-97413-565-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) GRAY 		8-97413-576-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) GRAY 		8-97413-576-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) WHITE 		8-97407-511-5 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) WHITE 		8-97409-901-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) WHITE 		8-97407-510-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) WHITE 		8-97407-509-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) WHITE 		8-97407-509-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) RED 		8-97411-286-5 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) RED 		8-97411-298-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) RED 		8-97411-280-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) RED 		8-97411-292-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) RED 		8-97411-292-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) BLUE 		8-97413-589-5 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) BLUE 		8-97415-030-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) BLUE 		8-97413-568-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) BLUE 		8-97413-579-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) BLUE 		8-97413-579-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) RED 		8-97411-289-5 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) RED 		8-97411-301-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) RED 		8-97411-283-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) RED 		8-97411-295-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) RED 		8-97411-295-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) RED 		8-97413-588-5 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) RED 		8-97417-656-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) RED 		8-97413-567-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) RED 		8-97413-578-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) RED 		8-97413-578-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) YELLOW 		8-97411-290-5 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) YELLOW 		8-97411-302-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) YELLOW 		8-97411-284-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) YELLOW 		8-97411-296-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) YELLOW 		8-97411-296-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) GREEN 		8-97413-595-5 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) GREEN 		8-97417-660-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) GREEN 		8-97413-574-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) GREEN 		8-97413-585-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) GREEN 		8-97413-585-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) ORANGE 		8-97413-593-5 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) ORANGE 		8-97417-658-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) ORANGE 		8-97413-572-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) ORANGE 		8-97413-583-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) ORANGE 		8-97413-583-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) BLUE 		8-97413-592-5 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) BLUE 		8-97417-657-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) BLUE 		8-97413-571-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) BLUE 		8-97413-582-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) BLUE 		8-97413-582-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) WHITE 		8-97417-652-5 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) WHITE 		8-97417-659-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) WHITE 		8-97417-651-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) WHITE 		8-97417-653-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) WHITE 		8-97417-653-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) BLUE 		8-97413-587-5 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) BLUE 		8-97417-655-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) BLUE 		8-97413-566-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) BLUE 		8-97413-577-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) BLUE 		8-97413-577-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) BEIGE 		8-97411-287-5 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) BEIGE 		8-97411-299-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) BEIGE 		8-97411-281-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) BEIGE 		8-97411-293-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) BEIGE 		8-97411-293-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) BLUE 		8-97411-291-5 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) BLUE 		8-97411-303-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) BLUE 		8-97411-285-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) BLUE 		8-97411-297-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) BLUE 		8-97411-297-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) YELLOW 		8-97413-591-5 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) YELLOW 		8-97415-032-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) YELLOW 		8-97413-570-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) YELLOW 		8-97413-581-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) YELLOW 		8-97413-581-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) DARK GREEN 		8-97413-590-5 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) DARK GREEN 		8-97415-031-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) DARK GREEN 		8-97413-569-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) DARK GREEN 		8-97413-580-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) DARK GREEN 		8-97413-580-4 01 1 1403-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98038-608-0 01 1 1403-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98038-608-0 01 1 1403-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98043-511-1 01 1 1403-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98043-511-1 01 1 1403-
19 SEAL; FRT SIDE PANEL
(B) 		8-98035-268-0 01 1 1403-
19 SEAL; FRT SIDE PANEL
(B) 		8-98035-268-0 01 1 1403-
19 SEAL; FRT SIDE PANEL
(A) 		8-98062-215-0 01 1 1403-
19 SEAL; FRT SIDE PANEL
(A) 		8-98062-215-0 01 1 1403-
19 SEAL; FRT SIDE PANEL
(C) 		8-98036-581-0 01 1 1403-
19 SEAL; FRT SIDE PANEL
(D) 		8-98041-359-2 01 1 1403-
19 SEAL; FRT SIDE PANEL
(C) 		8-98036-580-0 01 1 1403-
19 SEAL; FRT SIDE PANEL
(D) 		8-98041-358-2 01 1 1403-
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-1 02 1 1403-
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-1 02 1 1403-
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-3 01 1 1403-
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-3 01 1 1403-
22 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1403-
22 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1403-
225 COVER; SIDE,FRT
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLORGOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98041-431-1 01 1 1403-
299 COVER; FRT PANEL SIDE 8-98034-814-1 01 1 1403-
299 COVER; FRT PANEL SIDE 8-98034-813-1 01 1 1403-
307 GROMMET; FRT PANEL
(B) 		8-97410-738-0 02 1 1403-
307 GROMMET; FRT PANEL
(C) 		8-98021-300-1 04 1 1403-
307 GROMMET; FRT PANEL
(A) OD=20 		8-98034-363-1 04 1 1403-
307 GROMMET; FRT PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLORGOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98028-743-0 01 1 1403-
571 CLIP; SEAL
NATURAL 		8-98027-457-0 10 1 1403-
571 CLIP; SEAL
NATURAL 		8-98027-457-0 10 1 1403-

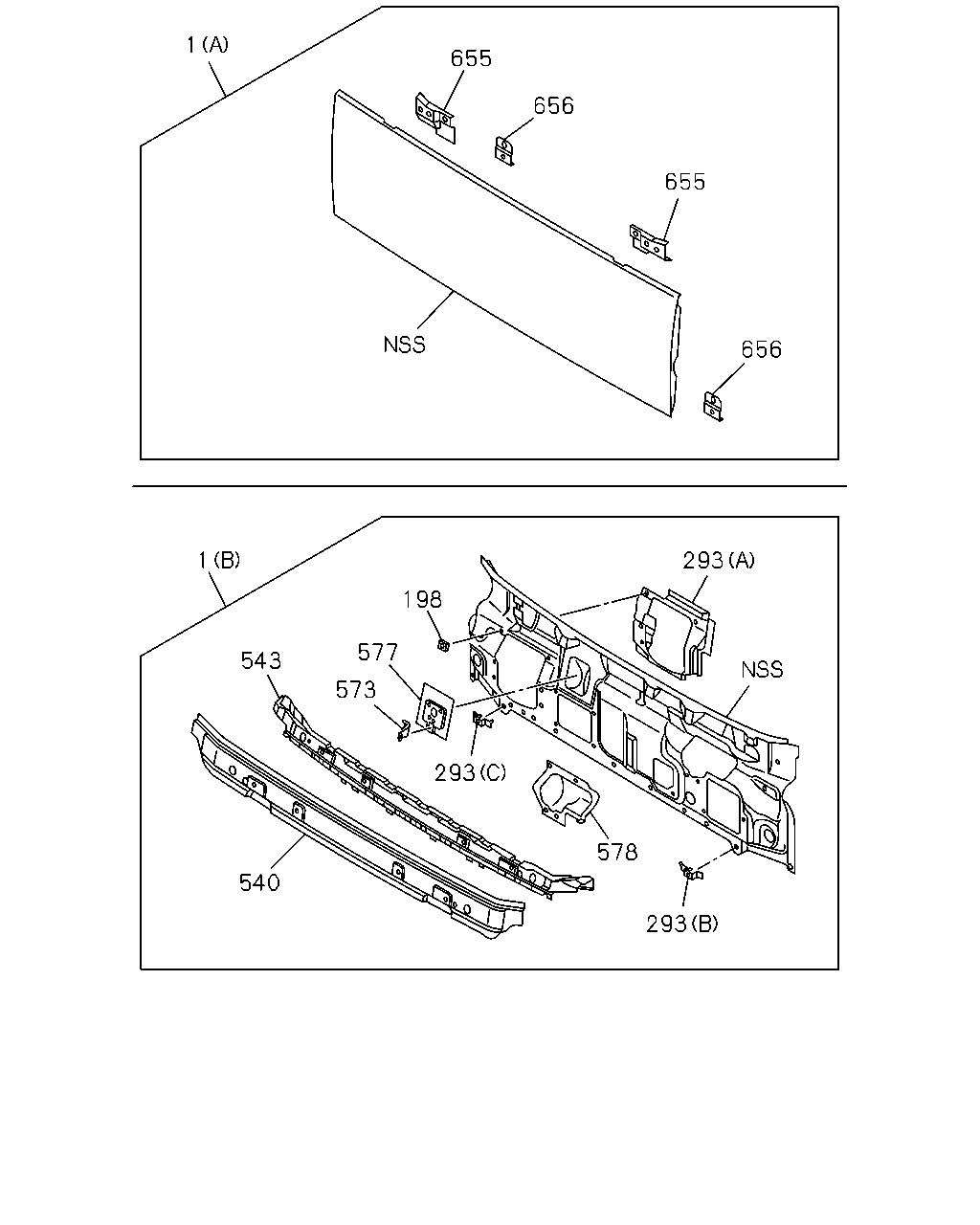

çizim 380034
1 655 656 655 656 293 198 1 543 577 573 293 578 293 540
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-958-9 01 1 1403-
1 PANEL ASM; FRT
(A) 		8-98030-230-3 01 1 1403-
198 NUT; PANEL
M6 		9-09114-086-0 02 1 1403-
293 BRACKET; PANEL
(A) 		8-97586-007-3 01 1 1403-
293 BRACKET; PANEL
(B) 		8-98008-124-1 01 1 1403-
293 BRACKET; PANEL
(C) 		8-98008-126-1 01 1 1403-
540 PANEL; FRONT,OUTER 8-97585-965-2 01 1 1403-
543 CLOSING; FRT MTG RAIL 8-97585-989-4 01 1 1403-
573 BRACKET; SUPPORT 8-98008-127-2 01 1 1403-
577 BRACKET; IDLER 8-97586-019-1 01 1 1403-
578 COVER; WIPER MOTOR 8-97586-018-3 01 1 1403-
655 PATCH; HINGE 8-98031-263-0 01 1 1403-
655 PATCH; HINGE 8-98031-264-0 01 1 1403-
656 PATCH; STRIKER 8-98031-265-0 02 1 1403-

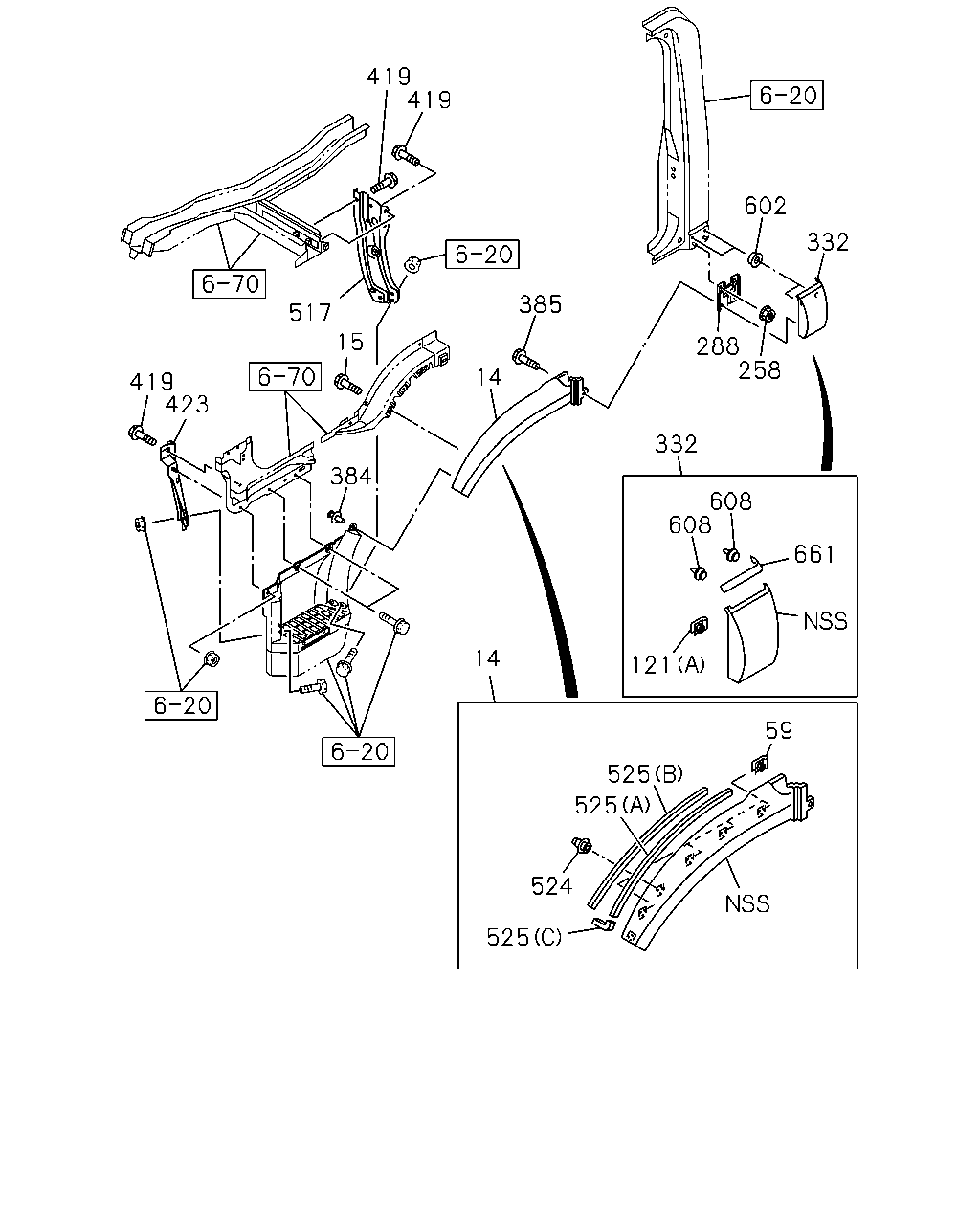

çizim 380129
602 332 288 258 332 608 608 661 121 385 14 419 419 517 15 419 423 384 14 59 525 525 524 525
BalonParca AdiParca NoAdetTipApplied Date
14 FENDER; FRT
BLACK 		8-98041-399-3 01 1 1403-
14 FENDER; FRT
BLACK 		8-98041-398-3 01 1 1403-
15 BOLT; FENDER
M6X20 W/PL WASHER 		8-98059-504-0 06 1 1403-
59 GROMMET; SCREW 8-94279-723-0 02 1 1403-
59 GROMMET; SCREW 8-94279-723-0 08 1 1403-
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1403-
121 GROMMET; FENDER
(A) 		8-94279-723-0 02 1 1403-
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 10 1 1403-
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 1403-
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 1403-
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 1403-
258 NUT; BRKT
M6 FLANGE 		0-91180-106-0 04 1 1403-
288 BRACKET; FENDER SKIRT 8-98041-162-1 02 1 1403-
332 FENDER; RR
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97413-706-0 01 1 1403-
332 FENDER; RR
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97413-716-0 01 1 1403-
332 FENDER; RR
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97413-320-0 01 1 1403-
332 FENDER; RR
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97413-313-0 01 1 1403-
332 FENDER; RR
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97413-347-0 01 1 1403-
332 FENDER; RR
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97413-341-0 01 1 1403-
332 FENDER; RR
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97413-709-0 01 1 1403-
332 FENDER; RR
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97413-719-0 01 1 1403-
332 FENDER; RR
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97413-350-0 01 1 1403-
332 FENDER; RR
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97413-344-0 01 1 1403-
332 FENDER; RR
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97413-708-0 01 1 1403-
332 FENDER; RR
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97413-718-0 01 1 1403-
332 FENDER; RR
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97413-349-0 01 1 1403-
332 FENDER; RR
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97413-343-0 01 1 1403-
332 FENDER; RR
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97413-715-0 01 1 1403-
332 FENDER; RR
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97413-725-0 01 1 1403-
332 FENDER; RR
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97413-713-0 01 1 1403-
332 FENDER; RR
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97413-723-0 01 1 1403-
332 FENDER; RR
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97413-712-0 01 1 1403-
332 FENDER; RR
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97413-722-0 01 1 1403-
332 FENDER; RR
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-741-0 01 1 1403-
332 FENDER; RR
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-740-0 01 1 1403-
332 FENDER; RR
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97413-707-0 01 1 1403-
332 FENDER; RR
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97413-717-0 01 1 1403-
332 FENDER; RR
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97413-348-0 01 1 1403-
332 FENDER; RR
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97413-342-0 01 1 1403-
332 FENDER; RR
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97413-351-0 01 1 1403-
332 FENDER; RR
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97413-345-0 01 1 1403-
332 FENDER; RR
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97413-711-0 01 1 1403-
332 FENDER; RR
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97413-721-0 01 1 1403-
332 FENDER; RR
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97413-710-0 01 1 1403-
332 FENDER; RR
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97413-720-0 01 1 1403-
332 FENDER; RR
EXC. CAB ALL PAINTING<TFD> 		8-98089-820-0 01 1 1403-
332 FENDER; RR
EXC. CAB ALL PAINTING<TFD> 		8-98089-819-0 01 1 1403-
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 02 1 1403-
385 SCREW; FENDER LWR
M6X20 W/PL WASHER 		8-98059-504-0 02 1 1403-
419 BOLT; STEP
M8X20 FLANGE 		0-28650-820-0 08 1 1403-
423 SUPPORT ASM; STEP 8-98037-336-1 01 1 1403-
423 SUPPORT ASM; STEP 8-98037-335-1 01 1 1403-
517 SUPPORT; STEP PANEL 8-98037-339-2 01 1 1403-
517 SUPPORT; STEP PANEL 8-98037-338-2 01 1 1403-
524 CLIP; FENDER COVER
OD=7.9 BLACK 		8-94279-974-1 02 1 1403-
525 SEAL; FENDER
(A) UPPER 		8-98061-760-0 02 1 1403-
525 SEAL; FENDER
(B) LOWER 		8-98061-761-0 02 1 1403-
525 SEAL; FENDER
(C) 		8-98061-762-0 02 1 1403-
602 RETAINER; COVER
ID=5.4 OD=6.8 		8-98241-984-0 04 1 1403-
608 CLIP
D5.4X8 		1-09983-154-0 04 1 1403-
661 FINISHER; FENDER RR 8-98072-722-0 01 1 1403-
661 FINISHER; FENDER RR 8-98041-171-1 01 1 1403-

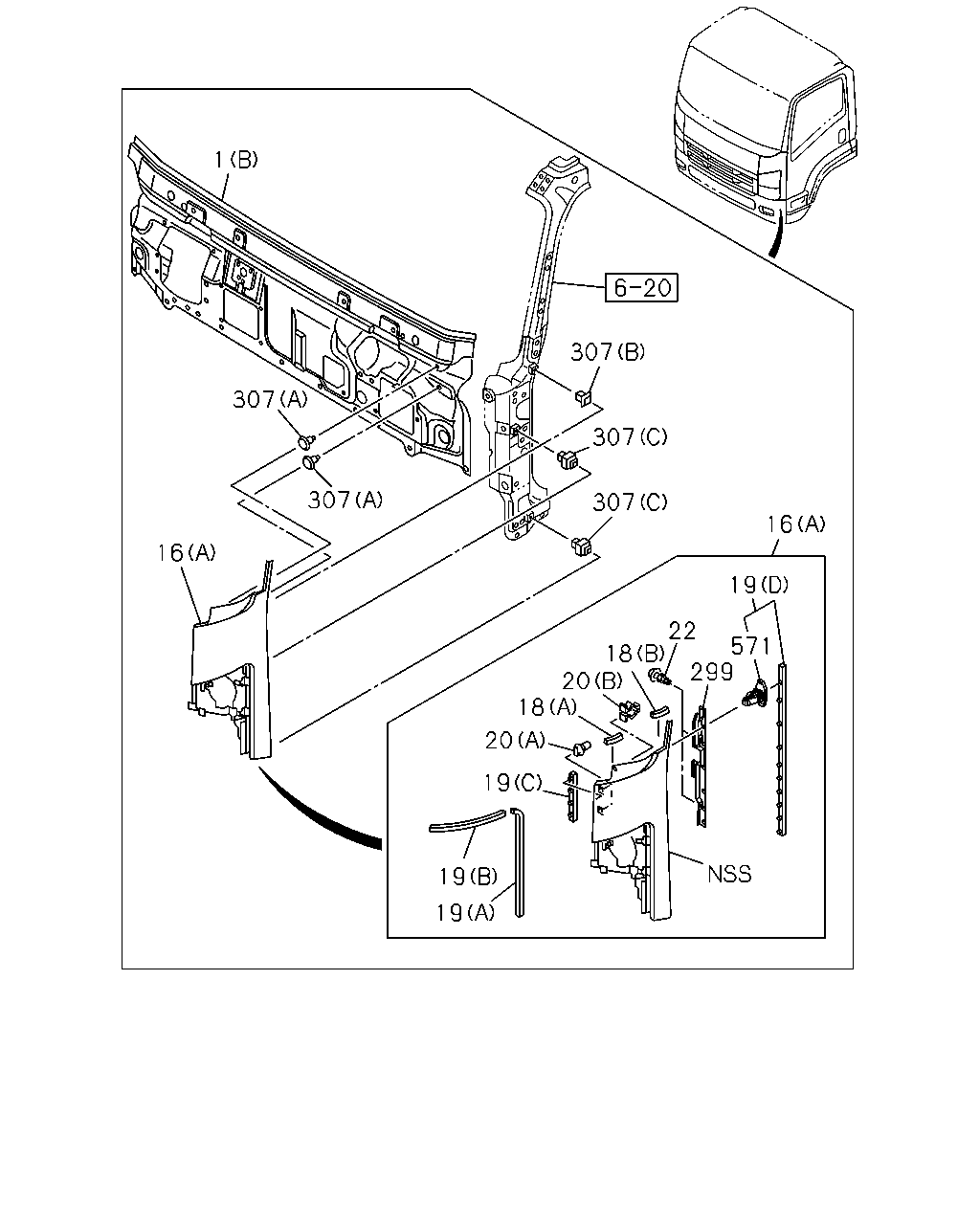

çizim 380213
1 307 307 16 307 307 307 16 19 571 299 22 18 20 18 20 19 19 19
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-958-9 01 1 1403-
1 PANEL ASM; FRT
(A) 		8-98030-230-3 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) GRAY 		8-97413-586-5 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) GRAY 		8-97417-654-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) GRAY 		8-97413-565-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) GRAY 		8-97413-576-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) GRAY 		8-97413-576-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) WHITE 		8-97407-511-5 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) WHITE 		8-97409-901-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) WHITE 		8-97407-510-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) WHITE 		8-97407-509-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) WHITE 		8-97407-509-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) RED 		8-97411-286-5 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) RED 		8-97411-298-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) RED 		8-97411-280-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) RED 		8-97411-292-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) RED 		8-97411-292-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) BLUE 		8-97413-589-5 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) BLUE 		8-97415-030-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) BLUE 		8-97413-568-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) BLUE 		8-97413-579-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) BLUE 		8-97413-579-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) RED 		8-97411-289-5 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) RED 		8-97411-301-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) RED 		8-97411-283-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) RED 		8-97411-295-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) RED 		8-97411-295-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) RED 		8-97413-588-5 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) RED 		8-97417-656-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) RED 		8-97413-567-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) RED 		8-97413-578-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) RED 		8-97413-578-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) YELLOW 		8-97411-290-5 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) YELLOW 		8-97411-302-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) YELLOW 		8-97411-284-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) YELLOW 		8-97411-296-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) YELLOW 		8-97411-296-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) GREEN 		8-97413-595-5 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) GREEN 		8-97417-660-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) GREEN 		8-97413-574-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) GREEN 		8-97413-585-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) GREEN 		8-97413-585-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) ORANGE 		8-97413-593-5 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) ORANGE 		8-97417-658-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) ORANGE 		8-97413-572-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) ORANGE 		8-97413-583-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) ORANGE 		8-97413-583-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) BLUE 		8-97413-592-5 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) BLUE 		8-97417-657-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) BLUE 		8-97413-571-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) BLUE 		8-97413-582-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) BLUE 		8-97413-582-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) WHITE 		8-97417-652-5 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) WHITE 		8-97417-659-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) WHITE 		8-97417-651-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) WHITE 		8-97417-653-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) WHITE 		8-97417-653-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) BLUE 		8-97413-587-5 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) BLUE 		8-97417-655-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) BLUE 		8-97413-566-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) BLUE 		8-97413-577-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) BLUE 		8-97413-577-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) BEIGE 		8-97411-287-5 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) BEIGE 		8-97411-299-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) BEIGE 		8-97411-281-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) BEIGE 		8-97411-293-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) BEIGE 		8-97411-293-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) BLUE 		8-97411-291-5 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) BLUE 		8-97411-303-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) BLUE 		8-97411-285-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) BLUE 		8-97411-297-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) BLUE 		8-97411-297-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) YELLOW 		8-97413-591-5 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) YELLOW 		8-97415-032-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) YELLOW 		8-97413-570-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) YELLOW 		8-97413-581-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) YELLOW 		8-97413-581-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) DARK GREEN 		8-97413-590-5 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) DARK GREEN 		8-97415-031-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) DARK GREEN 		8-97413-569-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) DARK GREEN 		8-97413-580-4 01 1 1403-
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) DARK GREEN 		8-97413-580-4 01 1 1403-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98038-608-0 01 1 1403-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98038-608-0 01 1 1403-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98043-511-1 01 1 1403-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98043-511-1 01 1 1403-
19 SEAL; FRT SIDE PANEL
(B) 		8-98035-268-0 01 1 1403-
19 SEAL; FRT SIDE PANEL
(B) 		8-98035-268-0 01 1 1403-
19 SEAL; FRT SIDE PANEL
(A) 		8-98062-215-0 01 1 1403-
19 SEAL; FRT SIDE PANEL
(A) 		8-98062-215-0 01 1 1403-
19 SEAL; FRT SIDE PANEL
(C) 		8-98036-581-0 01 1 1403-
19 SEAL; FRT SIDE PANEL
(D) 		8-98041-359-2 01 1 1403-
19 SEAL; FRT SIDE PANEL
(C) 		8-98036-580-0 01 1 1403-
19 SEAL; FRT SIDE PANEL
(D) 		8-98041-358-2 01 1 1403-
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-1 02 1 1403-
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-1 02 1 1403-
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-3 01 1 1403-
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-3 01 1 1403-
22 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1403-
22 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1403-
299 COVER; FRT PANEL SIDE 8-98034-814-1 01 1 1403-
299 COVER; FRT PANEL SIDE 8-98034-813-1 01 1 1403-
307 GROMMET; FRT PANEL
(B) 		8-97410-738-0 02 1 1403-
307 GROMMET; FRT PANEL
(C) 		8-98021-300-1 04 1 1403-
307 GROMMET; FRT PANEL
(A) OD=20 		8-98034-363-1 04 1 1403-
307 GROMMET; FRT PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLORGOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98028-743-0 01 1 1403-
571 CLIP; SEAL
NATURAL 		8-98027-457-0 10 1 1403-
571 CLIP; SEAL
NATURAL 		8-98027-457-0 10 1 1403-

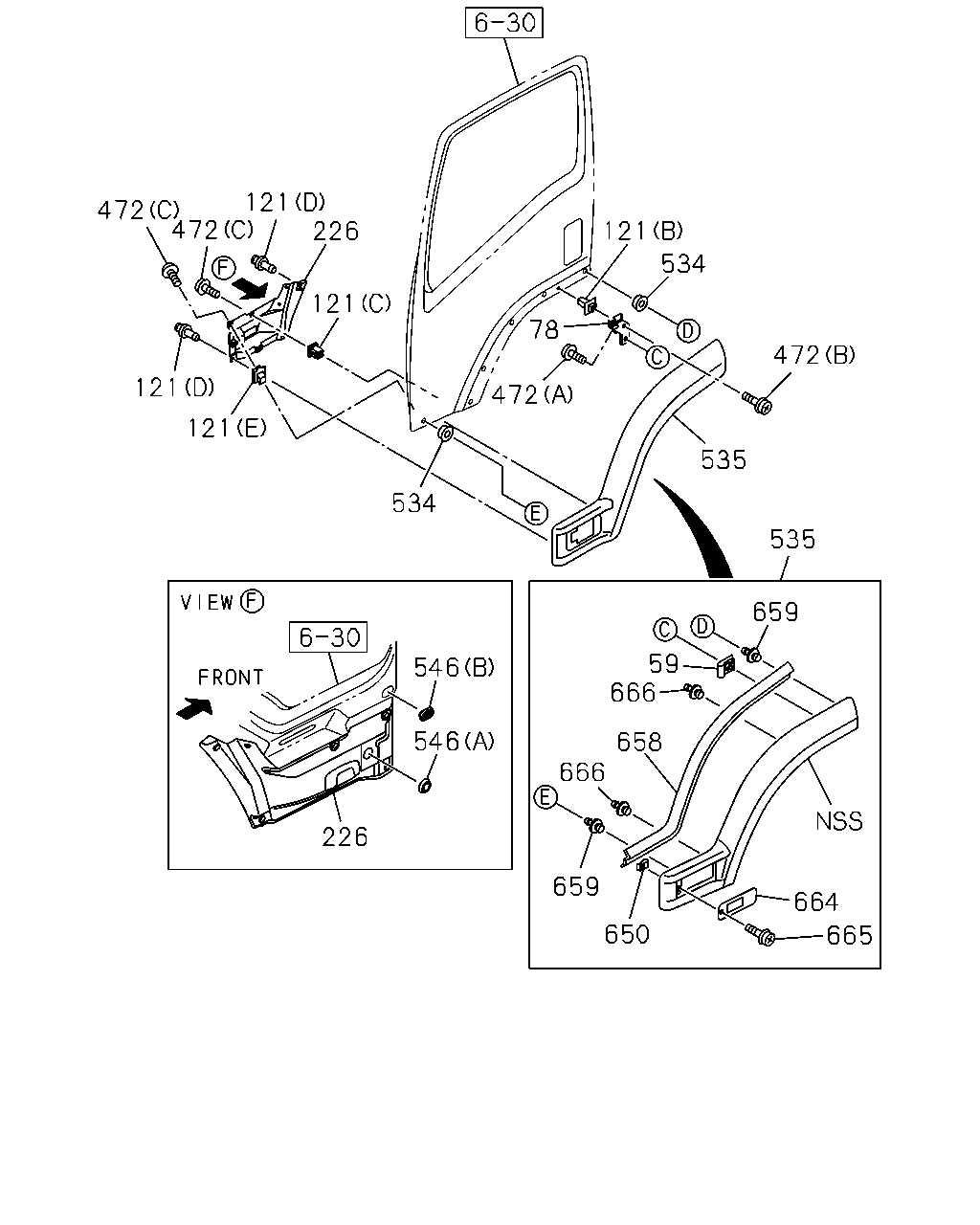

çizim 380215
472 535 534 121 78 472 121 226 121 472 472 121 121 534 535 659 59 666 658 666 659 650 664 665 546 546 226
BalonParca AdiParca NoAdetTipApplied Date
59 GROMMET; SCREW 8-94279-723-0 02 1 1403-
59 GROMMET; SCREW 8-94279-723-0 08 1 1403-
78 BRACKET; FENDER 8-98041-166-1 01 1 1403-
78 BRACKET; FENDER 8-98041-165-1 01 1 1403-
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1403-
121 GROMMET; FENDER
(A) 		8-94279-723-0 02 1 1403-
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 10 1 1403-
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 1403-
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 1403-
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 1403-
226 PROTECTOR; FRT
HONG KONG EQUIPMENT(B14) 		8-98080-913-1 01 1 1403-
226 PROTECTOR; FRT
HONG KONG EQUIPMENT(B14) 		8-98080-912-1 01 1 1403-
226 PROTECTOR; FRT
SINGAPORE EQUIPMENT(2G0) 		8-98037-713-2 01 1 1403-
226 PROTECTOR; FRT
SINGAPORE EQUIPMENT(2G0) 		8-98037-712-2 01 1 1403-
472 SCREW; FENDER TO CAB
(A) M6X18 TAPPING 		8-98059-505-0 02 1 1403-
472 SCREW; FENDER TO CAB
(C) M5X16 		8-98090-737-0 08 1 1403-
472 SCREW; FENDER TO CAB
(B) M5X12 		8-98093-669-0 04 1 1403-
534 FASTENER
ID=5.4 OD=6.8 		8-98241-984-0 12 1 1403-
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) HONG KONG EQUIPMENT(B14) CAB ALL PAINTING<TFD> GRAY 		8-97417-708-3 01 1 1403-
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) HONG KONG EQUIPMENT(B14) CAB ALL PAINTING<TFD> GRAY 		8-97417-698-3 01 1 1403-
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> GRAY 		8-97415-340-1 01 1 1403-
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> GRAY 		8-97415-320-1 01 1 1403-
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) HONG KONG EQUIPMENT(B14) CAB ALL PAINTING<TFD> WHITE 		8-97412-869-3 01 1 1403-
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) HONG KONG EQUIPMENT(B14) CAB ALL PAINTING<TFD> WHITE 		8-97412-862-3 01 1 1403-
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> WHITE 		8-97415-345-1 01 1 1403-
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> WHITE 		8-97415-325-1 01 1 1403-
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) HONG KONG EQUIPMENT(B14) CAB ALL PAINTING<TFD> RED 		8-97412-870-3 01 1 1403-
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) HONG KONG EQUIPMENT(B14) CAB ALL PAINTING<TFD> RED 		8-97412-863-3 01 1 1403-
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> RED 		8-97415-342-1 01 1 1403-
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> RED 		8-97415-322-1 01 1 1403-
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) HONG KONG EQUIPMENT(B14) CAB ALL PAINTING<TFD> BLUE 		8-97417-711-3 01 1 1403-
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) HONG KONG EQUIPMENT(B14) CAB ALL PAINTING<TFD> BLUE 		8-97417-701-3 01 1 1403-
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> BLUE 		8-97415-334-1 01 1 1403-
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> BLUE 		8-97415-314-1 01 1 1403-
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) HONG KONG EQUIPMENT(B14) CAB ALL PAINTING<TFD> RED 		8-97412-872-3 01 1 1403-
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) HONG KONG EQUIPMENT(B14) CAB ALL PAINTING<TFD> RED 		8-97412-865-3 01 1 1403-
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> RED 		8-97415-343-1 01 1 1403-
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> RED 		8-97415-323-1 01 1 1403-
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) HONG KONG EQUIPMENT(B14) CAB ALL PAINTING<TFD> RED 		8-97417-710-3 01 1 1403-
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) HONG KONG EQUIPMENT(B14) CAB ALL PAINTING<TFD> RED 		8-97417-700-3 01 1 1403-
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> RED 		8-97415-341-1 01 1 1403-
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> RED 		8-97415-321-1 01 1 1403-
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) HONG KONG EQUIPMENT(B14) CAB ALL PAINTING<TFD> YELLOW 		8-97412-873-3 01 1 1403-
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) HONG KONG EQUIPMENT(B14) CAB ALL PAINTING<TFD> YELLOW 		8-97412-866-3 01 1 1403-
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> YELLOW 		8-97415-348-1 01 1 1403-
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> YELLOW 		8-97415-328-1 01 1 1403-
535 FENDER; BLISTER
BODY COLOR GREEN(989) HONG KONG EQUIPMENT(B14) CAB ALL PAINTING<TFD> GREEN 		8-97417-717-3 01 1 1403-
535 FENDER; BLISTER
BODY COLOR GREEN(989) HONG KONG EQUIPMENT(B14) CAB ALL PAINTING<TFD> GREEN 		8-97417-707-3 01 1 1403-
535 FENDER; BLISTER
BODY COLOR GREEN(989) SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> GREEN 		8-97415-337-1 01 1 1403-
535 FENDER; BLISTER
BODY COLOR GREEN(989) SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> GREEN 		8-97415-317-1 01 1 1403-
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) HONG KONG EQUIPMENT(B14) CAB ALL PAINTING<TFD> ORANGE 		8-97417-715-3 01 1 1403-
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) HONG KONG EQUIPMENT(B14) CAB ALL PAINTING<TFD> ORANGE 		8-97417-705-3 01 1 1403-
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> ORANGE 		8-97415-349-1 01 1 1403-
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> ORANGE 		8-97415-329-1 01 1 1403-
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) HONG KONG EQUIPMENT(B14) CAB ALL PAINTING<TFD> BLUE 		8-97417-714-3 01 1 1403-
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) HONG KONG EQUIPMENT(B14) CAB ALL PAINTING<TFD> BLUE 		8-97417-704-3 01 1 1403-
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> BLUE 		8-97415-352-1 01 1 1403-
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> BLUE 		8-97415-332-1 01 1 1403-
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) HONG KONG EQUIPMENT(B14) CAB ALL PAINTING<TFD> WHITE 		8-97417-716-3 01 1 1403-
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) HONG KONG EQUIPMENT(B14) CAB ALL PAINTING<TFD> WHITE 		8-97417-706-3 01 1 1403-
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> WHITE 		8-97417-743-1 01 1 1403-
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> WHITE 		8-97417-742-1 01 1 1403-
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) HONG KONG EQUIPMENT(B14) CAB ALL PAINTING<TFD> BLUE 		8-97417-709-3 01 1 1403-
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) HONG KONG EQUIPMENT(B14) CAB ALL PAINTING<TFD> BLUE 		8-97417-699-3 01 1 1403-
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> BLUE 		8-97415-333-1 01 1 1403-
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> BLUE 		8-97415-313-1 01 1 1403-
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) HONG KONG EQUIPMENT(B14) CAB ALL PAINTING<TFD> BEIGE 		8-97412-871-3 01 1 1403-
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) HONG KONG EQUIPMENT(B14) CAB ALL PAINTING<TFD> BEIGE 		8-97412-864-3 01 1 1403-
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> BEIGE 		8-97415-351-1 01 1 1403-
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> BEIGE 		8-97415-331-1 01 1 1403-
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) HONG KONG EQUIPMENT(B14) CAB ALL PAINTING<TFD> BLUE 		8-97412-874-3 01 1 1403-
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) HONG KONG EQUIPMENT(B14) CAB ALL PAINTING<TFD> BLUE 		8-97412-867-3 01 1 1403-
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> BLUE 		8-97415-335-1 01 1 1403-
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> BLUE 		8-97415-315-1 01 1 1403-
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) HONG KONG EQUIPMENT(B14) CAB ALL PAINTING<TFD> YELLOW 		8-97417-713-3 01 1 1403-
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) HONG KONG EQUIPMENT(B14) CAB ALL PAINTING<TFD> YELLOW 		8-97417-703-3 01 1 1403-
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> YELLOW 		8-97415-350-1 01 1 1403-
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> YELLOW 		8-97415-330-1 01 1 1403-
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) HONG KONG EQUIPMENT(B14) CAB ALL PAINTING<TFD> DARK GREEN 		8-97417-712-3 01 1 1403-
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) HONG KONG EQUIPMENT(B14) CAB ALL PAINTING<TFD> DARK GREEN 		8-97417-702-3 01 1 1403-
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> DARK GREEN 		8-97415-339-1 01 1 1403-
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> DARK GREEN 		8-97415-319-1 01 1 1403-
535 FENDER; BLISTER
HONG KONG EQUIPMENT(B14) EXC. CAB ALL PAINTING<TFD> 		8-98080-874-2 01 1 1403-
535 FENDER; BLISTER
HONG KONG EQUIPMENT(B14) EXC. CAB ALL PAINTING<TFD> 		8-98080-873-2 01 1 1403-
535 FENDER; BLISTER
SINGAPORE EQUIPMENT(2G0) EXC. CAB ALL PAINTING<TFD> BLACK 		8-98106-499-0 01 1 1403-
535 FENDER; BLISTER
SINGAPORE EQUIPMENT(2G0) EXC. CAB ALL PAINTING<TFD> BLACK 		8-98106-498-0 01 1 1403-
546 PLUG; DUMMY HOLE
(A) OD=38 		8-94159-507-0 02 1 1403-
546 PLUG; DUMMY HOLE
(B) 		8-94430-184-1 02 1 1403-
650 NUT; SPIRE 8-94279-501-0 02 1 1403-
658 FINISHER; BLISTER FENDER 8-98041-169-3 01 1 1403-
658 FINISHER; BLISTER FENDER 8-98041-168-3 01 1 1403-
659 CLIP; FENDER
D5.4X8 		1-09983-154-0 08 1 1403-
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> GRAY 		8-97421-549-0 01 1 1403-
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> GRAY 		8-97421-521-0 01 1 1403-
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> WHITE 		8-97421-497-0 01 1 1403-
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> WHITE 		8-97421-485-0 01 1 1403-
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> RED 		8-97421-499-0 01 1 1403-
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> RED 		8-97421-487-0 01 1 1403-
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> BLUE 		8-97421-539-0 01 1 1403-
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> BLUE 		8-97421-511-0 01 1 1403-
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> RED 		8-97421-503-0 01 1 1403-
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> RED 		8-97421-491-0 01 1 1403-
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> RED 		8-97421-551-0 01 1 1403-
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> RED 		8-97421-523-0 01 1 1403-
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> YELLOW 		8-97421-505-0 01 1 1403-
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> YELLOW 		8-97421-493-0 01 1 1403-
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> GREEN 		8-97421-543-0 01 1 1403-
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> GREEN 		8-97421-515-0 01 1 1403-
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> ORANGE 		8-97421-559-0 01 1 1403-
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> ORANGE 		8-97421-531-0 01 1 1403-
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> BLUE 		8-97421-563-0 01 1 1403-
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> BLUE 		8-97421-535-0 01 1 1403-
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> WHITE 		8-97421-607-0 01 1 1403-
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> WHITE 		8-97421-605-0 01 1 1403-
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> BLUE 		8-97421-537-0 01 1 1403-
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> BLUE 		8-97421-509-0 01 1 1403-
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> BEIGE 		8-97421-501-0 01 1 1403-
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> BEIGE 		8-97421-489-0 01 1 1403-
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> BLUE 		8-97421-507-0 01 1 1403-
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> BLUE 		8-97421-495-0 01 1 1403-
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> YELLOW 		8-97421-596-0 01 1 1403-
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> YELLOW 		8-97421-533-0 01 1 1403-
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> DARK GREEN 		8-97421-547-0 01 1 1403-
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) CAB ALL PAINTING<TFD> DARK GREEN 		8-97421-519-0 01 1 1403-
664 BASE; DOOR,SIDE TURN
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. CAB ALL PAINTING<TFD> 		8-98053-146-1 01 1 1403-
664 BASE; DOOR,SIDE TURN
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. CAB ALL PAINTING<TFD> 		8-98053-145-1 01 1 1403-
665 SCREW; FENDER
M6X20 W/PL WASHER 		0-36210-620-0 02 1 1403-
666 CLIP; BLISTER FENDER 8-98071-178-0 04 1 1403-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
