0-25 — INLET MANIFOLD (#128665) — 24 parça

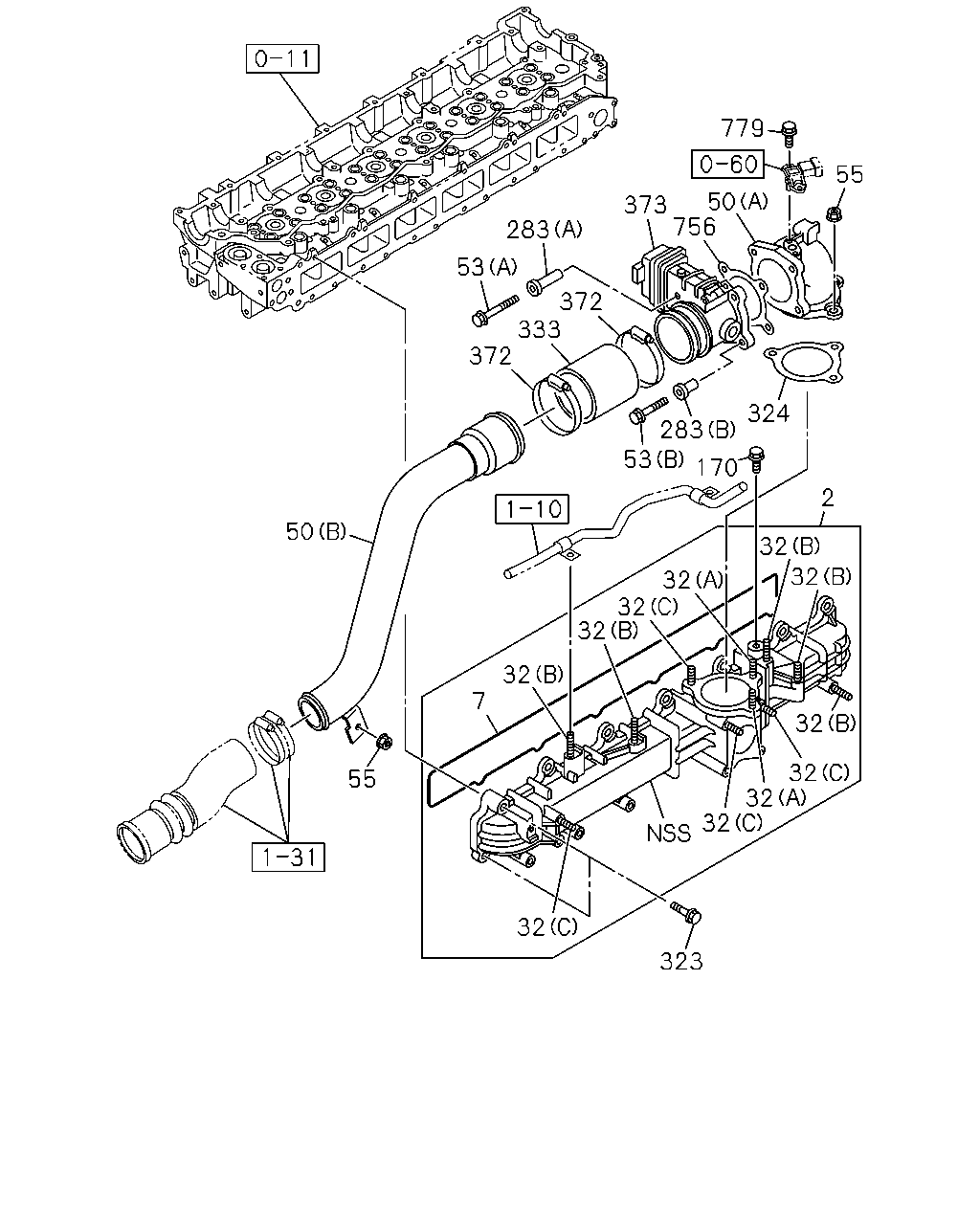

323 32 32 32 32 32 32 32 32 32 32 32 55 50 53 170 324 283 372 333 372 53 283 373 756 50 55 779 7 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	COVER; INL	8-98239-918-0	01	1	1310-
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-775-0	01	1	1310-
32	STUD; INL PIPE (B) M6X30 L=38	0-41010-630-0	05	1	1310-
32	STUD; INL PIPE (C) M8X28 L=40	0-41010-828-0	05	1	1310-
32	STUD; INL PIPE (A) M10X30 L=45	0-44011-030-0	01	1	1310-
50	PIPE; INL (B)	8-97607-412-2	01	1	1310-
50	PIPE; INL (A)	8-98239-524-0	01	1	1310-
53	BOLT; INL PIPE (B) M8X30 FLANGE	0-28050-830-0	02	1	1310-
53	BOLT; INL PIPE (A) M8X70 FLANGE	0-28050-870-0	02	1	1310-
55	NUT; INL PIPE M8 FLANGE	0-91180-108-0	04	1	1310-
170	BOLT; BRKT M8X35 FLANGE	0-28050-835-0	01	1	1310-
283	RUBBER (B) L=18	8-97219-650-0	02	1	1310-
283	RUBBER (A) L=58	8-97387-995-1	02	1	1310-
323	BOLT; DUCT M8X50 FLANGE	0-28050-850-0	06	1	1310-
323	BOLT; DUCT M8X25 FLANGE	0-28650-825-0	06	1	1310-
323	BOLT; DUCT M8X48 FLANGE	8-97229-317-1	02	1	1310-
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=78	8-97601-777-0	01	1	1310-
333	HOSE; RUBBER,INL PIPE ID=80 OD=90 L=80	8-97611-306-0	01	1	1310-
372	CLIP; HOSE ID=77-99	1-09707-141-0	02	1	1310-
373	THROTTLE ASM; INT	8-98061-061-3	01	1	1310-
756	GASKET; INTAKE,THROTTLE ID=88	8-97387-009-0	01	1	1310-
779	BOLT; SENSOR M4X10 W/PL WASHER	8-97316-615-0	02	1	1310-

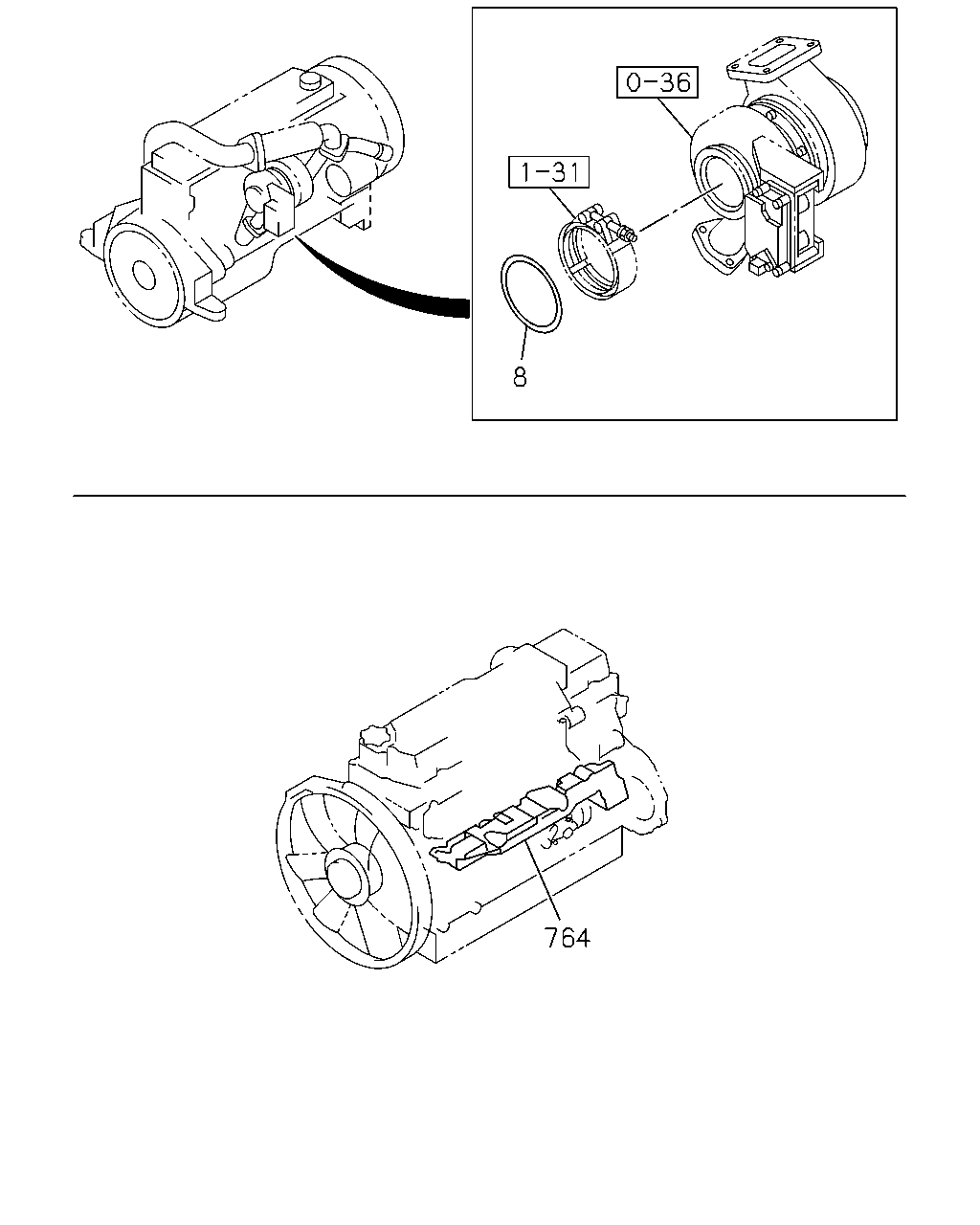

764 8

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	8	GASKET; INT DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98196-271-0	01	1	1310-
	764	SPACER; INL COVER	8-98023-639-2	01	1	1310-
