8-90 — RADIO AND TV (#128653) — 17 parça

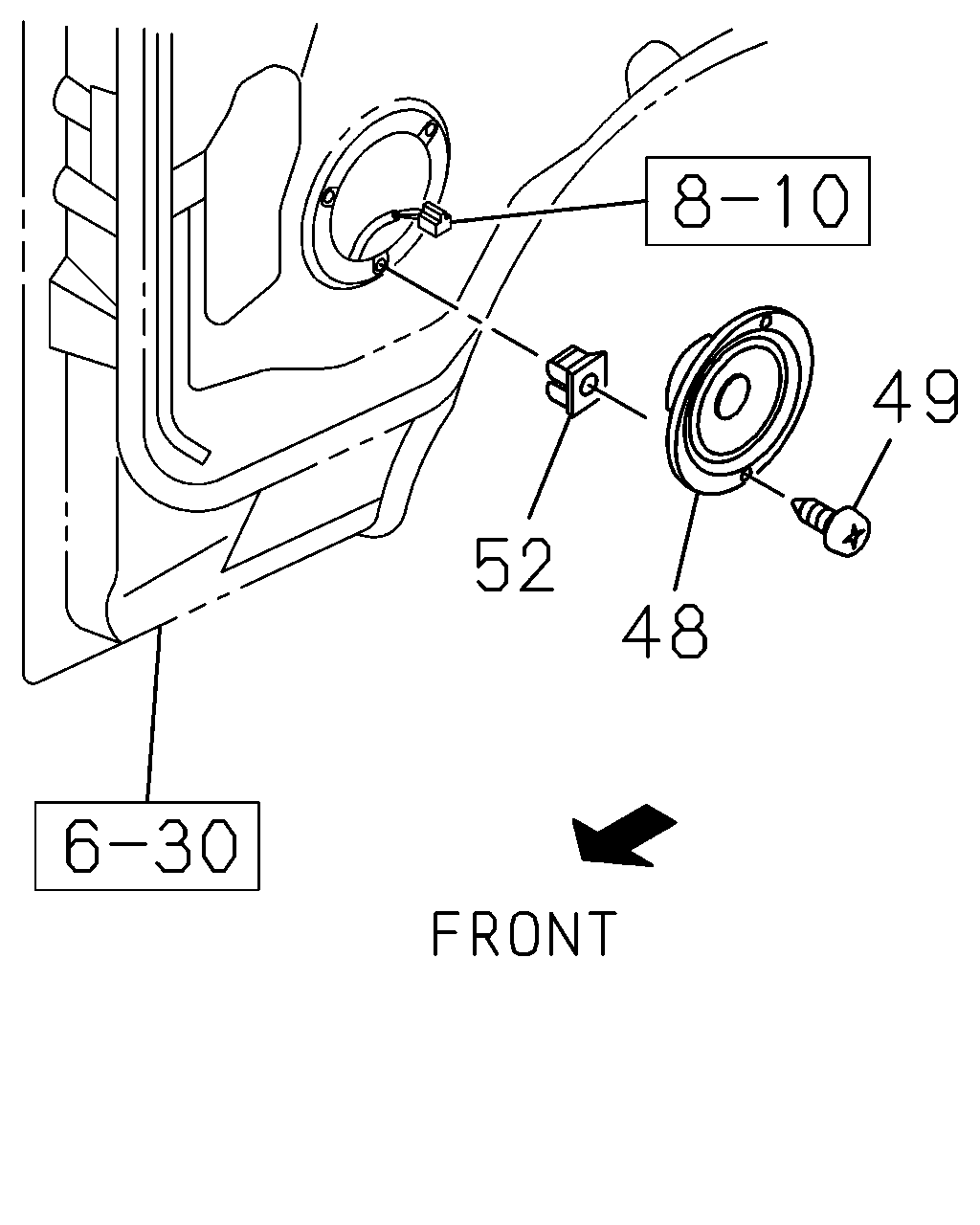

52 48 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	SPEAKER; AUDIO	8-97317-001-1	02	1	1310-
49	SCREW; SPEAKER M5X14 TAPPING W/TORQUES	8-98061-856-0	06	1	1310-
52	GROMMET; SCREW,SPEAKER D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1310-

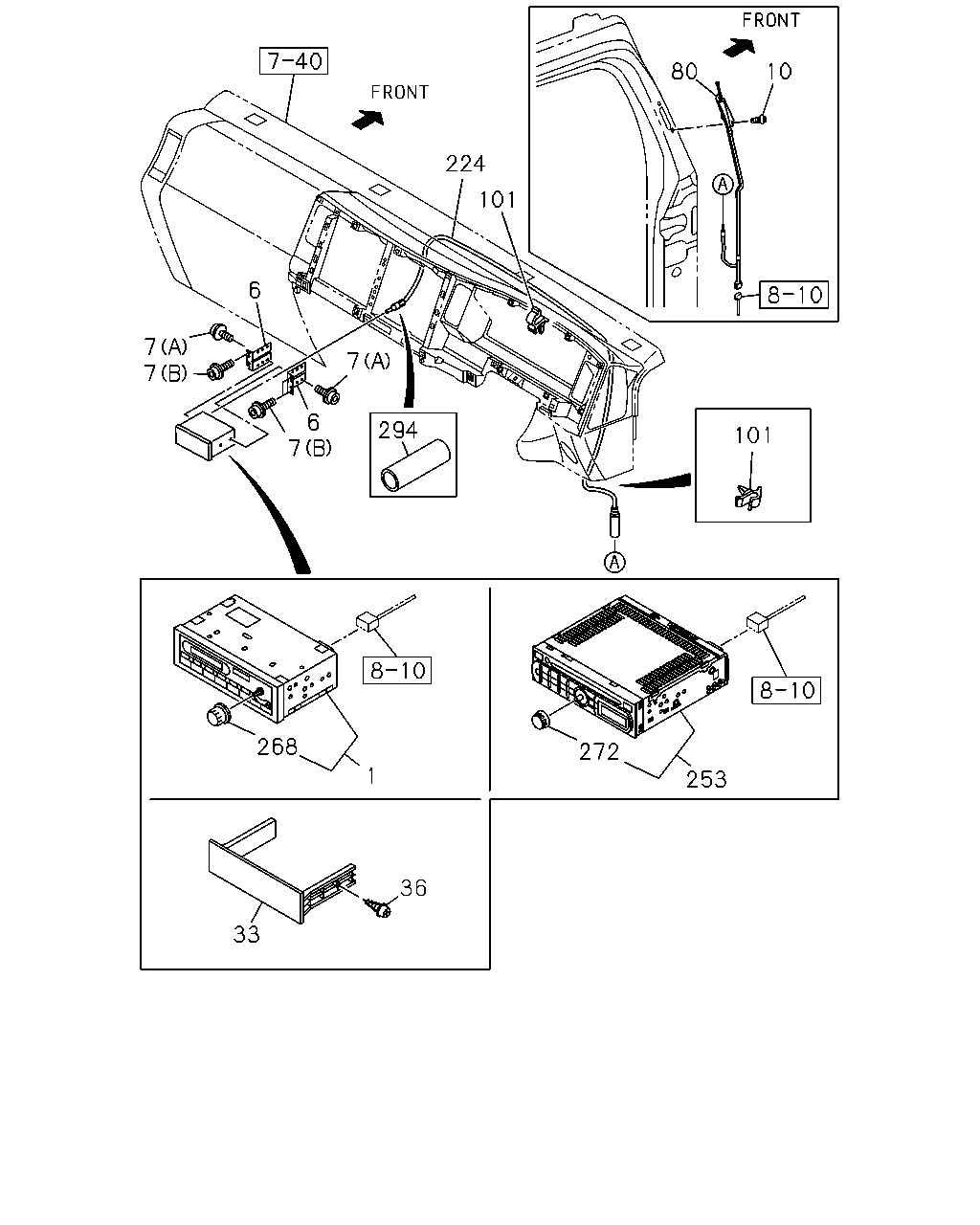

294 7 6 7 7 7 224 101 268 1 36 33 272 253 101 10 80 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	RADIO RADIO AM/FM(U69)	8-98032-643-0	01	1	1310-
6	BRACKET; RADIO TO PANEL	8-97585-617-0	02	1	1310-
7	SCREW; RADIO RADIO AM/FM STEREO CD(UT3),RADIO AM/FM(U69) (A) M5X7 HEXALOBULAR SOCKET	8-98063-767-0	04	1	1310-
7	SCREW; RADIO (B) M5X20 TAPPING HEXALOBULAR	0-72180-520-0	02	1	1310-
10	SCREW; ANTENNA CABLE M5X11	1-09981-536-1	02	1	1310-
33	COVER; RADIO EXC. RADIO AM/FM STEREO CD(UT3),RADIO AM/FM(U69) BLACK	8-97407-896-2	01	1	1310-
36	SCREW; COVER EXC. RADIO AM/FM STEREO CD(UT3),RADIO AM/FM(U69) T25 L=10 HEXALOBULAR	8-98058-632-0	02	1	1310-
80	ANTENNA	8-98139-014-0	01	1	1310-
101	CLIP; FEEDER TO BRKT ID=4.8	8-94128-483-0	03	1	1310-
224	CABLE; EXT,FEEDER	8-98063-002-1	01	1	1310-
253	DECK ASM; RADIO & CD RADIO AM/FM STEREO CD(UT3)	8-98017-752-0	01	1	1310-
268	KNOB; VOL RADIO AM/FM(U69) CLARION	8-97375-820-0	01	1	1310-
272	KNOB; AUDIO CONTROL RADIO AM/FM STEREO CD(UT3) CLARION	8-98048-329-0	01	1	1310-
294	CAP; ANTENNA CABLE EXC. RADIO AM/FM STEREO CD(UT3),RADIO AM/FM(U69)	8-98095-617-1	01	1	1310-
