0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#12865) — 88 parça

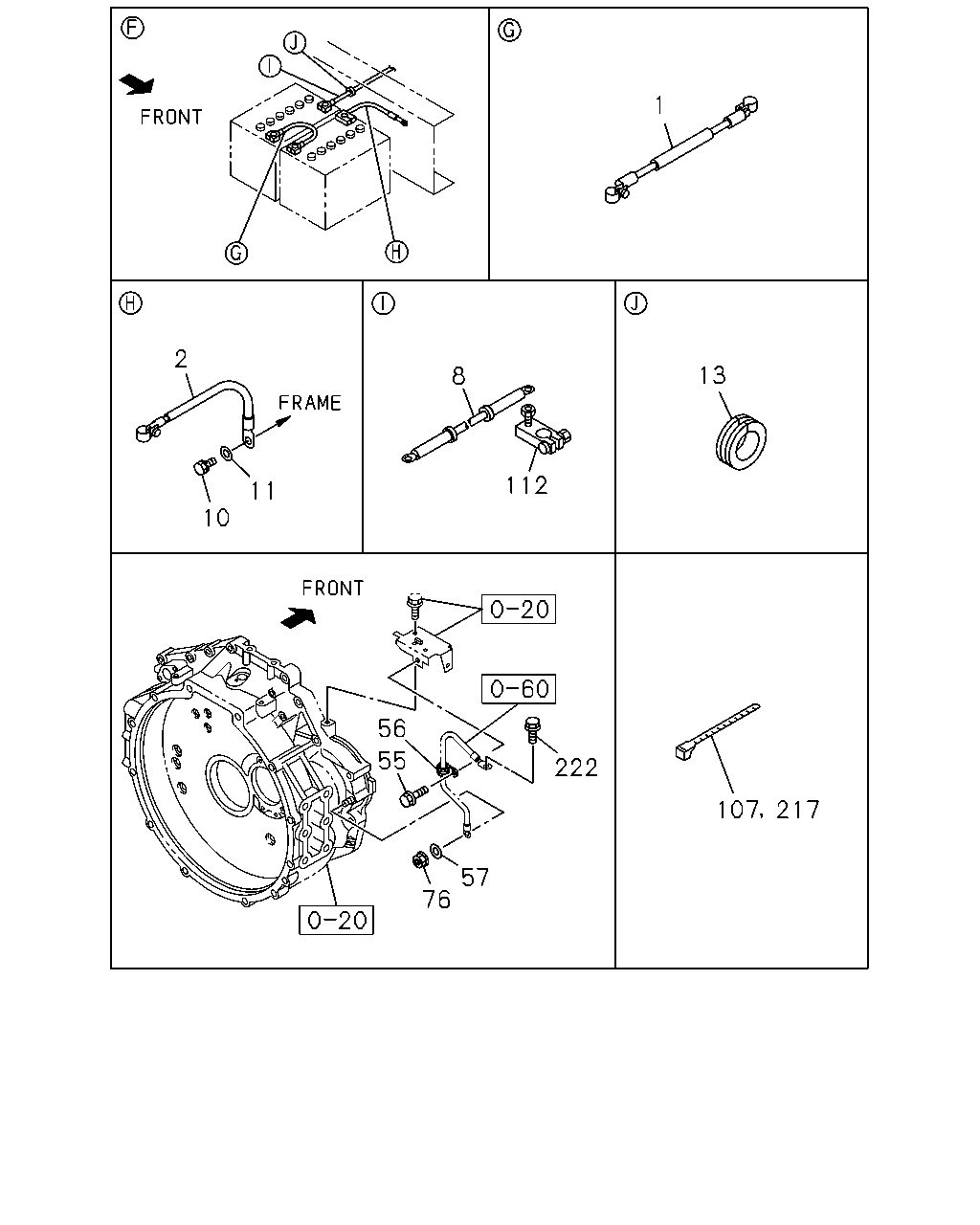

çizim 98412
1 2 13 8 112 11 10 56 55 222 107 217 57 76
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; BATTERY
L=280 THA 		8-97924-519-0 01 1 0807-0903
1 CABLE; BATTERY
L=280 THA 		8-97922-383-0 01 1 0904-
2 CABLE; BATTERY
L=305 THA 		8-97924-521-1 01 1 0807-
8 CABLE; BATTERY,STARTER
WHEEL BASE 5500MM<55W> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=2610 THA 		8-97925-501-0 01 1 1108-
8 CABLE; BATTERY,STARTER
WHEEL BASE 5800MM<58W>,WHEEL BASE 6300MM<63W> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=2595 THA 		8-97925-467-0 01 1 1108-1109
8 CABLE; BATTERY,STARTER
WHEEL BASE 5800MM<58W>,WHEEL BASE 6300MM<63W>, WHEELBASE 7100MM<71W> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=2595 THA 		8-97925-467-0 01 1 1110-
8 CABLE; BATTERY,STARTER
L=2500 THA 		8-97924-527-2 01 1 0807-1102
8 CABLE; BATTERY,STARTER
L=2435 THA 		8-97925-466-0 01 1 1103-1107
8 CABLE; BATTERY,STARTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=2435 THA 		8-97925-466-0 01 1 1108-
10 BOLT; BATTERY CABLE CLIP
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0807-
11 WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0807-
13 GROMMET; BATTERY CABLE
ID=32 OD=40 T=23 		1-09332-112-0 01 1 0807-
55 BOLT; CLIP,BATTERY CABLE
M8X16 FLANGE THA 		0-28050-816-0 01 1 0807-
56 CLIP; BATTERY CABLE
ID=16 L=28 		1-09700-872-0 01 1 0807-
57 WASHER; PL,BATTERY CABLE
ID=10.5 OD=22 T=1.6 		0-91610-610-0 01 1 0807-
76 NUT; BATTERY CABLE
M10 FLANGE THA 		0-91180-210-0 01 1 0807-
107 CLIP; BAND
L=140 THA 		5-09707-031-1 01 1 0807-
112 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 0807-1408
112 TERMINAL; BATTERY
<+> THA 		8-98290-356-0 01 1 1409-
217 CLIP; BAND,CABLE
MZW6P M/T<RSZ> L=250 THA 		5-09707-030-1 01 1 1103-1107
217 CLIP; BAND,CABLE
MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=250 THA 		5-09707-030-1 01 1 1108-
217 CLIP; BAND,CABLE
WHEEL BASE 5500MM<55W> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=250 THA 		5-09707-030-1 01 1 1108-
222 BOLT; EARTH CABLE
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0807-

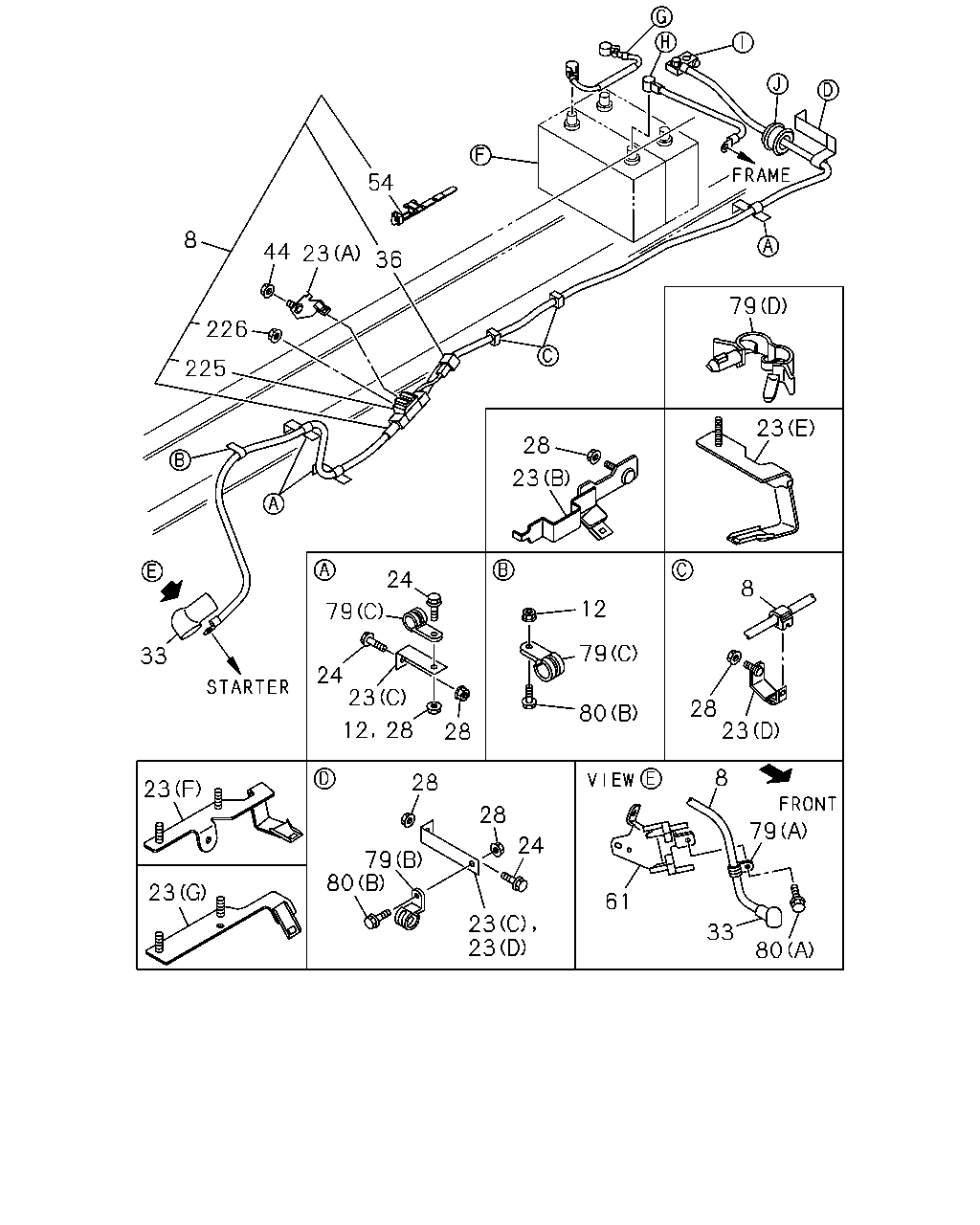

çizim 107080
54 8 44 23 36 79 226 225 23 28 23 24 8 12 79 79 33 24 23 28 23 80 12 28 28 8 28 23 28 79 24 79 80 23 61 23 23 33 80
BalonParca AdiParca NoAdetTipApplied Date
8 CABLE; BATTERY,STARTER
WHEEL BASE 5500MM<55W> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=2610 THA 		8-97925-501-0 01 1 1108-
8 CABLE; BATTERY,STARTER
WHEEL BASE 5800MM<58W>,WHEEL BASE 6300MM<63W> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=2595 THA 		8-97925-467-0 01 1 1108-1109
8 CABLE; BATTERY,STARTER
WHEEL BASE 5800MM<58W>,WHEEL BASE 6300MM<63W>, WHEELBASE 7100MM<71W> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=2595 THA 		8-97925-467-0 01 1 1110-
8 CABLE; BATTERY,STARTER
L=2500 THA 		8-97924-527-2 01 1 0807-1102
8 CABLE; BATTERY,STARTER
L=2435 THA 		8-97925-466-0 01 1 1103-1107
8 CABLE; BATTERY,STARTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=2435 THA 		8-97925-466-0 01 1 1108-
12 NUT; BATTERY CABLE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8 FLANGE THA 		0-91180-108-0 01 1 1108-
12 NUT; BATTERY CABLE CLIP
WHEEL BASE 5500MM<55W> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8 FLANGE THA 		0-91180-108-0 01 1 1108-
12 NUT; BATTERY CABLE CLIP
M8 FLANGE THA 		0-91180-108-0 04 1 0807-
23 BRACKET; CABLE CLIP TO FRAME
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) L=145 		1-47475-655-0 01 1 1108-
23 BRACKET; CABLE CLIP TO FRAME
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (E) 		8-98109-955-1 01 1 1108-1111
23 BRACKET; CABLE CLIP TO FRAME
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (F) 		8-98201-024-0 01 1 1112-
23 BRACKET; CABLE CLIP TO FRAME
(C) L=55 		1-47475-304-0 01 1 0807-1107
23 BRACKET; CABLE CLIP TO FRAME
(C) L=55 		1-47475-304-0 01 1 1108-
23 BRACKET; CABLE CLIP TO FRAME
WHEEL BASE 5500MM<55W> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) L=55 		1-47475-304-0 01 1 1108-
23 BRACKET; CABLE CLIP TO FRAME
(C) L=95 		1-82699-085-0 03 1 0807-
23 BRACKET; CABLE CLIP TO FRAME
(D) 		8-97612-957-1 02 1 0807-1102
23 BRACKET; CABLE CLIP TO FRAME
(A) 		8-98044-882-0 01 1 0807-
23 BRACKET; CABLE CLIP TO FRAME
(B) 		8-98085-160-4 01 1 0807-1107
23 BRACKET; CABLE CLIP TO FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) 		8-98085-160-4 01 1 1108-1111
23 BRACKET; CABLE CLIP TO FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (G) 		8-98201-025-0 01 1 1112-
24 BOLT; BRKT TO FRAME
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X35 FLANGE THA 		0-28650-835-0 01 1 1108-
24 BOLT; BRKT TO FRAME
WHEEL BASE 5500MM<55W> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X25 FLANGE THA 		0-28650-825-0 01 1 1108-
24 BOLT; BRKT TO FRAME
M8X30 FLANGE THA 		0-28650-830-0 03 1 0807-1102
24 BOLT; BRKT TO FRAME
M8X30 FLANGE THA 		0-28650-830-0 04 1 1103-
24 BOLT; BRKT TO FRAME
M8X35 FLANGE THA 		0-28650-835-0 01 1 0807-1102
28 NUT; BRKT TO FRAME
M8 FLANGE THA 		0-91180-108-0 02 1 1112-
28 NUT; BRKT TO FRAME
M8 FLANGE THA 		0-91180-108-0 01 1 1108-1111
28 NUT; BRKT TO FRAME
WHEEL BASE 5500MM<55W> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8 FLANGE THA 		0-91180-108-0 01 1 1108-1111
28 NUT; BRKT TO FRAME
WHEEL BASE 5500MM<55W> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8 FLANGE THA 		0-91180-108-0 01 1 1112-
28 NUT; BRKT TO FRAME
M8 FLANGE THA 		0-91180-108-0 01 1 0807-1107
28 NUT; BRKT TO FRAME
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8 FLANGE THA 		0-91180-108-0 05 1 1108-
28 NUT; BRKT TO FRAME
M8 FLANGE THA 		0-91180-108-0 06 1 0807-1102
28 NUT; BRKT TO FRAME
M8 FLANGE THA 		0-91180-108-0 04 1 1103-1107
28 NUT; BRKT TO FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8 FLANGE THA 		0-91180-108-0 04 1 1108-
33 CAP; INSULATOR 1-82699-431-0 01 1 0807-
36 FUSIBLE LINK; BATTERY
THA 		8-97615-498-1 01 1 0807-1107
36 FUSIBLE LINK; BATTERY
THA 		8-97615-498-1 01 1 1108-1109
36 FUSIBLE LINK; BATTERY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA 		8-97615-498-1 01 1 1110-
36 FUSIBLE LINK; BATTERY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA 		8-97615-498-1 01 1 1110-
44 NUT; BRKT
M10 FLANGE THA 		0-91180-110-0 01 1 0807-0912
44 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 01 1 1001-
54 CLIP; BAND,BATTERY CABLE
L=175 		1-09707-176-1 01 1 0807-1109
54 CLIP; BAND,BATTERY CABLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=175 		1-09707-176-1 01 1 1110-1502
54 CLIP; BAND,BATTERY CABLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=175 		1-09707-176-1 01 1 1110-1502
61 BRACKET; BATTERY CABLE 8-98051-379-1 01 1 0807-
79 CLIP; BATTERY CABLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) ID=21 L=24 		8-98019-191-0 01 1 1108-
79 CLIP; BATTERY CABLE
(D) ID=13-18 L=26 		1-09709-293-0 02 1 1103-1107
79 CLIP; BATTERY CABLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) ID=13-18 L=26 		1-09709-293-0 02 1 1108-
79 CLIP; BATTERY CABLE
(B) ID=19 L=24 H=21 		1-09700-109-1 01 1 0807-1107
79 CLIP; BATTERY CABLE
(B) ID=19 L=24 H=21 		1-09700-109-1 01 1 1108-
79 CLIP; BATTERY CABLE
WHEEL BASE 5500MM<55W> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) ID=19 L=24 H=21 		1-09700-109-1 01 1 1108-
79 CLIP; BATTERY CABLE
(A) ID=20 L=70 		1-09700-485-0 01 1 0807-
79 CLIP; BATTERY CABLE
(A) ID=16 L=28 		1-09700-872-0 01 1 0807-
79 CLIP; BATTERY CABLE
(C) ID=21 L=24 		8-98019-191-0 03 1 0807-
80 BOLT; BATTERY CABLE CLIP
(A) M8X16 FLANGE THA 		0-28050-816-0 01 1 0807-
80 BOLT; BATTERY CABLE CLIP
(B) M8X25 FLANGE THA 		0-28650-825-0 04 1 0807-
225 BLOCK; TERMINAL
THA 		8-98029-689-0 01 1 0807-1107
225 BLOCK; TERMINAL
THA 		8-98029-689-0 01 1 1108-1109
225 BLOCK; TERMINAL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA 		8-98029-689-0 01 1 1110-
225 BLOCK; TERMINAL
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA 		8-98029-689-0 01 1 1110-
226 NUT; FUSIBLE LINK
M6 W/LK WASHER THA 		8-94424-179-0 01 1 0807-1107
226 NUT; FUSIBLE LINK
M6 W/LK WASHER THA 		8-94424-179-0 01 1 1108-1109
226 NUT; FUSIBLE LINK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M6 W/LK WASHER THA 		8-94424-179-0 01 1 1110-
226 NUT; FUSIBLE LINK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M6 W/LK WASHER THA 		8-94424-179-0 01 1 1110-
