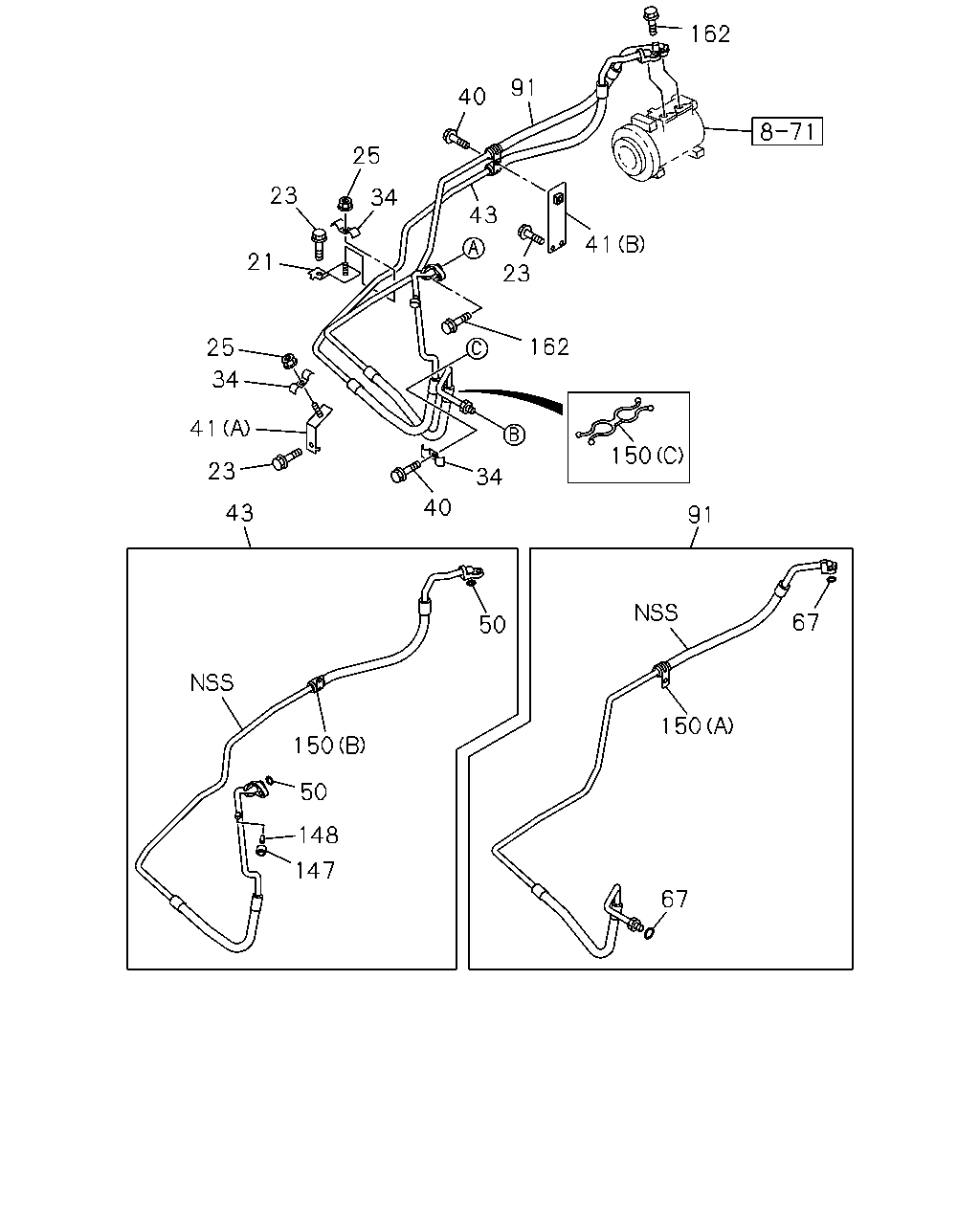

8-52 — PIPING; AIR CONDITIONING (#128646) — 31 parça

162 41 91 40 25 23 21 25 41 43 150 148 147 50 50 150 67 67 91 150 162 23 43 34 40 23 34 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-98010-187-0	01	1	1310-
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28650-825-0	01	1	1310-
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28650-825-0	03	1	1310-
25	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	1310-
25	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	1310-
34	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-98043-673-0	03	1	1310-
40	BOLT; CLIP BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28650-825-0	02	1	1310-
41	BRACKET; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98010-188-1	01	1	1310-
41	BRACKET; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98032-049-0	01	1	1310-
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONTROL(C60)	8-98043-677-2	01	1	1310-
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60) ID=14.5	8-97095-908-0	02	1	1310-
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=11.7	8-97095-907-0	02	1	1310-
91	HOSE; FLEX,CMPR AIR CONDITIONER MANUAL CONTROL(C60)	8-98043-678-2	01	1	1310-
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L	1-83539-331-0	01	1	1310-
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-97095-909-0	01	1	1310-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83574-249-0	01	1	1310-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83574-264-0	01	1	1310-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-94423-042-0	01	1	1310-
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE	0-28050-625-0	03	1	1310-

27 33 27 158 27 174 116 116 158 12 202 156 171 116 158 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	8-98041-328-0	01	1	1310-
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=9 H=20 L=20	0-95207-308-0	01	1	1310-
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=16 H=24 L=20	0-95207-315-0	01	1	1310-
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=11.8 & 7.5	1-09709-182-0	01	1	1310-
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6X16 FLANGE	0-28650-616-0	02	1	1310-
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.4	8-97095-906-0	02	1	1310-
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11.7	8-97095-907-0	01	1	1310-
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-98151-702-0	01	1	1310-
158	BOLT; PIPE FIX AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE	0-28050-625-0	03	1	1310-
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H	8-97095-911-0	01	1	1310-
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-98041-330-0	01	1	1310-
202	SWITCH; PRESSURE AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-391-0	01	1	1310-
