◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11547 - FRR RHD EUROPE EURO6 SPACECAB ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-50 - AIR CONDITIONING SYSTEM; FRONT ▶
8-50 — AIR CONDITIONING SYSTEM; FRONT (#128645) — 22 parça
çizim 381060
32 25 378 378
BalonParca AdiParca NoAdetTipApplied Date
25 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 1-GROOVE 		8-97161-198-1 01 1 1310-
32 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60) BEST VALUE PARTS 		1-87610-100-0 01 1 1310-
32 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60) L=1594 		8-97383-577-1 01 1 1310-
378 HOSE; DRAIN,EVAPORATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98041-428-0 01 1 1310-
378 HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98204-846-0 01 1 1310-

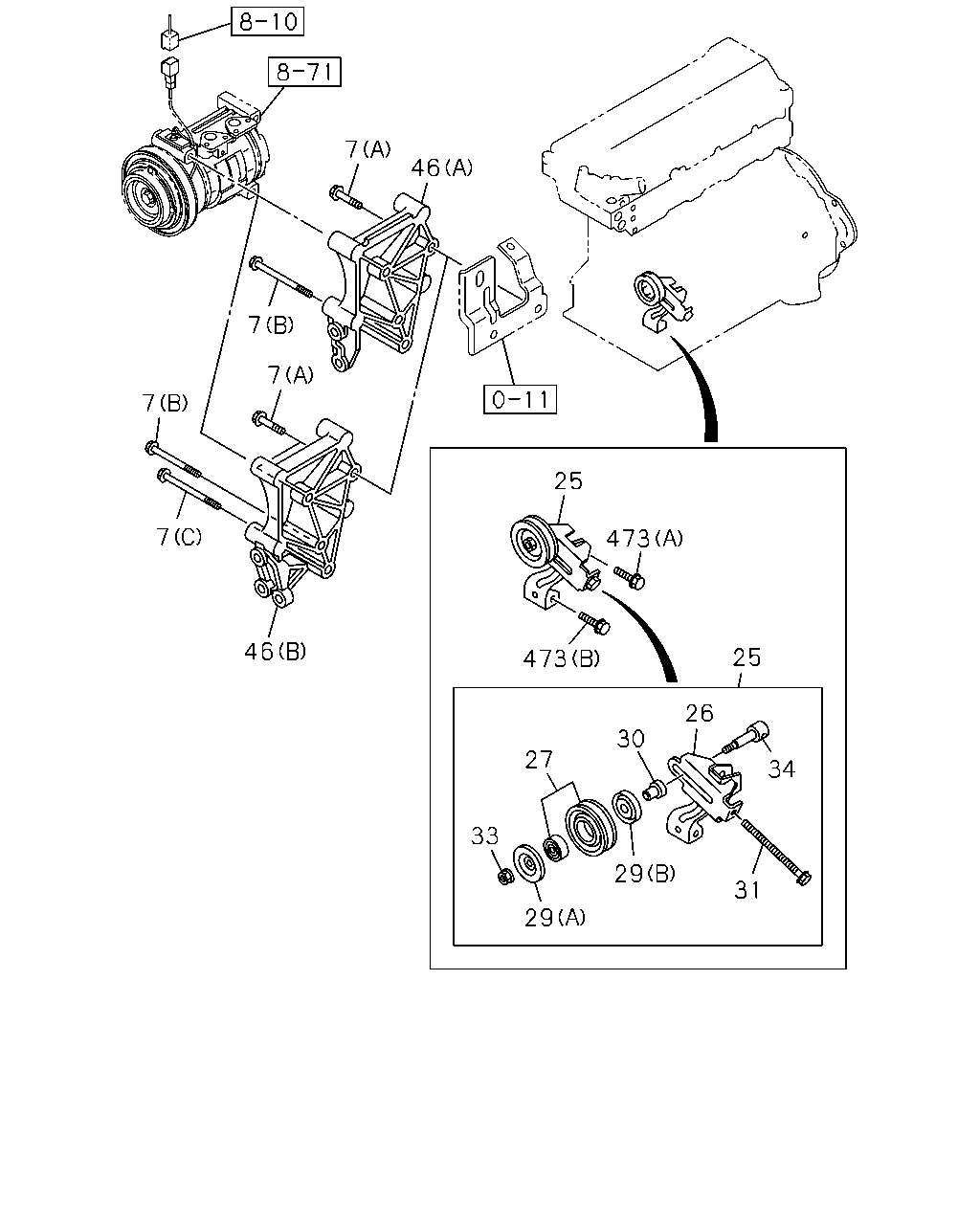

çizim 382292
7 46 7 7 7 7 46 25 473 473 25 34 26 30 31 29 29 33 27
BalonParca AdiParca NoAdetTipApplied Date
7 BOLT; BRKT
(A) M10X45 FLANGE 		0-28151-045-0 02 1 1310-
7 BOLT; BRKT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) M10X80 FLANGE 		0-28151-080-0 02 1 1310-
7 BOLT; BRKT
GENERATOR 24V90A(K44) (B) M10X80 FLANGE 		0-28151-080-0 01 1 1310-
7 BOLT; BRKT
GENERATOR 24V90A(K44) (C) M10X130 FLANGE 		0-28156-013-0 01 1 1310-
25 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 1-GROOVE 		8-97161-198-1 01 1 1310-
26 BRACKET; IDLE PULLEY,A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97161-031-1 01 1 1310-
27 PULLEY; IDLE,A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97386-869-0 01 1 1310-
29 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97384-114-0 01 1 1310-
29 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97384-115-0 01 1 1310-
30 COLLAR; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97384-117-0 01 1 1310-
31 BOLT; ADJ,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97384-113-0 01 1 1310-
33 NUT; IDLER PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97384-118-0 01 1 1310-
34 SHAFT; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97384-116-0 01 1 1310-
46 BRACKET; CMPR
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) 		8-98101-364-0 01 1 1310-
46 BRACKET; CMPR
GENERATOR 24V90A(K44) (B) 		8-98101-365-0 01 1 1310-
473 BOLT; TENSIONER
AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X50 FLANGE 		0-28050-850-0 01 1 1310-
473 BOLT; TENSIONER
AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X65 FLANGE 		8-94344-540-1 01 1 1310-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
