Isuzu WW
▶
TRUCKS
▶
FRR
▶
11547 - FRR RHD EUROPE EURO6 SPACECAB
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-26 - ELECTRICAL CONTROL AND OTHER PARTS
▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS
(#128640) — 56 parça
◀

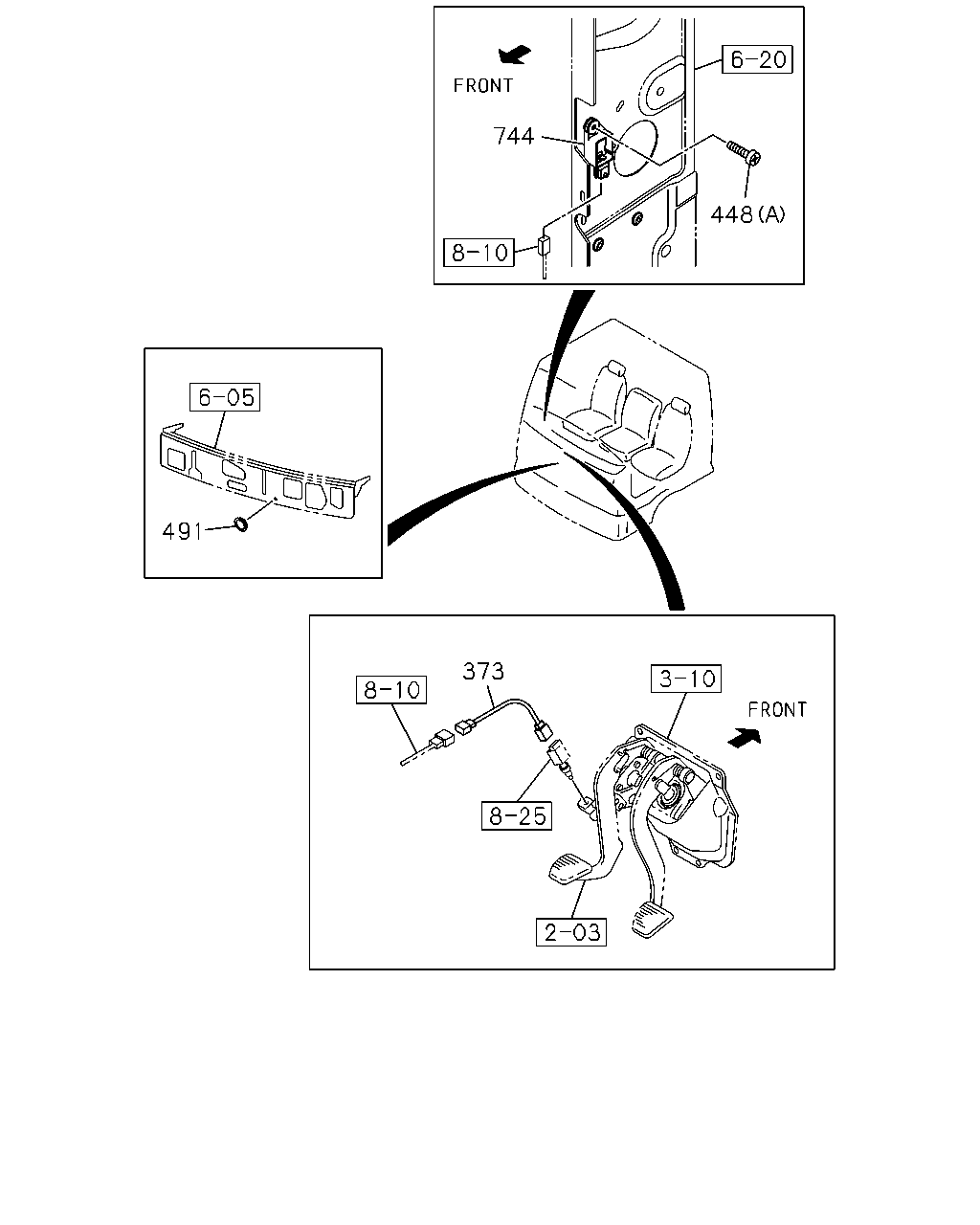

[826A] AIR BAG SENSOR AND CLU SWITCH HARNESS (5 parça)

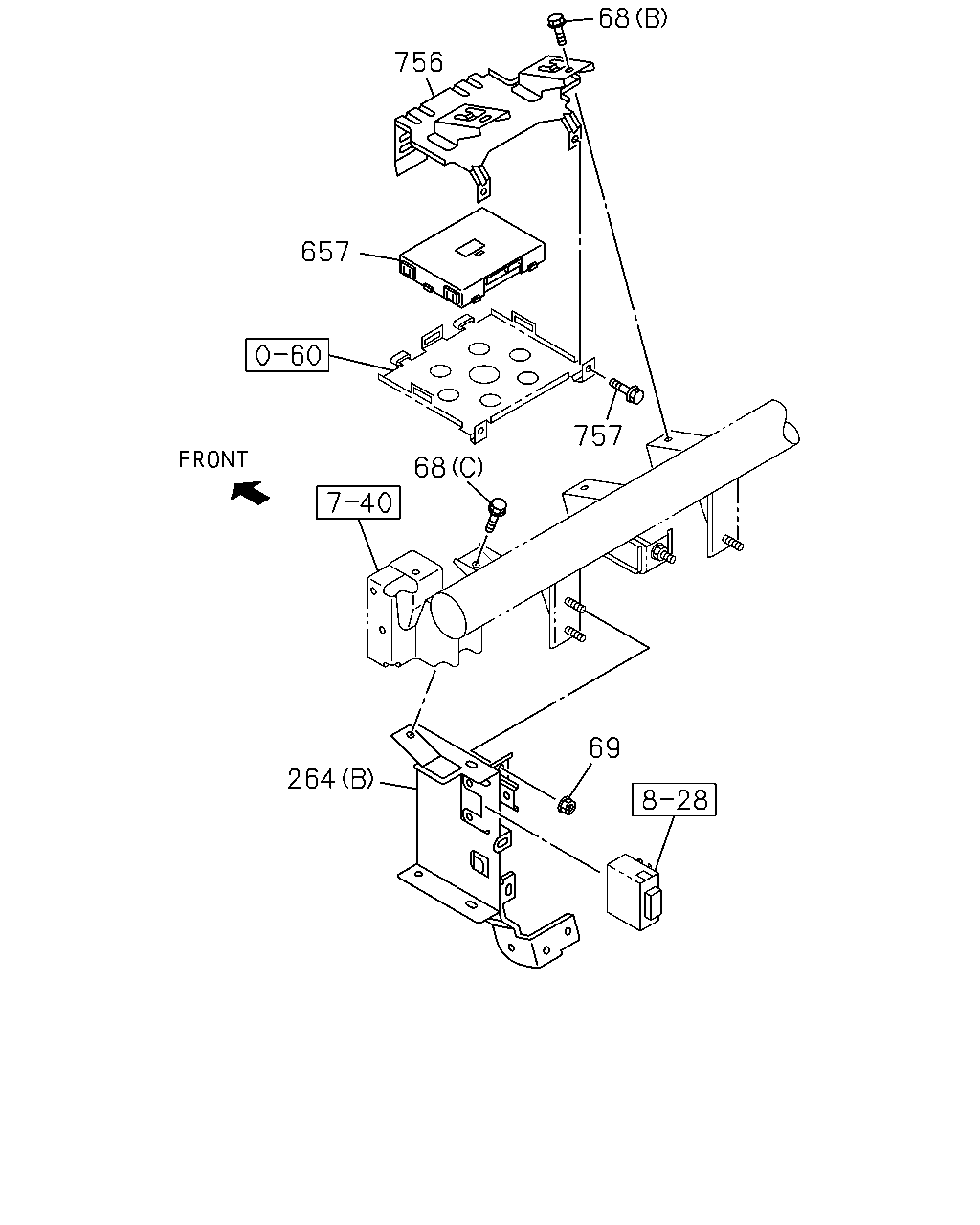

[826A] BRACKET (9 parça)

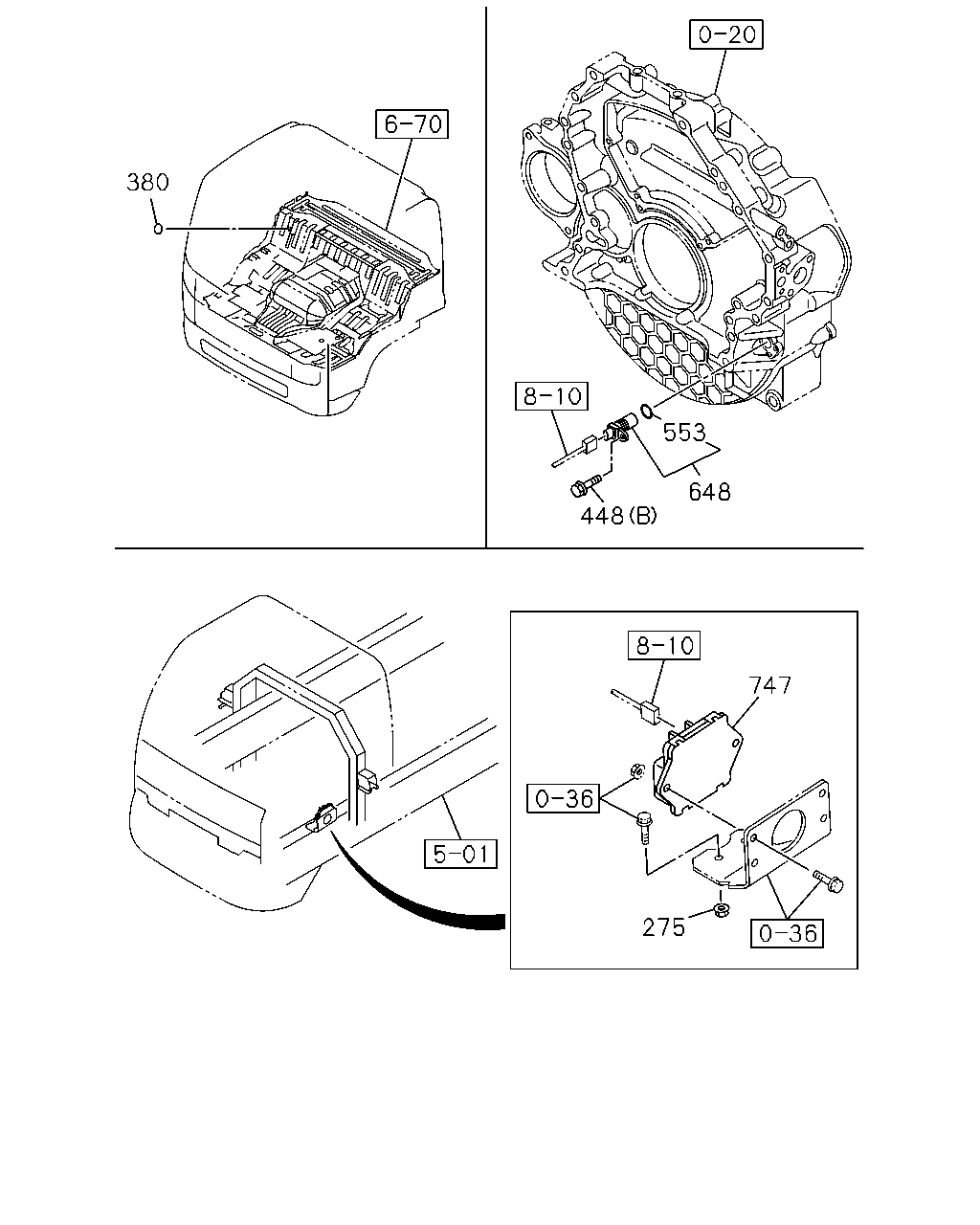

[826A] TURBO CONT UNIT AND CRANK ANGLE SENSOR (7 parça)

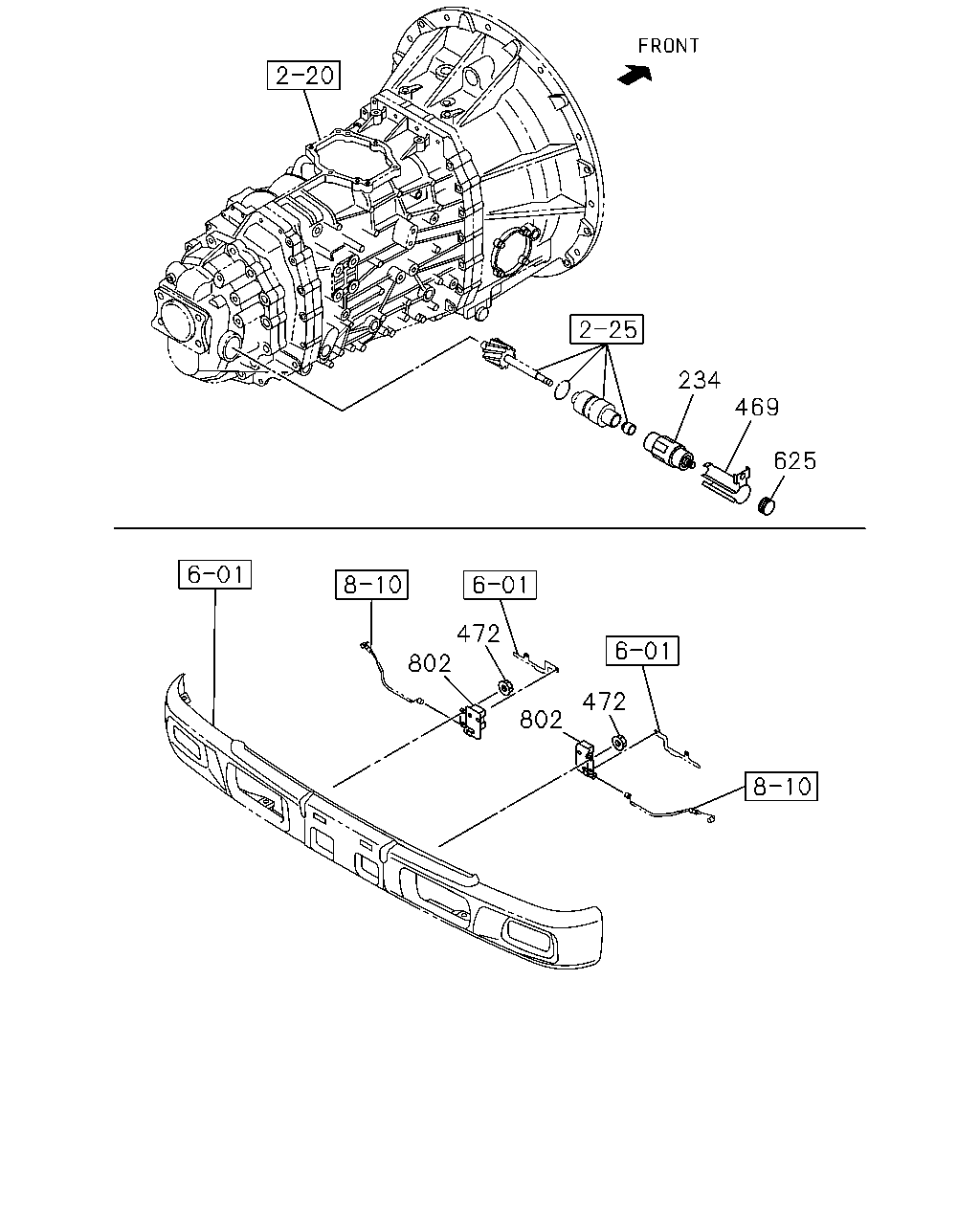

[826A] VEHICLE SPEED SENSOR AND RESISTOR (5 parça)

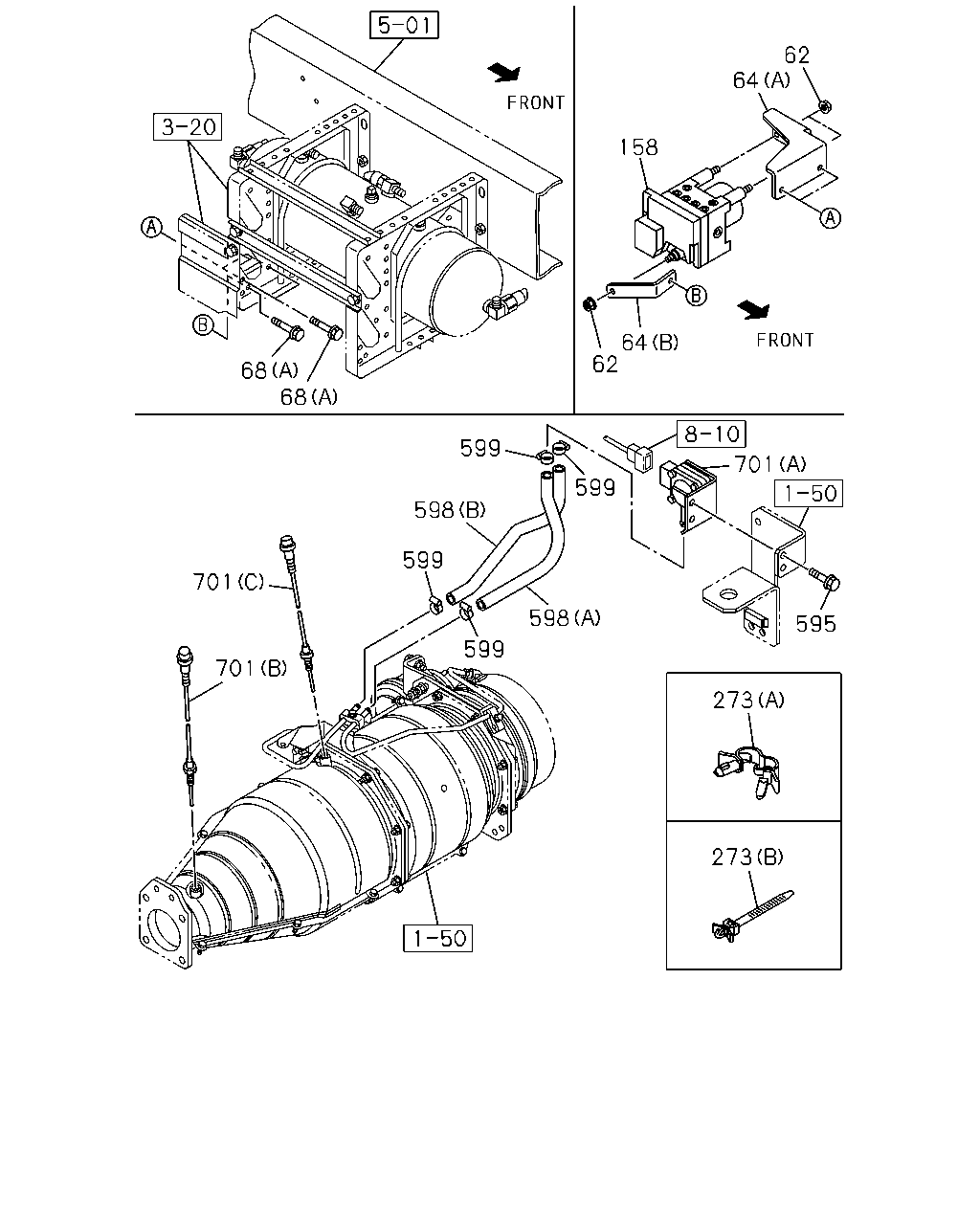

[826A] ABS CONTROLLER AND DPD SENSOR (17 parça)

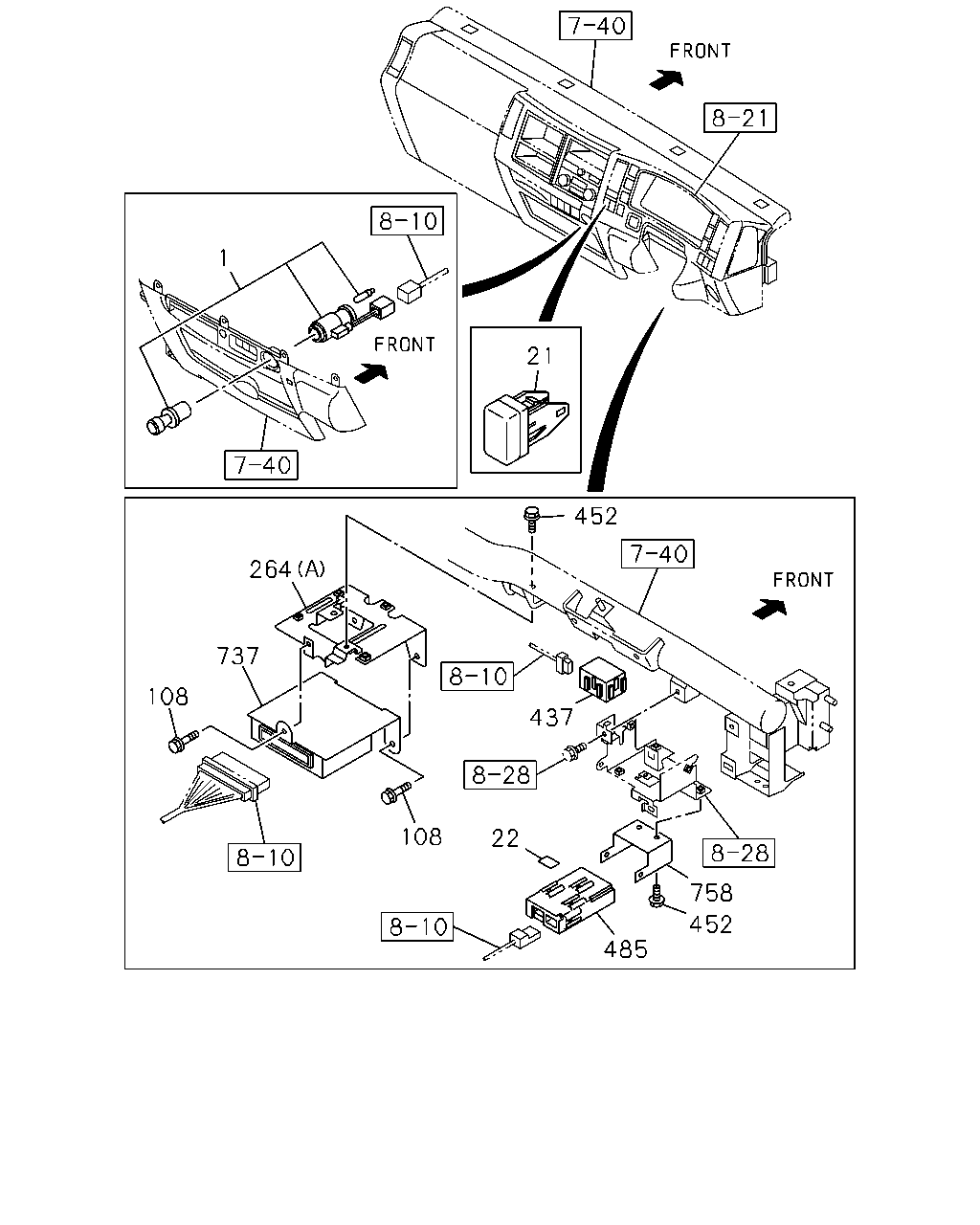

[826A] CONT UNIT;SPEED SENSOR,T/M,DC CONVERTE (13 parça)
▶
744
448
491
373
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
373
HARNESS; CLU SWITCH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98059-419-2
01
1
1310-
448
BOLT; SENSOR
(A) M6X18 W/PL WASHER
8-97105-796-1
02
1
1310-
448
BOLT; SENSOR
(B) M6X16 FLANGE
0-28050-616-0
01
1
1310-
491
PLUG; HOLE,CONT UNIT
OD=60
8-98054-651-0
01
1
1310-
744
SENSOR; AIR BAG
8-97386-841-2
01
1
1310-
69
264
68
757
657
756
68
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
68
BOLT; BRKT
(A) M8X25 FLANGE
0-28650-825-0
03
1
1310-
68
BOLT; BRKT
(C) M6X16 FLANGE
0-28650-616-0
01
1
1310-
68
BOLT; BRKT
(B) M6X16 W/LK&PL WASHER
1-09980-492-0
02
1
1310-
69
NUT; BRKT
M6 FLANGE
0-91180-106-0
01
1
1310-
264
BRACKET; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A)
8-98064-901-0
01
1
1310-
264
BRACKET; CONT UNIT
(B)
8-97609-985-9
01
1
1310-
657
CONTROL UNIT; MIMAMORI
8-98232-116-1
01
1
1310-
756
BRACKET; ECU,BCM
8-98056-411-3
01
1
1310-
757
BOLT; BRKT,BCM
M6X16 FLANGE
0-28650-616-0
02
1
1310-
448
648
553
275
747
380
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
275
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
1310-
380
SEAL
OD=25 BLACK
1-76798-019-0
01
1
1310-
448
BOLT; SENSOR
(A) M6X18 W/PL WASHER
8-97105-796-1
02
1
1310-
448
BOLT; SENSOR
(B) M6X16 FLANGE
0-28050-616-0
01
1
1310-
553
GASKET
ID=14.2 OD=18.8
8-97369-404-0
01
1
1310-
648
SENSOR; CRANK ANGLE
8-97606-943-0
01
1
1310-
747
CONTROL UNIT; TURBOCHARGER
8-98133-124-1
01
1
1310-
802
802
625
234
472
472
469
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
234
SENSOR; VEHICLE SPD
TRANSMISSION CONTROL-SMOOTHER(8GF) 25 PULSE ALUMINUM
8-97328-058-1
01
1
1310-
469
PROTECTOR; SPEED SENSOR
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98119-901-0
01
1
1310-
472
NUT; RESISTOR
M6 FLANGE
0-91180-106-0
04
1
1310-
625
CAP; SPEED SENSOR
TRANSMISSION CONTROL-SMOOTHER(8GF)
1-83129-133-0
01
1
1310-
802
RESISTOR; DAYTIME RUNNING LP
8-98225-338-1
02
1
1310-
68
68
62
64
64
62
158
599
598
599
701
701
599
598
599
701
595
273
273
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
62
NUT; BRKT
M8 FLANGE
0-91180-108-0
03
1
1310-
64
BRACKET; CONTROLLER
(A)
8-98044-238-2
01
1
1310-
64
BRACKET; CONTROLLER
(B)
8-98044-239-1
01
1
1310-
68
BOLT; BRKT
(A) M8X25 FLANGE
0-28650-825-0
03
1
1310-
68
BOLT; BRKT
(C) M6X16 FLANGE
0-28650-616-0
01
1
1310-
68
BOLT; BRKT
(B) M6X16 W/LK&PL WASHER
1-09980-492-0
02
1
1310-
158
CONTROLLER; ABS
THROTTLE CONTROL SYSTEM(6XH)
8-98157-998-1
01
1
1310-
158
CONTROLLER; ABS
EXC. THROTTLE CONTROL SYSTEM(6XH)
8-98157-992-1
01
1
1310-
273
CLIP; HARNESS
(B) L=112
8-94232-618-0
02
1
1310-
273
CLIP; HARNESS
(A) ID=7 L=7.5
8-97369-561-0
01
1
1310-
595
BOLT; SENSOR
M8X20 FLANGE
0-28650-820-0
02
1
1310-
598
HOSE; RUBBER,SENSOR
(B)
8-98138-715-0
01
1
1310-
598
HOSE; RUBBER,SENSOR
(A)
8-98138-716-0
01
1
1310-
599
CLIP; HOSE
ID=13
8-97329-627-0
04
1
1310-
701
SENSOR; DPD
(A)
8-97360-368-2
01
1
1310-
701
SENSOR; DPD
(B)
8-98004-329-0
01
1
1310-
701
SENSOR; DPD
(C)
8-98004-330-0
01
1
1310-
1
21
264
737
108
108
437
22
485
452
758
452
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LIGHTER; CIGAR
8-98142-962-0
01
1
1310-
21
COVER; HOLE
8-98025-954-1
01
1
1310-
22
SEAL; TAPE
8-98166-639-0
02
1
1310-
108
BOLT; TRANS CONT MODULE
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE
0-28650-616-0
03
1
1310-
264
BRACKET; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A)
8-98064-901-0
01
1
1310-
264
BRACKET; CONT UNIT
(B)
8-97609-985-9
01
1
1310-
437
CONVERTER; DC
KOITO
8-97359-129-0
01
1
1310-
452
BOLT; BRKT
M6X16 FLANGE
0-28650-616-0
02
1
1310-
452
BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE
0-28650-616-0
02
1
1310-
485
CONTROL UNIT; SPEED SENSOR
TRANSMISSION CONTROL-SMOOTHER(8GF)
1-80190-059-1
01
1
1310-
485
CONTROL UNIT; SPEED SENSOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
1-80190-061-0
01
1
1310-
737
CONTROL UNIT; TRANSMISSION
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98241-073-3
01
1
1310-
758
BRACKET; ELEC CONT UNIT,SPEED SENSOR
8-98048-743-1
01
1
1310-
