8-10 — WIRING HARNESS AND FUSE (#128635) — 285 parça

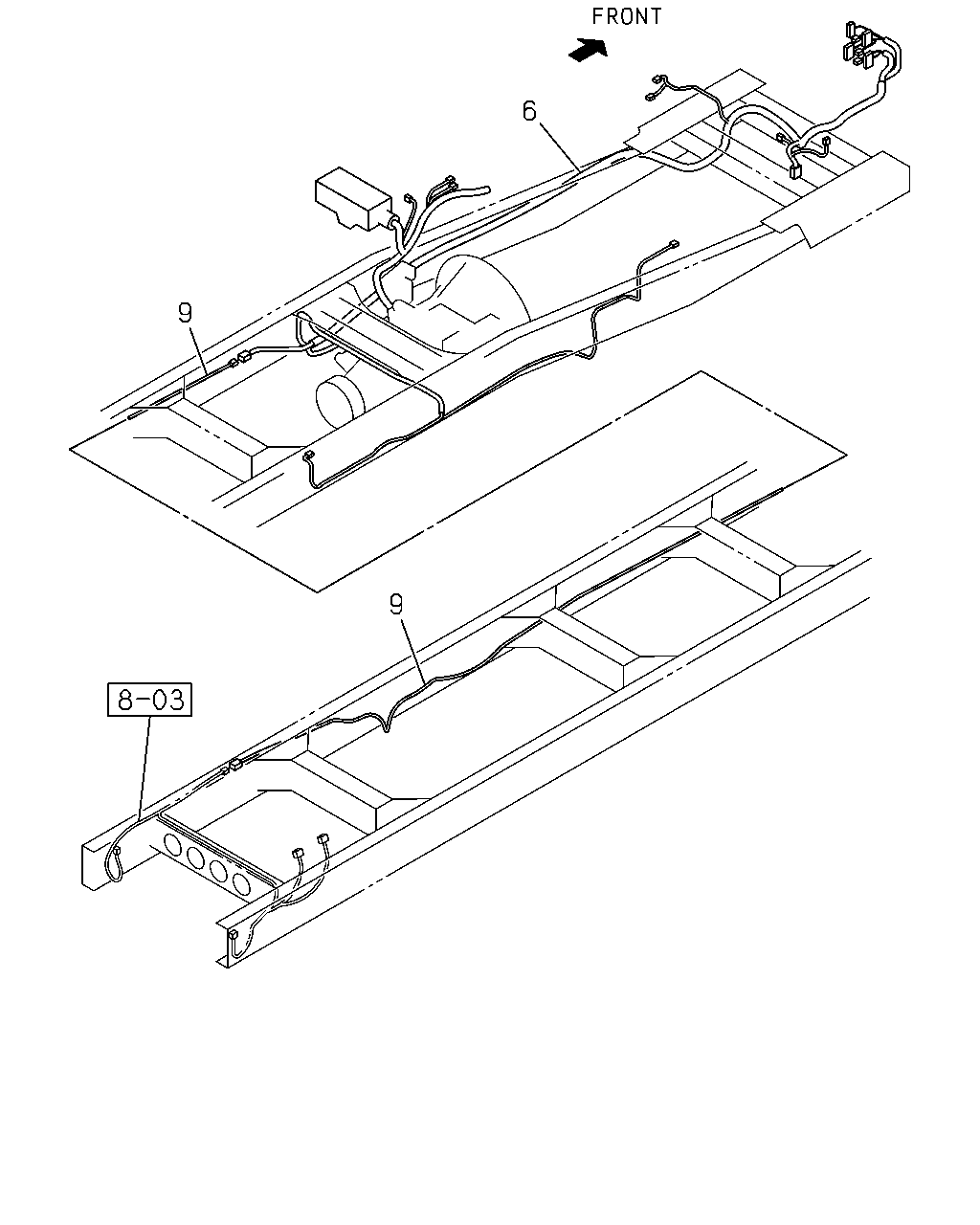

çizim 381743
9 6 9
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98223-850-3 01 1 1310-
6 HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-851-3 01 1 1310-
9 HARNESS; FRAME,RR
WHEEL BASE 4000MM(40W) 		8-98224-007-0 01 1 1310-
9 HARNESS; FRAME,RR
WHEEL BASE 4600MM(46W) 		8-98224-009-0 01 1 1310-
9 HARNESS; FRAME,RR
WHEEL BASE 4900MM(49W) 		8-98224-010-0 01 1 1310-
9 HARNESS; FRAME,RR
WHEEL BASE 5300MM(53W) 		8-98224-011-0 01 1 1310-

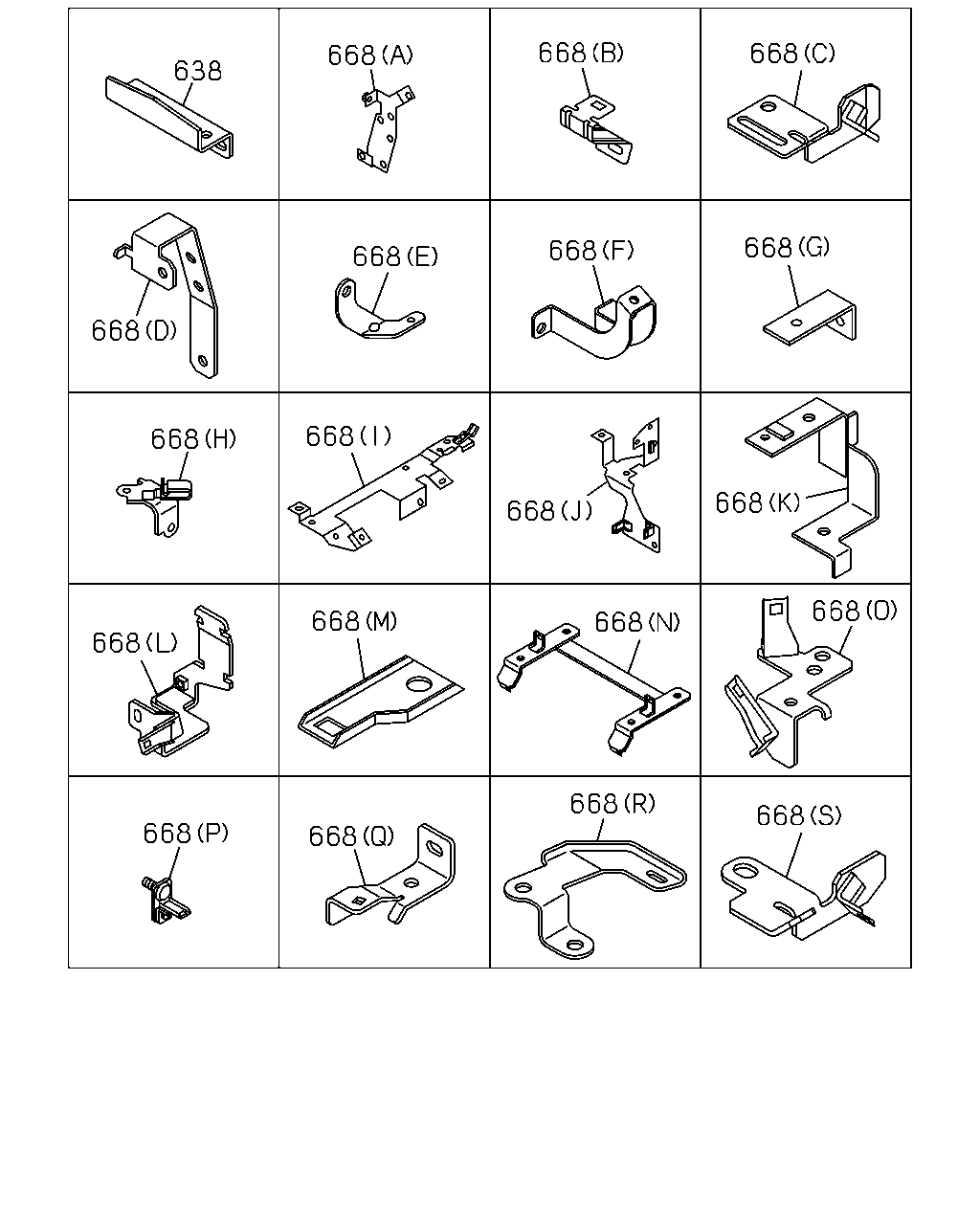

çizim 381848
668 668 668 668 668 668 668 668 668 668 668 668 668 668 668 668 668 668 668 638
BalonParca AdiParca NoAdetTipApplied Date
638 BRACKET; SPD SENSOR 8-98012-580-1 02 1 1310-
668 BRACKET; HARNESS
(E) 		8-98009-245-0 01 1 1310-1408
668 BRACKET; HARNESS
(E) 		8-98273-295-0 01 1 1409-
668 BRACKET; HARNESS
(F) 		8-98011-484-0 01 1 1310-
668 BRACKET; HARNESS
(A) 		8-98024-765-0 01 1 1310-
668 BRACKET; HARNESS
(H) 		8-98061-780-0 01 1 1310-
668 BRACKET; HARNESS
(I) 		8-98200-797-3 01 1 1310-
668 BRACKET; HARNESS
(Q) 		8-98240-490-0 01 1 1310-
668 BRACKET; HARNESS
(R) 		8-98240-491-0 01 1 1310-
668 BRACKET; HARNESS
(G) L=55 		1-47475-304-0 01 1 1310-
668 BRACKET; HARNESS
(M) 		1-82698-569-0 01 1 1310-
668 BRACKET; HARNESS
(C) 		8-97616-305-0 01 1 1310-1502
668 BRACKET; HARNESS
(S) 		8-98254-592-0 01 1 1503-
668 BRACKET; HARNESS
(D) 		8-97619-097-1 01 1 1310-
668 BRACKET; HARNESS
(N) 		8-98047-276-1 01 1 1310-
668 BRACKET; HARNESS
(B) 		8-98095-653-2 01 1 1310-
668 BRACKET; HARNESS
(J) 		8-98158-109-1 01 1 1310-
668 BRACKET; HARNESS
(O) 		8-98168-184-0 01 1 1310-
668 BRACKET; HARNESS
(P) 		8-98171-607-0 02 1 1310-
668 BRACKET; HARNESS
(L) 		8-98207-041-0 01 1 1310-
668 BRACKET; HARNESS
(K) 		8-98207-043-0 01 1 1310-

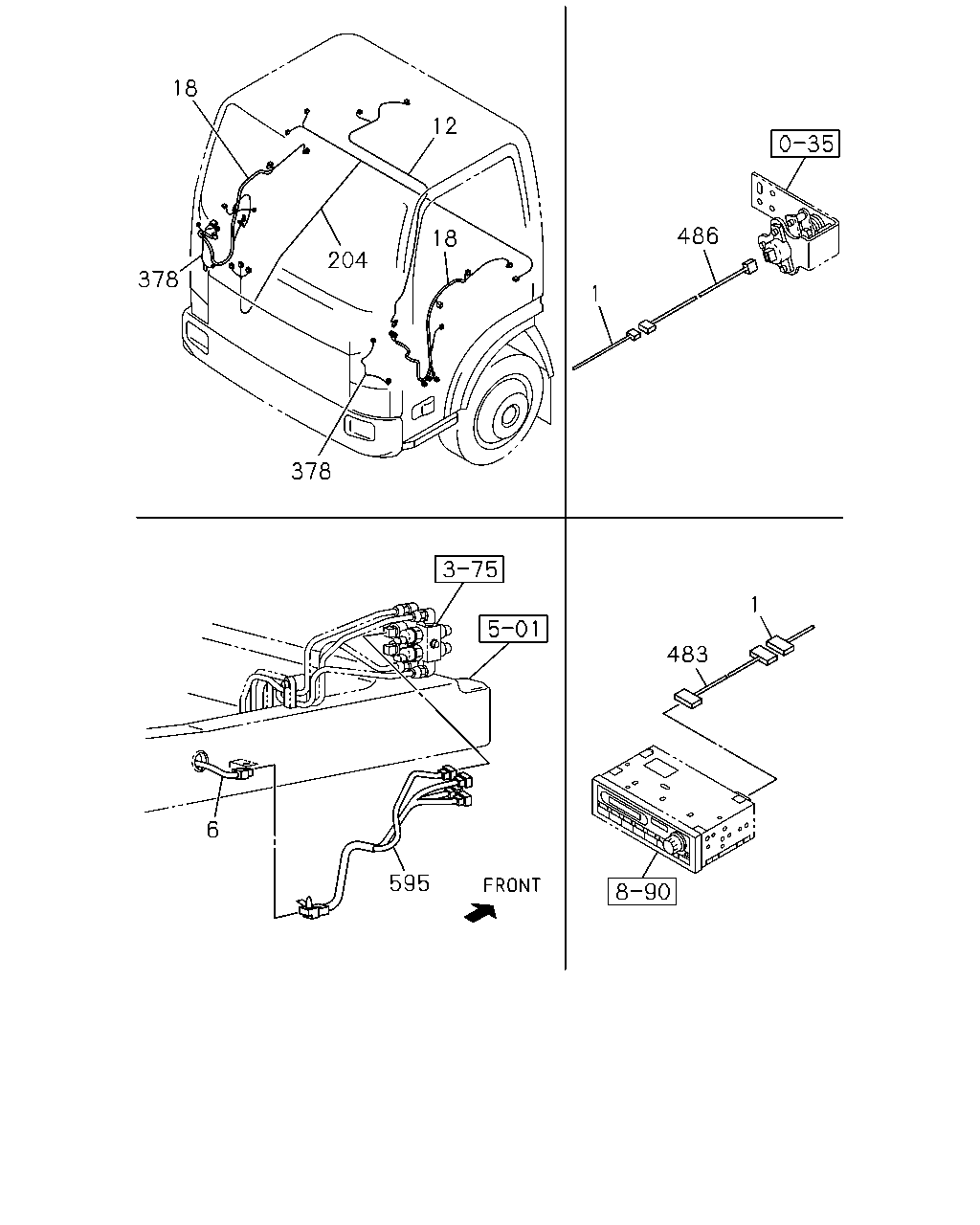

çizim 381880
18 378 378 204 18 12 6 595 483 1 1 486
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98204-020-1 01 1 1310-
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98204-018-1 01 1 1310-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98204-021-1 01 1 1310-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98204-019-1 01 1 1310-
6 HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98223-850-3 01 1 1310-
6 HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-851-3 01 1 1310-
12 HARNESS; ROOF
FLUORESCENT LAMP<6UC> 		8-98079-071-1 01 1 1310-
12 HARNESS; ROOF
EXC. FLUORESCENT LAMP<6UC> 		8-98084-247-0 01 1 1310-
18 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98084-283-3 01 1 1310-
18 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98084-288-3 01 1 1310-
18 HARNESS; DOOR
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98108-439-1 01 1 1310-
18 HARNESS; DOOR
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98108-440-1 01 1 1310-
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER(AJ3) AIR SUSP DRIVER SEAT<A56> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98084-208-1 01 1 1310-
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER(AJ3) AIR SUSP DRIVER SEAT<A56> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-194-0 01 1 1310-
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER(AJ3) DRIVER ISRINGHAUSEN SEAT<SJA> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98084-209-1 01 1 1310-
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER(AJ3) DRIVER ISRINGHAUSEN SEAT<SJA> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-195-1 01 1 1310-
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER(AK5) AIR SUSP DRIVER SEAT<A56> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98084-212-0 01 1 1310-
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER(AK5) AIR SUSP DRIVER SEAT<A56> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-199-0 01 1 1310-
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER(AK5) DRIVER ISRINGHAUSEN SEAT<SJA> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98084-213-2 01 1 1310-
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER(AK5) DRIVER ISRINGHAUSEN SEAT<SJA> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-200-2 01 1 1310-
378 HARNESS; EXT,MIRROR
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98125-654-0 02 1 1310-
378 HARNESS; EXT,MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98125-653-0 02 1 1310-
483 HARNESS; EXT,RADIO 8-98116-875-0 01 1 1310-
486 HARNESS; ALL SPEED ACCEL
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUMP CONTROL LEVER<RC4> 		1-82675-898-0 01 1 1310-
595 HARNESS; WARNING,BRK
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98251-241-0 01 1 1310-
595 HARNESS; WARNING,BRK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98251-240-0 01 1 1310-
çizim 381918
431 431 431 431 479 431 431 558 431 479 431
BalonParca AdiParca NoAdetTipApplied Date
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1310-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1310-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 1310-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1310-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 1310-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1310-
431 CONNECTOR; JOINT
(E) 6P BLACK 		8-97616-194-0 03 1 1310-
431 CONNECTOR; JOINT
(E) 6P LIGHT GRAY 		8-97616-195-0 01 1 1310-
431 CONNECTOR; JOINT
(H) 10P LIGHT GRAY 		8-97616-198-0 03 1 1310-
479 CAP; CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		1-82690-667-0 01 1 1310-
479 CAP; CONNECTOR
EXC. H.S.A SYSTEM<6EP> (B) 		1-82691-191-0 01 1 1310-
558 CONNECTOR; HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-82690-668-0 01 1 1310-

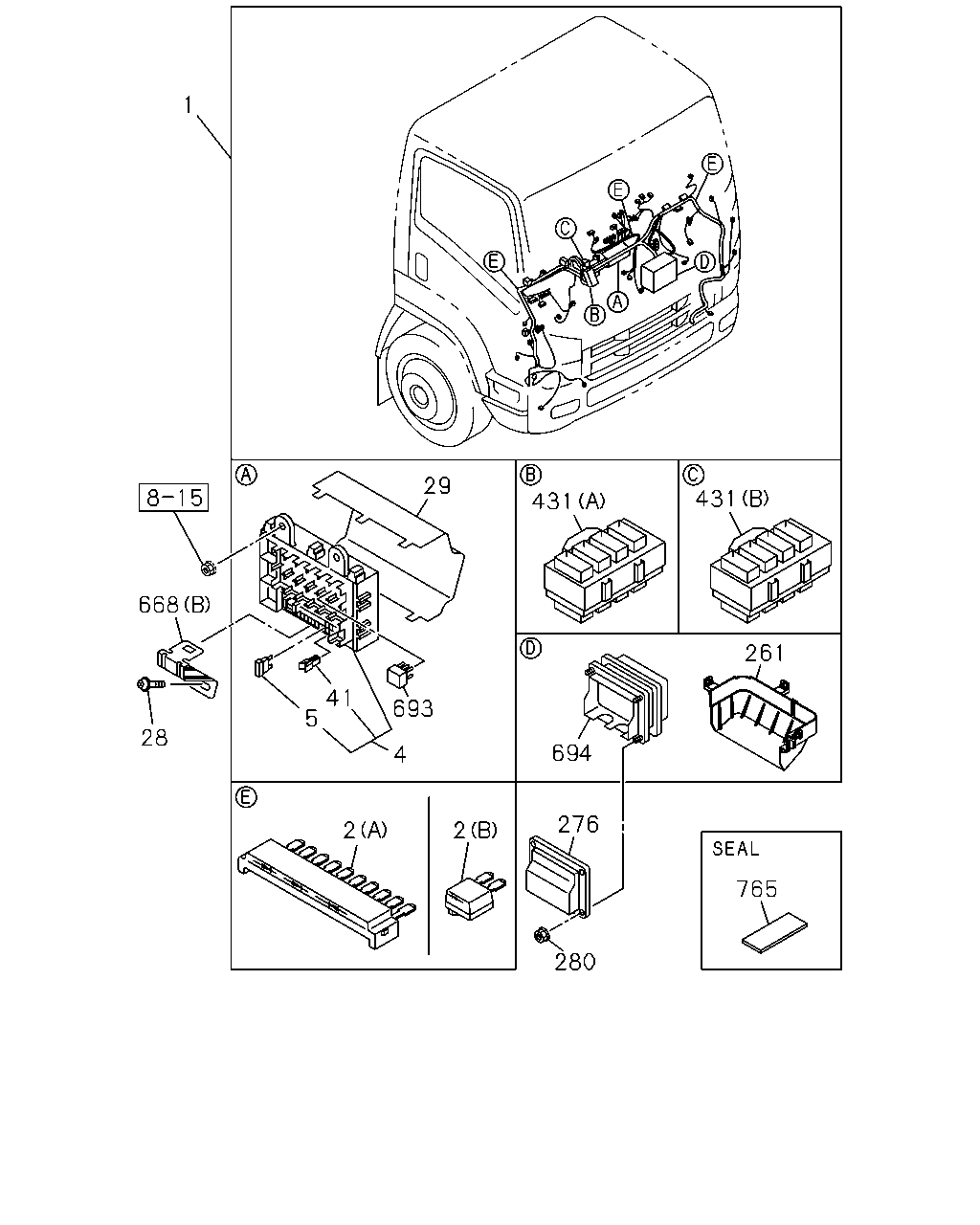

çizim 381989
668 28 5 693 4 41 29 431 694 261 431 765 276 280 2 2 1
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98204-020-1 01 1 1310-
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98204-018-1 01 1 1310-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98204-021-1 01 1 1310-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98204-019-1 01 1 1310-
2 DIODE; CABLE HARNESS
(A) BLACK 10P 		1-82699-703-0 01 1 1310-
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 03 1 1310-
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1310-
5 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 1310-
5 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 1310-
5 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 1310-
5 FUSE; FACIA HARNESS
25A WHITE 		8-98062-982-0 AR 1 1310-
28 SCREW; FUSE BOX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) T25 M5X12 TAPPING HEXALOBULAR 		8-98081-722-0 01 1 1310-
29 COVER; FUSE BOX 8-98056-968-0 01 1 1310-
41 PULLER; FUSE 8-98054-260-0 01 1 1310-
261 COVER; CONNECTOR BOX 8-98065-986-1 01 1 1310-
276 COVER; BOX,FRAME HARNESS 8-98034-039-1 01 1 1310-
280 NUT; BOX ASM FIX
M6 FLANGE 		0-91180-106-0 04 1 1310-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1310-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1310-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 1310-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1310-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 1310-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1310-
431 CONNECTOR; JOINT
(E) 6P BLACK 		8-97616-194-0 03 1 1310-
431 CONNECTOR; JOINT
(E) 6P LIGHT GRAY 		8-97616-195-0 01 1 1310-
431 CONNECTOR; JOINT
(H) 10P LIGHT GRAY 		8-97616-198-0 03 1 1310-
668 BRACKET; HARNESS
(E) 		8-98009-245-0 01 1 1310-1408
668 BRACKET; HARNESS
(E) 		8-98273-295-0 01 1 1409-
668 BRACKET; HARNESS
(F) 		8-98011-484-0 01 1 1310-
668 BRACKET; HARNESS
(A) 		8-98024-765-0 01 1 1310-
668 BRACKET; HARNESS
(H) 		8-98061-780-0 01 1 1310-
668 BRACKET; HARNESS
(I) 		8-98200-797-3 01 1 1310-
668 BRACKET; HARNESS
(Q) 		8-98240-490-0 01 1 1310-
668 BRACKET; HARNESS
(R) 		8-98240-491-0 01 1 1310-
668 BRACKET; HARNESS
(G) L=55 		1-47475-304-0 01 1 1310-
668 BRACKET; HARNESS
(M) 		1-82698-569-0 01 1 1310-
668 BRACKET; HARNESS
(C) 		8-97616-305-0 01 1 1310-1502
668 BRACKET; HARNESS
(S) 		8-98254-592-0 01 1 1503-
668 BRACKET; HARNESS
(D) 		8-97619-097-1 01 1 1310-
668 BRACKET; HARNESS
(N) 		8-98047-276-1 01 1 1310-
668 BRACKET; HARNESS
(B) 		8-98095-653-2 01 1 1310-
668 BRACKET; HARNESS
(J) 		8-98158-109-1 01 1 1310-
668 BRACKET; HARNESS
(O) 		8-98168-184-0 01 1 1310-
668 BRACKET; HARNESS
(P) 		8-98171-607-0 02 1 1310-
668 BRACKET; HARNESS
(L) 		8-98207-041-0 01 1 1310-
668 BRACKET; HARNESS
(K) 		8-98207-043-0 01 1 1310-
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1310-
694 BOX ASM; CONNECTOR 8-98057-771-0 01 1 1310-
765 TAPE
100X40 		1-72498-022-1 01 1 1409-

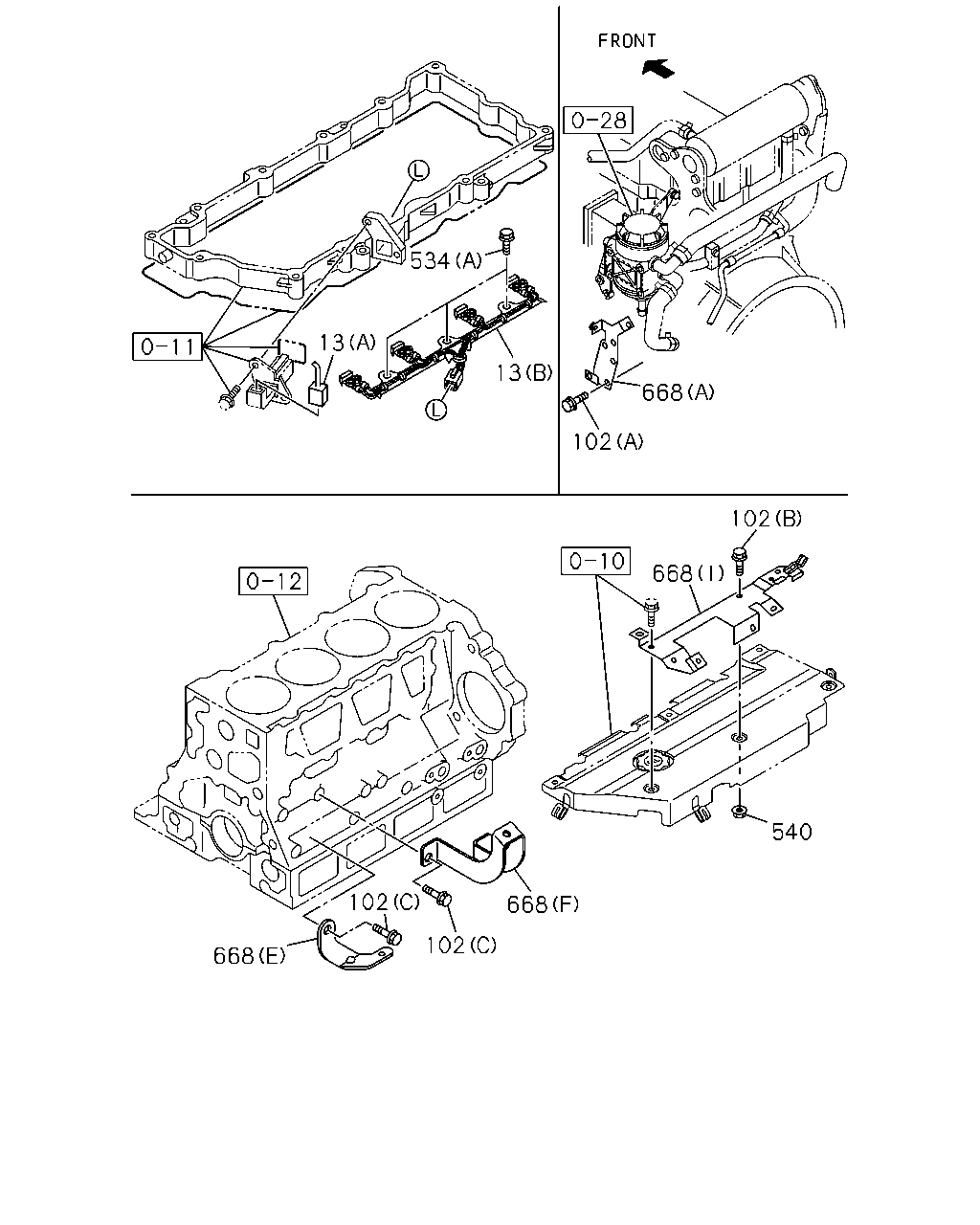

çizim 381990
13 534 13 102 668 102 668 540 668 102 102 668
BalonParca AdiParca NoAdetTipApplied Date
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A) 		8-98209-665-4 01 1 1310-1406
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A) 		8-98274-087-0 01 1 1407-
13 HARNESS; ENG
(B) 		8-98203-297-0 01 1 1310-
13 HARNESS; ENG
GENERATOR 24V50A(K89) (A) 		8-98209-664-4 01 1 1310-1406
13 HARNESS; ENG
GENERATOR 24V50A(K89) (A) 		8-98274-086-0 01 1 1407-
102 BOLT; BRKT,HARNESS CONNECTOR
(A) M8X16 FLANGE 		0-28050-816-0 03 1 1310-
102 BOLT; BRKT,HARNESS CONNECTOR
(C) M10X16 FLANGE 		0-28151-016-0 03 1 1310-
102 BOLT; BRKT,HARNESS CONNECTOR
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1310-
534 BOLT
(A) M10X55 FLANGE 		8-97365-449-0 03 1 1310-
534 BOLT
(C) M8X25 FLANGE 		0-28650-825-0 01 1 1310-
534 BOLT
(B) M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1310-
540 NUT; BRKT FIX
M6 FLANGE 		0-91180-106-0 03 1 1310-
668 BRACKET; HARNESS
(E) 		8-98009-245-0 01 1 1310-1408
668 BRACKET; HARNESS
(E) 		8-98273-295-0 01 1 1409-
668 BRACKET; HARNESS
(F) 		8-98011-484-0 01 1 1310-
668 BRACKET; HARNESS
(A) 		8-98024-765-0 01 1 1310-
668 BRACKET; HARNESS
(H) 		8-98061-780-0 01 1 1310-
668 BRACKET; HARNESS
(I) 		8-98200-797-3 01 1 1310-
668 BRACKET; HARNESS
(Q) 		8-98240-490-0 01 1 1310-
668 BRACKET; HARNESS
(R) 		8-98240-491-0 01 1 1310-
668 BRACKET; HARNESS
(G) L=55 		1-47475-304-0 01 1 1310-
668 BRACKET; HARNESS
(M) 		1-82698-569-0 01 1 1310-
668 BRACKET; HARNESS
(C) 		8-97616-305-0 01 1 1310-1502
668 BRACKET; HARNESS
(S) 		8-98254-592-0 01 1 1503-
668 BRACKET; HARNESS
(D) 		8-97619-097-1 01 1 1310-
668 BRACKET; HARNESS
(N) 		8-98047-276-1 01 1 1310-
668 BRACKET; HARNESS
(B) 		8-98095-653-2 01 1 1310-
668 BRACKET; HARNESS
(J) 		8-98158-109-1 01 1 1310-
668 BRACKET; HARNESS
(O) 		8-98168-184-0 01 1 1310-
668 BRACKET; HARNESS
(P) 		8-98171-607-0 02 1 1310-
668 BRACKET; HARNESS
(L) 		8-98207-041-0 01 1 1310-
668 BRACKET; HARNESS
(K) 		8-98207-043-0 01 1 1310-

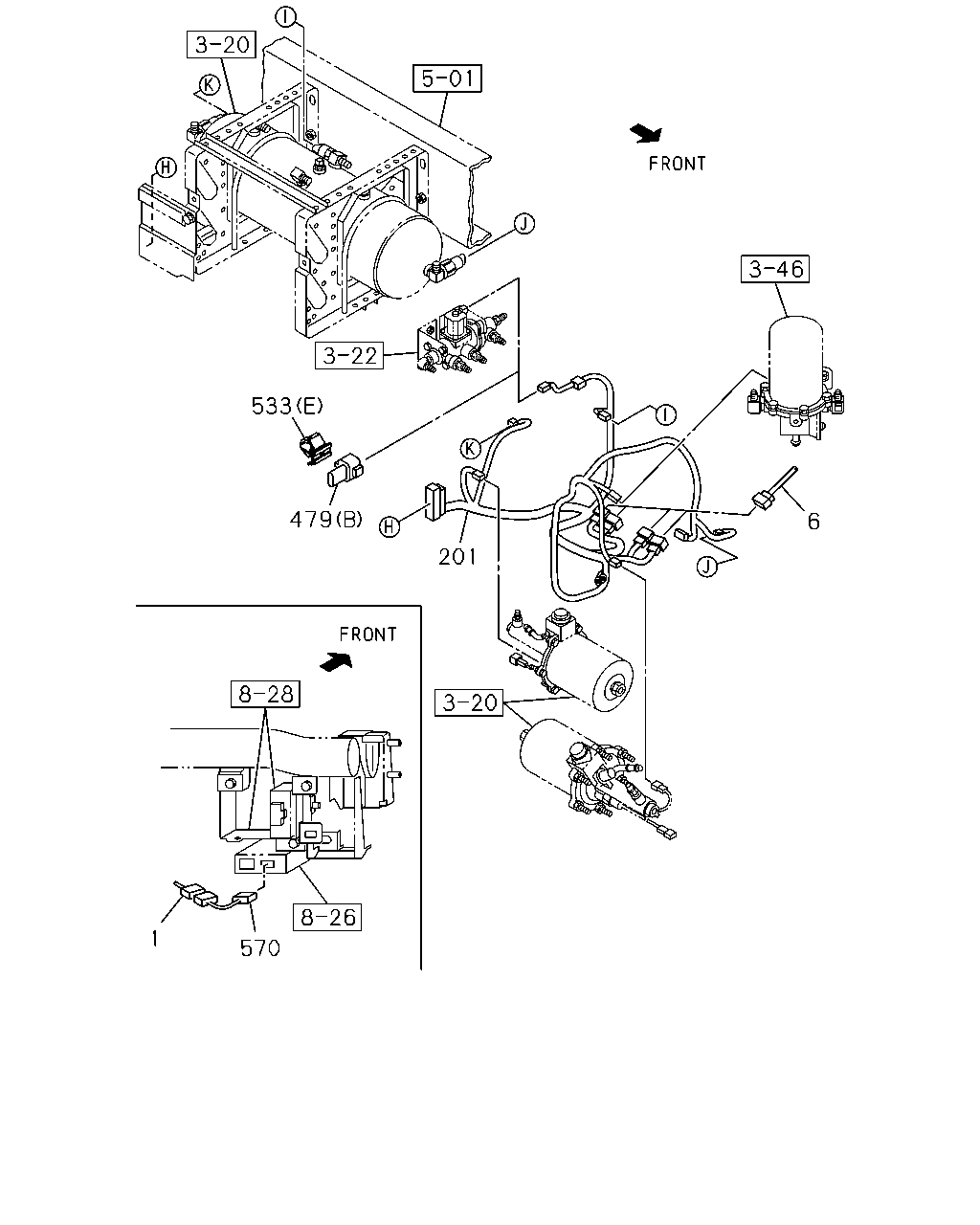

çizim 382032
201 6 533 479 1 570
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98204-020-1 01 1 1310-
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98204-018-1 01 1 1310-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98204-021-1 01 1 1310-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98204-019-1 01 1 1310-
6 HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98223-850-3 01 1 1310-
6 HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-851-3 01 1 1310-
201 HARNESS; AIR TANK
THROTTLE CONTROL SYSTEM(6XH) 		8-98156-704-2 01 1 1310-
201 HARNESS; AIR TANK
EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98156-705-2 01 1 1310-
479 CAP; CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		1-82690-667-0 01 1 1310-
479 CAP; CONNECTOR
EXC. H.S.A SYSTEM<6EP> (B) 		1-82691-191-0 01 1 1310-
533 CLIP
(D) L=350 		1-09707-183-0 01 1 1310-
533 CLIP
PTO CONTROL<SV6> (D) L=350 		1-09707-183-0 01 1 1310-
533 CLIP
WHEEL BASE 4000MM(40W) (M) ID=14 L=44 		9-09917-427-0 11 1 1310-
533 CLIP
WHEEL BASE 4600MM(46W) (M) ID=14 L=44 		9-09917-427-0 15 1 1310-
533 CLIP
WHEEL BASE 4900MM(49W) (M) ID=14 L=44 		9-09917-427-0 16 1 1310-
533 CLIP
WHEEL BASE 5300MM(53W) (M) ID=14 L=44 		9-09917-427-0 18 1 1310-
533 CLIP
TRANSMISSION CONTROL-SMOOTHER(8GF) (N) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1310-
533 CLIP
TRANSMISSION CONTROL-SMOOTHER(8GF) (G) ID=35 L=50 		1-09701-214-0 01 1 1310-
533 CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (I) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1310-
533 CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=32 L=50 		1-09701-055-1 01 1 1310-
533 CLIP
(B) ID=16 H=60 L=32.5 		1-09700-214-0 01 1 1310-
533 CLIP
(A) ID=11 L=41 		1-09700-403-0 01 1 1310-
533 CLIP
(J) L=250 		1-09707-126-0 02 1 1310-
533 CLIP
(E) OD=9 H=6 		1-09709-178-0 02 1 1310-
533 CLIP
(L) OD=9 H=9.5 		1-09709-179-0 01 1 1310-
533 CLIP
(F) ID=10 & 10 		1-09709-277-1 03 1 1310-
533 CLIP
(O) ID=10 & 12 		1-09709-278-1 01 1 1310-
533 CLIP
(P) ID=10 & 15 		1-09709-279-1 01 1 1310-
533 CLIP
(H) ID=5-12 L=18 		1-09709-287-0 02 1 1310-
533 CLIP
(K) L=250 		5-09707-030-1 03 1 1310-
533 CLIP
(M) ID=14 L=44 		9-09917-427-0 01 1 1310-
533 CLIP
EXC. H.S.A SYSTEM<6EP> (E) OD=9 H=6 		1-09709-178-0 01 1 1310-
570 HARNESS; SPEED SENSOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98058-327-1 01 1 1310-
570 HARNESS; SPEED SENSOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98091-562-0 01 1 1310-

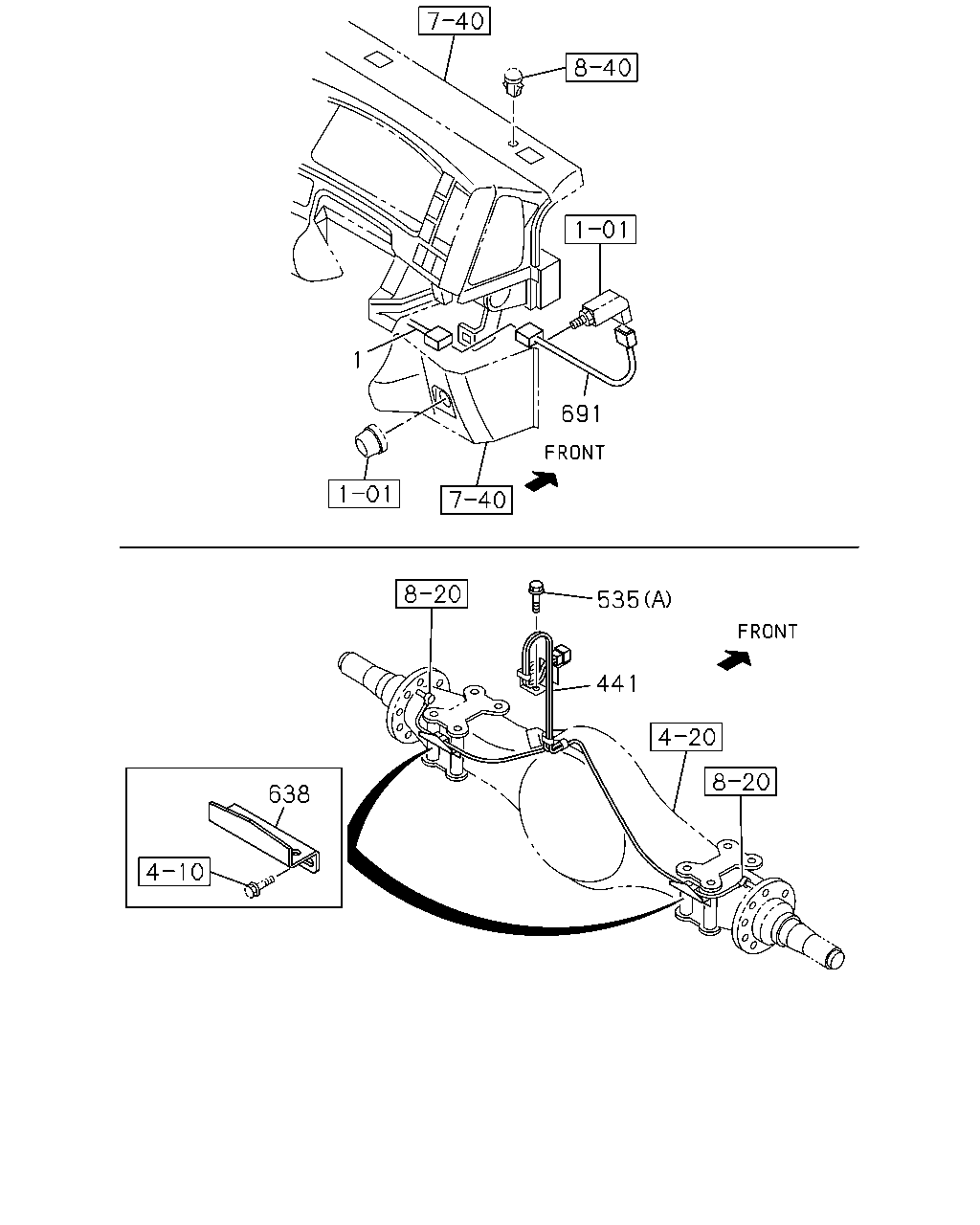

çizim 382107
691 441 638 535 1
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98204-020-1 01 1 1310-
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98204-018-1 01 1 1310-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98204-021-1 01 1 1310-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98204-019-1 01 1 1310-
441 HARNESS; CABLE,SPEED SENSOR 8-98061-652-0 01 1 1310-
535 BOLT; BRKT FIX
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1310-
535 BOLT; BRKT FIX
(C) M10X30 FLANGE 		0-28651-030-0 01 1 1310-
535 BOLT; BRKT FIX
(A) M8X10 W/LK WASHER 		8-98029-928-0 02 1 1310-
638 BRACKET; SPD SENSOR 8-98012-580-1 02 1 1310-
691 HARNESS; IDLE CONT 8-98049-014-2 01 1 1310-

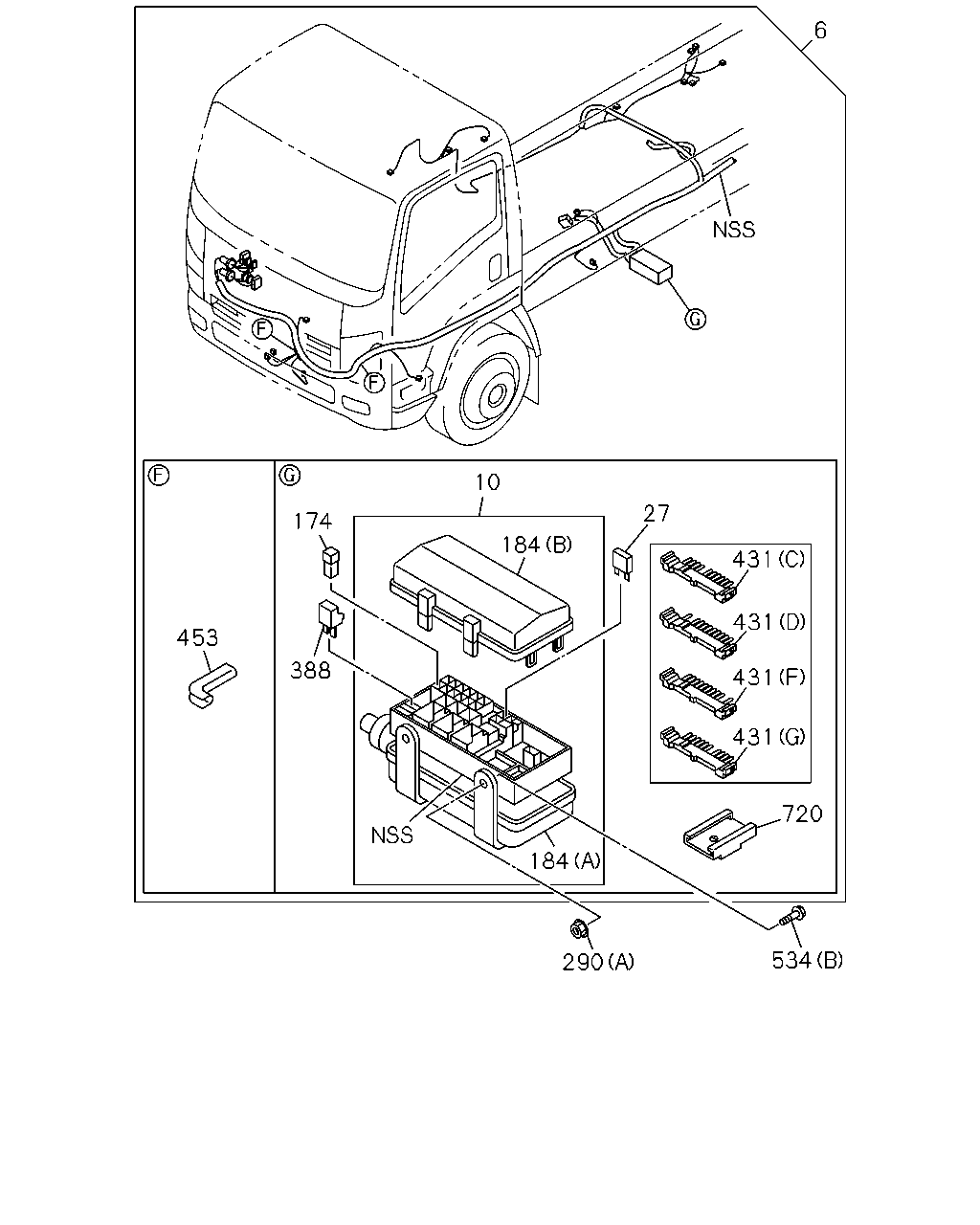

çizim 382174
6 453 174 388 10 184 27 431 431 431 431 720 534 290 184
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98223-850-3 01 1 1310-
6 HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-851-3 01 1 1310-
10 BOX; FUSE,HARNESS 8-98030-762-0 01 1 1310-
27 FUSE UNIT
10A RED 		8-98054-257-0 01 1 1310-
27 FUSE UNIT
15A BLUE 		8-98054-258-0 01 1 1310-
27 FUSE UNIT
20A YELLOW 		8-98054-259-0 01 1 1310-
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 01 1 1310-
174 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 02 1 1310-
174 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 02 1 1310-
174 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 03 1 1310-
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 02 1 1310-
184 COVER; RELAY & FUSE BOX
(A) 		8-98030-766-0 01 1 1310-
184 COVER; RELAY & FUSE BOX
(B) 		8-98030-767-1 01 1 1310-
290 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 06 1 1310-
290 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 04 1 1310-
388 DIODE; RELAY BOX
BLACK 2P-1.5A 		8-94422-639-1 01 1 1310-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1310-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1310-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 1310-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1310-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 1310-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1310-
431 CONNECTOR; JOINT
(E) 6P BLACK 		8-97616-194-0 03 1 1310-
431 CONNECTOR; JOINT
(E) 6P LIGHT GRAY 		8-97616-195-0 01 1 1310-
431 CONNECTOR; JOINT
(H) 10P LIGHT GRAY 		8-97616-198-0 03 1 1310-
453 PROTECTOR; HARNESS 1-82699-709-0 03 1 1310-
534 BOLT
(A) M10X55 FLANGE 		8-97365-449-0 03 1 1310-
534 BOLT
(C) M8X25 FLANGE 		0-28650-825-0 01 1 1310-
534 BOLT
(B) M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1310-
720 ATTACHMENT; CONNECTOR 1-82699-688-0 03 1 1310-

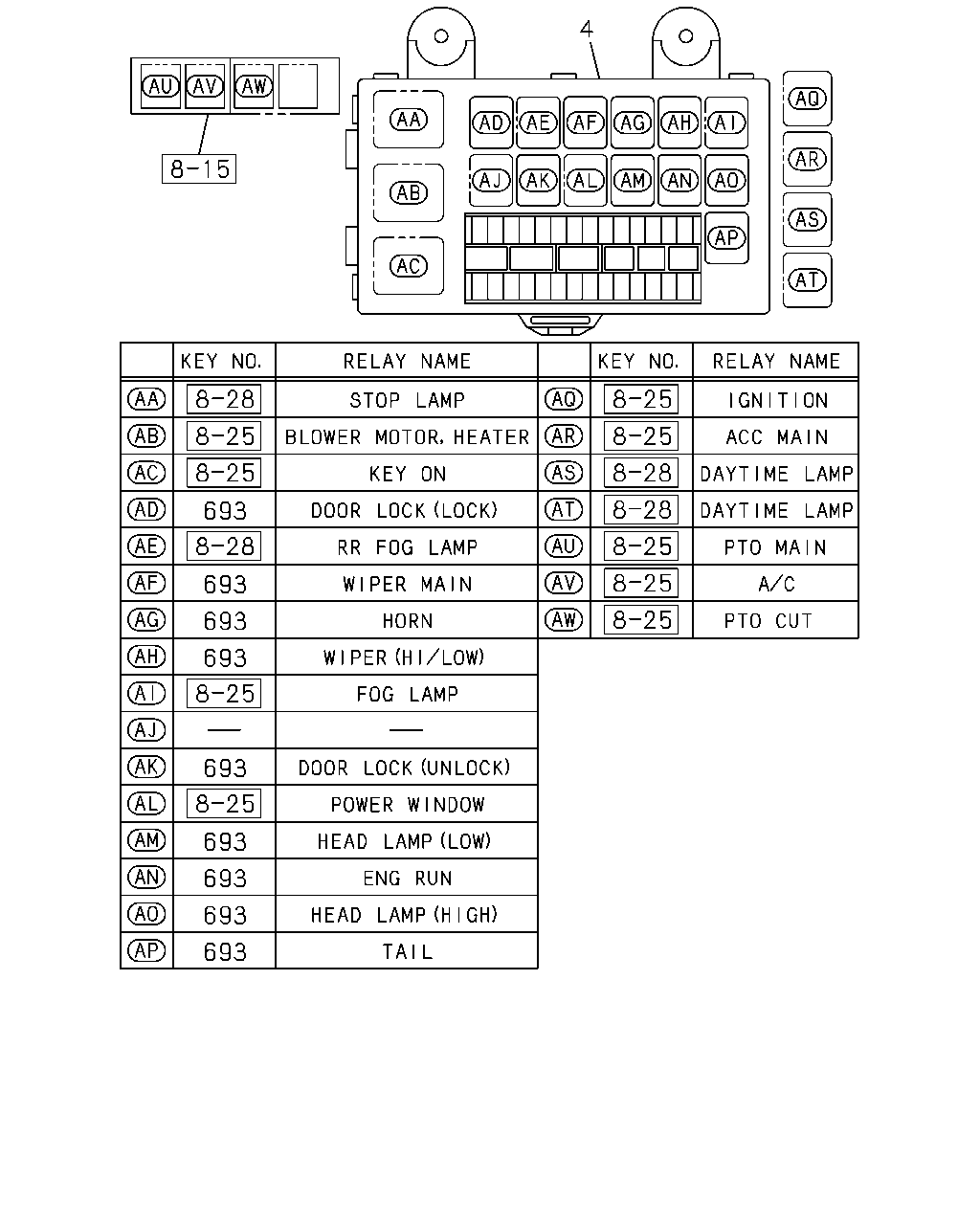

çizim 382177
4 693 693 693 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1310-
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1310-

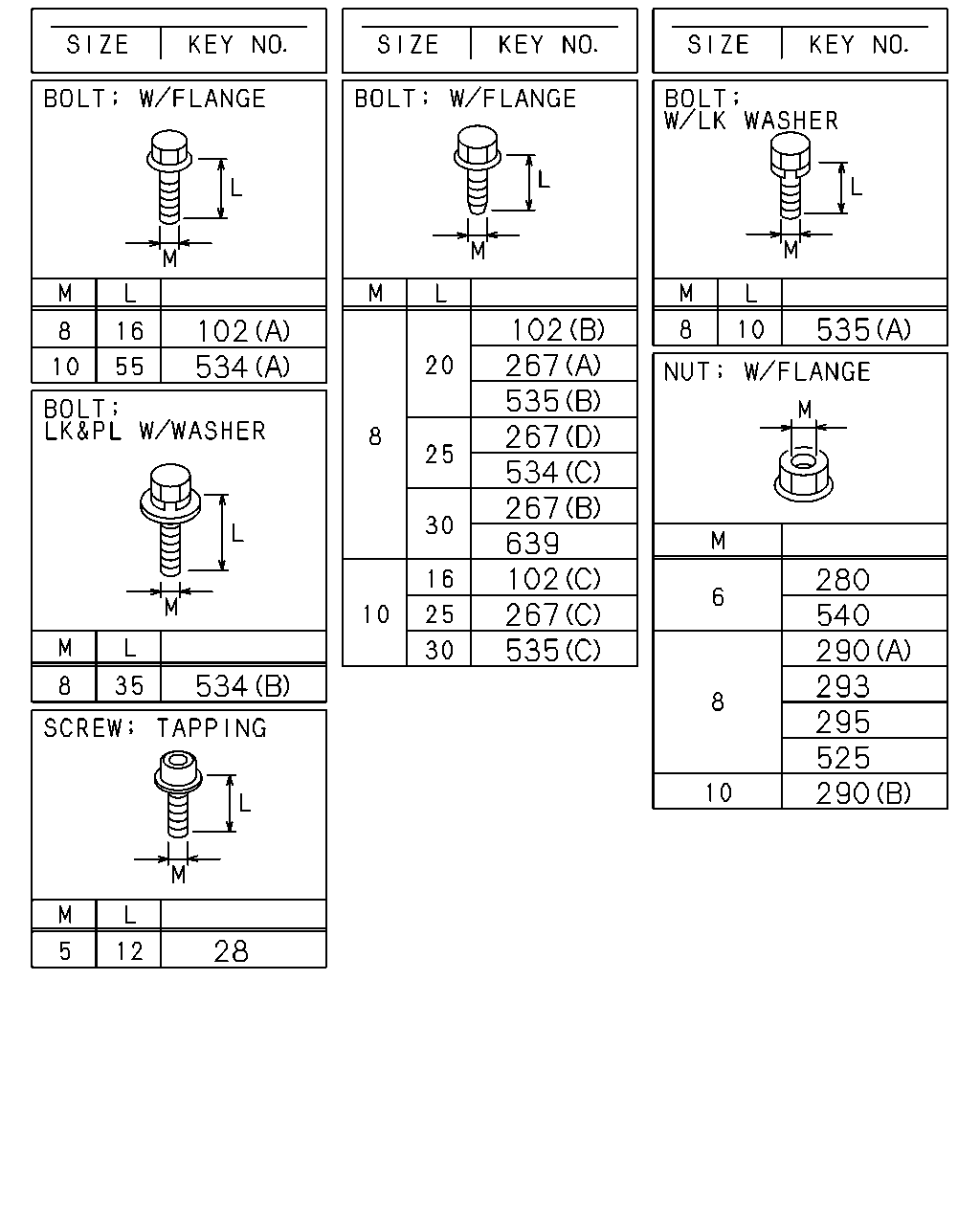

çizim 382204
102 102 534 534 28 535 267 102 639 267 534 267 535 267 280 290 540 293 295 525 290 535
BalonParca AdiParca NoAdetTipApplied Date
28 SCREW; FUSE BOX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) T25 M5X12 TAPPING HEXALOBULAR 		8-98081-722-0 01 1 1310-
102 BOLT; BRKT,HARNESS CONNECTOR
(A) M8X16 FLANGE 		0-28050-816-0 03 1 1310-
102 BOLT; BRKT,HARNESS CONNECTOR
(C) M10X16 FLANGE 		0-28151-016-0 03 1 1310-
102 BOLT; BRKT,HARNESS CONNECTOR
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1310-
267 BOLT; BRKT
(D) M8X25 FLANGE 		0-28650-825-0 01 1 1310-
267 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1310-
267 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1310-
267 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 1310-
267 BOLT; BRKT
(D) M8X25 FLANGE 		0-28650-825-0 01 1 1310-
280 NUT; BOX ASM FIX
M6 FLANGE 		0-91180-106-0 04 1 1310-
290 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 06 1 1310-
290 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 04 1 1310-
293 NUT
M8 FLANGE 		0-91180-108-0 01 1 1310-
295 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1310-
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1310-
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1310-
534 BOLT
(A) M10X55 FLANGE 		8-97365-449-0 03 1 1310-
534 BOLT
(C) M8X25 FLANGE 		0-28650-825-0 01 1 1310-
534 BOLT
(B) M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1310-
535 BOLT; BRKT FIX
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1310-
535 BOLT; BRKT FIX
(C) M10X30 FLANGE 		0-28651-030-0 01 1 1310-
535 BOLT; BRKT FIX
(A) M8X10 W/LK WASHER 		8-98029-928-0 02 1 1310-
540 NUT; BRKT FIX
M6 FLANGE 		0-91180-106-0 03 1 1310-
639 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 1310-
639 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 1310-

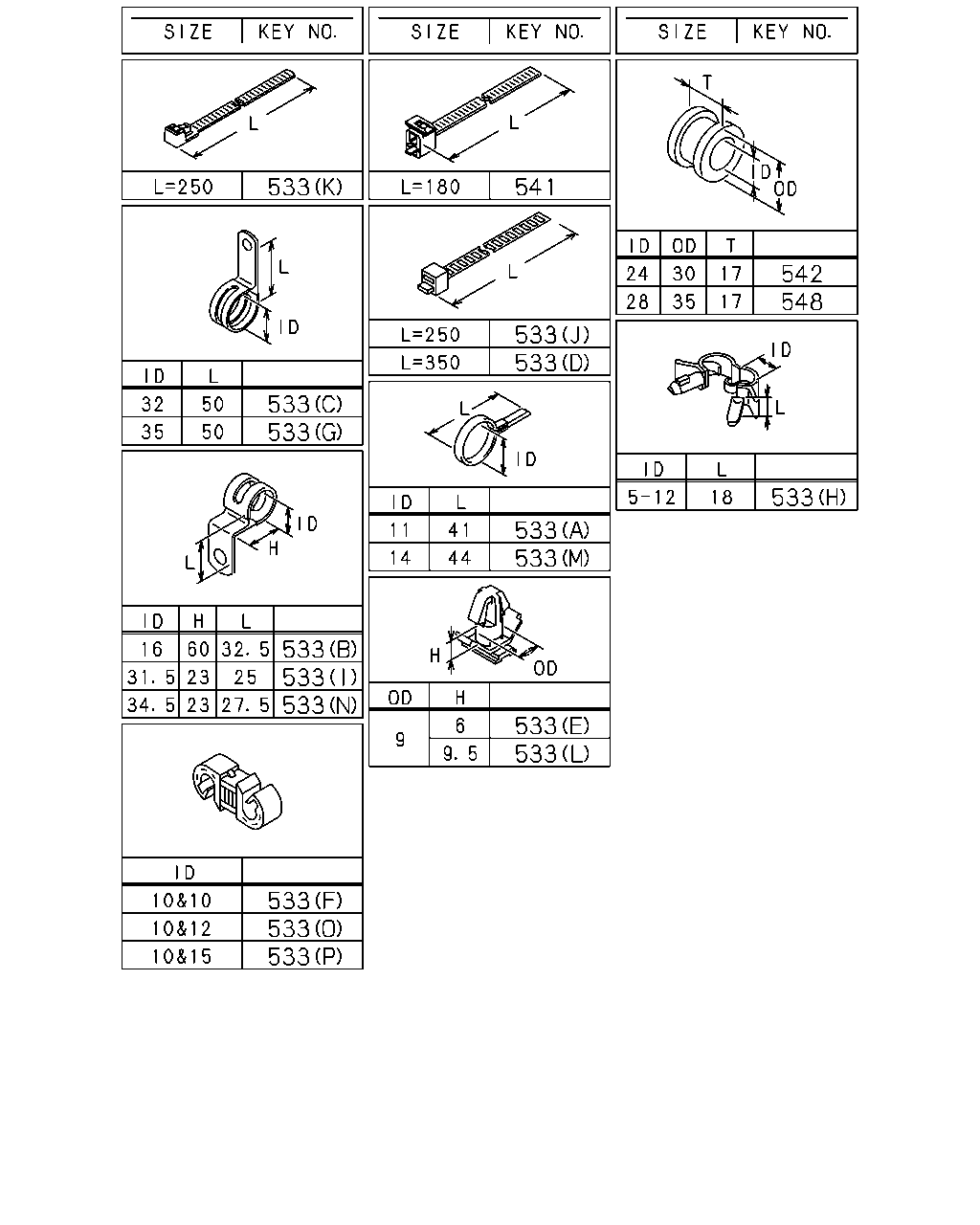

çizim 382281
533 533 533 533 533 533 533 533 533 541 533 533 533 533 533 533 542 533 548
BalonParca AdiParca NoAdetTipApplied Date
533 CLIP
(D) L=350 		1-09707-183-0 01 1 1310-
533 CLIP
PTO CONTROL<SV6> (D) L=350 		1-09707-183-0 01 1 1310-
533 CLIP
WHEEL BASE 4000MM(40W) (M) ID=14 L=44 		9-09917-427-0 11 1 1310-
533 CLIP
WHEEL BASE 4600MM(46W) (M) ID=14 L=44 		9-09917-427-0 15 1 1310-
533 CLIP
WHEEL BASE 4900MM(49W) (M) ID=14 L=44 		9-09917-427-0 16 1 1310-
533 CLIP
WHEEL BASE 5300MM(53W) (M) ID=14 L=44 		9-09917-427-0 18 1 1310-
533 CLIP
TRANSMISSION CONTROL-SMOOTHER(8GF) (N) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1310-
533 CLIP
TRANSMISSION CONTROL-SMOOTHER(8GF) (G) ID=35 L=50 		1-09701-214-0 01 1 1310-
533 CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (I) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1310-
533 CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=32 L=50 		1-09701-055-1 01 1 1310-
533 CLIP
(B) ID=16 H=60 L=32.5 		1-09700-214-0 01 1 1310-
533 CLIP
(A) ID=11 L=41 		1-09700-403-0 01 1 1310-
533 CLIP
(J) L=250 		1-09707-126-0 02 1 1310-
533 CLIP
(E) OD=9 H=6 		1-09709-178-0 02 1 1310-
533 CLIP
(L) OD=9 H=9.5 		1-09709-179-0 01 1 1310-
533 CLIP
(F) ID=10 & 10 		1-09709-277-1 03 1 1310-
533 CLIP
(O) ID=10 & 12 		1-09709-278-1 01 1 1310-
533 CLIP
(P) ID=10 & 15 		1-09709-279-1 01 1 1310-
533 CLIP
(H) ID=5-12 L=18 		1-09709-287-0 02 1 1310-
533 CLIP
(K) L=250 		5-09707-030-1 03 1 1310-
533 CLIP
(M) ID=14 L=44 		9-09917-427-0 01 1 1310-
533 CLIP
EXC. H.S.A SYSTEM<6EP> (E) OD=9 H=6 		1-09709-178-0 01 1 1310-
541 CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=180 		1-09707-162-1 01 1 1310-
542 GROMMET; HARNESS
ID=24 OD=30 T=17 		9-09956-092-1 01 1 1310-
542 GROMMET; HARNESS
ID=24 OD=30 T=17 		9-09956-092-1 02 1 1310-
548 GROMMET
ID=28 OD=35 T=17 		9-09956-256-2 03 1 1310-

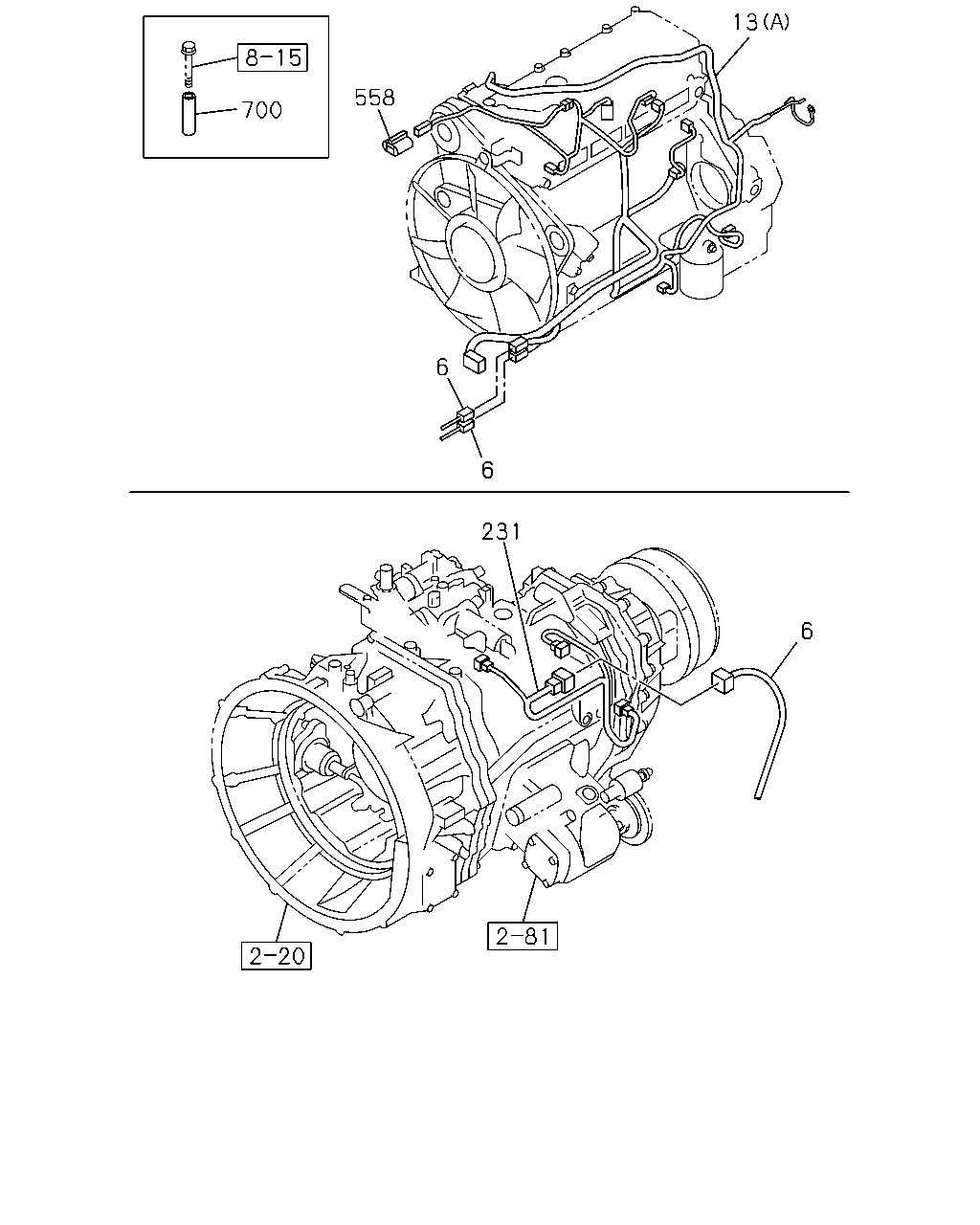

çizim 382339
700 558 6 6 13 231 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98223-850-3 01 1 1310-
6 HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-851-3 01 1 1310-
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A) 		8-98209-665-4 01 1 1310-1406
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A) 		8-98274-087-0 01 1 1407-
13 HARNESS; ENG
(B) 		8-98203-297-0 01 1 1310-
13 HARNESS; ENG
GENERATOR 24V50A(K89) (A) 		8-98209-664-4 01 1 1310-1406
13 HARNESS; ENG
GENERATOR 24V50A(K89) (A) 		8-98274-086-0 01 1 1407-
231 HARNESS; TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97620-317-3 01 1 1310-
231 HARNESS; TRANS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98151-320-1 01 1 1310-
558 CONNECTOR; HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-82690-668-0 01 1 1310-
700 TUBE; DISTANCE
ID=9 OD=18 T=5 		9-14149-173-0 01 1 1310-
700 TUBE; DISTANCE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) L=51 		1-11369-157-0 02 1 1310-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
