◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11547 - FRR RHD EUROPE EURO6 SPACECAB ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#128629) — 461 parça

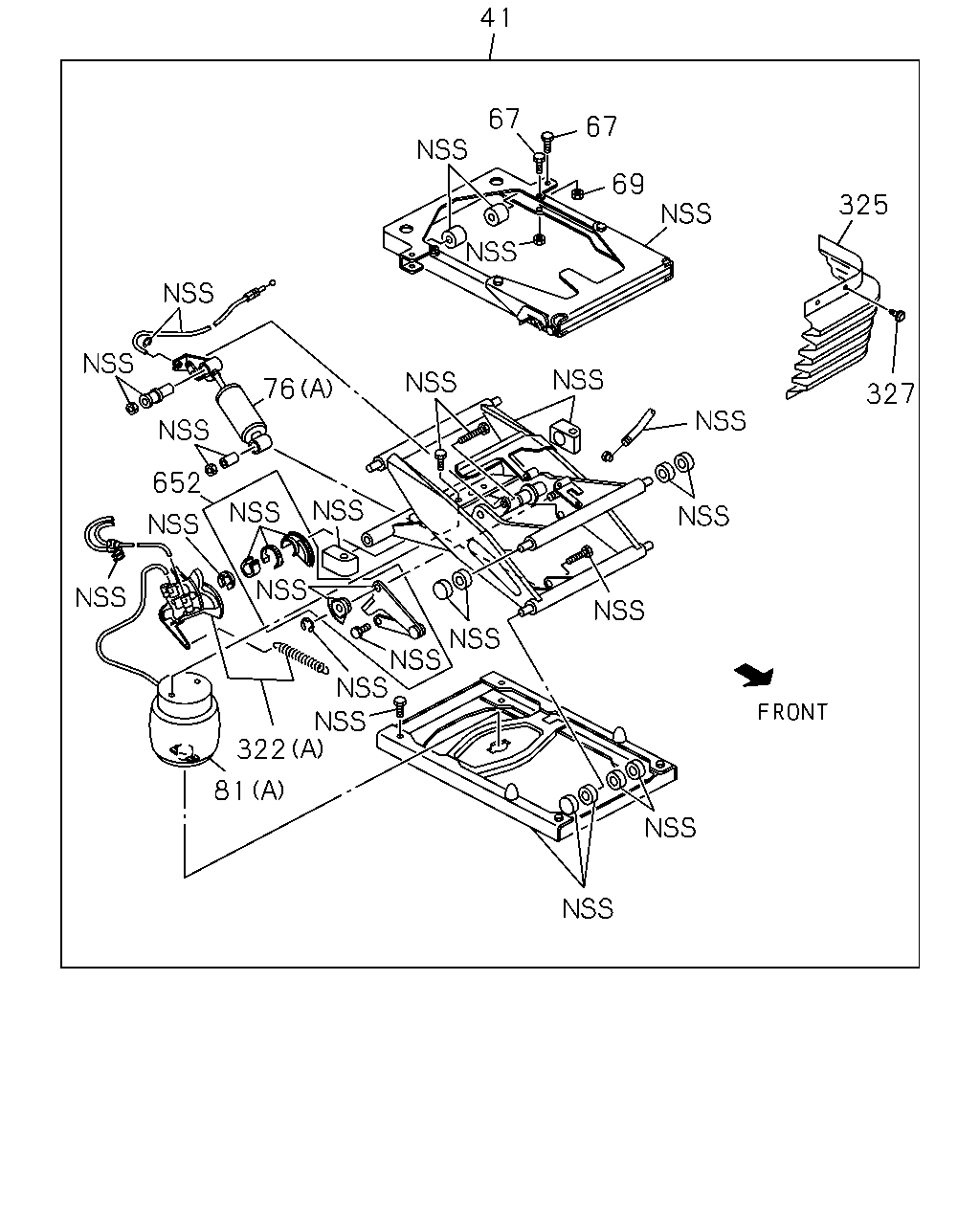

çizim 379686
67 41 67 69 325 327 322 81 652 76
BalonParca AdiParca NoAdetTipApplied Date
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> 		8-98302-797-0 01 1 1501-1508
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98195-063-0 01 1 1310-1412
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> 		8-98195-063-1 01 1 1501-
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 1310-
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 1310-
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-139-0 01 1 1310-1506
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-139-0 01 1 1510-
76 DAMPER; AIR SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98097-999-0 01 1 1310-1412
76 DAMPER; AIR SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98097-999-0 01 1 1501-1508
76 DAMPER; AIR SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A) 		8-98097-999-0 01 1 1509-
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-151-2 01 1 1310-1312
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> (B) 		8-98242-816-0 01 1 1401-1506
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> (B) 		8-98242-816-0 01 1 1510-
81 SPRING; AIR
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98098-000-0 01 1 1310-1412
81 SPRING; AIR
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98098-000-0 01 1 1501-1508
81 SPRING; AIR
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A) 		8-98098-000-0 01 1 1509-
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-186-3 01 1 1310-1506
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-186-3 01 1 1510-
322 VALVE; AIR SPRING
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98098-001-0 01 1 1310-1412
322 VALVE; AIR SPRING
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A) 		8-98098-001-0 01 1 1501-1508
322 VALVE; AIR SPRING
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A) 		8-98331-314-0 01 1 1509-
322 VALVE; AIR SPRING
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> (A) 		8-98331-314-0 01 1 1501-1508
325 COVER; SUSPENSION DEVICE
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98098-003-0 01 1 1310-1412
325 COVER; SUSPENSION DEVICE
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98098-003-0 01 1 1501-1508
325 COVER; SUSPENSION DEVICE
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> 		8-98098-003-0 01 1 1509-
327 CLIP; COVER
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98098-004-0 01 1 1310-1412
327 CLIP; COVER
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98098-004-0 01 1 1501-1508
327 CLIP; COVER
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> 		8-98098-004-0 01 1 1509-
652 LOCK ASM; HEIGHT
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98098-002-0 01 1 1310-1412
652 LOCK ASM; HEIGHT
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98098-002-0 01 1 1501-1508
652 LOCK ASM; HEIGHT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> 		8-98098-002-0 01 1 1509-

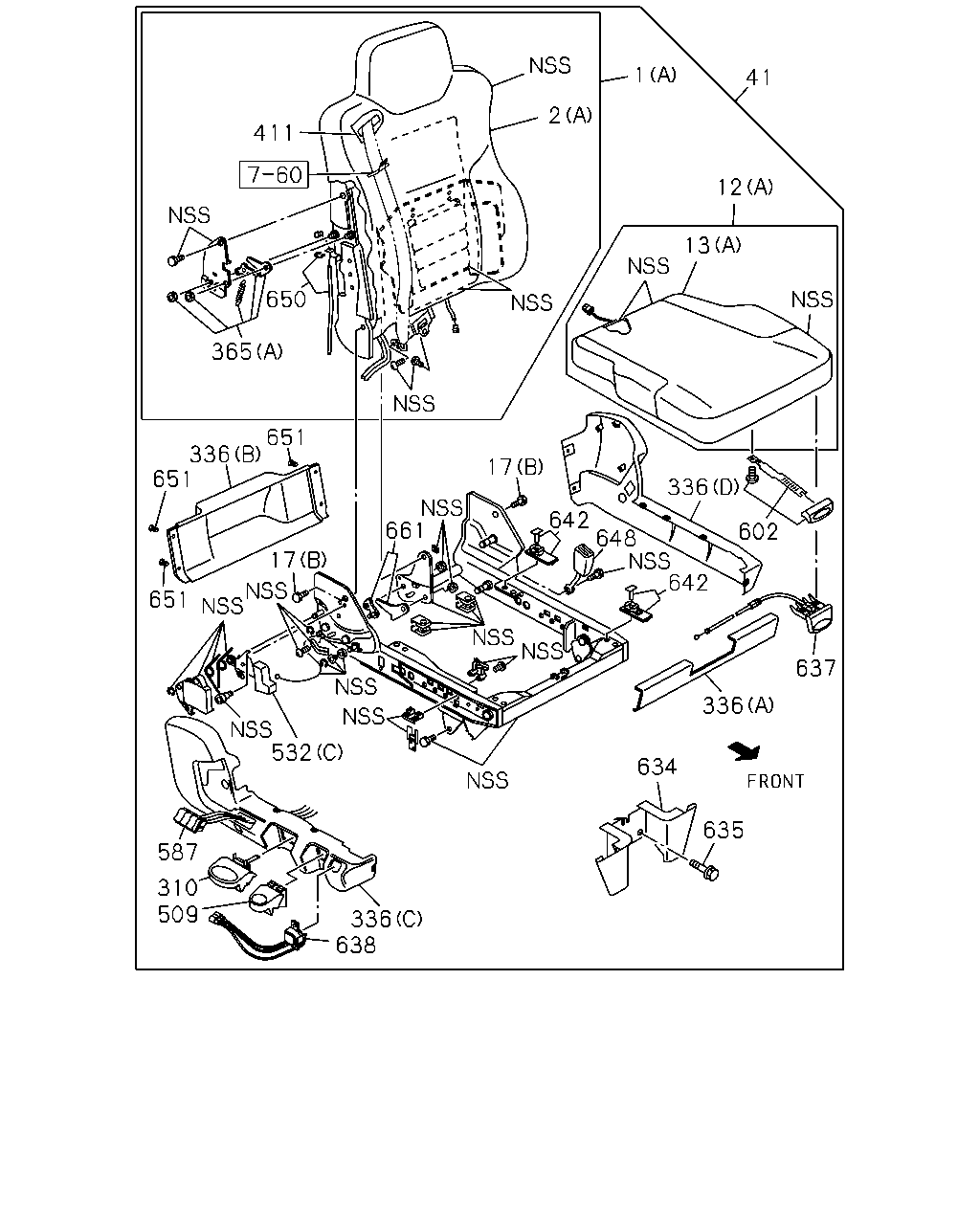

çizim 379759
41 1 2 411 650 365 13 12 336 17 661 17 651 651 336 651 642 648 642 602 637 336 634 635 532 587 310 509 638 336
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97421-407-1 01 1 1310-1512
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97466-622-0 01 1 1601-
1 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98097-964-0 01 1 1310-1412
1 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A) 		8-98097-964-0 01 1 1501-
1 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> (A) 		8-98331-310-0 01 1 1501-1508
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97421-412-0 01 1 1310-
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98232-353-0 01 1 1310-1412
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98232-353-0 01 1 1501-1508
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A) 		8-98232-353-0 01 1 1509-
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97421-398-2 01 1 1310-1512
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97466-611-0 01 1 1601-
12 CUSHION; SEAT,FRT
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98098-006-0 01 1 1310-1412
12 CUSHION; SEAT,FRT
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98098-006-0 01 1 1501-1508
12 CUSHION; SEAT,FRT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A) 		8-98098-006-0 01 1 1509-
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97421-402-2 01 1 1310-
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98098-007-0 01 1 1310-1412
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98098-007-0 01 1 1501-1508
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A) 		8-98098-007-0 01 1 1509-
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56> (C) M10X20 		8-98062-661-0 02 1 1310-1506
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56> (C) M10X20 		8-98062-661-0 02 1 1510-
17 BOLT; RECLINING
DRIVER ISRINGHAUSEN SEAT<SJA> (B) 		8-98097-974-0 02 1 1310-1412
17 BOLT; RECLINING
DRIVER ISRINGHAUSEN SEAT<SJA> (B) 		8-98097-974-0 02 1 1501-1508
17 BOLT; RECLINING
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (B) 		8-98097-974-0 02 1 1509-
17 BOLT; RECLINING
(A) M8X20 		8-98092-334-0 02 1 1310-
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> 		8-98302-797-0 01 1 1501-1508
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98195-063-0 01 1 1310-1412
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> 		8-98195-063-1 01 1 1501-
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98097-992-0 01 1 1310-1412
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98097-992-0 01 1 1501-1508
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> 		8-98097-992-0 01 1 1509-
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> (D) 		8-98331-313-0 01 1 1501-1508
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> (D) 		8-98097-978-0 01 1 1310-1412
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (D) 		8-98097-978-0 01 1 1501-1508
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (D) 		8-98331-313-0 01 1 1509-
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		8-98097-984-0 01 1 1310-1412
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		8-98097-984-0 01 1 1501-1508
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (C) 		8-98097-984-0 01 1 1509-
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98097-995-0 01 1 1310-1412
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98097-995-0 01 1 1501-1508
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A) 		8-98097-995-0 01 1 1509-
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> (B) 		8-98097-996-0 01 1 1310-1412
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> (B) 		8-98097-996-0 01 1 1501-1508
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (B) 		8-98097-996-0 01 1 1509-
365 LOCK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98097-972-0 01 1 1310-1412
365 LOCK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98097-972-0 01 1 1501-1508
365 LOCK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A) 		8-98097-972-0 01 1 1509-
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-312-0 01 1 1310-
411 GUIDE; SEAT BELT
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98097-967-0 01 1 1310-1412
411 GUIDE; SEAT BELT
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98097-967-0 01 1 1501-1508
411 GUIDE; SEAT BELT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> 		8-98097-967-0 01 1 1509-
509 LEVER; DAMPER
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98097-988-0 01 1 1310-1412
509 LEVER; DAMPER
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98097-988-0 01 1 1501-1508
509 LEVER; DAMPER
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> 		8-98097-988-0 01 1 1509-
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-203-0 01 1 1310-1506
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-203-0 01 1 1510-
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-204-1 01 1 1310-1506
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-204-1 01 1 1510-
532 LEVER ASM; TILT
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		8-98097-982-0 01 1 1310-1412
532 LEVER ASM; TILT
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		8-98097-982-0 01 1 1501-1508
532 LEVER ASM; TILT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (C) 		8-98097-982-0 01 1 1509-
587 VALVE; LUMBAR SUPPORT
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98097-986-0 01 1 1310-1412
587 VALVE; LUMBAR SUPPORT
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98097-986-0 01 1 1501-1508
587 VALVE; LUMBAR SUPPORT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> 		8-98097-986-0 01 1 1509-
602 KNOB; ADJ,SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98098-008-0 01 1 1310-1412
602 KNOB; ADJ,SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98098-008-0 01 1 1501-1508
602 KNOB; ADJ,SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> 		8-98098-008-0 01 1 1509-
634 COVER; CONNECTOR,SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98088-279-0 01 1 1310-
635 BOLT; COVER
DRIVER ISRINGHAUSEN SEAT<SJA> M6X16 		0-52000-616-0 02 1 1310-
637 LEVER; SLOPE ADJ
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98097-989-0 01 1 1310-1412
637 LEVER; SLOPE ADJ
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98097-989-0 01 1 1501-1508
637 LEVER; SLOPE ADJ
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> 		8-98097-989-0 01 1 1509-
638 VALVE; LOWERING
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98097-994-0 01 1 1310-1412
638 VALVE; LOWERING
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98097-994-0 01 1 1501-1508
638 VALVE; LOWERING
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> 		8-98097-994-0 01 1 1509-
642 SLIDER; CUSHION
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98192-932-0 04 1 1310-1412
642 SLIDER; CUSHION
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98192-932-0 04 1 1501-1508
642 SLIDER; CUSHION
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> 		8-98192-932-0 04 1 1509-
648 BUCKLE; SEAT BELT
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98097-976-0 01 1 1310-1412
648 BUCKLE; SEAT BELT
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98097-976-0 01 1 1501-1508
648 BUCKLE; SEAT BELT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> 		8-98097-976-0 01 1 1509-
650 CABLE
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98232-354-0 01 1 1310-1412
650 CABLE
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98232-354-0 01 1 1501-1508
650 CABLE
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> 		8-98232-354-0 01 1 1509-
651 RIVET
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98194-075-0 04 1 1310-1412
651 RIVET
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98194-075-0 04 1 1501-1508
651 RIVET
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> 		8-98194-075-0 04 1 1509-
661 LOCK ASM; RECLINING
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98097-980-0 01 1 1310-1412
661 LOCK ASM; RECLINING
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98097-980-0 01 1 1501-1508
661 LOCK ASM; RECLINING
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> 		8-98097-980-0 01 1 1509-

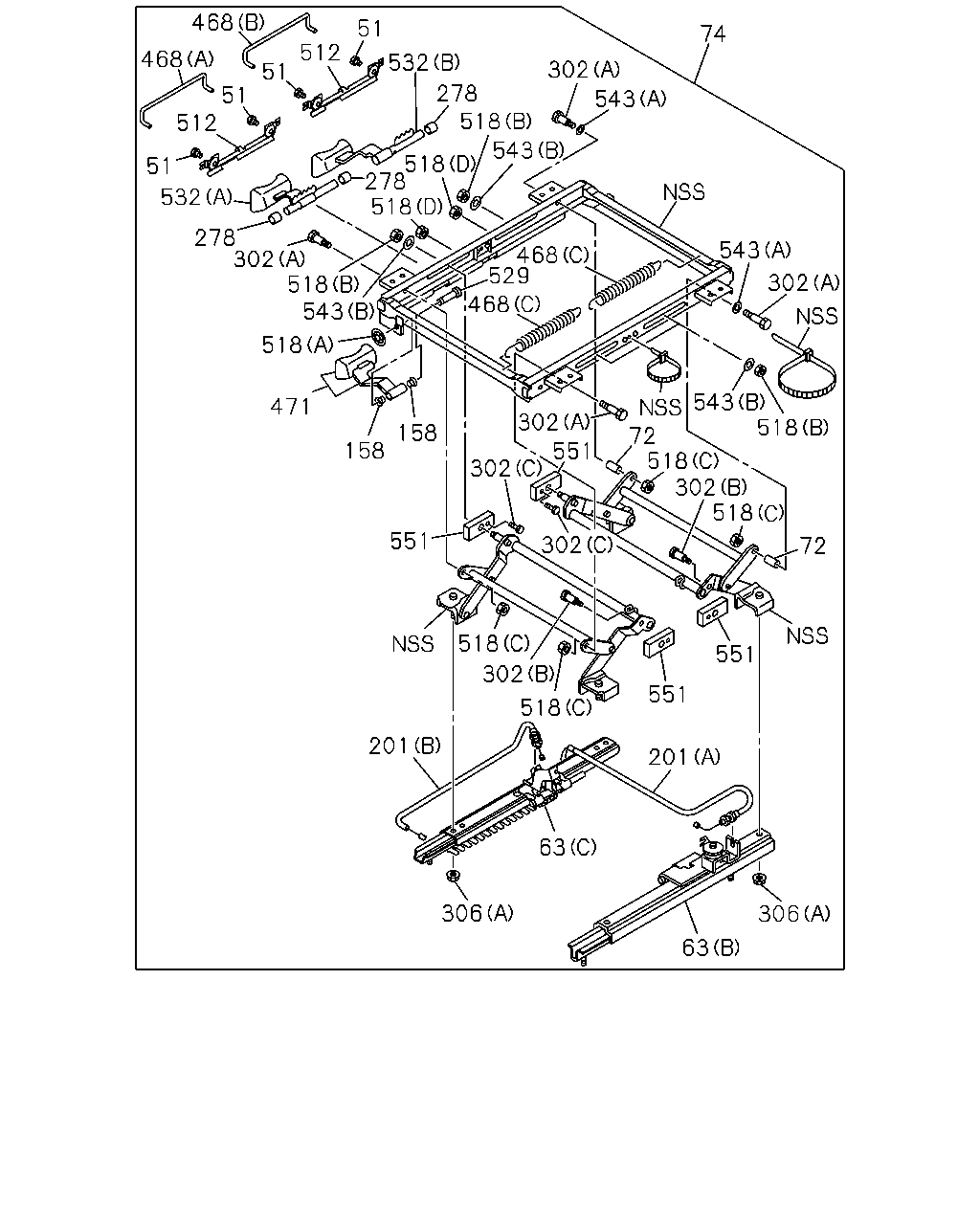

çizim 381614
74 543 518 302 72 551 551 201 63 63 306 518 302 518 201 306 551 302 518 302 518 72 543 551 302 302 158 158 471 468 529 468 543 302 518 518 518 278 278 543 543 518 518 302 278 532 51 512 51 51 512 51 468 468 532
BalonParca AdiParca NoAdetTipApplied Date
51 SCREW; COVER
AIR SUSP DRIVER SEAT<A56> 		1-75518-325-1 04 1 1310-1506
51 SCREW; COVER
AIR SUSP DRIVER SEAT<A56> 		1-75518-325-1 04 1 1510-
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-199-1 01 1 1310-1506
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-199-1 01 1 1510-
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> (C) 		1-75518-323-0 01 1 1310-1506
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> (C) 		1-75518-323-0 01 1 1510-
63 ADJUSTER; SEAT SLIDE
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98098-005-0 01 1 1310-1412
63 ADJUSTER; SEAT SLIDE
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98098-005-0 01 1 1501-1508
63 ADJUSTER; SEAT SLIDE
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A) 		8-98098-005-0 01 1 1509-
72 SPACER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> 		1-75518-334-1 02 1 1310-1502
72 SPACER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> 		8-98291-668-0 02 1 1503-1506
72 SPACER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> 		8-98291-668-0 02 1 1510-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> 		8-98003-678-0 01 1 1310-1502
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> 		8-98291-640-0 01 1 1503-1506
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> 		8-98291-640-0 01 1 1510-
158 BUSHING; LINK ARM
AIR SUSP DRIVER SEAT<A56> 		1-75518-209-0 02 1 1310-1506
158 BUSHING; LINK ARM
AIR SUSP DRIVER SEAT<A56> 		1-75518-209-0 02 1 1510-
201 CABLE; ADJ
AIR SUSP DRIVER SEAT<A56> (A) L=667 		1-75518-288-0 01 1 1310-1506
201 CABLE; ADJ
AIR SUSP DRIVER SEAT<A56> (A) L=667 		1-75518-288-0 01 1 1510-
201 CABLE; ADJ
AIR SUSP DRIVER SEAT<A56> (B) L=605 		1-75518-289-1 01 1 1310-1506
201 CABLE; ADJ
AIR SUSP DRIVER SEAT<A56> (B) L=605 		1-75518-289-1 01 1 1510-
278 COLLAR; FRT SEAT
AIR SUSP DRIVER SEAT<A56> 		1-75518-244-0 03 1 1310-1506
278 COLLAR; FRT SEAT
AIR SUSP DRIVER SEAT<A56> 		1-75518-244-0 03 1 1510-
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-266-2 02 1 1310-1506
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-266-2 02 1 1510-
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-270-1 04 1 1310-1502
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> (A) 		8-98291-667-0 04 1 1503-1506
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> (A) 		8-98291-667-0 04 1 1510-
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> (C) 		1-75518-336-1 02 1 1310-1506
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> (C) 		1-75518-336-1 02 1 1510-
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE 		1-75538-207-0 06 1 1310-1506
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE 		1-75538-207-0 06 1 1510-
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 1310-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-206-0 01 1 1310-1506
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-206-0 01 1 1510-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-207-0 01 1 1310-1506
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-207-0 01 1 1510-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (C) 		1-75518-208-0 02 1 1310-1506
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (C) 		1-75518-208-0 02 1 1510-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (D) 		1-75538-132-0 01 1 1310-1506
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (D) 		1-75538-132-0 01 1 1510-
471 LEVER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> 		8-98107-869-0 01 1 1310-1506
471 LEVER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> 		8-98107-869-0 01 1 1510-
512 COVER; LEVER
AIR SUSP DRIVER SEAT<A56> 		1-75518-243-1 02 1 1310-1506
512 COVER; LEVER
AIR SUSP DRIVER SEAT<A56> 		1-75518-243-1 02 1 1510-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-263-0 01 1 1310-1506
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-263-0 01 1 1510-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (C) M8 		1-75518-264-0 04 1 1310-1506
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (C) M8 		1-75518-264-0 04 1 1510-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE 		1-75538-207-0 04 1 1310-1506
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE 		1-75538-207-0 04 1 1510-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT 		5-09984-020-0 02 1 1310-1506
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT 		5-09984-020-0 02 1 1510-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE 		8-94152-886-0 04 1 1310-1506
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE 		8-94152-886-0 04 1 1510-
529 PIN; LINK
AIR SUSP DRIVER SEAT<A56> 		1-75518-262-0 01 1 1310-1506
529 PIN; LINK
AIR SUSP DRIVER SEAT<A56> 		1-75518-262-0 01 1 1510-
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-203-0 01 1 1310-1506
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-203-0 01 1 1510-
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-204-1 01 1 1310-1506
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-204-1 01 1 1510-
532 LEVER ASM; TILT
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		8-98097-982-0 01 1 1310-1412
532 LEVER ASM; TILT
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		8-98097-982-0 01 1 1501-1508
532 LEVER ASM; TILT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (C) 		8-98097-982-0 01 1 1509-
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-335-0 02 1 1310-1502
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> (A) ID=13 OD=19 		8-98291-669-0 02 1 1503-1506
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> (A) ID=13 OD=19 		8-98291-669-0 02 1 1510-
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> (B) ID=8.4 		9-09160-508-0 04 1 1310-1506
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> (B) ID=8.4 		9-09160-508-0 04 1 1510-
551 SLIDER; HEIGHT ADJ
AIR SUSP DRIVER SEAT<A56> 		1-75518-265-0 04 1 1310-1506
551 SLIDER; HEIGHT ADJ
AIR SUSP DRIVER SEAT<A56> 		1-75518-265-0 04 1 1510-

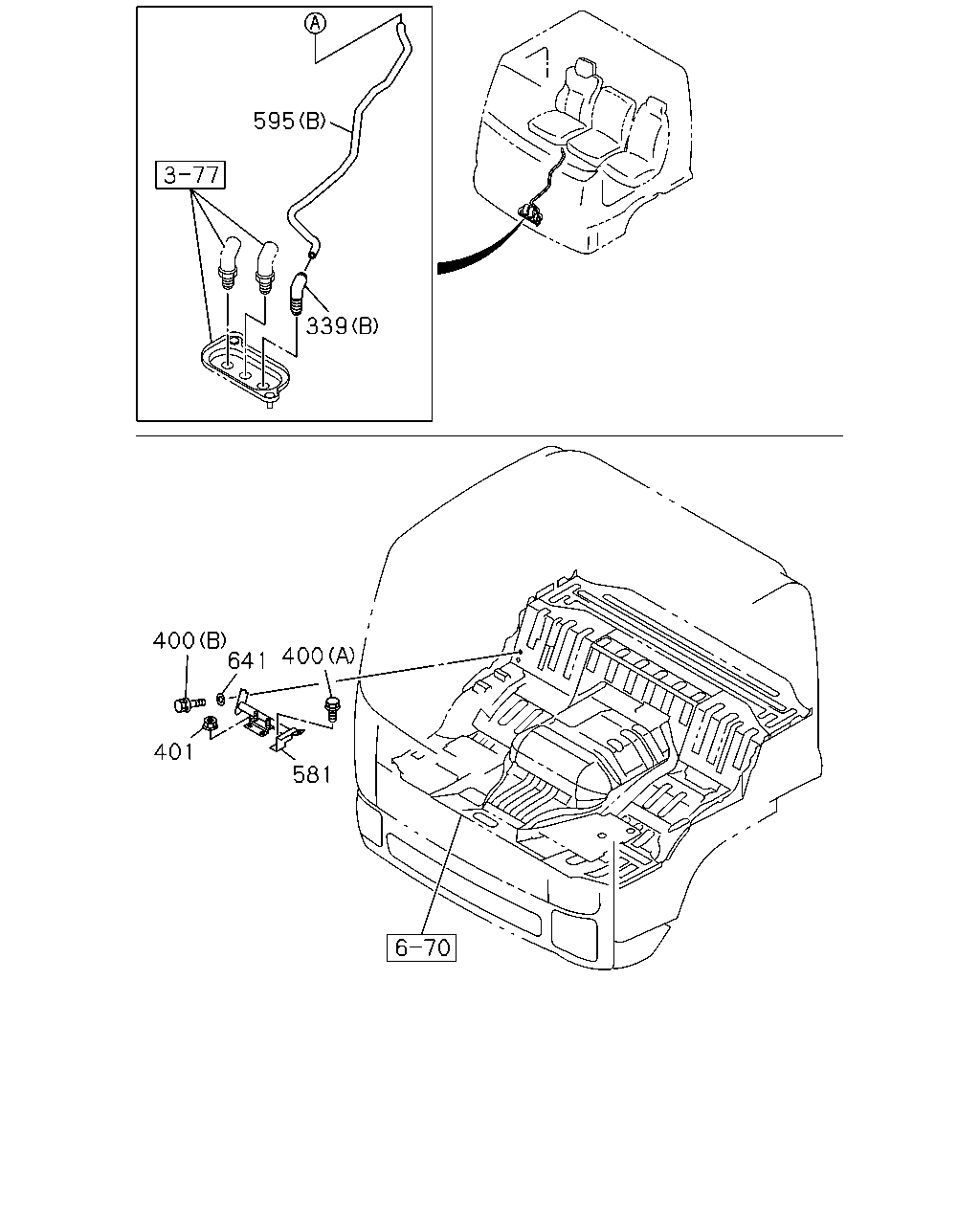

çizim 381748
595 339 400 641 400 401 581
BalonParca AdiParca NoAdetTipApplied Date
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> (A) 		1-75538-131-3 01 1 1310-1506
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> (A) 		1-75538-131-3 01 1 1510-
339 UNION; DRIVER SEAT
(B) 		8-98014-971-0 01 1 1310-
400 BOLT; SUPPORT
DRIVER ISRINGHAUSEN SEAT<SJA> (A) M8X20 FLANGE 		0-28650-820-0 01 1 1310-
400 BOLT; SUPPORT
DRIVER ISRINGHAUSEN SEAT<SJA> (B) 		8-98098-996-0 02 1 1310-
401 NUT; SUPPORT
DRIVER ISRINGHAUSEN SEAT<SJA> M10 FLANGE 		0-91180-110-0 02 1 1310-
581 PIPE; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-97589-692-3 01 1 1310-
595 TUBE; NYLON
(B) 		8-98067-762-0 01 1 1310-
595 TUBE; NYLON
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98106-348-0 01 1 1310-1412
595 TUBE; NYLON
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98106-348-0 01 1 1501-1508
595 TUBE; NYLON
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A) 		8-98106-348-0 01 1 1509-
641 WASHER; SUPPORT
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98099-007-0 02 1 1310-

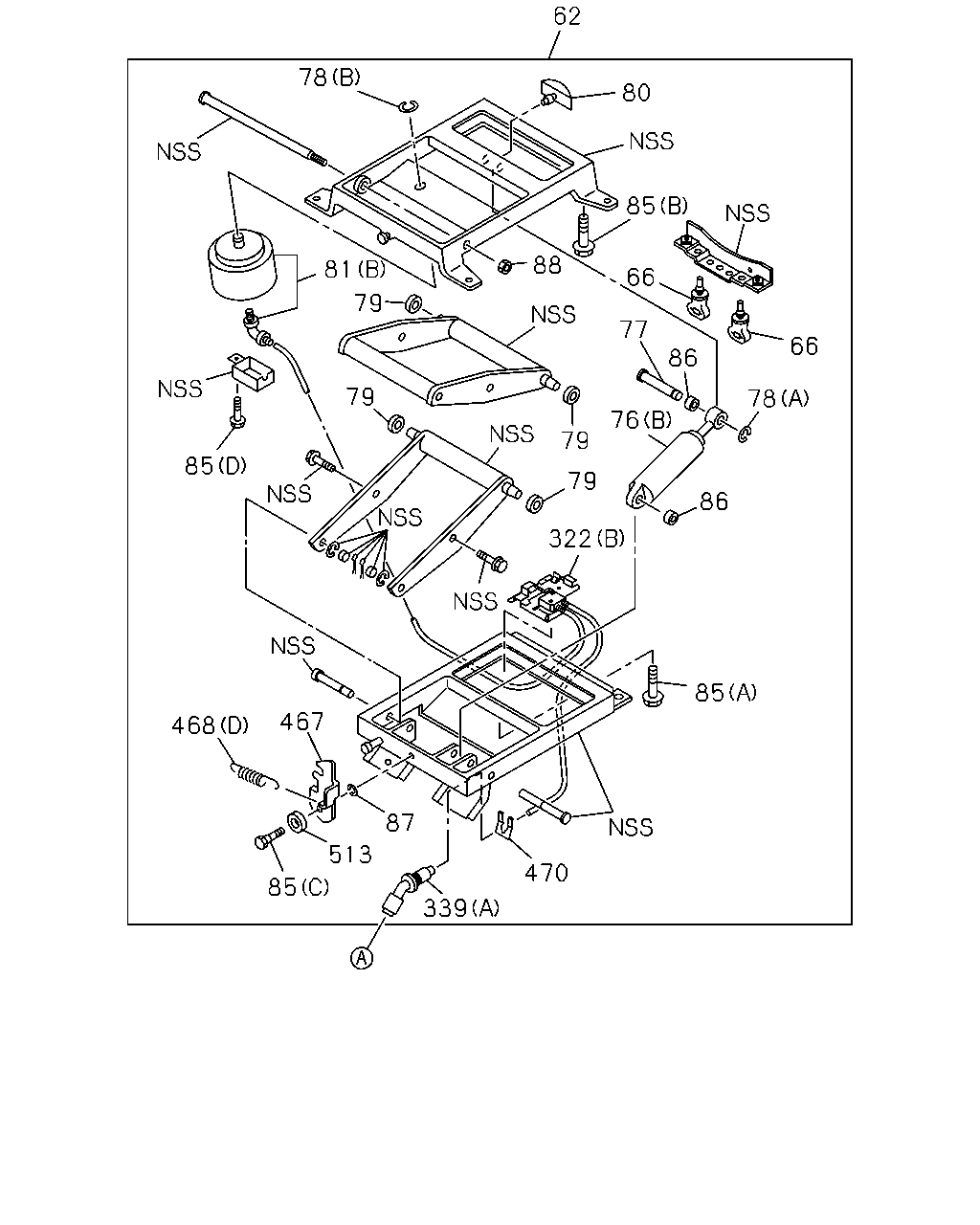

çizim 381902
62 80 85 88 78 81 85 79 79 467 468 85 339 470 513 87 85 322 79 79 86 76 77 78 86 66 66
BalonParca AdiParca NoAdetTipApplied Date
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> 		1-75538-183-8 01 1 1310-1403
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> 		8-98261-448-0 01 1 1404-1506
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> 		8-98261-448-0 01 1 1510-
66 RUBBER; LWR STOPPER
AIR SUSP DRIVER SEAT<A56> 		1-75538-145-0 02 1 1310-1506
66 RUBBER; LWR STOPPER
AIR SUSP DRIVER SEAT<A56> 		1-75538-145-0 02 1 1510-
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-139-0 01 1 1310-1506
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-139-0 01 1 1510-
76 DAMPER; AIR SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98097-999-0 01 1 1310-1412
76 DAMPER; AIR SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98097-999-0 01 1 1501-1508
76 DAMPER; AIR SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A) 		8-98097-999-0 01 1 1509-
77 PIN; DAMPER
AIR SUSP DRIVER SEAT<A56> 		1-75538-138-2 01 1 1310-1506
77 PIN; DAMPER
AIR SUSP DRIVER SEAT<A56> 		1-75538-138-2 01 1 1510-
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (A) ID=8 		9-09185-408-0 01 1 1310-1506
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (A) ID=8 		9-09185-408-0 01 1 1510-
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (B) ID=15 		9-09185-415-0 01 1 1310-1506
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (B) ID=15 		9-09185-415-0 01 1 1510-
78 RING; SNAP
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		8-98101-900-0 02 1 1310-1412
78 RING; SNAP
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		8-98101-900-0 02 1 1501-1508
78 RING; SNAP
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (C) 		8-98101-900-0 02 1 1509-
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> 		1-75538-159-0 04 1 1310-1403
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> 		8-98261-489-0 04 1 1404-1506
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> 		8-98261-489-0 04 1 1510-
80 RUBBER; STOPPER
AIR SUSP DRIVER SEAT<A56> 		1-09987-123-0 01 1 1310-1506
80 RUBBER; STOPPER
AIR SUSP DRIVER SEAT<A56> 		1-09987-123-0 01 1 1510-
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-151-2 01 1 1310-1312
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> (B) 		8-98242-816-0 01 1 1401-1506
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> (B) 		8-98242-816-0 01 1 1510-
81 SPRING; AIR
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98098-000-0 01 1 1310-1412
81 SPRING; AIR
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98098-000-0 01 1 1501-1508
81 SPRING; AIR
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A) 		8-98098-000-0 01 1 1509-
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (D) M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1401-1506
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (D) M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1510-
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (C) 		1-09980-577-1 01 1 1310-1506
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (C) 		1-09980-577-1 01 1 1510-
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (A) M6X12 		1-75538-208-1 02 1 1310-1506
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (A) M6X12 		1-75538-208-1 02 1 1510-
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 03 1 1310-1312
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 02 1 1401-1506
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 02 1 1510-
86 BUSHING; GUIDE
AIR SUSP DRIVER SEAT<A56> OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 1310-1506
86 BUSHING; GUIDE
AIR SUSP DRIVER SEAT<A56> OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 1510-
87 WASHER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> ID=8.2 		0-91510-508-0 01 1 1310-1506
87 WASHER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> ID=8.2 		0-91510-508-0 01 1 1510-
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> M10 		1-75537-273-1 01 1 1310-1506
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> M10 		1-75537-273-1 01 1 1510-
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-186-3 01 1 1310-1506
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-186-3 01 1 1510-
322 VALVE; AIR SPRING
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98098-001-0 01 1 1310-1412
322 VALVE; AIR SPRING
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A) 		8-98098-001-0 01 1 1501-1508
322 VALVE; AIR SPRING
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A) 		8-98331-314-0 01 1 1509-
322 VALVE; AIR SPRING
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> (A) 		8-98331-314-0 01 1 1501-1508
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> (A) 		1-75538-131-3 01 1 1310-1506
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> (A) 		1-75538-131-3 01 1 1510-
339 UNION; DRIVER SEAT
(B) 		8-98014-971-0 01 1 1310-
467 LEVER; LOCK
AIR SUSP DRIVER SEAT<A56> 		1-75538-134-0 01 1 1310-1506
467 LEVER; LOCK
AIR SUSP DRIVER SEAT<A56> 		1-75538-134-0 01 1 1510-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-206-0 01 1 1310-1506
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-206-0 01 1 1510-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-207-0 01 1 1310-1506
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-207-0 01 1 1510-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (C) 		1-75518-208-0 02 1 1310-1506
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (C) 		1-75518-208-0 02 1 1510-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (D) 		1-75538-132-0 01 1 1310-1506
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (D) 		1-75538-132-0 01 1 1510-
470 CLIP; HOSE
AIR SUSP DRIVER SEAT<A56> 		1-75538-137-0 01 1 1310-1506
470 CLIP; HOSE
AIR SUSP DRIVER SEAT<A56> 		1-75538-137-0 01 1 1510-
513 SPACER; LEVER
AIR SUSP DRIVER SEAT<A56> 		1-75538-133-0 01 1 1310-1506
513 SPACER; LEVER
AIR SUSP DRIVER SEAT<A56> 		1-75538-133-0 01 1 1510-

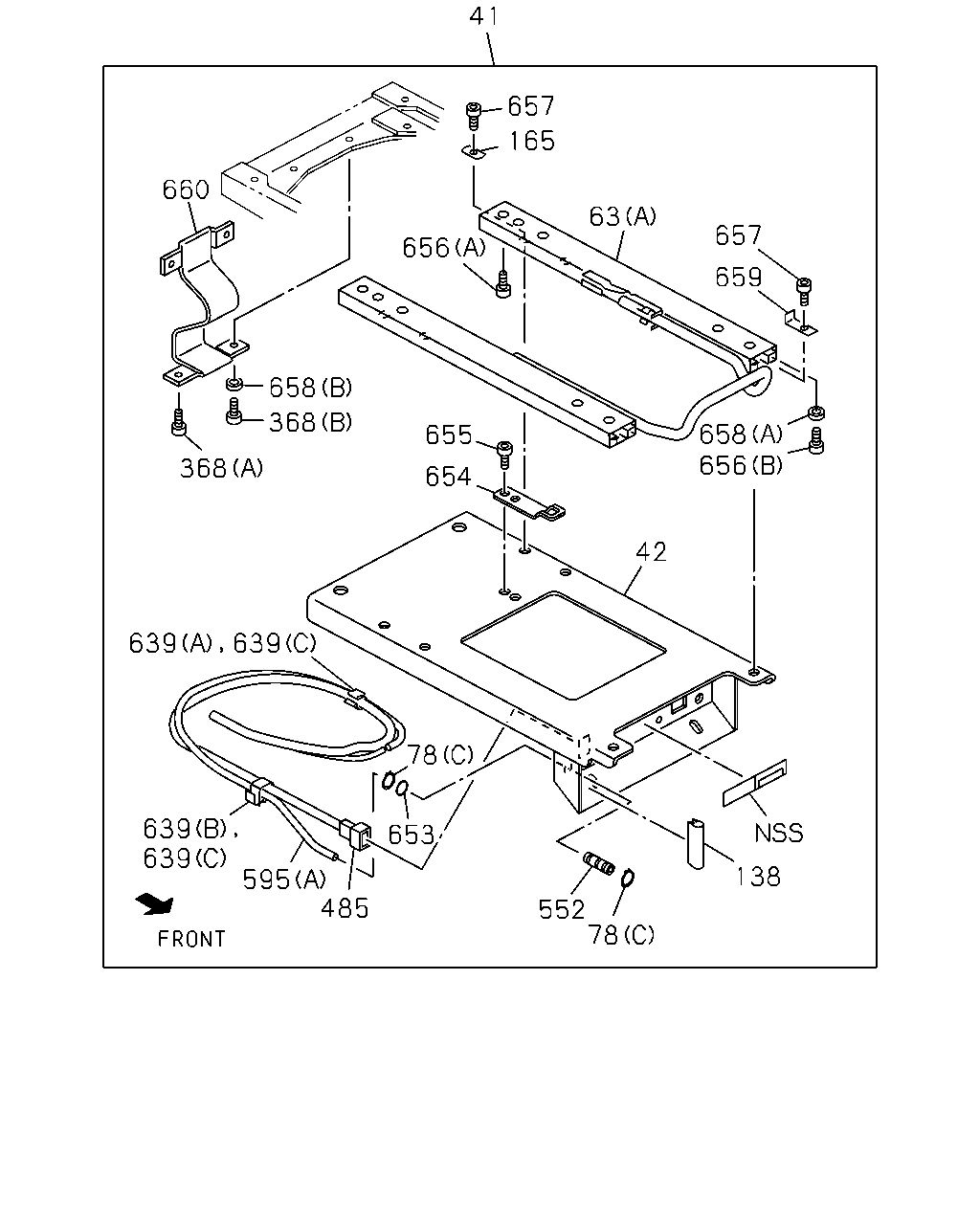

çizim 382056
41 657 656 165 63 657 658 659 656 655 658 660 368 368 654 42 639 639 78 639 639 595 485 653 552 78 138
BalonParca AdiParca NoAdetTipApplied Date
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> 		8-98302-797-0 01 1 1501-1508
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98195-063-0 01 1 1310-1412
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> 		8-98195-063-1 01 1 1501-
42 STAND; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98106-346-0 01 1 1310-1412
42 STAND; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98106-346-0 01 1 1501-1508
42 STAND; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> 		8-98106-346-0 01 1 1509-
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-199-1 01 1 1310-1506
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-199-1 01 1 1510-
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> (C) 		1-75518-323-0 01 1 1310-1506
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> (C) 		1-75518-323-0 01 1 1510-
63 ADJUSTER; SEAT SLIDE
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98098-005-0 01 1 1310-1412
63 ADJUSTER; SEAT SLIDE
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98098-005-0 01 1 1501-1508
63 ADJUSTER; SEAT SLIDE
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A) 		8-98098-005-0 01 1 1509-
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (A) ID=8 		9-09185-408-0 01 1 1310-1506
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (A) ID=8 		9-09185-408-0 01 1 1510-
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (B) ID=15 		9-09185-415-0 01 1 1310-1506
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (B) ID=15 		9-09185-415-0 01 1 1510-
78 RING; SNAP
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		8-98101-900-0 02 1 1310-1412
78 RING; SNAP
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		8-98101-900-0 02 1 1501-1508
78 RING; SNAP
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (C) 		8-98101-900-0 02 1 1509-
138 PROTECTOR; SEAT STAND
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98106-351-0 01 1 1310-1412
138 PROTECTOR; SEAT STAND
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98106-351-0 01 1 1501-1508
138 PROTECTOR; SEAT STAND
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> 		8-98106-351-0 01 1 1509-
165 WASHER; PL
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75590-086-0 04 1 1310-1412
165 WASHER; PL
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75590-086-0 04 1 1501-1508
165 WASHER; PL
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> 		1-75590-086-0 04 1 1509-
368 BOLT; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98106-353-0 03 1 1310-1412
368 BOLT; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98106-353-0 03 1 1501-1508
368 BOLT; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A) 		8-98106-353-0 03 1 1509-
368 BOLT; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> (B) 		8-98106-358-0 01 1 1310-1412
368 BOLT; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> (B) 		8-98106-358-0 01 1 1501-1508
368 BOLT; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (B) 		8-98106-358-0 01 1 1509-
485 HARNESS; FRT SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98106-360-0 01 1 1310-1412
485 HARNESS; FRT SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98106-360-0 01 1 1501-1508
485 HARNESS; FRT SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> 		8-98106-360-0 01 1 1509-
552 CONNECTOR
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98101-902-0 01 1 1310-1412
552 CONNECTOR
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98101-902-0 01 1 1501-1508
552 CONNECTOR
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> 		8-98308-101-0 01 1 1509-
595 TUBE; NYLON
(B) 		8-98067-762-0 01 1 1310-
595 TUBE; NYLON
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98106-348-0 01 1 1310-1412
595 TUBE; NYLON
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98106-348-0 01 1 1501-1508
595 TUBE; NYLON
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A) 		8-98106-348-0 01 1 1509-
639 CLIP; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98106-349-0 01 1 1310-1412
639 CLIP; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98106-349-0 01 1 1501-1508
639 CLIP; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (C) 		8-98308-100-0 02 1 1509-
639 CLIP; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> (B) 		8-98106-350-0 01 1 1310-1412
639 CLIP; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> (B) 		8-98106-350-0 01 1 1501-1508
653 GASKET
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98101-901-0 01 1 1310-1412
653 GASKET
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98101-901-0 01 1 1501-1508
653 GASKET
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> 		8-98101-901-0 01 1 1509-
654 HOOK; STOPPER
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98106-352-0 01 1 1310-1412
654 HOOK; STOPPER
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98106-352-0 01 1 1501-1508
654 HOOK; STOPPER
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> 		8-98106-352-0 01 1 1509-
655 BOLT; HOOK
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98106-353-0 02 1 1310-1412
655 BOLT; HOOK
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98106-353-0 02 1 1501-1508
655 BOLT; HOOK
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> 		8-98106-353-0 02 1 1509-
656 BOLT; SLIDER TO SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		1-75590-085-0 04 1 1310-1412
656 BOLT; SLIDER TO SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		1-75590-085-0 04 1 1501-1508
656 BOLT; SLIDER TO SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A) 		1-75590-085-0 04 1 1509-
656 BOLT; SLIDER TO SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> (B) 		8-98106-354-0 02 1 1310-1412
656 BOLT; SLIDER TO SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> (B) 		8-98106-354-0 02 1 1501-1508
656 BOLT; SLIDER TO SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (B) 		8-98106-354-0 02 1 1509-
657 BOLT; SLIDER TO STAND
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75590-085-0 06 1 1310-1412
657 BOLT; SLIDER TO STAND
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75590-085-0 06 1 1501-1508
657 BOLT; SLIDER TO STAND
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> 		1-75590-085-0 06 1 1509-
658 SPACER; BOLT
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98106-355-0 02 1 1310-1412
658 SPACER; BOLT
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98106-355-0 02 1 1501-1508
658 SPACER; BOLT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A) 		8-98106-355-0 02 1 1509-
658 SPACER; BOLT
DRIVER ISRINGHAUSEN SEAT<SJA> (B) 		8-98106-359-0 01 1 1310-1412
658 SPACER; BOLT
DRIVER ISRINGHAUSEN SEAT<SJA> (B) 		8-98106-359-0 01 1 1501-1508
658 SPACER; BOLT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (B) 		8-98106-359-0 01 1 1509-
659 STOPPER
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98106-356-0 02 1 1310-1412
659 STOPPER
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98106-356-0 02 1 1501-1508
659 STOPPER
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> 		8-98106-356-0 02 1 1509-
660 BELT; TETHER
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98106-357-0 01 1 1310-1412
660 BELT; TETHER
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98106-357-0 01 1 1501-1508
660 BELT; TETHER
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> 		8-98106-357-0 01 1 1509-

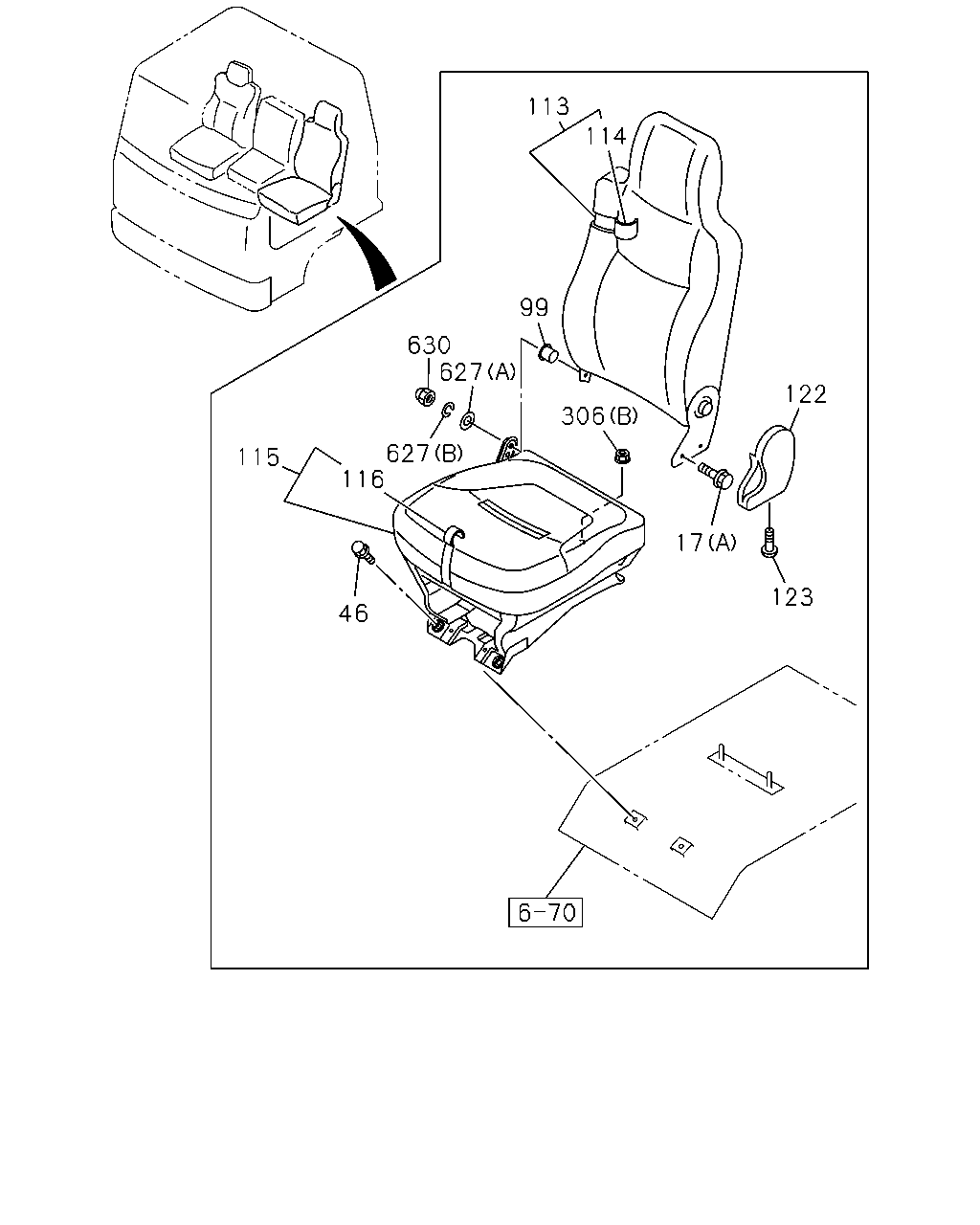

çizim 382057
113 99 114 122 17 123 306 627 630 627 46 116 115
BalonParca AdiParca NoAdetTipApplied Date
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56> (C) M10X20 		8-98062-661-0 02 1 1310-1506
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56> (C) M10X20 		8-98062-661-0 02 1 1510-
17 BOLT; RECLINING
DRIVER ISRINGHAUSEN SEAT<SJA> (B) 		8-98097-974-0 02 1 1310-1412
17 BOLT; RECLINING
DRIVER ISRINGHAUSEN SEAT<SJA> (B) 		8-98097-974-0 02 1 1501-1508
17 BOLT; RECLINING
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (B) 		8-98097-974-0 02 1 1509-
17 BOLT; RECLINING
(A) M8X20 		8-98092-334-0 02 1 1310-
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 1310-
99 BUSHING; SEAT BACK 8-98112-751-0 01 1 1310-
113 BACK ASM; SEAT
DARK GRAY 		8-97421-422-0 01 1 1310-
114 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97421-424-0 01 1 1310-
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97421-418-2 01 1 1310-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY 		8-97421-420-1 01 1 1310-
122 COVER; ADJ,RECLINING
GRAY 		8-97409-967-0 01 1 1310-
123 SCREW; COVER,RECLINING
M5 		8-98070-026-0 01 1 1310-
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE 		1-75538-207-0 06 1 1310-1506
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE 		1-75538-207-0 06 1 1510-
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 1310-
627 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 1310-
627 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 1310-
630 NUT; CAP
M8 		8-98063-225-0 01 1 1310-

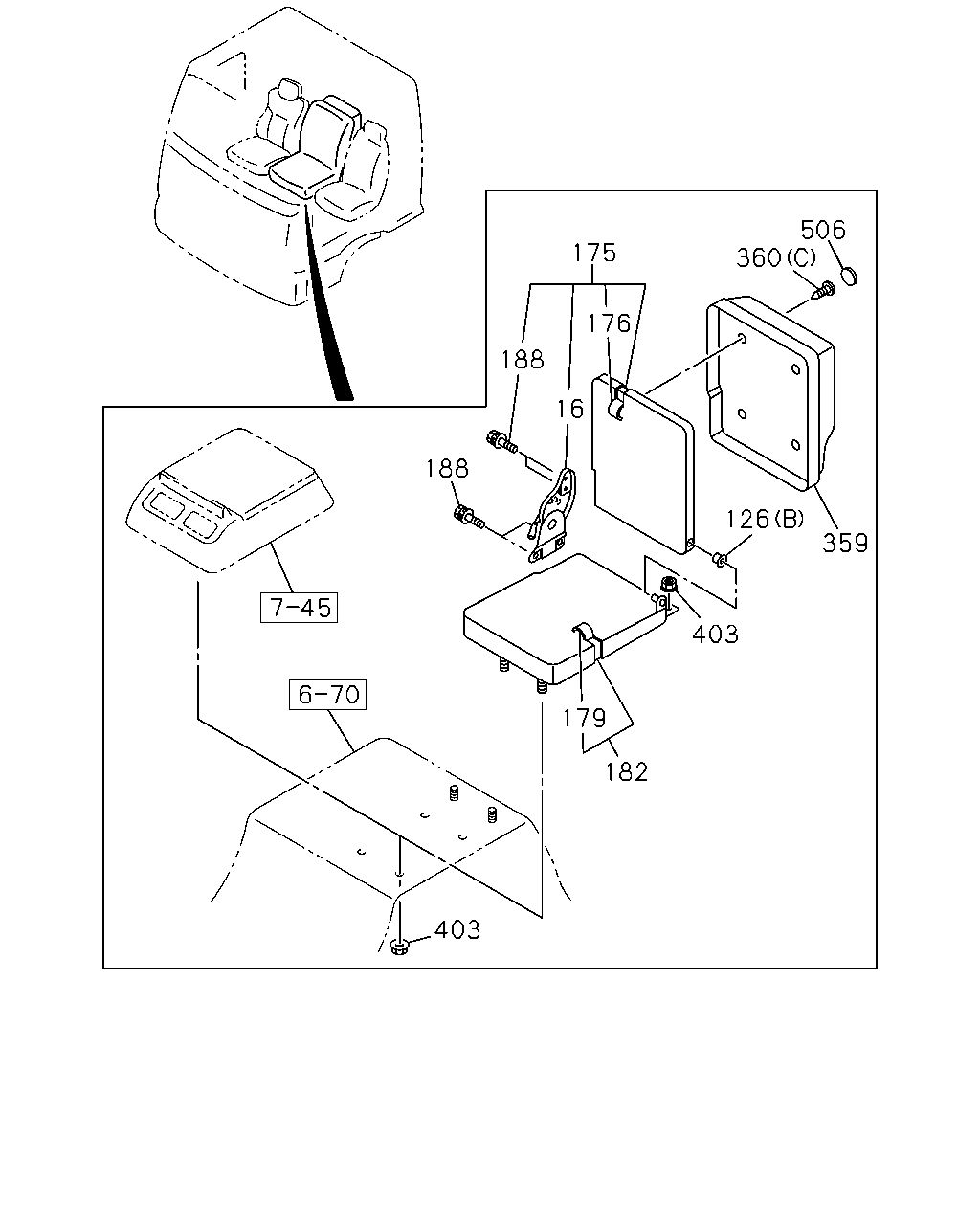

çizim 382135
175 176 360 506 359 126 403 182 179 403 16 188 188
BalonParca AdiParca NoAdetTipApplied Date
16 ADJUSTER ASM; RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> 		1-75418-062-1 01 1 1310-
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT<A56> (A) 		8-98063-218-0 01 1 1310-1506
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT<A56> (A) 		8-98063-218-0 01 1 1510-1512
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT<A56> (A) 		8-98286-007-0 01 1 1601-
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 1310-
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-434-1 01 1 1310-
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-435-1 01 1 1310-
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-432-1 01 1 1310-
182 CUSHION ASM; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-430-3 01 1 1310-
188 BOLT; BACK TO CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE 		1-75198-053-0 04 1 1310-
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1310-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1310-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1310-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 		8-98062-663-0 04 1 1310-
403 NUT; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> M8 FLANGE 		0-91180-108-0 04 1 1310-
506 CAP; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-980-1 02 1 1310-

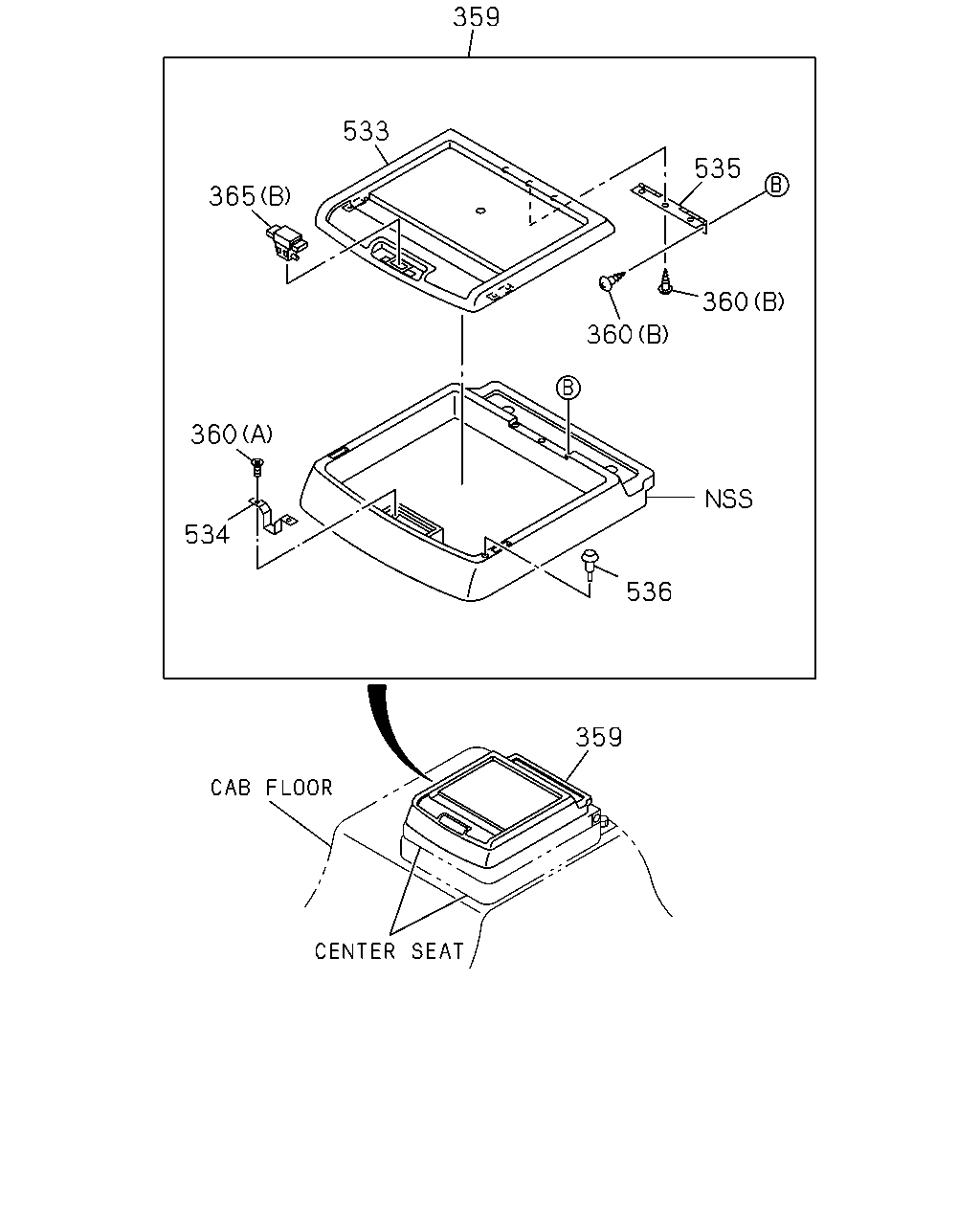

çizim 382200
359 533 365 360 534 535 360 360 536 359
BalonParca AdiParca NoAdetTipApplied Date
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1310-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1310-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1310-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 		8-98062-663-0 04 1 1310-
365 LOCK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98097-972-0 01 1 1310-1412
365 LOCK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98097-972-0 01 1 1501-1508
365 LOCK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A) 		8-98097-972-0 01 1 1509-
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-312-0 01 1 1310-
533 LID; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-263-0 01 1 1310-
534 STRIKER; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-190-0 01 1 1310-
535 HINGE; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72447-391-1 01 1 1310-
536 RUBBER; CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-187-0 02 1 1310-

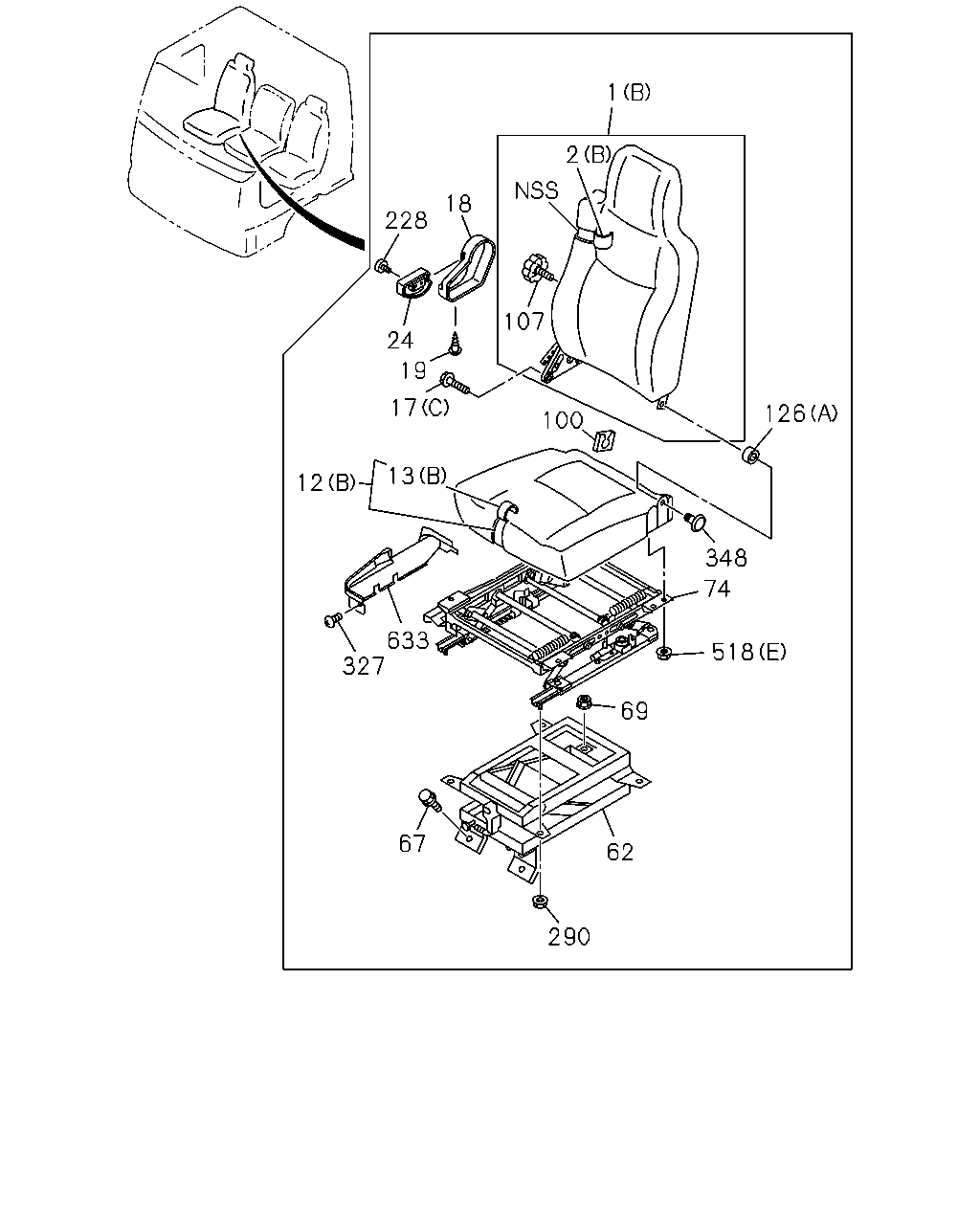

çizim 382268
1 2 126 18 228 24 17 13 12 633 327 67 290 62 518 69 74 348 100 107 19
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97421-407-1 01 1 1310-1512
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97466-622-0 01 1 1601-
1 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98097-964-0 01 1 1310-1412
1 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A) 		8-98097-964-0 01 1 1501-
1 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> (A) 		8-98331-310-0 01 1 1501-1508
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97421-412-0 01 1 1310-
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98232-353-0 01 1 1310-1412
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98232-353-0 01 1 1501-1508
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A) 		8-98232-353-0 01 1 1509-
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97421-398-2 01 1 1310-1512
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97466-611-0 01 1 1601-
12 CUSHION; SEAT,FRT
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98098-006-0 01 1 1310-1412
12 CUSHION; SEAT,FRT
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98098-006-0 01 1 1501-1508
12 CUSHION; SEAT,FRT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A) 		8-98098-006-0 01 1 1509-
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97421-402-2 01 1 1310-
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98098-007-0 01 1 1310-1412
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98098-007-0 01 1 1501-1508
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A) 		8-98098-007-0 01 1 1509-
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56> (C) M10X20 		8-98062-661-0 02 1 1310-1506
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56> (C) M10X20 		8-98062-661-0 02 1 1510-
17 BOLT; RECLINING
DRIVER ISRINGHAUSEN SEAT<SJA> (B) 		8-98097-974-0 02 1 1310-1412
17 BOLT; RECLINING
DRIVER ISRINGHAUSEN SEAT<SJA> (B) 		8-98097-974-0 02 1 1501-1508
17 BOLT; RECLINING
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (B) 		8-98097-974-0 02 1 1509-
17 BOLT; RECLINING
(A) M8X20 		8-98092-334-0 02 1 1310-
18 COVER; RECLINING
AIR SUSP DRIVER SEAT<A56> GRAY 		8-97409-332-0 01 1 1310-
19 SCREW; COVER
AIR SUSP DRIVER SEAT<A56> M5 		8-98062-663-0 01 1 1310-1506
19 SCREW; COVER
AIR SUSP DRIVER SEAT<A56> M5 		8-98062-663-0 01 1 1510-
24 KNOB; RECLINING,FRT,SEAT
AIR SUSP DRIVER SEAT<A56> GRAY 		8-97409-333-0 01 1 1310-
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> 		1-75538-183-8 01 1 1310-1403
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> 		8-98261-448-0 01 1 1404-1506
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> 		8-98261-448-0 01 1 1510-
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 1310-
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 1310-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> 		8-98003-678-0 01 1 1310-1502
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> 		8-98291-640-0 01 1 1503-1506
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> 		8-98291-640-0 01 1 1510-
100 COVER; HINGE
AIR SUSP DRIVER SEAT<A56> 		8-98203-070-0 01 1 1310-1506
100 COVER; HINGE
AIR SUSP DRIVER SEAT<A56> 		8-98203-070-0 01 1 1510-1512
100 COVER; HINGE
AIR SUSP DRIVER SEAT<A56> 		8-98286-009-0 01 1 1601-
107 DIAL; SEAT RECLINING
AIR SUSP DRIVER SEAT<A56> 		8-98063-174-0 01 1 1310-1506
107 DIAL; SEAT RECLINING
AIR SUSP DRIVER SEAT<A56> 		8-98063-174-0 01 1 1510-
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT<A56> (A) 		8-98063-218-0 01 1 1310-1506
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT<A56> (A) 		8-98063-218-0 01 1 1510-1512
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT<A56> (A) 		8-98286-007-0 01 1 1601-
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 1310-
228 SCREW; KNOB
AIR SUSP DRIVER SEAT<A56> M4 		8-98062-662-0 01 1 1310-1506
228 SCREW; KNOB
AIR SUSP DRIVER SEAT<A56> M4 		8-98062-662-0 01 1 1510-
290 NUT; ADJ TO SUSP
AIR SUSP DRIVER SEAT<A56> M8 FLANGE 		1-75538-207-0 04 1 1310-1506
290 NUT; ADJ TO SUSP
AIR SUSP DRIVER SEAT<A56> M8 FLANGE 		1-75538-207-0 04 1 1510-
327 CLIP; COVER
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98098-004-0 01 1 1310-1412
327 CLIP; COVER
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98098-004-0 01 1 1501-1508
327 CLIP; COVER
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> 		8-98098-004-0 01 1 1509-
348 BOLT; HINGE,SEAT
AIR SUSP DRIVER SEAT<A56> 		8-98286-008-0 01 1 1601-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-263-0 01 1 1310-1506
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-263-0 01 1 1510-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (C) M8 		1-75518-264-0 04 1 1310-1506
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (C) M8 		1-75518-264-0 04 1 1510-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE 		1-75538-207-0 04 1 1310-1506
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE 		1-75538-207-0 04 1 1510-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT 		5-09984-020-0 02 1 1310-1506
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT 		5-09984-020-0 02 1 1510-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE 		8-94152-886-0 04 1 1310-1506
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE 		8-94152-886-0 04 1 1510-
633 COVER; ADJ,TILT
AIR SUSP DRIVER SEAT<A56> GRAY 		8-97409-956-0 01 1 1310-
633 COVER; ADJ,TILT
AIR SUSP DRIVER SEAT<A56> 		1-09987-273-0 01 1 1310-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
