◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11547 - FRR RHD EUROPE EURO6 SPACECAB ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#128625) — 138 parça

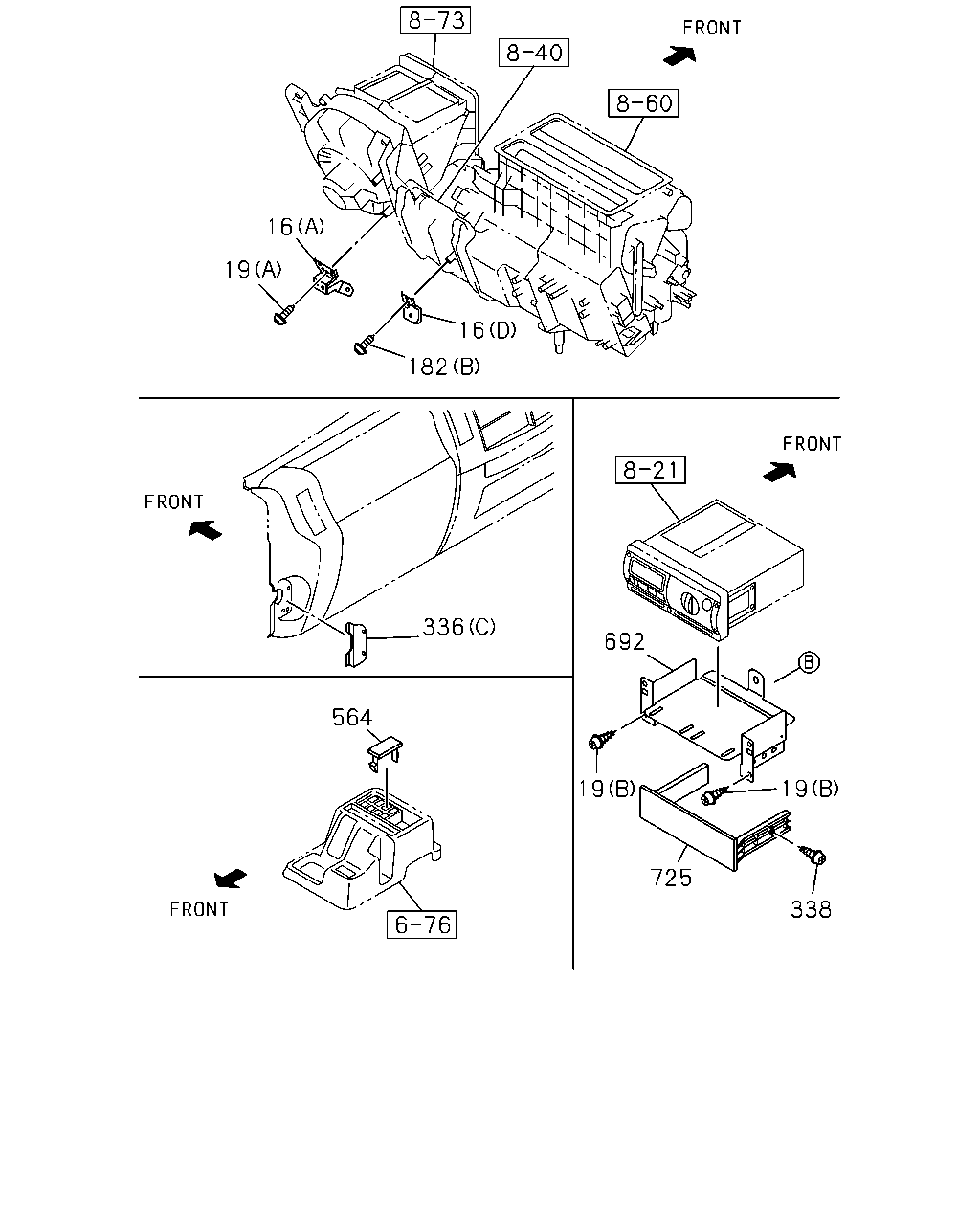

çizim 379731
16 19 182 6 336 564 692 19 725 338 19
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL 8-98196-255-0 01 1 1310-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97585-612-2 01 1 1310-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D) 		8-98010-154-0 01 1 1310-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1310-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1310-
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1310-
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1310-
19 SCREW; BRKT
(B) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1310-
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-986-0 01 1 1310-1311
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-410-0 01 1 1312-1405
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-763-0 01 1 1406-
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-987-0 01 1 1310-1311
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-411-0 01 1 1312-1405
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-764-0 01 1 1406-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1310-
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1310-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1310-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1310-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1310-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1310-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1310-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1310-
338 SCREW; COVER
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1310-
564 COVER; SW 8-97043-732-1 06 1 1310-
692 BRACKET; TACHOGRAPH 8-98094-271-0 01 1 1310-
725 COVER; TACHOGRAPH
BLACK 		8-97407-896-2 01 1 1310-

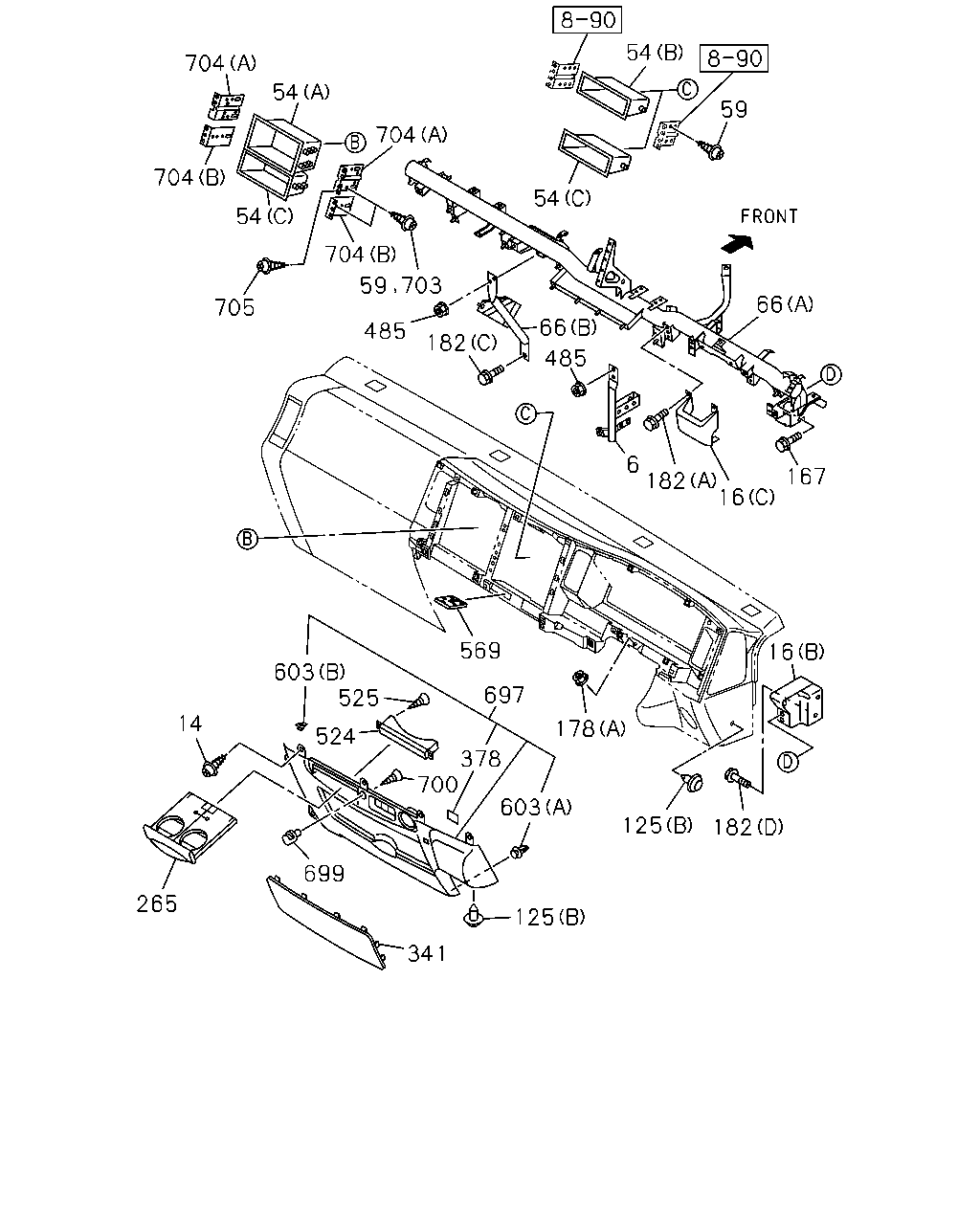

çizim 381248
341 125 265 699 14 524 525 603 700 378 697 306 569 178 125 182 16 167 16 182 6 485 66 182 485 703 59 704 705 54 704 704 54 704 54 59 54 66
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL 8-98196-255-0 01 1 1310-
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1310-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97585-612-2 01 1 1310-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D) 		8-98010-154-0 01 1 1310-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1310-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1310-
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1310-
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-986-0 01 1 1310-1311
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-410-0 01 1 1312-1405
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-763-0 01 1 1406-
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-987-0 01 1 1310-1311
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-411-0 01 1 1312-1405
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-764-0 01 1 1406-
54 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-3 01 1 1310-
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 1310-
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 1310-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1310-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1310-
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER(AJ3) (A) 		8-98170-401-0 01 1 1310-1406
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER(AJ3) (A) 		8-98240-605-0 01 1 1407-
66 REINFORCEMENT; INST PANEL
(B) 		8-97585-580-2 01 1 1310-
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98170-399-0 01 1 1310-1406
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98240-604-0 01 1 1407-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1310-
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1310-
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 1310-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1310-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1310-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1310-
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1310-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1310-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1310-
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 1310-
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1310-
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1310-
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1310-
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 1310-
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1310-
569 HOLDER; CARD 8-97410-276-1 01 1 1310-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1310-
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 1310-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1310-
603 CLIP; COVER
(C) 		8-98162-058-1 02 1 1310-
603 CLIP; COVER
(D) 		8-98167-222-0 02 1 1310-
697 PANEL; INST CENTER
GRAY 		8-97422-207-1 01 1 1310-
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1310-
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1310-
703 SCREW; CENTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1310-
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1310-
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1310-
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 1310-

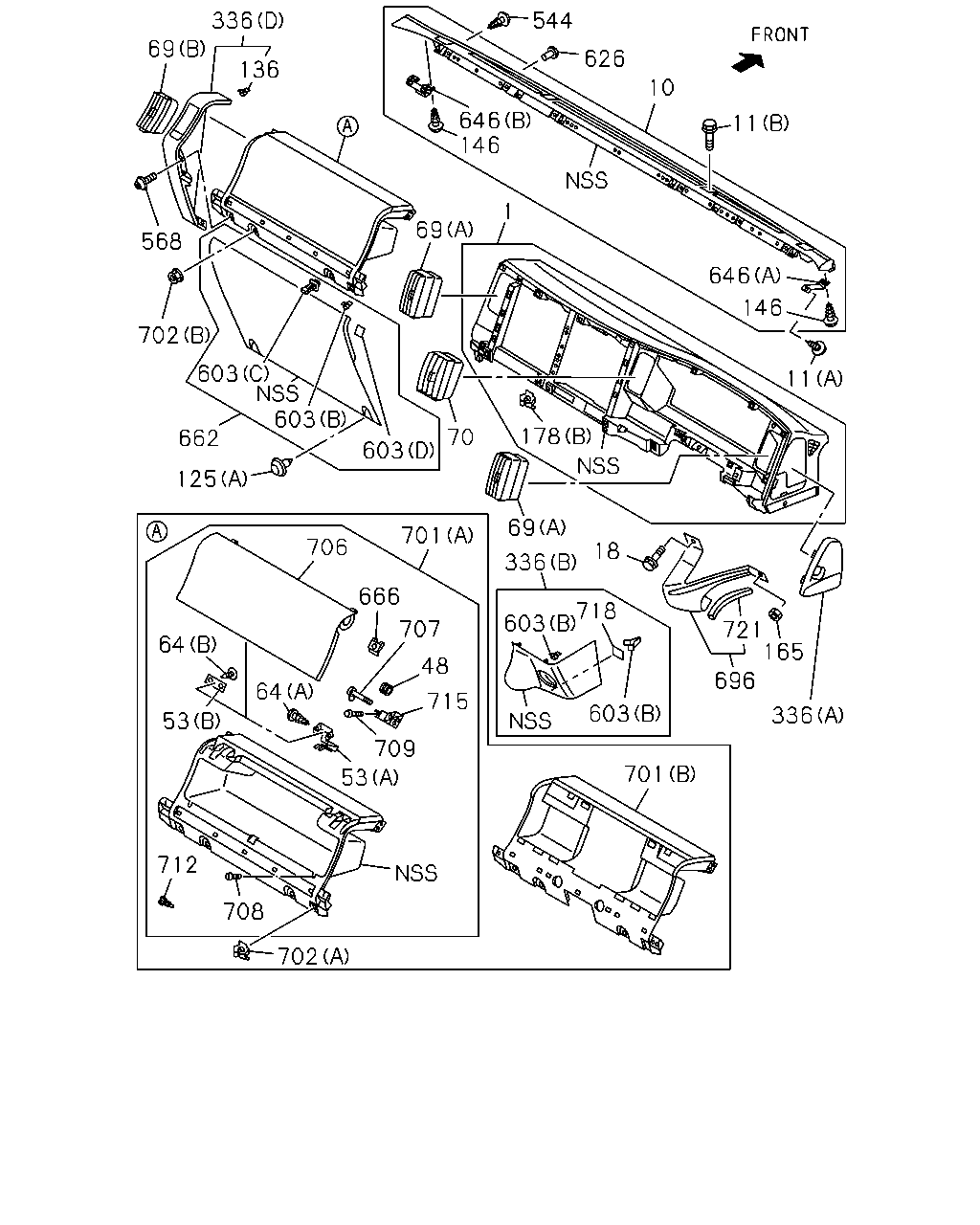

çizim 381637
11 10 626 544 646 646 146 1 146 11 136 336 69 568 702 603 603 603 70 178 662 125 701 706 666 69 336 721 165 336 696 18 718 603 603 701 707 478 715 709 53 64 64 53 712 708 702 69
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
GRAY 		8-97407-418-8 01 1 1310-
10 PANEL ASM; GARNISH
GRAY 		8-97422-095-1 01 1 1310-
11 BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1310-
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1310-
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1310-
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-986-0 01 1 1310-1311
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-410-0 01 1 1312-1405
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-763-0 01 1 1406-
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-987-0 01 1 1310-1311
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-411-0 01 1 1312-1405
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-764-0 01 1 1406-
53 STRIKER; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-913-0 01 1 1310-1405
53 STRIKER; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98270-765-0 01 1 1406-
64 SCREW; STRIKER
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-915-0 01 1 1310-1405
64 SCREW; STRIKER
EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) M4X85 		8-97926-404-0 02 1 1406-
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 1310-
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1310-
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 1310-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1310-
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1310-
136 CLIP; INST COVER 8-98076-254-0 02 1 1310-
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1310-
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 1310-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1310-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1310-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1310-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1310-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1310-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1310-
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1310-
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1310-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1310-
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 1310-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1310-
603 CLIP; COVER
(C) 		8-98162-058-1 02 1 1310-
603 CLIP; COVER
(D) 		8-98167-222-0 02 1 1310-
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 1310-
646 BRACKET; GARNISH PANEL
(A) 		8-98051-490-2 01 1 1310-
646 BRACKET; GARNISH PANEL
(B) 		8-98051-492-2 01 1 1310-
662 COVER; LWR,INST PANEL
GRAY 		8-97419-960-2 01 1 1310-
666 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98038-450-0 04 1 1310-1311
666 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) M5 		8-97926-400-0 04 1 1312-
696 BRACKET; KNEE 8-98066-085-1 01 1 1310-
701 TRAY; INST
AIR BAG DRIVER & PASSENGER(AK5) (B) GRAY 		8-97417-196-2 01 1 1310-
701 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97415-540-6 01 1 1310-1405
701 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97429-703-1 01 1 1406-
702 NUT; TRAY
(B) M6 FLANGE 		0-91180-106-0 02 1 1310-
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 1310-
706 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97415-541-0 01 1 1310-1405
706 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97429-992-0 01 1 1406-
707 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98035-730-1 02 1 1310-1311
707 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-393-0 02 1 1312-
708 STOPPER; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98010-867-1 02 1 1310-
709 SCREW; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) M5X16 TAPPING 		0-71040-516-0 04 1 1310-
712 LOCK; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98031-846-0 01 1 1310-
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-928-0 01 1 1310-1311
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-396-0 01 1 1312-
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-929-0 01 1 1310-1311
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-397-0 01 1 1312-
718 SEAL; COVER
7X31 		8-98061-777-0 01 1 1310-
721 FINISHER; BRKT,KNEE
L=140 		8-97892-742-0 01 1 1310-
