7-20 — MIRROR AND MIRROR STAY (#128623) — 129 parça

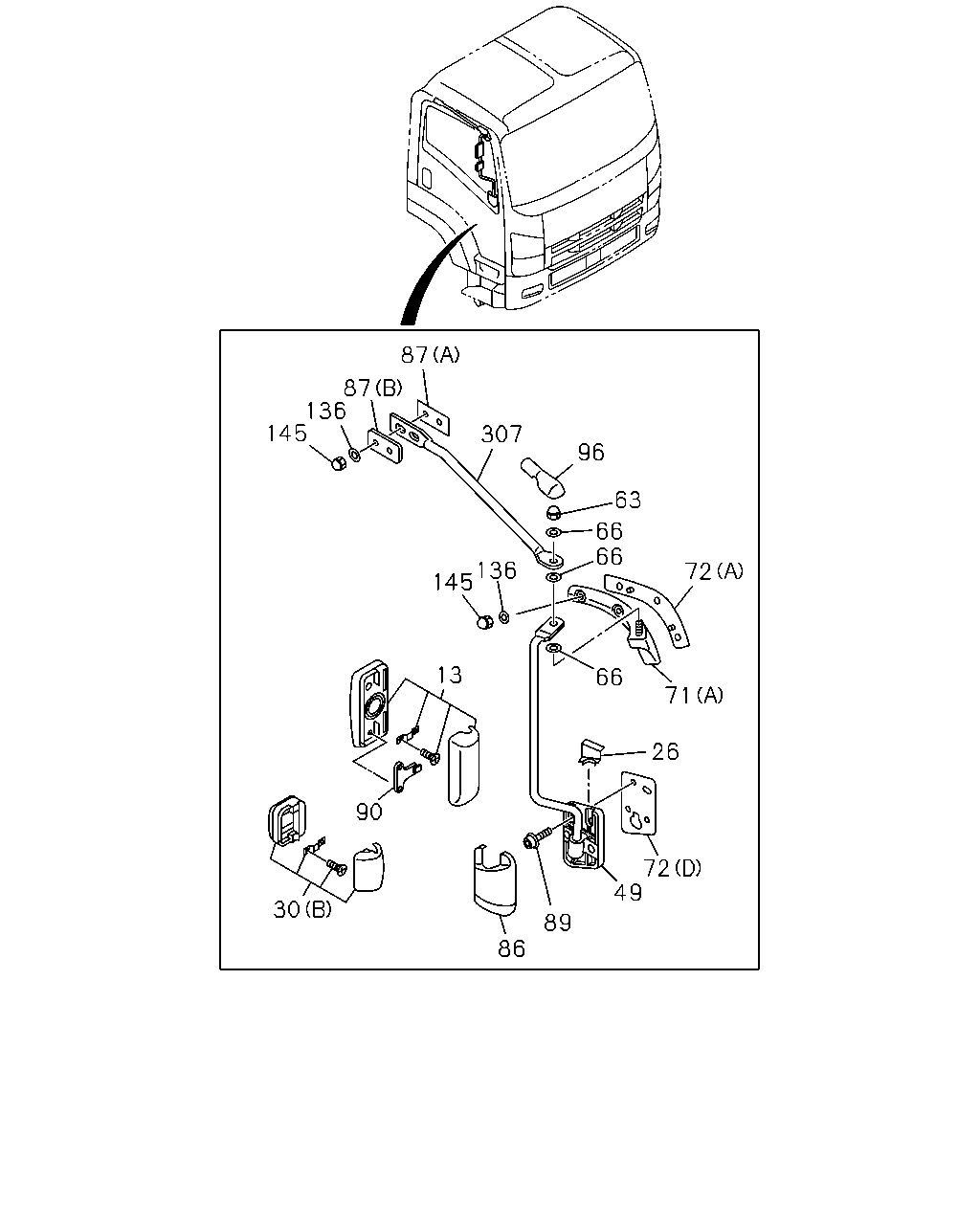

çizim 379663
87 87 136 145 145 307 136 96 63 66 66 72 66 71 26 72 49 89 86 30 90 13
BalonParca AdiParca NoAdetTipApplied Date
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98043-060-1 01 1 1310-
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98043-176-1 01 1 1310-
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98055-991-1 01 1 1310-
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98055-992-1 01 1 1310-
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 1310-
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 1310-
30 MIRROR; UNDER
(B) 		8-98043-061-0 02 1 1310-
30 MIRROR; UNDER
(A) 		8-98043-065-0 01 1 1310-
30 MIRROR; UNDER
(C) 		8-98055-994-0 01 1 1310-1504
30 MIRROR; UNDER
(C) 		8-98309-725-0 01 1 1505-
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-188-0 01 1 1310-
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-189-0 01 1 1310-
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-180-0 01 1 1310-
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-181-0 01 1 1310-
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-198-0 01 1 1310-
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-199-0 01 1 1310-
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-210-0 01 1 1310-
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-211-0 01 1 1310-
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98166-192-0 01 1 1310-
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98166-193-0 01 1 1310-
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-194-0 01 1 1310-
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-195-0 01 1 1310-
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-206-0 01 1 1310-
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-207-0 01 1 1310-
49 STAY; MIRROR SIDE
MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-190-0 01 1 1310-
49 STAY; MIRROR SIDE
MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-191-0 01 1 1310-
63 NUT; STAY
M10 CAP NUT 		1-09984-134-0 02 1 1310-
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 02 1 1310-
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 1310-
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C) 		8-98039-277-2 02 1 1310-
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 1310-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1310-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1310-
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98060-240-0 01 1 1310-
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98092-492-3 01 1 1310-
72 SHEET
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98116-604-0 01 1 1310-
72 SHEET
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98116-605-0 01 1 1310-
72 SHEET
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98101-864-0 01 1 1310-
72 SHEET
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98101-865-0 01 1 1310-
72 SHEET
(A) 		8-98031-796-0 01 1 1310-
72 SHEET
(A) 		8-98031-797-0 01 1 1310-
72 SHEET
(B) 		8-98060-245-1 01 1 1310-
72 SHEET
(C) 		8-98064-776-0 01 1 1310-
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 1310-
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 1310-
87 SPACER
(A) 		8-98063-786-0 02 1 1310-
87 SPACER
(B) 		8-98063-789-0 01 1 1310-
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 		8-97310-216-1 08 1 1310-
90 BRACKET; MIRROR STAY
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98129-822-0 02 1 1506-
96 CAP; MIRROR STAY 8-98080-173-0 02 1 1310-
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 1310-
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 10 1 1310-
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 1310-
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 1310-

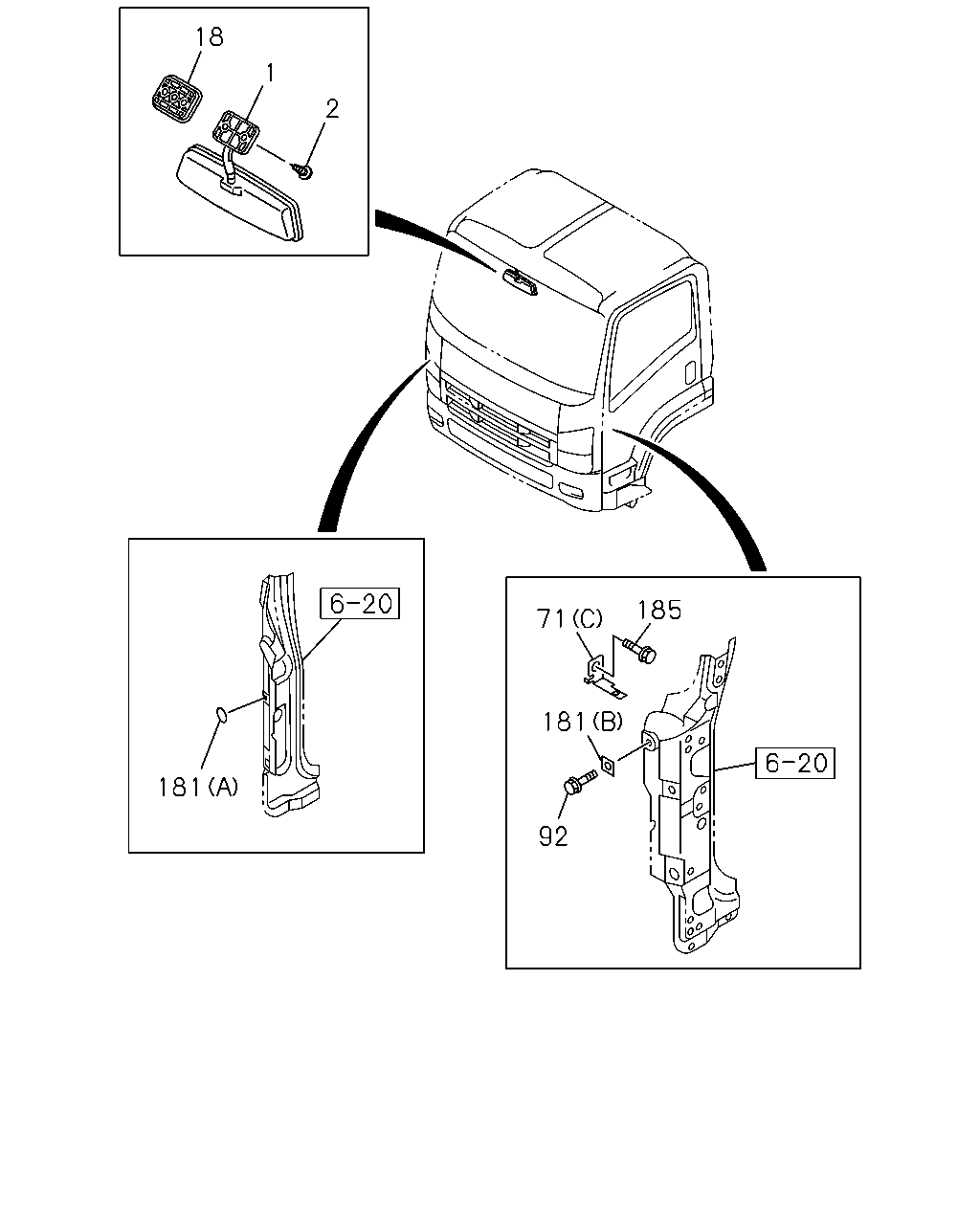

çizim 381240
18 1 2 181 71 181 92 185
BalonParca AdiParca NoAdetTipApplied Date
1 MIRROR; ROOM
RR VIEW MIRROR<D31> DARK GRAY 		8-98097-534-1 01 1 1310-
2 SCREW; MIRROR TO BODY
RR VIEW MIRROR<D31> M6X26 		8-98033-674-0 02 1 1310-
18 CLIP; MIRROR
RR VIEW MIRROR<D31> DARK GRAY 		8-97408-241-0 01 1 1310-
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C) 		8-98039-277-2 02 1 1310-
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 1310-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1310-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1310-
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98060-240-0 01 1 1310-
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98092-492-3 01 1 1310-
92 BOLT; STAY BRKT,MIRROR
M8X16 FLANGE 		8-98076-109-0 01 1 1310-
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 01 1 1310-
181 SEAL; BRKT
(B) 25X25 		8-94272-533-0 01 1 1310-
185 BOLT; BRKT
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> M8X16 FLANGE 		0-28050-816-0 02 1 1310-

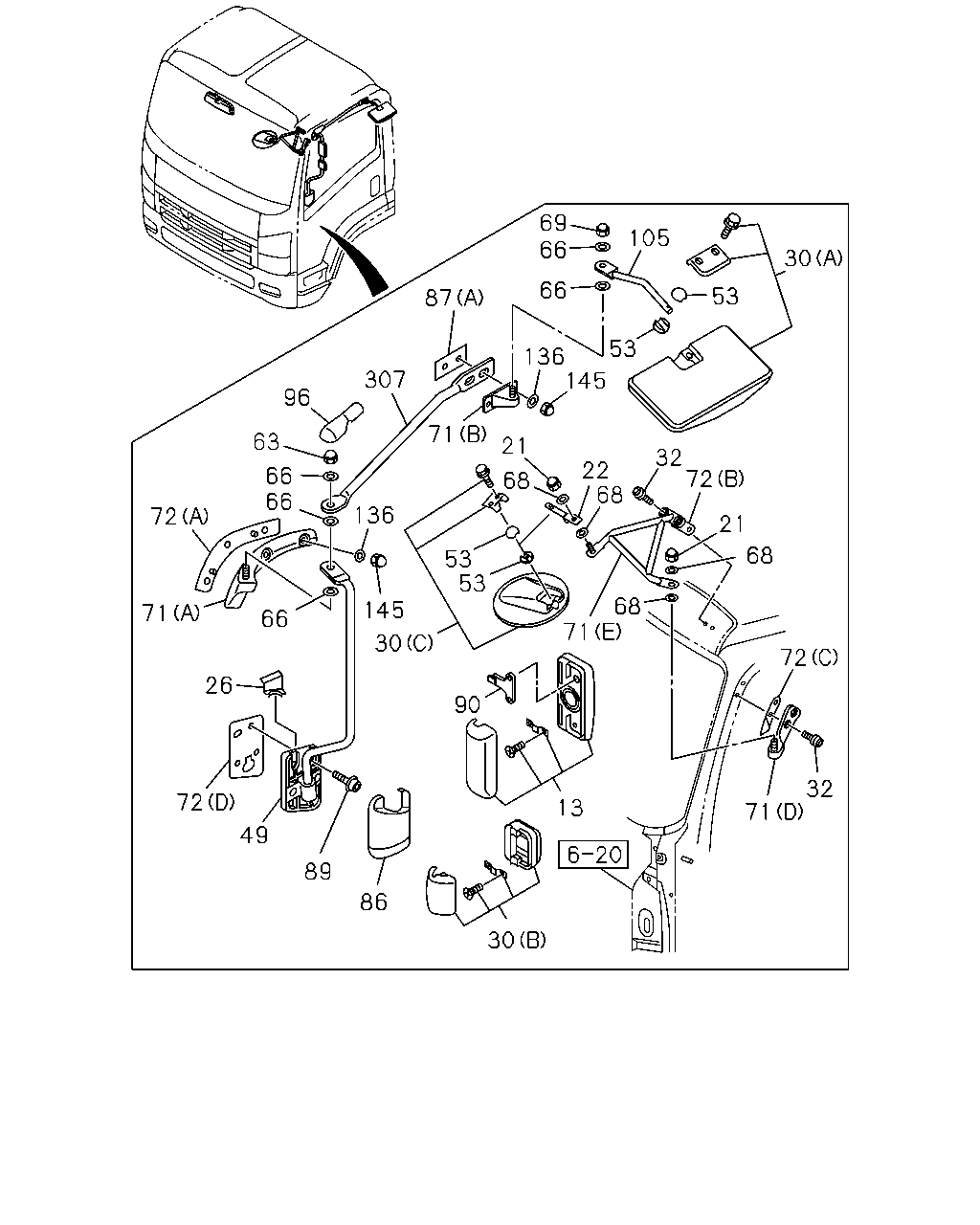

çizim 381522
30 53 105 69 66 66 53 145 136 87 71 21 68 22 32 72 21 68 72 32 71 68 53 53 136 96 63 66 66 72 71 66 145 30 72 49 89 86 26 90 13 71 68 30 307
BalonParca AdiParca NoAdetTipApplied Date
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98043-060-1 01 1 1310-
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98043-176-1 01 1 1310-
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98055-991-1 01 1 1310-
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98055-992-1 01 1 1310-
21 NUT; MIRROR
M10 CAP NUT 		1-09984-134-0 02 1 1310-
22 STAY; OUTSIDE MIRROR 8-98092-493-0 01 1 1310-
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 1310-
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 1310-
30 MIRROR; UNDER
(B) 		8-98043-061-0 02 1 1310-
30 MIRROR; UNDER
(A) 		8-98043-065-0 01 1 1310-
30 MIRROR; UNDER
(C) 		8-98055-994-0 01 1 1310-1504
30 MIRROR; UNDER
(C) 		8-98309-725-0 01 1 1505-
32 SCREW; UNDER MIRROR
M8X26 W/PL WASHER 		8-98067-249-2 04 1 1310-
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-188-0 01 1 1310-
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-189-0 01 1 1310-
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-180-0 01 1 1310-
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-181-0 01 1 1310-
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-198-0 01 1 1310-
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-199-0 01 1 1310-
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-210-0 01 1 1310-
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-211-0 01 1 1310-
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98166-192-0 01 1 1310-
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98166-193-0 01 1 1310-
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-194-0 01 1 1310-
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-195-0 01 1 1310-
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-206-0 01 1 1310-
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-207-0 01 1 1310-
49 STAY; MIRROR SIDE
MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-190-0 01 1 1310-
49 STAY; MIRROR SIDE
MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-191-0 01 1 1310-
53 PIVOT; SIDE MIRROR
ID=19.1 		1-71737-633-2 02 1 1310-
53 PIVOT; SIDE MIRROR
ID=19.1 		1-71737-633-2 02 1 1310-
63 NUT; STAY
M10 CAP NUT 		1-09984-134-0 02 1 1310-
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 02 1 1310-
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 1310-
68 WASHER; STAY
ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 1310-
69 NUT; CAP
M10 CAP NUT 		1-09984-134-0 01 1 1310-
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C) 		8-98039-277-2 02 1 1310-
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 1310-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1310-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1310-
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98060-240-0 01 1 1310-
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98092-492-3 01 1 1310-
72 SHEET
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98116-604-0 01 1 1310-
72 SHEET
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98116-605-0 01 1 1310-
72 SHEET
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98101-864-0 01 1 1310-
72 SHEET
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98101-865-0 01 1 1310-
72 SHEET
(A) 		8-98031-796-0 01 1 1310-
72 SHEET
(A) 		8-98031-797-0 01 1 1310-
72 SHEET
(B) 		8-98060-245-1 01 1 1310-
72 SHEET
(C) 		8-98064-776-0 01 1 1310-
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 1310-
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 1310-
87 SPACER
(A) 		8-98063-786-0 02 1 1310-
87 SPACER
(B) 		8-98063-789-0 01 1 1310-
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 		8-97310-216-1 08 1 1310-
90 BRACKET; MIRROR STAY
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98129-822-0 02 1 1506-
96 CAP; MIRROR STAY 8-98080-173-0 02 1 1310-
105 STAY; SUB UNDER MIRROR 8-98080-109-2 01 1 1310-
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 1310-
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 10 1 1310-
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 1310-
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 1310-
