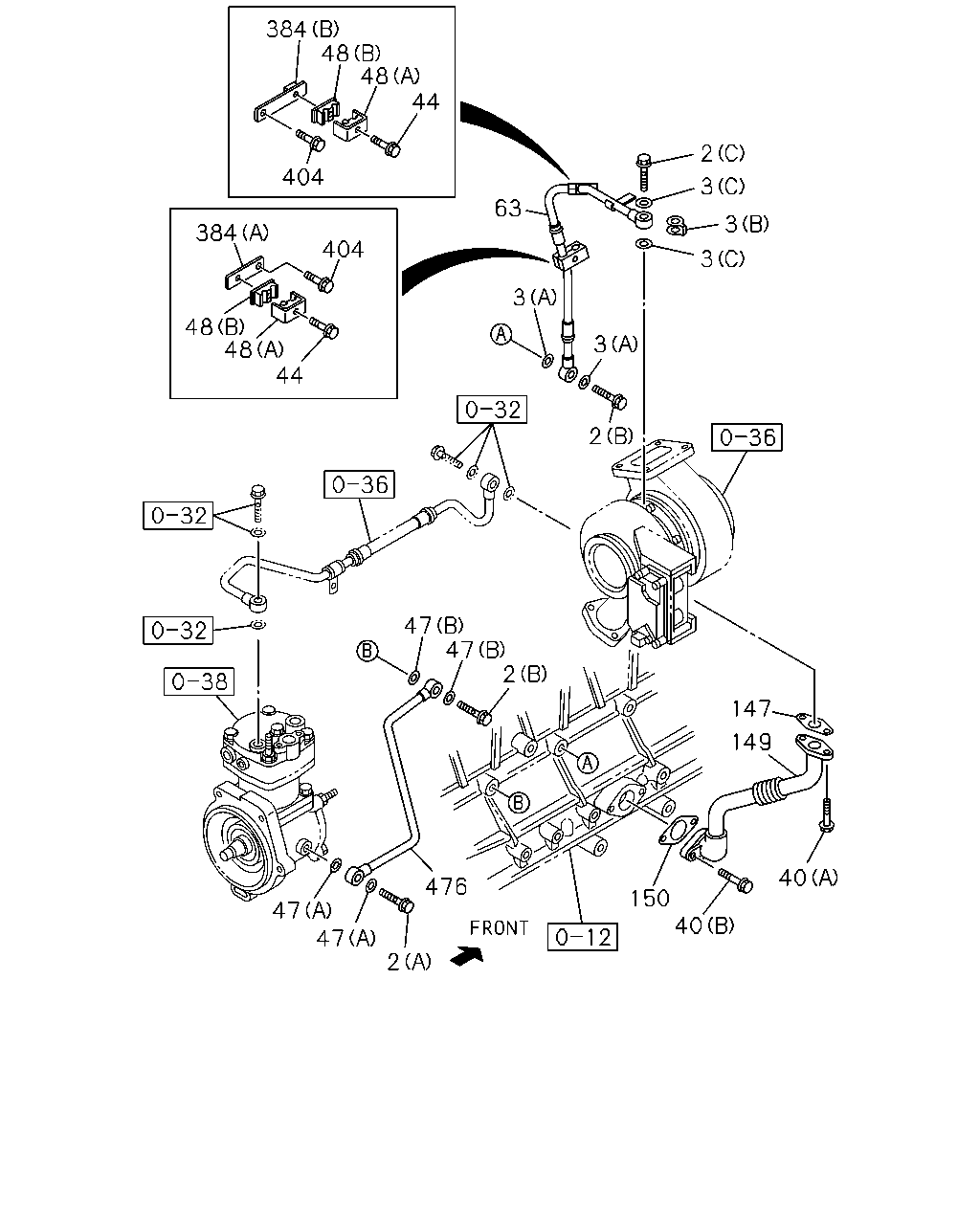

0-52 — OIL AND VACUUM PIPING; ENGINE (#12862) — 29 parça

384 48 48 44 2 404 3 63 3 384 404 3 3 48 48 3 44 2 47 47 2 147 149 40 476 150 40 47 47 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE THA	1-09675-086-0	02	1	0807-	●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	01	1	0807-	●	●
2	BOLT; EYE,OIL PIPE (C) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0807-1102	●	●
2	BOLT; EYE,OIL PIPE (C) M12X25	5-09675-006-1	01	1	1103-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0807-1312	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.6	8-97331-137-1	01	1	0807-1102	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	1-09630-084-0	02	1	1103-1312	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	8-98251-344-0	02	1	1401-	●	●
40	BOLT; OIL PIPE (B) M8X25 FLANGE THA	0-28650-825-0	02	1	0807-	●	●
40	BOLT; OIL PIPE (A) M8X30 FLANGE THA	0-28650-830-0	02	1	0807-1102	●	●
40	BOLT; OIL PIPE (A) M10X30 FLANGE	0-28151-030-0	02	1	1103-	●	●
44	BOLT; CLIP,OIL PIPE M6X30 FLANGE THA	0-28050-630-0	02	1	1103-	●	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0807-	●	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0807-1312	●	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
48	CLIP; OIL PIPE (A) ID=7 & 9 L=25	1-09701-228-3	02	1	1103-	●	●
48	CLIP; OIL PIPE (B) ID=7 & 9 L=25	1-09701-229-2	02	1	1103-	●	●
63	PIPE; OIL,TURBOCHARGER FEED	8-97606-204-0	01	1	0807-1102	●	●
63	PIPE; OIL,TURBOCHARGER FEED	8-98074-254-0	01	1	1103-	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	8-94390-641-1	01	1	0807-1102	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	1-09637-058-2	01	1	1103-	●	●
149	PIPE; OIL RETURN,TURBOCHARGER	8-97606-205-2	01	1	0807-1102	●	●
149	PIPE; OIL RETURN,TURBOCHARGER	8-98147-092-0	01	1	1103-	●	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	0807-	●	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (A)	1-13319-020-0	01	1	1103-	●	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (B)	1-13319-041-0	01	1	1103-	●	●
404	BOLT; BRKT M8X15	1-09000-114-0	02	1	1103-	●	●
476	PIPE; OIL,C/BL TO AIR CMPR	8-97610-075-0	01	1	0807-	●	●
