Isuzu WW
▶
TRUCKS
▶
FRR
▶
11547 - FRR RHD EUROPE EURO6 SPACECAB
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-20 - SIDE PANEL AND STEP
▶
6-20 — SIDE PANEL AND STEP
(#128604) — 54 parça
◀

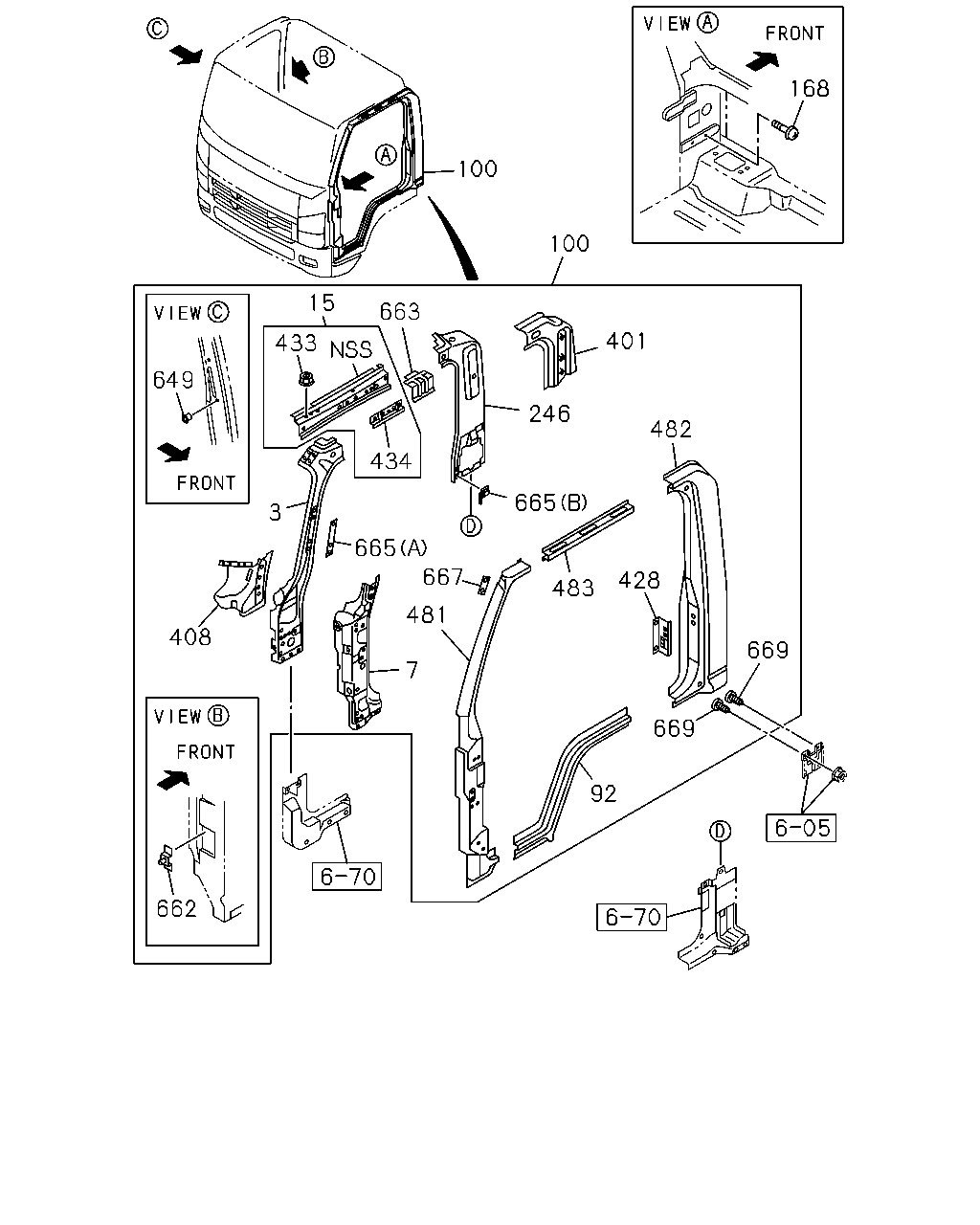

[620A] SIDE PANEL (36 parça)

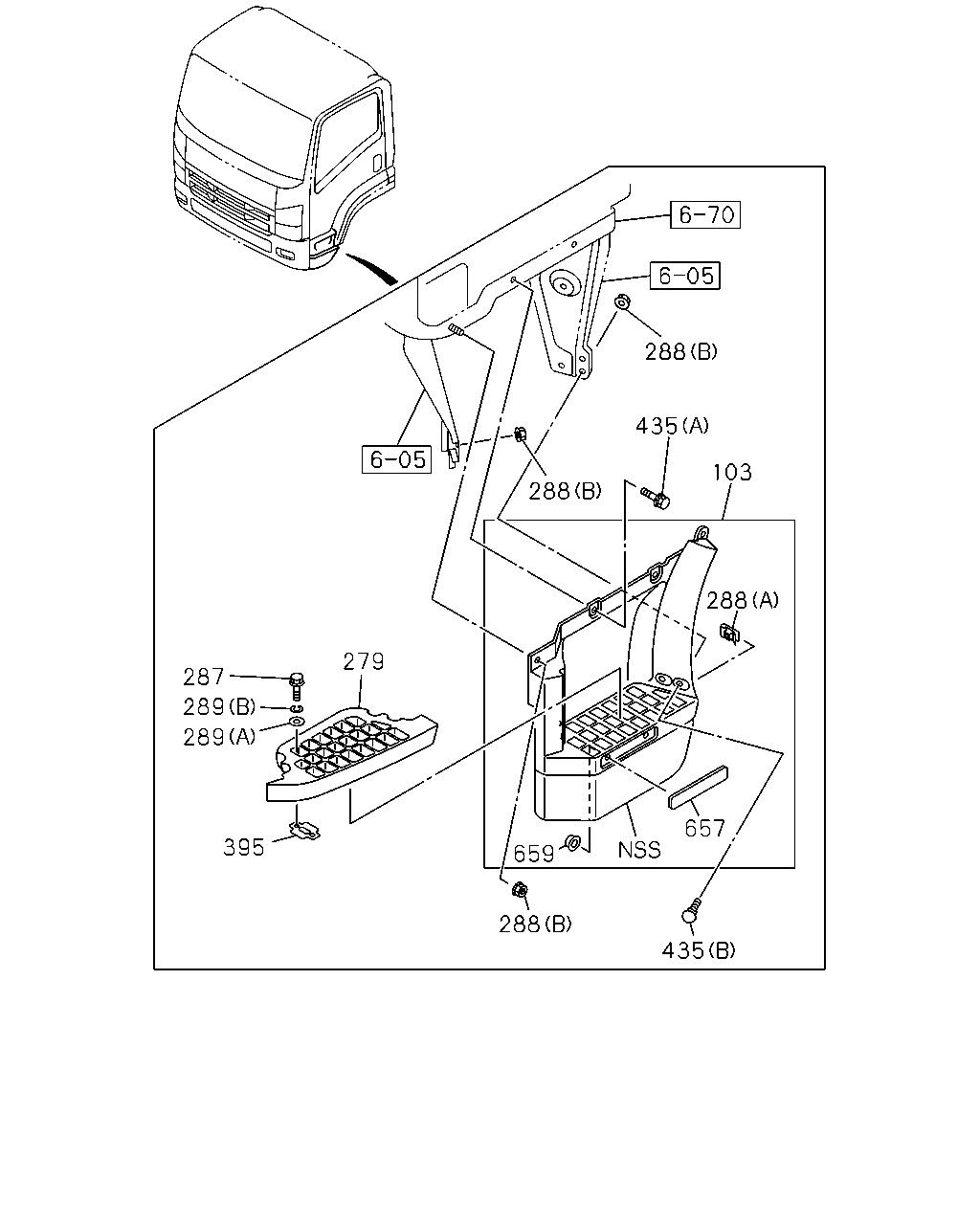

[620A] FRONT STEP (14 parça)

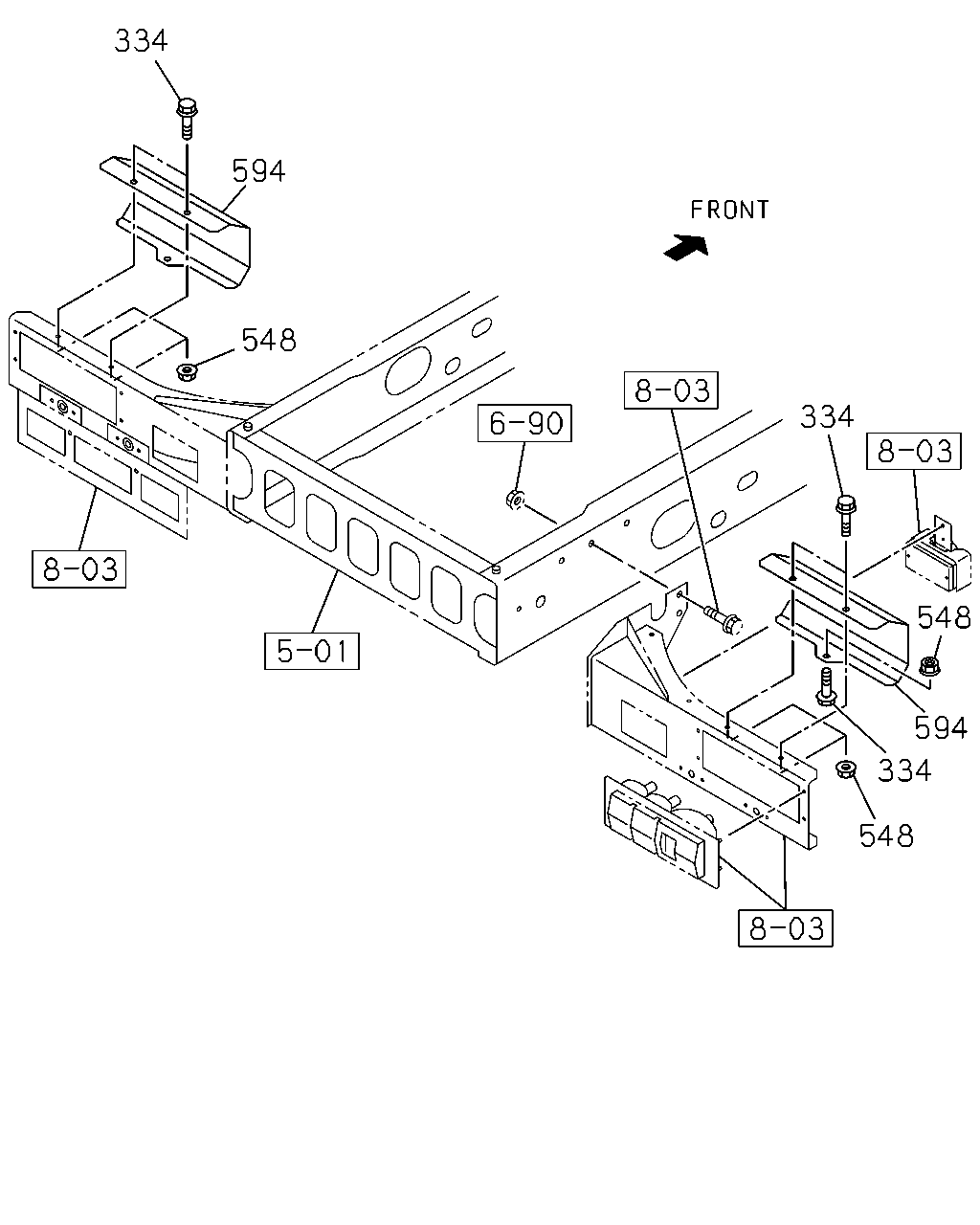

[620A] REAR COMB LAMP COVER (4 parça)
▶
401
669
669
92
481
483
428
665
246
100
100
663
15
433
649
3
434
665
408
168
667
662
7
482
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
PANEL; CLOSING,FRT PILLAR
8-98058-236-1
01
1
1310-
3
PANEL; CLOSING,FRT PILLAR
8-98058-237-1
01
1
1310-
7
REINFORCEMENT; HINGE
8-97585-240-3
01
1
1310-
7
REINFORCEMENT; HINGE
8-97585-244-4
01
1
1310-
15
PANEL; CANT RAIL SIDE
8-97585-292-2
01
1
1310-
15
PANEL; CANT RAIL SIDE
8-97585-293-2
01
1
1310-
92
PANEL; SIDE SILL,CAB
8-98055-461-1
01
1
1310-
92
PANEL; SIDE SILL,CAB
8-98055-462-1
01
1
1310-
100
PANEL ASM; BODY SIDE
8-97586-059-4
01
1
1310-
100
PANEL ASM; BODY SIDE
8-98088-578-2
01
1
1310-
168
BOLT; BODY SIDE PANEL
T25 M6X12 HEXALOBULAR SOCKET
0-38050-612-0
08
1
1310-
246
PANEL; RR PILLAR,INNER
8-97585-301-3
01
1
1310-
246
PANEL; RR PILLAR,INNER
8-97586-154-3
01
1
1310-
401
PATCH; CLOSING,FRT PILLAR
8-97585-303-2
01
1
1310-
401
PATCH; CLOSING,FRT PILLAR
8-98065-791-0
01
1
1310-
408
GUSSET; PILLAR
8-97586-193-3
01
1
1310-
408
GUSSET; PILLAR
8-97586-194-2
01
1
1310-
428
REINFORCEMENT; DOOR STRIKER
8-97585-260-4
01
1
1310-
428
REINFORCEMENT; DOOR STRIKER
8-97585-261-4
01
1
1310-
433
NUT; HEADER SHELF
M6
9-09114-086-0
04
1
1310-
434
PATCH; ASSIST GRIP
8-98039-019-0
01
1
1310-
434
PATCH; ASSIST GRIP
8-98039-020-0
01
1
1310-
481
PANEL; SIDE FRT PILLAR
8-98092-915-0
01
1
1310-
481
PANEL; SIDE FRT PILLAR
8-98093-579-0
01
1
1310-
482
PANEL; SIDE RR PILLAR
8-98055-467-1
01
1
1310-
482
PANEL; SIDE RR PILLAR
8-98092-922-0
01
1
1310-
483
PANEL; SIDE CANTRAIL
8-98055-458-0
01
1
1310-
483
PANEL; SIDE CANTRAIL
8-98055-460-0
01
1
1310-
649
NUT; POP
M5 POP NUT
8-97249-574-0
02
1
1310-
662
BRACKET; DUCT
8-97584-611-1
01
1
1310-
663
BRACKET; AIR
8-97585-207-2
01
1
1310-
663
BRACKET; AIR
8-97585-208-2
01
1
1310-
665
REINFORCEMENT; GRIP,ASSIST
(A)
8-97585-314-0
02
1
1310-
665
REINFORCEMENT; GRIP,ASSIST
(B)
8-98012-287-1
02
1
1310-
667
BRACKET; MIRROR
8-98109-948-0
01
1
1310-
669
STUD; FENDER
M6X18
8-98013-113-1
04
1
1310-
288
435
288
103
288
279
287
289
289
395
659
657
435
288
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
103
PLATE; STEP
8-98037-325-3
01
1
1310-
103
PLATE; STEP
8-98037-326-3
01
1
1310-
279
BOARD; STEP 1ST
8-98080-627-0
01
1
1310-
279
BOARD; STEP 1ST
8-98080-628-0
01
1
1310-
287
BOLT; BOARD STEP
8-98165-009-0
08
1
1310-
288
NUT; STEP
(B) M8 FLANGE
0-91180-108-0
10
1
1310-
288
NUT; STEP
(A) M8
8-98040-792-0
02
1
1310-
289
WASHER; PL,STEP
(A)
8-98112-672-1
08
1
1310-
289
WASHER; PL,STEP
(B)
8-98112-673-1
08
1
1310-
395
BRACKET; SIDE STEP
8-98080-646-1
04
1
1310-
435
BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER
8-98059-720-0
04
1
1310-
435
BOLT; RR STEP
(B) M8X18
8-98146-670-0
08
1
1310-
657
REFLECTOR; REFLEX
AMBER
8-97378-910-0
02
1
1310-
659
CLIP; SPRING NUT
8-97811-510-0
04
1
1310-
334
594
548
594
548
334
334
548
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
334
BOLT; COVER
M8X12 FLANGE
0-28060-812-0
06
1
1310-
548
NUT; BRKT
M8 CAP NUT FLANGE
8-97372-242-0
06
1
1310-1312
548
NUT; BRKT
M8 CAP NUT FLANGE
8-98261-347-0
06
1
1401-
594
COVER; RR COMB LAMP
8-98249-274-0
02
1
1310-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
