4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#128585) — 58 parça

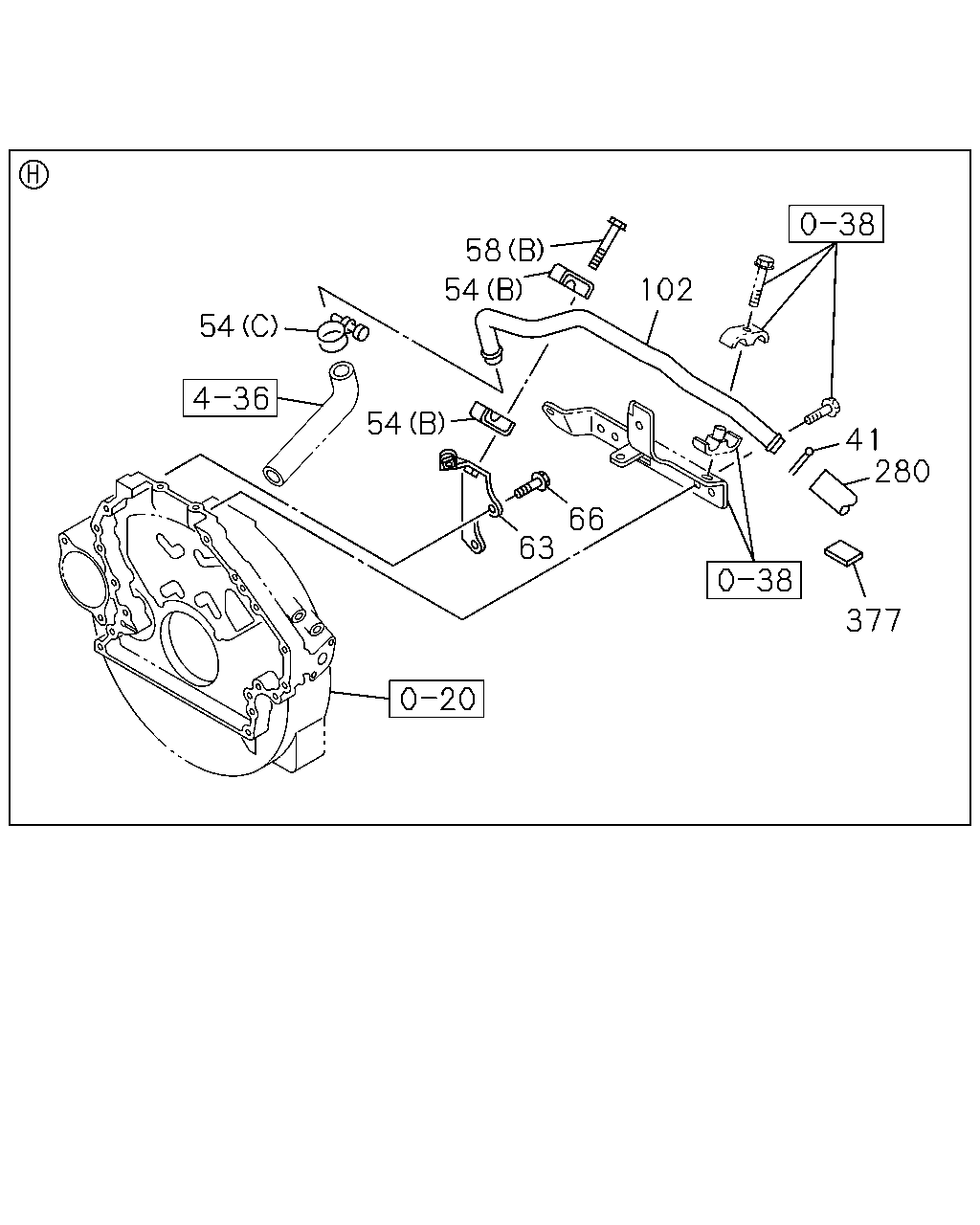

41 377 280 66 63 58 54 54 54 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1310-
54	CLIP; OIL PIPE (B) ID=17 L=17	1-09701-284-0	02	1	1310-
54	CLIP; OIL PIPE (C) ID=32	1-09704-085-0	02	1	1310-
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	02	1	1310-
58	BOLT; CLIP (B) M8X45 FLANGE	0-28050-845-0	01	1	1310-
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	01	1	1310-
63	BRACKET; CLIP,P/S	8-98075-954-0	01	1	1310-
66	BOLT; BRKT,OIL PIPE M8X16 FLANGE	0-28050-816-0	02	1	1310-
102	PIPE; SUCTION,P/S	8-98057-017-4	01	1	1310-
280	HOSE; P/S OIL PUMP,INL	8-98053-040-1	01	1	1310-
377	INSULATOR FRIGID ZONE KIT<YL3>	8-98141-066-0	01	1	1310-1310
377	INSULATOR	8-98141-066-0	01	1	1311-1401
377	INSULATOR	8-98270-804-0	01	1	1402-

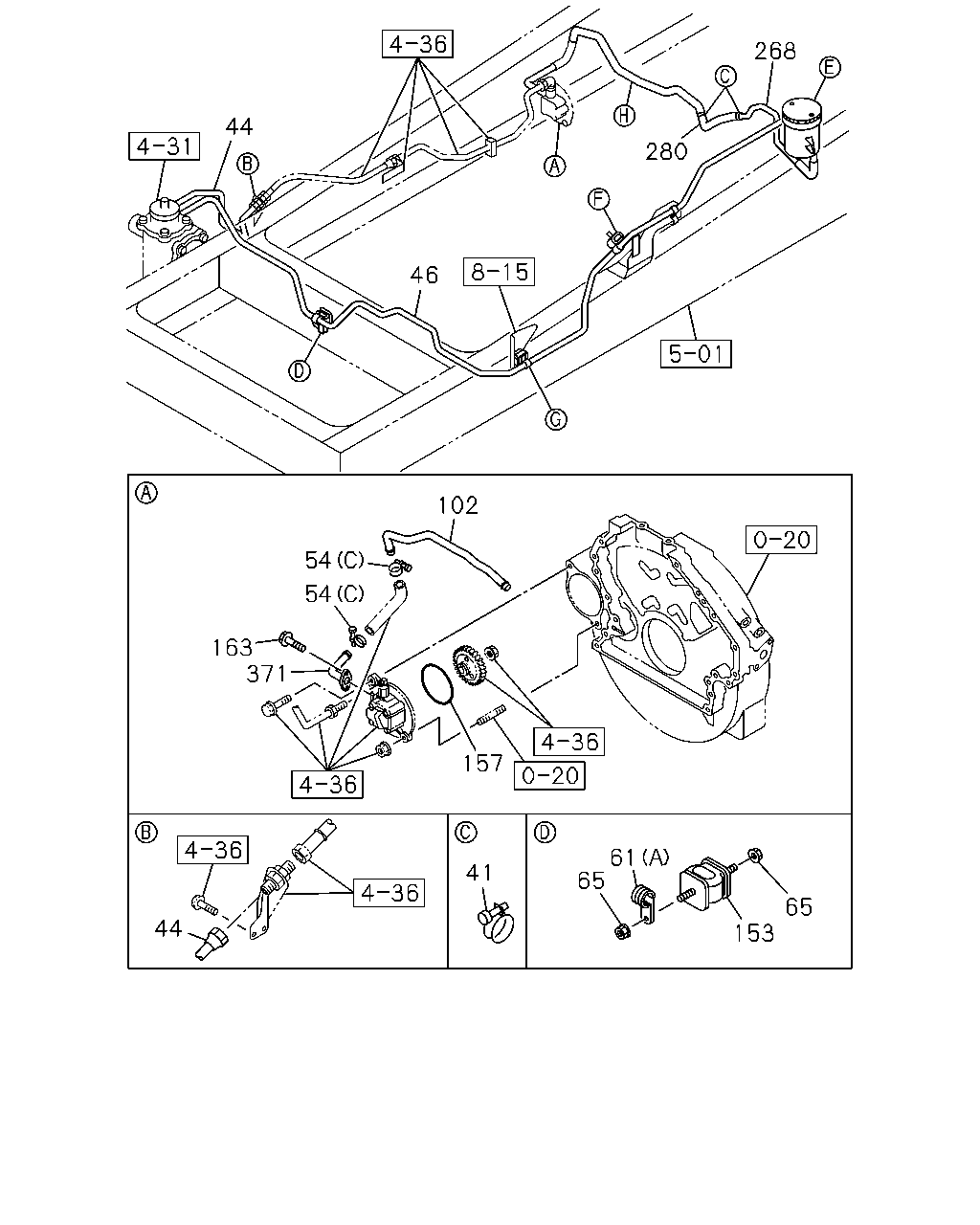

268 280 46 44 54 54 102 157 371 163 44 41 61 5 65 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1310-
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1310-
44	PIPE; OIL,P/S UNIT TO NIPPLE GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89)	8-98077-661-0	01	1	1310-
44	PIPE; OIL,P/S UNIT TO NIPPLE GENERATOR 24V90A(K44)	8-98079-094-0	01	1	1310-
46	PIPE; OIL,P/S UNIT TO OIL TANK L=2666	8-98222-217-0	01	1	1310-
54	CLIP; OIL PIPE (B) ID=17 L=17	1-09701-284-0	02	1	1310-
54	CLIP; OIL PIPE (C) ID=32	1-09704-085-0	02	1	1310-
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	02	1	1310-
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-536-0	03	1	1310-
61	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1310-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	06	1	1310-
102	PIPE; SUCTION,P/S	8-98057-017-4	01	1	1310-
153	RUBBER; CUSHION,POWER STRG PIPE	8-94158-156-1	03	1	1310-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	8-97386-295-0	01	1	1310-
163	BOLT; OIL PIPE M8X16 FLANGE	0-28050-816-0	02	1	1310-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98077-739-2	01	1	1310-
280	HOSE; P/S OIL PUMP,INL	8-98053-040-1	01	1	1310-
371	PIPE; OIL,INLET	8-98072-089-1	01	1	1310-

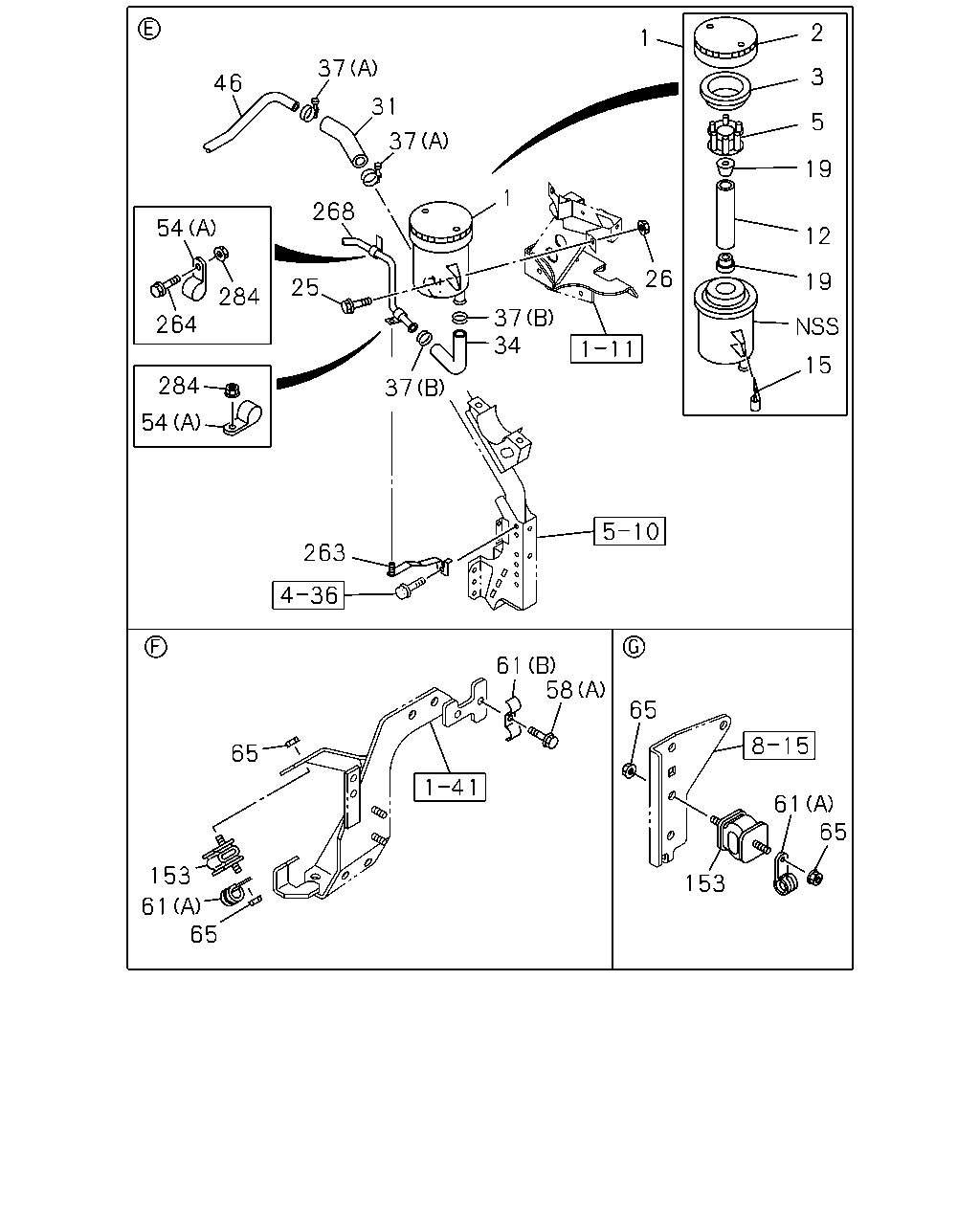

1 2 3 5 19 12 19 15 26 1 37 37 34 37 37 31 268 54 25 46 284 264 284 54 263 65 61 65 153 61 58 65 153 61 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1310-
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1310-
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1310-
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1310-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1310-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1310-
19	SEAT; OIL TANK	1-21249-004-0	02	1	1310-
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	02	1	1310-
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	1310-
31	HOSE; P/S OIL TANK,INL	8-98131-108-0	01	1	1310-
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1310-
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1310-
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1310-
46	PIPE; OIL,P/S UNIT TO OIL TANK L=2666	8-98222-217-0	01	1	1310-
54	CLIP; OIL PIPE (B) ID=17 L=17	1-09701-284-0	02	1	1310-
54	CLIP; OIL PIPE (C) ID=32	1-09704-085-0	02	1	1310-
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	02	1	1310-
58	BOLT; CLIP (B) M8X45 FLANGE	0-28050-845-0	01	1	1310-
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	01	1	1310-
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-536-0	03	1	1310-
61	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1310-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	06	1	1310-
153	RUBBER; CUSHION,POWER STRG PIPE	8-94158-156-1	03	1	1310-
263	BRACKET; P/S PIPE	8-98130-274-0	01	1	1310-
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	1310-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98077-739-2	01	1	1310-
284	NUT; PIPE M8 FLANGE	0-91180-108-0	02	1	1310-
