◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11129 - FVM(THAI)EURO3 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40 - FUEL INJECTION SYSTEM ▶
0-40 — FUEL INJECTION SYSTEM (#12858) — 111 parça

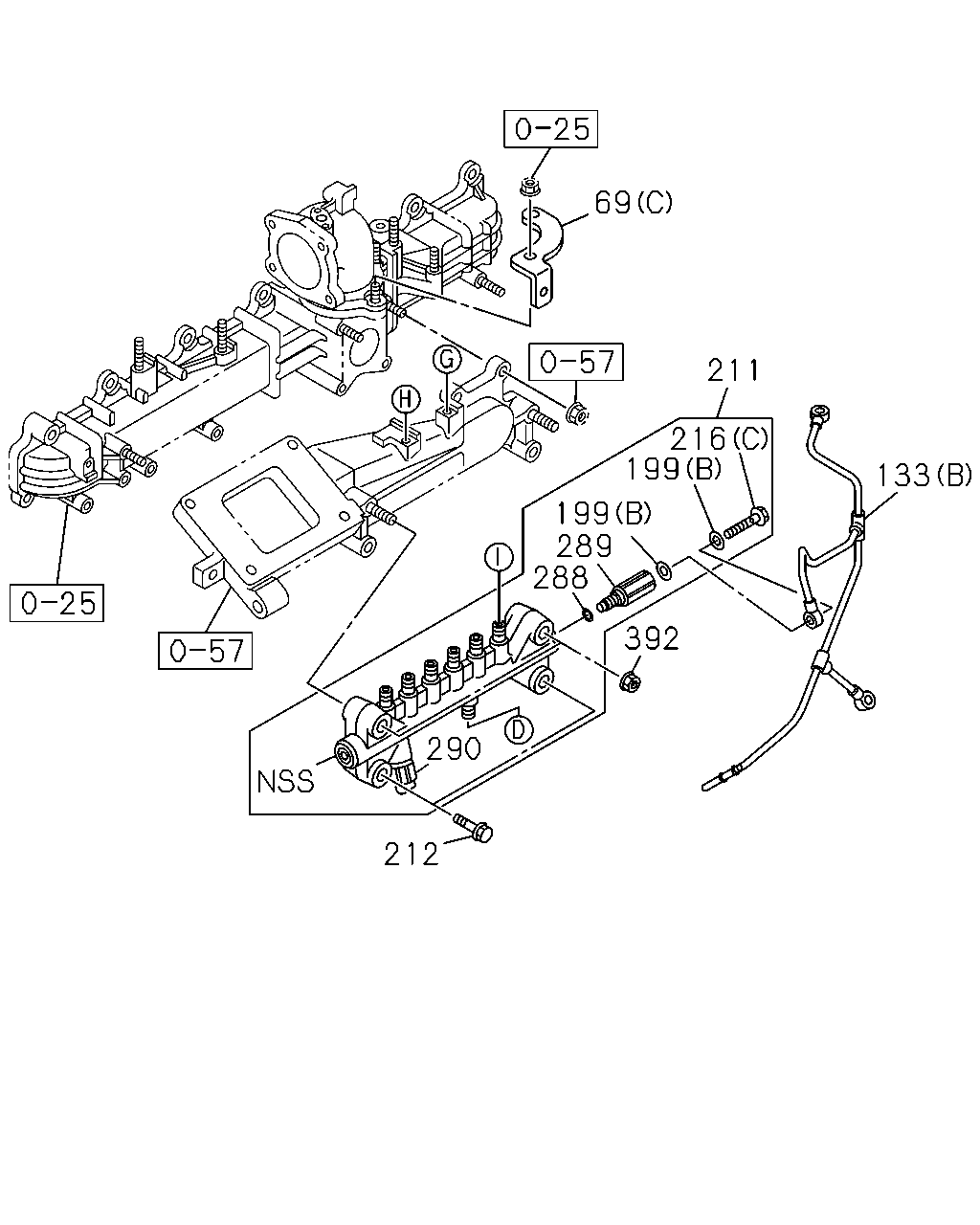

çizim 98167
133 211 69 216 199 199 289 288 392 290 212
BalonParca AdiParca NoAdetTipApplied Date A B
69 BRACKET; INJ PIPE CLIP
(B) 		8-98038-940-0 01 1 0807- ● ●
69 BRACKET; INJ PIPE CLIP
(C) 		8-98038-941-0 01 1 0807- ● ●
69 BRACKET; INJ PIPE CLIP
(A) 		8-98049-015-0 01 1 0807- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-94391-311-0 01 1 0807-1206 ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-98203-705-1 01 1 1207- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-97610-504-0 01 1 0807- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 0807- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 0807- ● ●
211 RAIL ASM; COMMON 8-97609-980-2 01 1 0807- ● ●
212 BOLT; RAIL ASM
M10X50 FLANGE 		8-97372-243-0 02 1 0807- ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 0807- ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 0807- ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 0807- ● ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 0807- ● ●
289 LIMITER; FUEL PRESS
THA 		8-98032-549-0 01 1 0807- ● ●
290 SENSOR; PRESS 8-97318-684-0 01 1 0807-0808 ● ●
290 SENSOR; PRESS 8-98119-790-0 01 1 0809- ● ●
392 NUT; RAIL ASM
M10 FLANGE THA 		0-91180-110-0 02 1 0807- ● ●

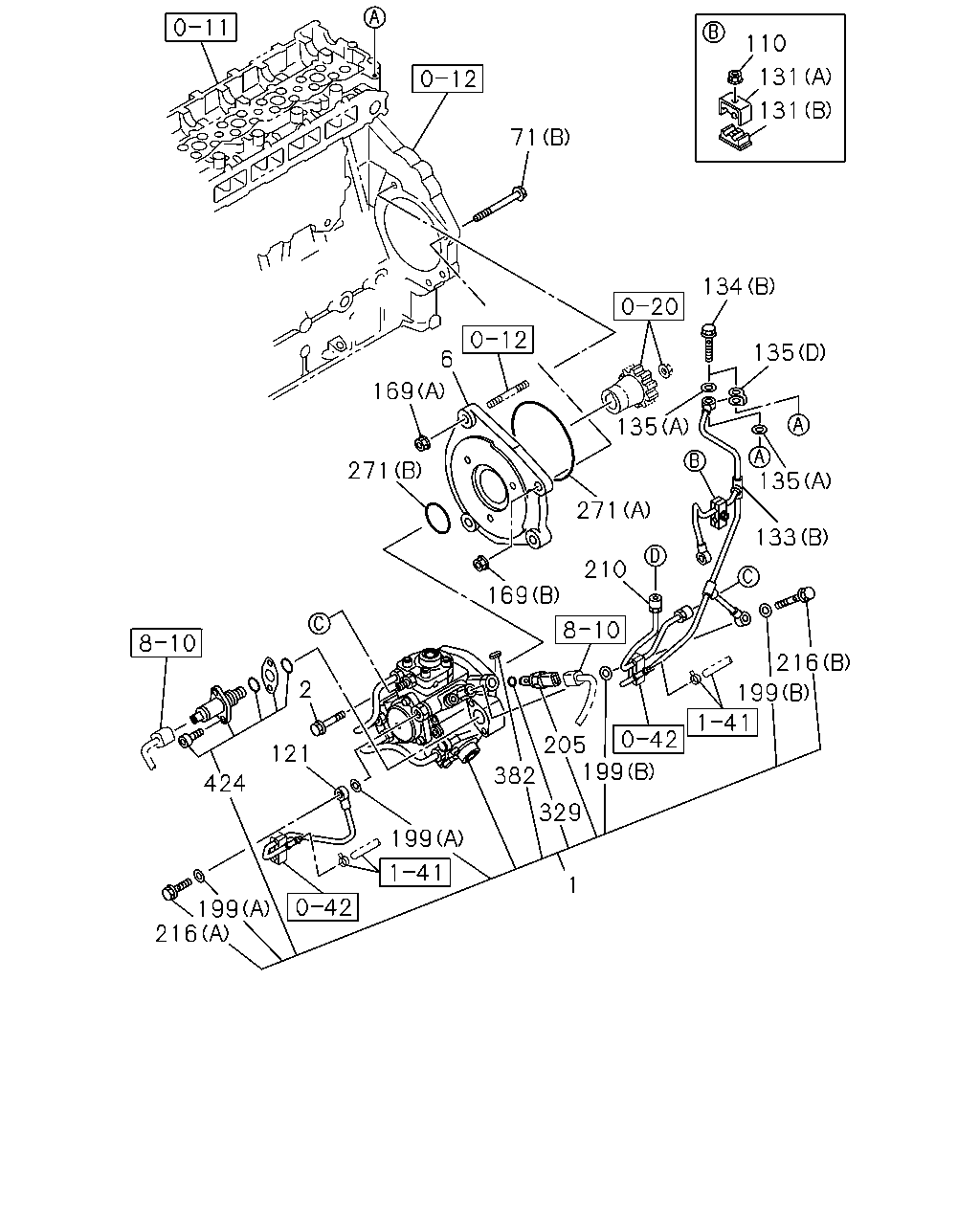

çizim 98223
110 131 131 71 134 135 6 169 135 135 271 271 133 210 169 216 2 199 205 199 121 382 424 329 199 1 199 216
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; INJ 8-97605-946-7 01 1 0807- ● ●
2 BOLT; INJ PUMP
M8X28 		8-94399-256-0 03 1 0807- ● ●
6 BRACKET; INJ PUMP TO C/BL 8-97601-154-1 01 1 0807- ● ●
71 BOLT; BRKT
(A) M8X16 FLANGE THA 		0-28050-816-0 02 1 0807- ● ●
71 BOLT; BRKT
(B) M12X100 FLANGE 		0-28151-200-0 01 1 0807- ● ●
110 NUT; CLIP
M6 FLANGE THA 		0-91180-106-0 05 1 0807- ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-97610-502-0 01 1 0807-0808 ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-98126-331-0 01 1 0809- ● ●
131 CLIP; OVERFLOW LEAK OFF
(A) ID=7 & 9 L=25 		8-98000-010-2 01 1 0807- ● ●
131 CLIP; OVERFLOW LEAK OFF
(B) ID=7 & 9 L=25 		8-98000-011-2 01 1 0807- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-94391-311-0 01 1 0807-1206 ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-98203-705-1 01 1 1207- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-97610-504-0 01 1 0807- ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 06 1 0807- ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(B) M10X21 FLANGE 		8-94396-711-0 02 1 0807- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0807-0908 ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=10.2 OD=17 		8-98079-755-0 01 1 0909- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6 		8-97240-975-0 01 1 0807-1301 ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6 		8-98231-393-0 01 1 1302- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 		8-97600-925-0 06 1 0807-0908 ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0 		8-98065-992-0 06 1 0909- ● ●
169 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-110-0 02 1 0807- ● ●
169 NUT; BRKT
(B) M12 FLANGE THA 		0-91180-112-0 01 1 0807- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 0807- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 0807- ● ●
205 SENSOR; FUEL TEMP
THA 		8-98023-581-0 01 1 0807- ● ●
210 PIPE; INJ,C/R 8-97608-480-1 01 1 0807- ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 0807- ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 0807- ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 0807- ● ●
271 GASKET; INJ PUMP
(A) ID=139.6 		1-09623-464-0 01 1 0807- ● ●
271 GASKET; INJ PUMP
(B) ID=52 		8-98031-844-0 01 1 0807- ● ●
329 GASKET; SENSOR,FUEL TEMP
ID=9.8 OD=11.7 		9-09566-110-0 01 1 0807-1201 ● ●
382 KEY; DRIVE SHAFT 8-97375-384-0 01 1 0807-0910 ● ●
382 KEY; DRIVE SHAFT
THA 		8-98161-995-0 01 1 0911- ● ●
424 OVERHAUL KIT; SUPPLY PUMP
W/ADAPTER 		8-98143-870-0 01 1 0807-0905 ● ●
424 OVERHAUL KIT; SUPPLY PUMP 8-98145-449-1 01 1 0906- ● ●

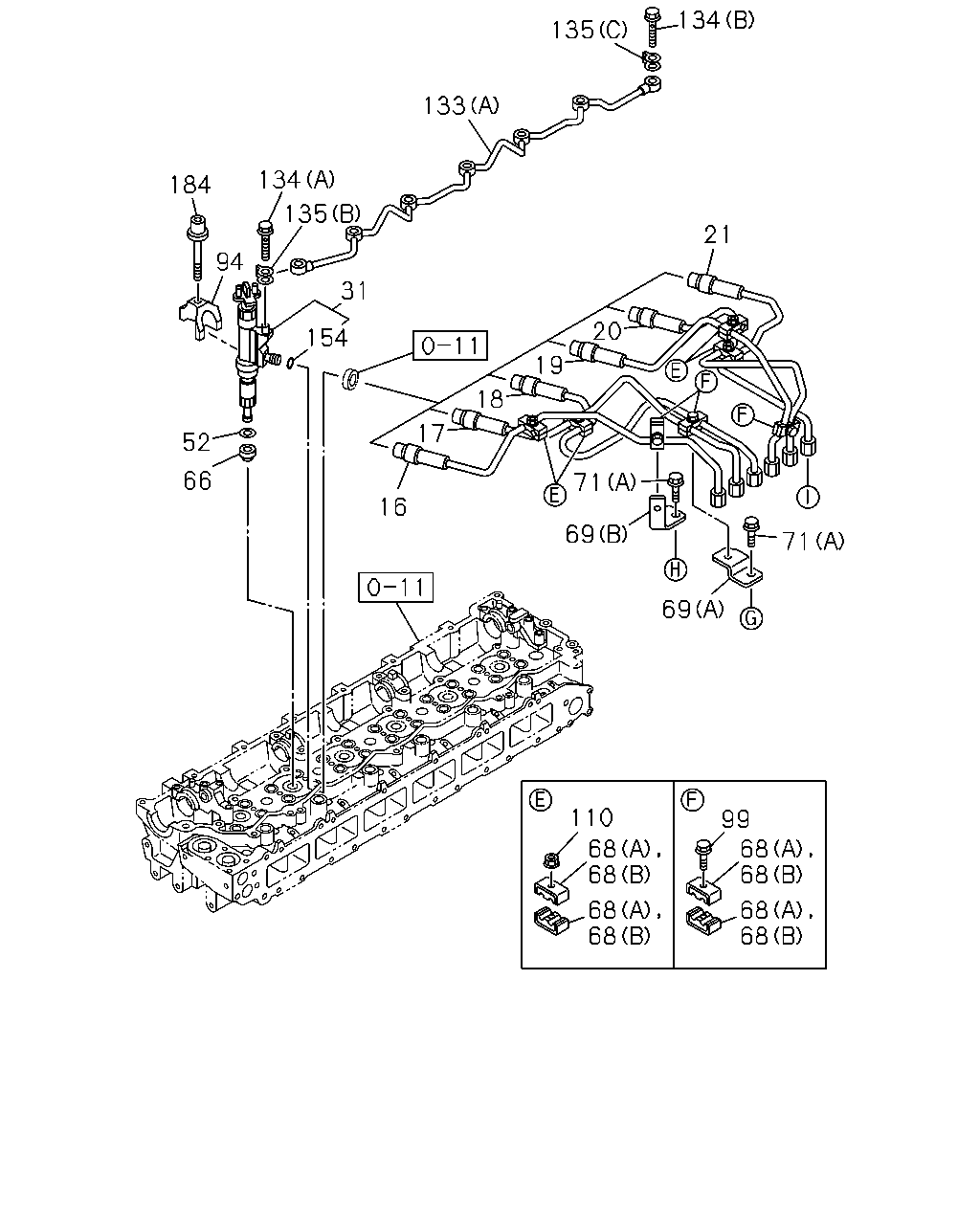

çizim 98242
133 135 134 21 20 19 18 17 16 71 69 69 71 134 135 31 154 52 66 94 184 110 68 68 68 68 99 68 68 68 68
BalonParca AdiParca NoAdetTipApplied Date A B
16 PIPE; INJ NO.1 8-98038-936-0 01 1 0807-1102 ● ●
16 PIPE; INJ NO.1 8-98185-362-0 01 1 1103-1403 ● ●
16 PIPE; INJ NO.1 8-98271-207-0 01 1 1404-1501 ● ●
16 PIPE; INJ NO.1 8-98298-611-0 01 1 1502- ● ●
17 PIPE; INJ NO.2 8-98039-770-0 01 1 0807-1102 ● ●
17 PIPE; INJ NO.2 8-98185-363-0 01 1 1103-1403 ● ●
17 PIPE; INJ NO.2 8-98271-208-0 01 1 1404-1501 ● ●
17 PIPE; INJ NO.2 8-98298-612-0 01 1 1502- ● ●
18 PIPE; INJ NO.3 8-98038-937-0 01 1 0807-1102 ● ●
18 PIPE; INJ NO.3 8-98185-364-0 01 1 1103-1403 ● ●
18 PIPE; INJ NO.3 8-98271-209-0 01 1 1404-1501 ● ●
18 PIPE; INJ NO.3 8-98298-613-0 01 1 1502- ● ●
19 PIPE; INJ NO.4 8-98057-085-0 01 1 0807-1102 ● ●
19 PIPE; INJ NO.4 8-98185-365-0 01 1 1103-1403 ● ●
19 PIPE; INJ NO.4 8-98271-210-0 01 1 1404-1501 ● ●
19 PIPE; INJ NO.4 8-98298-614-0 01 1 1502- ● ●
20 PIPE; INJ NO.5 8-98038-939-0 01 1 0807-1102 ● ●
20 PIPE; INJ NO.5 8-98185-366-0 01 1 1103-1403 ● ●
20 PIPE; INJ NO.5 8-98271-211-0 01 1 1404-1501 ● ●
20 PIPE; INJ NO.5 8-98298-615-0 01 1 1502- ● ●
21 PIPE; INJ NO.6 8-98039-771-0 01 1 0807-1102 ● ●
21 PIPE; INJ NO.6 8-98185-367-0 01 1 1103-1403 ● ●
21 PIPE; INJ NO.6 8-98271-212-0 01 1 1404-1501 ● ●
21 PIPE; INJ NO.6 8-98298-617-0 01 1 1502- ● ●
31 NOZZLE ASM; INJ 8-97609-789-4 06 1 0807-1102 ●
31 NOZZLE ASM; INJ 8-98172-046-1 06 1 1103- ● ●
31 NOZZLE ASM; INJ 8-97609-788-4 06 1 0807-1102 ●
52 GASKET; SLEEVE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=23.3 		8-94173-412-0 06 1 0807- ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		8-97601-447-2 06 1 0807-0909 ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		8-98079-248-0 06 1 0910- ● ●
68 CLIP; INJ PIPE
(B) ID=11 & 11 L=19 		8-98148-996-2 04 1 0910-1405 ● ●
68 CLIP; INJ PIPE
(B) ID=11 & 11 L=19 		8-98148-996-2 14 1 1406- ● ●
68 CLIP; INJ PIPE
(A) ID=11 & 11 L=19 		8-98039-293-0 14 1 0807-0909 ● ●
68 CLIP; INJ PIPE
(A) ID=11 & 11 L=19 		8-98039-293-0 10 1 0910-1405 ● ●
69 BRACKET; INJ PIPE CLIP
(B) 		8-98038-940-0 01 1 0807- ● ●
69 BRACKET; INJ PIPE CLIP
(C) 		8-98038-941-0 01 1 0807- ● ●
69 BRACKET; INJ PIPE CLIP
(A) 		8-98049-015-0 01 1 0807- ● ●
71 BOLT; BRKT
(A) M8X16 FLANGE THA 		0-28050-816-0 02 1 0807- ● ●
71 BOLT; BRKT
(B) M12X100 FLANGE 		0-28151-200-0 01 1 0807- ● ●
94 BRACKET; INJ NOZZLE 8-98028-999-1 06 1 0807- ● ●
99 BOLT; CLIP,INJ,PIPE
M6X35 FLANGE 		0-28050-635-0 03 1 0807- ● ●
110 NUT; CLIP
M6 FLANGE THA 		0-91180-106-0 05 1 0807- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-94391-311-0 01 1 0807-1206 ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-98203-705-1 01 1 1207- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-97610-504-0 01 1 0807- ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 06 1 0807- ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(B) M10X21 FLANGE 		8-94396-711-0 02 1 0807- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0807-0908 ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=10.2 OD=17 		8-98079-755-0 01 1 0909- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6 		8-97240-975-0 01 1 0807-1301 ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6 		8-98231-393-0 01 1 1302- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 		8-97600-925-0 06 1 0807-0908 ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0 		8-98065-992-0 06 1 0909- ● ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		9-09561-111-0 06 1 0807-1106 ● ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		0-95690-111-0 06 1 1107- ● ●
184 BOLT; NOZZLE HOLDER
M8X54 		8-98008-895-0 06 1 0807- ● ●
