Isuzu WW
▶
TRUCKS
▶
FRR
▶
11547 - FRR RHD EUROPE EURO6 SPACECAB
▶
3 - Brakes, Brake System
▶
3-75 - BRAKE PIPING; AIR,FRONT
▶
3-75 — BRAKE PIPING; AIR,FRONT
(#128574) — 40 parça
◀

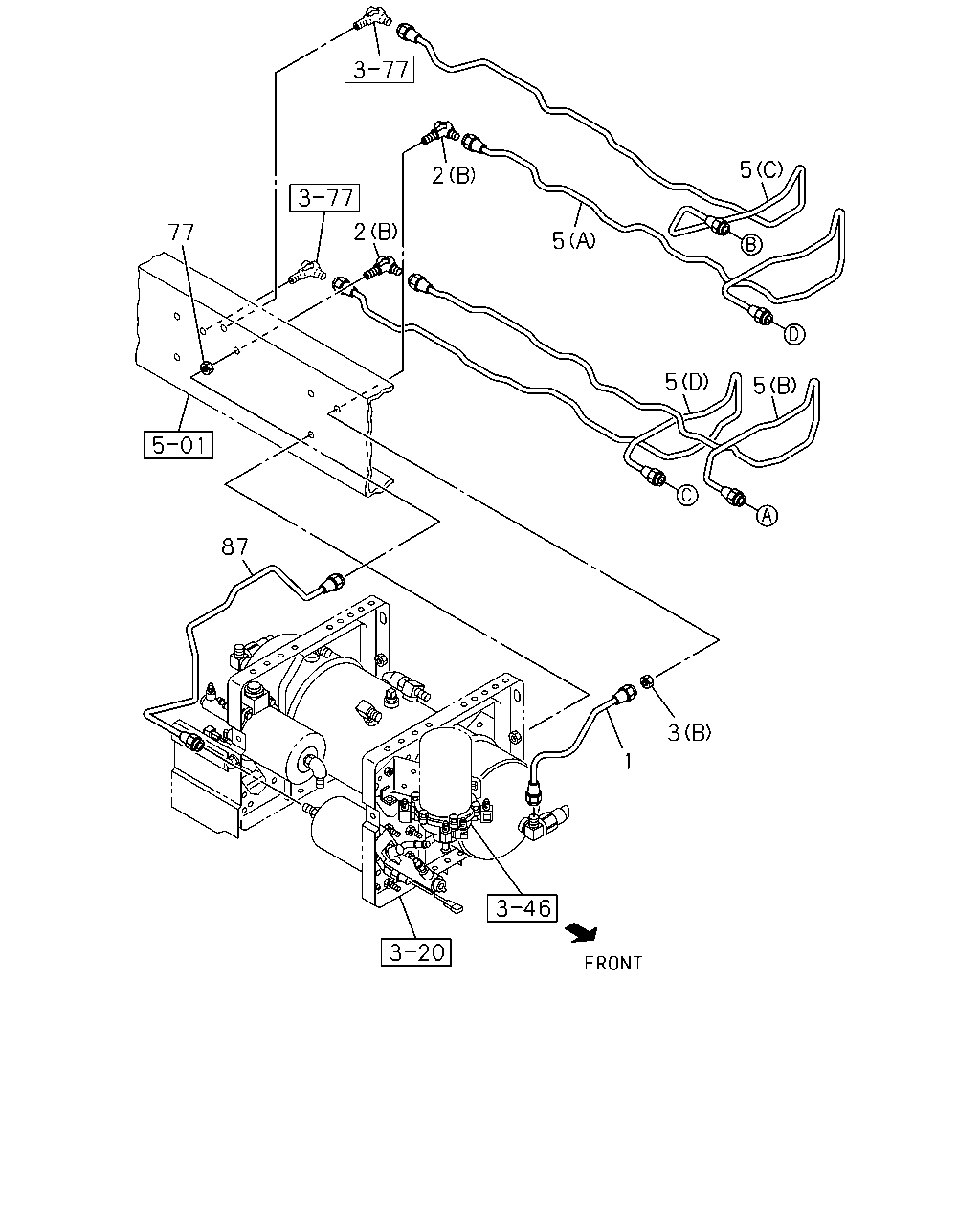

[375A] FRAME SIDE;EXC.H.S.A SYSTEM (11 parça)

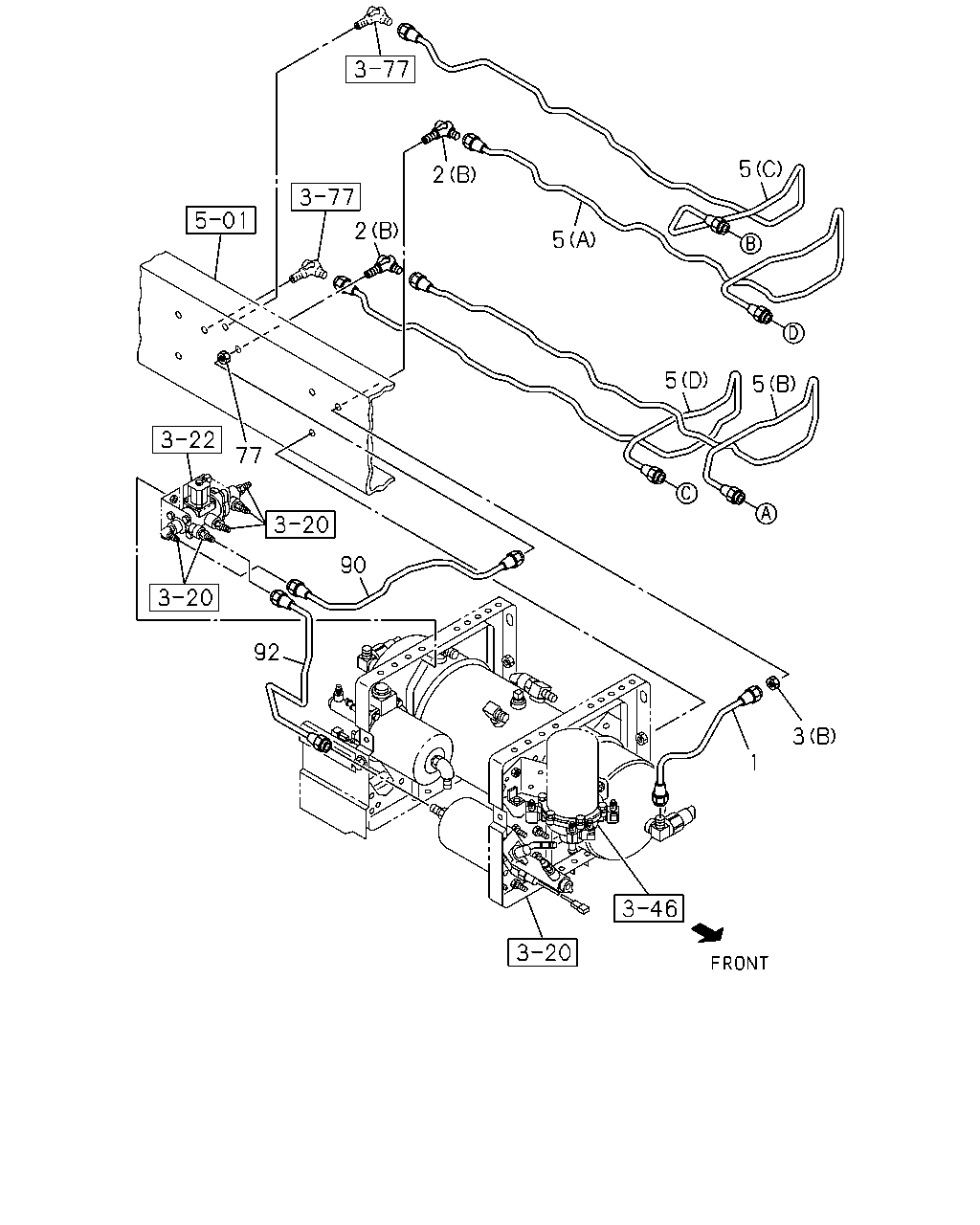

[375A] FRAME SIDE;H.S.A SYSTEM (12 parça)

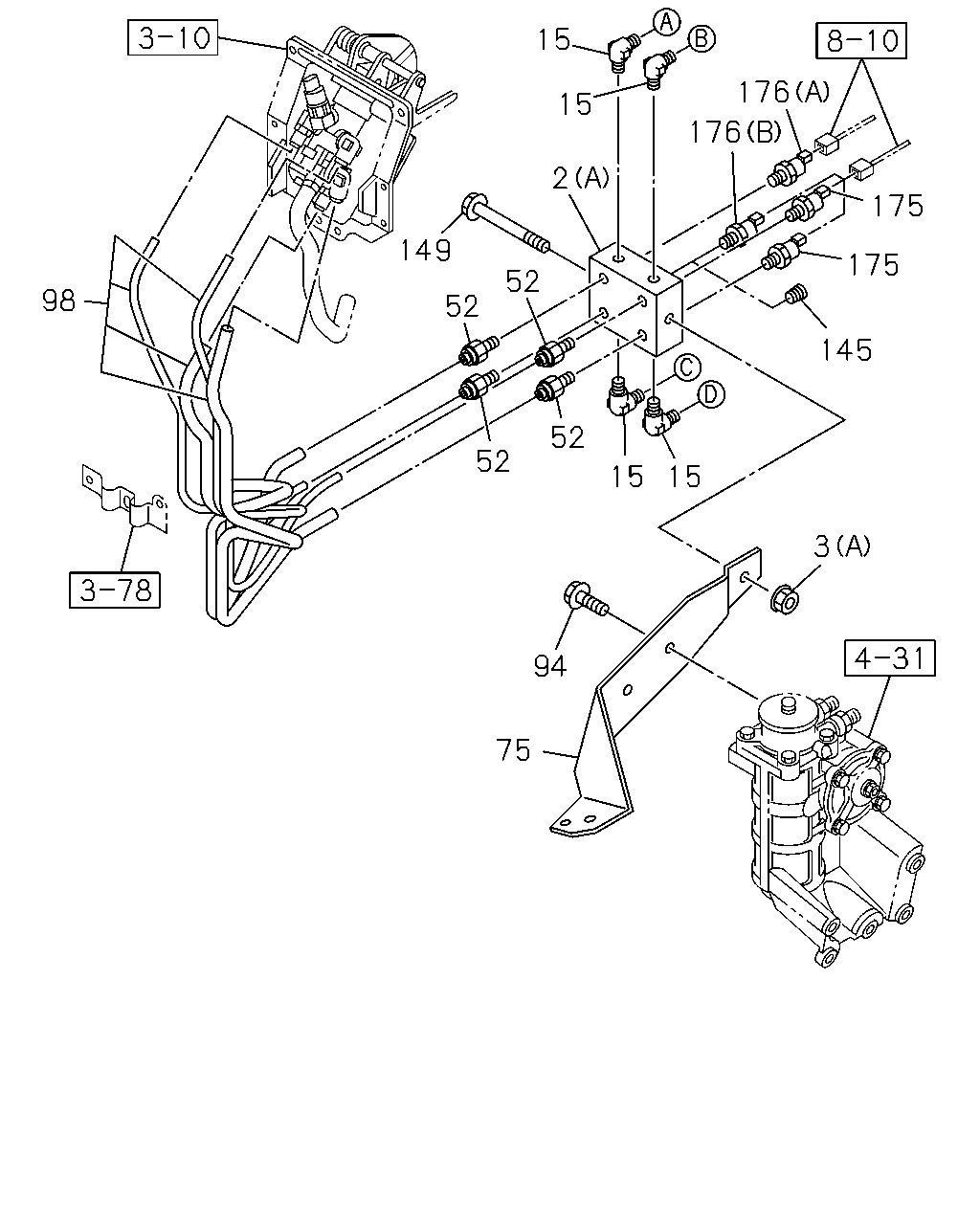

[375A] CAB UNDER (17 parça)
▶
5
5
5
2
5
77
87
3
1
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PIPE; AIR,AIR TANK TO UNION
L=279
8-98213-359-0
01
1
1310-
2
UNION; AIR PIPE
(A)
8-98057-394-1
01
1
1310-
2
UNION; AIR PIPE
(B) M16 ELBOW
0-92135-210-0
02
1
1310-
3
NUT; PIPE UNION
(A) M8 FLANGE
0-91180-108-0
01
1
1310-
3
NUT; PIPE UNION
(B) M16
0-91111-516-0
01
1
1310-
5
PIPE; AIR,UNION TO UNION
(A) L=2223 SERVICED BY L=2500
1-47428-883-0
01
1
1310-
5
PIPE; AIR,UNION TO UNION
(B) L=2693 SERVICED BY L=2900
1-47428-885-0
01
1
1310-
5
PIPE; AIR,UNION TO UNION
(C) L=2527
8-98235-087-0
01
1
1310-
5
PIPE; AIR,UNION TO UNION
(D) L=2644 SERVICED BY L=2900
1-47428-885-0
01
1
1310-
77
NUT; PIPE UNION
M16
0-91111-516-0
01
1
1310-
87
PIPE; AIR,UNION TO AIR MASTER
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) L=783 SERVICED BY L=800
1-47428-872-0
01
1
1310-
2
5
5
5
5
3
1
92
90
77
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PIPE; AIR,AIR TANK TO UNION
L=279
8-98213-359-0
01
1
1310-
2
UNION; AIR PIPE
(A)
8-98057-394-1
01
1
1310-
2
UNION; AIR PIPE
(B) M16 ELBOW
0-92135-210-0
02
1
1310-
3
NUT; PIPE UNION
(A) M8 FLANGE
0-91180-108-0
01
1
1310-
3
NUT; PIPE UNION
(B) M16
0-91111-516-0
01
1
1310-
5
PIPE; AIR,UNION TO UNION
(A) L=2223 SERVICED BY L=2500
1-47428-883-0
01
1
1310-
5
PIPE; AIR,UNION TO UNION
(B) L=2693 SERVICED BY L=2900
1-47428-885-0
01
1
1310-
5
PIPE; AIR,UNION TO UNION
(C) L=2527
8-98235-087-0
01
1
1310-
5
PIPE; AIR,UNION TO UNION
(D) L=2644 SERVICED BY L=2900
1-47428-885-0
01
1
1310-
77
NUT; PIPE UNION
M16
0-91111-516-0
01
1
1310-
90
PIPE; AIR,UNION TO HSA VLV
H.S.A SYSTEM<6EP> L=493
8-98077-878-0
01
1
1310-
92
PIPE; AIR,HSA VLV TO AIR MASTER
H.S.A SYSTEM<6EP> L=476
8-98212-632-0
01
1
1310-
98
75
94
3
15
15
52
52
52
52
149
2
15
15
176
176
175
175
145
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
UNION; AIR PIPE
(A)
8-98057-394-1
01
1
1310-
2
UNION; AIR PIPE
(B) M16 ELBOW
0-92135-210-0
02
1
1310-
3
NUT; PIPE UNION
(A) M8 FLANGE
0-91180-108-0
01
1
1310-
3
NUT; PIPE UNION
(B) M16
0-91111-516-0
01
1
1310-
15
CONNECTOR; AIR PIPE
M16 & PT1/4 ELBOW
0-92134-310-0
04
1
1310-
52
CONNECTOR; NYLON TUBE
DIN12 & R1/4 STRAIGHT
1-09660-967-0
04
1
1310-
75
BRACKET; UNION
FACE LIFT MODEL<TX7>
8-98257-652-0
01
1
1412-
75
BRACKET; UNION
8-98066-785-0
01
1
1310-1411
75
BRACKET; UNION
EXC. FACE LIFT MODEL<TX7>
8-98066-785-0
01
1
1412-
94
BOLT; BRKT
M10X20 FLANGE
0-28151-020-0
02
1
1310-
98
TUBE; NYLON
8-98079-175-0
01
1
1310-
145
PLUG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PT1/4
9-99204-513-0
01
1
1310-
149
BOLT; UNION
M8X100 FLANGE
0-28050-800-0
01
1
1310-
175
SENSOR; AIR PRESS
THREAD R1/4
1-80220-023-1
02
1
1310-
176
SWITCH; AIR PRESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) STAMP 0.7
8-97622-710-0
01
1
1310-
176
SWITCH; AIR PRESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) STAMP 2.2
8-98010-858-0
01
1
1310-
176
SWITCH; AIR PRESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) STAMP 0.3
8-98010-857-0
01
1
1310-
