0-39 — AIR COMPRESSOR; BRAKE (#12857) — 30 parça

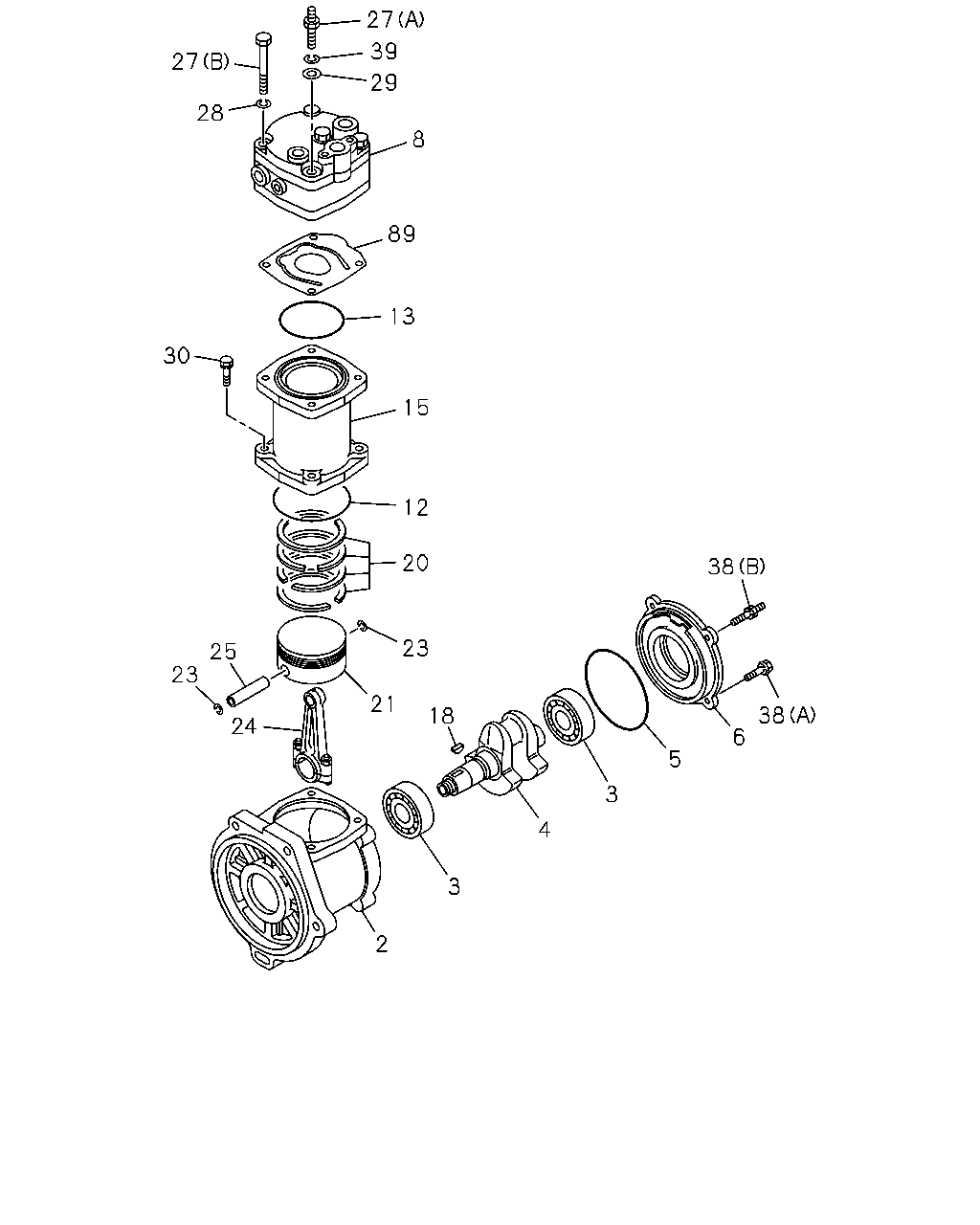

çizim 98388
27 39 27 29 28 8 89 13 30 15 12 20 38 23 25 23 21 38 18 24 6 5 3 4 3 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 CRANKCASE; AIR CMPR 8-97614-060-1 01 1 0807- ● ●
3 BEARING; AIR CMPR 1-09800-268-0 02 1 0807- ● ●
4 CRANKSHAFT; AIR CMPR 8-97614-059-1 01 1 0807- ● ●
5 GASKET; AIR CMPR 1-09623-613-0 01 1 0807-1107 ● ●
5 GASKET; AIR CMPR 8-98192-463-0 01 1 1108- ● ●
6 COVER ASM; BRG,AIR CMPR 8-97614-058-1 01 1 0807- ● ●
8 HEAD ASM; CYL,AIR CMPR 8-97614-055-0 01 1 0807-1012 ● ●
8 HEAD ASM; CYL,AIR CMPR 8-98167-012-0 01 1 1101-1102 ● ●
8 HEAD ASM; CYL,AIR CMPR 8-98167-013-0 01 1 1103- ● ●
12 GASKET; AIR CMPR 1-09623-614-0 01 1 0807-1107 ● ●
12 GASKET; AIR CMPR 8-98048-641-0 01 1 1108- ● ●
13 GASKET; AIR CMPR 1-09623-615-0 01 1 0807-1107 ● ●
13 GASKET; AIR CMPR 8-98048-640-0 01 1 1108- ● ●
15 CYLINDER; AIR CMPR 8-97614-056-0 01 1 0807- ● ●
18 KEY; AIR CMPR 9-08055-516-0 01 1 0807- ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-058-0 01 1 0807- ● ●
21 PISTON; AIR CMPR 1-19161-027-0 01 1 0807- ● ●
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 02 1 0807- ● ●
24 ROD ASM; CONN,AIR CMPR 8-97614-057-0 01 1 0807- ● ●
25 PIN; PISTON,AIR CMPR 1-19167-003-0 01 1 0807- ● ●
27 BOLT; HD
(A) 		8-97614-054-0 01 1 0807- ● ●
27 BOLT; HD
(B) M10X80 		8-98038-666-0 03 1 0807-1012 ● ●
27 BOLT; HD
(B) M10X75 		8-98167-018-0 03 1 1101- ● ●
28 WASHER; LK,HD BOLT 8-97613-694-0 01 1 0807- ● ●
29 WASHER; PL,HD BOLT 8-97613-686-0 01 1 0807- ● ●
30 BOLT; CYL TO CRANKCASE
M10X30 		8-97613-704-0 04 1 0807- ● ●
38 BOLT; COVER FIX
(A) M10X30 		8-97613-704-0 02 1 0807- ● ●
38 BOLT; COVER FIX
(B) 		8-97617-310-0 02 1 0807- ● ●
39 WASHER; LK,COVER FIX 8-97613-694-0 02 1 0807- ● ●
89 VALVE; SUCTION 1-19119-045-0 01 1 0807- ● ●
