◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11547 - FRR RHD EUROPE EURO6 SPACECAB ▶ 3 - Brakes, Brake System ▶ 3-10 - BRAKE PEDAL AND CONTROL ▶
3-10 — BRAKE PEDAL AND CONTROL (#128561) — 30 parça

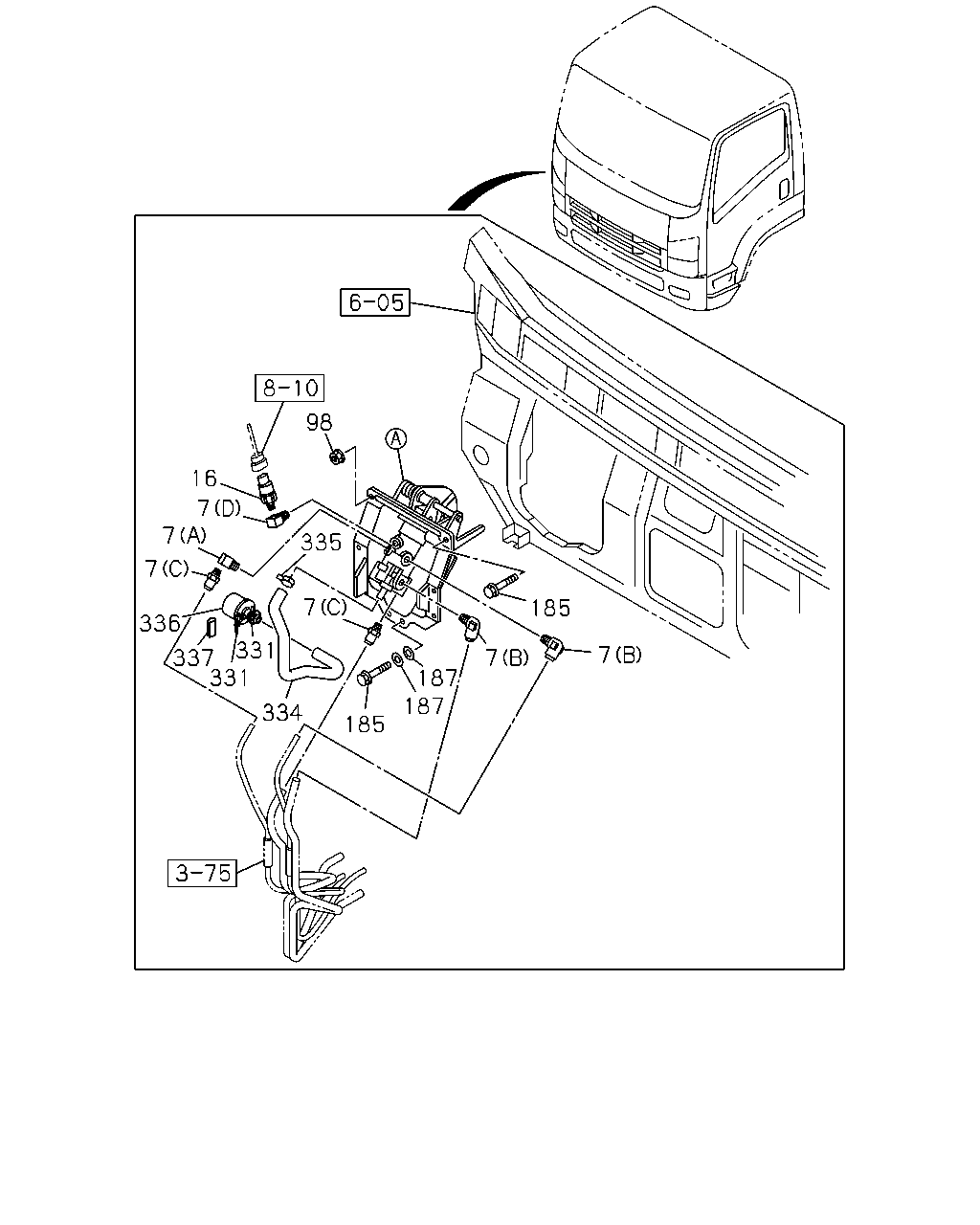

çizim 380554
7 7 185 187 187 185 334 7 335 98 16 7 7 7 336 337 331 331
BalonParca AdiParca NoAdetTipApplied Date
7 CONNECTOR; BRK VALVE
(D) PT1/4 & PT1/4 2WAY 		1-09660-693-0 01 1 1310-
7 CONNECTOR; BRK VALVE
(A) PT3/8 ELBOW 		1-09660-696-0 01 1 1310-
7 CONNECTOR; BRK VALVE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1310-
7 CONNECTOR; BRK VALVE
(C) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 1310-
16 SWITCH; STOP LAMP
STAMP 0.3 		8-98010-857-0 01 1 1310-
98 NUT; BRKT
M8 FLANGE 		0-91180-208-0 01 1 1310-
185 BOLT; BRKT
M8X25 FLANGE 		8-98057-109-0 07 1 1310-1506
185 BOLT; BRKT
M8X25 HEXALOBULAR 		8-98316-699-0 07 1 1507-
187 WASHER; PL,BRKT
ID=8.4 OD=26 		0-91614-808-0 04 1 1310-1506
187 WASHER; PL,BRKT
ID=8.4 OD=26 		8-98316-762-0 04 1 1507-
331 CLIP; BAND
L=197 		1-83574-032-0 02 1 1310-
334 HOSE; AIR,BRK 8-98017-118-4 01 1 1310-
335 CLAMP; HOSE
ID=24 		8-98025-921-0 01 1 1310-
336 SILENCER; AIR 1-48199-544-0 01 1 1310-
337 PROTECTOR; AIR BRK
L=30 L=50 		8-94270-377-1 01 1 1310-

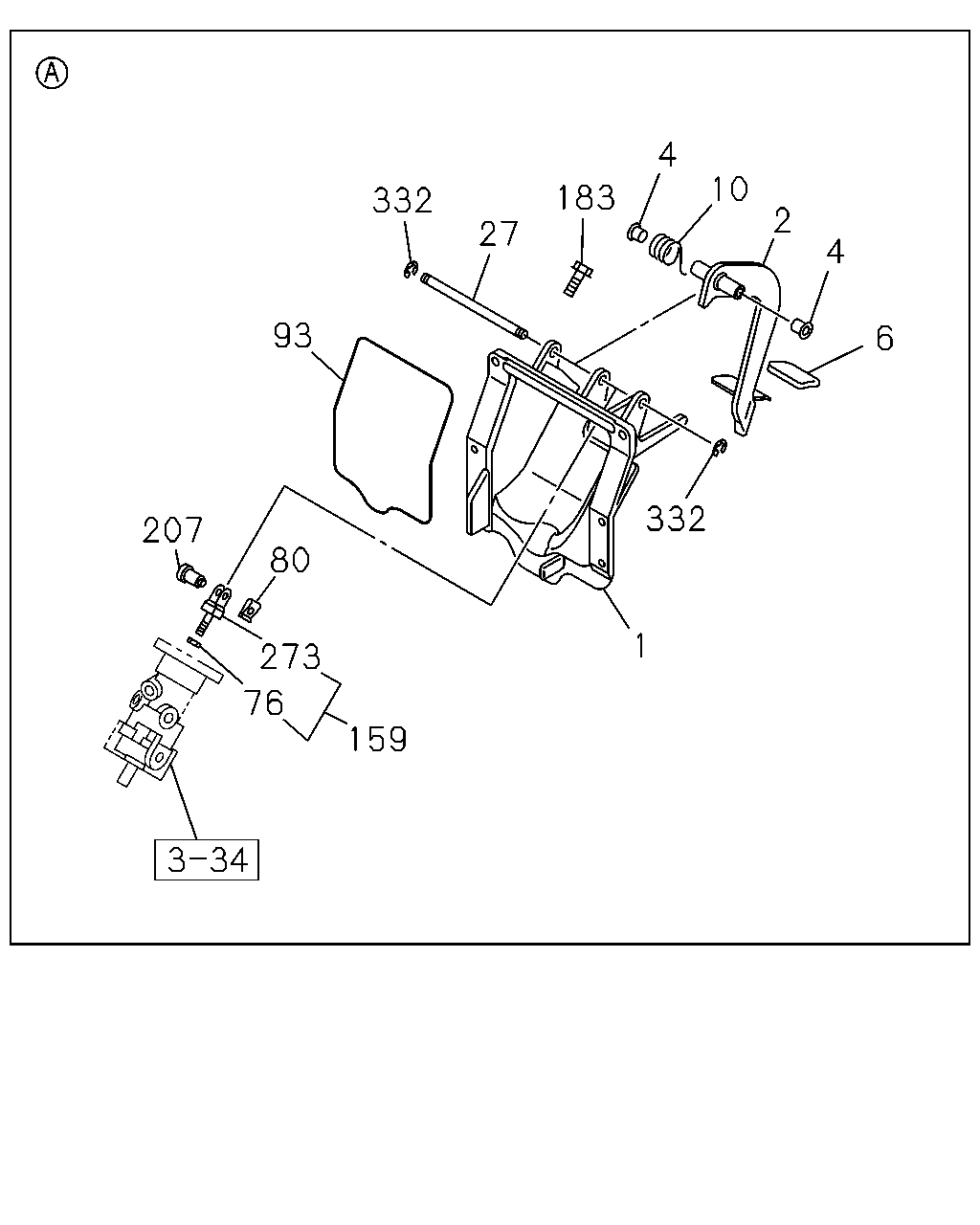

çizim 380679
332 6 4 2 10 4 183 27 332 93 207 273 80 159 76 1
BalonParca AdiParca NoAdetTipApplied Date
1 BRACKET ASM; PEDAL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98071-973-1 01 1 1310-
1 BRACKET ASM; PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98220-575-0 01 1 1310-
2 PEDAL; BRK 8-98057-226-0 01 1 1310-
4 BUSHING; BRK PEDAL 8-94238-596-0 02 1 1310-
6 COVER; BRK PEDAL 8-98056-865-0 01 1 1310-
10 SPRING; RETURN,BRK PEDAL 8-98057-232-1 01 1 1310-
27 SHAFT; BRK PEDAL 8-98057-231-0 01 1 1310-
76 NUT; PUSH ROD
M8 FLANGE 		0-91180-108-0 01 1 1310-
80 PIN; SNAP,BRK PEDAL 8-98007-161-0 01 1 1310-
93 SEAL; BRK PEDAL 1-48199-534-0 01 1 1310-
159 ROD ASM; PUSH,BRK 8-98057-234-0 01 1 1310-
183 BOLT; BRK VLV
M8X30 FLANGE 		0-28660-830-0 04 1 1310-
207 PIN; JOINT,BRK PEDAL LINK 8-98147-657-0 01 1 1310-
273 ROD; PULL 8-98057-233-0 01 1 1310-
332 RING; SNAP
ID=12 		0-91805-512-0 02 1 1310-
