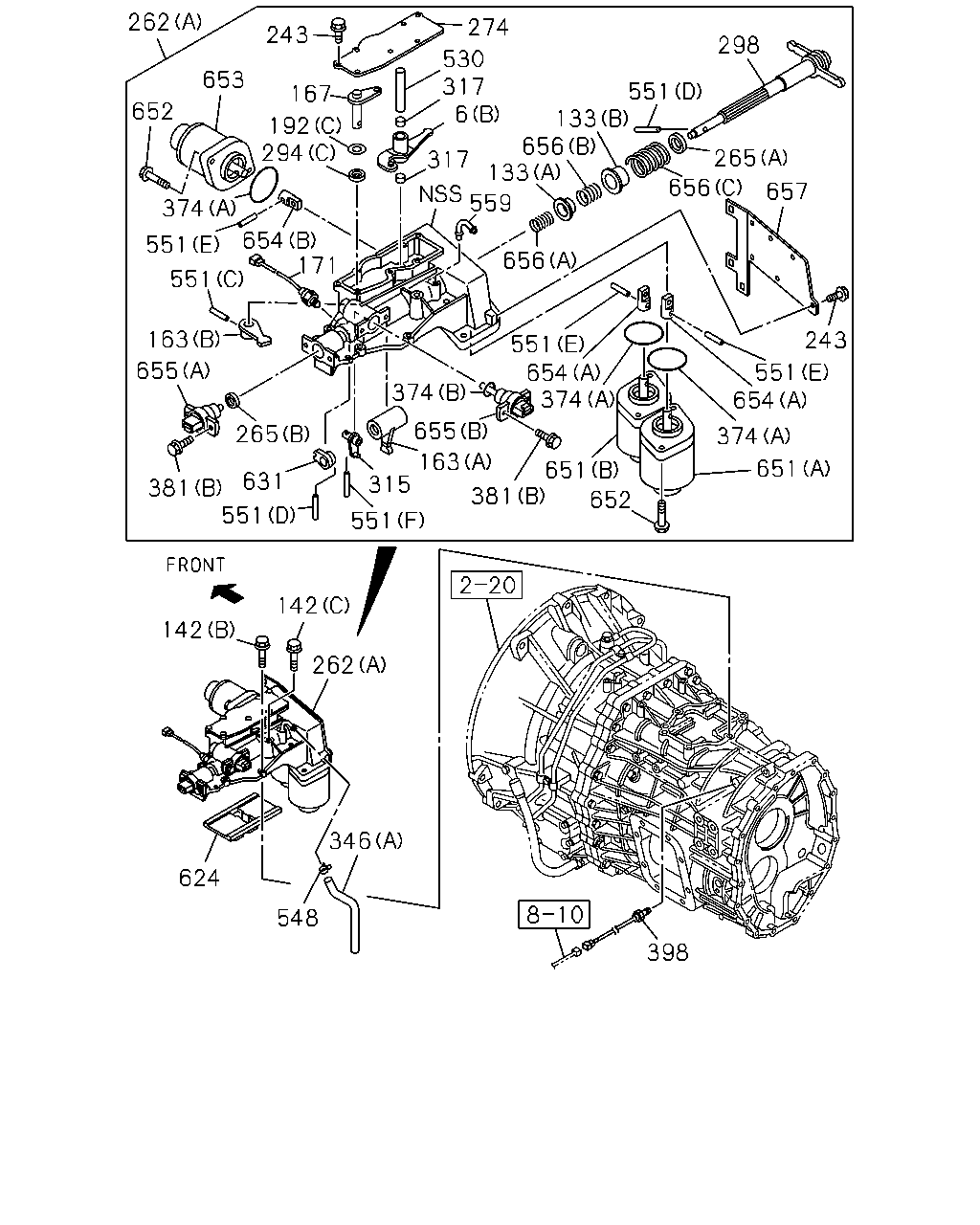

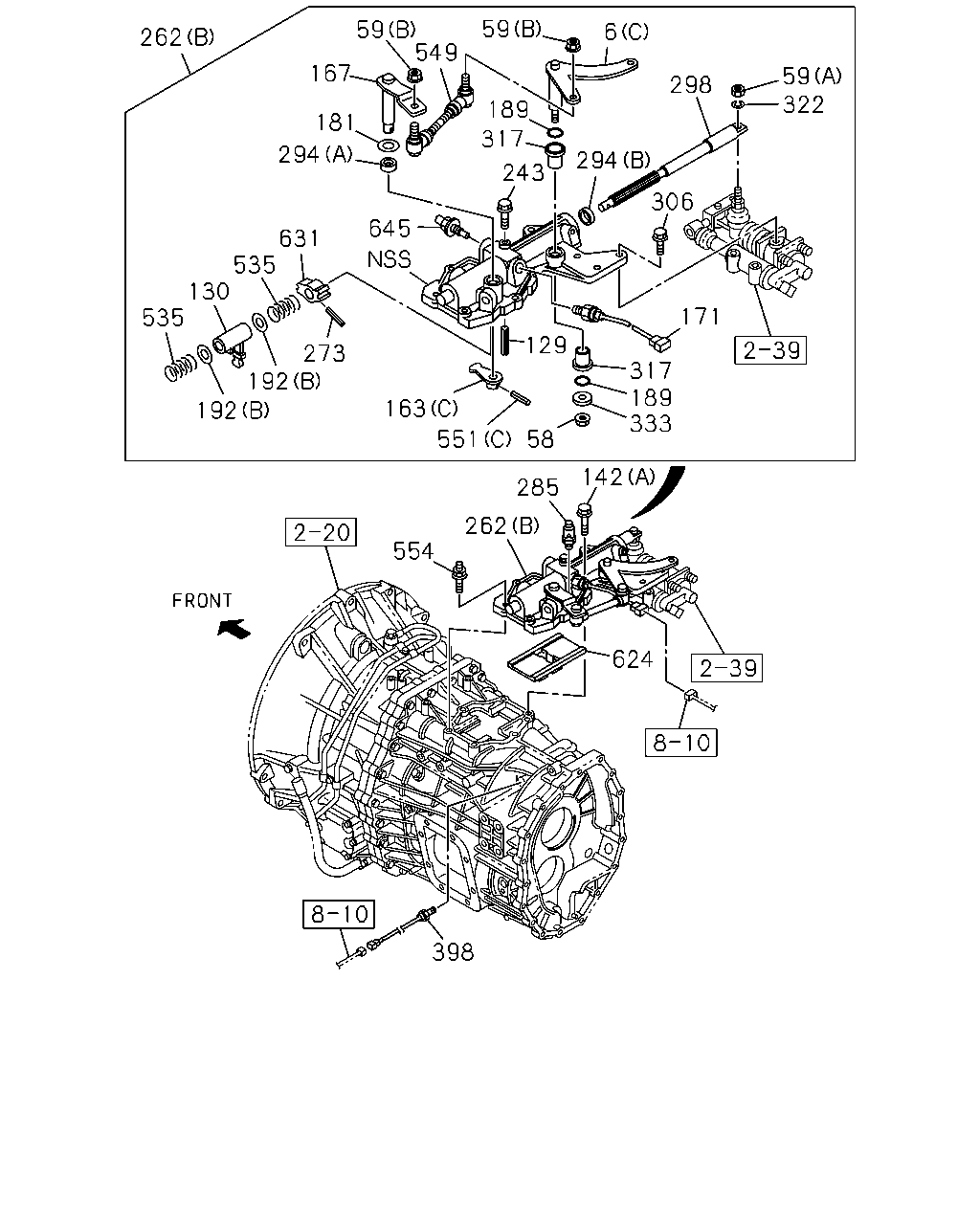

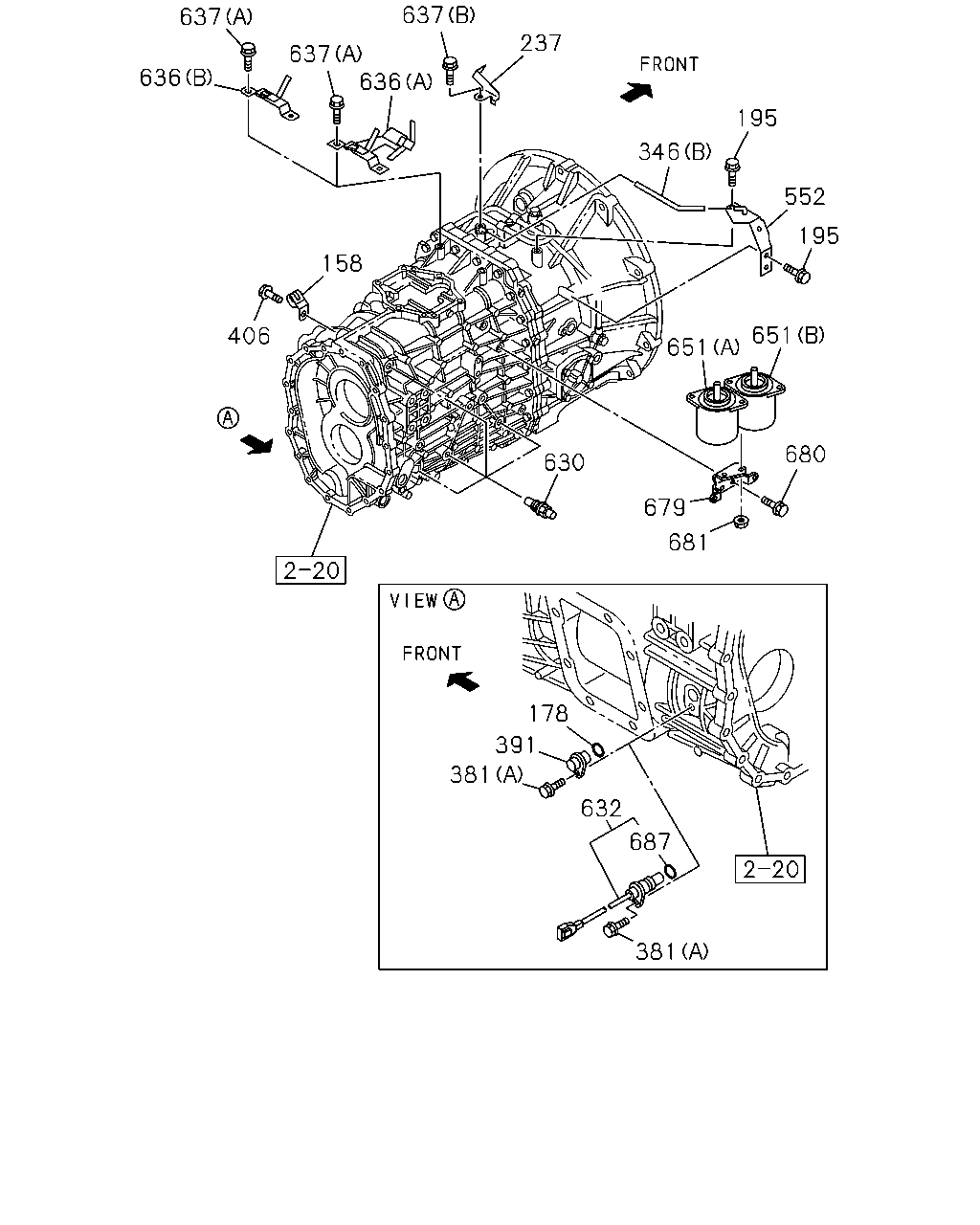

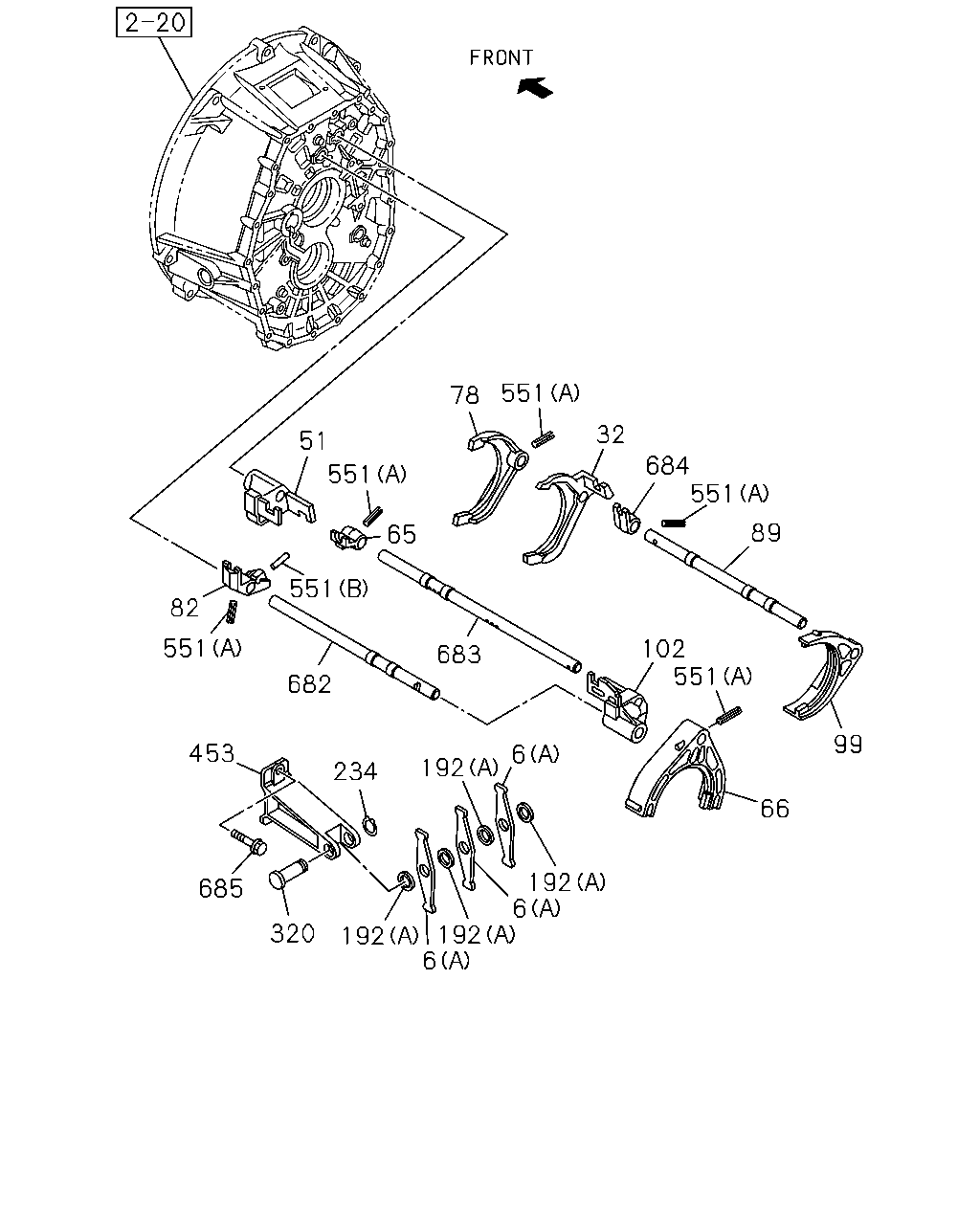

2-30 — GEAR SHIFTER AND QUADRANT BOX (#128550) — 193 parça

398 554 285 142 624 262 551 163 58 333 189 317 129 171 306 294 298 59 322 6 59 549 59 167 181 294 631 535 130 535 262 189 317 645 273 192 243 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1310-
6	LEVER; RELAY 14" CLUTCH(WF6) (C)	8-98014-157-1	01	1	1310-
6	LEVER; RELAY EXC. 14" CLUTCH(WF6) (B)	8-97379-995-0	01	1	1310-
58	NUT 14" CLUTCH(WF6) M10 FLANGE	0-91180-110-0	01	1	1310-
59	NUT 14" CLUTCH(WF6) (A) M12	0-91110-512-0	01	1	1310-
59	NUT 14" CLUTCH(WF6) (B) M8 FLANGE	0-91180-108-0	02	1	1310-
129	PIN; SPR,SHIFT 14" CLUTCH(WF6) L=30 OD=4	1-09748-031-0	01	1	1310-
130	LEVER; SHIFT,INTERNAL 14" CLUTCH(WF6)	8-97306-647-0	01	1	1310-
142	BOLT; QUAD BOX 14" CLUTCH(WF6) (A) M8X22 FLANGE	8-97365-376-0	04	1	1310-
142	BOLT; QUAD BOX EXC. 14" CLUTCH(WF6) (B) M8X35 FLANGE	8-98020-384-0	03	1	1310-
142	BOLT; QUAD BOX EXC. 14" CLUTCH(WF6) (C) M8X75 FLANGE	8-98020-385-0	03	1	1310-
163	LEVER; SELECT,INTERNAL 14" CLUTCH(WF6) (C)	8-97305-663-0	01	1	1310-
163	LEVER; SELECT,INTERNAL EXC. 14" CLUTCH(WF6) (A)	8-97379-979-0	01	1	1310-
163	LEVER; SELECT,INTERNAL EXC. 14" CLUTCH(WF6) (B)	8-97379-990-0	01	1	1310-
167	LEVER; SELECT,EXTERNAL 14" CLUTCH(WF6)	8-98021-489-0	01	1	1310-
167	LEVER; SELECT,EXTERNAL EXC. 14" CLUTCH(WF6)	8-97379-994-0	01	1	1310-
171	SWITCH; NEUTRAL 14" CLUTCH(WF6)	8-98023-050-0	01	1	1310-1312
171	SWITCH; NEUTRAL EXC. 14" CLUTCH(WF6)	8-98242-172-0	01	1	1310-1312
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-
181	WASHER; PL,SELECT LEVER 14" CLUTCH(WF6)	8-97367-327-0	01	1	1310-
189	GASKET; SELECT LEVER,CONT BOX 14" CLUTCH(WF6)	1-09623-594-0	02	1	1310-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1310-
192	WASHER; PL 14" CLUTCH(WF6) (B)	8-97305-661-0	02	1	1310-
192	WASHER; PL EXC. 14" CLUTCH(WF6) (C)	1-09503-280-0	01	1	1310-
243	BOLT; COVER 14" CLUTCH(WF6) M6X12 FLANGE	1-33739-842-0	01	1	1310-
243	BOLT; COVER EXC. 14" CLUTCH(WF6) M6X12 FLANGE	1-33739-842-0	11	1	1310-
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) (B)	8-98249-039-0	01	1	1310-1312
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) (B)	8-98241-016-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) (B)	8-98276-159-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) (B)	8-98305-334-1	01	1	1508-
262	BOX ASM; SHIFT CONT EXC. 14" CLUTCH(WF6) (A)	8-98241-122-1	01	1	1310-1411
262	BOX ASM; SHIFT CONT EXC. 14" CLUTCH(WF6) (A)	8-98296-530-0	01	1	1412-1509
262	BOX ASM; SHIFT CONT EXC. 14" CLUTCH(WF6) (A)	8-98331-686-0	01	1	1510-
273	PIN; SPR,STOPPER 14" CLUTCH(WF6) D=4.2 L=25	8-97103-142-0	01	1	1310-
285	BREATHER; AIR,QUAD BOX 14" CLUTCH(WF6)	1-33149-003-0	01	1	1310-1404
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 14" CLUTCH(WF6) (A)	8-97305-662-0	01	1	1310-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 14" CLUTCH(WF6) (B)	8-97363-225-0	01	1	1310-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). EXC. 14" CLUTCH(WF6) (C)	1-09625-600-0	01	1	1310-
298	SHAFT; SHIFT LEVER 14" CLUTCH(WF6)	8-98097-117-0	01	1	1310-1507
298	SHAFT; SHIFT LEVER 14" CLUTCH(WF6)	8-98305-343-0	01	1	1508-
298	SHAFT; SHIFT LEVER EXC. 14" CLUTCH(WF6)	8-97379-978-0	01	1	1310-
306	BOLT; SHIFT ASSISTOR 14" CLUTCH(WF6) M10X50 FLANGE	0-28051-050-0	03	1	1310-
317	BUSHING; LEVER 14" CLUTCH(WF6)	1-09330-119-0	02	1	1310-
317	BUSHING; LEVER EXC. 14" CLUTCH(WF6)	8-97379-997-0	02	1	1310-
322	WASHER; LK 14" CLUTCH(WF6)	8-98031-750-0	01	1	1310-
333	WASHER; PL,LEVER 14" CLUTCH(WF6) ID=10.5	0-91610-710-0	01	1	1310-
398	SWITCH; REV LAMP	8-98023-050-0	01	1	1310-1312
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-
535	SPRING; LEVER 14" CLUTCH(WF6)	8-97385-713-0	02	1	1310-
549	ROD; LINK 14" CLUTCH(WF6)	8-98023-095-0	01	1	1310-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1310-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1310-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1310-
551	PIN; SPRING EXC. 14" CLUTCH(WF6) (D) L=30 OD=4	1-09748-031-0	02	1	1310-
551	PIN; SPRING EXC. 14" CLUTCH(WF6) (E) OD=5	8-97184-905-0	03	1	1310-
551	PIN; SPRING EXC. 14" CLUTCH(WF6) (F)	8-97379-991-0	01	1	1310-
554	STUD; CONT BOX 14" CLUTCH(WF6) M8X15,M8X25 L=49	8-97365-378-0	02	1	1310-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1310-
631	STOPPER; SPRING 14" CLUTCH(WF6)	8-98014-158-0	01	1	1310-
631	STOPPER; SPRING EXC. 14" CLUTCH(WF6)	8-97379-984-0	01	1	1310-
645	DETENT ASM 14" CLUTCH(WF6)	8-98019-536-0	01	1	1310-

51 551 65 551 82 551 453 685 320 192 6 192 234 192 6 192 6 682 683 102 551 66 99 89 551 684 32 551 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1310-
6	LEVER; RELAY 14" CLUTCH(WF6) (C)	8-98014-157-1	01	1	1310-
6	LEVER; RELAY EXC. 14" CLUTCH(WF6) (B)	8-97379-995-0	01	1	1310-
32	ARM; SHIFT,1ST & 2ND	8-98236-424-1	01	1	1310-
51	BLOCK; SHIFT,1ST & 2ND	8-98074-457-1	01	1	1310-
65	BLOCK ASM; SHIFT,5TH & 6TH	8-97388-980-1	01	1	1310-
66	ARM; SHIFT,5TH & 6TH	8-97388-981-0	01	1	1310-
78	ARM; SHIFT,REV	8-97388-975-1	01	1	1310-
82	BLOCK; SHIFT,REV	8-97388-969-0	01	1	1310-
89	ROD; SHIFT,REV	8-98062-172-0	01	1	1310-
99	ARM; SHIFT,4TH & 3RD	8-98062-170-0	01	1	1310-1506
99	ARM; SHIFT,4TH & 3RD	8-98309-861-0	01	1	1507-
102	BLOCK; SHIFT,3RD & 4TH	8-97388-978-2	01	1	1310-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1310-
192	WASHER; PL 14" CLUTCH(WF6) (B)	8-97305-661-0	02	1	1310-
192	WASHER; PL EXC. 14" CLUTCH(WF6) (C)	1-09503-280-0	01	1	1310-
234	RING; SNAP ID=16.5	0-91800-618-0	01	1	1310-
320	SHAFT; LEVER	8-97377-928-0	01	1	1310-
453	BLOCK; RELAY LEVER	8-97377-927-1	01	1	1310-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1310-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1310-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1310-
551	PIN; SPRING EXC. 14" CLUTCH(WF6) (D) L=30 OD=4	1-09748-031-0	02	1	1310-
551	PIN; SPRING EXC. 14" CLUTCH(WF6) (E) OD=5	8-97184-905-0	03	1	1310-
551	PIN; SPRING EXC. 14" CLUTCH(WF6) (F)	8-97379-991-0	01	1	1310-
682	ROD; SHIFT,REV,SUB	8-97388-974-0	01	1	1310-
683	ROD; SHIFT,5TH & 6TH	8-98062-173-1	01	1	1310-
684	BLOCK; SHIFT,REV,SUB	8-97388-970-0	01	1	1310-
685	BOLT; BLOCK M8X30 FLANGE	8-98034-764-0	02	1	1310-

381 687 632 381 391 178 406 636 637 637 637 237 636 158 630 679 681 680 651 651 346 195 552 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
158	CLIP; HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	1310-
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 14" CLUTCH(WF6)	9-09567-113-0	01	1	1310-
195	BOLT EXC. 14" CLUTCH(WF6) M8X20 FLANGE	0-28650-820-0	02	1	1310-
237	BRACKET; CABLE,TRANS EXC. 14" CLUTCH(WF6)	8-98009-307-1	01	1	1310-
346	HOSE; AIR EXC. 14" CLUTCH(WF6) (A)	8-97309-855-0	01	1	1310-1404
346	HOSE; AIR (A)	8-97309-855-0	01	1	1405-
346	HOSE; AIR EXC. 14" CLUTCH(WF6) (B)	8-97373-381-0	01	1	1310-
381	BOLT (A) M6X16 FLANGE	0-28650-616-0	01	1	1310-
381	BOLT EXC. 14" CLUTCH(WF6) (B) M6X12 FLANGE	1-33739-842-0	04	1	1310-
391	PLUG; SW HOLE 14" CLUTCH(WF6)	8-97300-273-1	01	1	1310-
406	BOLT; HARNESS CLIP M8X16 FLANGE	0-28050-816-0	02	1	1310-
552	BRACKET EXC. 14" CLUTCH(WF6)	8-98005-329-1	01	1	1310-
630	DETENT ASM	8-98019-536-0	04	1	1310-
632	SENSOR; TRANS,REV EXC. 14" CLUTCH(WF6)	8-97315-604-1	01	1	1310-
636	BRACKET; CLIP 14" CLUTCH(WF6) (B)	8-97610-092-1	01	1	1310-1502
636	BRACKET; CLIP EXC. 14" CLUTCH(WF6) (A)	8-97610-093-1	01	1	1310-
637	BOLT; BRACKET (A) M8X16 FLANGE	0-28050-816-0	02	1	1310-1502
637	BOLT; BRACKET EXC. 14" CLUTCH(WF6) (A) M8X16 FLANGE	0-28050-816-0	02	1	1503-
637	BOLT; BRACKET EXC. 14" CLUTCH(WF6) (B) M8X20 FLANGE	0-28650-820-0	01	1	1310-
651	SOLENOID ASM; SHIFT EXC. 14" CLUTCH(WF6) (A)	8-98048-497-1	01	1	1310-
651	SOLENOID ASM; SHIFT EXC. 14" CLUTCH(WF6) (B)	8-98048-498-1	01	1	1310-
679	BRACKET; HEAT PROTECTOR EXC. 14" CLUTCH(WF6)	8-98005-332-0	01	1	1310-
680	BOLT; FLANGE EXC. 14" CLUTCH(WF6) M10X20 FLANGE	0-28761-020-0	02	1	1310-
681	NUT; FLANGE EXC. 14" CLUTCH(WF6) M10 FLANGE	0-91180-210-0	02	1	1310-
687	GASKET; SENSOR EXC. 14" CLUTCH(WF6)	9-09567-113-0	01	1	1310-

262 652 653 243 167 192 294 274 530 317 6 317 551 298 133 656 133 559 656 656 265 657 243 551 654 374 651 652 651 381 163 655 315 551 551 381 655 163 551 551 374 654 171 265 631 374 551 654 374 142 142 262 346 548 624 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1310-
6	LEVER; RELAY 14" CLUTCH(WF6) (C)	8-98014-157-1	01	1	1310-
6	LEVER; RELAY EXC. 14" CLUTCH(WF6) (B)	8-97379-995-0	01	1	1310-
133	SEAT; SPR EXC. 14" CLUTCH(WF6) (A)	8-97379-988-0	01	1	1310-
133	SEAT; SPR EXC. 14" CLUTCH(WF6) (B)	8-97379-989-0	01	1	1310-
142	BOLT; QUAD BOX 14" CLUTCH(WF6) (A) M8X22 FLANGE	8-97365-376-0	04	1	1310-
142	BOLT; QUAD BOX EXC. 14" CLUTCH(WF6) (B) M8X35 FLANGE	8-98020-384-0	03	1	1310-
142	BOLT; QUAD BOX EXC. 14" CLUTCH(WF6) (C) M8X75 FLANGE	8-98020-385-0	03	1	1310-
163	LEVER; SELECT,INTERNAL 14" CLUTCH(WF6) (C)	8-97305-663-0	01	1	1310-
163	LEVER; SELECT,INTERNAL EXC. 14" CLUTCH(WF6) (A)	8-97379-979-0	01	1	1310-
163	LEVER; SELECT,INTERNAL EXC. 14" CLUTCH(WF6) (B)	8-97379-990-0	01	1	1310-
167	LEVER; SELECT,EXTERNAL 14" CLUTCH(WF6)	8-98021-489-0	01	1	1310-
167	LEVER; SELECT,EXTERNAL EXC. 14" CLUTCH(WF6)	8-97379-994-0	01	1	1310-
171	SWITCH; NEUTRAL 14" CLUTCH(WF6)	8-98023-050-0	01	1	1310-1312
171	SWITCH; NEUTRAL EXC. 14" CLUTCH(WF6)	8-98242-172-0	01	1	1310-1312
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1310-
192	WASHER; PL 14" CLUTCH(WF6) (B)	8-97305-661-0	02	1	1310-
192	WASHER; PL EXC. 14" CLUTCH(WF6) (C)	1-09503-280-0	01	1	1310-
243	BOLT; COVER 14" CLUTCH(WF6) M6X12 FLANGE	1-33739-842-0	01	1	1310-
243	BOLT; COVER EXC. 14" CLUTCH(WF6) M6X12 FLANGE	1-33739-842-0	11	1	1310-
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) (B)	8-98249-039-0	01	1	1310-1312
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) (B)	8-98241-016-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) (B)	8-98276-159-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) (B)	8-98305-334-1	01	1	1508-
262	BOX ASM; SHIFT CONT EXC. 14" CLUTCH(WF6) (A)	8-98241-122-1	01	1	1310-1411
262	BOX ASM; SHIFT CONT EXC. 14" CLUTCH(WF6) (A)	8-98296-530-0	01	1	1412-1509
262	BOX ASM; SHIFT CONT EXC. 14" CLUTCH(WF6) (A)	8-98331-686-0	01	1	1510-
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). EXC. 14" CLUTCH(WF6) (A)	8-97363-225-0	01	1	1310-
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). EXC. 14" CLUTCH(WF6) (B)	8-97379-981-0	01	1	1310-
274	COVER; SHAFT,QUAD BOX EXC. 14" CLUTCH(WF6)	8-98020-711-0	01	1	1310-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 14" CLUTCH(WF6) (A)	8-97305-662-0	01	1	1310-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 14" CLUTCH(WF6) (B)	8-97363-225-0	01	1	1310-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). EXC. 14" CLUTCH(WF6) (C)	1-09625-600-0	01	1	1310-
298	SHAFT; SHIFT LEVER 14" CLUTCH(WF6)	8-98097-117-0	01	1	1310-1507
298	SHAFT; SHIFT LEVER 14" CLUTCH(WF6)	8-98305-343-0	01	1	1508-
298	SHAFT; SHIFT LEVER EXC. 14" CLUTCH(WF6)	8-97379-978-0	01	1	1310-
315	LEVER; SELECT EXC. 14" CLUTCH(WF6)	8-97379-998-0	01	1	1310-1411
315	LEVER; SELECT EXC. 14" CLUTCH(WF6)	8-98296-526-0	01	1	1412-
317	BUSHING; LEVER 14" CLUTCH(WF6)	1-09330-119-0	02	1	1310-
317	BUSHING; LEVER EXC. 14" CLUTCH(WF6)	8-97379-997-0	02	1	1310-
346	HOSE; AIR EXC. 14" CLUTCH(WF6) (A)	8-97309-855-0	01	1	1310-1404
346	HOSE; AIR (A)	8-97309-855-0	01	1	1405-
346	HOSE; AIR EXC. 14" CLUTCH(WF6) (B)	8-97373-381-0	01	1	1310-
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). EXC. 14" CLUTCH(WF6) (A)	8-97349-571-0	03	1	1310-
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). EXC. 14" CLUTCH(WF6) (B)	8-97349-573-0	01	1	1310-
381	BOLT (A) M6X16 FLANGE	0-28650-616-0	01	1	1310-
381	BOLT EXC. 14" CLUTCH(WF6) (B) M6X12 FLANGE	1-33739-842-0	04	1	1310-
398	SWITCH; REV LAMP	8-98023-050-0	01	1	1310-1312
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-
530	SHAFT; SELECT EXC. 14" CLUTCH(WF6)	8-97379-996-0	01	1	1310-
548	CLIP; HOSE EXC. 14" CLUTCH(WF6)	8-97031-674-0	01	1	1310-1404
548	CLIP; HOSE	8-97031-674-0	01	1	1405-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1310-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1310-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1310-
551	PIN; SPRING EXC. 14" CLUTCH(WF6) (D) L=30 OD=4	1-09748-031-0	02	1	1310-
551	PIN; SPRING EXC. 14" CLUTCH(WF6) (E) OD=5	8-97184-905-0	03	1	1310-
551	PIN; SPRING EXC. 14" CLUTCH(WF6) (F)	8-97379-991-0	01	1	1310-
559	PIPE; BREATHER 14" CLUTCH(WF6)	8-97358-318-0	01	1	1405-
559	PIPE; BREATHER EXC. 14" CLUTCH(WF6)	8-98020-710-0	01	1	1310-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1310-
631	STOPPER; SPRING 14" CLUTCH(WF6)	8-98014-158-0	01	1	1310-
631	STOPPER; SPRING EXC. 14" CLUTCH(WF6)	8-97379-984-0	01	1	1310-
651	SOLENOID ASM; SHIFT EXC. 14" CLUTCH(WF6) (A)	8-98048-497-1	01	1	1310-
651	SOLENOID ASM; SHIFT EXC. 14" CLUTCH(WF6) (B)	8-98048-498-1	01	1	1310-
652	BOLT; SORENOID EXC. 14" CLUTCH(WF6) M10X25 FLANGE	0-28151-025-0	06	1	1310-
653	SOLENOID ASM; SELECT EXC. 14" CLUTCH(WF6)	8-98002-761-0	01	1	1310-
654	JOINT; SOLENOID,CASE EXC. 14" CLUTCH(WF6) (A)	8-97349-473-0	02	1	1310-
654	JOINT; SOLENOID,CASE EXC. 14" CLUTCH(WF6) (B)	8-97380-419-0	01	1	1310-
655	SENSOR; STROKE EXC. 14" CLUTCH(WF6) (A)	8-98107-823-0	01	1	1310-
655	SENSOR; STROKE EXC. 14" CLUTCH(WF6) (B)	8-98107-824-0	01	1	1310-
656	SPRING; SHAFT EXC. 14" CLUTCH(WF6) (A)	8-97379-985-0	01	1	1310-
656	SPRING; SHAFT EXC. 14" CLUTCH(WF6) (B)	8-97379-986-0	01	1	1310-
656	SPRING; SHAFT EXC. 14" CLUTCH(WF6) (C)	8-97379-987-0	01	1	1310-
657	PLATE; SIDE EXC. 14" CLUTCH(WF6)	8-98020-712-0	01	1	1310-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
