◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11547 - FRR RHD EUROPE EURO6 SPACECAB ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08 - CLUTCH MASTER CYLINDER ▶
2-08 — CLUTCH MASTER CYLINDER (#128545) — 8 parça

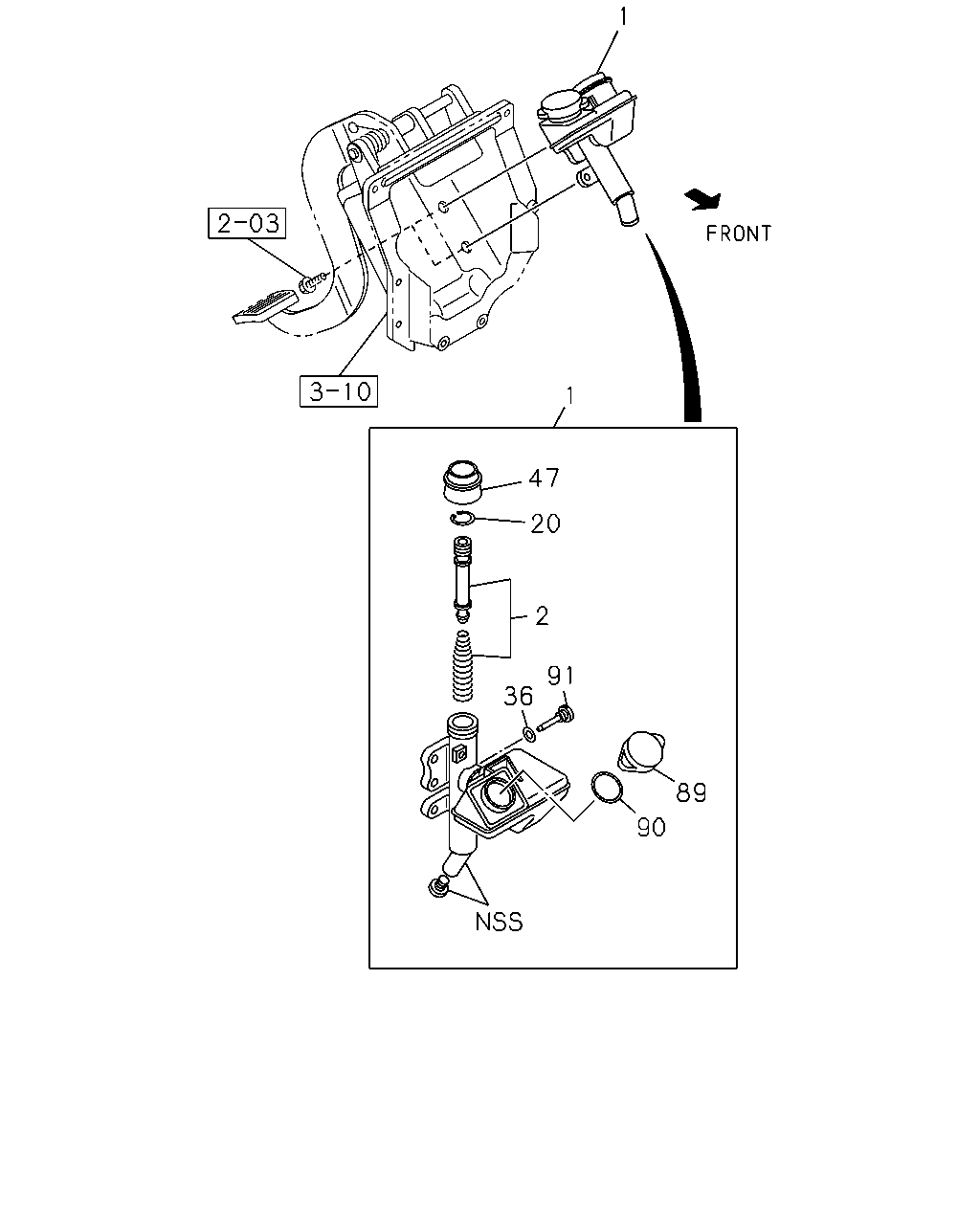

çizim 381589
1 1 47 20 2 36 91 89 90
BalonParca AdiParca NoAdetTipApplied Date
1 CYLINDER ASM; CLUTCH MASTER
14" CLUTCH(WF6) 		1-47500-250-2 01 1 1310-
2 REPAIR KIT; CLU M/CYL
14" CLUTCH(WF6) 		1-85576-461-0 01 1 1310-
20 RING; SNAP,BODY
14" CLUTCH(WF6) 		1-47519-013-0 01 1 1310-
36 GASKET; CLU M/CYL
14" CLUTCH(WF6) 		1-47519-014-0 01 1 1310-
47 COVER; DUST,PUSH ROD
14" CLUTCH(WF6) 		1-47519-018-0 01 1 1310-
89 CAP; OIL FILLER,CLU M/CYL
14" CLUTCH(WF6) 		1-47519-017-0 01 1 1310-
90 GASKET; OIL FILLER,CLU M/CYL
14" CLUTCH(WF6) 		1-47519-016-0 01 1 1310-
91 BOLT; STOPPER
14" CLUTCH(WF6) 		1-47519-015-0 01 1 1310-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
