1-50 — EXHAUST PIPE AND SILENCER (#128538) — 108 parça

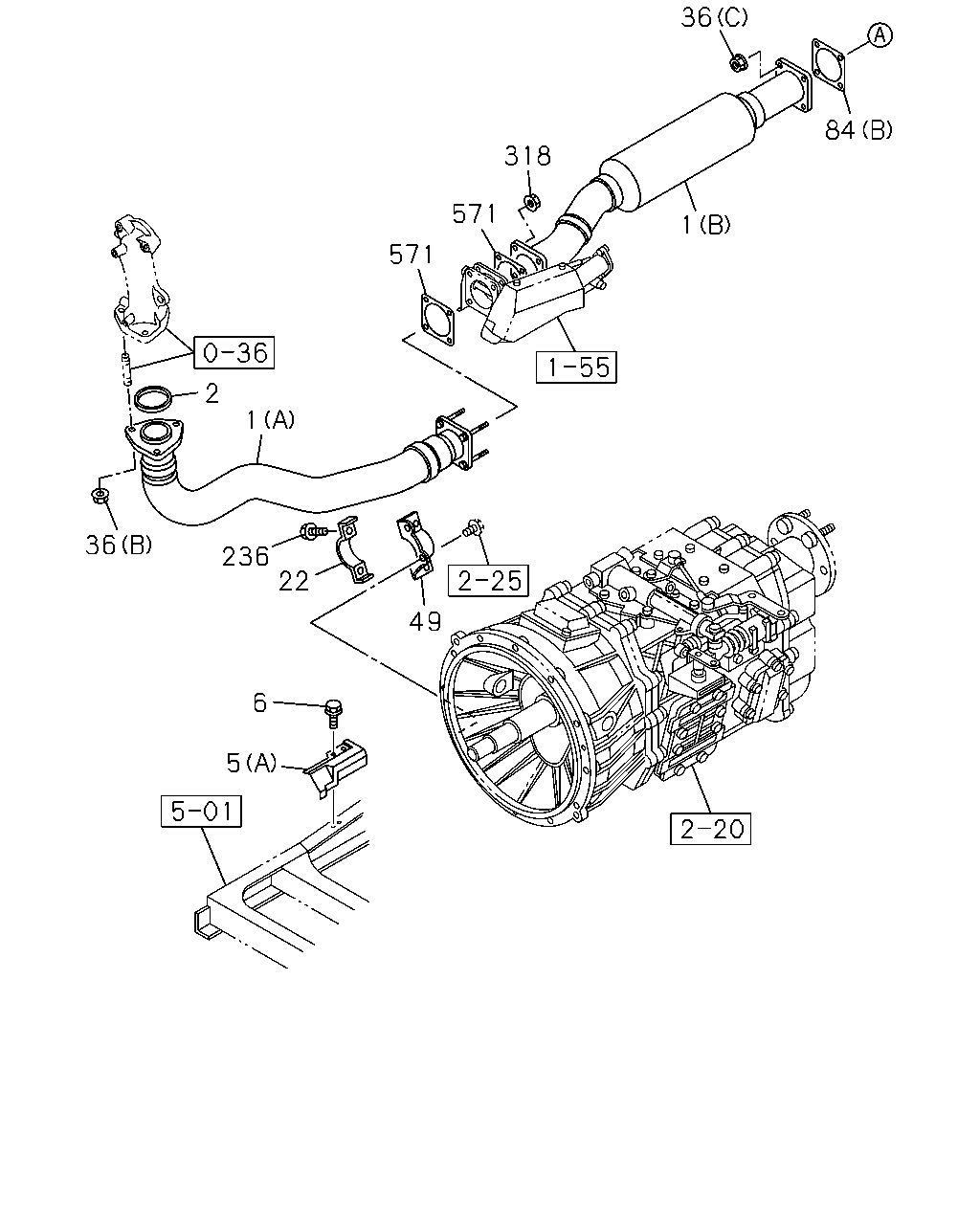

çizim 379534
36 84 1 318 571 571 1 2 36 236 22 49 6 5
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
(C) 		8-98229-233-0 01 1 1310-
1 PIPE; EXH
(B) 		8-98229-236-0 01 1 1310-
1 PIPE; EXH
(A) 		8-98243-550-0 01 1 1310-
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97381-455-0 01 1 1310-
5 PROTECTOR; HEAT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98044-122-0 01 1 1310-
5 PROTECTOR; HEAT
(B) 		8-98236-295-0 01 1 1310-
6 BOLT; HEAT PROTECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 FLANGE 		0-28650-825-0 02 1 1310-
22 CLAMP; EXH PIPE 1-22133-295-0 01 1 1310-1310
22 CLAMP; EXH PIPE 8-97646-674-0 01 1 1310-
36 NUT; EXH PIPE
(A) M8 FLANGE 		0-91180-108-0 04 1 1310-
36 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-1 03 1 1310-
36 NUT; EXH PIPE
(C) M8 W/LK WASHER 		8-97581-234-0 04 1 1310-
49 BRACKET; EXH PIPE TO TRANS 8-98208-167-0 01 1 1310-
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 1310-
84 GASKET; EXH PIPE
(B) ID=64 		8-97373-108-0 01 1 1310-
84 GASKET; EXH PIPE
(B) ID=64 		8-97373-108-0 02 1 1310-
236 BOLT; PIPE CLAMP TO BRKT
M10X30 FLANGE 		0-28051-030-0 02 1 1310-
318 NUT; EXH PIPE,FRT
M8 W/LK WASHER 		8-97581-234-0 04 1 1310-
571 GASKET
ID=64 		8-97373-108-0 02 1 1310-

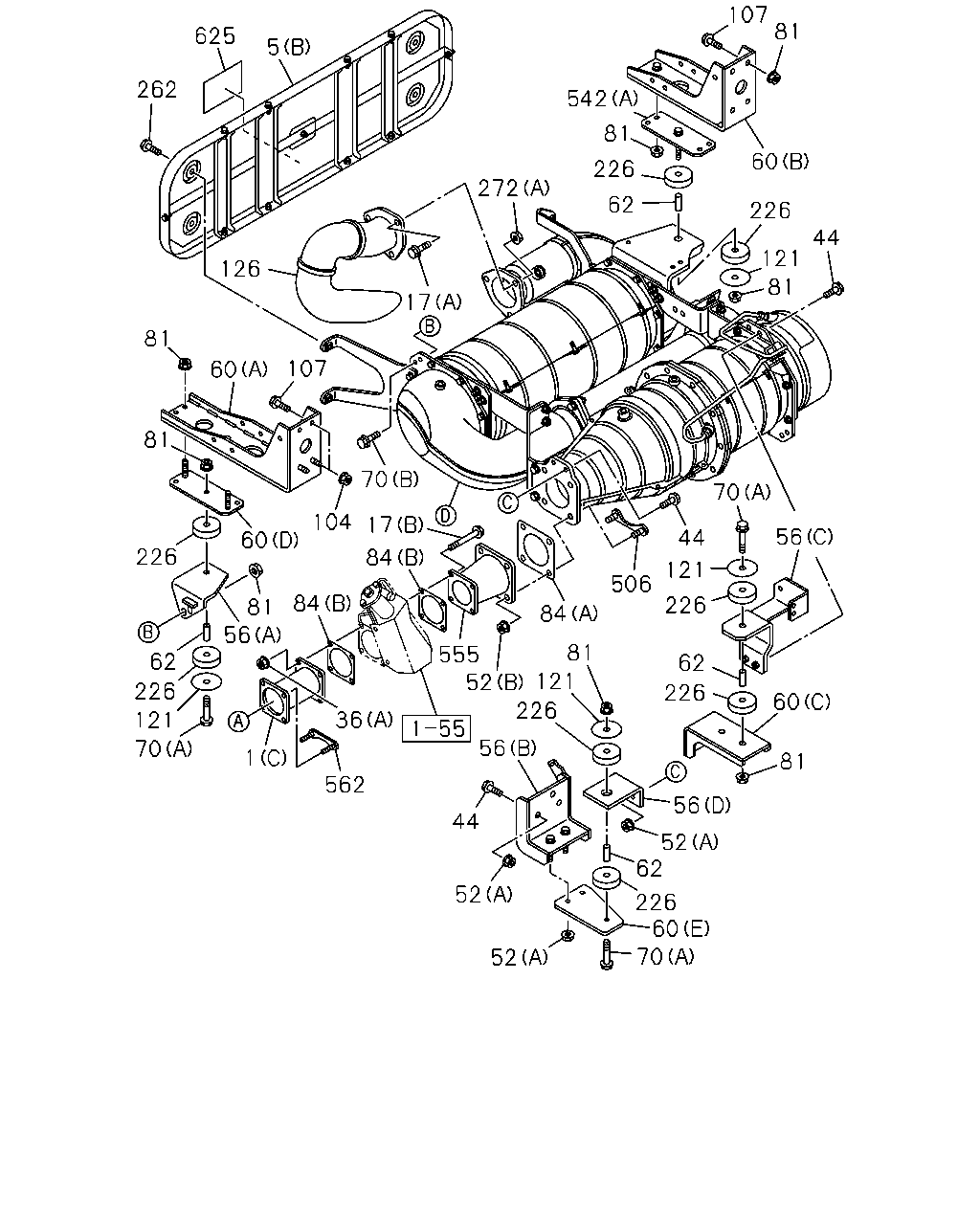

çizim 380713
625 5 262 126 81 60 107 17 272 542 107 81 81 226 60 62 226 121 44 81 70 56 44 121 506 226 84 81 62 60 226 121 226 56 81 56 52 44 52 62 226 60 70 52 562 36 52 555 1 70 121 226 62 56 81 84 84 17 70 104 60 226 81
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
(C) 		8-98229-233-0 01 1 1310-
1 PIPE; EXH
(B) 		8-98229-236-0 01 1 1310-
1 PIPE; EXH
(A) 		8-98243-550-0 01 1 1310-
5 PROTECTOR; HEAT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98044-122-0 01 1 1310-
5 PROTECTOR; HEAT
(B) 		8-98236-295-0 01 1 1310-
17 BOLT; EXH PIPE
(A) M12X35 FLANGE 		0-28051-235-0 03 1 1310-
17 BOLT; EXH PIPE
(B) M8X65 FLANGE 		1-09044-072-1 04 1 1310-
36 NUT; EXH PIPE
(A) M8 FLANGE 		0-91180-108-0 04 1 1310-
36 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-1 03 1 1310-
36 NUT; EXH PIPE
(C) M8 W/LK WASHER 		8-97581-234-0 04 1 1310-
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 09 1 1310-
52 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 07 1 1310-
52 NUT; BRKT
(B) M12 FLANGE 		0-91180-212-0 04 1 1310-
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-98203-966-0 01 1 1310-
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98228-981-0 01 1 1310-
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98229-042-0 01 1 1310-
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-98229-237-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
(A) 		8-98159-854-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
(D) 		8-98159-985-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
(B) 		8-98223-954-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
(E) 		8-98228-982-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
(C) 		8-98229-041-0 01 1 1310-
62 TUBE; DIST,BRKT 8-98131-254-0 04 1 1310-
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 03 1 1310-
70 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 02 1 1310-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1310-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 1310-
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 1310-
84 GASKET; EXH PIPE
(B) ID=64 		8-97373-108-0 01 1 1310-
84 GASKET; EXH PIPE
(B) ID=64 		8-97373-108-0 02 1 1310-
104 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1310-
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 06 1 1310-
121 WASHER; PL,BRKT
ID=10.5 OD=70 		8-97625-671-0 04 1 1310-
126 PIPE; EXH,RR 8-98224-713-0 01 1 1310-
226 RUBBER; CUSHION 8-97625-670-0 08 1 1310-
262 BOLT; HANGER TO BODY
M8X25 W/LK&PL WASHER 		1-09980-548-0 04 1 1310-
272 NUT; FLANGE
(B) M8 FLANGE 		0-91180-108-0 18 1 1310-
272 NUT; FLANGE
(A) M12 FLANGE 		0-91180-212-0 03 1 1310-
506 BRACKET; STUD
M12X35 		1-22131-963-0 02 1 1310-
542 BRACKET
(B) 		8-98232-788-0 01 1 1310-
542 BRACKET
(A) 		8-98236-728-0 01 1 1310-
555 PIPE; EXH,DPD 8-98224-353-0 01 1 1310-
562 PLATE; STUD,BOLT 8-97373-966-0 02 1 1310-

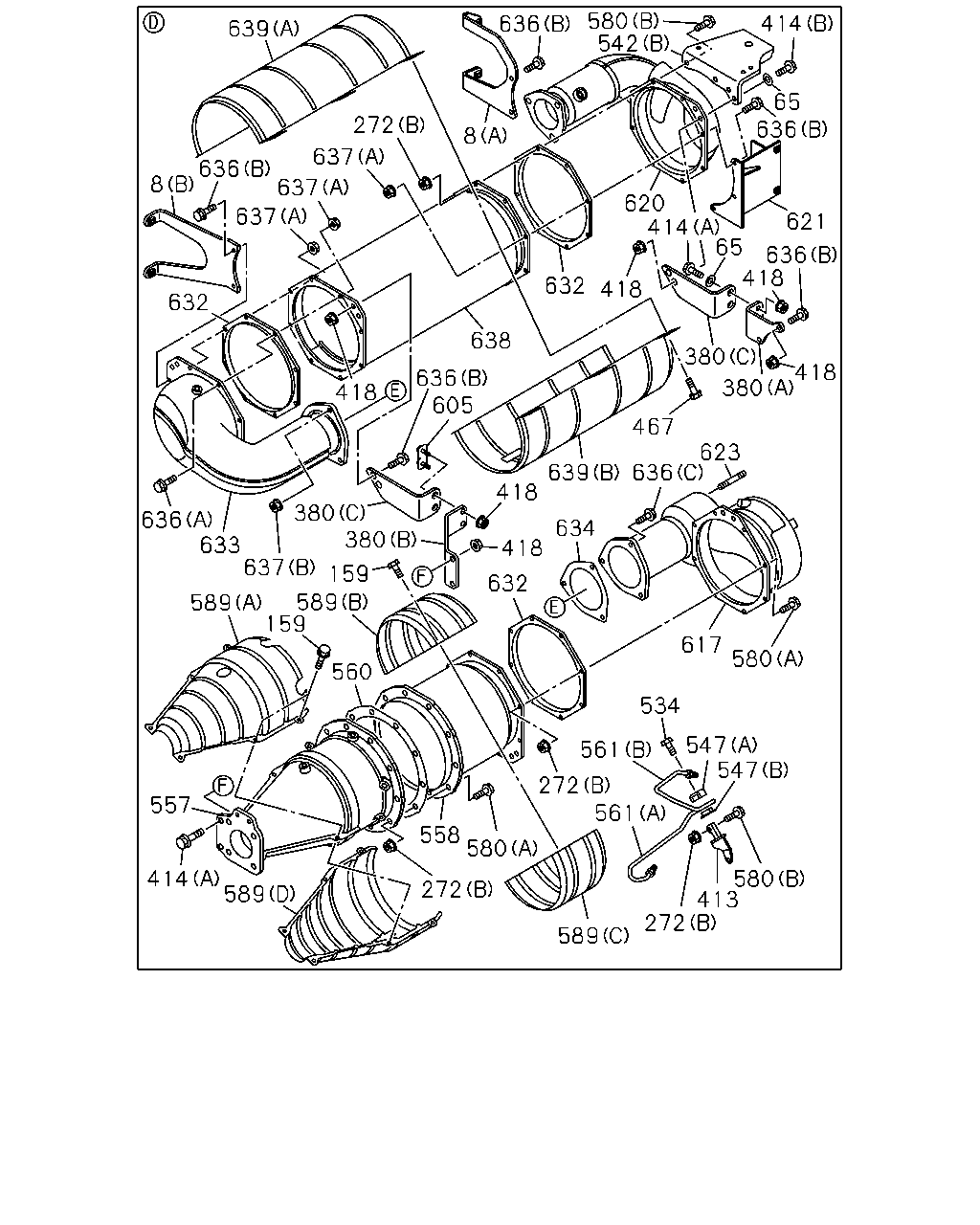

çizim 381148
639 272 8 637 637 636 637 8 632 638 636 605 418 380 380 636 633 637 589 589 159 560 557 414 589 272 558 580 589 272 413 580 561 272 561 547 547 534 617 580 632 418 418 634 639 636 623 467 380 418 380 418 632 414 620 65 418 636 621 636 65 414 580 542 636 159
BalonParca AdiParca NoAdetTipApplied Date
8 BRACKET; EXH PIPE
(A) 		8-98144-459-0 01 1 1310-
8 BRACKET; EXH PIPE
(B) 		8-98203-726-0 01 1 1310-
65 WASHER; PL
ID=10.5 OD=22 		0-91614-610-0 06 1 1310-
159 BOLT; HEAT PROTECTOR
M6X16 		8-98019-179-0 10 1 1310-
272 NUT; FLANGE
(B) M8 FLANGE 		0-91180-108-0 18 1 1310-
272 NUT; FLANGE
(A) M12 FLANGE 		0-91180-212-0 03 1 1310-
380 BRACKET; STAY
(A) 		8-98118-879-0 01 1 1310-
380 BRACKET; STAY
(C) 		8-98138-457-1 02 1 1310-
380 BRACKET; STAY
(B) 		8-98205-012-0 01 1 1310-
413 BRACKET; EXH PIPE,CONN 8-98138-485-0 01 1 1310-
414 BOLT; BRKT
(A) M10X35 FLANGE 		0-28051-035-0 06 1 1310-
414 BOLT; BRKT
(B) M10X45 FLANGE 		0-28051-045-0 02 1 1310-
418 NUT; BRKT
M10 FLANGE 		0-91180-110-0 10 1 1310-
467 BOLT; PROTECTOR
M6X16 		8-98019-179-0 06 1 1310-
534 BOLT; CLIP
M6X30 FLANGE 		0-28050-630-0 01 1 1310-
542 BRACKET
(B) 		8-98232-788-0 01 1 1310-
542 BRACKET
(A) 		8-98236-728-0 01 1 1310-
547 CLIP; PIPE
(A) ID=7 & 7 L=22 		8-97381-635-0 01 1 1310-
547 CLIP; PIPE
(B) ID=7 & 7 L=22 		8-97381-636-0 01 1 1310-
557 CATALYST ASM 8-98204-940-1 01 1 1310-
558 FILTER ASM 8-98204-942-0 01 1 1310-
560 GASKET; DPD 8-97611-080-0 01 1 1310-
561 PIPE; DPD
(A) 		8-98138-575-0 01 1 1310-
561 PIPE; DPD
(B) 		8-98138-576-0 01 1 1310-
580 BOLT; FLANGE
(A) M8X30 FLANGE 		0-28050-830-0 14 1 1310-
580 BOLT; FLANGE
(B) M8X40 FLANGE 		0-28050-840-0 04 1 1310-
589 PROTECTOR; HEAT,DPD
(A) 		8-97611-086-0 01 1 1310-
589 PROTECTOR; HEAT,DPD
(B) 		8-97628-261-0 01 1 1310-
589 PROTECTOR; HEAT,DPD
(C) 		8-97628-262-0 01 1 1310-
589 PROTECTOR; HEAT,DPD
(D) 		8-98140-713-0 01 1 1310-
605 PLATE; NUT 8-98148-511-0 01 1 1310-
617 CHAMBER SUB ASM; MIXER 8-98204-944-1 01 1 1310-
620 CHAMBER ASM; RR 8-98205-011-0 01 1 1310-
621 BRACKET; PROTECTOR 8-98159-190-1 01 1 1310-
623 STUD; FLANGE
M6 		8-98141-351-0 03 1 1310-
632 GASKET; FILTER,DEF 8-97628-257-0 03 1 1310-
633 CHAMBER SUB ASM; DEF,FRONT 8-98138-451-0 01 1 1310-
634 GASKET; MIXER 8-98118-422-1 01 1 1310-
636 BOLT; FLANGE,DEF FRONT
(A) M8X30 FLANGE 		0-28050-830-0 07 1 1310-
636 BOLT; FLANGE,DEF FRONT
(B) M8X40 FLANGE 		0-28050-840-0 09 1 1310-
636 BOLT; FLANGE,DEF FRONT
(C) M10X40 FLANGE 		0-28051-040-0 03 1 1310-
637 NUT; FLANGE,DEF FRONT
(A) M8 FLANGE 		0-91180-108-0 15 1 1310-
637 NUT; FLANGE,DEF FRONT
(B) M10 FLANGE 		0-91180-110-0 03 1 1310-
638 CATALYST ASM; DEF 8-98205-010-0 01 1 1310-
639 PROTECTOR; HEAT,CATALYST ASM DEF
(A) 		8-98136-188-0 01 1 1310-
639 PROTECTOR; HEAT,CATALYST ASM DEF
(B) 		8-98136-189-1 01 1 1310-
