1-41 — FUEL PIPING; CHASSIS (#128535) — 97 parça

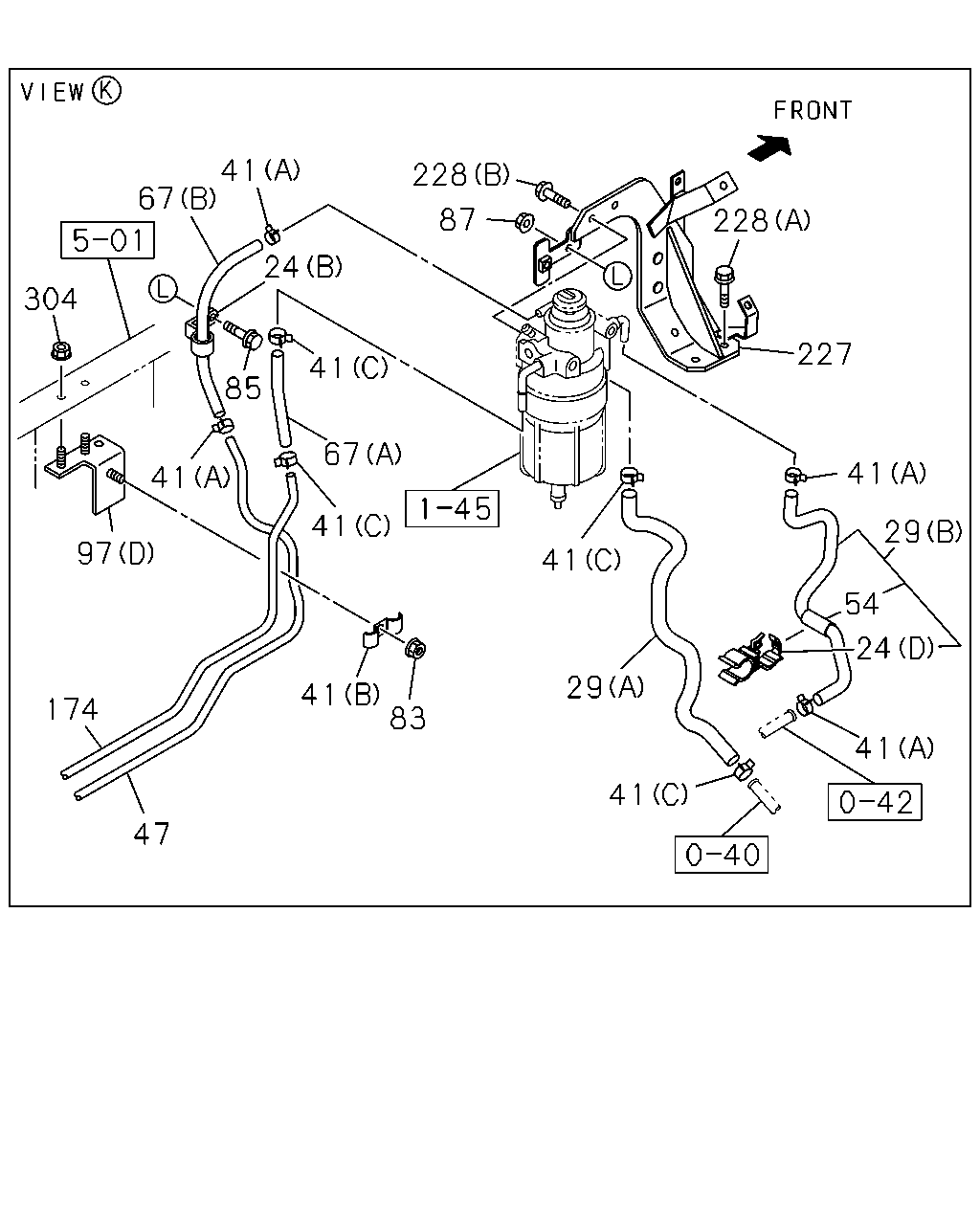

çizim 379523
228 227 41 29 54 24 41 41 29 41 87 228 83 41 41 67 41 24 41 67 304 41 97 174 47 85
BalonParca AdiParca NoAdetTipApplied Date
24 CLIP; FUEL HOSE
WHEEL BASE 4600MM(46W) (C) ID=21 L=24 		8-98019-191-0 01 1 1310-
24 CLIP; FUEL HOSE
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) ID=14.5 & 14.5 		1-09701-246-1 01 1 1310-
24 CLIP; FUEL HOSE
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (C) ID=21 L=24 		8-98019-191-0 02 1 1310-
24 CLIP; FUEL HOSE
(B) ID=15 H=24 L=20 		1-09700-606-0 01 1 1310-
24 CLIP; FUEL HOSE
(D) ID=16.5 & 10.5-14 		8-98147-093-0 01 1 1310-
29 HOSE; FUEL
(B) 		8-98147-183-0 01 1 1310-
29 HOSE; FUEL
(A) 		8-98156-676-0 01 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 4000MM(40W) (D) ID=8 H=20 L=20 		1-09700-604-0 01 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) (D) ID=8 H=20 L=20 		1-09700-604-0 02 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 02 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 02 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 04 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=16 		8-94238-568-0 02 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=16 		8-94238-568-0 02 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=16 		8-94238-568-0 02 1 1310-
47 PIPE; FUEL,RETURN
WHEEL BASE 4000MM(40W) L=2512 		8-98245-730-0 01 1 1310-
47 PIPE; FUEL,RETURN
WHEEL BASE 4600MM(46W) L=3106 		8-98239-745-0 01 1 1310-
47 PIPE; FUEL,RETURN
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=3008 		8-98245-731-0 01 1 1310-
54 SPACER; CLIP,FUEL PIPE 8-98148-172-0 01 1 1310-
67 HOSE; FUEL,DELIVERY
(B) L=210 SERVICED BY L=3000 		0-01558-300-0 01 1 1310-
67 HOSE; FUEL,DELIVERY
(A) L=140 SERVICED BY L=3000 		0-01859-300-0 01 1 1310-
83 NUT; CLIP,FUEL TANK
WHEEL BASE 4000MM(40W) M8 FLANGE 		0-91180-108-0 04 1 1310-
83 NUT; CLIP,FUEL TANK
WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) M8 FLANGE 		0-91180-108-0 05 1 1310-
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 02 1 1310-
85 BOLT; CLIP,FUEL HOSE
M8X20 FLANGE 		0-28650-820-0 01 1 1310-
87 NUT; CLIP,FUEL HOSE
M8 FLANGE 		0-91180-108-0 01 1 1310-
97 BRACKET; CLIP
WHEEL BASE 4600MM(46W) (A) L=55 		1-47476-177-0 01 1 1310-
97 BRACKET; CLIP
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) L=55 		1-47476-177-0 02 1 1310-
97 BRACKET; CLIP
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) 		8-98109-768-0 01 1 1310-
97 BRACKET; CLIP
(D) 		8-98209-221-0 01 1 1310-
97 BRACKET; CLIP
(C) 		8-98245-737-0 01 1 1310-
174 PIPE; FUEL,FEED,FRT 8-98245-726-0 01 1 1310-
227 BRACKET; FUEL SEDIMENTER 8-98133-172-0 01 1 1310-
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE 		0-28050-825-0 02 1 1310-
228 BOLT; BRKT,SEDIMENTER
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1310-
304 NUT; BRKT
WHEEL BASE 4600MM(46W) M10 FLANGE 		0-91180-210-0 01 1 1310-
304 NUT; BRKT
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) M10 FLANGE 		0-91180-210-0 03 1 1310-

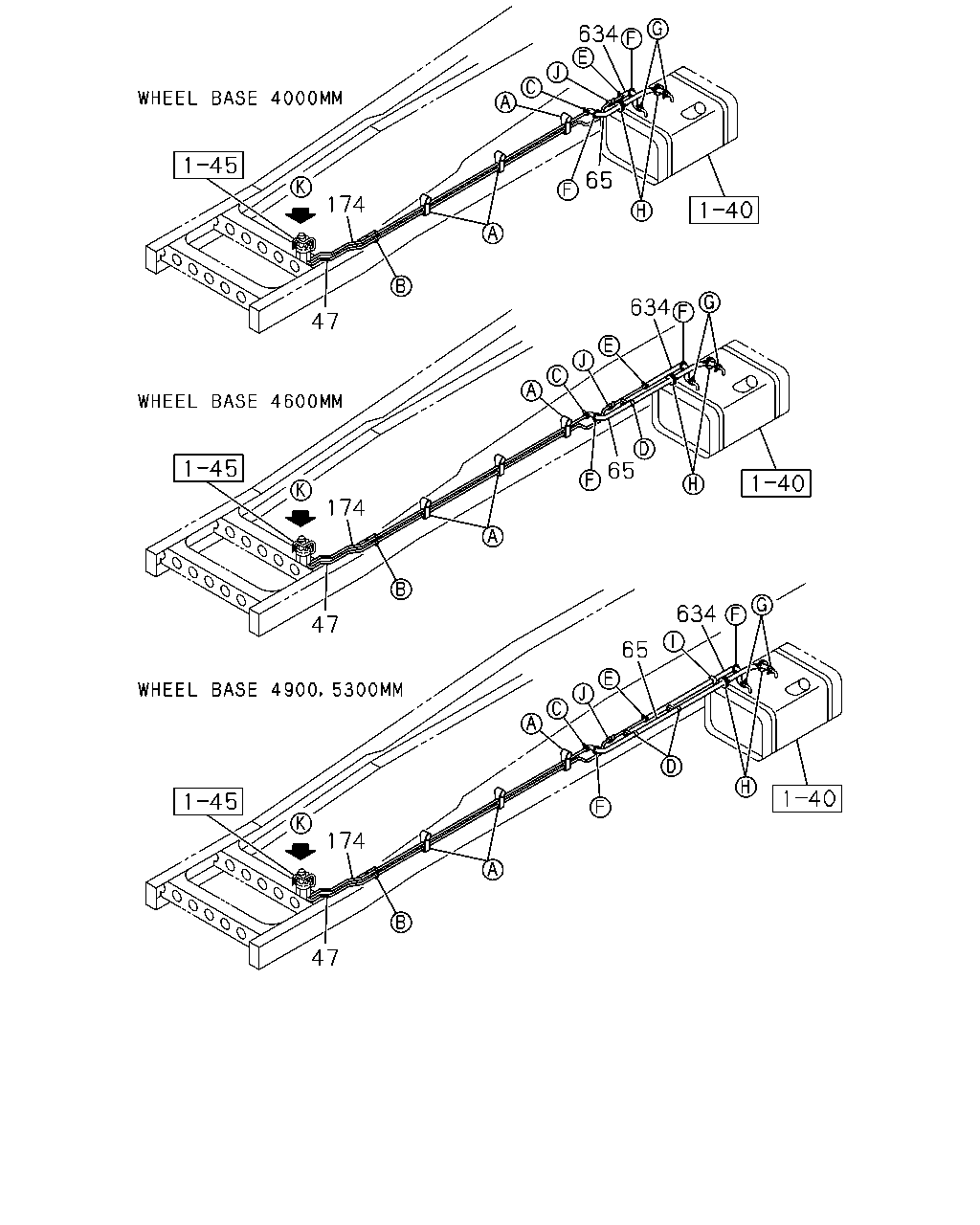

çizim 380895
634 174 47 65 174 634 47 65 65 634 47 174
BalonParca AdiParca NoAdetTipApplied Date
47 PIPE; FUEL,RETURN
WHEEL BASE 4000MM(40W) L=2512 		8-98245-730-0 01 1 1310-
47 PIPE; FUEL,RETURN
WHEEL BASE 4600MM(46W) L=3106 		8-98239-745-0 01 1 1310-
47 PIPE; FUEL,RETURN
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=3008 		8-98245-731-0 01 1 1310-
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4000MM(40W) L=850 		8-98183-311-0 01 1 1310-
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4600MM(46W) L=1200 		8-98183-312-0 01 1 1310-
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=1550 		8-98183-313-0 01 1 1310-
174 PIPE; FUEL,FEED,FRT 8-98245-726-0 01 1 1310-
634 HOSE; RUBBER RETURN
WHEEL BASE 4000MM(40W) 		8-98245-302-0 01 1 1310-
634 HOSE; RUBBER RETURN
WHEEL BASE 4600MM(46W) 		8-98245-303-0 01 1 1310-
634 HOSE; RUBBER RETURN
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) 		8-98245-304-0 01 1 1310-

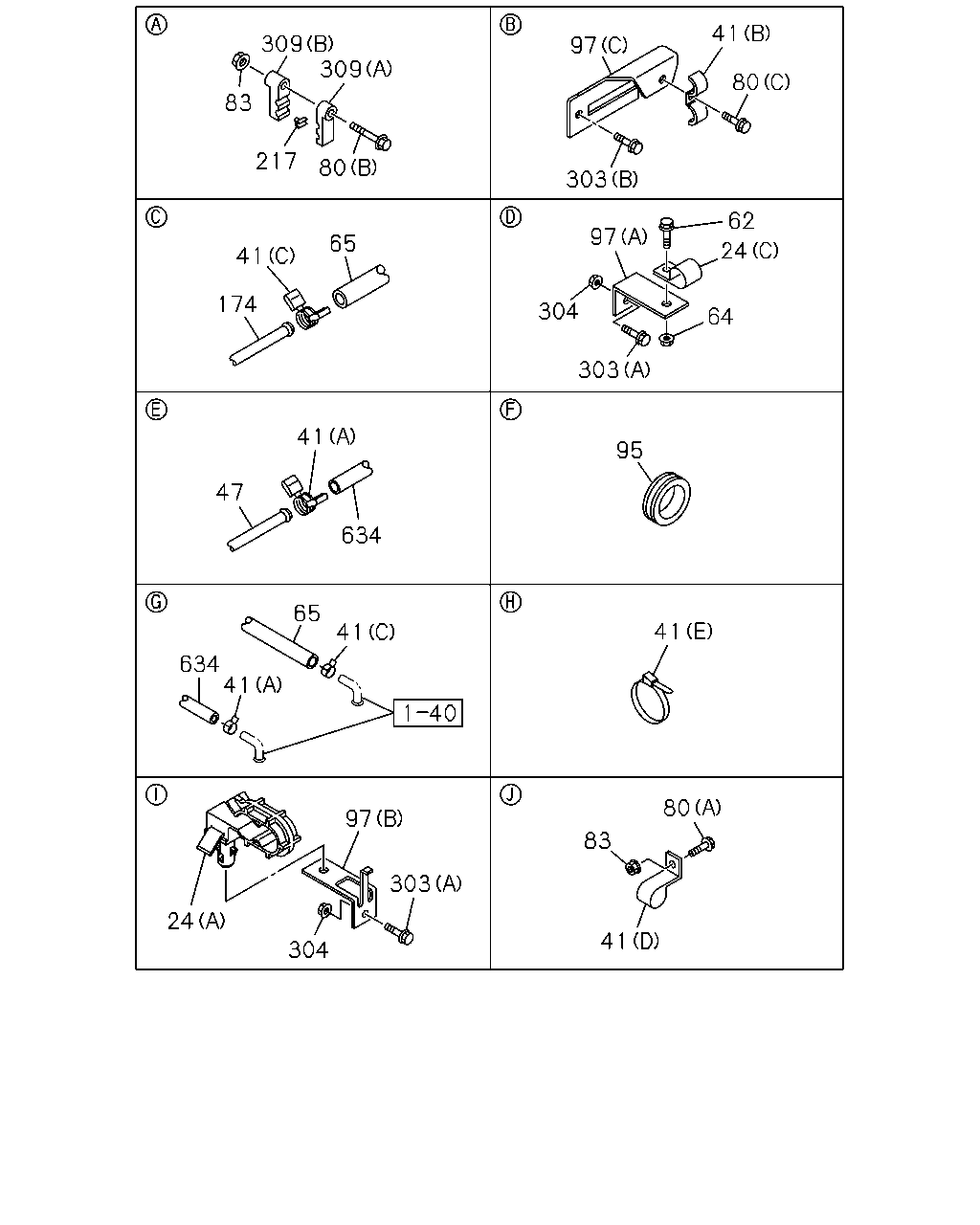

çizim 381257
309 309 83 217 80 97 41 303 80 97 304 303 64 24 62 95 41 80 83 41 303 97 304 24 41 634 65 41 634 47 41 174 41 65
BalonParca AdiParca NoAdetTipApplied Date
24 CLIP; FUEL HOSE
WHEEL BASE 4600MM(46W) (C) ID=21 L=24 		8-98019-191-0 01 1 1310-
24 CLIP; FUEL HOSE
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) ID=14.5 & 14.5 		1-09701-246-1 01 1 1310-
24 CLIP; FUEL HOSE
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (C) ID=21 L=24 		8-98019-191-0 02 1 1310-
24 CLIP; FUEL HOSE
(B) ID=15 H=24 L=20 		1-09700-606-0 01 1 1310-
24 CLIP; FUEL HOSE
(D) ID=16.5 & 10.5-14 		8-98147-093-0 01 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 4000MM(40W) (D) ID=8 H=20 L=20 		1-09700-604-0 01 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) (D) ID=8 H=20 L=20 		1-09700-604-0 02 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 02 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 02 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 04 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=16 		8-94238-568-0 02 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=16 		8-94238-568-0 02 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=16 		8-94238-568-0 02 1 1310-
47 PIPE; FUEL,RETURN
WHEEL BASE 4000MM(40W) L=2512 		8-98245-730-0 01 1 1310-
47 PIPE; FUEL,RETURN
WHEEL BASE 4600MM(46W) L=3106 		8-98239-745-0 01 1 1310-
47 PIPE; FUEL,RETURN
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=3008 		8-98245-731-0 01 1 1310-
62 BOLT; CLIP FIX
WHEEL BASE 4600MM(46W) M8X20 FLANGE 		0-28650-820-0 01 1 1310-
62 BOLT; CLIP FIX
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8X20 FLANGE 		0-28650-820-0 02 1 1310-
64 NUT; CLIP
WHEEL BASE 4600MM(46W) M8 FLANGE 		0-91180-108-0 01 1 1310-
64 NUT; CLIP
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8 FLANGE 		0-91180-108-0 02 1 1310-
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4000MM(40W) L=850 		8-98183-311-0 01 1 1310-
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4600MM(46W) L=1200 		8-98183-312-0 01 1 1310-
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=1550 		8-98183-313-0 01 1 1310-
80 BOLT; CLIP,FUEL TANK
WHEEL BASE 4000MM(40W) (A) M8X25 FLANGE 		0-28650-825-0 01 1 1310-
80 BOLT; CLIP,FUEL TANK
WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) (A) M8X25 FLANGE 		0-28650-825-0 02 1 1310-
80 BOLT; CLIP,FUEL TANK
(B) M8X50 FLANGE 		0-28050-850-0 03 1 1310-
80 BOLT; CLIP,FUEL TANK
(C) M8X20 FLANGE 		0-28650-820-0 01 1 1310-
83 NUT; CLIP,FUEL TANK
WHEEL BASE 4000MM(40W) M8 FLANGE 		0-91180-108-0 04 1 1310-
83 NUT; CLIP,FUEL TANK
WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) M8 FLANGE 		0-91180-108-0 05 1 1310-
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 02 1 1310-
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17 		9-09956-256-2 02 1 1310-
97 BRACKET; CLIP
WHEEL BASE 4600MM(46W) (A) L=55 		1-47476-177-0 01 1 1310-
97 BRACKET; CLIP
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) L=55 		1-47476-177-0 02 1 1310-
97 BRACKET; CLIP
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) 		8-98109-768-0 01 1 1310-
97 BRACKET; CLIP
(D) 		8-98209-221-0 01 1 1310-
97 BRACKET; CLIP
(C) 		8-98245-737-0 01 1 1310-
174 PIPE; FUEL,FEED,FRT 8-98245-726-0 01 1 1310-
217 COLLAR; FUEL PIPE FIX
ID=8 		1-47459-011-0 03 1 1310-
303 BOLT; BRKT
WHEEL BASE 4600MM(46W) (A) M10X30 FLANGE 		0-28651-030-0 01 1 1310-
303 BOLT; BRKT
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M10X30 FLANGE 		0-28651-030-0 03 1 1310-
303 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1310-
304 NUT; BRKT
WHEEL BASE 4600MM(46W) M10 FLANGE 		0-91180-210-0 01 1 1310-
304 NUT; BRKT
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) M10 FLANGE 		0-91180-210-0 03 1 1310-
309 CLIP; PIPE
(A) ID=10 & 10 		1-09709-241-0 03 1 1310-
309 CLIP; PIPE
(B) ID=10 & 10 		1-09709-243-0 03 1 1310-
634 HOSE; RUBBER RETURN
WHEEL BASE 4000MM(40W) 		8-98245-302-0 01 1 1310-
634 HOSE; RUBBER RETURN
WHEEL BASE 4600MM(46W) 		8-98245-303-0 01 1 1310-
634 HOSE; RUBBER RETURN
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) 		8-98245-304-0 01 1 1310-
