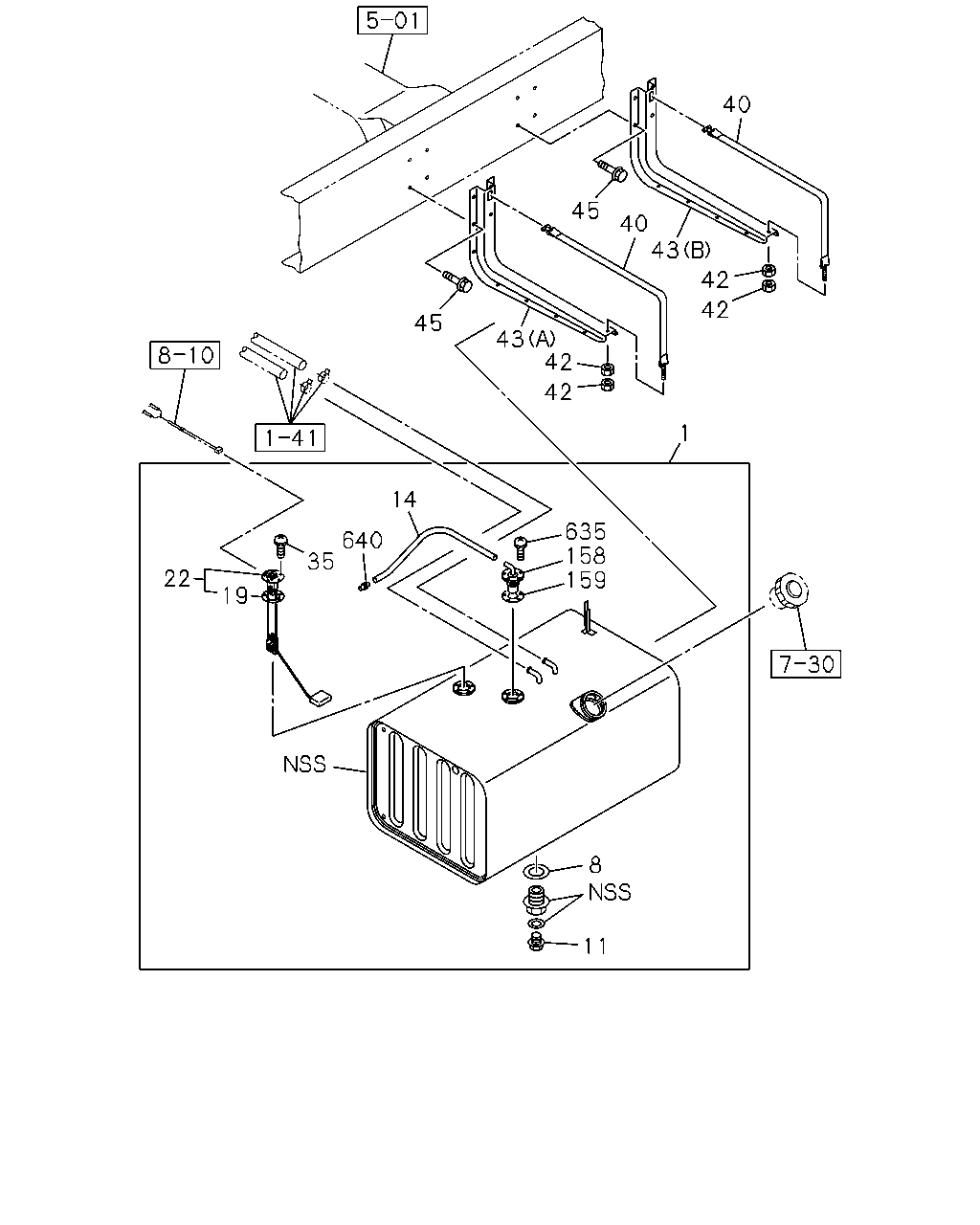

1-40 — FUEL TANK
(#128534) — 17 parça
11
8
159
158
635
14
640
35
19
22
42
42
43
45
42
42
43
40
45
40
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; FUEL
820X500X400 140L
8-98224-123-0
01
1
1310-
8
GASKET; DRAIN PLUG,FUEL TANK
ID=30
8-98067-041-0
01
1
1310-
11
PLUG; DRAIN,FUEL TANK
M18
8-98068-006-0
01
1
1310-
14
HOSE; BREATHER,OUTLET
L=430
8-98131-037-0
01
1
1310-
19
GASKET; FUEL TANK UNIT
ID=14.2 OD=23.0
9-09572-014-0
01
1
1310-
19
GASKET; FUEL TANK UNIT
ID=42 OD=71
5-83148-001-0
01
1
1310-
22
UNIT; FUEL TANK
8-98099-319-0
01
1
1310-
35
SCREW; FUEL TANK UNIT
M5X12 W/LK WASHER
0-36220-512-0
05
1
1310-
40
BELT; SUPPORT,FUEL TANK
L=925
8-98049-769-1
02
1
1310-
42
NUT; SUPPORT BELT
M10
0-91110-510-0
04
1
1310-
43
BRACKET; FUEL TANK
(A)
8-98127-229-0
01
1
1310-
43
BRACKET; FUEL TANK
(B)
8-98127-230-0
01
1
1310-
45
BOLT; BRKT,FUEL TANK
M10X35 FLANGE
0-28651-035-0
08
1
1310-
158
VALVE; ROLL OVER & FLOAT
8-98095-223-0
01
1
1310-
159
SEAL; ROLL OVER & FLOAT VALVE
ID=45 OD=67
1-83149-003-0
01
1
1310-
635
SCREW; ROLL OVER & FLOAT VALVE
M5X10 W/LK WASHER
0-36220-510-0
05
1
1310-
640
VENTILATOR; HOSE,BREATHER
8-98092-398-0
01
1
1310-
