◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11547 - FRR RHD EUROPE EURO6 SPACECAB ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#128532) — 68 parça

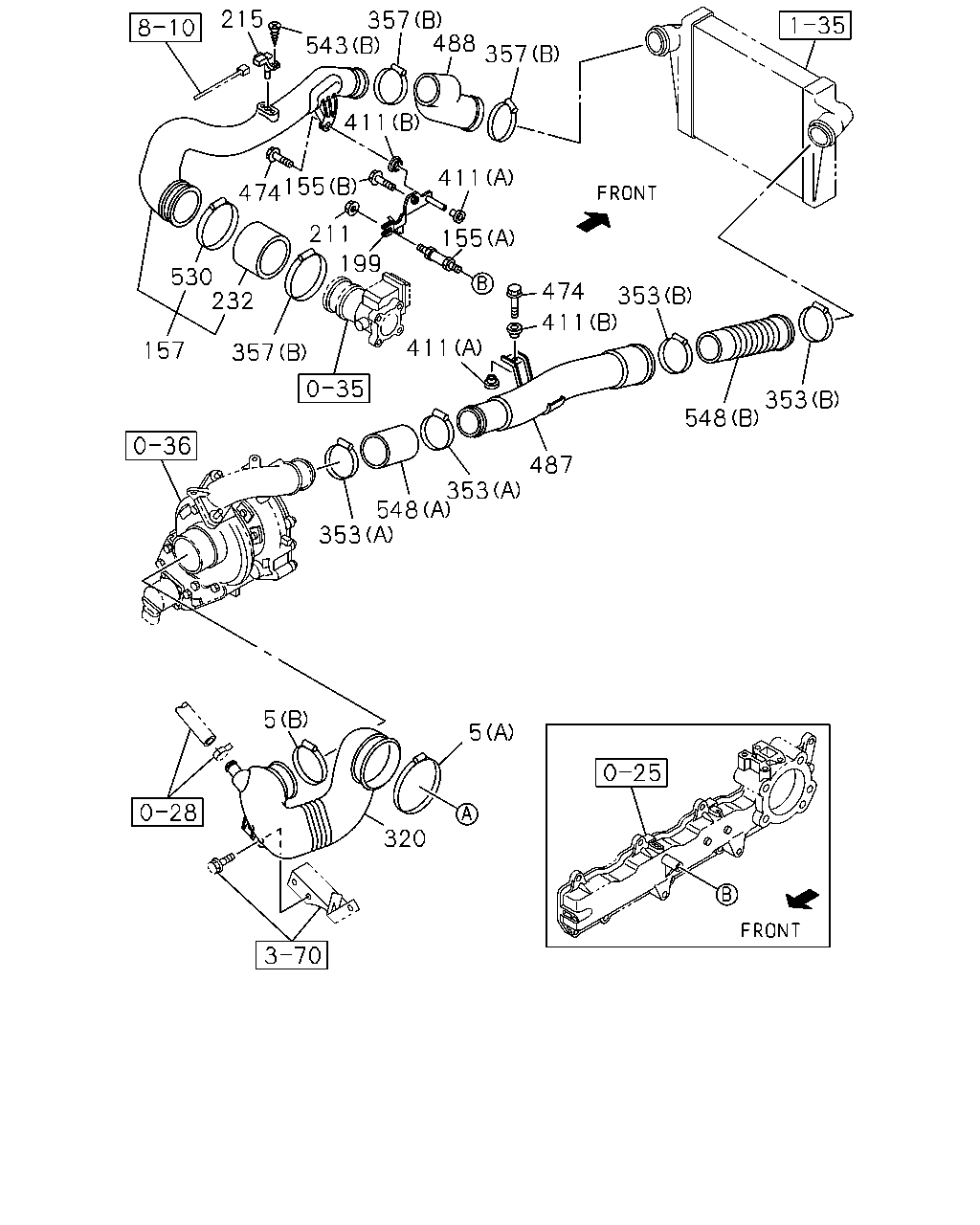

çizim 379479
353 548 353 487 548 353 353 411 474 155 411 357 232 530 157 474 155 411 543 357 215 488 357 411 211 199 5 320 5
BalonParca AdiParca NoAdetTipApplied Date
5 CLIP; AIR DUCT
(B) ID=75-95 		8-98133-357-0 01 1 1310-
5 CLIP; AIR DUCT
(A) ID=110-130 		8-98133-359-0 01 1 1310-
155 BOLT; BRKT
(B) M10X110 FLANGE 		0-28156-011-0 01 1 1310-
155 BOLT; BRKT
(A) M10X17,M10X30 L=105 		8-97233-428-0 01 1 1310-
157 PIPE; AIR 8-98166-967-0 01 1 1310-
199 BRACKET; PIPE 8-98109-137-1 01 1 1310-1403
199 BRACKET; PIPE 8-98252-223-0 01 1 1404-
211 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1310-
215 SENSOR; MAP 8-98009-418-0 01 1 1310-
232 HOSE; CONN 8-98128-293-0 01 1 1310-
320 HOSE; CONN,ACL 8-98010-643-3 01 1 1310-
353 CLIP; RUBBER HOSE
(A) ID=45-65 		8-98133-348-0 02 1 1310-
353 CLIP; RUBBER HOSE
(B) ID=65-85 		8-98133-350-0 02 1 1310-
357 CLIP; RUBBER HOSE
(A) ID=24 		8-98025-921-0 02 1 1310-
357 CLIP; RUBBER HOSE
(B) ID=65-85 		8-98133-350-0 01 1 1310-
357 CLIP; RUBBER HOSE
(B) ID=65-85 		8-98133-350-0 02 1 1310-
411 RUBBER; CUSHION
(A) OD=32 		8-94395-766-0 02 1 1310-
411 RUBBER; CUSHION
(B) OD=23 		8-97105-689-6 02 1 1310-
474 BOLT; PIPE
M8X40 FLANGE 		0-28650-840-0 02 1 1310-
487 PIPE; TURBO TO CHARGE AIR COOLER 8-98250-695-0 01 1 1310-
488 HOSE; RUBBER,PIPE 8-98204-041-0 01 1 1310-
530 CLAMP; AIR DUCT
ID=65-85 		8-98133-350-0 01 1 1310-
543 SCREW; SENSOR
(A) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1310-
543 SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1310-
548 HOSE; RUBBER,TURBO TO INL PIPE
(A) 		8-98204-039-0 01 1 1310-1511
548 HOSE; RUBBER,TURBO TO INL PIPE
(A) 		8-98317-803-0 01 1 1512-
548 HOSE; RUBBER,TURBO TO INL PIPE
(B) 		8-98204-040-0 01 1 1310-1511
548 HOSE; RUBBER,TURBO TO INL PIPE
(B) 		8-98317-804-0 01 1 1512-

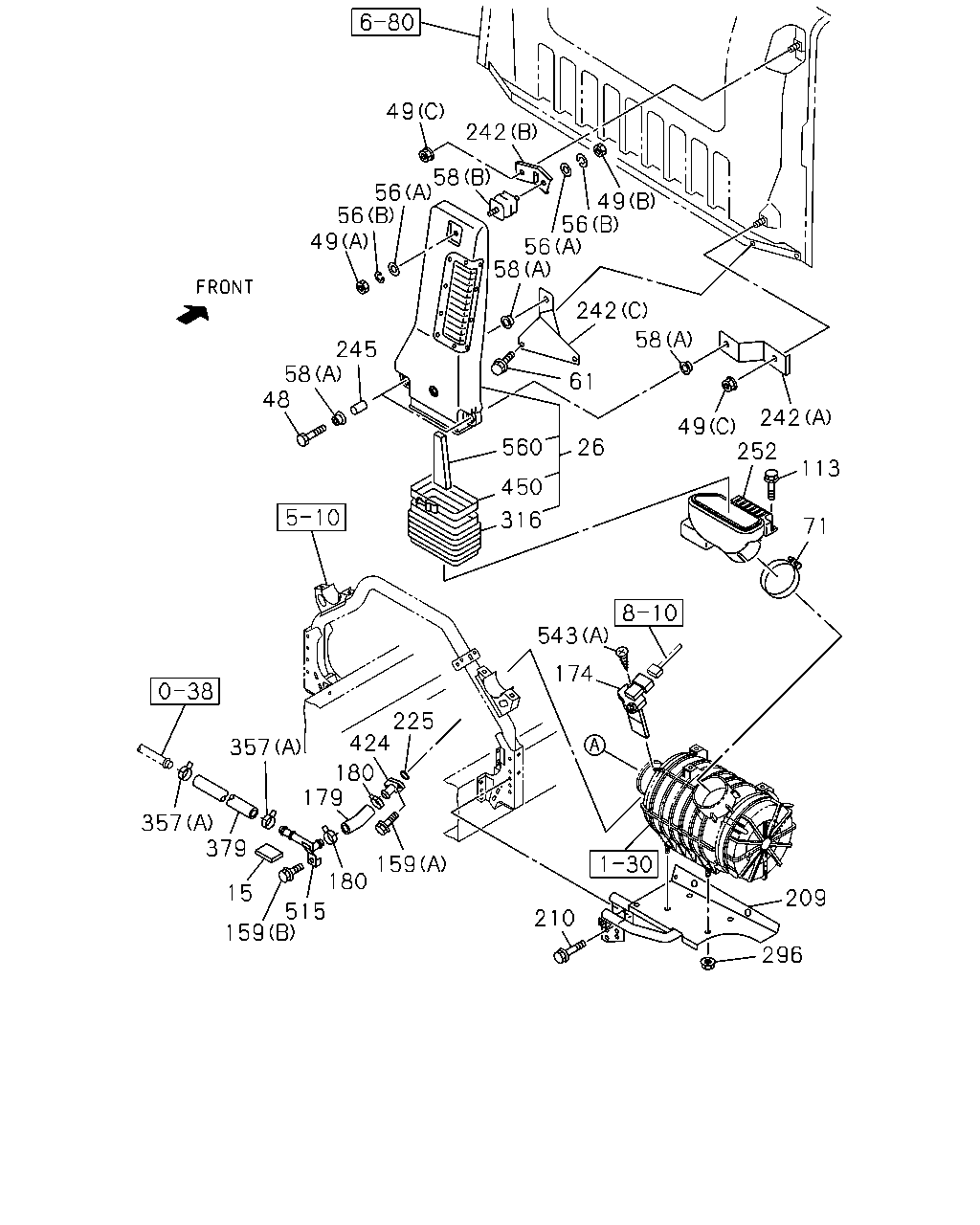

çizim 380752
49 242 58 56 49 56 56 49 56 58 245 242 58 58 61 48 560 26 49 242 252 450 113 316 71 357 225 543 174 424 180 357 379 179 159 15 180 159 210 209 296 515
BalonParca AdiParca NoAdetTipApplied Date
15 INSULATOR
FRIGID ZONE KIT<YL3> 		8-98141-065-0 01 1 1310-1310
15 INSULATOR 8-98141-065-0 01 1 1311-1401
15 INSULATOR
265X79 		8-98270-803-0 01 1 1402-
26 DUCT; AIR INT 8-98010-361-2 01 1 1310-
48 BOLT; AIR DUCT
M10X60 		1-09030-044-1 02 1 1310-
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 1310-
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1310-
49 NUT; AIR DUCT
(C) M8 FLANGE 		8-94279-517-0 02 1 1310-
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 1310-
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1310-
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1310-
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1310-
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1310-
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1310-
113 BOLT; RESONATOR
M6X16 W/PL WASHER 		8-98094-071-0 03 1 1310-
159 BOLT; AIR PIPE
(A) M6X16 FLANGE 		0-28050-616-0 02 1 1310-
159 BOLT; AIR PIPE
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1310-
174 SENSOR; AIR FLOW CONT 8-98113-202-1 01 1 1310-
179 HOSE; AIR INT 8-98063-233-0 01 1 1310-
180 CLIP; AIR INT HOSE
ID=24 		8-98025-921-0 02 1 1310-
209 BRACKET; ACL 8-98010-343-4 01 1 1310-
210 BOLT; ACL BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1310-
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1310-
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1310-
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 1310-
242 BRACKET; AIR DUCT
(A) 		8-98238-917-0 01 1 1310-
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1310-
252 DUCT; AIR INT 8-98095-778-0 01 1 1310-
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 1310-
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1310-
357 CLIP; RUBBER HOSE
(A) ID=24 		8-98025-921-0 02 1 1310-
357 CLIP; RUBBER HOSE
(B) ID=65-85 		8-98133-350-0 01 1 1310-
357 CLIP; RUBBER HOSE
(B) ID=65-85 		8-98133-350-0 02 1 1310-
379 HOSE; RUBBER 8-98062-621-1 01 1 1310-
424 PIPE; AIR,INL 8-98081-835-0 01 1 1310-
450 CLAMP; HOSE 9-09915-504-1 01 1 1310-
515 PIPE; AIR,SUCTION 8-98061-569-1 01 1 1310-
543 SCREW; SENSOR
(A) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1310-
543 SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1310-
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 1310-
