◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11129 - FVM(THAI)EURO3 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-33 - FAN AND FAN BELT ▶
0-33 — FAN AND FAN BELT (#12852) — 32 parça

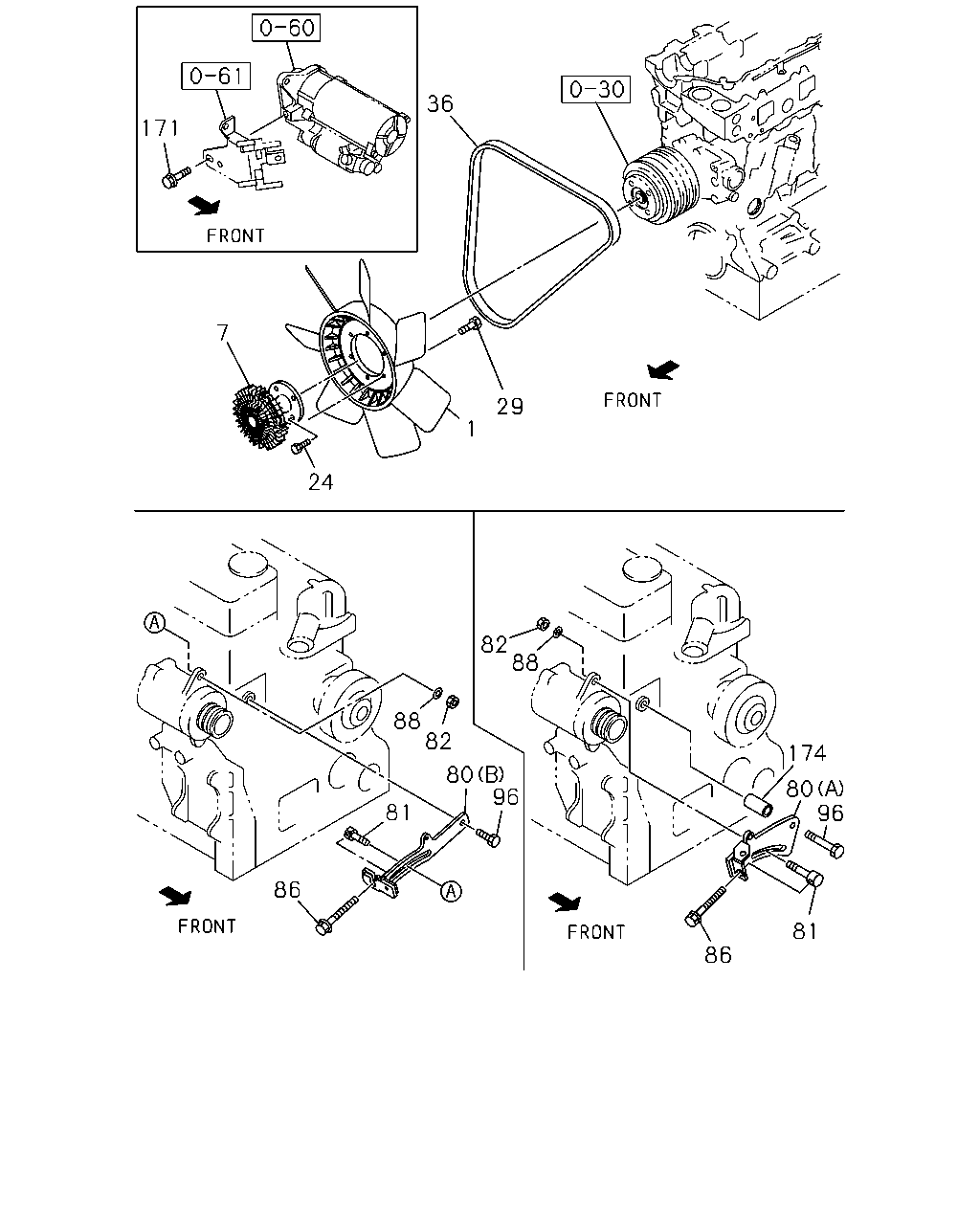

çizim 98156
171 36 7 24 29 1 88 82 80 96 81 86 88 82 174 80 96 81 86
BalonParca AdiParca NoAdetTipApplied Date A B
1 FAN; COOLING
OD=560 		8-98073-467-1 01 1 0807- ● ●
7 COUPLING; FAN 8-98075-290-1 01 1 0807- ● ●
24 BOLT; FAN
M10X25 FLANGE THA 		0-28151-025-0 04 1 0807- ● ●
29 BOLT; COUPLING TO WATER PUMP
M8X16 FLANGE THA 		0-28050-816-0 06 1 0807- ● ●
36 BELT; COOLING FAN
GENERATOR 24V60A<KG2>,GENERATOR 24V50A<K89> L=1170 MITSUBOSHI 		8-97611-859-1 01 1 0807-1102 ● ●
36 BELT; COOLING FAN
L=1170 MITSUBOSHI 		8-97611-859-1 01 1 1103- ● ●
36 BELT; COOLING FAN
GENERATOR 24V90A<K44> L=1190 MITSUBOSHI 		8-97611-860-0 01 1 0807-1102 ● ●
36 BELT; COOLING FAN
GENERATOR 24V60A<KG2>,GENERATOR 24V50A<K89> BEST VALUE PARTS 		1-87610-105-0 01 1 0807-1102 ● ●
36 BELT; COOLING FAN
GENERATOR 24V90A<K44> BEST VALUE PARTS 		1-87610-106-0 01 1 0807-1102 ● ●
36 BELT; COOLING FAN
BEST VALUE PARTS 		1-87610-105-0 01 1 1103- ● ●
80 PLATE; ADJ
GENERATOR 24V60A<KG2>,GENERATOR 24V50A<K89> (B) 		8-97601-020-1 01 1 0807-1102 ● ●
80 PLATE; ADJ
(B) 		8-97601-020-1 01 1 1103- ● ●
80 PLATE; ADJ
GENERATOR 24V90A<K44> (A) 		8-97617-940-0 01 1 0807-1102 ● ●
81 PIECE; SLIDING
GENERATOR 24V60A<KG2>,GENERATOR 24V50A<K89> M12X45 		1-13674-160-0 01 1 0807-1102 ● ●
81 PIECE; SLIDING
M12X45 		1-13674-160-0 01 1 1103- ● ●
81 PIECE; SLIDING
GENERATOR 24V90A<K44> M12X59 		1-13674-161-0 01 1 0807-1102 ● ●
82 NUT; ADJ PLATE
M12 FLANGE THA 		0-91180-112-0 01 1 0807- ● ●
86 BOLT; ADJ
GENERATOR 24V60A<KG2>,GENERATOR 24V50A<K89> M10X155 FLANGE 		1-09009-114-1 01 1 0807-1102 ● ●
86 BOLT; ADJ
M10X155 FLANGE 		1-09009-114-1 01 1 1103- ● ●
86 BOLT; ADJ
GENERATOR 24V90A<K44> M10X135 		1-09009-113-1 01 1 0807-1102 ● ●
88 WASHER; PL,ADJ PLATE
ID=12.5 OD=32 		0-91614-712-0 01 1 0807- ● ●
96 BOLT; ADJ PLATE
GENERATOR 24V60A<KG2>,GENERATOR 24V50A<K89> M10X45 FLANGE THA 		0-28151-045-0 01 1 0807-1102 ● ●
96 BOLT; ADJ PLATE
M10X45 FLANGE THA 		0-28151-045-0 01 1 1103- ● ●
96 BOLT; ADJ PLATE
GENERATOR 24V90A<K44> M10X75 FLANGE 		8-94399-669-1 01 1 0807-1102 ● ●
171 BOLT; HEAT PROTECTOR
M10X20 FLANGE THA 		0-28051-020-0 01 1 0807- ● ●
174 SPACER; ADJ PLATE
GENERATOR 24V90A<K44> 		8-98056-785-0 01 1 0807-1102 ● ●

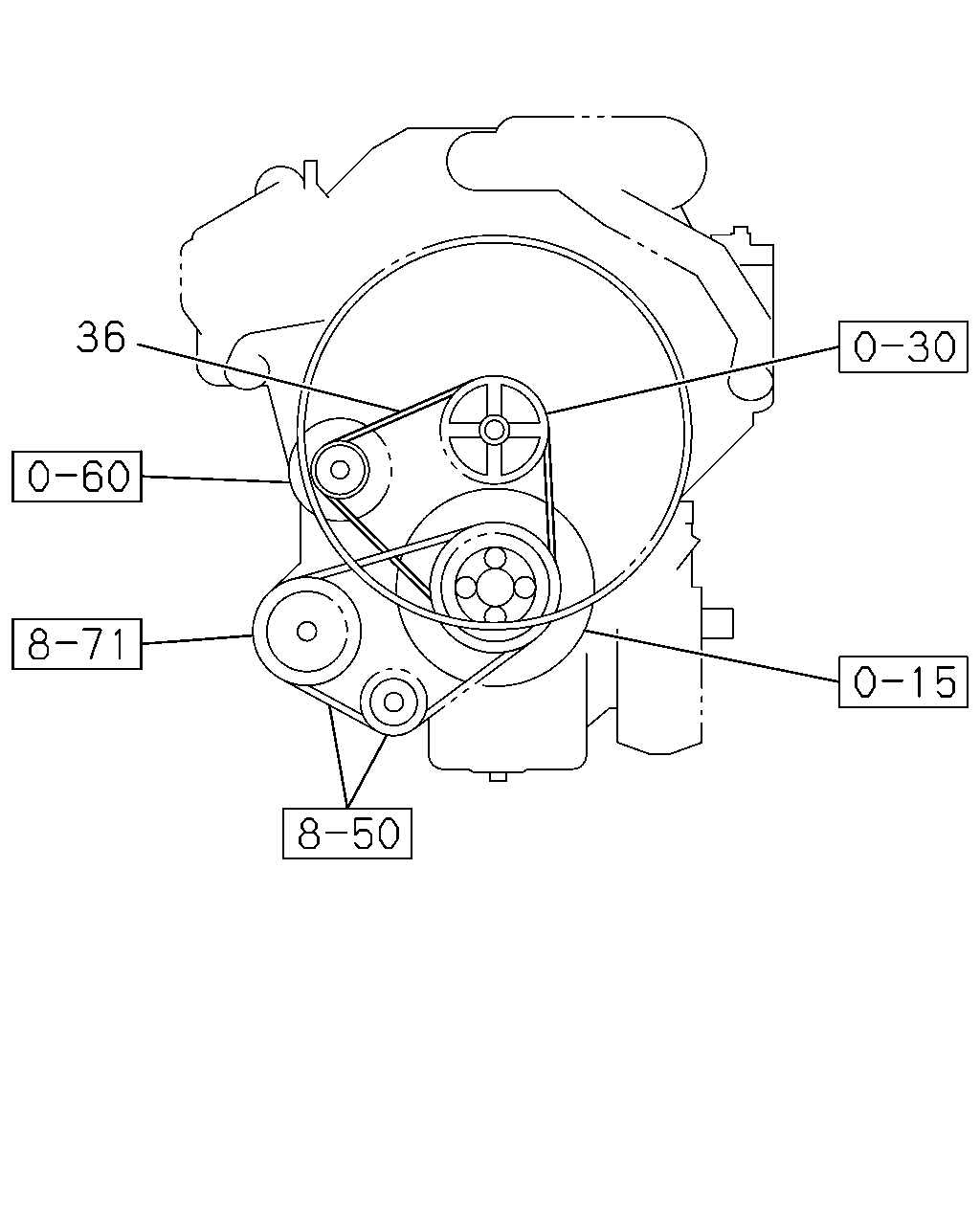

çizim 107061
36
BalonParca AdiParca NoAdetTipApplied Date A B
36 BELT; COOLING FAN
GENERATOR 24V60A<KG2>,GENERATOR 24V50A<K89> L=1170 MITSUBOSHI 		8-97611-859-1 01 1 0807-1102 ● ●
36 BELT; COOLING FAN
L=1170 MITSUBOSHI 		8-97611-859-1 01 1 1103- ● ●
36 BELT; COOLING FAN
GENERATOR 24V90A<K44> L=1190 MITSUBOSHI 		8-97611-860-0 01 1 0807-1102 ● ●
36 BELT; COOLING FAN
GENERATOR 24V60A<KG2>,GENERATOR 24V50A<K89> BEST VALUE PARTS 		1-87610-105-0 01 1 0807-1102 ● ●
36 BELT; COOLING FAN
GENERATOR 24V90A<K44> BEST VALUE PARTS 		1-87610-106-0 01 1 0807-1102 ● ●
36 BELT; COOLING FAN
BEST VALUE PARTS 		1-87610-105-0 01 1 1103- ● ●
