Isuzu WW
▶
TRUCKS
▶
FVM
▶
11129 - FVM(THAI)EURO3
▶
0 - Engine, Emission, Engine Electrical
▶
0-32 - WATER PIPING; ENGINE
▶
0-32 — WATER PIPING; ENGINE
(#12851) — 115 parça
Tümü
A - 6HK1-TCS ENG
B - 6HK1-TCN ENG
◀

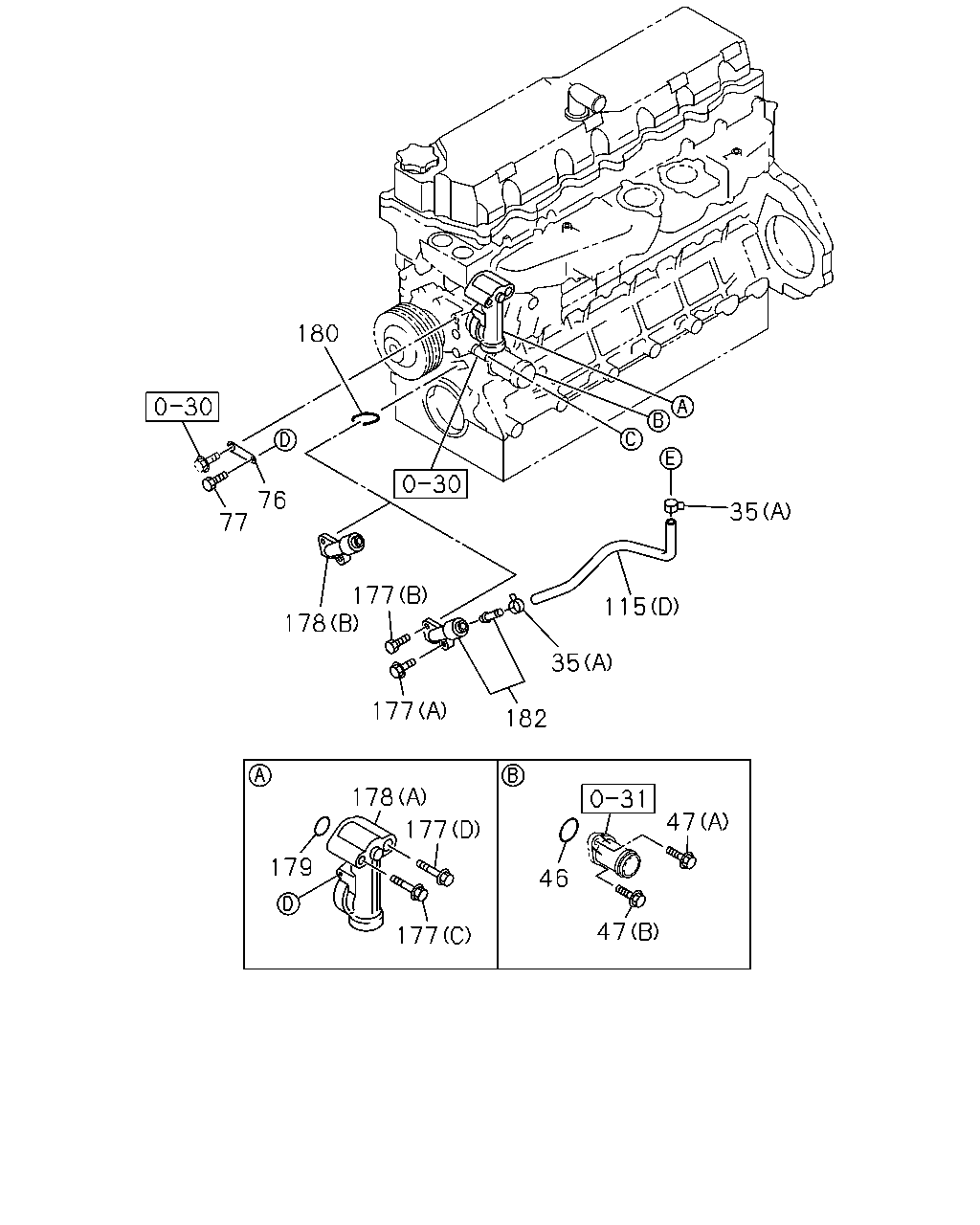

[032A] WATER DUCT (24 parça)

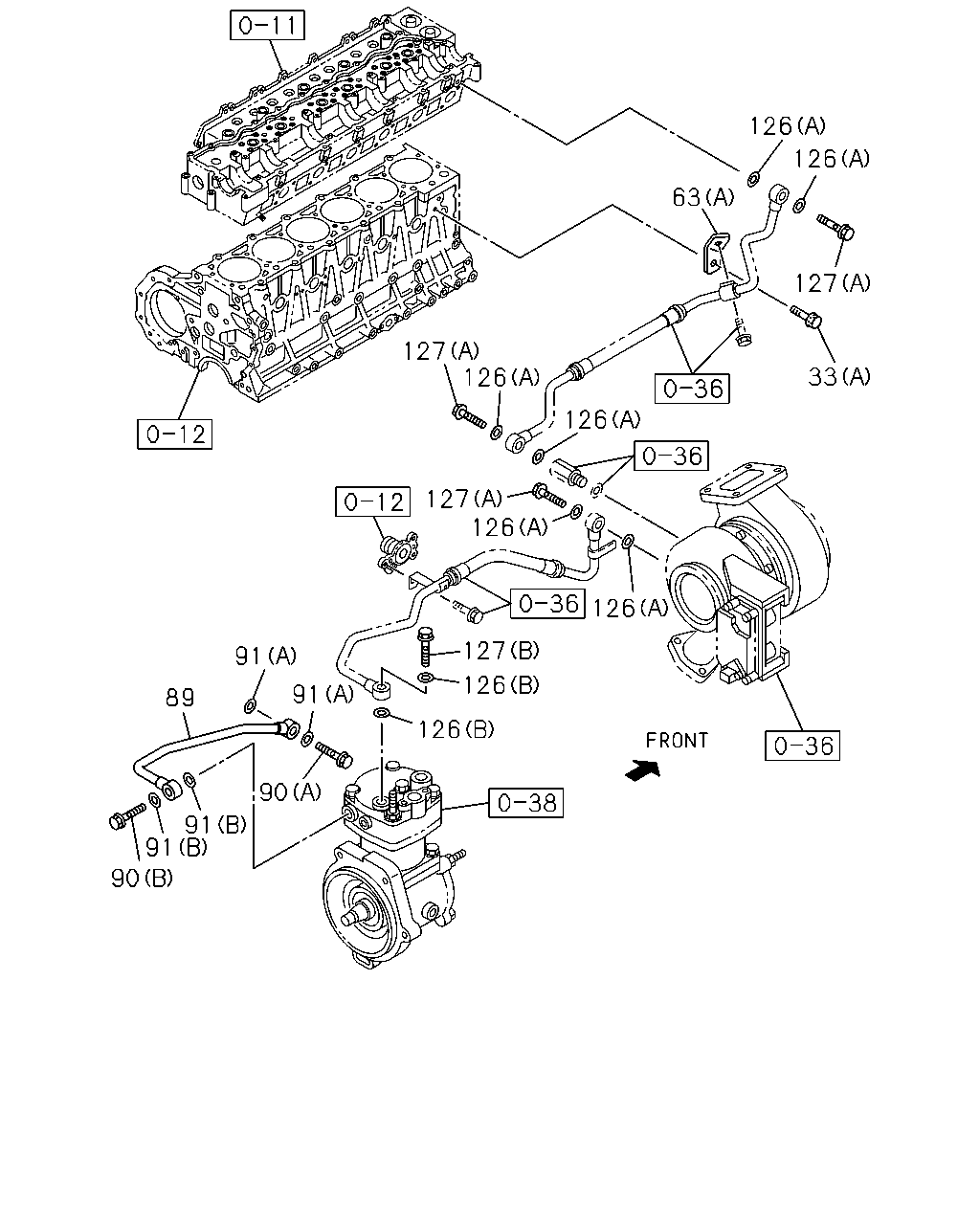

[032A] -'11/2 TURBOCHARGER AND AIR CMPR PIPIN (24 parça)

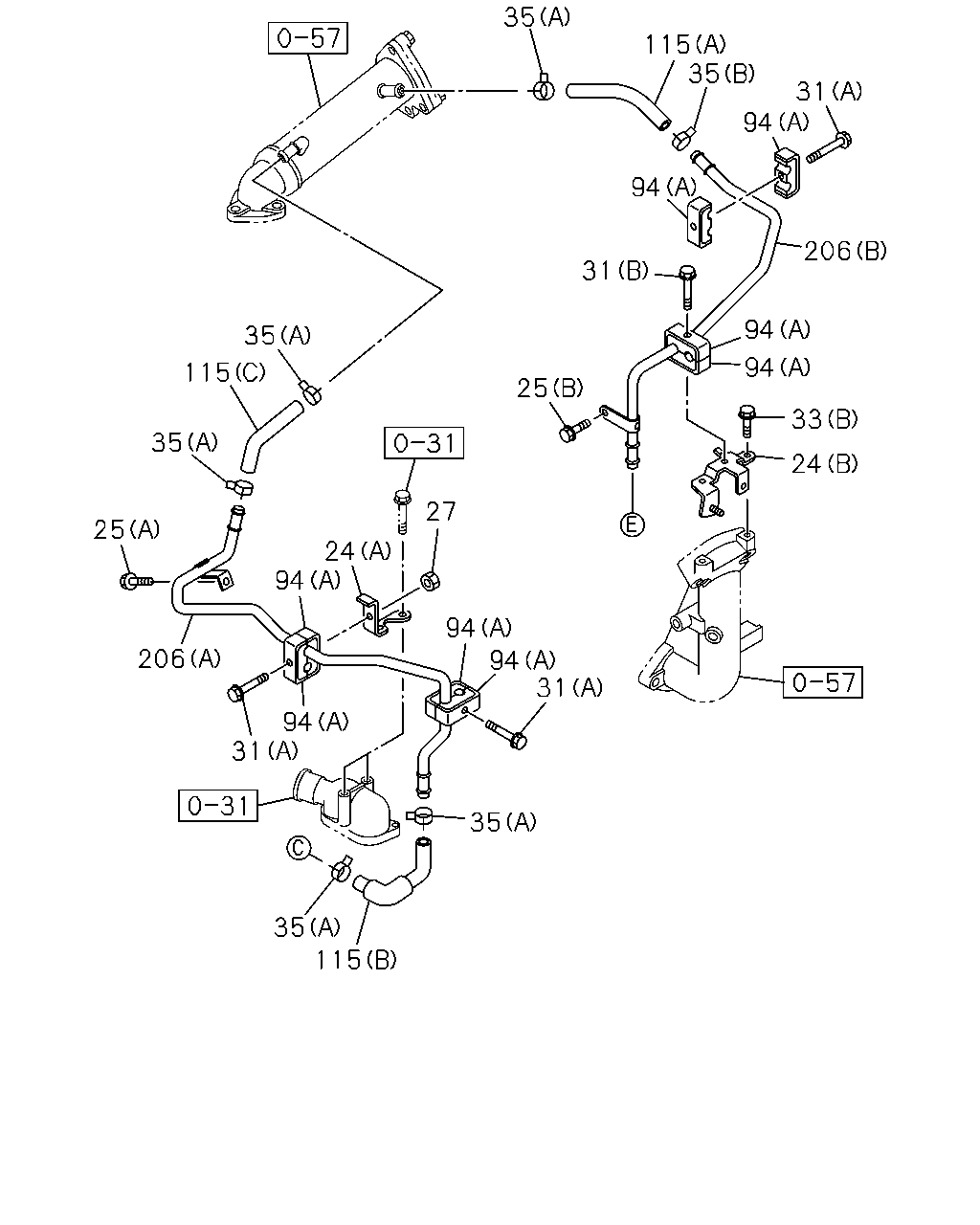

[032A] EGR OIL COOLER SIDE (28 parça)

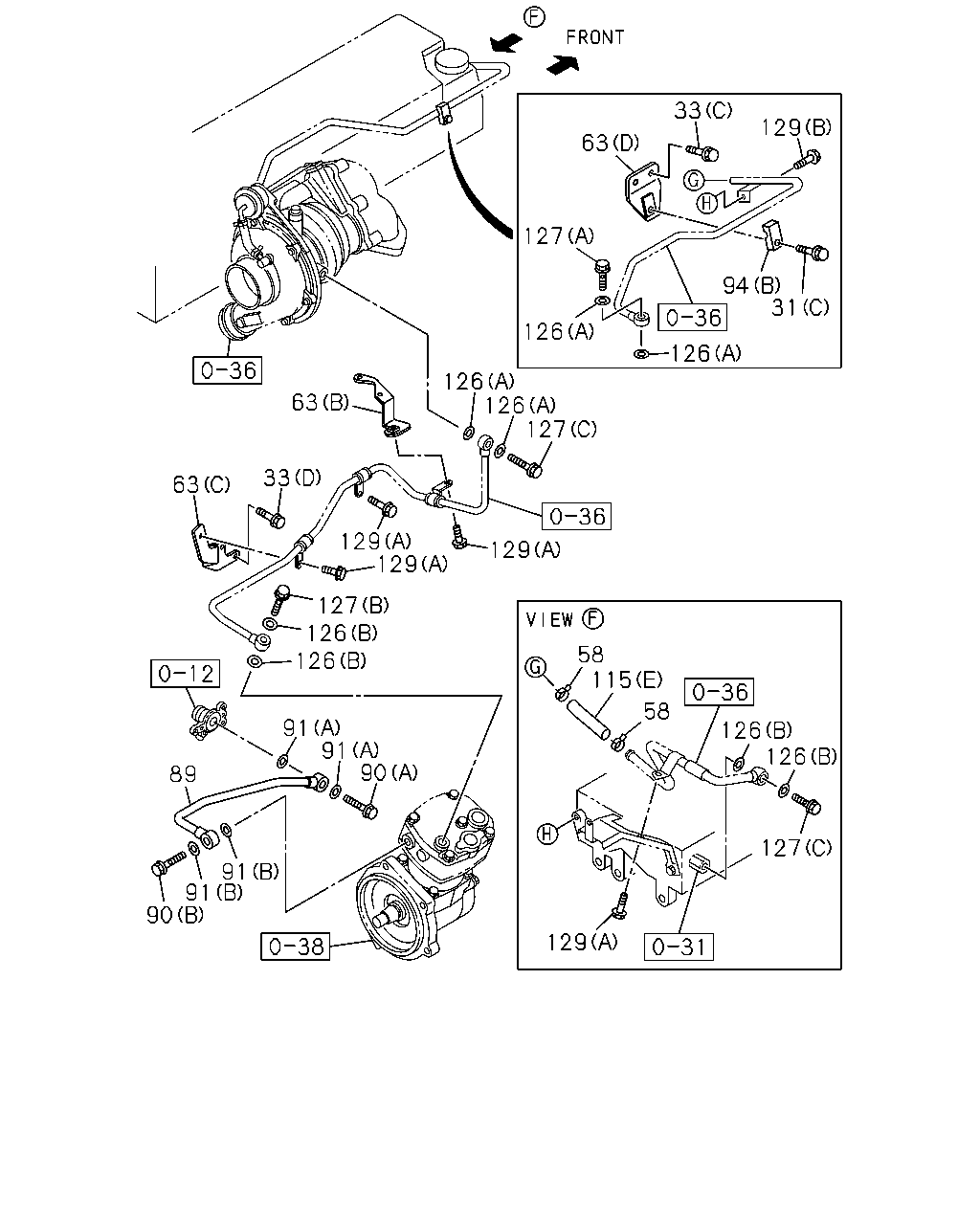

[032A] '11/3- TURBOCHARGER AND AIR CMPR PIPING (39 parça)
▶
180
76
77
35
177
178
115
35
177
182
178
47
177
179
46
47
177
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
35
CLIP; RUBBER HOSE
(A) ID=20
1-09707-084-1
07
1
0807-0810
●
●
35
CLIP; RUBBER HOSE
(A) ID=20
8-98127-648-0
07
1
0811-1006
●
●
35
CLIP; RUBBER HOSE
(A) ID=20
8-98127-648-0
08
1
1007-1102
●
●
35
CLIP; RUBBER HOSE
(B) ID=20.8
8-94125-862-1
01
1
0807-1006
●
●
46
GASKET; WATER DUCT,TO OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3
8-94396-680-2
01
1
0807-
●
●
47
BOLT; DUCT,TO OIL COOLER
(A) M8X45 FLANGE THA
0-28050-845-0
01
1
0807-
●
●
47
BOLT; DUCT,TO OIL COOLER
(B) M8X25 FLANGE THA
0-28650-825-0
01
1
0807-
●
●
76
BRACKET; WATER DUCT,PUMP
8-94394-784-0
01
1
0807-
●
●
77
BOLT; BRKT,WATER DUCT
M8X50 FLANGE THA
0-28050-850-0
01
1
0807-
●
●
115
HOSE; RUBBER
(A) L=320 SERVICED BY L=3000 THA
0-03566-300-0
01
1
0807-1102
●
●
115
HOSE; RUBBER
(E) L=60 SERVICED BY L=3000
0-03561-300-0
01
1
1103-
●
●
115
HOSE; RUBBER
(B)
8-97606-735-0
01
1
0807-1102
●
●
115
HOSE; RUBBER
(D)
8-97618-843-0
01
1
0807-1102
●
●
115
HOSE; RUBBER
(C)
8-98043-192-0
01
1
0807-1102
●
●
177
BOLT; WATER DUCT
(C) M8X80 FLANGE THA
0-28050-880-0
01
1
0807-
●
●
177
BOLT; WATER DUCT
(B) M8X25 FLANGE THA
0-28650-825-0
01
1
0807-
●
●
177
BOLT; WATER DUCT
(A) M8X65 FLANGE
1-09044-072-1
01
1
0807-
●
●
177
BOLT; WATER DUCT
(D) M16X75 FLANGE
8-94397-360-1
01
1
0807-
●
●
178
DUCT; WATER,BYPASS
(B)
8-94390-644-0
01
1
1103-
●
●
178
DUCT; WATER,BYPASS
(A)
8-94396-627-3
01
1
0807-
●
●
179
GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2
8-94396-679-0
01
1
0807-1408
●
●
179
GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2
8-98276-756-0
01
1
1409-
●
●
180
GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94396-720-1
01
1
0807-
●
●
182
DUCT; WATER,HTR
8-94396-727-3
01
1
0807-1102
●
●
126
126
63
127
127
126
33
126
127
126
126
127
91
126
91
89
126
90
91
91
90
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
33
BOLT; BRKT
(D) M8X20 FLANGE THA
0-28050-820-0
02
1
1103-
●
●
33
BOLT; BRKT
(A) M8X16 FLANGE THA
0-28050-816-0
01
1
0807-1102
●
●
33
BOLT; BRKT
(C) M8X16 FLANGE THA
0-28050-816-0
02
1
1103-
●
●
33
BOLT; BRKT
(B) M8X20 FLANGE THA
0-28650-820-0
03
1
0807-1102
●
●
33
BOLT; BRKT
(B) M8X20 FLANGE THA
0-28650-820-0
02
1
1103-
●
●
63
BRACKET; WATER PIPE
(B)
8-98074-252-0
01
1
1103-
●
●
63
BRACKET; WATER PIPE
(C)
8-98074-253-0
01
1
1103-
●
●
63
BRACKET; WATER PIPE
(A)
8-98046-784-0
01
1
0807-1102
●
●
63
BRACKET; WATER PIPE
(D)
8-94392-951-0
01
1
1103-
●
●
89
PIPE; WATER,AIR CMPR,IN
8-97610-086-0
01
1
0807-
●
●
90
BOLT; EYE,WATER PIPE,AIR CMPR
(A) M14X27 EYE-BOLT
1-09675-193-0
01
1
0807-
●
●
90
BOLT; EYE,WATER PIPE,AIR CMPR
(B) M16X28
8-94383-489-0
01
1
0807-
●
●
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2
1-09630-085-0
02
1
0807-1312
●
●
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2
8-98251-345-0
02
1
1401-
●
●
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2
1-09630-086-0
02
1
0807-
●
●
126
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2
1-09630-085-0
06
1
0807-1102
●
●
126
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2
1-09630-085-0
04
1
1103-1312
●
●
126
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2
8-98251-345-0
04
1
1401-
●
●
126
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2
1-09630-086-0
02
1
0807-1102
●
●
126
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2
1-09630-086-0
04
1
1103-
●
●
127
BOLT; EYE
(C) M16X25
5-09675-028-2
01
1
1103-
●
●
127
BOLT; EYE
(A) M14X27 EYE-BOLT
1-09675-193-0
03
1
0807-1102
●
●
127
BOLT; EYE
(A) M14X27 EYE-BOLT
1-09675-193-0
02
1
1103-
●
●
127
BOLT; EYE
(B) M16X28
8-94383-489-0
01
1
0807-
●
●
35
115
35
31
94
94
206
31
94
35
94
115
25
33
35
24
27
25
24
94
94
94
31
206
94
31
35
35
115
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
24
BRACKET; WATER PIPE
(A)
8-98000-557-2
01
1
0807-1102
●
●
24
BRACKET; WATER PIPE
(B)
8-98051-626-1
01
1
0807-
●
●
25
BOLT; WATER PIPE
(A) M8X12 FLANGE THA
0-28050-812-0
01
1
0807-1303
●
●
25
BOLT; WATER PIPE
(B) M8X20 FLANGE THA
0-28650-820-0
01
1
0807-
●
●
27
NUT; PIPE FIX
M6 FLANGE THA
0-91180-106-0
01
1
0807-
●
●
31
BOLT; CLIP
(C) M6X35 FLANGE THA
0-28650-635-0
01
1
1103-
●
●
31
BOLT; CLIP
(B) M6X45 FLANGE THA
0-28050-645-0
01
1
0807-
●
●
31
BOLT; CLIP
(A) M6X40 FLANGE
0-28650-640-0
02
1
0807-1102
●
●
31
BOLT; CLIP
(A) M6X40 FLANGE
0-28650-640-0
01
1
1103-
●
●
33
BOLT; BRKT
(D) M8X20 FLANGE THA
0-28050-820-0
02
1
1103-
●
●
33
BOLT; BRKT
(A) M8X16 FLANGE THA
0-28050-816-0
01
1
0807-1102
●
●
33
BOLT; BRKT
(C) M8X16 FLANGE THA
0-28050-816-0
02
1
1103-
●
●
33
BOLT; BRKT
(B) M8X20 FLANGE THA
0-28650-820-0
03
1
0807-1102
●
●
33
BOLT; BRKT
(B) M8X20 FLANGE THA
0-28650-820-0
02
1
1103-
●
●
35
CLIP; RUBBER HOSE
(A) ID=20
1-09707-084-1
07
1
0807-0810
●
●
35
CLIP; RUBBER HOSE
(A) ID=20
8-98127-648-0
07
1
0811-1006
●
●
35
CLIP; RUBBER HOSE
(A) ID=20
8-98127-648-0
08
1
1007-1102
●
●
35
CLIP; RUBBER HOSE
(B) ID=20.8
8-94125-862-1
01
1
0807-1006
●
●
94
CLIP; WATER PIPE
(B)
8-94396-860-0
01
1
1103-
●
●
94
CLIP; WATER PIPE
(A)
8-97605-129-1
08
1
0807-1102
●
●
94
CLIP; WATER PIPE
(A)
8-97605-129-1
04
1
1103-
●
●
115
HOSE; RUBBER
(A) L=320 SERVICED BY L=3000 THA
0-03566-300-0
01
1
0807-1102
●
●
115
HOSE; RUBBER
(E) L=60 SERVICED BY L=3000
0-03561-300-0
01
1
1103-
●
●
115
HOSE; RUBBER
(B)
8-97606-735-0
01
1
0807-1102
●
●
115
HOSE; RUBBER
(D)
8-97618-843-0
01
1
0807-1102
●
●
115
HOSE; RUBBER
(C)
8-98043-192-0
01
1
0807-1102
●
●
206
PIPE; WATER,EGR COOLER
(A)
8-97604-928-2
01
1
0807-1102
●
●
206
PIPE; WATER,EGR COOLER
(B)
8-98000-480-1
01
1
0807-
●
●
63
126
63
33
129
94
126
31
126
127
126
127
129
129
129
33
63
127
126
126
91
91
90
91
91
90
89
58
115
58
126
126
127
129
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
31
BOLT; CLIP
(C) M6X35 FLANGE THA
0-28650-635-0
01
1
1103-
●
●
31
BOLT; CLIP
(B) M6X45 FLANGE THA
0-28050-645-0
01
1
0807-
●
●
31
BOLT; CLIP
(A) M6X40 FLANGE
0-28650-640-0
02
1
0807-1102
●
●
31
BOLT; CLIP
(A) M6X40 FLANGE
0-28650-640-0
01
1
1103-
●
●
33
BOLT; BRKT
(D) M8X20 FLANGE THA
0-28050-820-0
02
1
1103-
●
●
33
BOLT; BRKT
(A) M8X16 FLANGE THA
0-28050-816-0
01
1
0807-1102
●
●
33
BOLT; BRKT
(C) M8X16 FLANGE THA
0-28050-816-0
02
1
1103-
●
●
33
BOLT; BRKT
(B) M8X20 FLANGE THA
0-28650-820-0
03
1
0807-1102
●
●
33
BOLT; BRKT
(B) M8X20 FLANGE THA
0-28650-820-0
02
1
1103-
●
●
58
CLIP; RUBBER HOSE
ID=16
8-94392-924-0
02
1
1103-
●
●
63
BRACKET; WATER PIPE
(B)
8-98074-252-0
01
1
1103-
●
●
63
BRACKET; WATER PIPE
(C)
8-98074-253-0
01
1
1103-
●
●
63
BRACKET; WATER PIPE
(A)
8-98046-784-0
01
1
0807-1102
●
●
63
BRACKET; WATER PIPE
(D)
8-94392-951-0
01
1
1103-
●
●
89
PIPE; WATER,AIR CMPR,IN
8-97610-086-0
01
1
0807-
●
●
90
BOLT; EYE,WATER PIPE,AIR CMPR
(A) M14X27 EYE-BOLT
1-09675-193-0
01
1
0807-
●
●
90
BOLT; EYE,WATER PIPE,AIR CMPR
(B) M16X28
8-94383-489-0
01
1
0807-
●
●
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2
1-09630-085-0
02
1
0807-1312
●
●
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2
8-98251-345-0
02
1
1401-
●
●
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2
1-09630-086-0
02
1
0807-
●
●
94
CLIP; WATER PIPE
(B)
8-94396-860-0
01
1
1103-
●
●
94
CLIP; WATER PIPE
(A)
8-97605-129-1
08
1
0807-1102
●
●
94
CLIP; WATER PIPE
(A)
8-97605-129-1
04
1
1103-
●
●
115
HOSE; RUBBER
(A) L=320 SERVICED BY L=3000 THA
0-03566-300-0
01
1
0807-1102
●
●
115
HOSE; RUBBER
(E) L=60 SERVICED BY L=3000
0-03561-300-0
01
1
1103-
●
●
115
HOSE; RUBBER
(B)
8-97606-735-0
01
1
0807-1102
●
●
115
HOSE; RUBBER
(D)
8-97618-843-0
01
1
0807-1102
●
●
115
HOSE; RUBBER
(C)
8-98043-192-0
01
1
0807-1102
●
●
126
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2
1-09630-085-0
06
1
0807-1102
●
●
126
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2
1-09630-085-0
04
1
1103-1312
●
●
126
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2
8-98251-345-0
04
1
1401-
●
●
126
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2
1-09630-086-0
02
1
0807-1102
●
●
126
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2
1-09630-086-0
04
1
1103-
●
●
127
BOLT; EYE
(C) M16X25
5-09675-028-2
01
1
1103-
●
●
127
BOLT; EYE
(A) M14X27 EYE-BOLT
1-09675-193-0
03
1
0807-1102
●
●
127
BOLT; EYE
(A) M14X27 EYE-BOLT
1-09675-193-0
02
1
1103-
●
●
127
BOLT; EYE
(B) M16X28
8-94383-489-0
01
1
0807-
●
●
129
BOLT; WATER PIPE TO BRKT
(A) M8X16 FLANGE THA
0-28050-816-0
05
1
1103-
●
●
129
BOLT; WATER PIPE TO BRKT
(B) M12X20 FLANGE
0-28151-220-0
01
1
1103-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
