Isuzu WW
▶
TRUCKS
▶
FRR
▶
11547 - FRR RHD EUROPE EURO6 SPACECAB
▶
0 - Engine, Emission, Engine Electrical
▶
0-15 - CRANKSHAFT,PISTON AND FLYWHEEL
▶

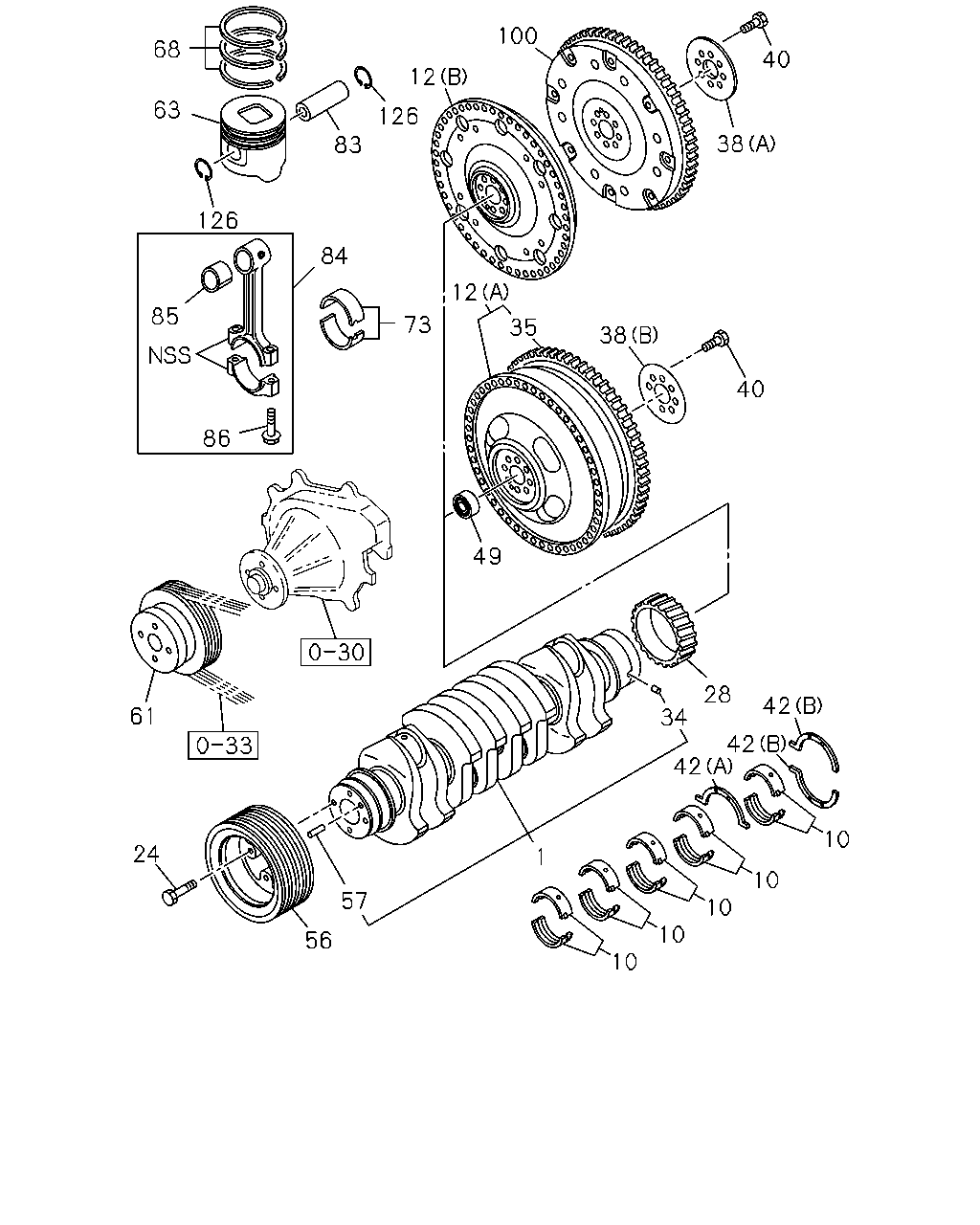

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL
(#128502) — 30 parça
10
10
10
10
10
42
28
34
42
42
61
24
86
49
40
38
12
73
35
38
40
100
84
83
126
12
85
126
63
68
57
56
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CRANKSHAFT
8-98029-270-0
01
1
1310-
10
METAL SET; CRANKSHAFT,STANDARD
BLUE
8-97372-076-1
05
1
1310-
10
METAL SET; CRANKSHAFT,STANDARD
BLACK
8-97372-077-1
05
1
1310-
10
METAL SET; CRANKSHAFT,STANDARD
BROWN
8-97372-078-1
05
1
1310-
12
FLYWHEEL
TRANSMISSION CONTROL-SMOOTHER(8GF) (B)
8-98020-543-1
01
1
1310-
12
FLYWHEEL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)
8-98056-355-2
01
1
1310-
24
BOLT; DAMPER
M16X42
8-97028-733-0
04
1
1310-
28
GEAR; CR/SHF
Z=42
8-94394-342-4
01
1
1310-
34
PIN; GEAR SETTING
OD=5 L=6
9-09878-626-0
01
1
1310-
35
GEAR; RING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=143
8-97375-675-1
01
1
1310-
38
WASHER; FLYWHEEL
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=50 OD=120
8-98176-500-0
01
1
1310-
38
WASHER; FLYWHEEL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=55 OD=110
8-94397-496-1
01
1
1310-
40
BOLT; FLYWHEEL
M16X51
8-94334-870-1
08
1
1310-
42
WASHER; THRUST,CR/SHF
(A)
8-97386-548-0
01
1
1310-
42
WASHER; THRUST,CR/SHF
(B)
8-97386-549-0
02
1
1310-
49
BEARING; PILOT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-97258-239-0
01
1
1310-
49
BEARING; PILOT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS
5-87610-164-0
01
1
1310-
56
PULLEY; CR/SHF DAMPER
3-GROOVE
8-98004-024-3
01
1
1310-
57
PIN; PULLEY
OD=8 L=20
9-08150-820-0
02
1
1310-
61
PULLEY; FAN DRIVE
1-GROOVE
8-98164-798-0
01
1
1310-
63
PISTON
ALSO INCLUDED IN LINER SET. NON GRADE
8-98215-307-0
04
1
1310-
68
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
8-98040-125-0
04
1
1310-
73
METAL SET; CONN ROD,STANDARD
YELLOW
8-98055-479-0
04
1
1310-
73
METAL SET; CONN ROD,STANDARD
GREEN
8-98055-480-0
04
1
1310-
83
PIN; PISTON
ALSO INCLUDED IN LINER SET.
8-98018-863-1
04
1
1310-
84
ROD ASM; CONN
8-98018-425-3
04
1
1310-
85
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
8-94391-794-1
04
1
1310-
86
BOLT; CONNROD
M13X57 FLANGE
8-98091-141-0
08
1
1310-
100
PLATE; FLEX
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98020-542-2
01
1
1310-
126
RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. OD=43.7
8-98006-828-0
08
1
1310-
