◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11129 - FVM(THAI)EURO3 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-31 - THERMOSTAT AND HOUSING ▶
0-31 — THERMOSTAT AND HOUSING (#12850) — 23 parça

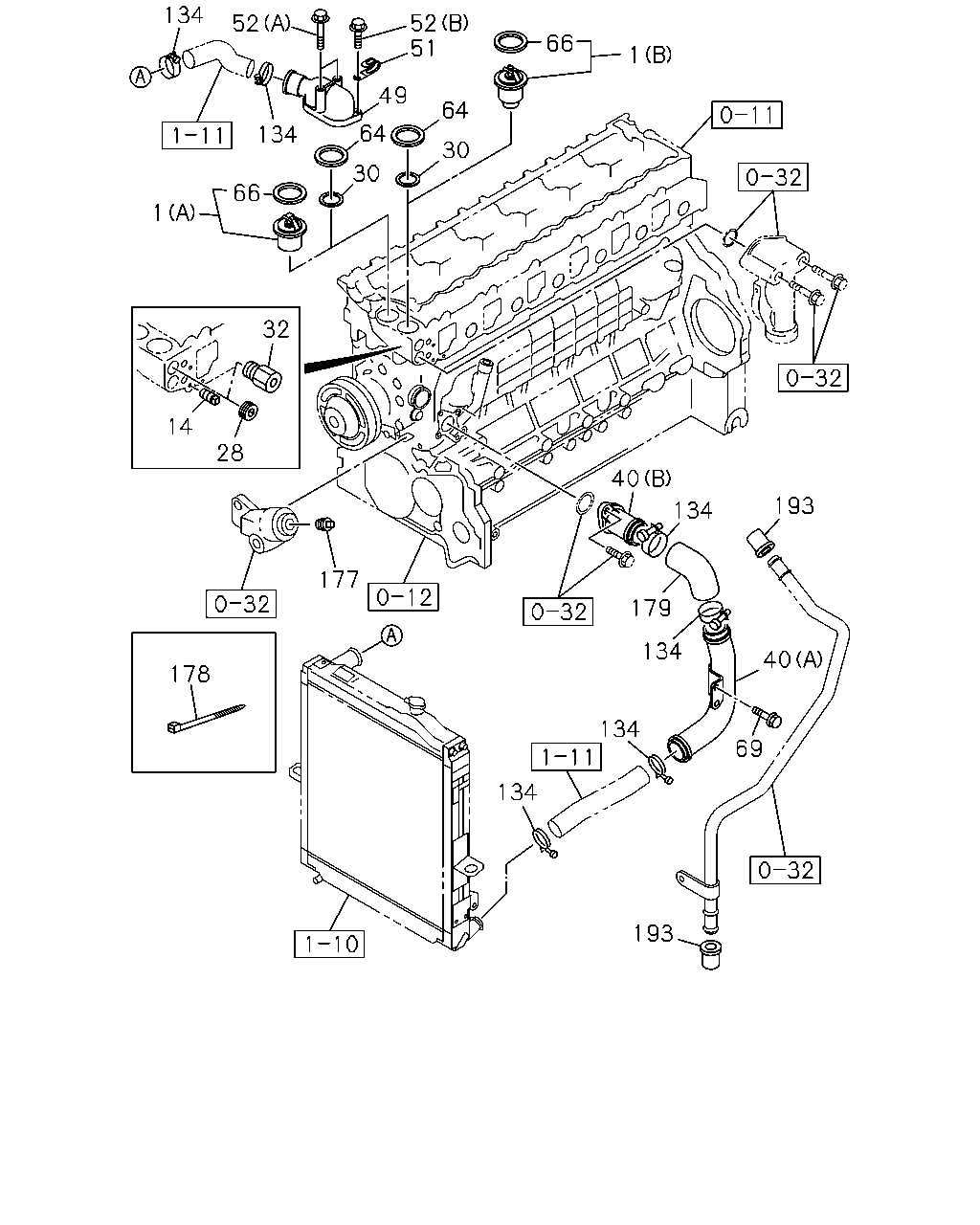

çizim 98479
1 66 52 51 52 134 134 49 64 64 30 30 66 1 32 28 14 177 178 134 134 179 134 193 40 40 69 193 134
BalonParca AdiParca NoAdetTipApplied Date A B
1 THERMOSTAT
(B) 82 CELSIUS 		8-97602-048-3 01 1 0906- ● ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-97602-393-1 01 1 0906-1501 ● ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-98295-921-0 01 1 1502- ● ●
14 PLUG; SW
PT3/8 		8-94397-338-0 01 1 0807- ● ●
28 PLUG; HTR
PT3/4 		1-09605-020-0 01 1 0807-1102 ● ●
30 SPACER 8-94393-517-0 02 1 0807-0905 ● ●
32 CONNECTOR; HTR 8-98177-501-0 01 1 1103- ● ●
40 DUCT; WATER,SUCTION
(B) 		8-94391-091-1 01 1 0807- ● ●
40 DUCT; WATER,SUCTION
(A) 		8-94394-404-1 01 1 0807- ● ●
49 PIPE; WATER OUTLET 8-97602-047-0 01 1 0807- ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-97367-985-1 01 1 0807- ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X25 FLANGE THA 		0-28650-825-0 02 1 0807- ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X85 FLANGE 		8-97023-062-0 02 1 0807-1102 ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X80 FLANGE THA 		0-28050-880-0 02 1 1103- ● ●
64 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 02 1 0807-0905 ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 02 1 0906-1501 ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-98280-281-0 02 1 1502- ● ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE THA 		0-28650-820-0 02 1 0807- ● ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 06 1 0807- ● ●
177 PLUG; PIPE,WATER DUCT
PT1/2 		9-09204-521-0 01 1 1103- ● ●
178 CLIP; BAND,HARNESS
L=250 THA 		5-09707-030-1 01 1 0807-1102 ● ●
179 HOSE; RUBBER,WATER DUCT 8-94390-400-3 01 1 0807- ● ●
193 CAP; RUBBER 8-94107-678-0 02 1 1103- ● ●
