Isuzu WW
▶
TRUCKS
▶
FRR
▶
11546 - FRR RHD EUROPE EURO6 EXC.SPACECAB
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-40 - HEATER SYSTEM
▶
8-40 — HEATER SYSTEM
(#128486) — 33 parça
◀

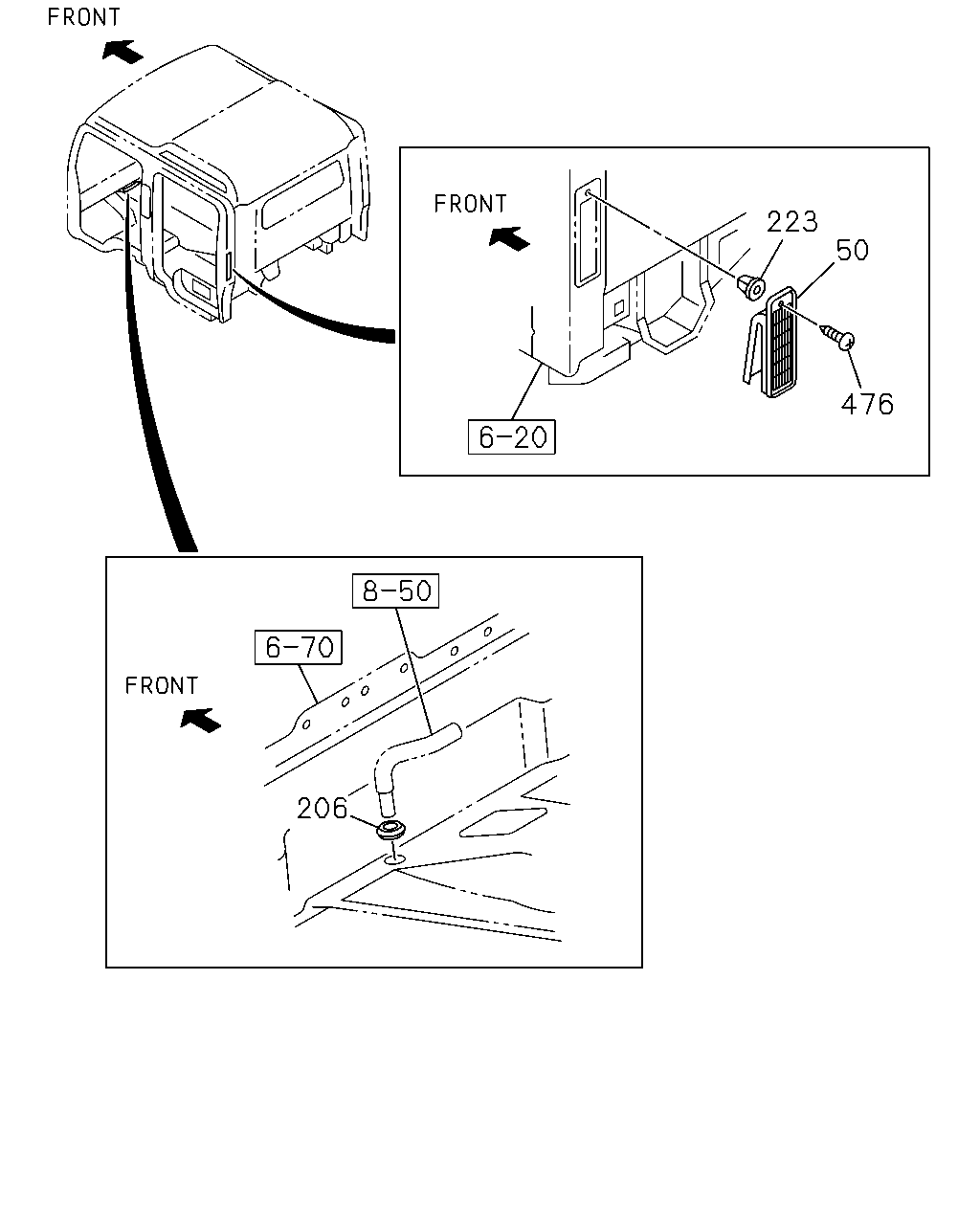

[840A] OTHER PARTS (4 parça)

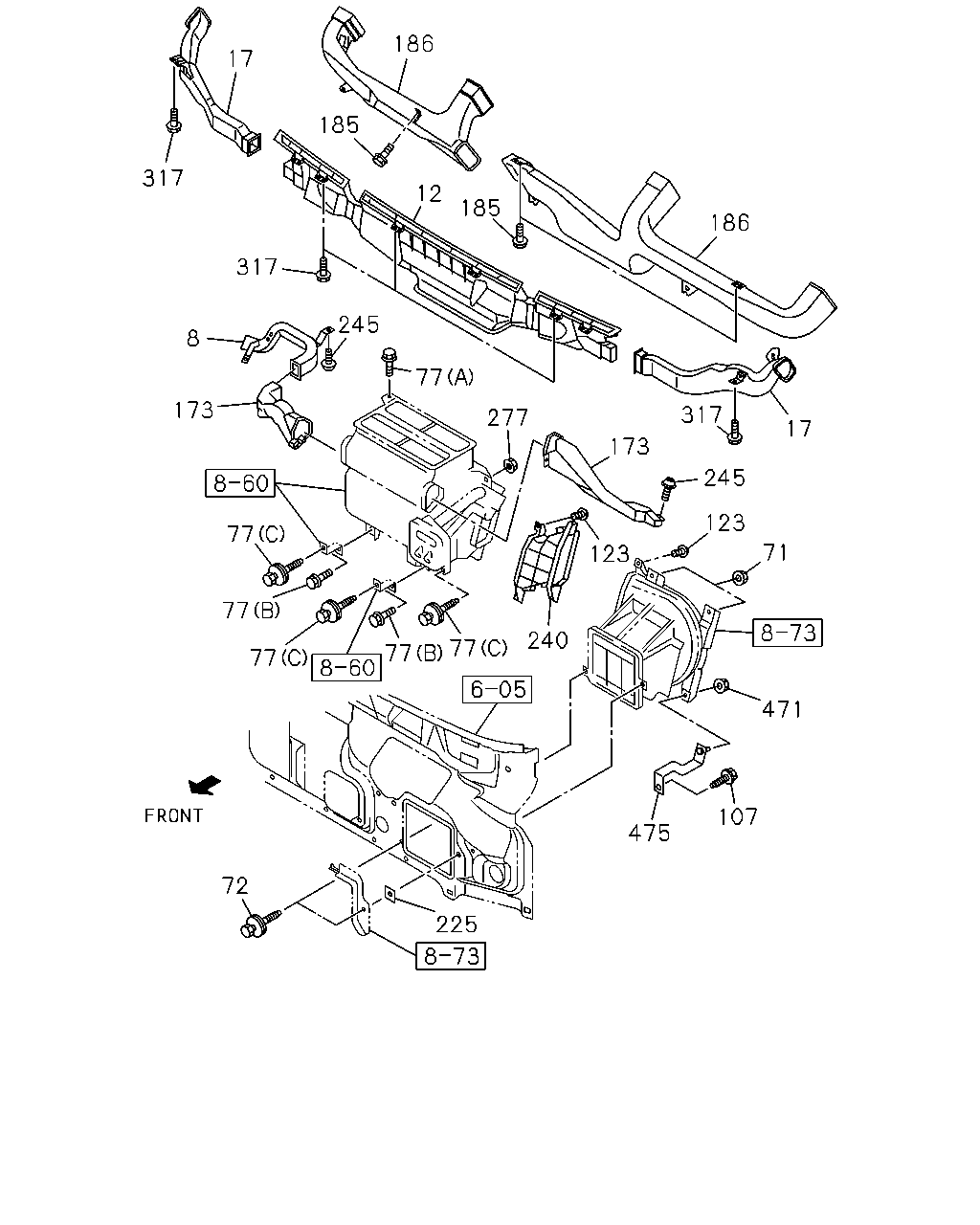

[840A] DUCT (29 parça)
▶
476
50
223
206
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
50
VALVE ASM; HTR
8-98080-999-2
01
1
1310-
206
GROMMET; A/C PIPE TO BLOWER UNIT
8-98019-649-0
01
1
1310-
223
GROMMET; SCREW
D=7.9X7.9 L=20 M5
8-94441-539-0
01
1
1310-
476
SCREW; VALVE
M5X16 TAPPING HEXALOBULAR
8-98062-675-0
01
1
1310-
17
186
185
12
186
185
277
173
17
317
123
71
471
107
475
225
72
77
77
77
77
77
77
123
240
245
317
317
173
245
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
DUCT; HTR AIR,DRIVER FOOT
8-97585-499-1
01
1
1310-1410
8
DUCT; HTR AIR,DRIVER FOOT
8-98290-098-0
01
1
1411-
12
NOZZLE; DEFROSTER
8-98040-009-3
01
1
1310-
17
NOZZLE; DEFROSTER,SIDE
8-98040-011-1
01
1
1310-
17
NOZZLE; DEFROSTER,SIDE
8-98040-016-1
01
1
1310-
71
NUT; BLOWER UNIT TO DASH
M6 FLANGE
0-91180-106-0
02
1
1310-
72
BOLT; BLOWER UNIT
M6X20 W/LK&PL WASHER
8-98081-175-0
02
1
1310-
77
BOLT; HTR UNIT
(A) M6X16 FLANGE
0-28650-616-0
01
1
1310-
77
BOLT; HTR UNIT
(B) M6X20 FLANGE
0-28650-620-0
02
1
1310-
77
BOLT; HTR UNIT
(C) M6X20 W/LK&PL WASHER
8-98081-175-0
03
1
1310-
107
BOLT; STAY,HTR UNIT
M8X25 W/LK&PL WASHER
8-98018-439-0
01
1
1310-
123
SCREW; DUCT
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
1310-
173
DUCT; FOOT,HTR
8-97585-506-2
01
1
1310-
173
DUCT; FOOT,HTR
8-98011-459-2
01
1
1310-1410
173
DUCT; FOOT,HTR
8-98290-096-0
01
1
1411-
185
SCREW; VENT DUCT
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
1310-
186
DUCT; VENTILATOR
8-97585-488-4
01
1
1310-1410
186
DUCT; VENTILATOR
8-98285-576-0
01
1
1411-
186
DUCT; VENTILATOR
8-98174-737-0
01
1
1310-1410
186
DUCT; VENTILATOR
8-98285-571-0
01
1
1411-
225
SEAL; WATER
8-97856-616-0
01
1
1310-
240
DUCT; AIR,HTR
8-98041-402-1
01
1
1310-
245
CLIP; FOOT DUCT
8-98056-059-0
03
1
1310-1410
245
CLIP; FOOT DUCT
8-98056-059-0
04
1
1411-
277
NUT; HTR
M6 FLANGE
0-91180-106-0
01
1
1310-
317
SCREW; DEFROSTER NOZZLE
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
02
1
1310-
317
SCREW; DEFROSTER NOZZLE
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
06
1
1310-
471
NUT; BLOWER
M6 FLANGE
0-91180-106-0
01
1
1310-
475
BRACKET; BLOWER
8-98043-500-1
01
1
1310-
