0-28 — VENTILATION SYSTEM (#12848) — 81 parça

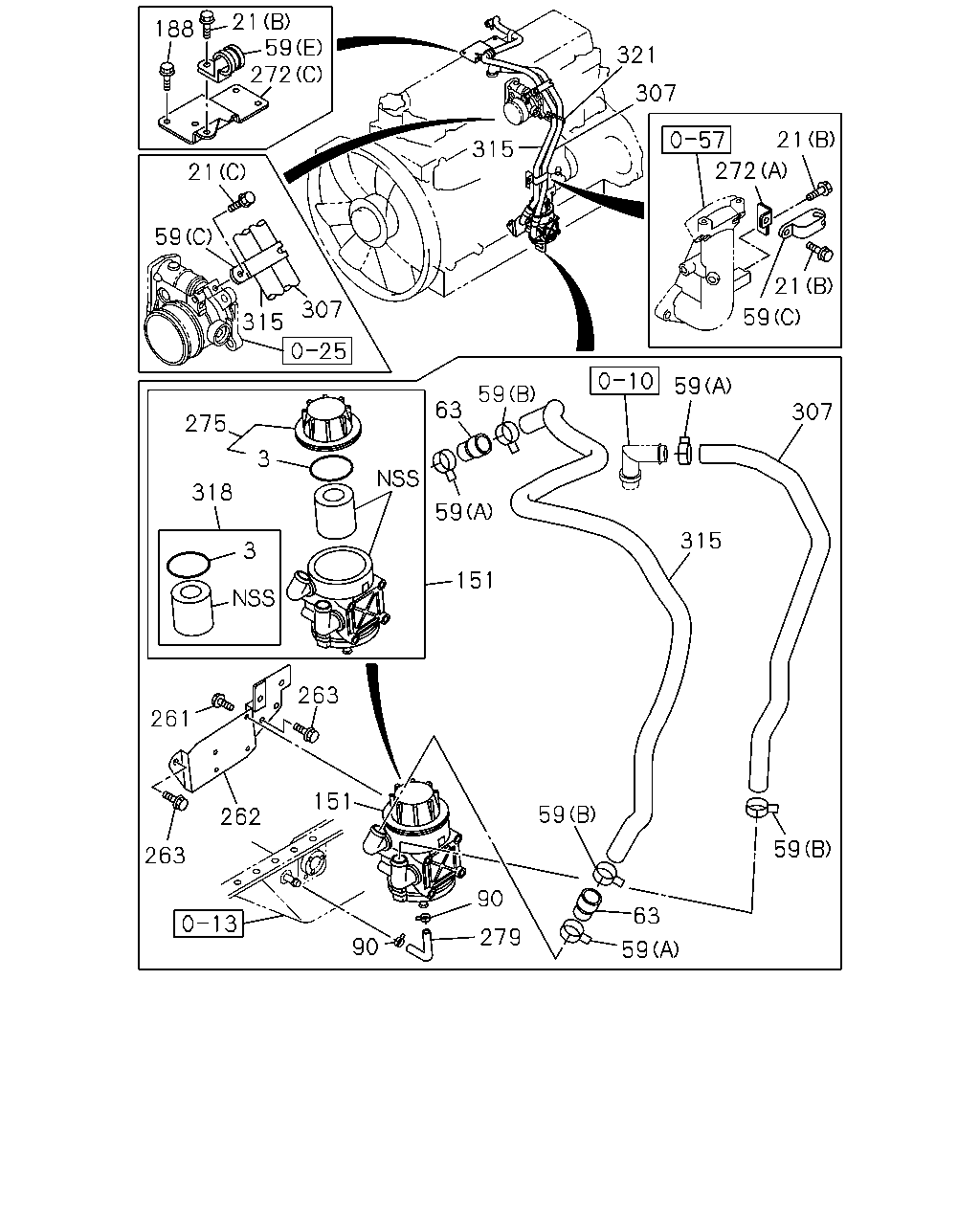

21 59 321 307 315 272 188 275 318 3 3 261 262 263 263 151 90 90 279 59 59 315 59 307 59 151 321 307 315 272 21 21 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	GASKET; BODY TO CAP	8-97385-921-0	01	1	0807-	●	●
21	BOLT; CLIP (A) M8X12 FLANGE THA	0-28050-812-0	02	1	0807-1003	●	●
21	BOLT; CLIP EXC. VIN MODEL YEAR 2010<VZA> (A) M8X12 FLANGE THA	0-28050-812-0	02	1	1004-1102	●	●
21	BOLT; CLIP (C) M6X12 FLANGE THA	0-28050-612-0	01	1	1103-	●	●
21	BOLT; CLIP (B) M8X16 FLANGE THA	0-28050-816-0	02	1	0807-1102	●	●
21	BOLT; CLIP (B) M8X16 FLANGE THA	0-28050-816-0	03	1	1103-	●	●
59	CLIP; HOSE (B) ID=28.5	1-09707-150-0	01	1	1304-	●	●
59	CLIP; HOSE EXC. VIN MODEL YEAR 2010<VZA> (D) ID=35 L=33	1-09700-945-0	02	1	1004-1102	●	●
59	CLIP; HOSE (D) ID=35 L=33	1-09700-945-0	02	1	0807-1003	●	●
59	CLIP; HOSE VIN MODEL YEAR 2010<VZA> (D) ID=35 L=33	1-09700-945-0	01	1	1004-1102	●	●
59	CLIP; HOSE (E) ID=31 H=30 L=35	1-09700-994-0	02	1	1103-	●	●
59	CLIP; HOSE (C) ID=30X2 L=28	1-09701-266-0	01	1	0807-1102	●	●
59	CLIP; HOSE (C) ID=30X2 L=28	1-09701-266-0	02	1	1103-	●	●
59	CLIP; HOSE (B) ID=28.5	1-09707-150-0	03	1	0807-1102	●	●
59	CLIP; HOSE (B) ID=28.5	1-09707-150-0	02	1	1103-	●	●
59	CLIP; HOSE (A) ID=31.2	8-97237-146-0	01	1	0807-1102	●	●
59	CLIP; HOSE (A) ID=33.6	8-94362-518-0	01	1	1103-1211	●	●
59	CLIP; HOSE (A) ID=33.6	8-94362-518-0	03	1	1212-	●	●
90	CLIP; RUBBER HOSE ID=28.5	1-09707-150-0	01	1	1103-1303	●	●
90	CLIP; RUBBER HOSE ID=14	1-09704-102-0	02	1	0807-	●	●
151	SEPARATOR; OIL,PCV	8-97602-262-2	01	1	0807-	●	●
188	BOLT; BRKT M8X30 FLANGE THA	0-28050-830-0	03	1	1103-	●	●
188	BOLT; BRKT M8X16 FLANGE THA	0-28050-816-0	01	1	0807-	●	●
261	BOLT; SEPARETOR M8X16 FLANGE THA	0-28050-816-0	04	1	0807-	●	●
262	BRACKET; OIL SEPARETOR	8-97610-919-1	01	1	0807-	●	●
263	BOLT; BRKT,OIL SEPARETOR M10X25 FLANGE THA	0-28751-025-0	02	1	0807-	●	●
272	BRACKET; PIPE (A)	8-97607-396-1	01	1	0807-	●	●
272	BRACKET; PIPE (B)	8-97607-397-0	01	1	0807-1102	●	●
272	BRACKET; PIPE (C)	8-97616-083-0	01	1	1103-	●	●
275	CAP; PCV	8-97606-319-0	01	1	0807-	●	●
279	HOSE; RUBBER,OIL DRAIN L=190	0-02709-190-0	01	1	0807-	●	●
307	HOSE; RUBBER,HEAD COVER TO OIL SEPARAT	8-98054-285-1	01	1	0807-1102	●	●
307	HOSE; RUBBER,HEAD COVER TO OIL SEPARAT	8-98167-935-0	01	1	1103-	●	●
315	HOSE; RUBBER VIN MODEL YEAR 2010<VZA>	8-98165-997-0	01	1	1004-1102	●	●
315	HOSE; RUBBER	8-98167-937-1	01	1	1103-	●	●
315	HOSE; RUBBER	8-98054-286-1	01	1	0807-1003	●	●
315	HOSE; RUBBER EXC. VIN MODEL YEAR 2010<VZA>	8-98054-286-1	01	1	1004-1102	●	●
318	ELEMENT KIT; PCV	8-97606-318-0	01	1	0807-	●	●
321	CLIP; HOSE,SEPARATOR L=300	1-09707-001-1	02	1	0807-1102	●	●
321	CLIP; HOSE,SEPARATOR L=300	1-09707-001-1	01	1	1103-	●	●

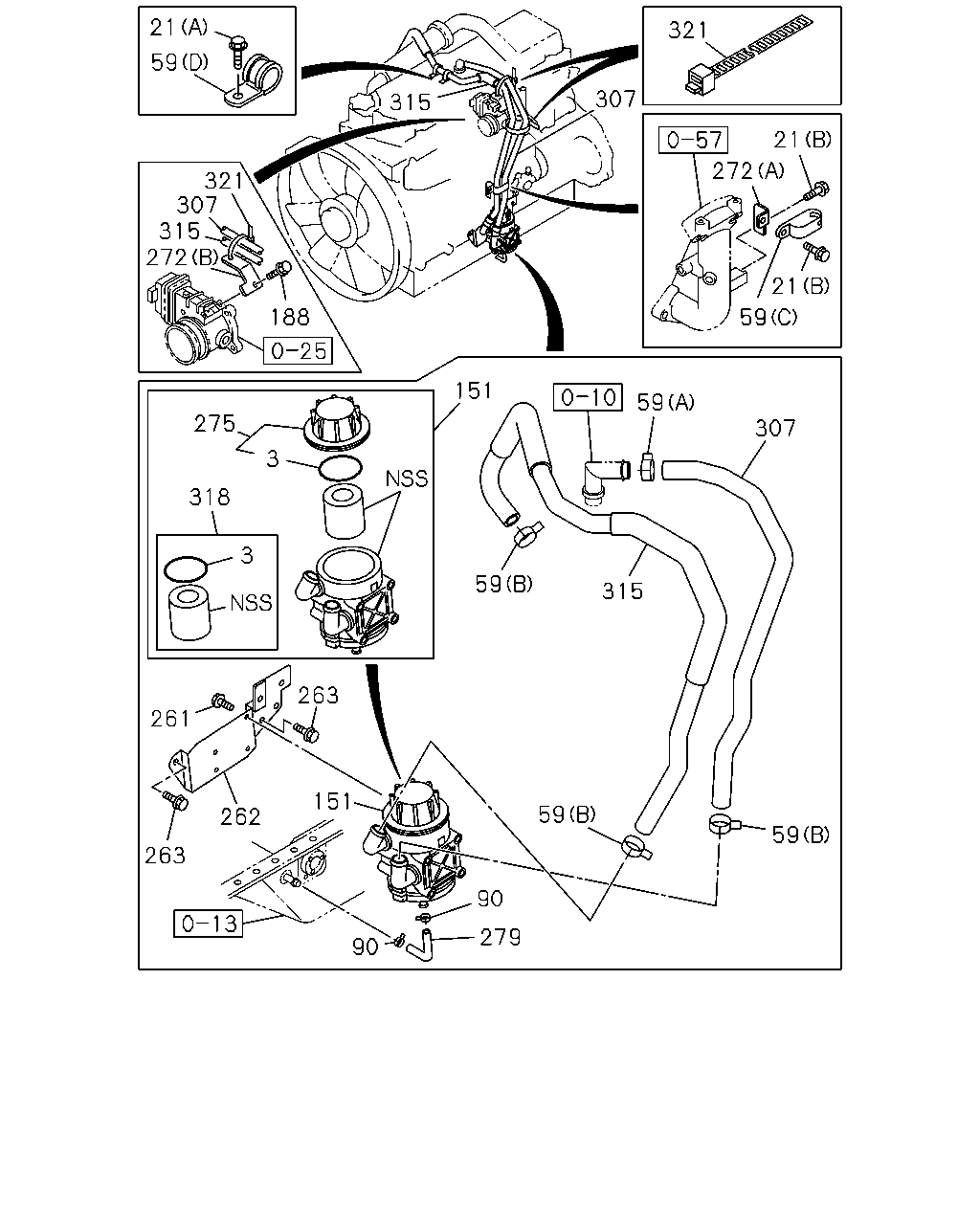

321 307 21 272 21 59 307 315 59 59 59 151 63 59 59 59 63 90 279 3 275 318 3 263 151 261 262 263 90 315 307 59 21 272 59 21 188 315

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	GASKET; BODY TO CAP	8-97385-921-0	01	1	0807-	●	●
21	BOLT; CLIP (A) M8X12 FLANGE THA	0-28050-812-0	02	1	0807-1003	●	●
21	BOLT; CLIP EXC. VIN MODEL YEAR 2010<VZA> (A) M8X12 FLANGE THA	0-28050-812-0	02	1	1004-1102	●	●
21	BOLT; CLIP (C) M6X12 FLANGE THA	0-28050-612-0	01	1	1103-	●	●
21	BOLT; CLIP (B) M8X16 FLANGE THA	0-28050-816-0	02	1	0807-1102	●	●
21	BOLT; CLIP (B) M8X16 FLANGE THA	0-28050-816-0	03	1	1103-	●	●
59	CLIP; HOSE (B) ID=28.5	1-09707-150-0	01	1	1304-	●	●
59	CLIP; HOSE EXC. VIN MODEL YEAR 2010<VZA> (D) ID=35 L=33	1-09700-945-0	02	1	1004-1102	●	●
59	CLIP; HOSE (D) ID=35 L=33	1-09700-945-0	02	1	0807-1003	●	●
59	CLIP; HOSE VIN MODEL YEAR 2010<VZA> (D) ID=35 L=33	1-09700-945-0	01	1	1004-1102	●	●
59	CLIP; HOSE (E) ID=31 H=30 L=35	1-09700-994-0	02	1	1103-	●	●
59	CLIP; HOSE (C) ID=30X2 L=28	1-09701-266-0	01	1	0807-1102	●	●
59	CLIP; HOSE (C) ID=30X2 L=28	1-09701-266-0	02	1	1103-	●	●
59	CLIP; HOSE (B) ID=28.5	1-09707-150-0	03	1	0807-1102	●	●
59	CLIP; HOSE (B) ID=28.5	1-09707-150-0	02	1	1103-	●	●
59	CLIP; HOSE (A) ID=31.2	8-97237-146-0	01	1	0807-1102	●	●
59	CLIP; HOSE (A) ID=33.6	8-94362-518-0	01	1	1103-1211	●	●
59	CLIP; HOSE (A) ID=33.6	8-94362-518-0	03	1	1212-	●	●
63	HOSE; RUBBER,AIR BREATHER	1-09360-925-0	02	1	1212-	●	●
90	CLIP; RUBBER HOSE ID=28.5	1-09707-150-0	01	1	1103-1303	●	●
90	CLIP; RUBBER HOSE ID=14	1-09704-102-0	02	1	0807-	●	●
151	SEPARATOR; OIL,PCV	8-97602-262-2	01	1	0807-	●	●
188	BOLT; BRKT M8X30 FLANGE THA	0-28050-830-0	03	1	1103-	●	●
188	BOLT; BRKT M8X16 FLANGE THA	0-28050-816-0	01	1	0807-	●	●
261	BOLT; SEPARETOR M8X16 FLANGE THA	0-28050-816-0	04	1	0807-	●	●
262	BRACKET; OIL SEPARETOR	8-97610-919-1	01	1	0807-	●	●
263	BOLT; BRKT,OIL SEPARETOR M10X25 FLANGE THA	0-28751-025-0	02	1	0807-	●	●
272	BRACKET; PIPE (A)	8-97607-396-1	01	1	0807-	●	●
272	BRACKET; PIPE (B)	8-97607-397-0	01	1	0807-1102	●	●
272	BRACKET; PIPE (C)	8-97616-083-0	01	1	1103-	●	●
275	CAP; PCV	8-97606-319-0	01	1	0807-	●	●
279	HOSE; RUBBER,OIL DRAIN L=190	0-02709-190-0	01	1	0807-	●	●
307	HOSE; RUBBER,HEAD COVER TO OIL SEPARAT	8-98054-285-1	01	1	0807-1102	●	●
307	HOSE; RUBBER,HEAD COVER TO OIL SEPARAT	8-98167-935-0	01	1	1103-	●	●
315	HOSE; RUBBER VIN MODEL YEAR 2010<VZA>	8-98165-997-0	01	1	1004-1102	●	●
315	HOSE; RUBBER	8-98167-937-1	01	1	1103-	●	●
315	HOSE; RUBBER	8-98054-286-1	01	1	0807-1003	●	●
315	HOSE; RUBBER EXC. VIN MODEL YEAR 2010<VZA>	8-98054-286-1	01	1	1004-1102	●	●
318	ELEMENT KIT; PCV	8-97606-318-0	01	1	0807-	●	●
321	CLIP; HOSE,SEPARATOR L=300	1-09707-001-1	02	1	0807-1102	●	●
321	CLIP; HOSE,SEPARATOR L=300	1-09707-001-1	01	1	1103-	●	●
