8-10 — WIRING HARNESS AND FUSE (#128478) — 210 parça

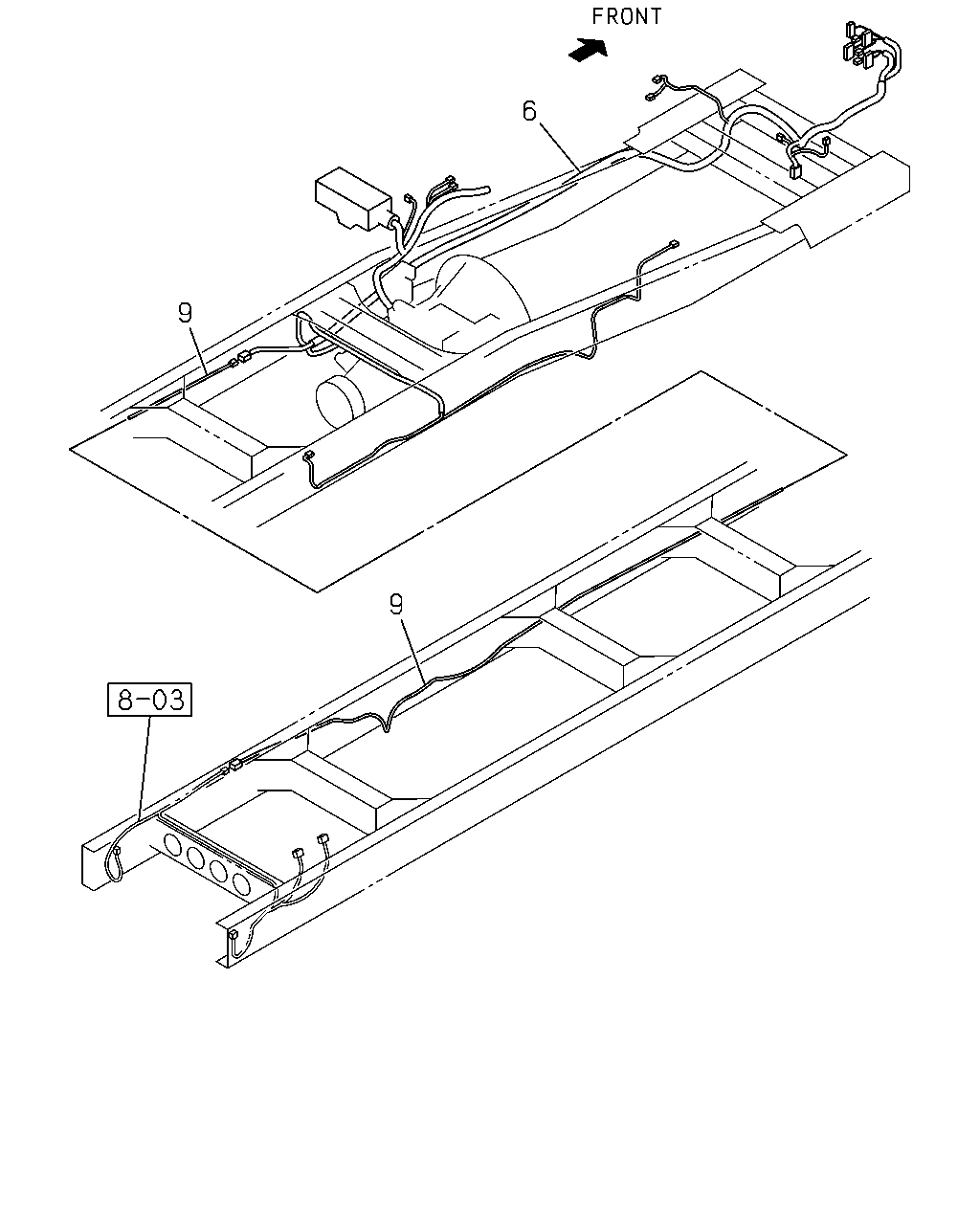

çizim 380820
6 9 9
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME 8-98225-738-2 01 1 1310-
9 HARNESS; FRAME,RR 8-98225-739-0 01 1 1310-

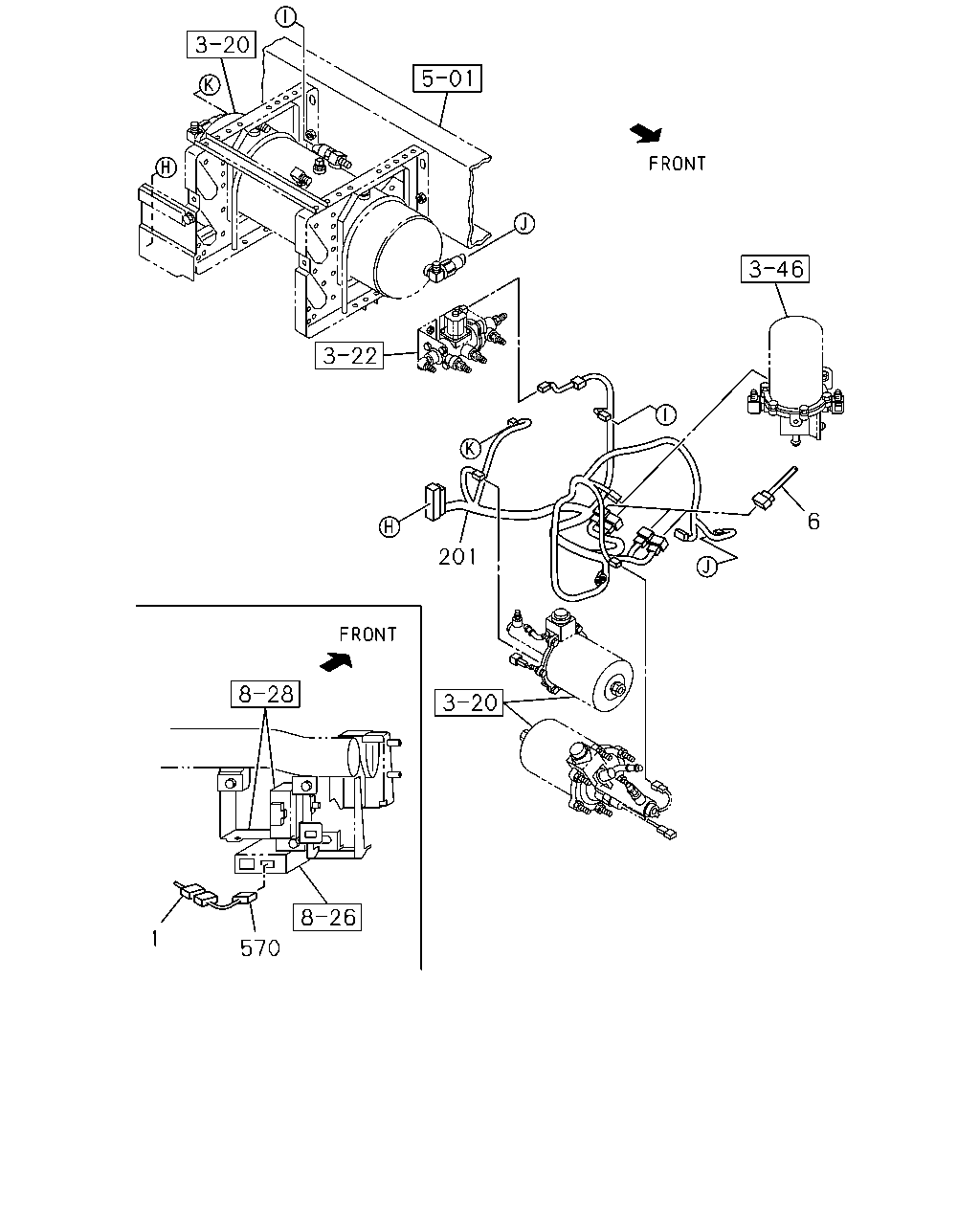

çizim 381047
6 201 1 570
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB 8-98225-069-1 01 1 1310-
6 HARNESS; FRAME 8-98225-738-2 01 1 1310-
201 HARNESS; AIR TANK 8-98085-546-2 01 1 1310-
570 HARNESS; SPEED SENSOR 8-98091-562-0 01 1 1310-

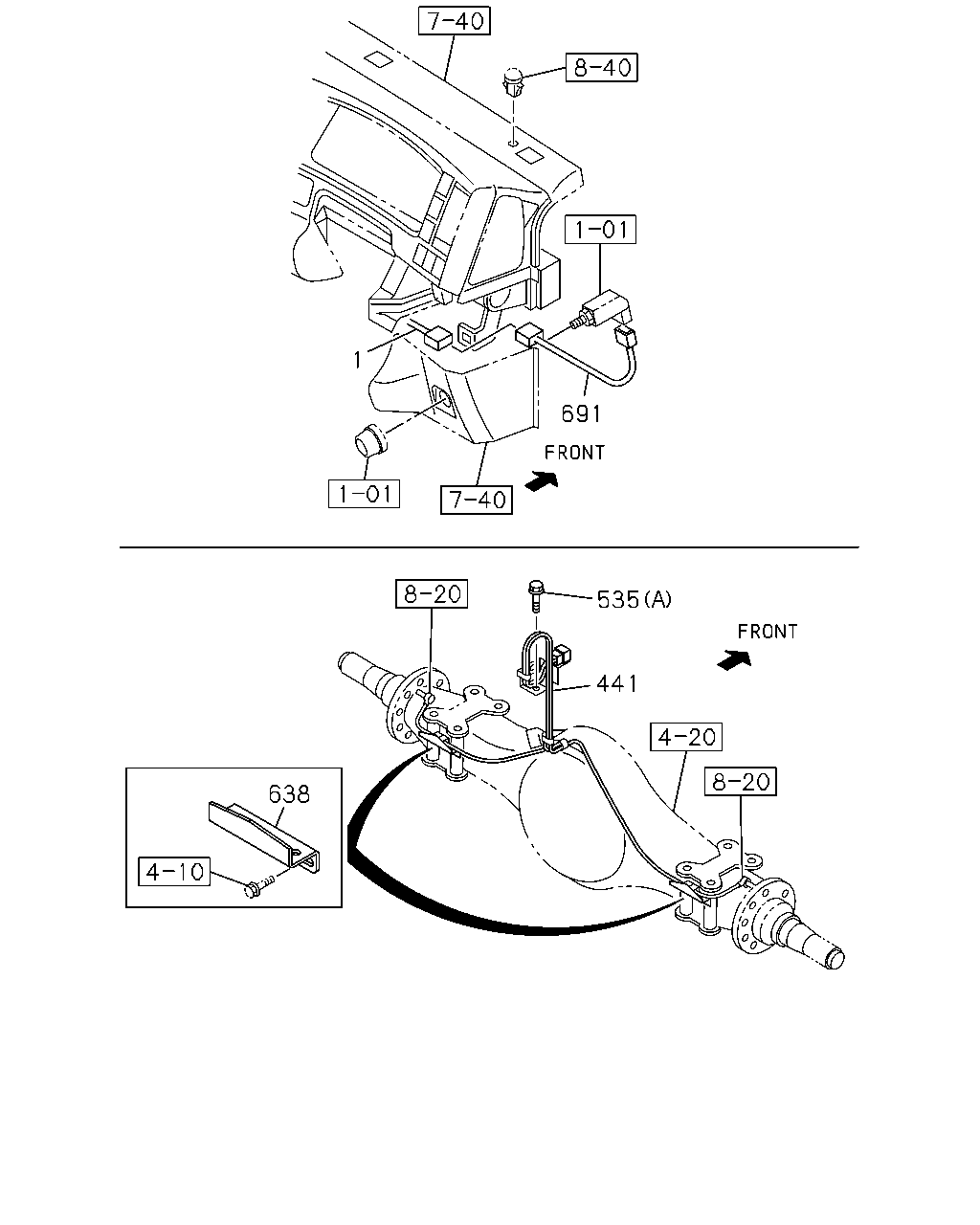

çizim 381101
638 441 535 691 1
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB 8-98225-069-1 01 1 1310-
441 HARNESS; CABLE,SPEED SENSOR 8-98061-652-0 01 1 1310-
535 BOLT; BRKT FIX
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1310-
535 BOLT; BRKT FIX
(C) M8X25 FLANGE 		0-28650-825-0 01 1 1310-
535 BOLT; BRKT FIX
(A) M8X10 W/LK WASHER 		8-98029-928-0 02 1 1310-
638 BRACKET; SPD SENSOR 8-98012-580-1 02 1 1310-
691 HARNESS; IDLE CONT 8-98049-014-2 01 1 1310-

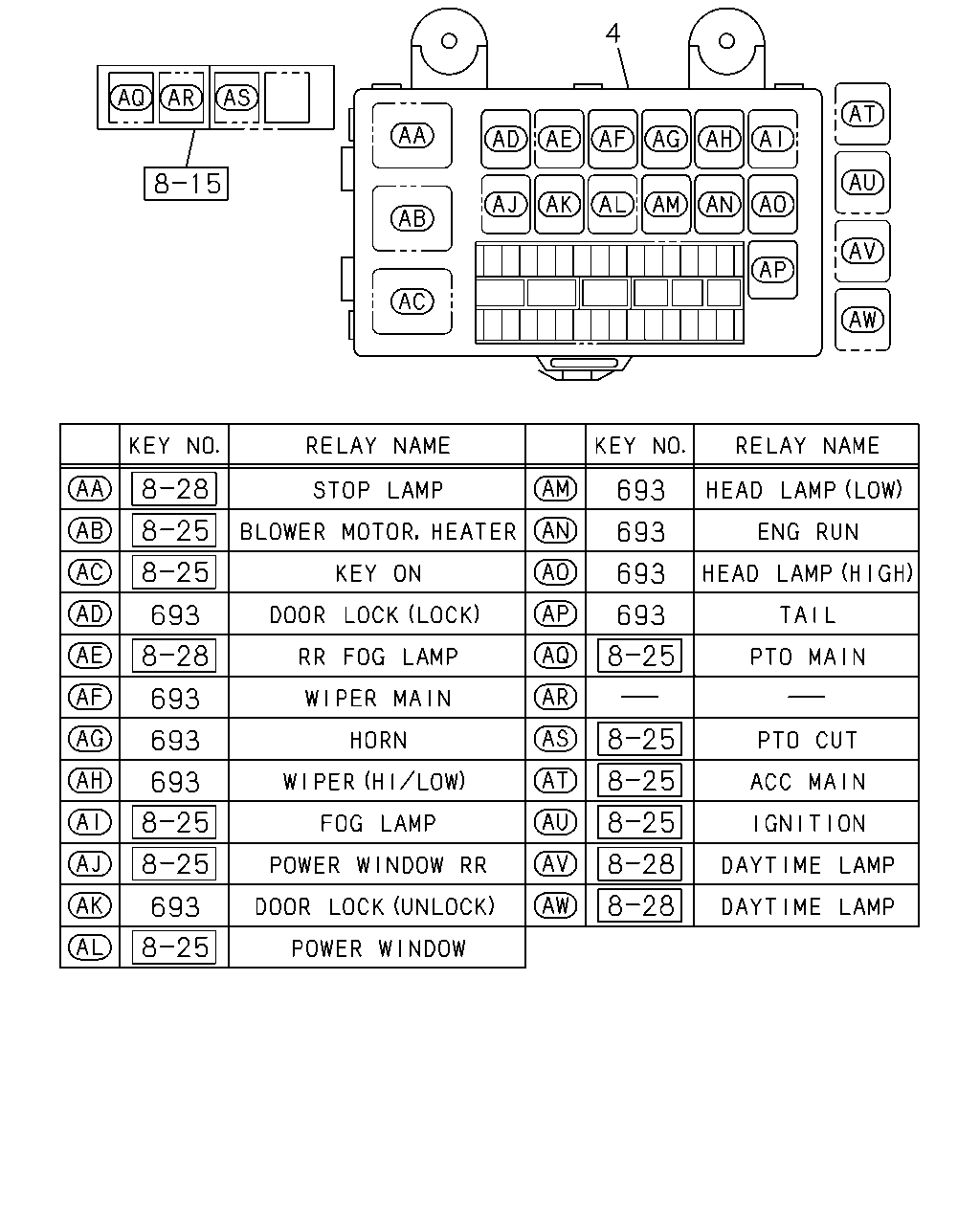

çizim 381605
4 693 693 693 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1310-
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1310-

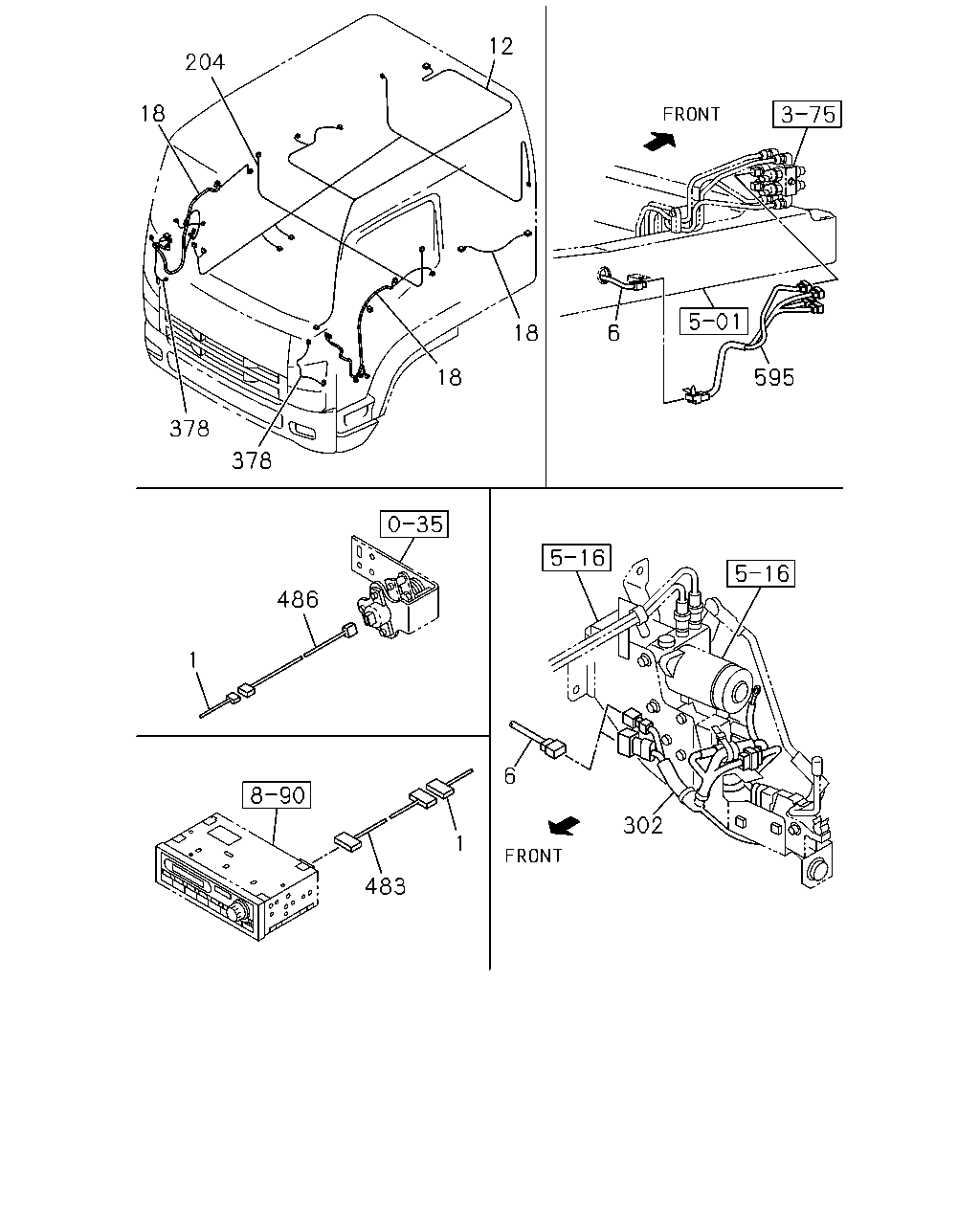

çizim 381879
204 18 378 378 18 18 12 1 486 483 1 302 6 6 595
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB 8-98225-069-1 01 1 1310-
6 HARNESS; FRAME 8-98225-738-2 01 1 1310-
12 HARNESS; ROOF
FLUORESCENT LAMP<6UC> 		8-98085-265-0 01 1 1310-
12 HARNESS; ROOF
EXC. FLUORESCENT LAMP<6UC> 		8-98085-264-0 01 1 1310-
18 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> DRIVER 		8-98084-283-3 01 1 1310-
18 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> PASSENGER 		8-98084-288-3 01 1 1310-
18 HARNESS; DOOR
REAR 		8-98056-047-1 02 1 1310-
18 HARNESS; DOOR
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> DRIVER 		8-98108-439-1 01 1 1310-
18 HARNESS; DOOR
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> PASSENGER 		8-98108-440-1 01 1 1310-
204 HARNESS; CABLE,FLOOR 8-98225-131-0 01 1 1310-
302 HARNESS; POWER CAB TILT 8-97622-116-0 01 1 1310-
378 HARNESS; EXT,MIRROR
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98125-654-0 02 1 1310-
378 HARNESS; EXT,MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98125-653-0 02 1 1310-
483 HARNESS; EXT,RADIO 8-98116-875-0 01 1 1310-
486 HARNESS; ALL SPEED ACCEL
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82675-898-0 01 1 1310-
595 HARNESS; WARNING,BRK 8-98251-240-0 01 1 1310-

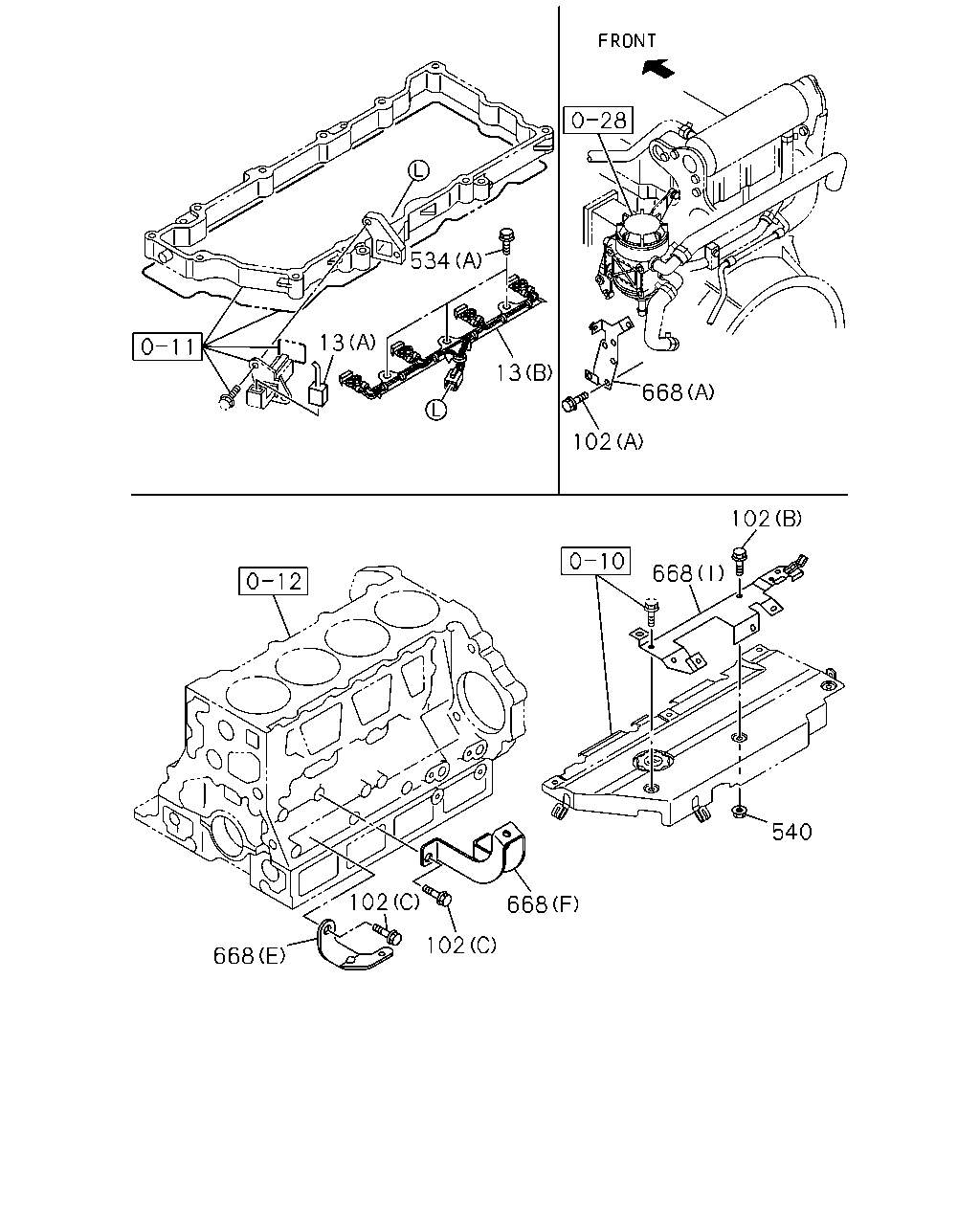

çizim 381952
13 534 13 668 102 102 668 540 668 102 102 668
BalonParca AdiParca NoAdetTipApplied Date
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A) 		8-98209-665-4 01 1 1310-1406
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A) 		8-98274-087-0 01 1 1407-
13 HARNESS; ENG
(B) 		8-98203-297-0 01 1 1310-
13 HARNESS; ENG
GENERATOR 24V50A(K89) (A) 		8-98209-664-4 01 1 1310-1406
13 HARNESS; ENG
GENERATOR 24V50A(K89) (A) 		8-98274-086-0 01 1 1407-
102 BOLT; BRKT,HARNESS CONNECTOR
(A) M8X16 FLANGE 		0-28050-816-0 03 1 1310-
102 BOLT; BRKT,HARNESS CONNECTOR
(C) M10X16 FLANGE 		0-28151-016-0 03 1 1310-
102 BOLT; BRKT,HARNESS CONNECTOR
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1310-
534 BOLT
(A) M10X55 FLANGE 		8-97365-449-0 03 1 1310-
534 BOLT
(C) M8X30 FLANGE 		0-28650-830-0 01 1 1310-
534 BOLT
(B) M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1310-
534 BOLT
(D) M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 1310-
540 NUT; BRKT FIX
M6 FLANGE 		0-91180-106-0 03 1 1310-
668 BRACKET; HARNESS
(E) 		8-98009-245-0 01 1 1310-1408
668 BRACKET; HARNESS
(E) 		8-98273-295-0 01 1 1409-
668 BRACKET; HARNESS
(F) 		8-98011-484-0 01 1 1310-
668 BRACKET; HARNESS
(A) 		8-98024-765-0 01 1 1310-
668 BRACKET; HARNESS
(H) 		8-98061-780-0 01 1 1310-
668 BRACKET; HARNESS
(I) 		8-98200-797-3 01 1 1310-
668 BRACKET; HARNESS
(S) 		8-98240-490-0 01 1 1310-
668 BRACKET; HARNESS
(D) 		8-98240-491-0 01 1 1310-
668 BRACKET; HARNESS
(G) L=55 		1-47475-304-0 01 1 1310-
668 BRACKET; HARNESS
(M) 		1-82698-167-0 01 1 1310-
668 BRACKET; HARNESS
(L) 		8-97612-957-1 01 1 1310-
668 BRACKET; HARNESS
(C) 		8-97616-305-0 01 1 1310-1502
668 BRACKET; HARNESS
(T) 		8-98254-592-0 01 1 1503-
668 BRACKET; HARNESS
(N) 		8-98047-276-1 01 1 1310-
668 BRACKET; HARNESS
(B) 		8-98095-653-2 01 1 1310-
668 BRACKET; HARNESS
(Q) 		8-98151-455-3 01 1 1310-
668 BRACKET; HARNESS
(R) 		8-98152-414-2 01 1 1310-
668 BRACKET; HARNESS
(J) 		8-98158-109-1 01 1 1310-
668 BRACKET; HARNESS
(O) 		8-98168-184-0 01 1 1310-
668 BRACKET; HARNESS
(P) 		8-98171-607-0 01 1 1310-
668 BRACKET; HARNESS
(K) 		8-98207-043-0 01 1 1310-

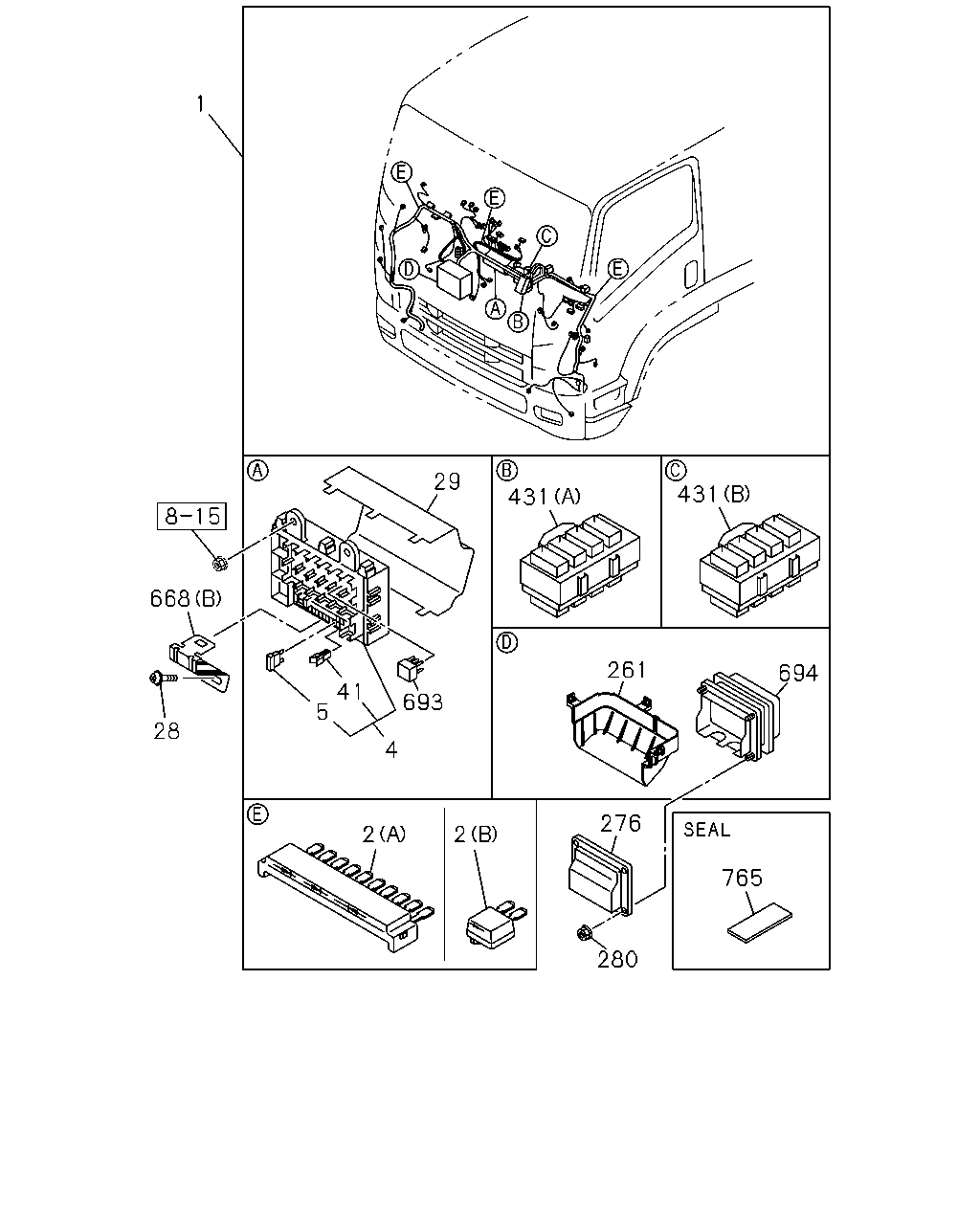

çizim 381988
1 668 28 5 41 4 693 29 431 431 694 261 765 276 280 2 2
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB 8-98225-069-1 01 1 1310-
2 DIODE; CABLE HARNESS
(A) BLACK 10P 		1-82699-703-0 01 1 1310-
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 03 1 1310-
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1310-
5 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 1310-
5 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 1310-
5 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 1310-
5 FUSE; FACIA HARNESS
25A WHITE 		8-98062-982-0 AR 1 1310-
28 SCREW; FUSE BOX
T25 M5X12 TAPPING HEXALOBULAR 		8-98081-722-0 01 1 1310-
29 COVER; FUSE BOX 8-98056-968-0 01 1 1310-
41 PULLER; FUSE 8-98054-260-0 01 1 1310-
261 COVER; CONNECTOR BOX 8-98065-986-1 01 1 1310-
276 COVER; BOX,FRAME HARNESS 8-98034-039-1 01 1 1310-
280 NUT; BOX ASM FIX
M6 FLANGE 		0-91180-106-0 04 1 1310-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1310-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1310-
668 BRACKET; HARNESS
(E) 		8-98009-245-0 01 1 1310-1408
668 BRACKET; HARNESS
(E) 		8-98273-295-0 01 1 1409-
668 BRACKET; HARNESS
(F) 		8-98011-484-0 01 1 1310-
668 BRACKET; HARNESS
(A) 		8-98024-765-0 01 1 1310-
668 BRACKET; HARNESS
(H) 		8-98061-780-0 01 1 1310-
668 BRACKET; HARNESS
(I) 		8-98200-797-3 01 1 1310-
668 BRACKET; HARNESS
(S) 		8-98240-490-0 01 1 1310-
668 BRACKET; HARNESS
(D) 		8-98240-491-0 01 1 1310-
668 BRACKET; HARNESS
(G) L=55 		1-47475-304-0 01 1 1310-
668 BRACKET; HARNESS
(M) 		1-82698-167-0 01 1 1310-
668 BRACKET; HARNESS
(L) 		8-97612-957-1 01 1 1310-
668 BRACKET; HARNESS
(C) 		8-97616-305-0 01 1 1310-1502
668 BRACKET; HARNESS
(T) 		8-98254-592-0 01 1 1503-
668 BRACKET; HARNESS
(N) 		8-98047-276-1 01 1 1310-
668 BRACKET; HARNESS
(B) 		8-98095-653-2 01 1 1310-
668 BRACKET; HARNESS
(Q) 		8-98151-455-3 01 1 1310-
668 BRACKET; HARNESS
(R) 		8-98152-414-2 01 1 1310-
668 BRACKET; HARNESS
(J) 		8-98158-109-1 01 1 1310-
668 BRACKET; HARNESS
(O) 		8-98168-184-0 01 1 1310-
668 BRACKET; HARNESS
(P) 		8-98171-607-0 01 1 1310-
668 BRACKET; HARNESS
(K) 		8-98207-043-0 01 1 1310-
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1310-
694 BOX ASM; CONNECTOR 8-98057-771-0 01 1 1310-
765 TAPE
100X40 		1-72498-022-1 01 1 1409-

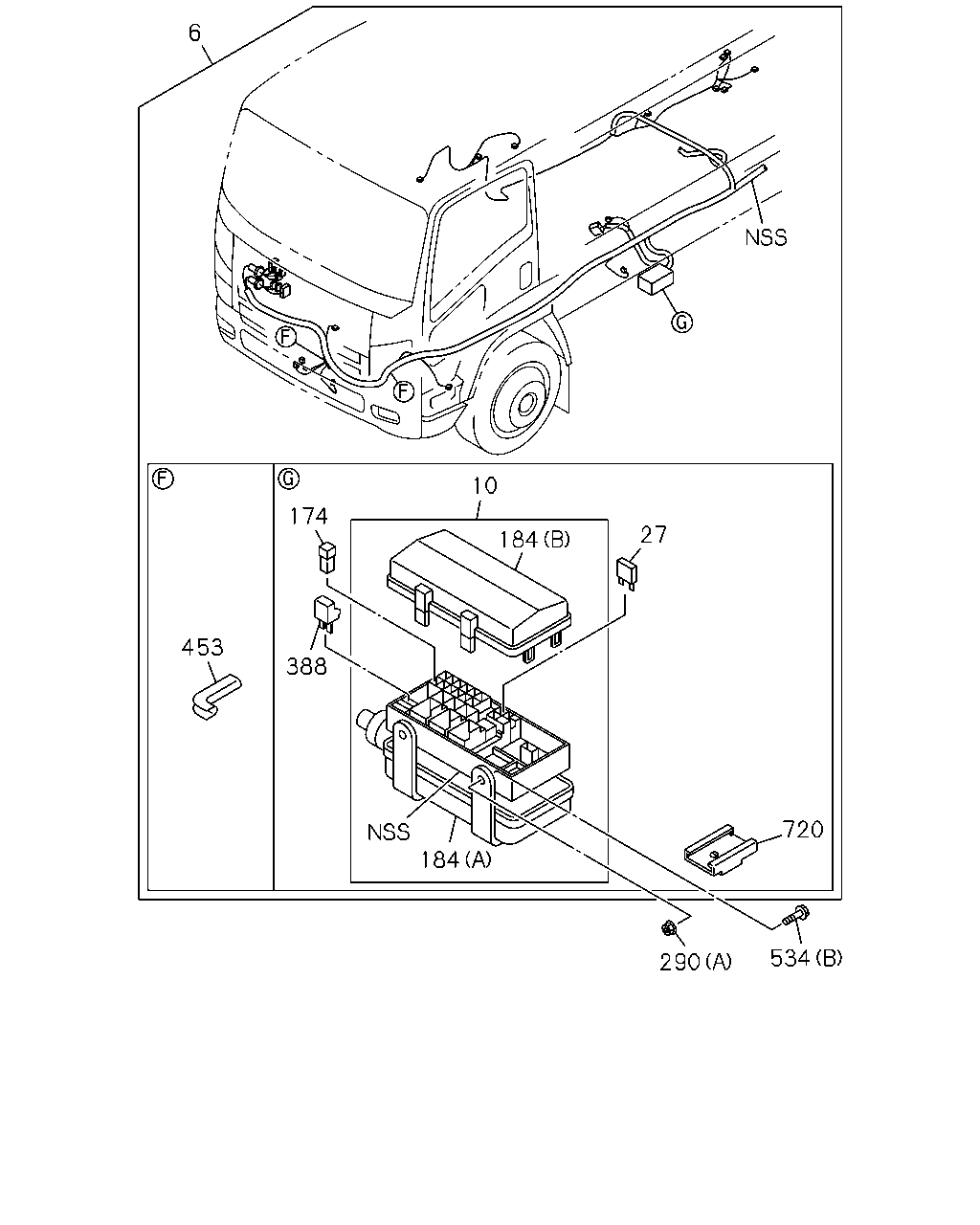

çizim 382142
6 453 388 174 184 184 10 27 290 720 534
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME 8-98225-738-2 01 1 1310-
10 BOX; FUSE,HARNESS 8-98030-762-0 01 1 1310-
27 FUSE UNIT
10A RED 		8-98054-257-0 01 1 1310-
27 FUSE UNIT
15A BLUE 		8-98054-258-0 01 1 1310-
27 FUSE UNIT
20A YELLOW 		8-98054-259-0 01 1 1310-
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 01 1 1310-
174 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 01 1 1310-
174 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 02 1 1310-
174 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 03 1 1310-
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 02 1 1310-
184 COVER; RELAY & FUSE BOX
(A) 		8-98030-766-0 01 1 1310-
184 COVER; RELAY & FUSE BOX
(B) 		8-98030-767-1 01 1 1310-
290 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 05 1 1310-
290 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 04 1 1310-
388 DIODE; RELAY BOX
BLACK 2P-1.5A 		8-94422-639-1 01 1 1310-
453 PROTECTOR; HARNESS 1-82699-709-0 03 1 1310-
534 BOLT
(A) M10X55 FLANGE 		8-97365-449-0 03 1 1310-
534 BOLT
(C) M8X30 FLANGE 		0-28650-830-0 01 1 1310-
534 BOLT
(B) M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1310-
534 BOLT
(D) M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 1310-
720 ATTACHMENT; CONNECTOR 1-82699-688-0 03 1 1310-
çizim 382203
102 534 534 534 28 479 558 290 525 295 293 290 540 280 102 267 535 639 535 639 267 534 639 102 267 267 535
BalonParca AdiParca NoAdetTipApplied Date
28 SCREW; FUSE BOX
T25 M5X12 TAPPING HEXALOBULAR 		8-98081-722-0 01 1 1310-
102 BOLT; BRKT,HARNESS CONNECTOR
(A) M8X16 FLANGE 		0-28050-816-0 03 1 1310-
102 BOLT; BRKT,HARNESS CONNECTOR
(C) M10X16 FLANGE 		0-28151-016-0 03 1 1310-
102 BOLT; BRKT,HARNESS CONNECTOR
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1310-
267 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1310-
267 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1310-
267 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 1310-
267 BOLT; BRKT
(D) M10X30 FLANGE 		0-28651-030-0 01 1 1310-
280 NUT; BOX ASM FIX
M6 FLANGE 		0-91180-106-0 04 1 1310-
290 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 05 1 1310-
290 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 04 1 1310-
293 NUT
M8 FLANGE 		0-91180-108-0 01 1 1310-
295 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1310-
479 CAP; CONNECTOR 1-82690-667-0 01 1 1310-
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 04 1 1310-
534 BOLT
(A) M10X55 FLANGE 		8-97365-449-0 03 1 1310-
534 BOLT
(C) M8X30 FLANGE 		0-28650-830-0 01 1 1310-
534 BOLT
(B) M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1310-
534 BOLT
(D) M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 1310-
535 BOLT; BRKT FIX
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1310-
535 BOLT; BRKT FIX
(C) M8X25 FLANGE 		0-28650-825-0 01 1 1310-
535 BOLT; BRKT FIX
(A) M8X10 W/LK WASHER 		8-98029-928-0 02 1 1310-
540 NUT; BRKT FIX
M6 FLANGE 		0-91180-106-0 03 1 1310-
558 CONNECTOR; HARNESS 1-82690-668-0 01 1 1310-
639 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1310-
639 BOLT; CLIP
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1310-
639 BOLT; CLIP
(C) M8X30 FLANGE 		0-28650-830-0 02 1 1310-

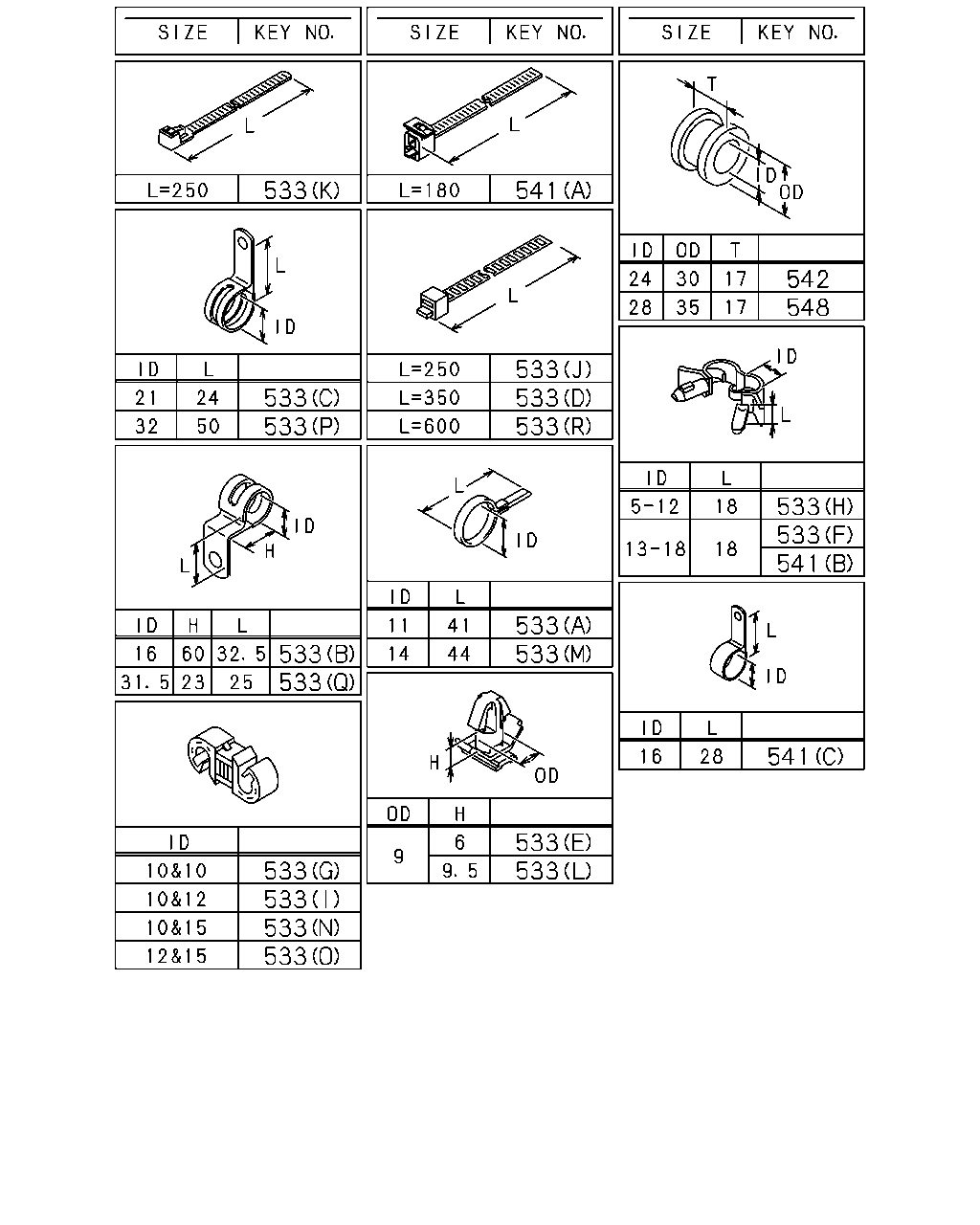

çizim 382280
533 541 542 548 533 533 541 541 533 533 533 533 533 533 533 533 533 533 533 533 533 533 533
BalonParca AdiParca NoAdetTipApplied Date
533 CLIP
(I) ID=10 & 12 		1-09709-278-1 01 1 1310-
533 CLIP
(O) ID=12 & 15 		1-09709-281-1 01 1 1310-
533 CLIP
(B) ID=16 H=60 L=32.5 		1-09700-214-0 01 1 1310-
533 CLIP
(A) ID=11 L=41 		1-09700-403-0 01 1 1310-
533 CLIP
(Q) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1310-
533 CLIP
(P) ID=32 L=50 		1-09701-055-1 01 1 1310-
533 CLIP
(R) L=600 		1-09707-107-1 02 1 1310-
533 CLIP
(J) L=250 		1-09707-126-0 02 1 1310-
533 CLIP
(D) L=350 		1-09707-183-0 01 1 1310-
533 CLIP
PTO CONTROL<SV6> (D) L=350 		1-09707-183-0 01 1 1310-
533 CLIP
(E) OD=9 H=6 		1-09709-178-0 02 1 1310-
533 CLIP
(L) OD=9 H=9.5 		1-09709-179-0 01 1 1310-
533 CLIP
(G) ID=10 & 10 		1-09709-277-1 03 1 1310-
533 CLIP
(N) ID=10 & 15 		1-09709-279-1 02 1 1310-
533 CLIP
(H) ID=5-12 L=18 		1-09709-287-0 02 1 1310-
533 CLIP
(F) ID=13-18 L=18 		1-09709-291-0 01 1 1310-
533 CLIP
(K) L=250 		5-09707-030-1 04 1 1310-
533 CLIP
(C) ID=21 L=24 		8-94176-807-1 02 1 1310-
533 CLIP
(M) ID=14 L=44 		9-09917-427-0 01 1 1310-
533 CLIP
(M) ID=14 L=44 		9-09917-427-0 18 1 1310-
541 CLIP
(C) ID=16 L=28 		0-95235-556-0 01 1 1310-
541 CLIP
(A) L=180 		1-09707-162-1 01 1 1310-
541 CLIP
(B) ID=13-18 L=18 		1-09709-291-0 02 1 1310-
542 GROMMET; HARNESS
ID=24 OD=30 T=17 		9-09956-092-1 03 1 1310-
548 GROMMET
ID=28 OD=35 T=17 		9-09956-256-2 03 1 1310-

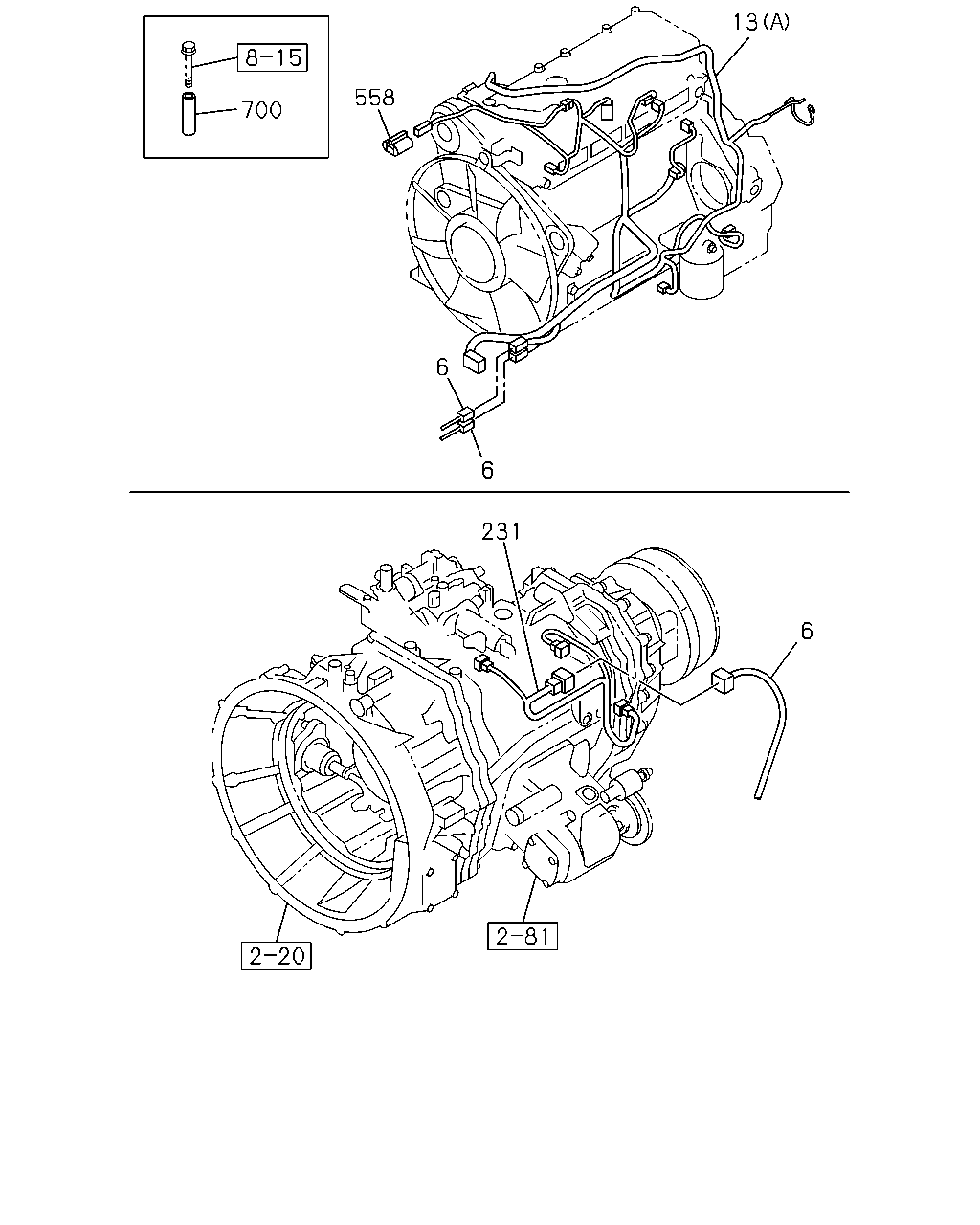

çizim 382313
700 558 6 6 13 231 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME 8-98225-738-2 01 1 1310-
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A) 		8-98209-665-4 01 1 1310-1406
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A) 		8-98274-087-0 01 1 1407-
13 HARNESS; ENG
(B) 		8-98203-297-0 01 1 1310-
13 HARNESS; ENG
GENERATOR 24V50A(K89) (A) 		8-98209-664-4 01 1 1310-1406
13 HARNESS; ENG
GENERATOR 24V50A(K89) (A) 		8-98274-086-0 01 1 1407-
231 HARNESS; TRANS 8-98151-320-1 01 1 1310-
558 CONNECTOR; HARNESS 1-82690-668-0 01 1 1310-
700 TUBE; DISTANCE
L=51 		1-11369-157-0 02 1 1310-
700 TUBE; DISTANCE
ID=9 OD=18 T=5 		9-14149-173-0 01 1 1310-

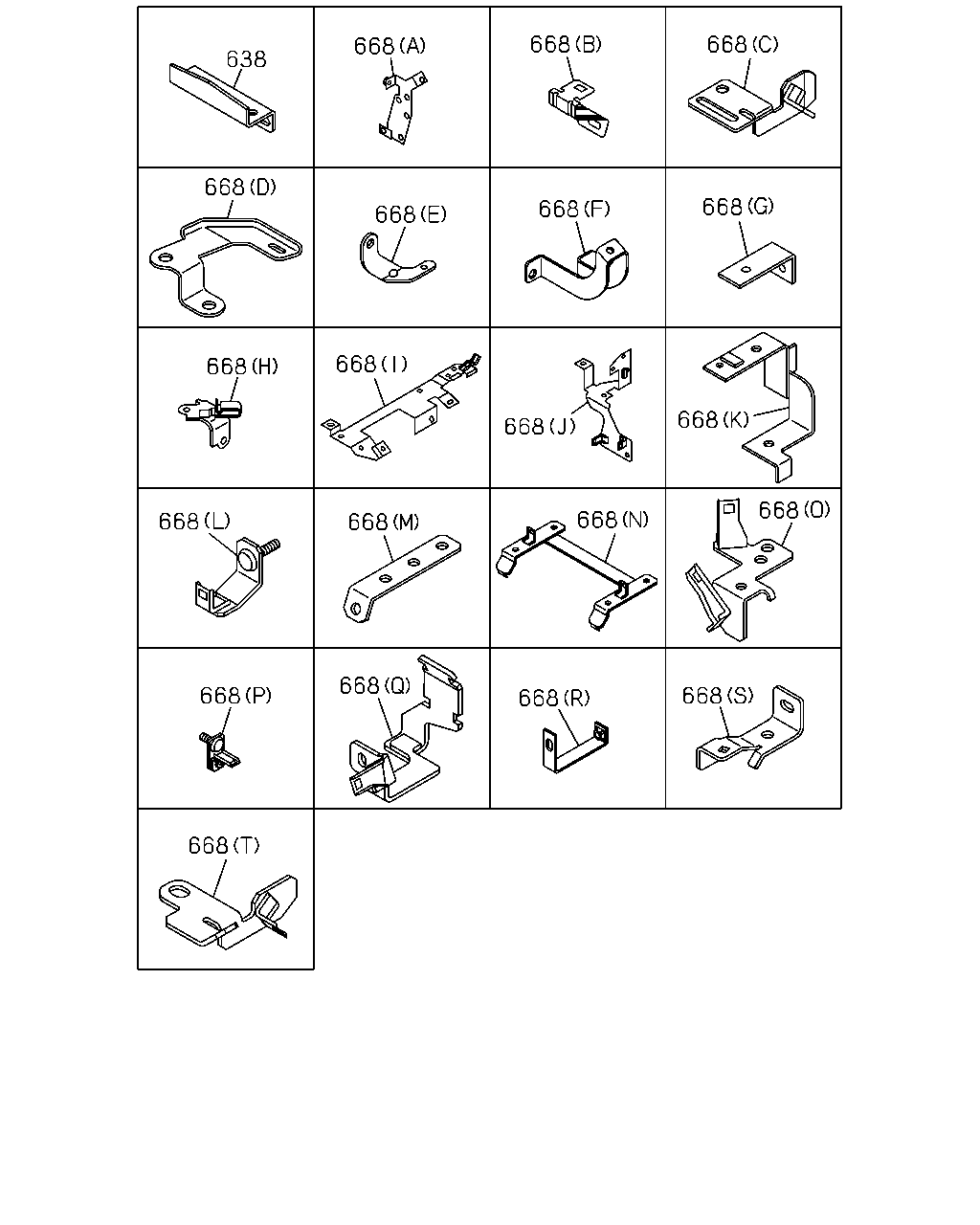

çizim 382345
668 668 668 668 668 668 668 668 668 668 668 668 668 668 668 668 668 638 668 668 668
BalonParca AdiParca NoAdetTipApplied Date
638 BRACKET; SPD SENSOR 8-98012-580-1 02 1 1310-
668 BRACKET; HARNESS
(E) 		8-98009-245-0 01 1 1310-1408
668 BRACKET; HARNESS
(E) 		8-98273-295-0 01 1 1409-
668 BRACKET; HARNESS
(F) 		8-98011-484-0 01 1 1310-
668 BRACKET; HARNESS
(A) 		8-98024-765-0 01 1 1310-
668 BRACKET; HARNESS
(H) 		8-98061-780-0 01 1 1310-
668 BRACKET; HARNESS
(I) 		8-98200-797-3 01 1 1310-
668 BRACKET; HARNESS
(S) 		8-98240-490-0 01 1 1310-
668 BRACKET; HARNESS
(D) 		8-98240-491-0 01 1 1310-
668 BRACKET; HARNESS
(G) L=55 		1-47475-304-0 01 1 1310-
668 BRACKET; HARNESS
(M) 		1-82698-167-0 01 1 1310-
668 BRACKET; HARNESS
(L) 		8-97612-957-1 01 1 1310-
668 BRACKET; HARNESS
(C) 		8-97616-305-0 01 1 1310-1502
668 BRACKET; HARNESS
(T) 		8-98254-592-0 01 1 1503-
668 BRACKET; HARNESS
(N) 		8-98047-276-1 01 1 1310-
668 BRACKET; HARNESS
(B) 		8-98095-653-2 01 1 1310-
668 BRACKET; HARNESS
(Q) 		8-98151-455-3 01 1 1310-
668 BRACKET; HARNESS
(R) 		8-98152-414-2 01 1 1310-
668 BRACKET; HARNESS
(J) 		8-98158-109-1 01 1 1310-
668 BRACKET; HARNESS
(O) 		8-98168-184-0 01 1 1310-
668 BRACKET; HARNESS
(P) 		8-98171-607-0 01 1 1310-
668 BRACKET; HARNESS
(K) 		8-98207-043-0 01 1 1310-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
