Isuzu WW
▶
TRUCKS
▶
FRR
▶
11546 - FRR RHD EUROPE EURO6 EXC.SPACECAB
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-03 - LAMP; REAR AND REAR SIDE
▶

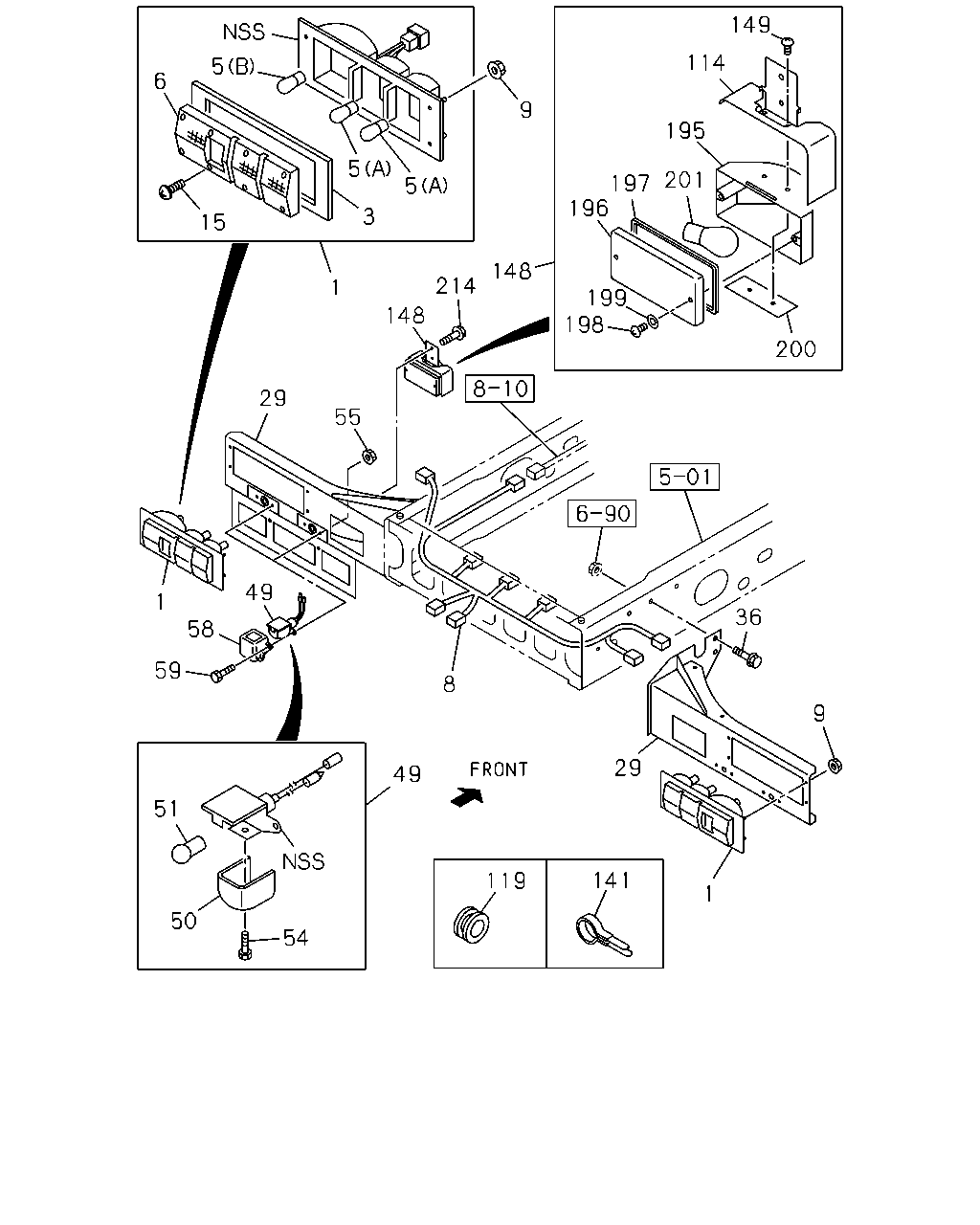

8-03 — LAMP; REAR AND REAR SIDE
(#128476) — 35 parça
6
5
9
5
5
3
15
149
114
195
201
197
196
200
199
198
148
214
148
55
29
36
9
29
1
141
119
49
8
49
58
59
51
54
50
1
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; RR COMB
8-98223-615-0
01
1
1310-
1
LAMP ASM; RR COMB
8-98223-616-0
01
1
1310-
3
GASKET; RR COMB LAMP
5-82236-001-0
01
1
1310-
3
GASKET; RR COMB LAMP
5-82236-002-0
01
1
1310-
5
BULB; RR COMB LAMP
(A) 24V 21W
8-98017-972-0
04
1
1310-
5
BULB; RR COMB LAMP
(B) 24V 21/5W
8-98017-973-0
02
1
1310-
6
LENS; RR COMB LAMP
5-82235-001-0
01
1
1310-
6
LENS; RR COMB LAMP
5-82235-002-0
01
1
1310-
8
HARNESS; RR COMB LAMP
8-98203-884-0
01
1
1310-
9
NUT; LAMP,RR COMB
M5 FLANGE
1-09984-170-0
08
1
1310-
15
SCREW; RR COMB LAMP
8-97017-759-0
16
1
1310-
29
BRACKET; LAMP,RR COMB
8-98248-985-0
01
1
1310-
29
BRACKET; LAMP,RR COMB
8-98248-986-0
01
1
1310-
36
BOLT; BRKT,RR COMB
M10X30 FLANGE
0-28651-030-0
04
1
1310-
49
LAMP; LICENSE PLATE
24V 5W
8-97105-380-0
02
1
1310-
50
LENS; LICENSE PLATE LAMP
8-97108-212-0
02
1
1310-
51
BULB; LICENSE PLATE LAMP
24V 5W
1-82194-039-0
02
1
1310-
54
SCREW; LICENSE PLATE LAMP
M4X8
8-94419-312-0
02
1
1310-
55
NUT; LICENSE PLATE LAMP
M5 FLANGE
1-09984-170-0
04
1
1310-
58
COVER; LICENSE PLATE LAMP
8-97076-590-1
02
1
1310-
59
SCREW; TAP,LICENSE LAMP BODY
M5X20
9-93490-520-0
04
1
1310-
114
BRACKET; RR FOG LAMP
8-97108-583-0
01
1
1310-
119
GROMMET; HARNESS
ID=28 OD=35 T=17
9-09956-256-2
02
1
1310-
141
CLIP; LICENSE & BODY HARNESS
ID=11 L=41
1-09700-403-0
02
1
1310-
141
CLIP; LICENSE & BODY HARNESS
ID=14 L=44
9-09917-427-0
07
1
1310-
148
LAMP ASM; RR FOG
8-97181-000-0
01
1
1310-
149
SCREW; BRKT TO LAMP BODY
8-94336-372-0
02
1
1310-
195
LAMP UNIT; RR FOG
8-94336-322-0
01
1
1310-
196
LENS; RR FOG LAMP
8-94336-325-0
01
1
1310-
197
GASKET; RR FOG LAMP
8-94336-324-0
01
1
1310-
198
SCREW; LENS TO BODY
0-71190-416-0
02
1
1310-
199
WASHER; LENS,RR FOG LAMP
8-94336-326-0
02
1
1310-
200
PLATE; SET,RR FOG LAMP
8-94336-323-0
01
1
1310-
201
BULB; RR FOG LAMP
24V 21W
1-82194-036-0
01
1
1310-
214
BOLT; RR FOG LAMP
M6X16 FLANGE
0-28650-616-0
01
1
1310-
